Name: XHorse Smart Key Box work with Smart Phone
Description:
XHorse XDSKE0EN Smart Key Box Bluetooth Adapter works with XHorse Key Tool Plus / XHorse VVDI2 / XHorse VVDI Key Tool Max / XHorse VVDI Mini Key Tool.
XHorse Smart Key Box is a newly launched product by XHorse. It helps users achieve a non-remote driving experience. By installing the tool into your car, your smart phone is able to work as an independent car key. Usually, it inherits all of the functions of your original remote, including lock, unlock, panic and trunk. Furthermore, keyless entry is also a function that can be performed on your smart phone.
Highlights:
1. Smart APP control, using a mobile phone app via Bluetooth connection
2. Use VVDI device to generate remote control
3. One device supports maximum 6 mobile phones and 6 smart keys
4. Great security, simple installation and reliable performance, no need to disassemble
5. It adopts advanced RF technology and is suitable for the car with push start function.
6. Support to add smart key for car
7. Support to add or modify the keyless-enter function
8. Wide supported car range
9. Supported device: XHorse Key Tool Plus, XHorse VVDI2, XHorse VVDI Key Tool Max, XHorse VVDI Mini Key Tool
How To Install Xhorse Smart Key Box?

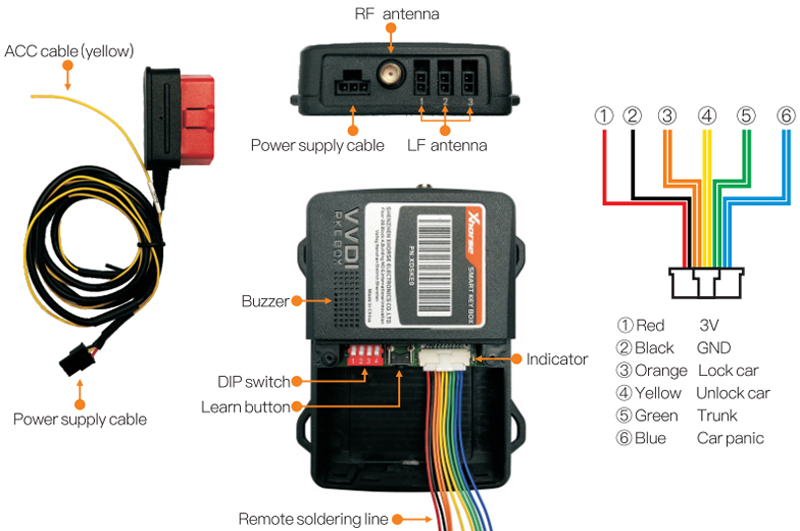

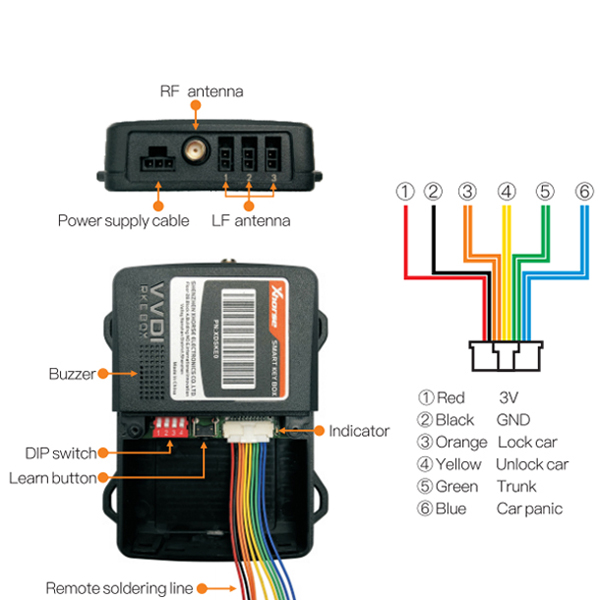

1. Take out the original remote control, solder the cable according to the soldering diagram of the original remote control, pay attention to the direction.

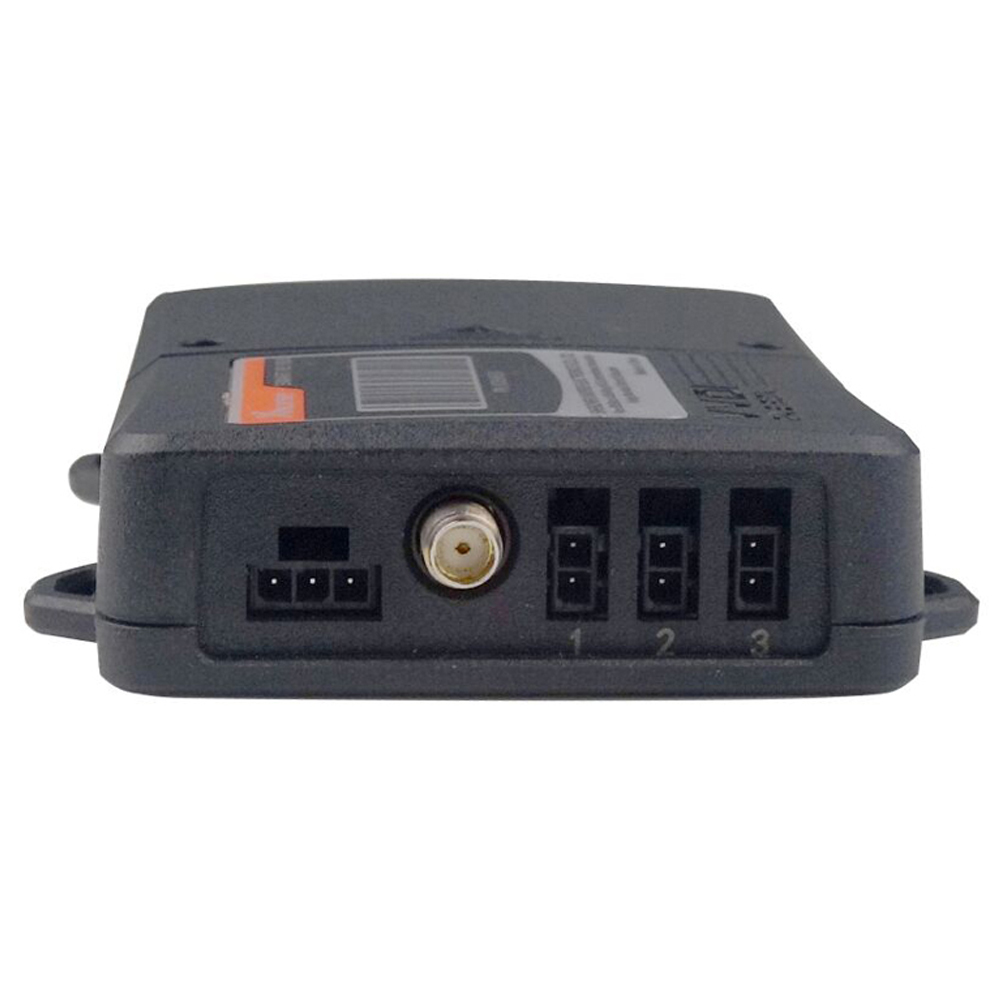

2. Connect the RF antenna, LF antenna (connect any two interfaces of LF antenna), and the original remote control to be transferred.
3. Find the Vbat wire and ground wire from fuse box, OBD interface or other locations.
4. Find the ACC signal line(the original car radio, the line with electricity after the navigation power on or the instrument light on).
5. Connect the Vbat wire, ground wire and ACC wire of the power supply cable to the car.
6. Setting DIP switch.
7. Bindings of remote control and mobile phone (refer to binding instruction.
8. Installation completes.
9. After installed, take a key close to the car, test the automatic unlock and lock function if you stay away (test other keys in the same way).
10. Test unlock, lock, trunk and car panic function after connecting with APP.
Notice:
1. The safety level is higher than the original remote control.
2. You can perform "Security Settings" on the "Smart Key Box" APP.
3. Even if the phone is lost, others cannot open your car.
4. You can "turn on verification" in the security settings.
5. Four security verification methods, easy to operate, prevent problems before they happen.
Specifications:

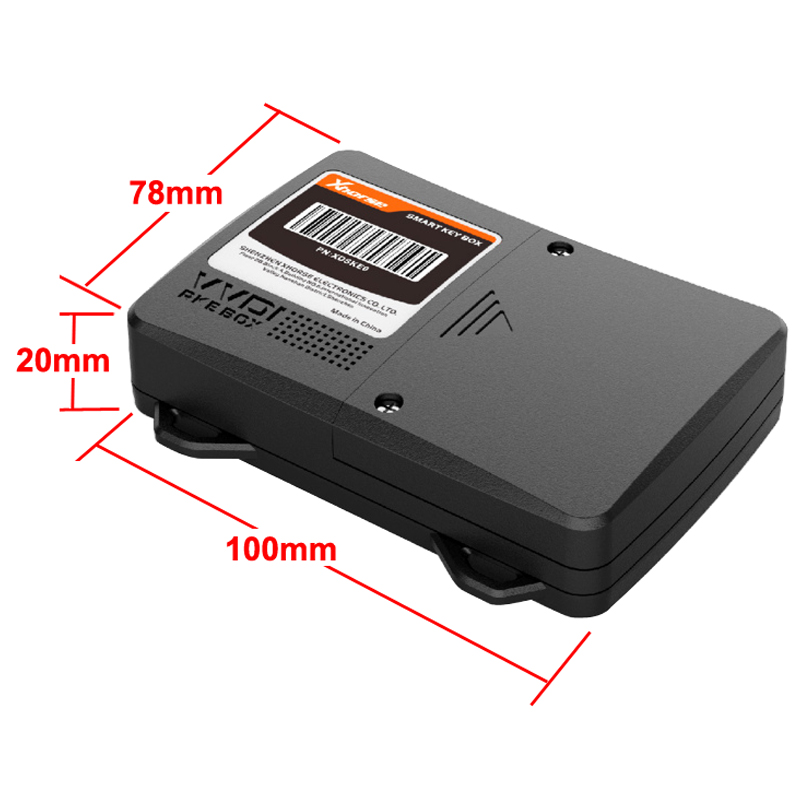

Size: 100*78*20mm
Operating Voltage: 8V - 12V
Quiescent Current: 9mA @ 12V

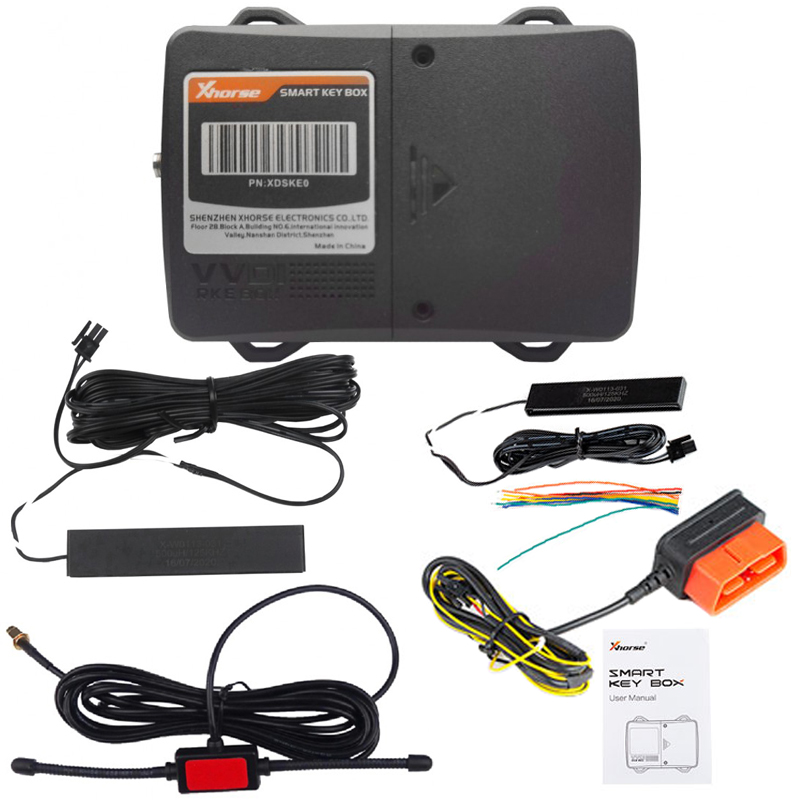

Package List:

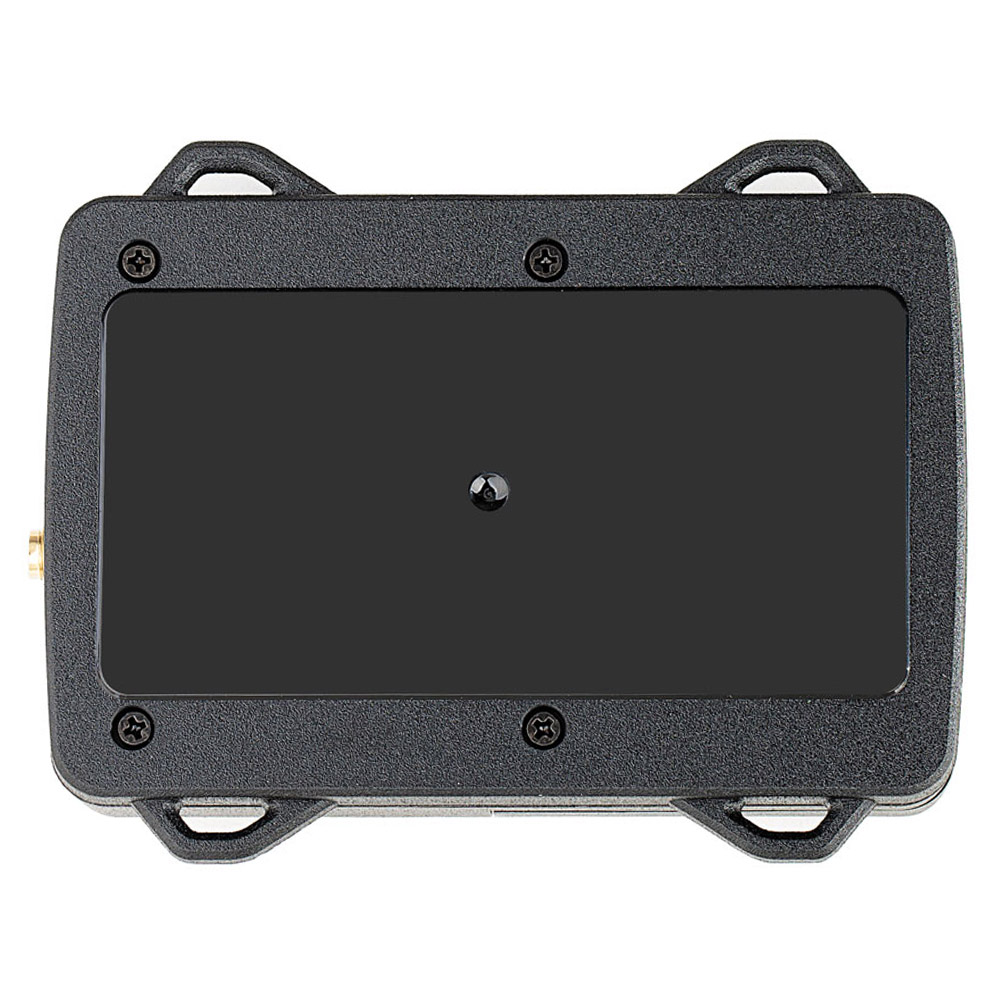

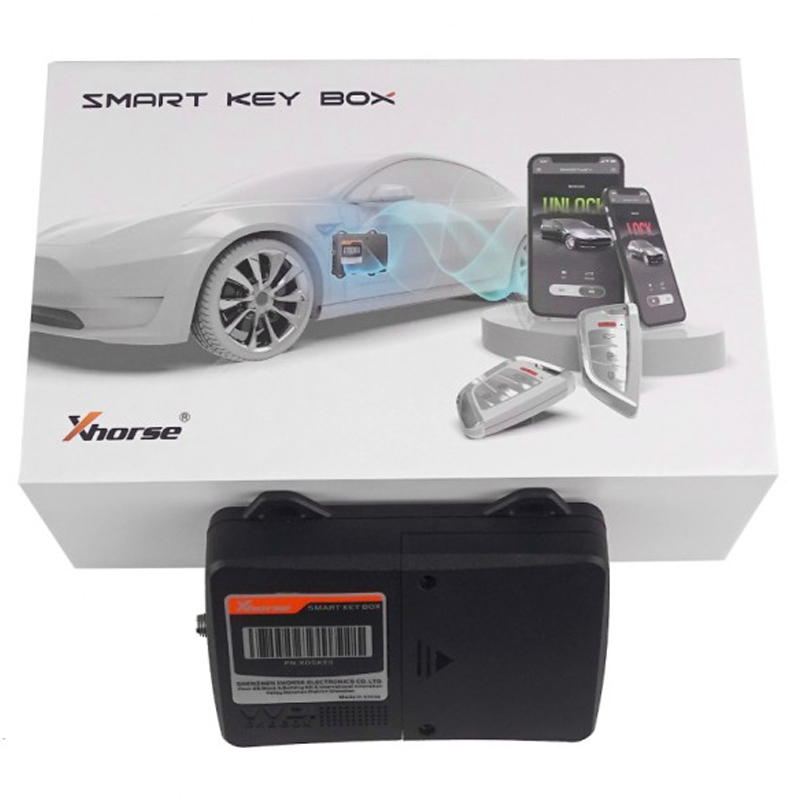

XHorse Smart Key Box

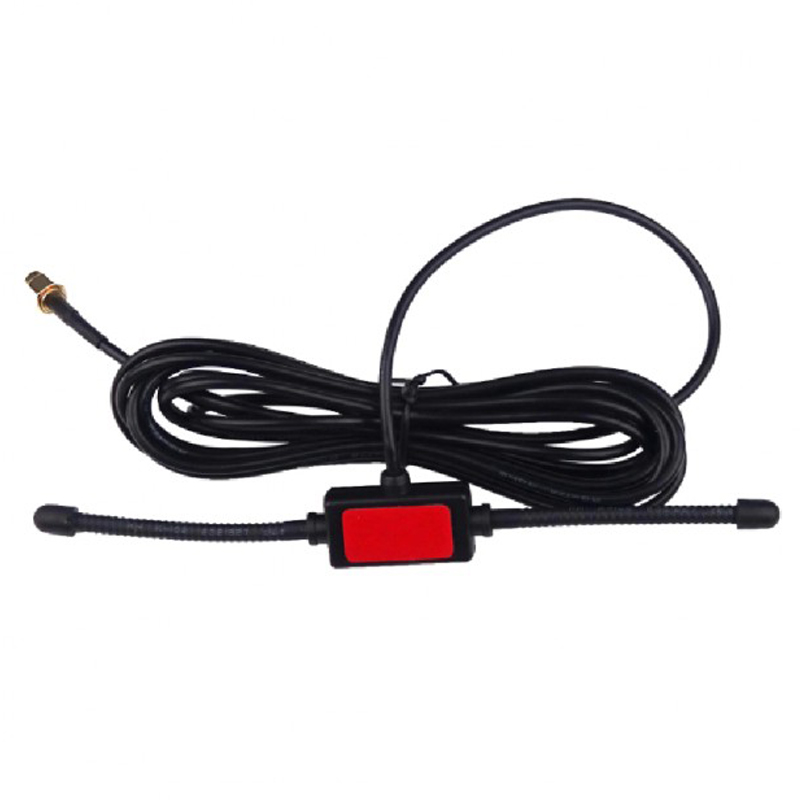

RF Antenna

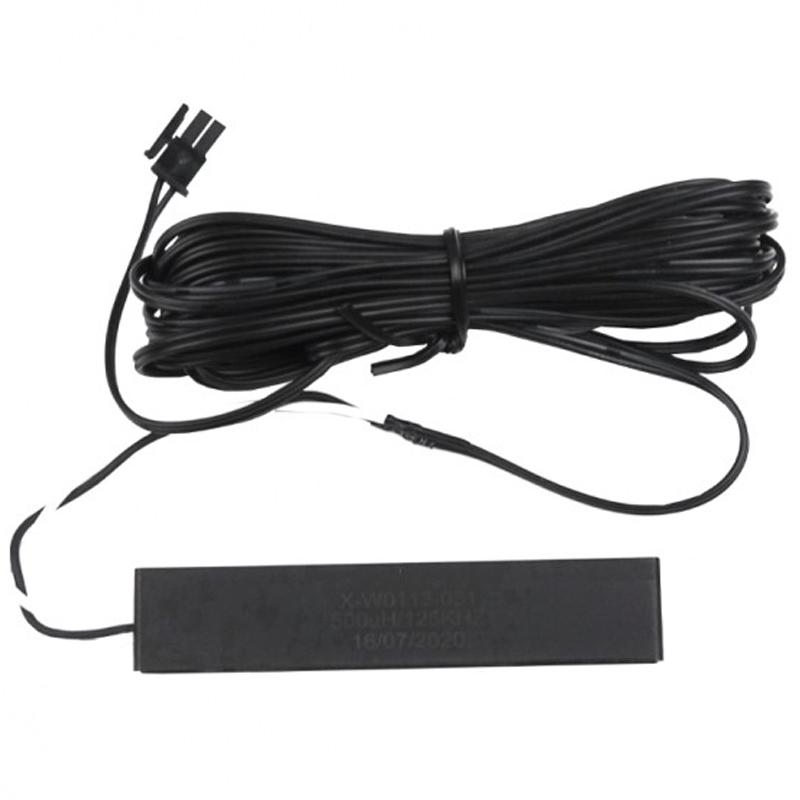

LF Antenna (2 pcs)

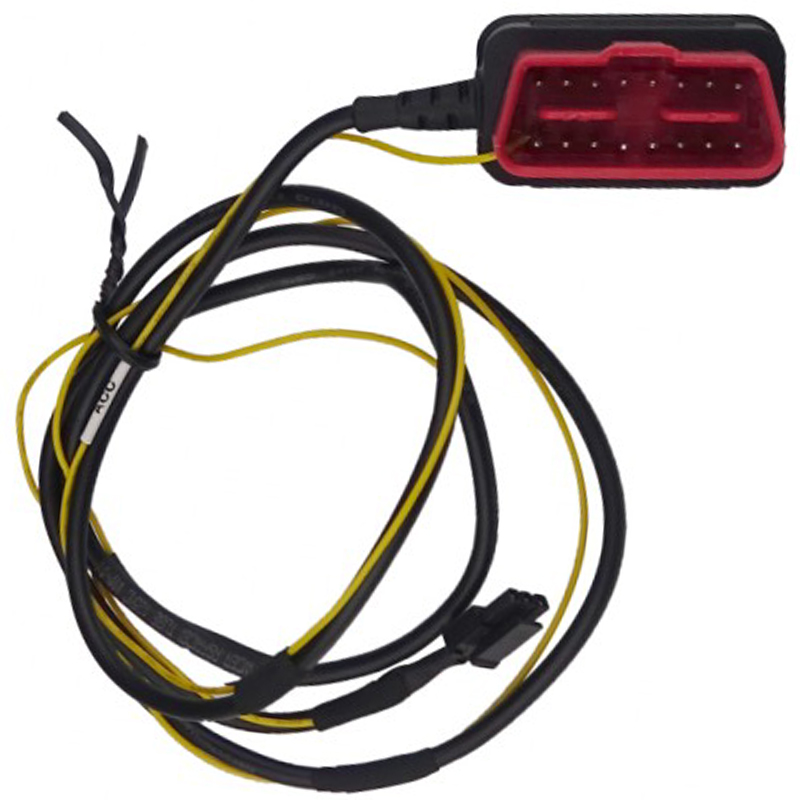

Power Supply Cable
User Manual
Quality Certificate
|
