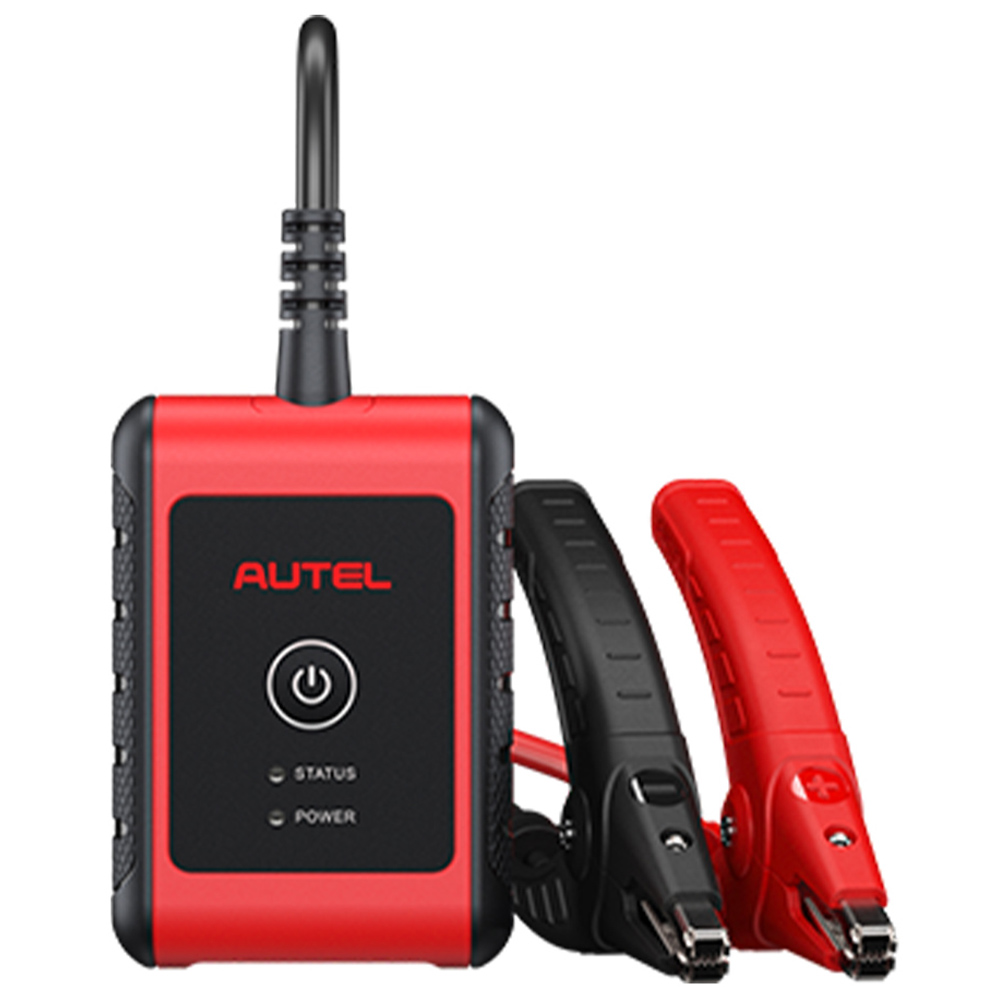

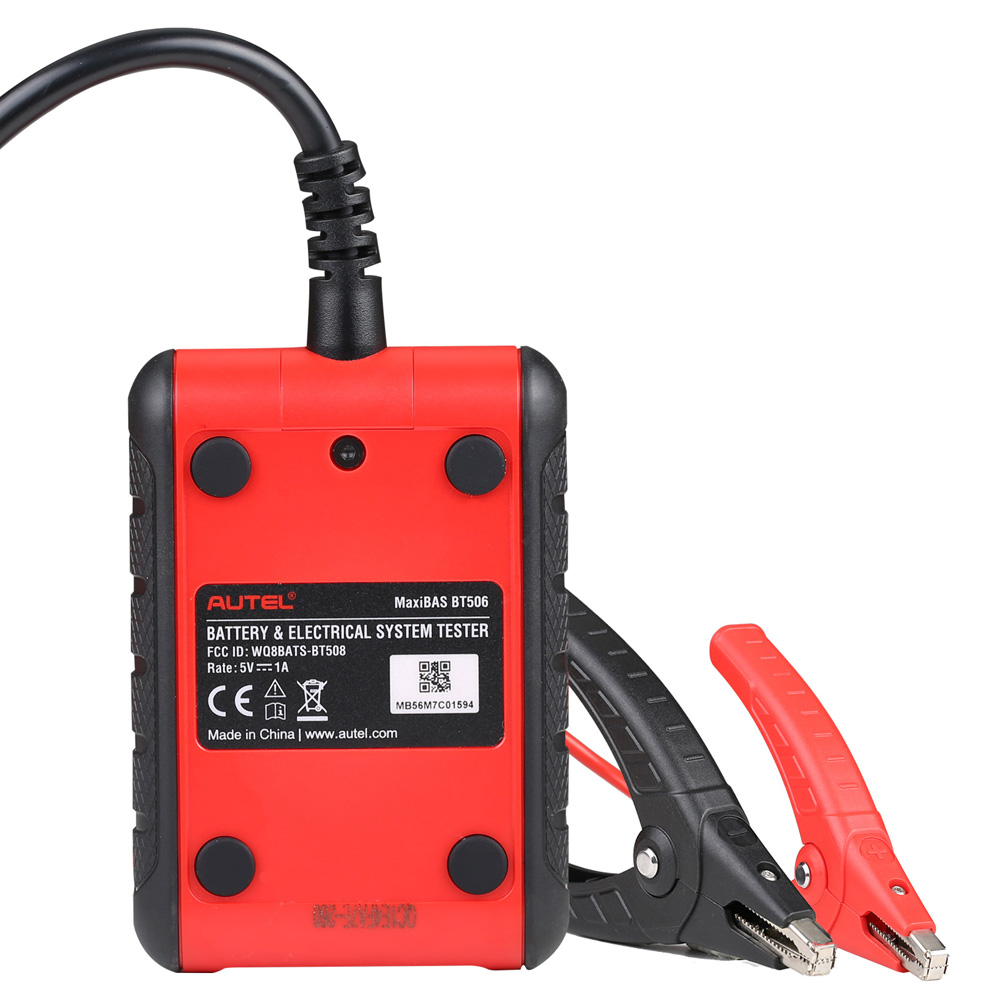

Name: Autel MaxiBAS BT506 Battery Test and Analysis Tool
Description:

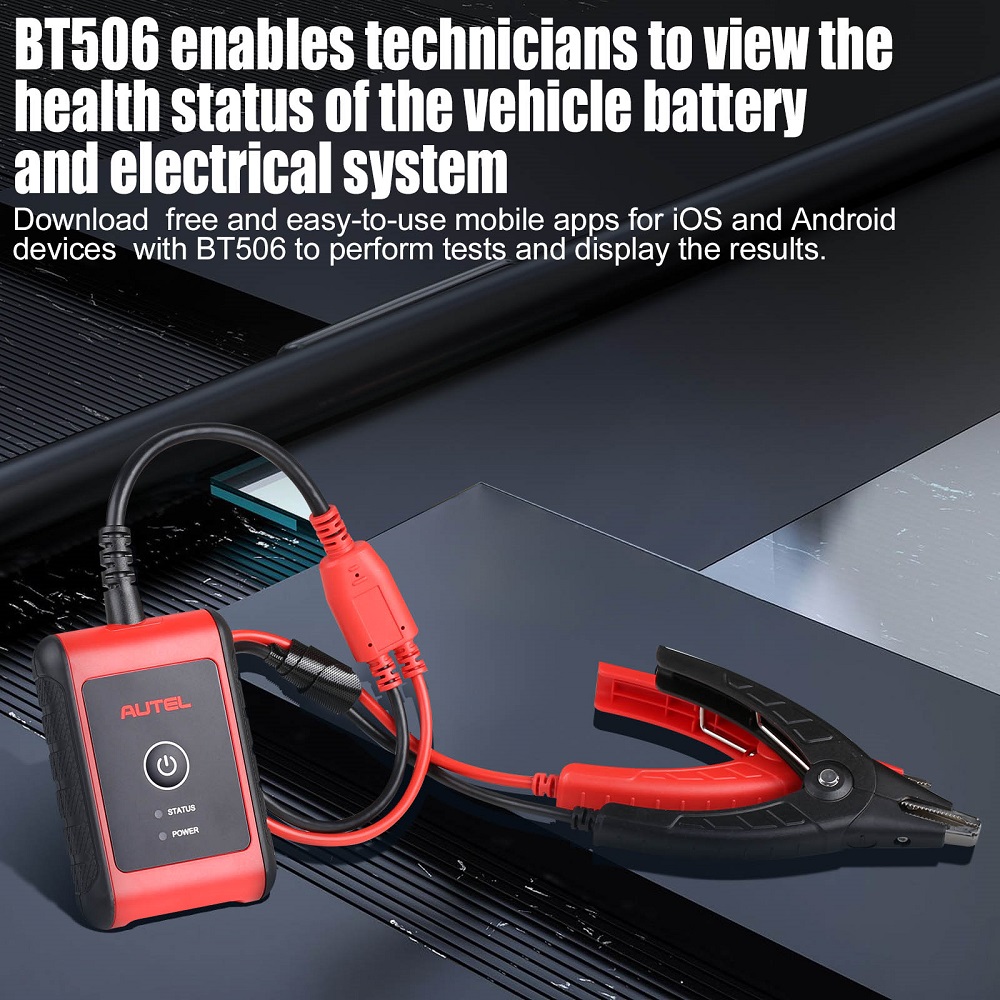

Autel MaxiBAS BT506 Auto Battery and Electrical System Analysis Tool is a battery and electrical system analysis tool that use as Adaptive Conductance an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity. Autel BT506 enables technicians to view the health status of vehicle's battery and electrical system.

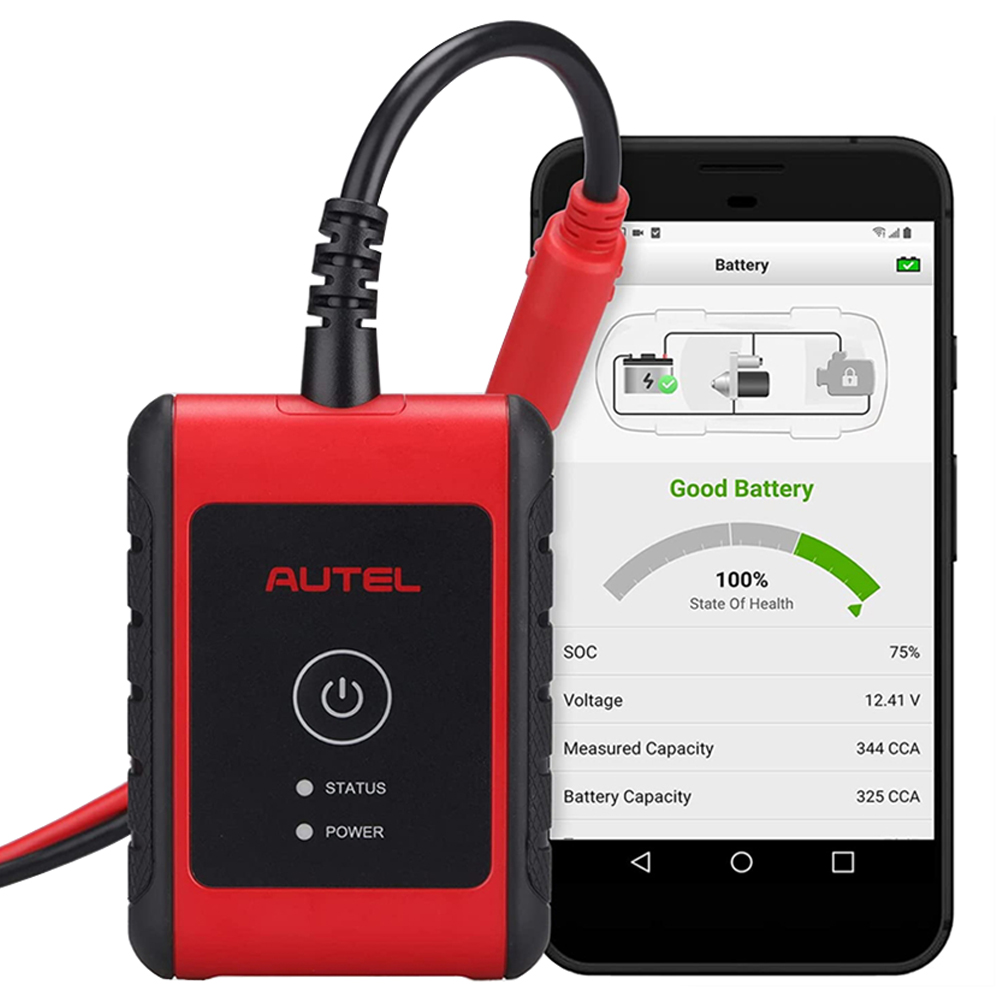

Download the free and easy-to-use mobile APP, available for iOS and Android devices, to use with the Autel MaxiBAS BT506 Battery Tester to perform testing and display test results.
Features:
1. Package includes connected cable with clamps.
2. Test 6- and 12-volt batteries: 100 - 2000 CCA
3. Test 12- and 24-volt cranking / charging systems.
4. Download free app from Google Play and the APP store.
5. Test flooded, AGM, AGM_spiral, EFB and GEL batteries
6. Battery health report / temperature compensation / cloud-based service.
7. Battery ratings: compatible with CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB.
8. Supports in-vehicle and out-of-vehicle testing of passenger vehicle batteries
* Out-of-vehicle battery testing
* In-vehicle testing of battery, starter, charging system voltage (not AMPS)
Specifications:
Connectivity: USB 2.0 / Type C
Bluetooth: V3.0 BR / EDR+ V4.2 LE Dual-Mode
Input Voltage: 5V DC
Working Current: < 150mA @12V DC
CCA Range: 100 to 2000 A
Voltage Range: 6 to 36V
Working Temperature: -10 to 50 degree centigrade
Storage Temperature: -20 to 60 degree centigrade
Note:
Autel BT506 does not have a screen! To perform testing and display test results, MaxiBAS BT506 must be used with an Autel MaxiSys tablet scanner or other Smart Device (free iOS or Android APP is available).
|
