Name: ACDP MB 12 in 1 Interface Board Adapter for ACDP Module 18
Description:
Yanhua ACDP MB 12-in-1 Interface Board Adapter Working with ACDP Module 18.
Features:
1. Mercedes-Benz dedicated interface, no wire separation, quick plug and unplug.
2. Automatically identifies and connects 12 models of Mercedes-Benz DME.
3. Pin automatic detection, safe and reliable, to avoid wiring errors damaged the circuit.
Supported Models:
Support refreshing Mercedes-Benz CR4.XX / CRD2.XX / CR5 / ME9.7 / SMI271KE2.0 / CRD.11 / SIM271DE2.0 / CR3.XX / SIM4LKE / MED17.7X / CR6 / SIM266 DME.
How is Yanhua Mini ACDP connected to MB 12-in-1 Interface Board Adapter on bench?

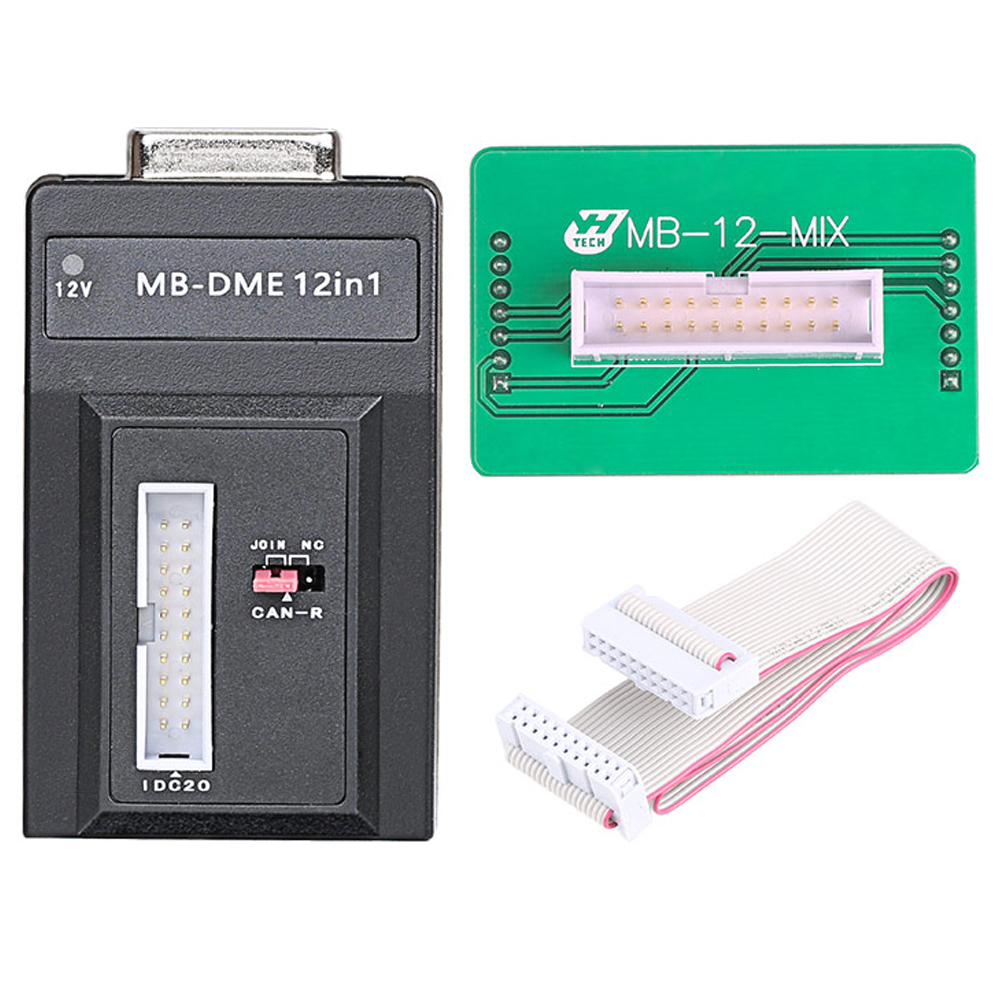

Step 1. Please prepare ACDP, adapter, interface board and DME.

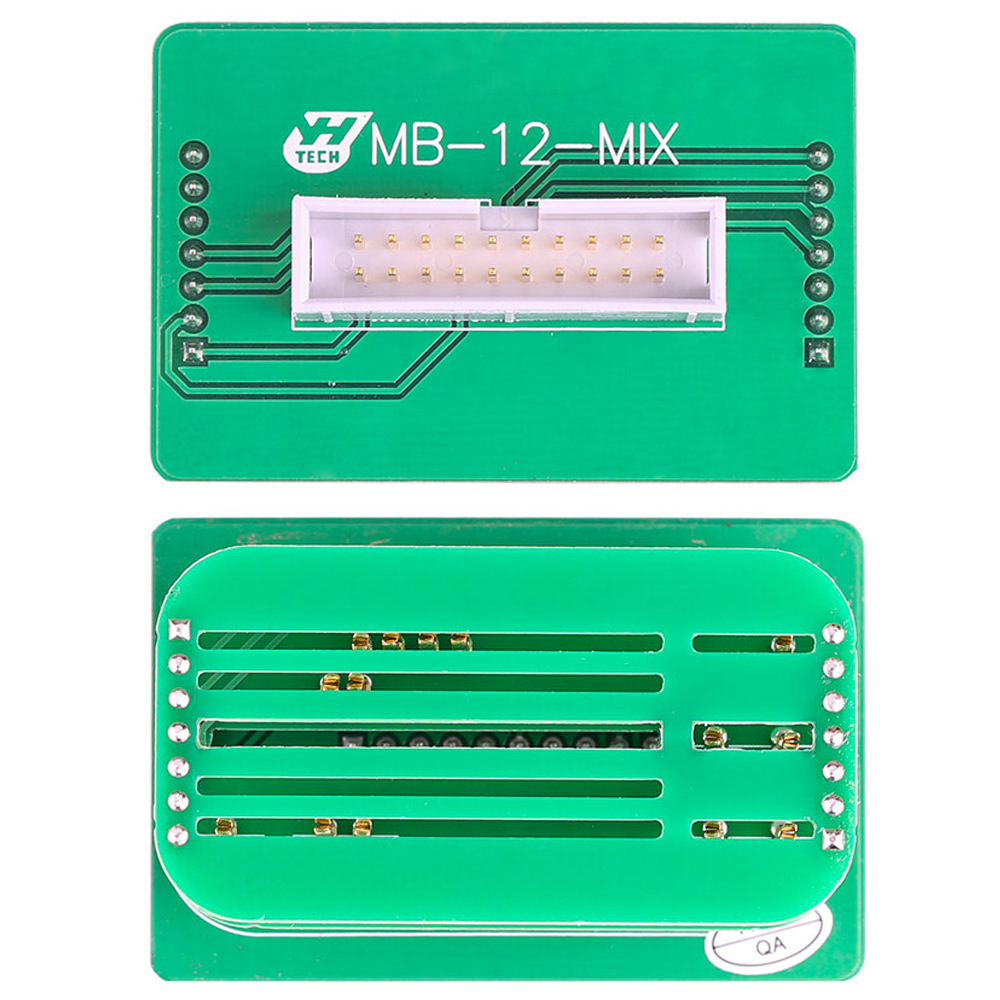

Step 2. Connect the interface board correctly to the DME interface as shown.
Step 3. Shortcircuit the CAN resistor on the adapter to the “CAN-R Join”.
Step 4. Connect ACDP, adapter, interface board and DME.
Notice:
|
