Name: Original Bosch VI3 RNM Diagnostic Tool for Renault Nissan Mitsubishi
Description:
Bosch VI3 RNM Diagnostic Tool for Renault Nissan Mitsubishi Programming and Coding.
Specifications:
Microprocessor: Type I. MX6 Processor
Clock Speed: 800 MHz
RAM SDRAM: 1GB DDR3
ROM NAND Flash: 512MB
Mass Storage: 8GB MicroSD Card
Wired: USB High-Speed Client Port (480 Mbps)
Wireless: 802.11b/g/n on USB Dongle
Bluetooth: 2.0 EDR on USB Dongle

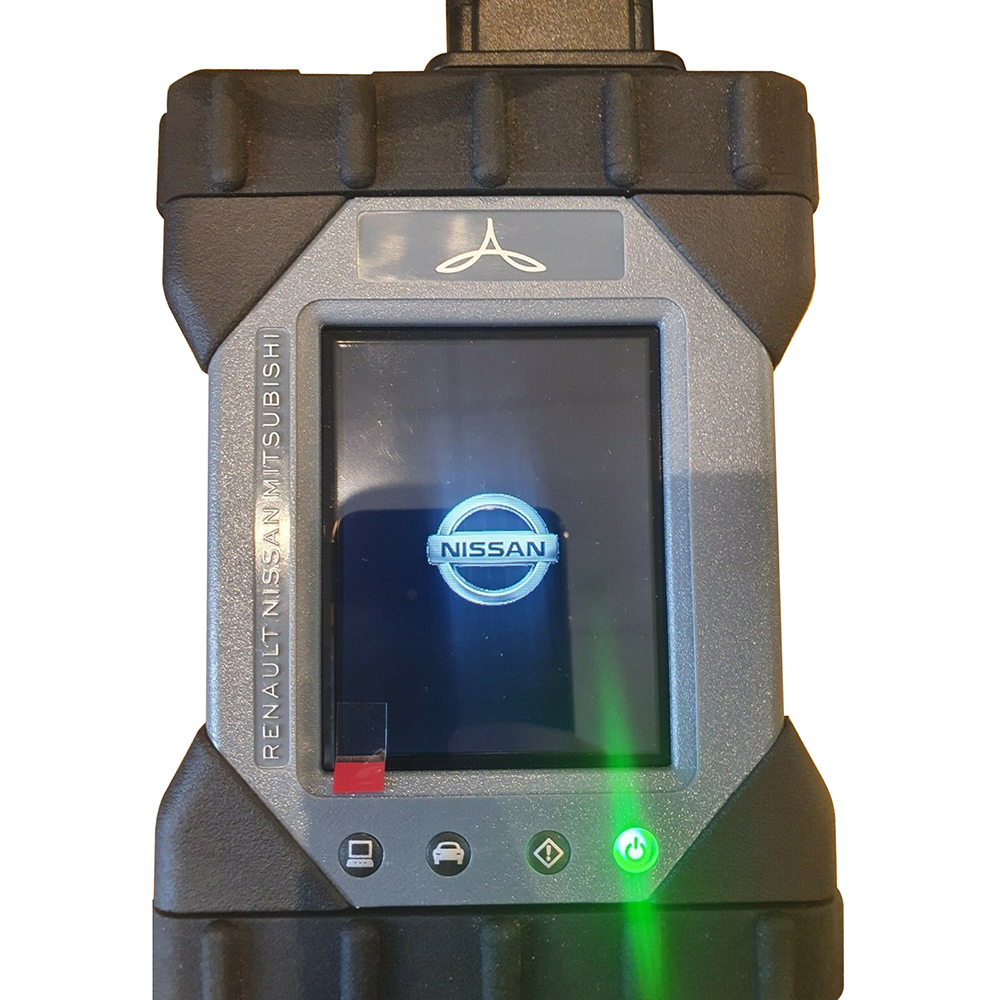

LED: 4 LEDs (2 LEDs are triple color)
Audio: Beeper (software frequency controlled)
Switch: Recovery Switch (for restoration of fail-safe software)
Power Supply: using diagnosis cable from vehicle battery or using USB cable from PC
Power Supply: 750mA
Operating Temperature: -20 to 70 degree centigrade
Storage Temperature: -40 to 80 degree centigrade
Humidity: 30% to 95% @ 25 degree centigrade
Maximum Operating Altitude: 4000m
Weight: 240 grams
Size: 171*118*41mm
Caution:
The diagnostic connector of the vehicle must be protected by a fuse with a maximum rating of 6 amps / 32 volts. 8 V to 28 V.
Degree of protection with the diagnostic connection cable
not connected IP30
Degree of protection with the diagnostic connection cable
connected according to IEC 60529 IP 54, cat. 2
Degree of contamination 2
Diagnosis Connection Cable J1962 (ISO 15031-3)
Voltage Resistance DLC 26 Pin 18 V, CAT 0

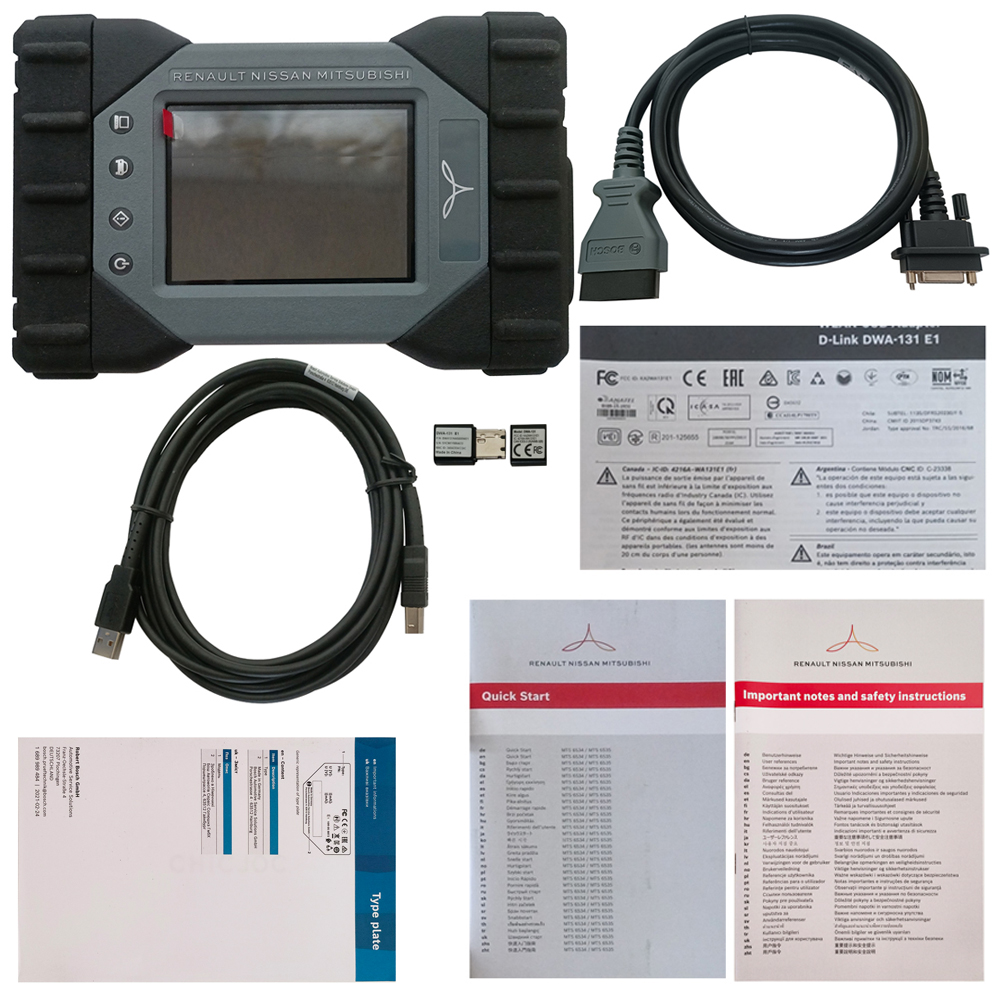

Packing List:

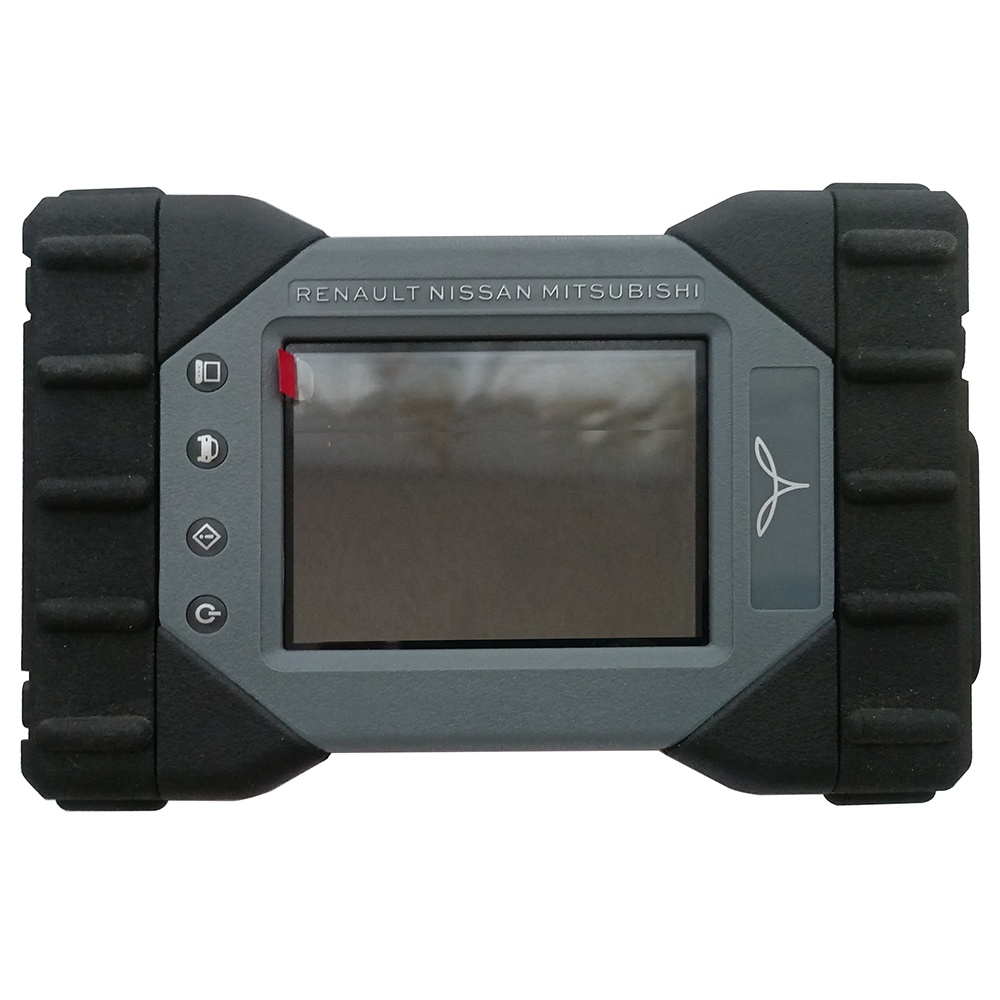

BOSCH MTS 6535 RNM VCI Alliance Unit (Part Number: 1699200633)

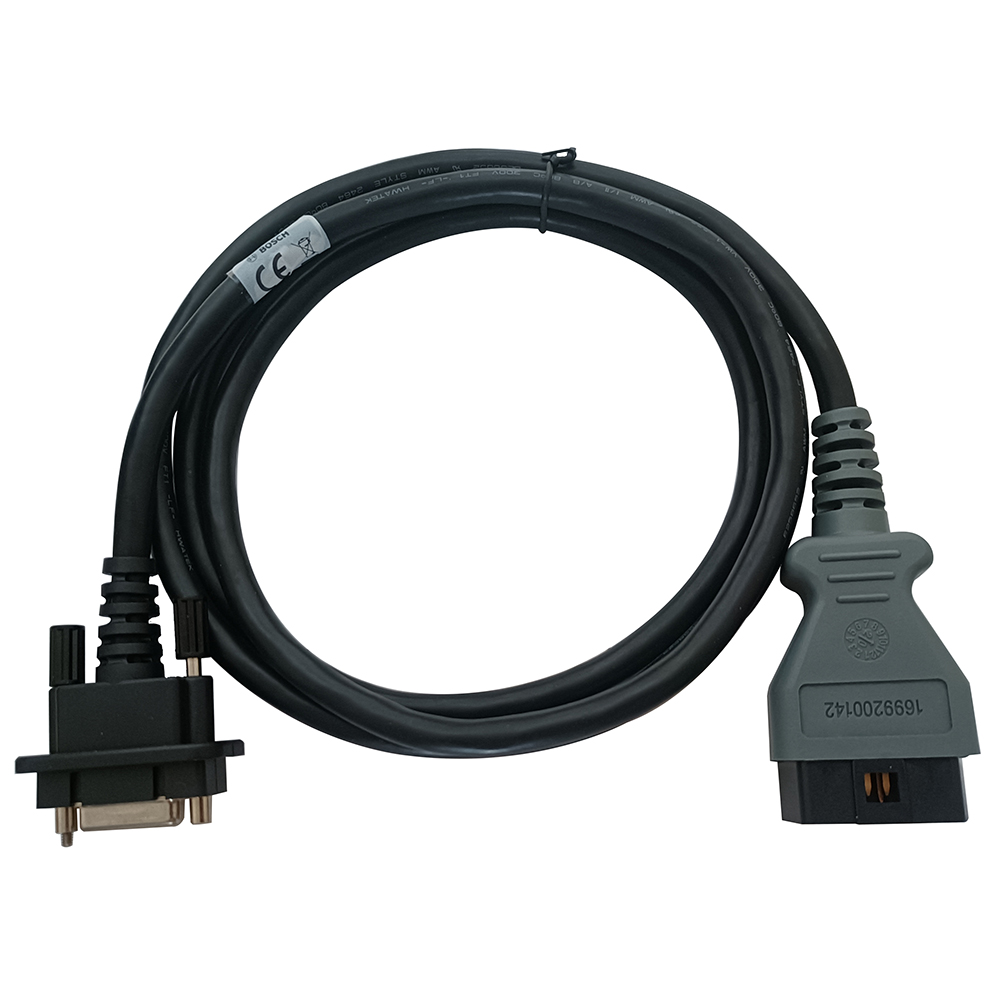

2M 16-Pin OBD2 DLC Cable

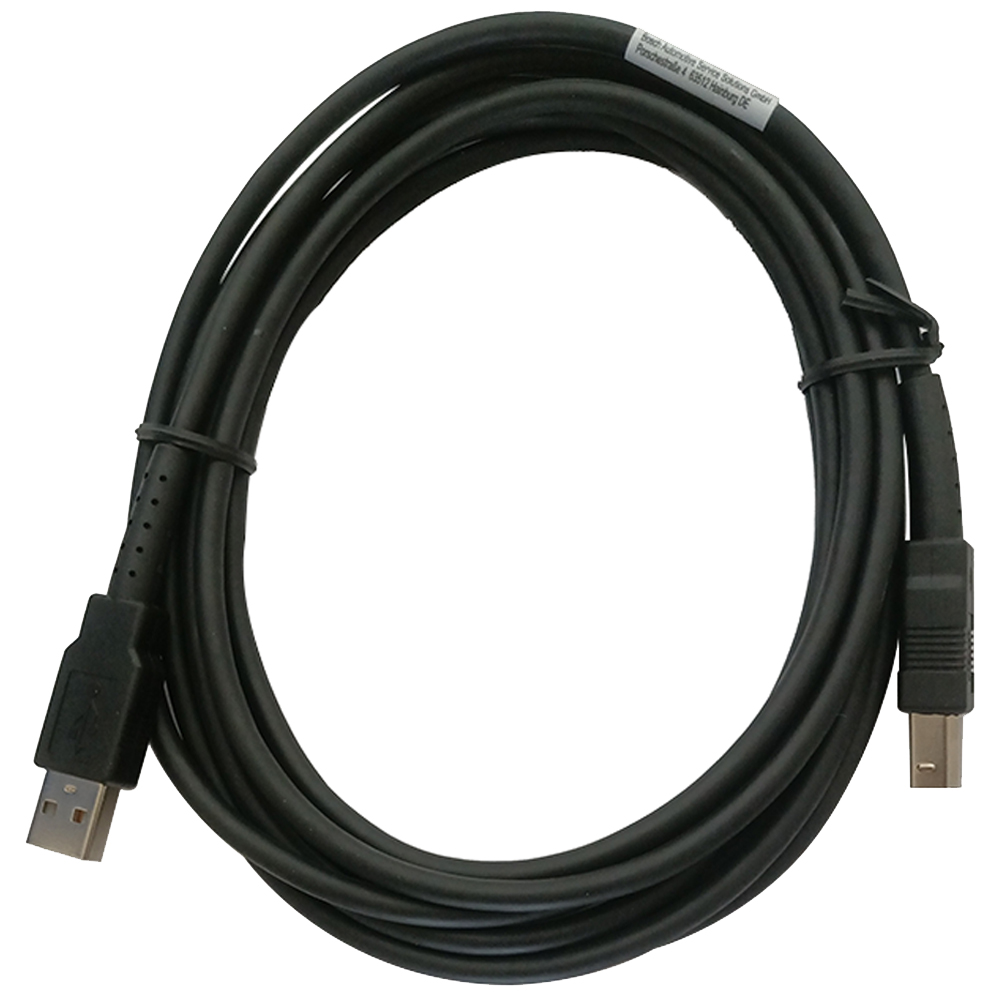

3M Rugged USB Cable

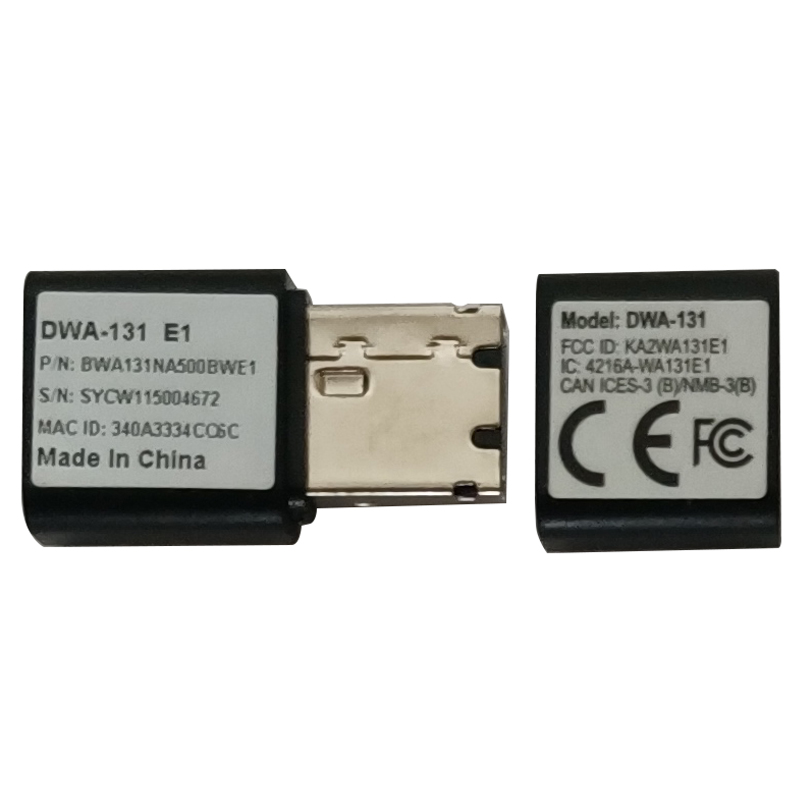

WLAN USB Adapter
VI3 RNM Quick Start

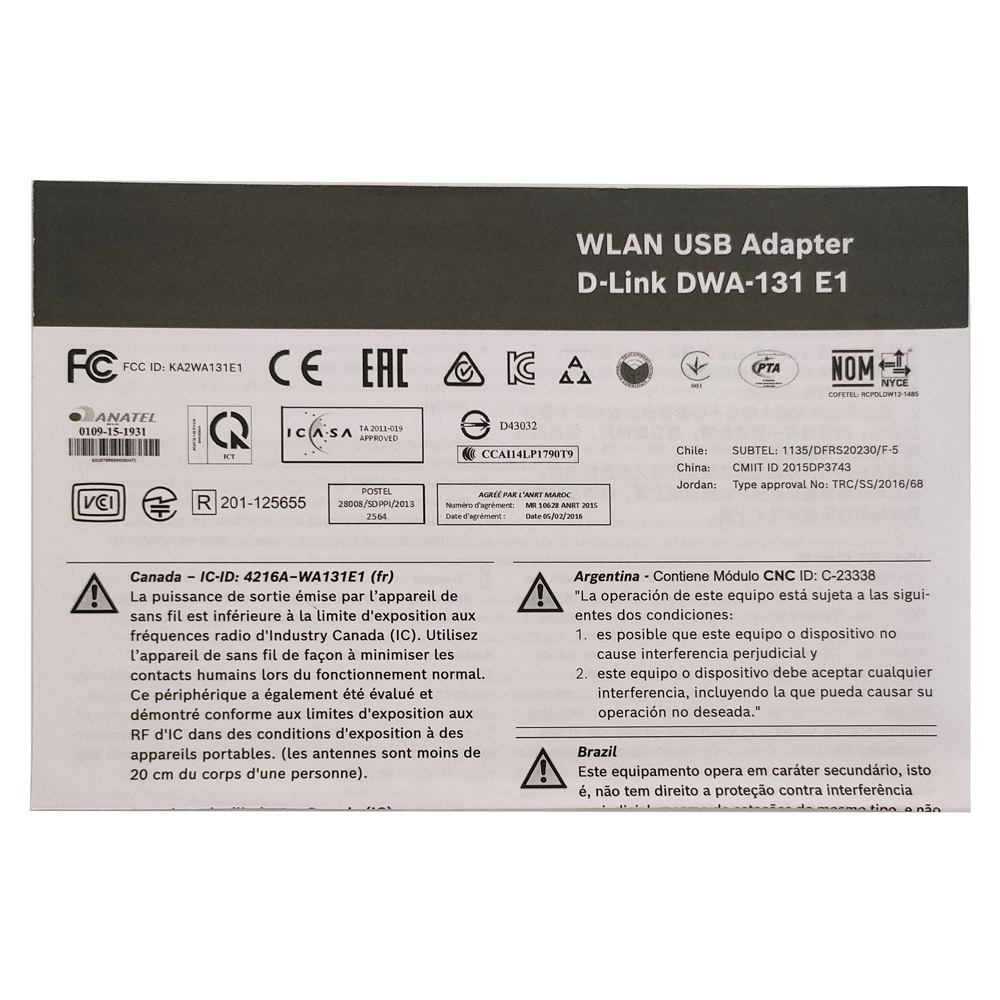

WLAN USB Adapter Quick Start

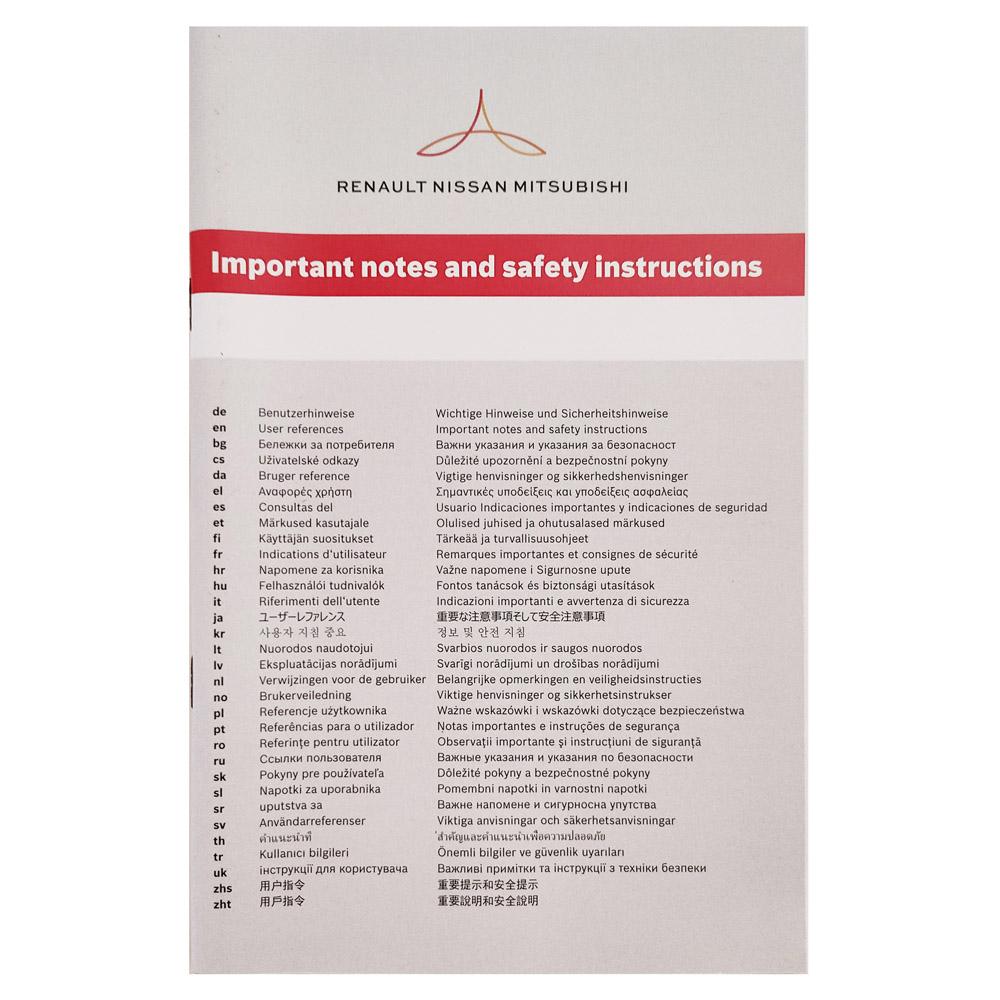

Important Notes and Safety Instructions

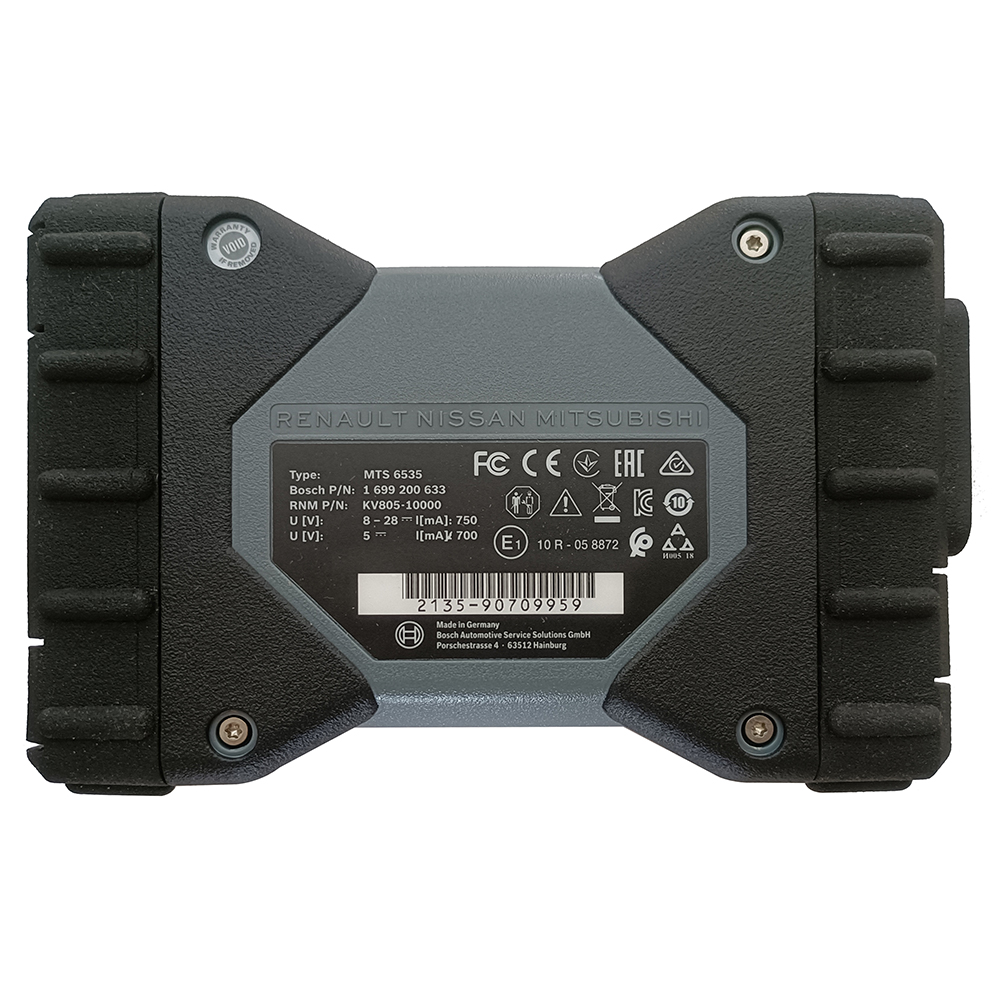

Type Plate
Software (optional)
Packing Box
|
