  OBDSOS PRODUCTS Car ECU / Chip Programmer Programmer

Product ID SE163
Product Name Orange5 Super Pro Full Function for Airbag Dash Modules V1.35 V1.36
Product Price USD260
Actual Weight (Kg) 0.6
Volumetric Weight (Kg) 1
Package Size (cm)
Related Download
Order Quantity:
In Stock



Description
Name: Orange5 Super Pro Full Function for Airbag Dash Modules V1.35 V1.36

Description:

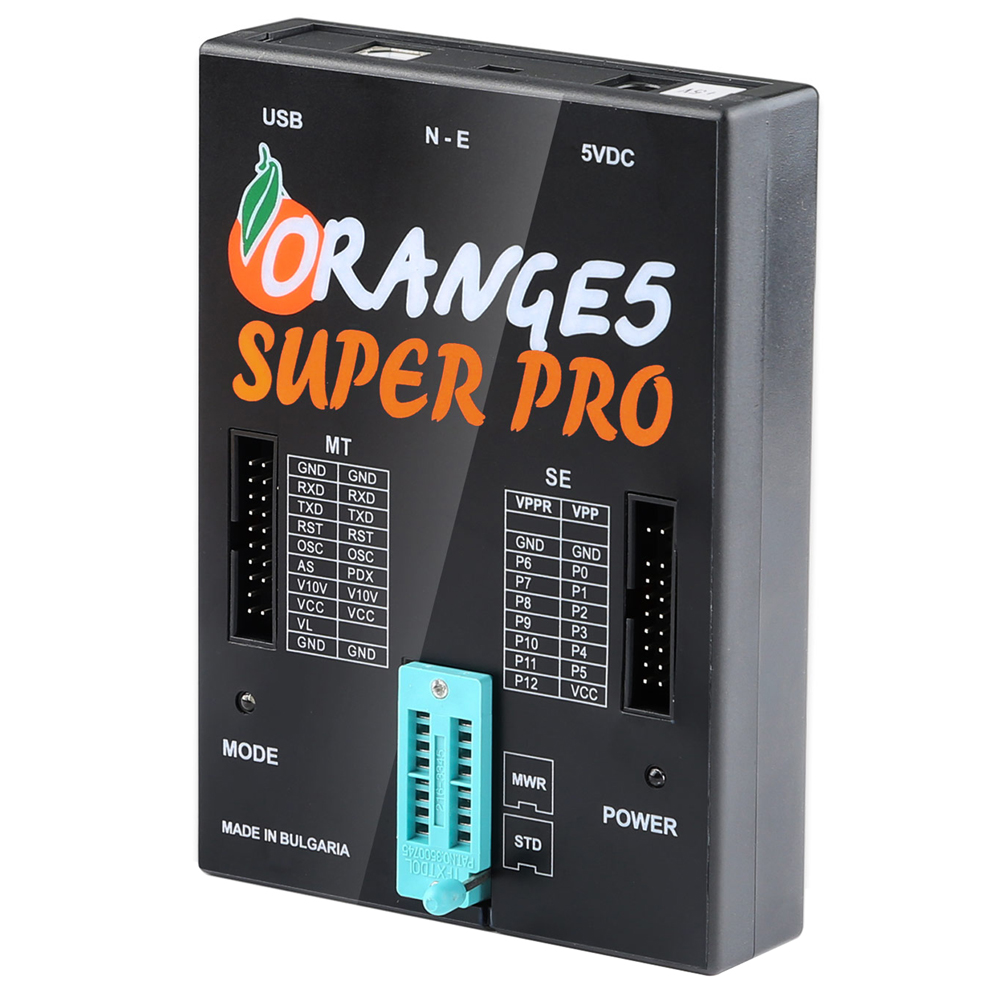

Orange 5 Super Pro Programmer is a professional programming device for memory and micro controllers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.

Software Version: V1.36 and Orange 5 Super Pro V1.35 full function

Supported Languages: English, Russian

Supported OS: Windows XP / 7 (32bit and 64bit)

Highlights:

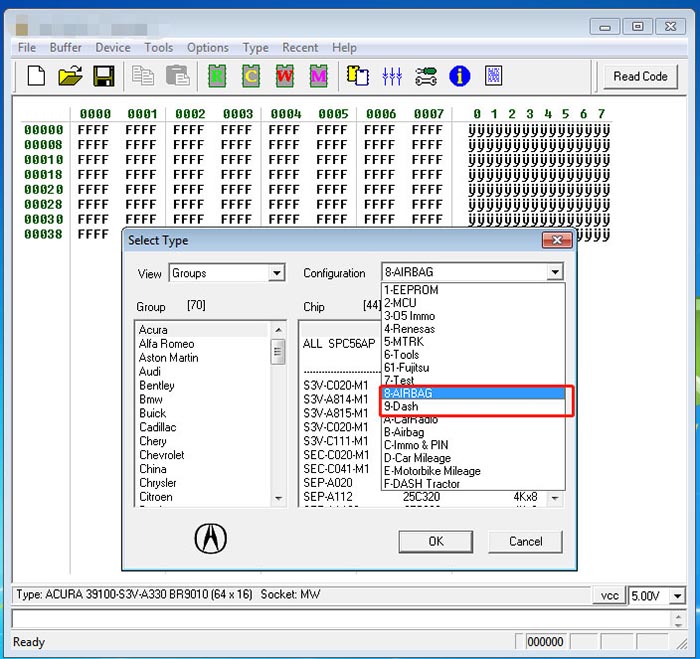

1. Adds new licenses : 08-airbag and 09-dashboard, A-car radio, B-airbag, C- immo & pin, D-car mileage, E-motorbike mileage, F- dash tractor.
2. Adds more Renesas licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than others.

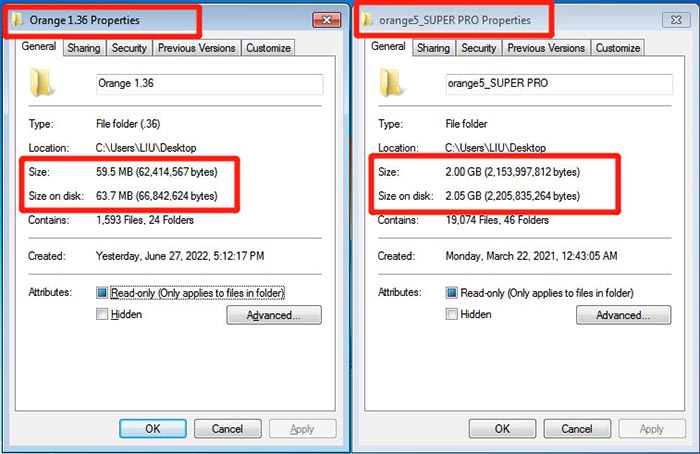

3. Send Orange 5 V1.36 software as a gift. Support more scripts and wiring diagrams, V1.36 just about 60MB while super pro is 2GB.


4. Comes with USB dongle used for 08-airbag and 09-dashboard modules.

Software Licenses:

MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
IMMO HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW

New License:

MCU (Infineon, ST and MicroChip)
Renesas: H8SX,HD64F, V850 UART, V850 SPI, RH850 V3, RL78
Special_05
AIRBAG
Dash
Fujitsu
F-DASH Tractor
EEPROM
A/B/C/D/E modules

Features:

Supports any COM ports, including virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Management of DTR, RTS chains, visualizing DSR, CTS, CD, RI
The program does not need to be installed
Supports Orange5 Programmer in emulation mode.

Supported Chip List:

IMMO HPX 9V0

EEPROM:
MicroWire, 4Wire, Adesto, AKM, Altera, Amic, Atmel, BOSCH, Catalyst, Chingis, Dallas/Maxim, EON, ESMT, EXEL, Fairchild, Fujitsu, GI, GigaDevice, Grundig, HOLTEK, Hynix, ITT, KHIC, Macronix, MicroChip, Micron, for Mitsubishi, for Motorola, NEC, NSC, Numonyx, OKI, PCT, Philips, Pioneer, PMC, Ramtron, Rohm, Samsung, Seiko, for Siemens, Sony, Spansion, SST, ST, Winbond, Xicor, XUSSR, YMC, MCU, Atmel, Infineon, MediaTek, MicroChip, Nordic, NSC, Philips, for Renesas, for Samsung, SiLabs, ST, TI, for Motorola,  for Freescale, MC68HC11, MC68HC12

Program with Adapter:
Licenses for M08V, TMS370, Renesas V850 are optional.

Differences between Orange 5 Super Pro and Orange 5 Plus:

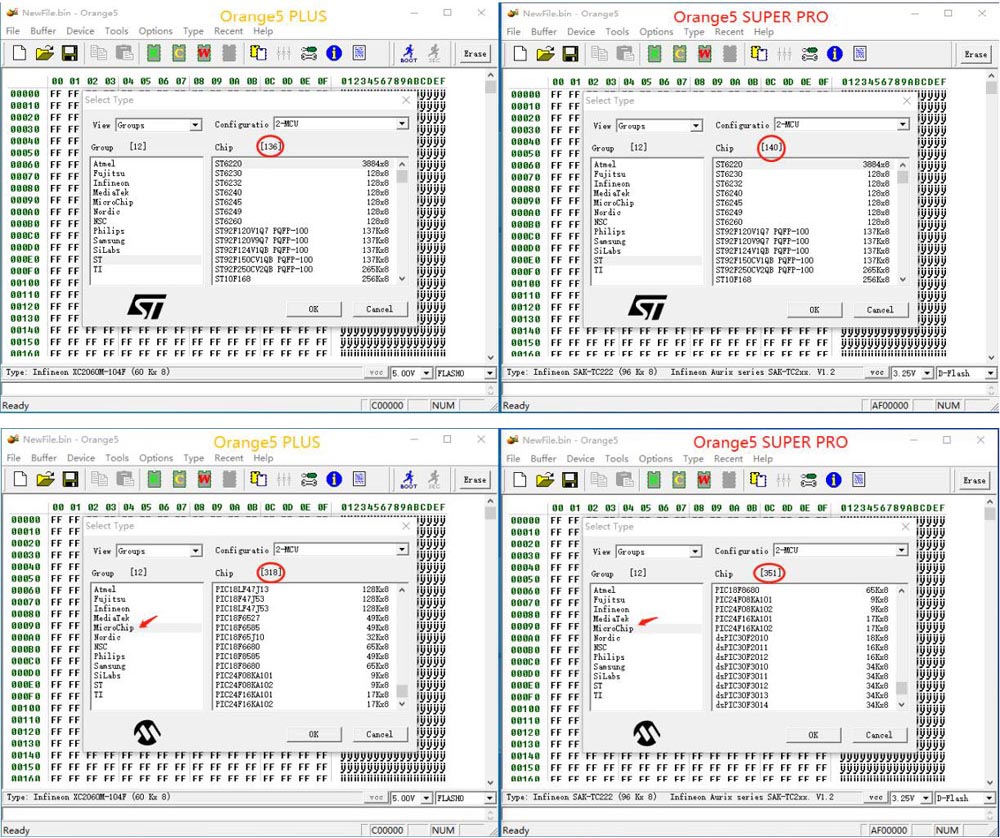

More chip models than others in Infineon, ST, and MicroChip of MCU, as shown in the figure:

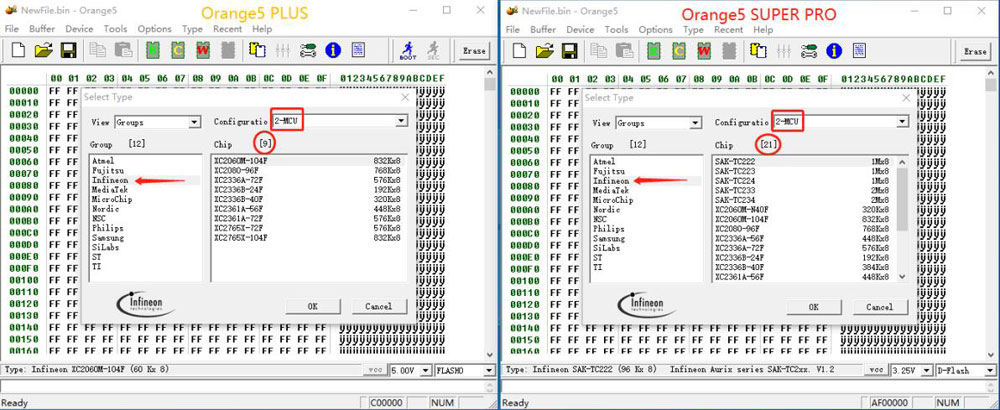

1. 2-MCU, SUPER PRO has 11 models more than Orange 5 Plus.

2. Microchip add more 30 models.

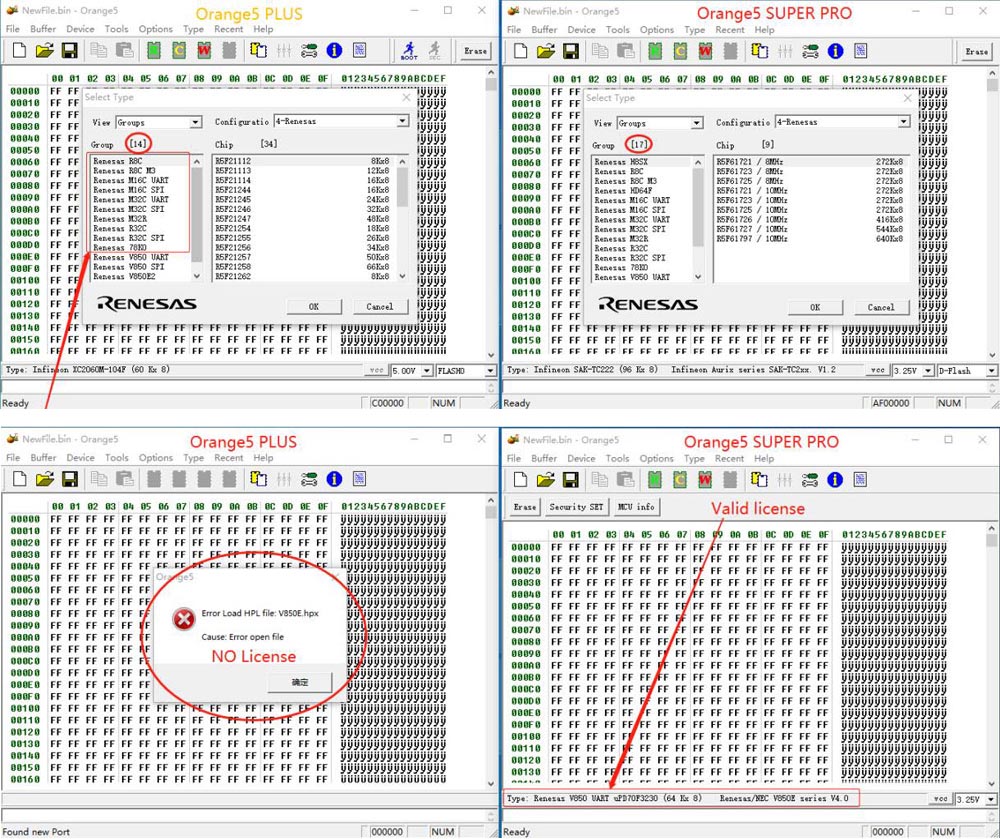

3. Renesas: More licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than others.

4. Orange5 Plus: Although there are 14 models, only the 10 modules in the red frame can work.

5. Orange5 Super Pro: Our 17 models have activated the license and can be used normally, more than others, such as H8SX, V850 UART, V850 SPI, RH850, etc.

6. Special_05: We guarantee that everything displayed in software can be used, no fake stuff, so we will not show this module option in the file we send to customers.

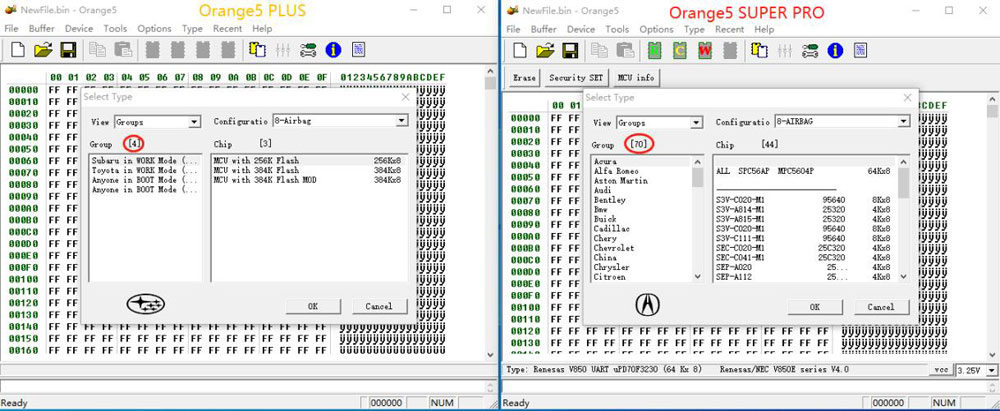

7. Airbag: 2020 database, 70 car brands, mostly with help files (wiring diagrams, etc.).

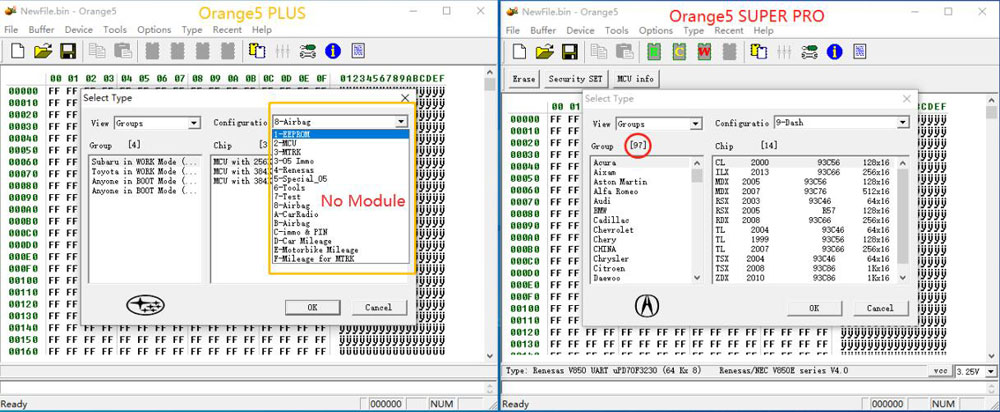

8. Dash: 2020 database, 70 car brands, including cars, trucks, motorcycles, snowmobiles, tractors, construction machinery, etc., and most of them have help files such as wiring diagrams.

Technical Info:

* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against over current
* Overload voltage protection
* Two types of power supply: standard (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply (2.0...5.0V), programming voltage (2.0...21.0V), additional static 10V for micro controllers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency (up to 24MHz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported Interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is enclosed in a functional box.
* Installation and work with Orange-5 under Windows 7 and Windows 8.1
* CnCterm - Terminal program for work with COM ports.

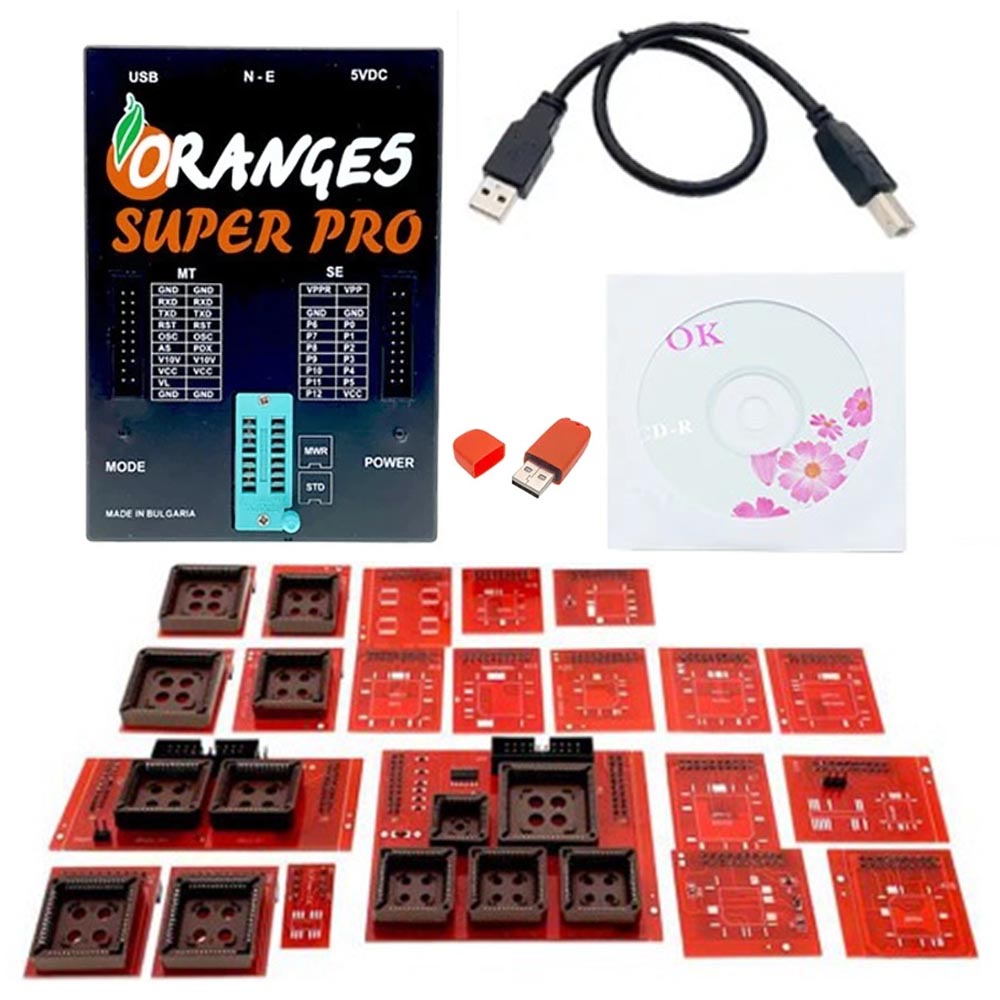

Packing List:

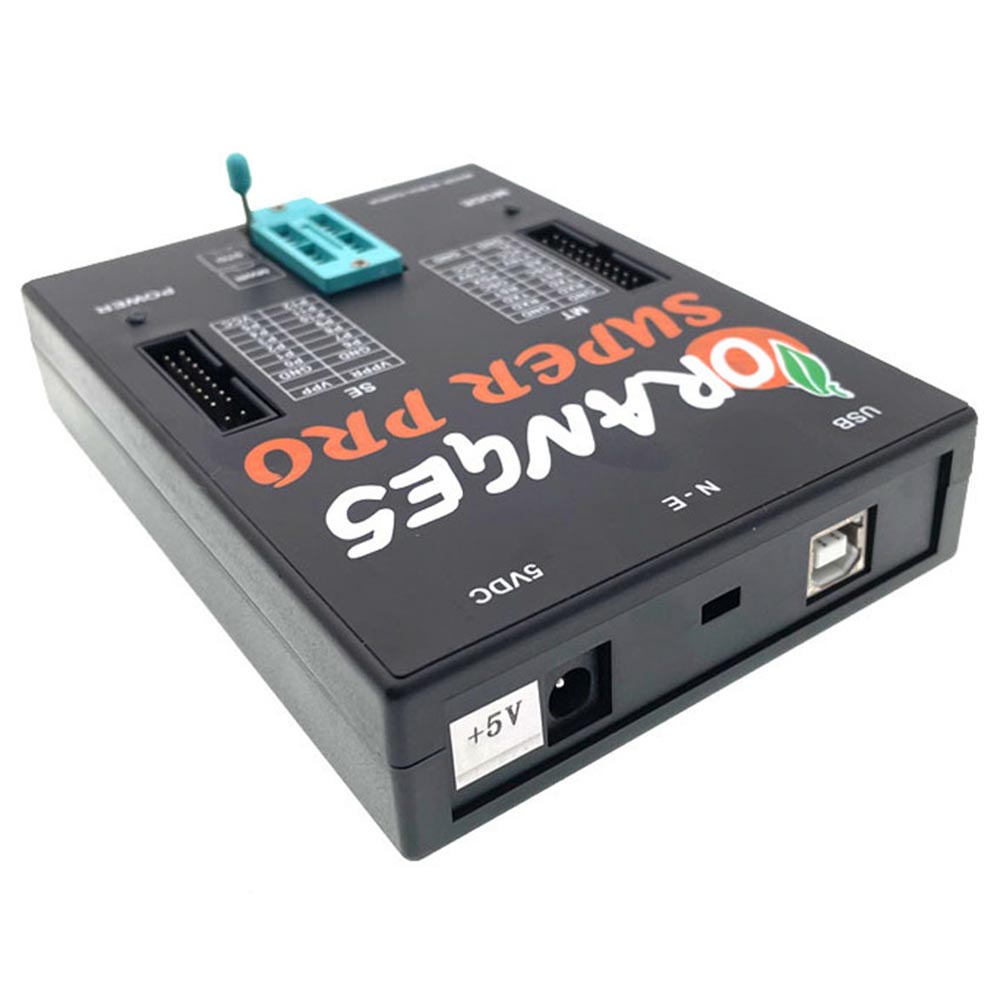

Orange 5 Super Pro Programmer
USB Dongle
USB cable

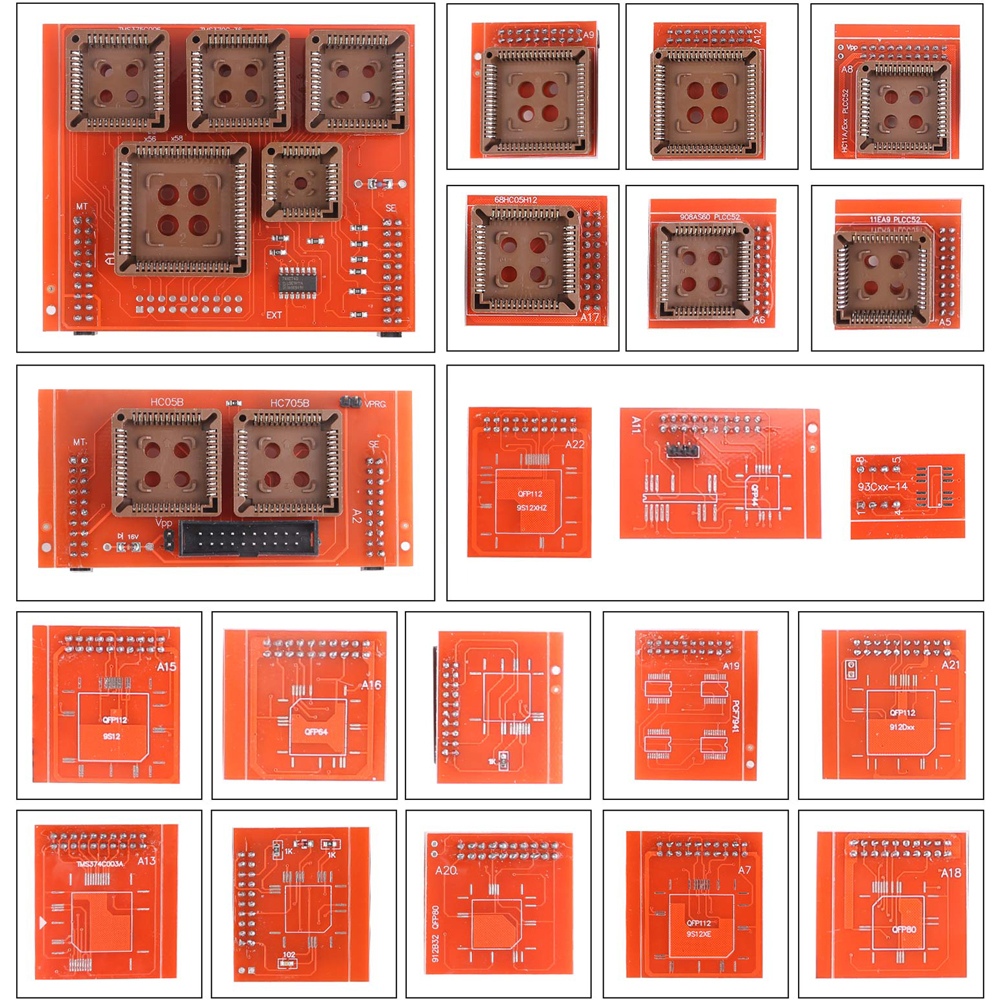

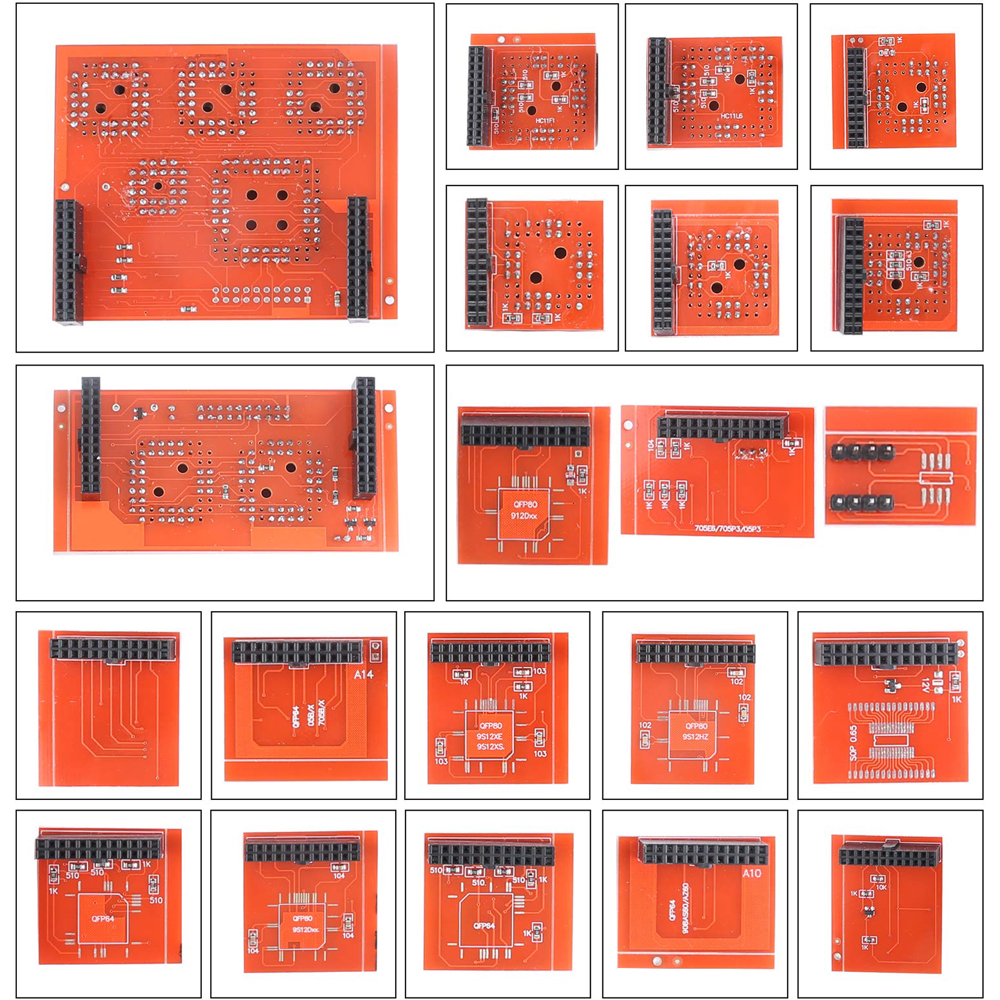

TMS375C006/TMS370CX36/TMS370CX32/X42 A1
HC05B/HC705B A2
Adapter 11EA9/PLCC52 A5
Adapter 908AS60 PLCC52 A6
Adapter QFP112/9S12XE  QFP80/9S12XE/9S12XS A7
HC11A/EXX PLCC52 A8
Adapter HC11F1 A9
Adapter 908AS60/AZ60 QFP64 A10
705E6/705P3/05P3 A11
Adapter 68HC11L6 A12
Adapter TMS374C003A A13
Adapter 05B/X_705B/X QFP64 V2 A14
Adapter QFP112/9S12 QFP80/9S12DXX A15
Adapter QFP64 A16
Adapter 68HC05H12 A17
Adapter QFP64/QFP80 A18
Adapter PCF7941 A19
Adapter 912B32 QFP80 A20
Adapter 912Dxx A21
Adapter 9S12HZ/QFP80 1 9S12XHZ /QFP112 A22
Adapter 93CXX-14
Software CD
Packing Box
