Description:



MPVI2+ It is an OBD-II interface tool that connects VCM Suite to your vehicle various control modules.



MPVI2+ diagnoses and clears trouble codes, monitor vehicle performance or read from your various vehicle control modules.



MPVI2+ optimizes vehicle performance, fuel economy, and more.



MPVI2+ writes license and tune any vehicle currently supported by HP Tuners.



Functions:



Combine HP Tuners MPVI2+ with VCM Suite for the most comprehensive scanning, logging and calibration tools on the market. Whether you are building a dedicated track car, a next level streetcar, or just want more fuel efficiency or better towing for your daily driver, HP Tuners has the tools to get the most out of your vehicle.



MPVI2+ comes with VCM Editor and VCM Scanner and Programming USB cables, making up the essentials of VCM Suite, bringing you one of the most powerful and inclusive scanning, diagnostic, logging and calibration products on the market. Not to mention full support for our latest rendition of Track Addict, whether you frequent the drag strip, circuit, autocross or off-road the MPVI2+ has the fastest scanning, logging and data transmission rates to ensure you capture everything.

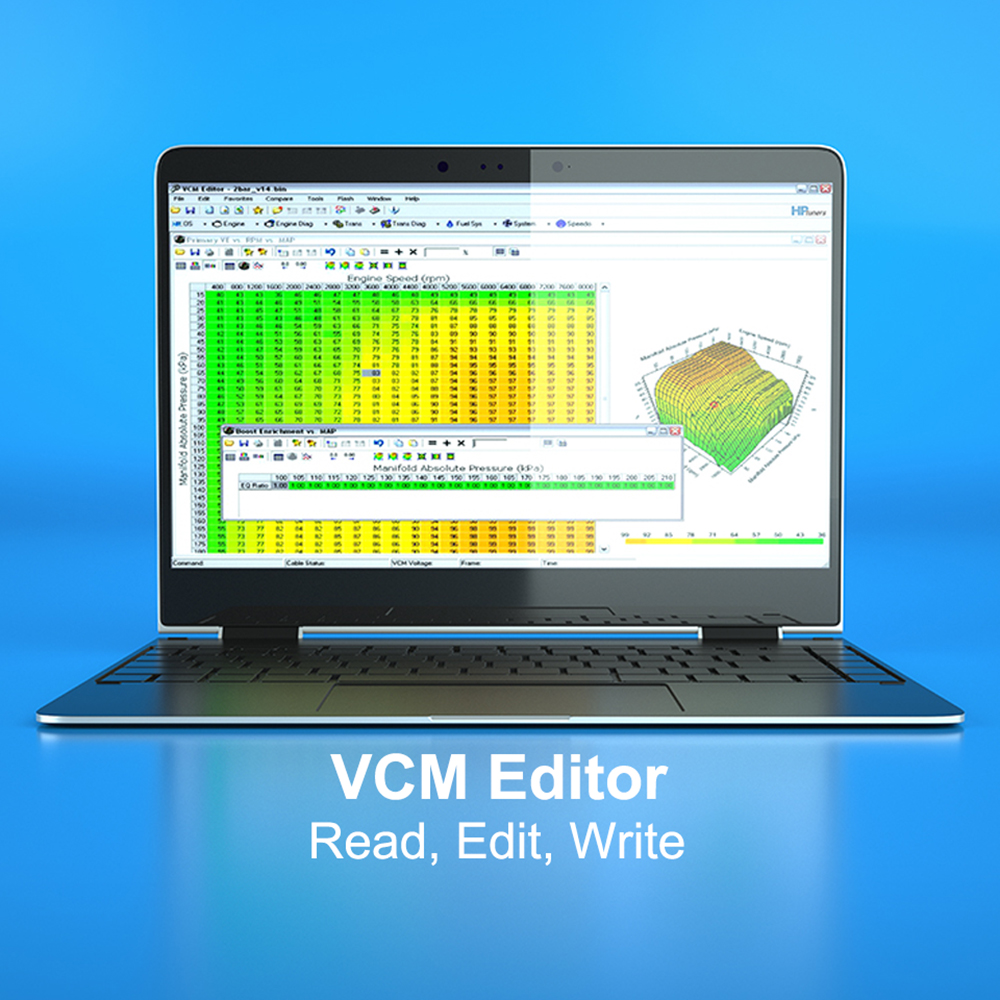

VCM Editor:



It allows you to read most vehicles control modules flash memory and save it in our proprietary .HPT file structure. VCM Editor enables you to adjust a multitude of complex parameters such as torque strategies, spark tables, fueling, RPM limits, fan activation, transmission shift points and pressures, exhaust valve control, speedometer settings and many more. Finally, you write these changes back to the various vehicle control modules via the MPVI2+.



VCM Editor flash utility allows not just calibration reflashing and automated recovery, but entire VCM/PCM image reflashing. This means that you are free to make any operating system or calibration level modifications and flash those to the VCM/PCM. This has many uses for the advanced enthusiast, serious tuner or engine swap workshop, allowing complete control over the VCM/PCM software environment.



VCM Editor also allows for increased vehicle support for tuners, along with access to extra VCM/PCM operating system code modifications. VCM Editor also allows the option to modify a VIN, a useful feature for mail order VCM/PCMs.



VCM Editor Specifications:



Faster read time of most VCM/PCMs.

Faster write most VCM/PCMs in 30 seconds.

Automated VCM/PCM recovery protection (not supported on all vehicles)

Seamless recovery after complete power down and communications break(exception for rewrite entire)

Obtain the VCM/PCMs calibration information and ID numbers

Calibration reflash (not supported on all vehicles)

Full reflash

VIN block reflash / change (not supported on all vehicles)

Explorer style navigation

Tab style navigation (tree optional)

Undockable explorer navigator window

Customizable favorites list which allows you to jump to frequently changed parameters (Example)

Countless editable parameters

Open multiple tables at once

Save/Print/Load individual Tables

Individually save tables/maps to txt format

Table smoothing

Table vertical and horizontal specific smoothing

Table interpolating

2D Graph click and drag editing

3D Graph click and drag editing

Simple +/- key cell adjustments

1 click copy/paste of tables

Right click copy/paste/undo

Right click unit adjustments

Compare files with different OS ID’s

Tree style compare logs

Easy to use color system when in compare mode

Calibration Details section to list vehicle details

Tree style Change log

Tree style History log

Change log and History log parameter hyperlinks

PCM DTC List

Custom operating systems (VCM Enhancements)

1 Bar Speed Density Enhanced (GM Gen3 V8 and GM 4.3 V6 only)

2 Bar Speed Density (GM Gen3 V8 and GM 4.3 V6 only)

5 Bar Speed Density (GM Gen4 V8 only)

3 Bar Speed Density (GM Gen3 V8 and GM 4.3 V6 only)

Built in unit conversion

Built in calculator

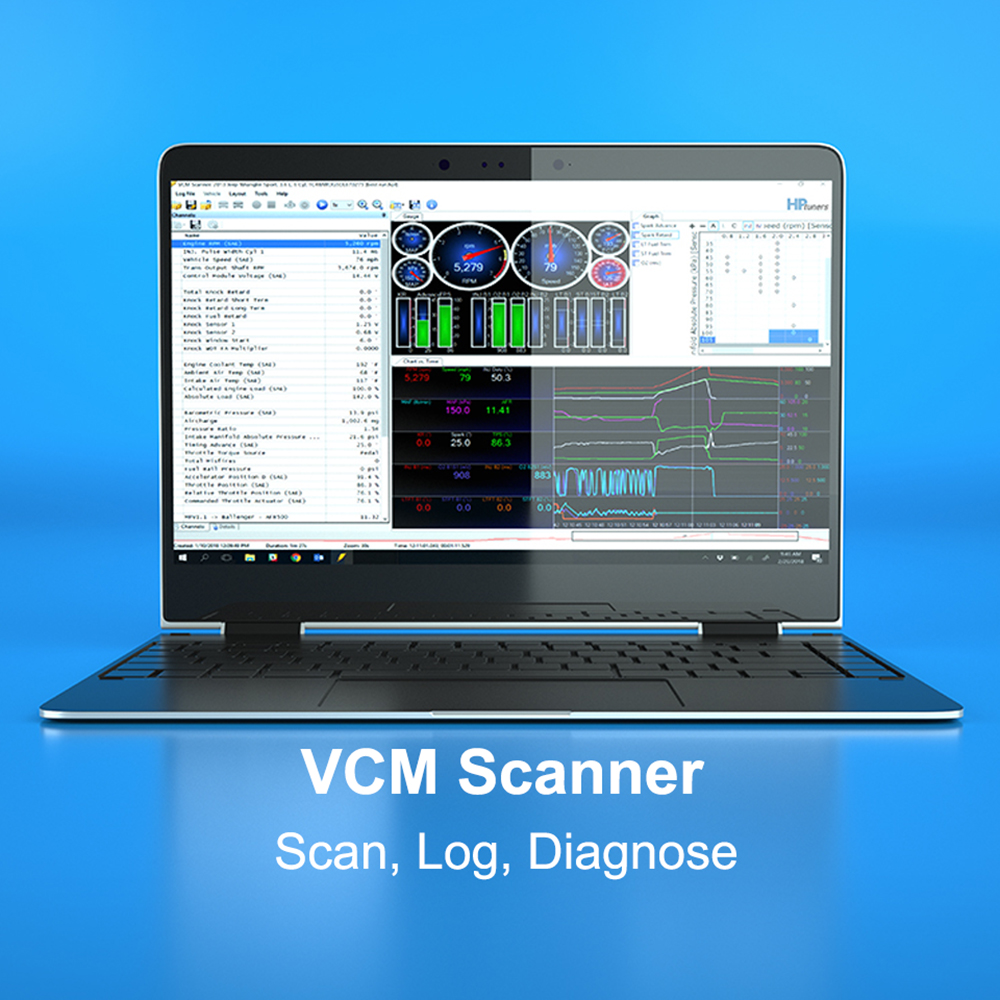

VCM Scanner:



It is the most powerful and comprehensive scan tool on the market. View, chart, and log diagnostic data in real time via the vehicle OBD-II diagnostic data port. View and clear vehicle Diagnostic Trouble Codes (DTCs) along with other vehicle module information. Command control functions like closed loop, fans, gear select, timing, air fuel ratio and so much more all in real time. No editor package can be considered complete without comprehensive scan tool capabilities.



VCM Scanner Specifications:



Powerful user interface

Fastest most feature rich OBD scanning tool on the market

Variable Logging/Playback speeds or user controlled using the chart display

Export feature allows you to view/modify your file via Microsoft Excel (.CSV)

Customizable histograms

Histogram user defined filters

Histogram cell count filter

Printable histograms

Customizable gauge display

Customizable chart

Separate gauge and chart displays

Sensor based configuration support

Installs with default histograms loaded

Installs in ready-to-scan configuration

Installs with additional histograms

User defined PIDs with complex function support (Example)

MPIDS (Memory PIDs / Manufacturer Specific Parameters) supported

View and clear DTCs in just seconds (not supported on all vehicles)

View readiness test status (not supported on all vehicles)

Change histogram while scanning

Change charts while scanning

Change gauges while scanning

Change unit value while scanning

Change config files while scanning

Copy/Paste special between VCM Scanner and VCM Editor

User inputted markers and comments

Log comment section to give commentary for future viewing

VCM Controls for multiple vehicle manufactures, see here for support list

Case Learn Feature



Pro Feature (need to pay extra):



The next advanced step for your MPVI2+. Together with Pro Feature, the Pro Link+ allows you to import up to two analog signals and one CAN signal at a time. Seamlessly integrate your Wideband O2, boost pressure sensor, and more, enhancing your calibration and logging experience. Standalone Data Logging is also new to Pro Feature Set, making it easier than ever to collect data while driving.



Notice:



1. MPVI2+ does not include any pre-loaded tunes or calibrations.

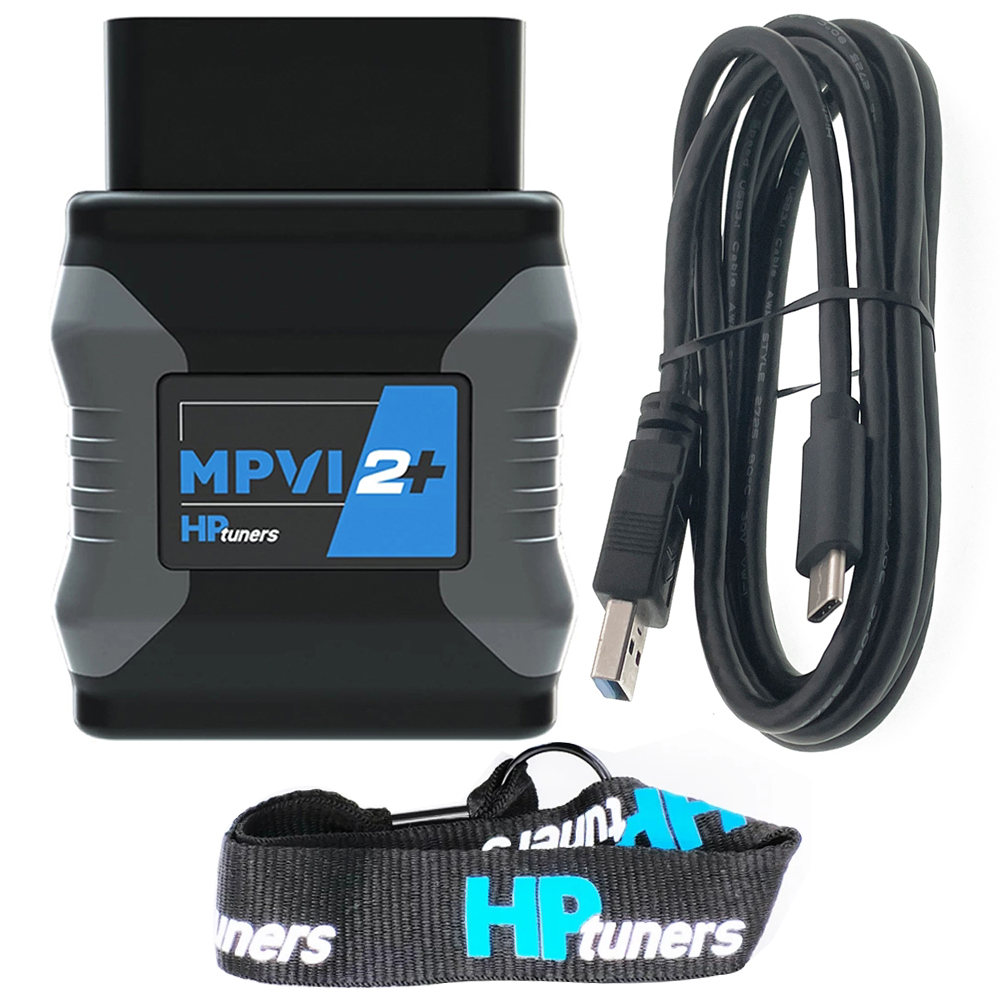

Packing List:



HPTuners MPVI2+

USB Cable

Quick Start Guide

Packing Box
