Description:



ANCEL S3000 Car Smoke Leak Detector / EVAP Smoke Machine Diagnostic Tool / Car Fuel Pipe Leak Detector Tester / Auto Vacuum Tester.



With ANCEL S3000 EVAP Smoke Tester, you can greatly reduce the troubleshooting duration for vacuum leaks and other problems.



Smoke coming out of the electrical or engine components is always a bad sign, especially when it is detected in your car, as there are lots of components in a car system, it is very difficult to accurately diagnose the root cause of the problem, There is nothing more frustrating than trying to track down a pesky vacuum leak without the right tools. You do not want to spend a ton of money on a mechanic. thus, ANCEL S3000 Automotive Smoke Machine is one of the most useful diagnostic tools you must have to detect the leaks.



Functions:



1. Built-in Air Pump Saves Time and Money:

ANCEL S3000 smoke machine automotive comes with tons of accessories that allow you to use it on just about any vehicle, unlike other EVAP smoke machines that you’ll have to buy an air compressor in addition to the detector in most cases to be able to test your vehicles for leakages, ANCEL S3000 smoke machine automotive already has that feature built-in. So you are saving some extra money!



2. Dual Testing Model:

ANCEL S3000 EVAP smoke machine come with a dual testing model including air mode and the smoke mode.



3. Air Mode: Independent controlled built-air pump.

Smoke Mode: Independent controlled smoke generator. These enable you detect the leaks precisely.



4. Instant Smoke Generation:

Press Smoke Control switch, the LED Indication would turn GREEN, and the car smoke tester start to generate smoke within seconds. One of the biggest hassles with the automotive smoke machines is the time of heating of the device. You will not have to wait for the tester to warm up with ANCEL S3000 smoke machine automotive.



5. Overload Protection:

ANCEL S3000 Automotive Smoke Leak Detector has built in self-protective system: Overheat and Anti-frost Protection. When the temperature of the device exceeds 120 degree centigrade, power protection will be intelligently activated to turn it off. The device can also work normally at -20 degree centigrade. You do not have to worry about switching on and off the machine constantly during diagnosis. The system takes care of the load for you.



6. Wide Compatibility:

ANCEL S3000 smoke machine automotive used to detect leakage of pipe systems on automobiles, motorcycles, snowmobiles, ATVs, light trucks, and speedboats. The smoke machine automotive is suitable for all makes and models of cars.



7. Full System Diagnostics, Do not Miss Any Leaks:

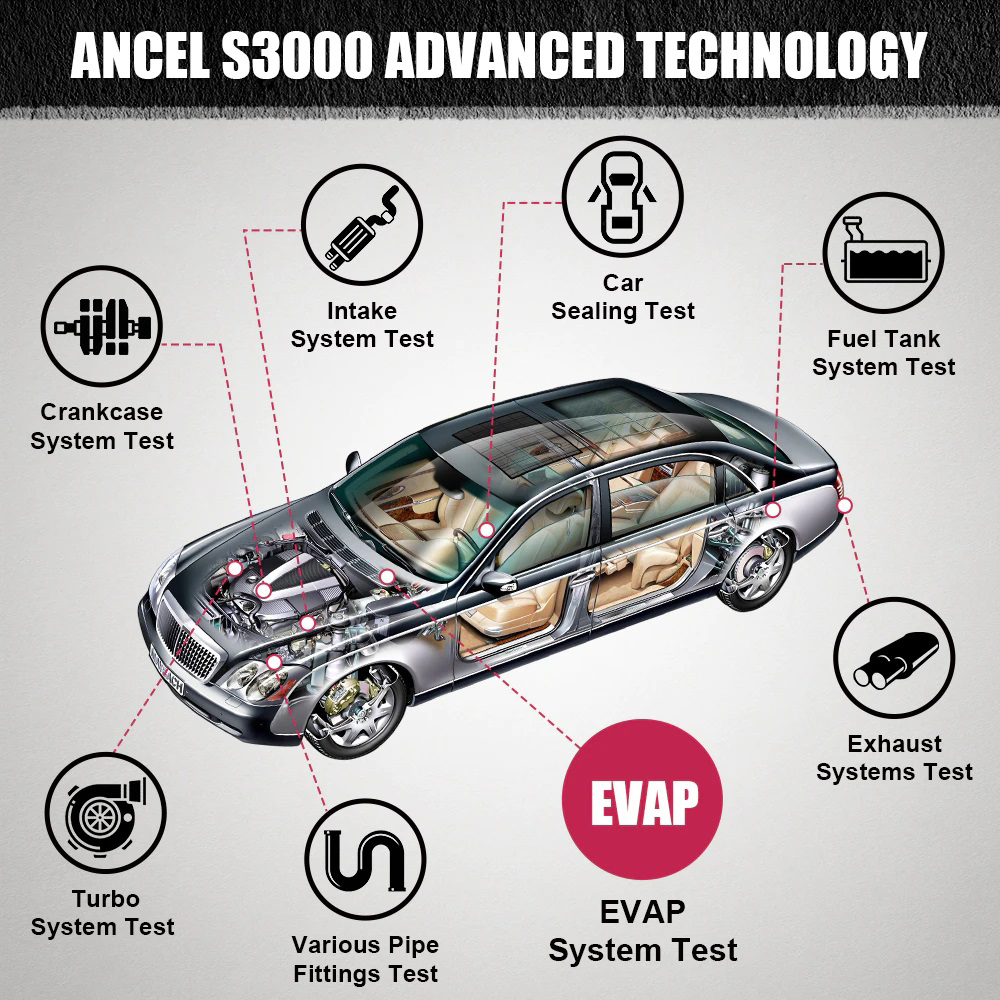

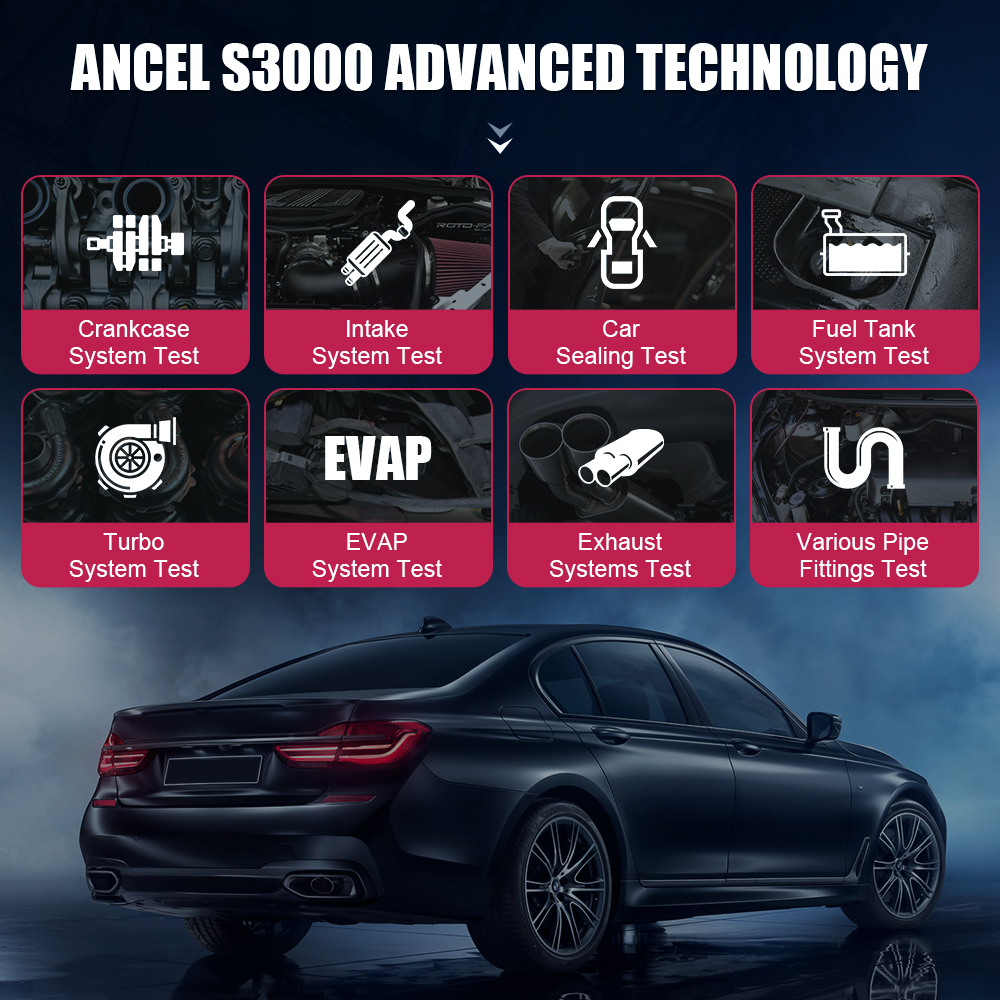

▶Crankcase System Test: Excessive pressure or corrosion of the crankcase is the main reason to damage the seal of the crankcase and cause oil leakage.



▶Intake System Test: Leakage in the air intake system will lead to insufficient intake of the car engine, which will result in scant engine power.



▶Car Sealing Test: Poor airtightness of the car may lead to a lot of inconvenience like inability to keep warm dusty, not soundproof, and not waterproof , etc.



▶Fuel Tank System Test: Possible reasons for the leakage of the fuel tank system: 1. There are gaps in the fuel tank and pipeline caused by improper installation. 2. The fuel tank cover is not sealed enough



▶Turbo Test: Leakage of coolant would cause the engine to report high water temperature.



▶Various Pipe Fittings Test: Automobile pipes can be classified according to their functions: brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses.



▶EVAP System Test: Leakage of the fuel evaporation system will cause fuel vapor to leak into the atmosphere, causing waste and pollution or unstable engine idling



▶Exhaust System Test: Uncleaned harmful gases to be discharged into the atmosphere or increase vehicle noise is the main disadvantage when leaks happened in the exhaust.



(Note: Not applicable to air conditioning system piping, lamp housing)



8. Save Money by Using Baby Oil or Mineral Oil:

You do not need to buy expensive smoke oil. Use baby oil, Pure #5 white oil is the best choice if available. This makes ANCEL S3000 smoke machine automotive practically free to use forever!



9. Easy To Use:

The Smoke Machine Automotive with easy-use function and portable design, can help mechanic produce lots of smoke within 30s to detect the leaks in pipe system, dramatically reducing diagnostic time.



Features:

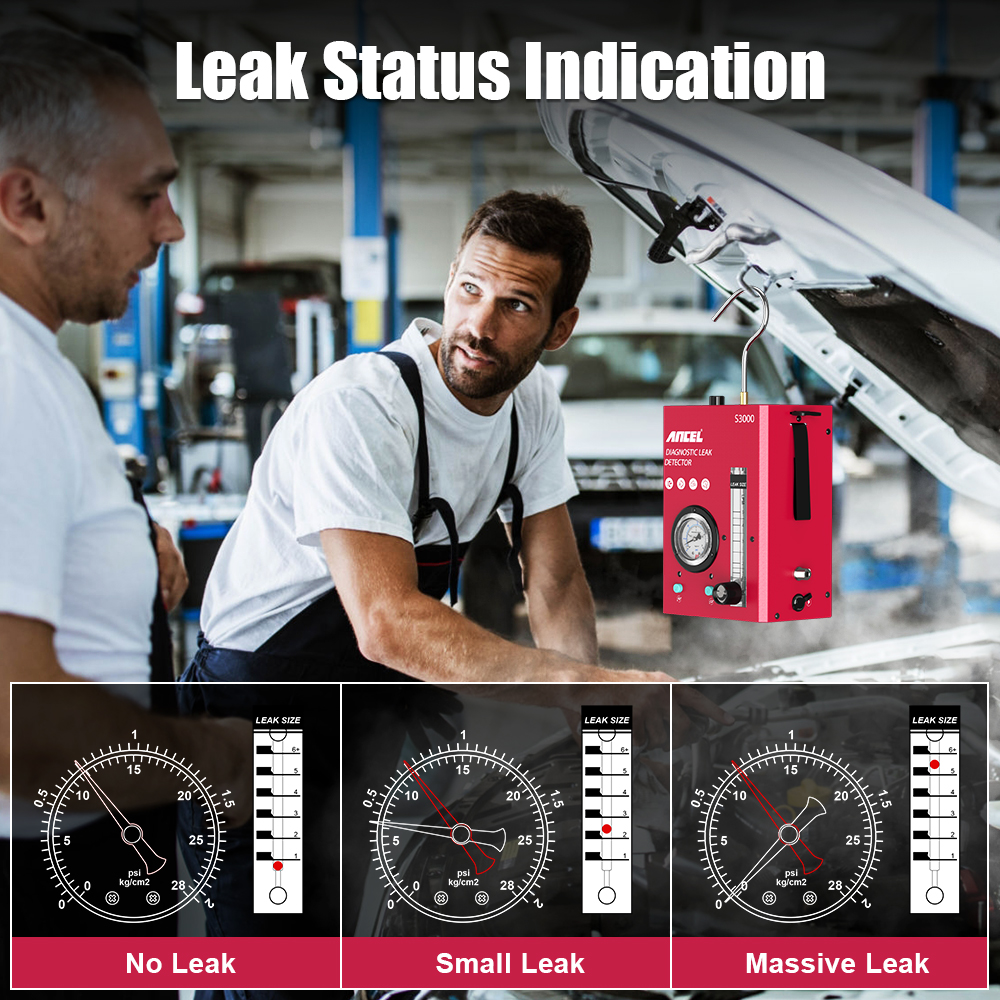

1. Smoke Machine Leak Status Indication. Quick Vehicle Leak Diagnosis By Pressure Display:

No Leak: When the value of the pressure gauge remains unchanged, it means that there is no leakage in the system.



Small Leak: When the value of the pressure gauge drops, it indicates a small leak in the system.



Massive Leak: When the value of the pressure gauge reaches zero, it indicates a large leak in the system.



2. Overheat & Anti-Frost Protection:

For detecting the leakage of pipe systems on cars, motorcycles,snowmobiles, off-road vehicles, ATVS, light trucks and speedboats. Suitable for all car models.

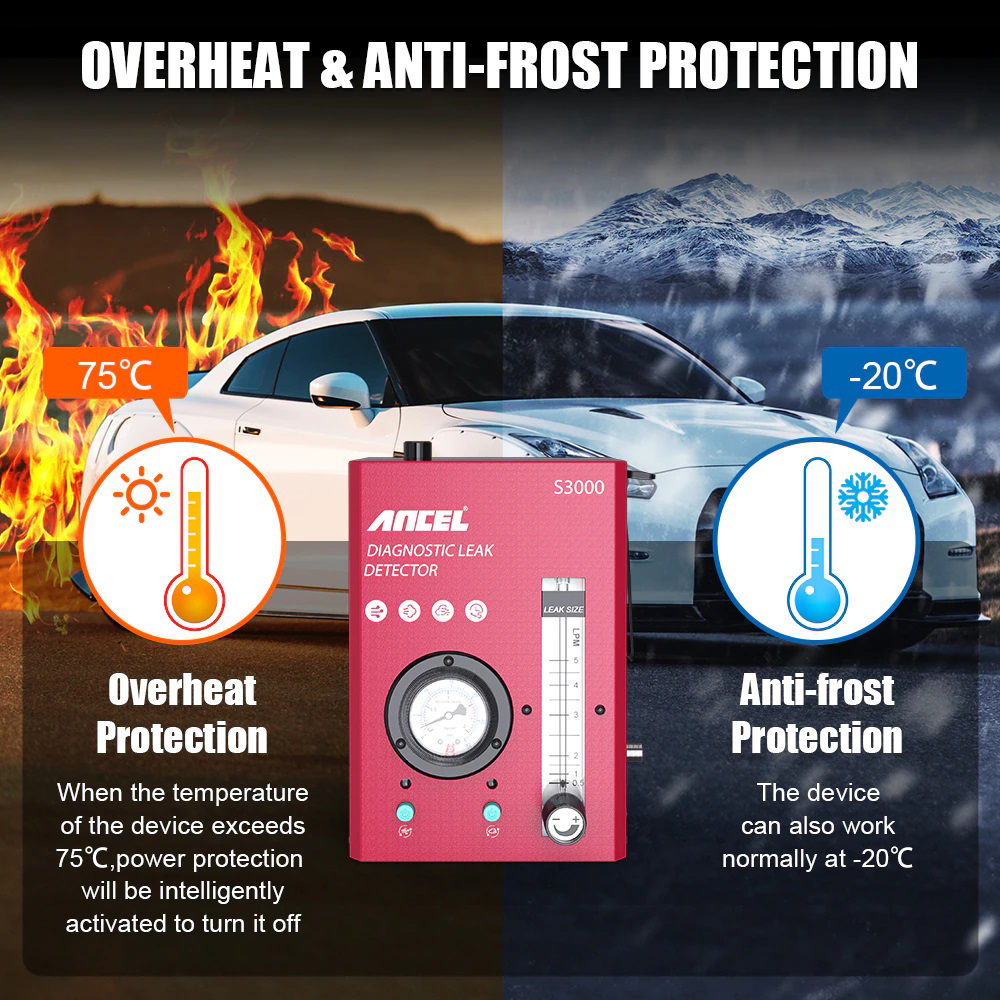

1). Overheat Protection

When the temperature of the device exceeds 75 degree centigrade, power protection will be intelligently activated to turn it off.



2). Anti-frost Protection

The device can also work normally at -20 degree centigrade.

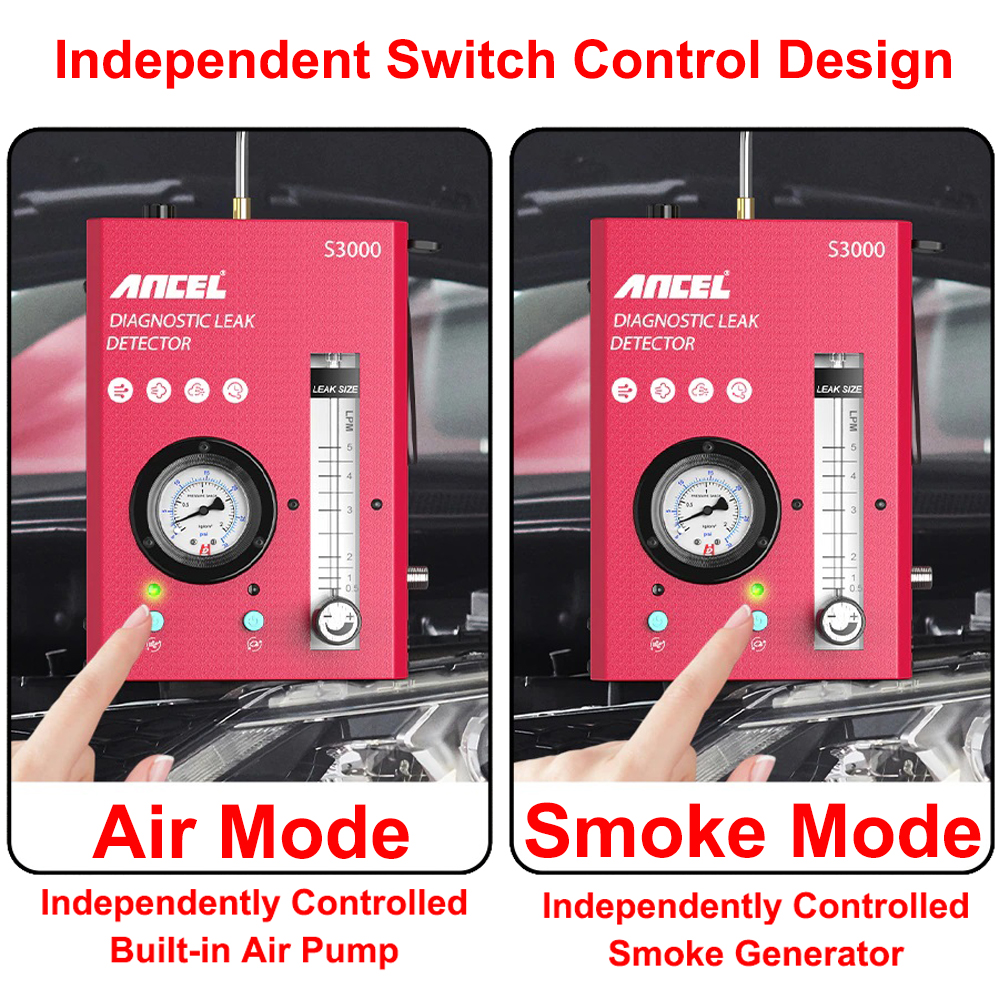

3. Independent Switch Control Design:

Air Mode: Independent Controlled Built-air Pump.



Smoke Mode: Independent controlled Smoke Generator.



4. Viewable Pressure Gauge

The Automotive EVAP Smoke Machine equipped with a liquid filled pressure gauge. By observing the change of pressure gauge, the leakage situation is clear at a glance.



Adjustable Air Flow

Output Flow: <6 L/min

Air flow meter with adjustable button, easy to control the smoke effect.



Fast Smoke Output

This machine built-in air compressor, with superior wick and heating element. It can produce smoke instantly by heating up USP mineral oil or baby oil. 4ft Smoke Outlet Pipe can help reach and connect perfectly.



5. Wide Range of Applications

Suitable for all domestic cars, motorcycles, snowmobiles, off-road vehicles, beaches. Cars, light trucks and speedboats, etc. Using together with auto diagnostic tool, you can find the vehicle problem accurately and diagnose fault.



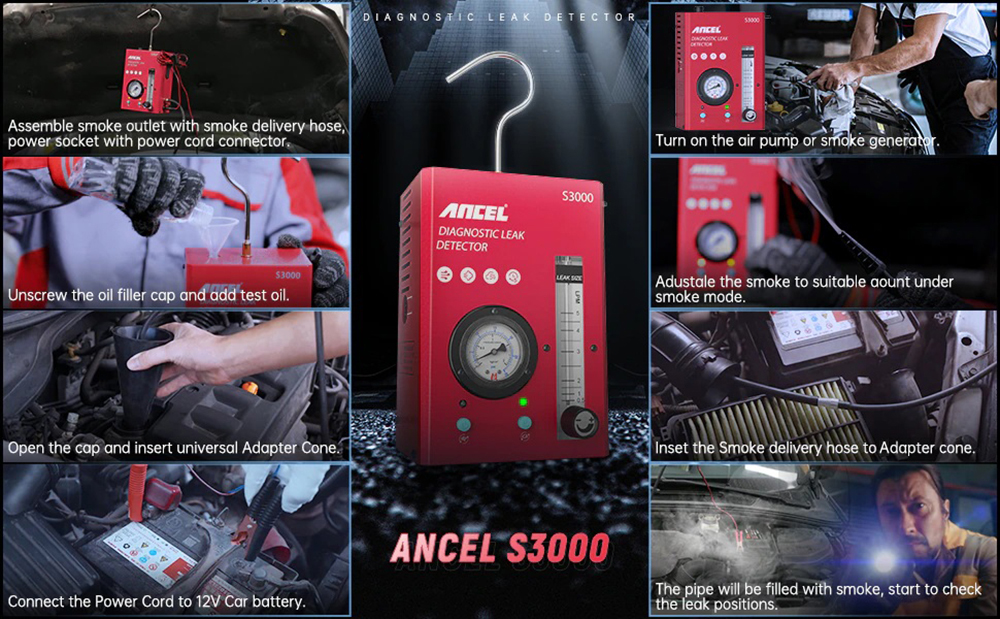

How to Use the Automotive Fuel Smoke Leak Detector?



1. Assemble the smoke machine with delivery hose, power socket and hook.



2. Unscrew the oil filler cap and add test oil.(Pure #5 white oil is the best choice if available)



3. Disconnect the pipes that need to be connected with the smoke leak detector.



4. Connect your car smoke machine’s power cord to 12V vehicle battery (Red clip to battery positive and black clip to a good ground, then the Power LED would be ON, otherwise check the power supply.)



5. Introduce the smoke delivery hose into the pipeline to be tested via the Adapter Cone.



6. Press Air Control Switch, wait for seconds until the system is pressurized, check the Pressure Gauge & Flow Meter reading for leak status. Turn on the smoke generator, adjust the smoke amount to suitable amount so you can locate the leak position quickly. The leak can be judged according to where the smoke appears.



Specifications:



Output Pressure: 7-12 PSI

Output Flow: < 6L/min

Air Source: built-in

Test Oil Capacity: 10 - 20ml

Test Oil: mineral oil or baby oil (oil not include)

Multi Protections: oil outlet, over-heat, over-load protection

Power Cord Length: 2.5 meters

Smoke Hose Length: 2.5 meters

Power Supply: DC 12V vehicle battery

Material:Iron

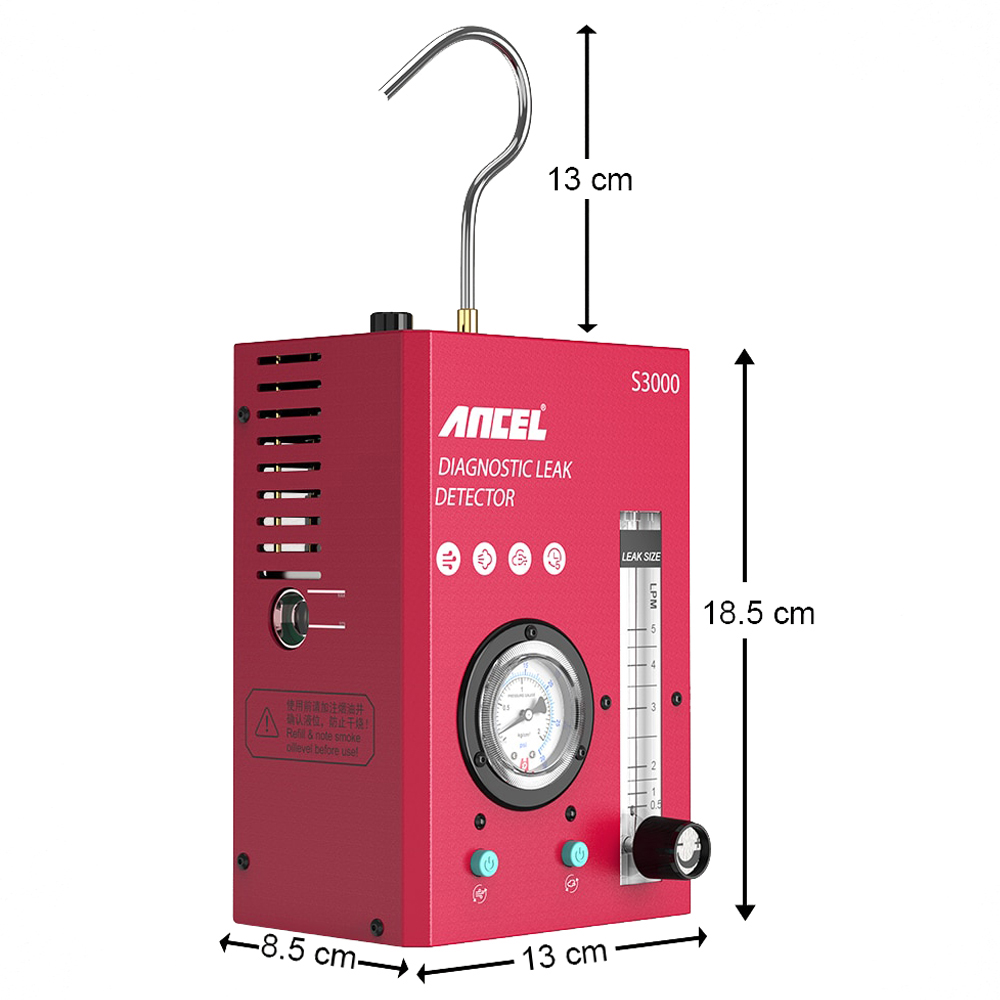

Machine Size: 13*8.5*18.5cm
Package Size: 32*24*12cm

Package Weight: 2.3Kg / 5lb

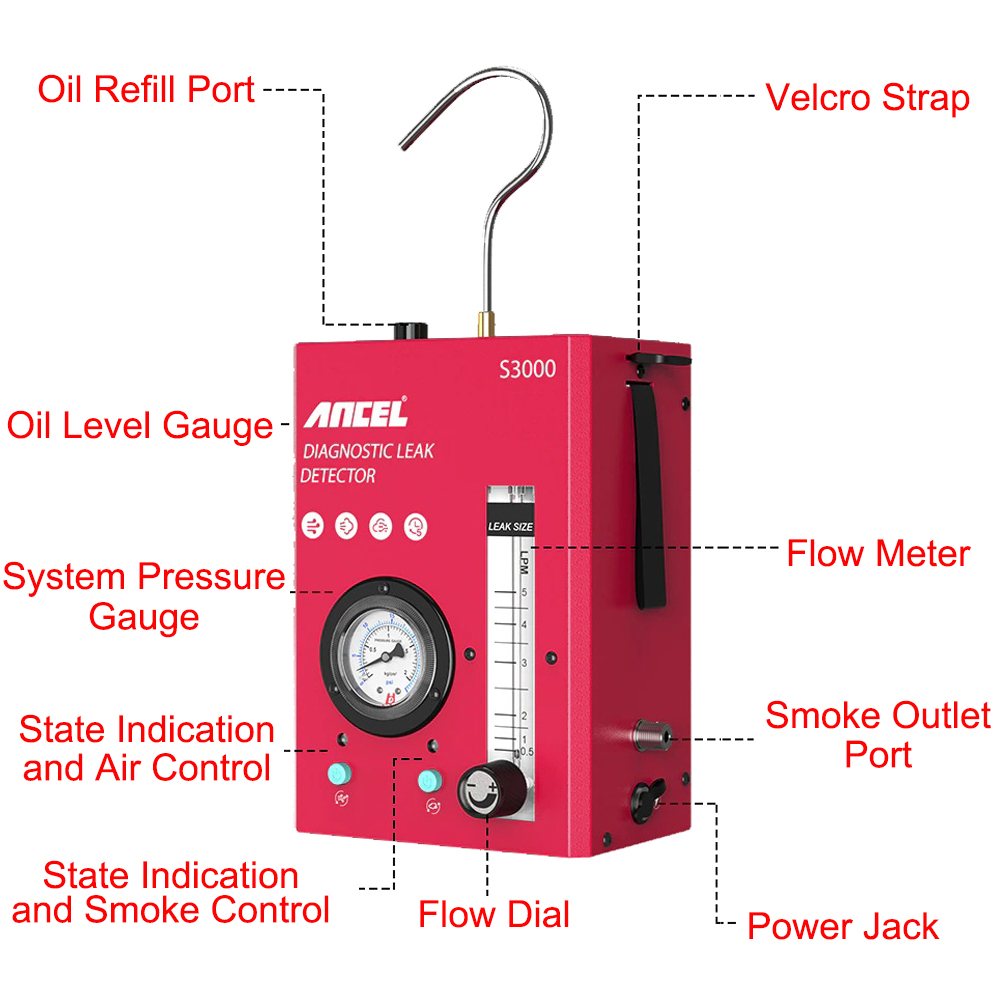

Definition:

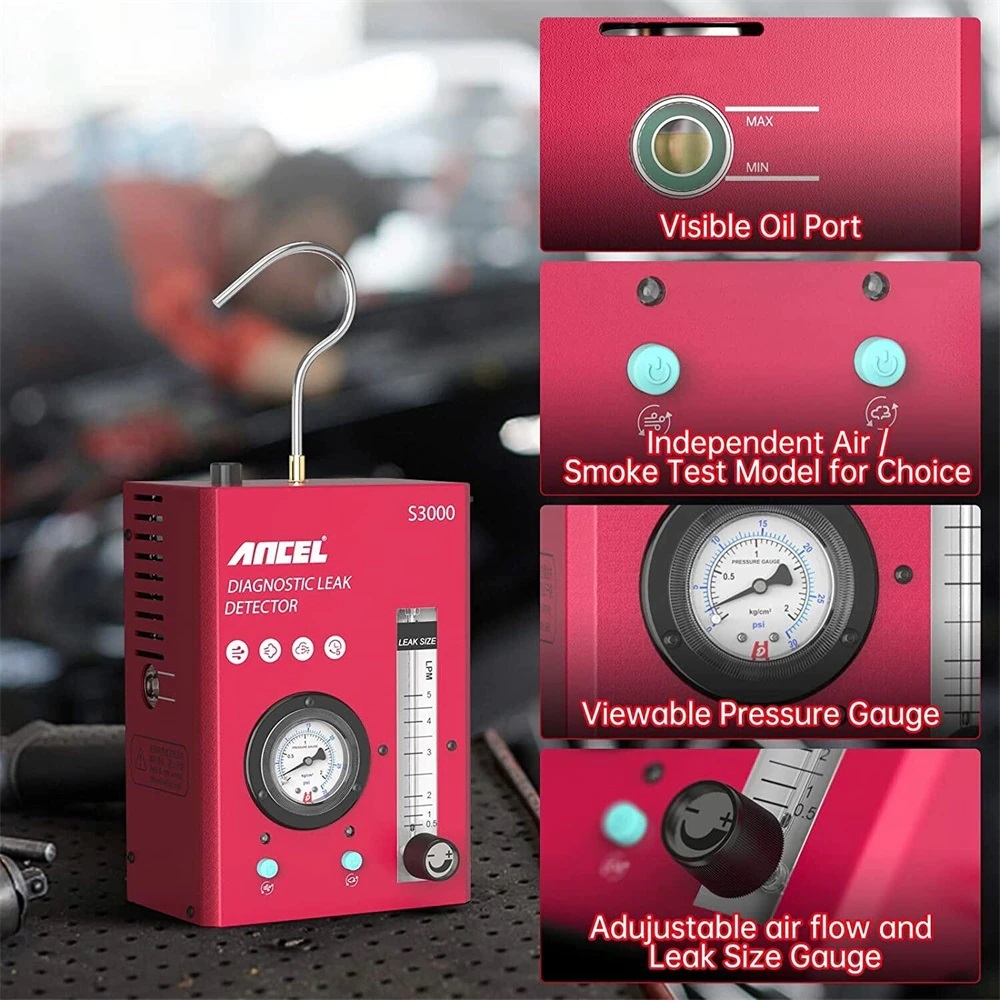

Oil Refill Port: For oil refill while its needed. The funnel is a nice helper to prevent oil from poured to the surface of the unit.



Velcro Strap: For collection of the smoke delivery hose, and power cord before storage.



Pressure Gauge: Displays the output pressure of the machine or show the real time pressure of the system been testing.



Air Flow Meter: Provide a quick visual indication of the amount of air/smoke passing through the system being tested.



Flow Dial: Easy to control the smoke and air amount, determine the exact location of the leak easily and quickly



Oil Level Gauge: Allow you to accurately control the test oil volume.



Smoke Control: After pressing this switch, the power indicator light is on to indicate that the power supply is normal.



Air Control: Press the AIR MODE, pump starts working, only after this, you may press and start the Smoke Mode.



Packing List:

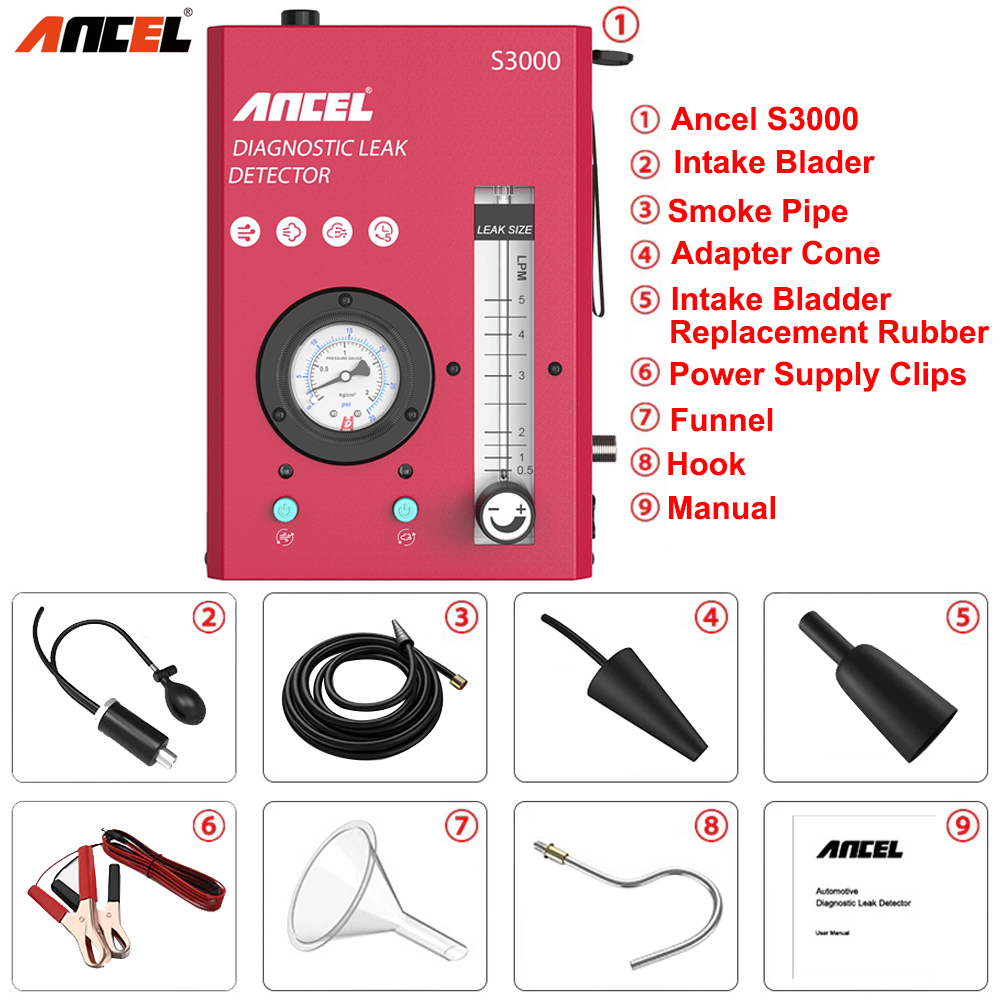

ANCEL S3000 Smoke Leak Detector



Intake Bladder: To fit the intake and exhaust, seal the system and introduce smoke into the system. Especially while the inlet position is not rounded-shape.



Smoke Delivery Hose: For introduction of smoke from the unit to Adapter Cone / Universal Intake Bladder or to the vacuum pipe directly.



Adapter Cone: To fit the intake and exhaust, seal the system and introduce smoke into the system. It may fall out at high pressure and need a second hand to push and hold at operation.



Intake Bladder Replacement Rubber: The rubber on the Intake Bladder may be easily broken, if not operate it properly with caution.The rubber could be replaced with new one without replace the whole Intake Bladder.



Power Supply Clips: To offer connection from the unit to automobile battery, in order to drive the unit.



Funnel: Assistance method for smoke oil refill, to prevent pour oil to the unit surface.



Hook: To hang the smoke machine in the car.



User Manual: Detailed descriptions about how to use smoke detect machine.

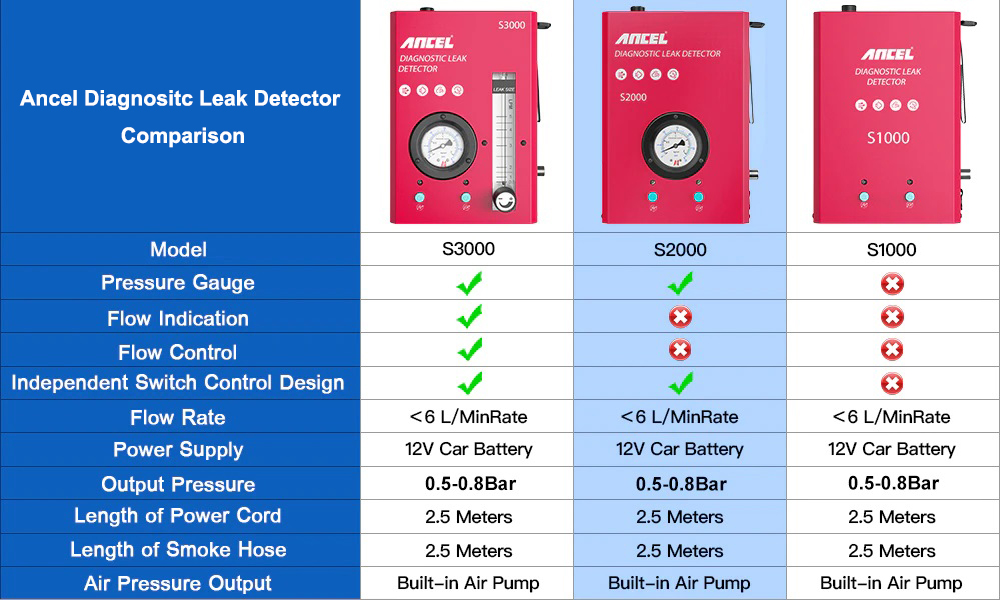

Advantages compare with Ancel S1000 and Ancel S2000:



Pressure Gauge Functions: You can directly determine whether the pipeline is leaking through the value of the pressure gauge. If the pressure gauge is less than 0.5bar, it can be judged that there is a leak. The smaller the pressure, the greater the leak. At this time, you can find the leak through the smoke leak.



Flow Indication Functions: The flow meter is an indicator to intuitively judge whether there is a leak and the size of the leak. When the flow indicator bead is at the bottom, it indicates that the pipe is good and there is no leakage. The higher the bead position, the greater the leakage.
