Name: Autel MaxiCOM MK808Z Bi-Directional Full System Diagnostic Scanner
Description:
Autel MaxiCOM MK808Z Bi-Directional Full System Diagnostic Scanner with Android 11 Operating System. Autel MaxiCOM MK808Z is upgraded version of Autel MaxiCOM MK808 / Autel MaxiCheck MX808
Autel MaxiCOM MK808 offers 28+ Special Service, OE Full System Diagnoses, Cloud Service and Active Test, which makes it your perfect companion. Installed with a fast quad-core processor, Autel MK808Z offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless via a 7-inch LCD touch screen with 1024*600 resolution.
Version: global version without area restriction
Software Update: one year free update online
Supported Languages: English, French, German, Spanish, Portuguese, Italian, Dutch, Russian, Polish, Swedish, Korean, Japanese
Highlights:
1. Upgraded version of MK808 with latest Android 11 Operating System.
2. Wide Vehicle Coverage: Extensive vehicle coverage for more than 80 US, Asian and European cars.
3. Adds Bi-directional Control / Active Test: Users can send commands to the vehicle ECU with MK808Z to control actuator for test, such as Fuel Pump, Fuel Injectors, A/C, Reset Control Unit, and other bi-directional tests.
4. Expand Special Reset Functions: Expand special functions like initial adaptation, self-learning, or some auto-detection function to 36, It is a big help in performing resets after significant repairs.
5. Work with Inspection Camera (Autel MaxiVideo MV108): With Autel MV108, You can use the MK808Z to examine difficult-to-reach areas normally bidden from sight, such as engine cylinders, and small part inspections like spark plug holes, and record digital still images and videos.
Notice:
1. Can not support TPMS Relearn / Programming. If you need it, please check Autel MaxiPRO MP808TS or Autel MaxiTPMS TS508.
2. The Key Fob Programming is designed for Asian vehicles that have low-grade Anti-Theft Systems and NOT intended for Audi, Benz, BMW, VW which have advanced IMMO systems. If you need IMMO function, please check Autel MaxiIM IM508 / Autel MaxiIM IM608 PRO professional key programmer.
Features:
1. NEW! Compatible with Videoscope.
2. NEW! Support active test and complete special functions.
3. Read/clear codes for all available systems.
4. Display live data in text, graph & analog for easy data review.
5. Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time.
6. Relearn parking brake pad after replacement.
7. Support IMMO functions.
8. Support forced DPF regeneration and adjusting injectors.
9. Reset Steering Angle Sensor (SAS).
10. Reset service mileage and service intervals.
11. Support TPMS sensor relearn.
12. Support battery registration and reset.
Functions:
1. Bi-Directional Control – Precisely Locate Car Problems
In order to provide professional mechanics a real flagship scanner, Since 1st June 2022, Autel MaxiCOM MK808Z is equipped with advanced Bi-Directional Control (Active Test) which could only for expensive auto scanners.
Featuring Bi-Directional Control, this Autel intelligent diagnostic tool – Autel automotive scanner MK808, can output the commands to ECUs, read the ECU data and monitor the operation of the actuators. Through active tests, also called actuator tests, this bi-directional diagnostic scanner can precisely locate the car problems, letting you quickly know whether a specific system, component, or subsystem is functioning properly or not.
For example, If a fuel pump is not working and leads to ignition failure, it could be a faulty pump, wiring, relay, or command. By turning the fuel pump on and off via the Autel MK808Z scanner, you can quickly determine whether it is a wiring, relay, or pump issue without removing any parts.
Here are some other examples of active tests, which help you locate faults in the shortest time, saving time on troubleshooting.
1). Cycle the A/C clutch on and off;
2). Switch the interior lights on and off;
3). Perform an evaporative emissions leak test;
4). Active Tests for inside mirrors, exterior mirrors (high version only), adaptive headlamp, steering wheel heating, windows, wash/wipe system, horn, reset starter lock, etc.
5). 2022 new function AutoAuth Access: Bypass SGM in FCA vehicles
With the newest update on Autel MK808Z, you now have access to the security gateway module on 2017 and newer Fiat / Chrysler vehicles, so that the diagnostic tool can clear codes, run Bi-Directional Active Tests, Actuations, Relearns or even IMMO Key Programming (pulls PIN & write), ADAS Calibration Assistance etc.
Note: Updating to the newest version for getting this new Bidirectional Control and AutoAuth Access.
6). Retrieve ECU Information of the tested control units including unit type, version numbers, and other specifications, etc.
7). Read & Erase DTCs to locate problem areas and clear the codes.
8). View Live Data of each parameter item.
You can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, etc., and save you the hassle of diagnosing any un-identified car errors you had ever met.
2. 28+ Hot Service Functions, Cover 99% Cars in the Market
Autel MaxiCOM MK808Z performs 28+ Service Functions that every mechanic wants for various scheduled service and maintenance performances. As an advanced diagnostic tool, MK808 has all kinds of services accessible for complete diagnoses and maintenance.
1). Oil Reset: Turn off the oil light, and reset the service mileage. So you will not forget to change the oil when it is due.
2). EPB: Remind you to reset the brake pad, especially if you have replaced it.
3). TPMS: Read TPMS data and point out issues related if there are any.
4). BMS: Reset a battery after you have replaced it.
5). Brake Bleed: Keep the tires from locking up immediately when there are brakes.
6). DPF: Help you clear the blockage in the DPF filter, to meet emission standards.
7). IMMO Keys: This function is mainly used to disable the lost vehicle keys, and create a new replacement key fob, to protect your car from being stolen.
8). Injector: Read injector related problems and adjusts them.
9). SAS: Calibrating and resetting the position of the steering is just a click away.
And Injector Coding, Suspension, Throttle, WIN DR Roof, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Trans Adaption are all available. There are lots of more functions waiting for you to explore.
3. Full/All Systems Diagnoses for Vehicle Health Status Checking
Autel MaxiCOM MK808Z is a full system diagnostic scanner that can quickly test every system module status and faster diagnosis and maintenance via reading / clearing codes and viewing live data, and only costs you a few minutes to finish full scanning. Brief introduction of its capabilities in full systems diagnoses.
Autel MK808Z can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in engine system to enhance vehicle performance, save energy and reduce exhaust emission.
It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.
Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.
SRS(Safety Restraint System) is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status.
4. Diagnose All Available Modules
Autel MK808Z works well on 80+ car makes and models worldwide (1996 and newer), to read / clear codes, view live data for all available systems using the supported protocols. The detailed report reveals the exact nature of the problem, with possible fixes to help greatly plan the budget for repairs.
5. IMMO Keys
Each time you lose the key, Autel Maxicom MK808Z can add the new key and remotely disable the lost one.
Note: ONLY available for Asian vehicles with low-grade anti-theft systems.
6. Make the Most of This Tool
As a tablet diagnostic tool, the most competitive advantage of MK808 is its add-on services for the well data arrangement and better using experience.
1). Shop Manager
You can well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.
2). Data Manager
The best solution for the data related operations, you can store, print, and review the saved files in Image, PDF, Review Data, Apps Uninstall or Data Logging.
3). Remote Desk
You can directly get ad-hoc remote support from Autel via Team Viewer software.
7. Different Choice for Diagnoses
Autel MK808Z is suitable for most OBD2 vehicles and support many car brands like Ford, Honda, Chevrolet, Jeep, Toyota, Dodge, GM, Volkswagen, Audi, BMW, Benz, etc.
When it comes to the non-OBD2 vehicles, you can connect the device with vehicles via adapters (not included) to complete car diagnoses, and the signal connected will be more stable. This diagnostic tool support different kinds of adapter connection.
8. Global Vehicle Coverage: Asian and European vehicles after 1996. Utilizes new Auto VIN ID Tech to automatically identify the vehicle make, model and year without user assistance.
9. Superior Mechanics Assistant: In addition to MaxiCOM standard features and special functions, there are also a host of enhanced features that are specifically designed for common repair shop work: To relearn parking brake pad position after replacement, force fuel injector regeneration and adjustment, battery registration and reset, sensor relearning after repair or replacement.

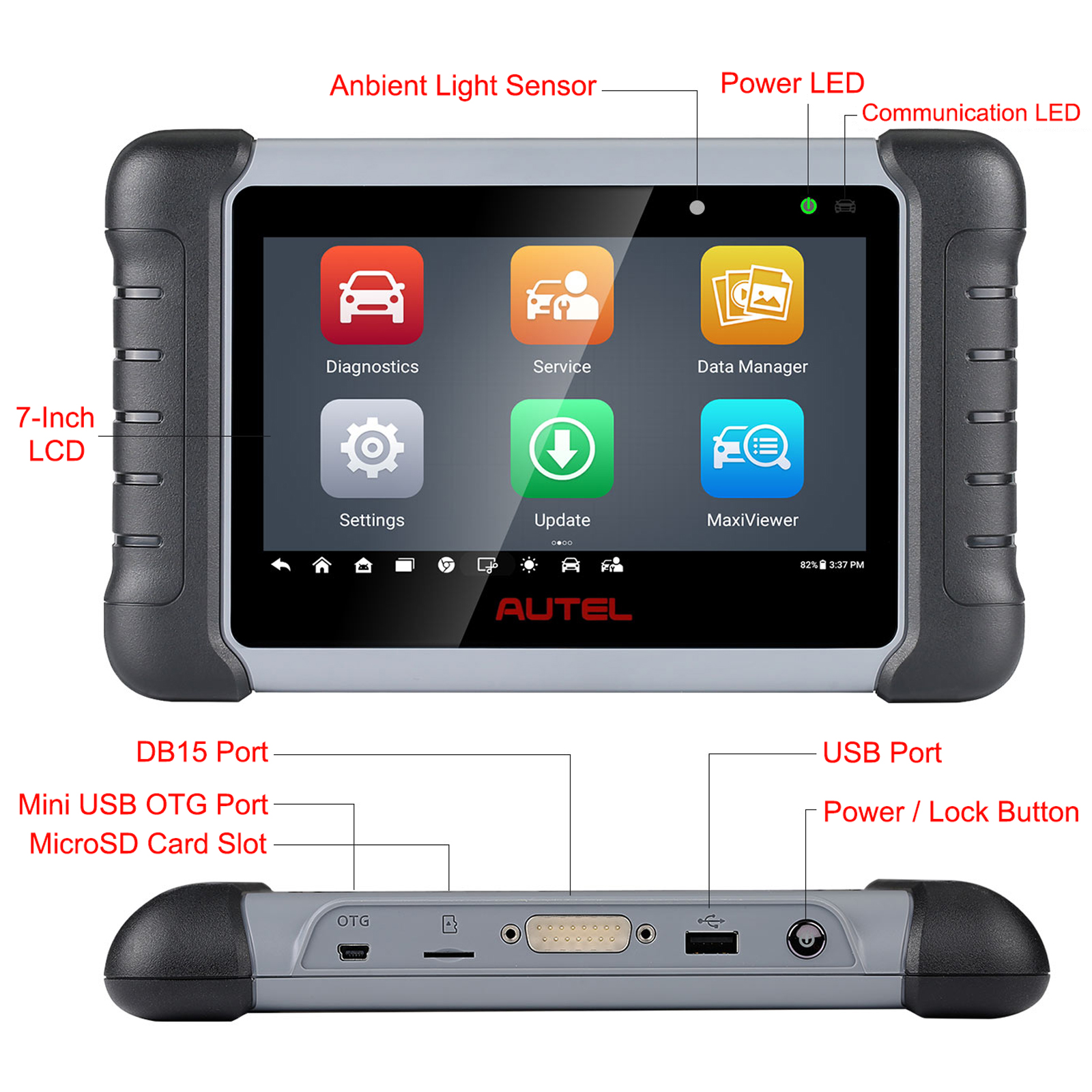

High Hardware Configuration:
1. Except its widely-used software, the advanced hardware also brings glory to its smooth and fast operation.
2. Android 11 tablet diagnostic tool greatly improves the working efficiency with performance and power optimized multi-core processor.
3. 7 inch touch screen LCD does a great job in the better using experience; you can directly get what you need with intuitive navigation.
4. 32GB memory is not only an extended storage space but a way to reduce the possible condition of slow response.
5. Built-in battery supports up to 4.5 hours battery life giving you a worry free operation experience.
Supported Protocols:
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
Specifications:
Operating System: Android 11
Processor: Rockchip RK3566 Quad Core Processor 4*1.8GHz (A55)
Memory: 64GB
Display: 7-inch capacitive touchscreen with 1024*600 resolution
Connectivity: mini USB 2.0 / USB 2.0 / Wi-Fi / MicroSD card (supports up to 64GB)
Sensors: ambient light sensor for brightness auto adjust
AudioInput / Output: input: N/A; output: beep
Power and Battery 3.7V / 3200mAh lithium-polymer battery charges via 5V DC power supply
Tested Battery Life: around 4.5 hours of continuous use
Battery Charging Input: 5 V/1.5 A
Power Consumption: 500mA (LCD on with default brightness, Wi-Fi on) @ 3.7V
Operating Temperature: 0 to 55 degree centigrade
Storage Temperature: -20 to 60 degree centigrade
Operating Humidity: 5% - 95% non-condensing
Net Weight: 788g
Dimensions (W*H*D): 237.8*148.6*35.5mm

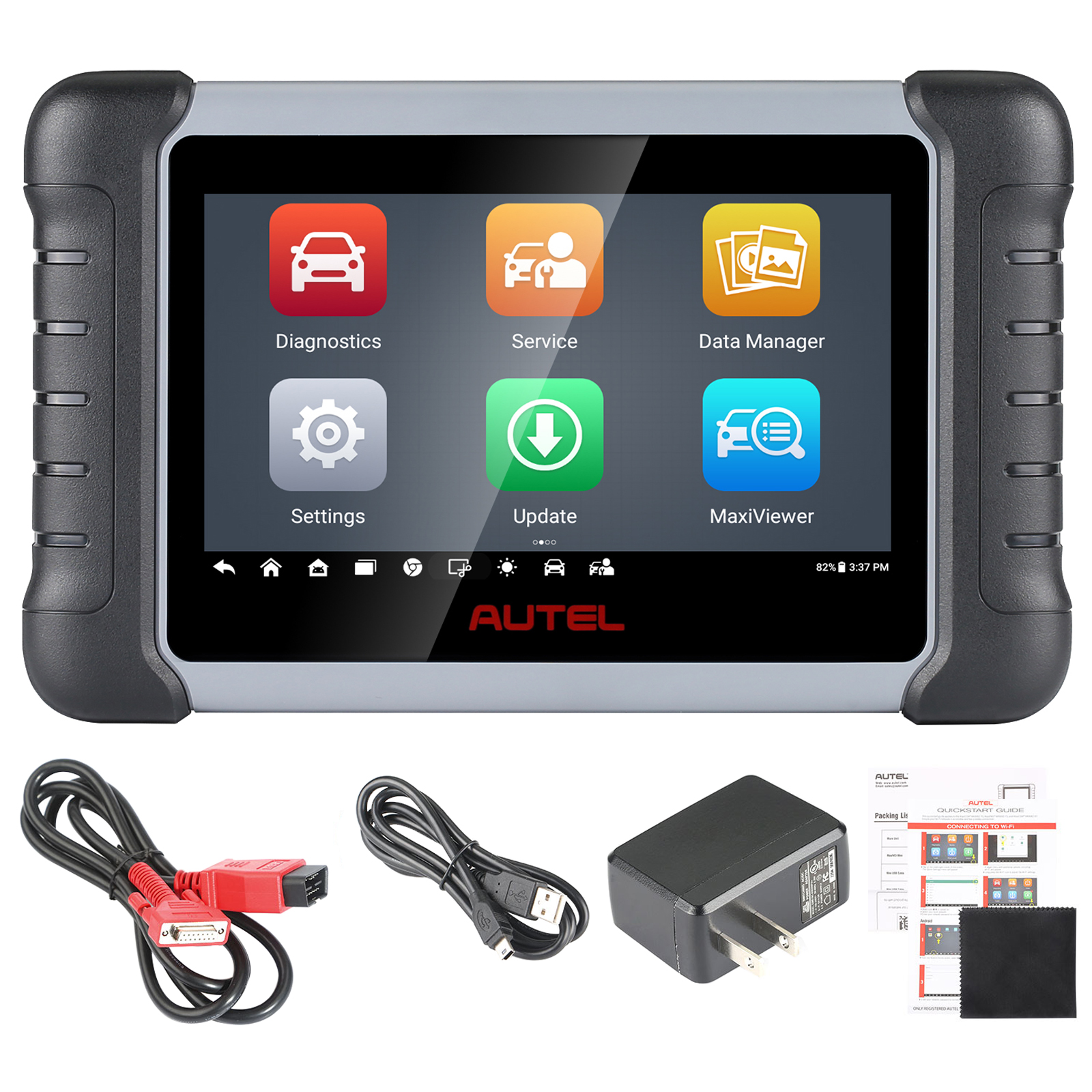

Packing List:
Autel MaxiCOM MK808Z
Main cable
Mini USB Cable
Power Supply Adapter
Soft Cloth
Quick Start Guide
Packing List
Plastic Toolbox
|
