Name: XELTEK SuperPro 6100N Programmer
Description:
XELTEK SuperPro 6100N is a USB2.0 Interfaced Ultra-high Speed Stand-alone Universal Device Programmer.
Supported OS: Windows XP / Vista / 7 / 8 / 10
Features:
1. Support 410 IC manufacturer, 103539 pcs devices and keeps growing.
2. Supports EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA, PROM, FLASH(NOR & NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, MicroController, MCU; Supports devices with VCC as low as 1.2V. Socket Adapters available for DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA, FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc.
3. High programming speed.
4. Built with 144 universal pin-drivers. Universal adapters are available for varies packages up to 144 pins. Quick new device support.
5. Popular NAND Flash Platform supported including Samsung (XSR1.0/1.6), QualComm, HYNIX(HIFFS), MTK(Solution V1.1), ICERA(v1.0/2.0), ST(7162, 7141), AMLOGIC(IF2/0), REALTEK, PICOCHIP, DataLight (Flash FX Pro), Marvell(310/303/920/935…), BroadCom, ZTE, Intel (CE4100), UBI, LEADCORE(L1809OG), MSATR etc. Customer-specific NAND solution available.
6. PC hosted mode and stand-alone dual modes. Under PC hosted mode the programmer is controlled by a PC via USB2.0 (high speed) to program a chip. Under stand-alone mode the programmer is controlled via a 6-key keypad and a 20 character by 4 line LCD display. A CF card is used to store the project files.
7. User can operate multiple units to construct a concurrent multi-programming system thank for the stand-alone mode.
8. IC manufacturer approved programming algorithms are used for high reliability.
9. Testing functions for logic devices.
10. Advanced and powerful software functions.
1). Production Mode starts chip operation at the moment the chip is inserted in the socket properly.
2). Project Function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.
3). Password can be set for project files and production volume control
4). Batch Command combines device operations like program, verify, security into a single command at any sequence.
5). Dynamic buffer makes it possible that each chip is programmed with different data file. Applications including serial number, MAC address etc.
6). Log file is useful for quality tracking.
11. Many safety mechanisms are built including self-diagnosis, wrong chip placement detection, poor-pin-contacting detection, ID checking, over-current and over-voltage protection etc.
Volumn Production Solution:
1. By operating multiple programmers simultaneously you can use them in high volume production environment.
2. Clustering of programmers provides for flexible and easy way for volume production.
3. Optional Compact Flash card is necessary to store user data, and device algorithm in stand-alone operation. For most operation, 256MB size is recommended.
Supported Devices:
EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, Flash Memory (NOR & NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, MicroController, MCU
Supported Packages:
DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP, ...
Specifications:
PC Interface: USB2.0
Stand-alone Feature: supported with CF Card
Power Adapter: Input: AC 100 - 240V 50/60Hz; output: 12V/2A
Power: 15W
Main Unit: Size: 216*148*94mm
Main Unit Weight: 1.6Kg
Packing Size: 301*252*145mm
Package Weight: 2.8 Kg

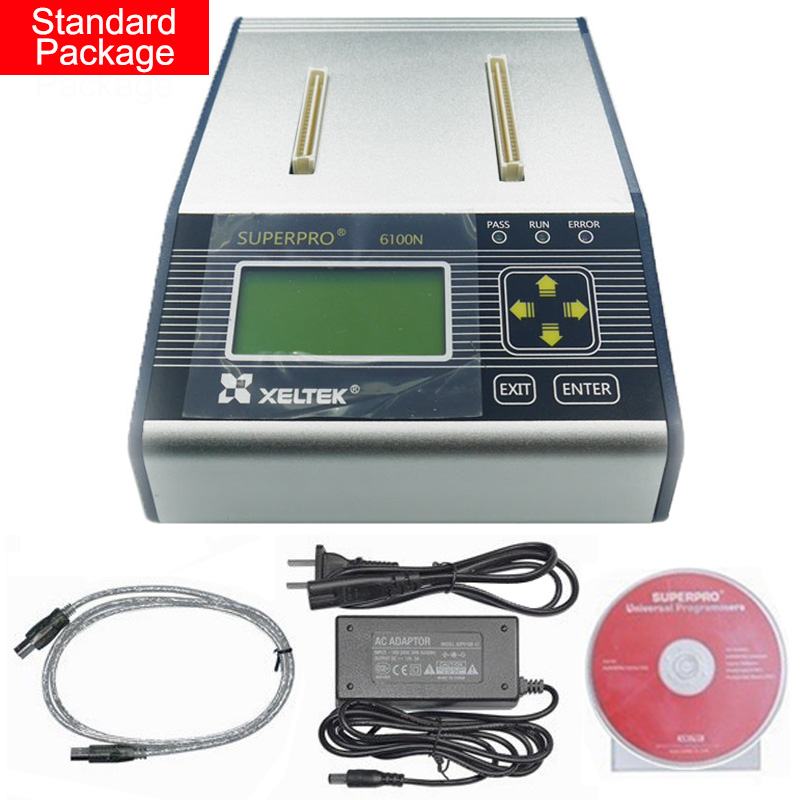

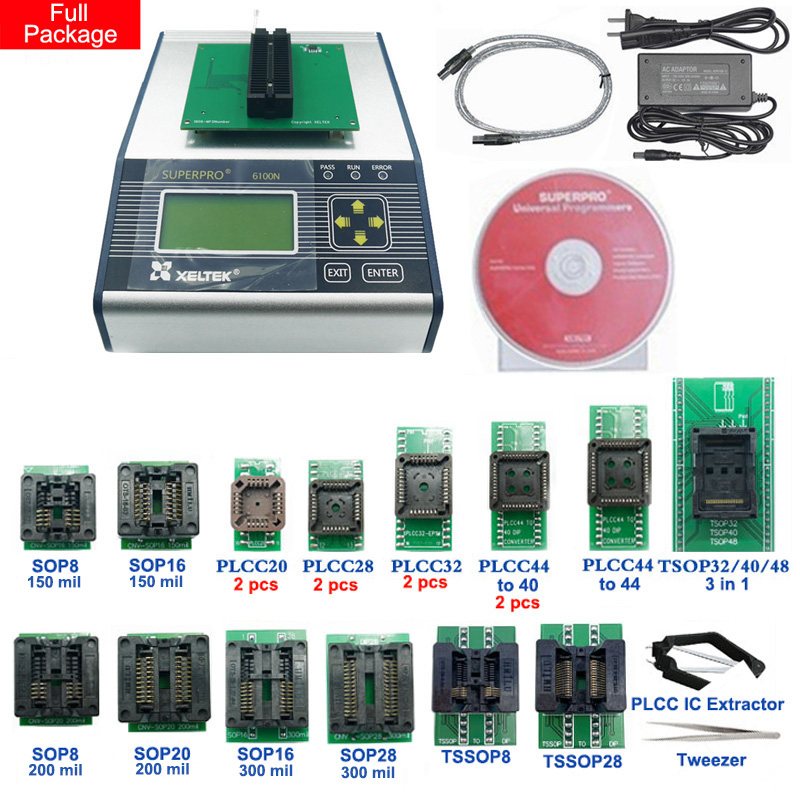

Packing List:
XELTEK SuperPro 6100N Programmer
DX0001 Adapter (optional)
Adapters (optional)
PLCC IC Extractor (optional)
Tweezers (optional)
USB2.0 Cable
Power Supply Adapter
Software and User Manual CD
Packing Box
|
