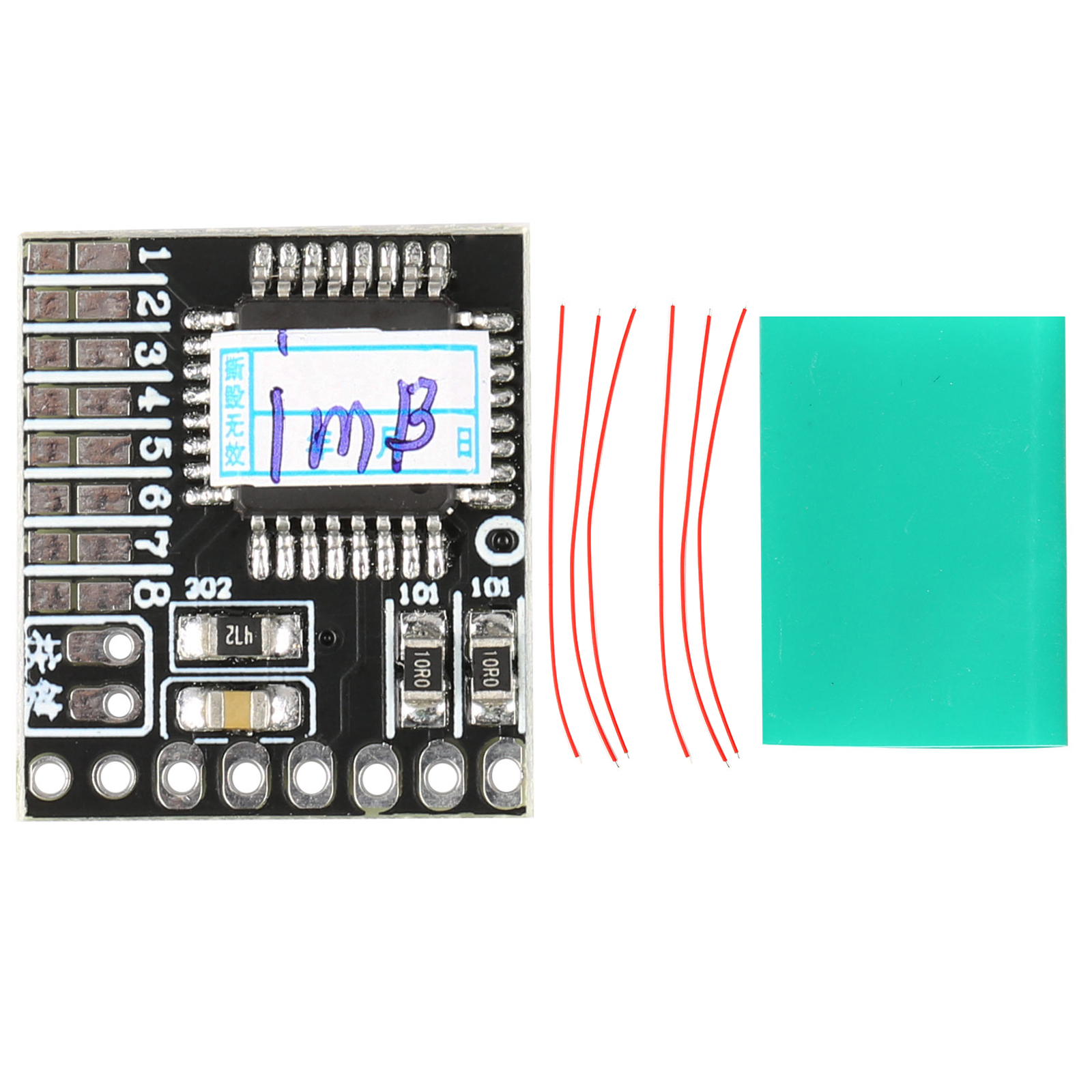

Name: VW 35XX Odometer CAN Filter for VW Jetta Lavida Polo Rapid Santana
Description:
Nowadays, many new Volkswagen Odometer data is unable to be read via OBD. So the one who wants to process Odometer data have no way to start. However, by installing Volkswagen Odometer CAN Filter, you can read the Volkswagen Odometer data on Jetta, Lavida, Polo Rapid, Santana.

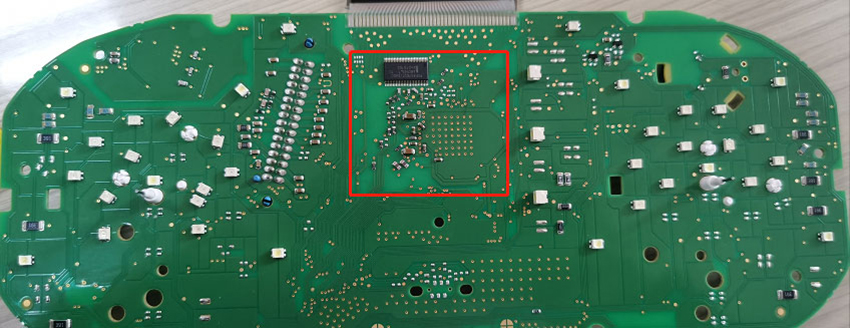

The prerequisite for installing this filter is Odometer needs to have a liquid crystal driver module as shown below.
Note:
This operation is only used for learning and communicating of meter display analog, the relevant data in the engine gearbox cannot be changed.
Supported Model List:
Type 01:
Jetta: 31G 920 850B 31G 920 850D 31G 920 850C 31G 920 850E 34D 920 850B 31G 920 850G
Santana Hona: 34D 920
Santana: 34D 920 850B 31G 920 850F
Rapid 32D 920 850B 31G 920 850H
Polo: 6RD 920 860J 31G 920 850A (some special models)
Polo: 6RD 920 860G
Polo: 6RD 920 860H 34D 920 850A (some special models)
Type 02:
Santana 34D 920 850A (special program)
Jetta 31G 920 850A (special program)
Type 03:
Lavida 18D 920 860A
Lavida 18D 920 850A (special type, there are two kinds)
Type 04:
Lavida 18D 920 850A
Lavida 18D 920 850A (if there is a special model, it is suitable for the third type)
Type 05:
New Lavida 18D 920 870A
Type 06:
870 870B
Type 07:
Rapid 860 6VD 920 700 32D 920 860
Notice:
Different Odometers types correspond to different filters. If data processing simulation is required, the corresponding filter must be selected.

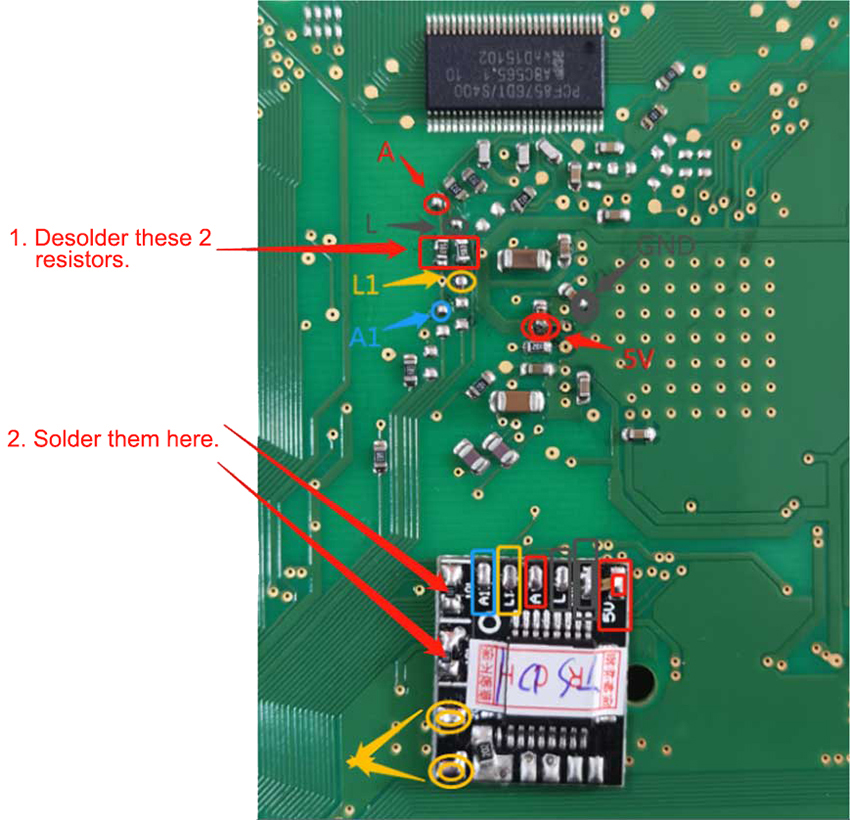

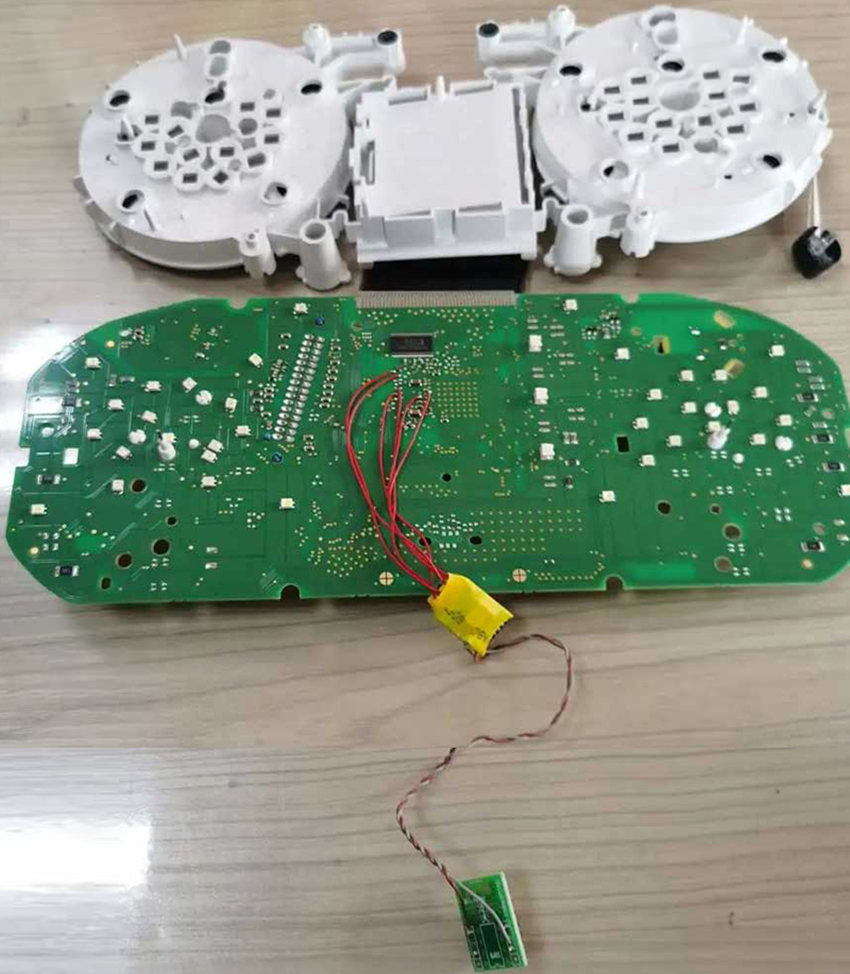

After the wiring is completed according to the diagram, the Odometer display simulation test can be performed.
 |
