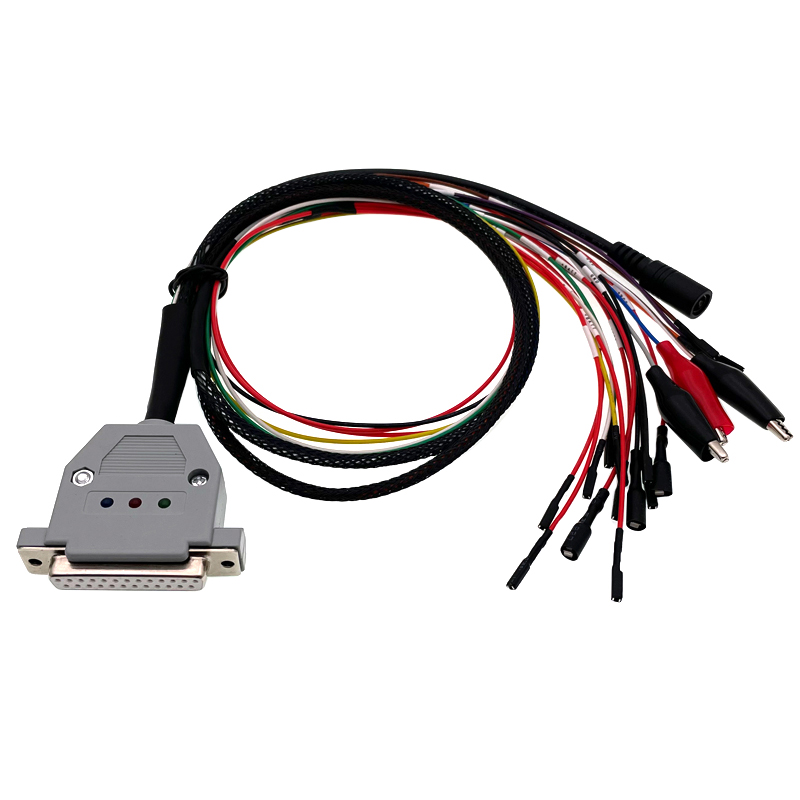

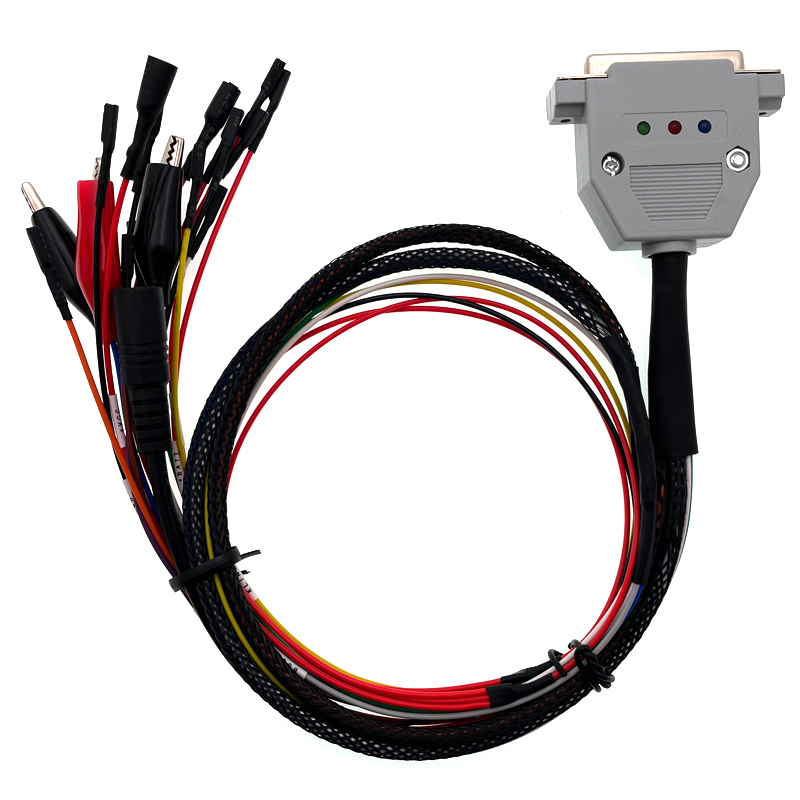

Name: ECU Boot Bench Cable with LED
Description:
High Quality ECU Boot Bench Cable with LED. DB25 ECU Bench Pinout Cable for SM2 PRO J2534 VCI / Scanmatik2 Pro to read and write ECU.
There is an indication of the power of the ECU, power management and automatic signals. An external power source is required to work with the cable.

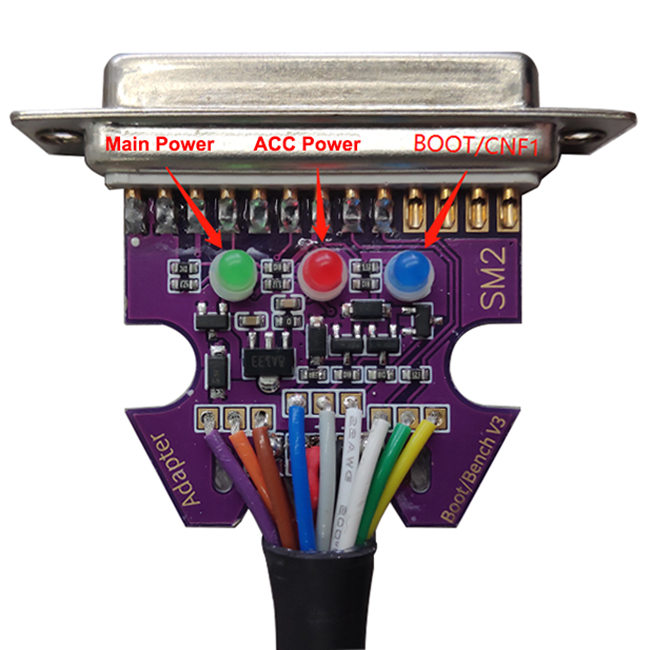

3 LEDs:
Green Color: main power supply
Red Color: ACC power supply
Blue Color: boot / CNF1 power supply

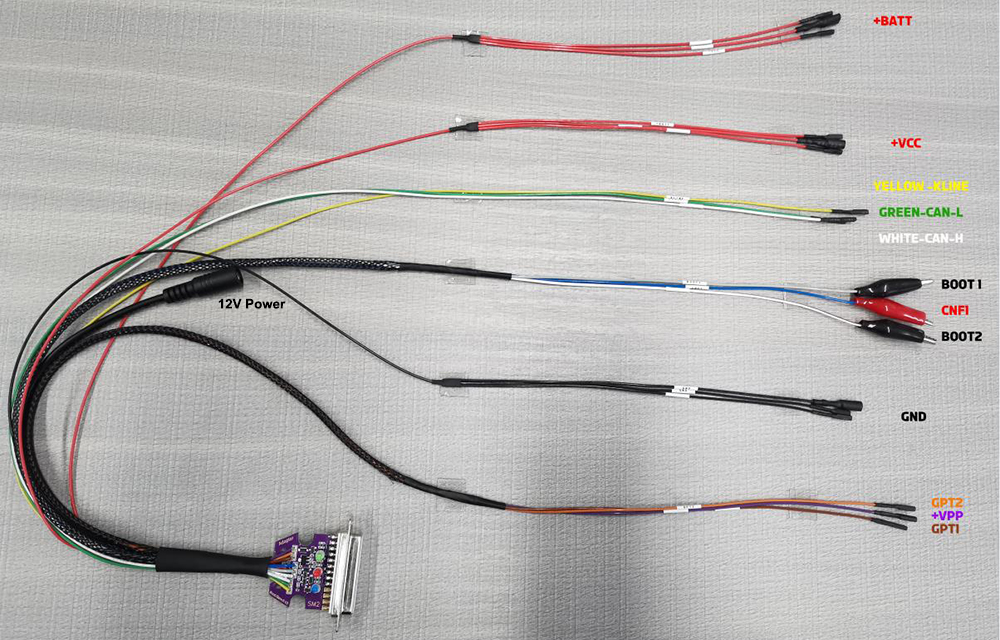

Pinout Definition:
Red 1: +BATT
Red 2: +VCC
Yellow: K-LINE
Green: CAN-L
White: CAN-H
Black 1: BOOT1
Red: CNF1
Black 2: BOOT2
Black 3: GND
Orange: GPT2
Purple: +VPP
Brown: GPT1
External Power Supply: 12V
|
