Name: New Holland Electronic Service Tool CNH EST
Description:
New Holland Electronic Service Tool (CNH EST 9.9 9.8 8.6 Engineering Level) + Diagnostic Procedures + White CNH Kit Diagnostic Tool.
3 Kinds Software Version:
CNH EST 9.9
CNH EST 9.8
CNH EST 8.6

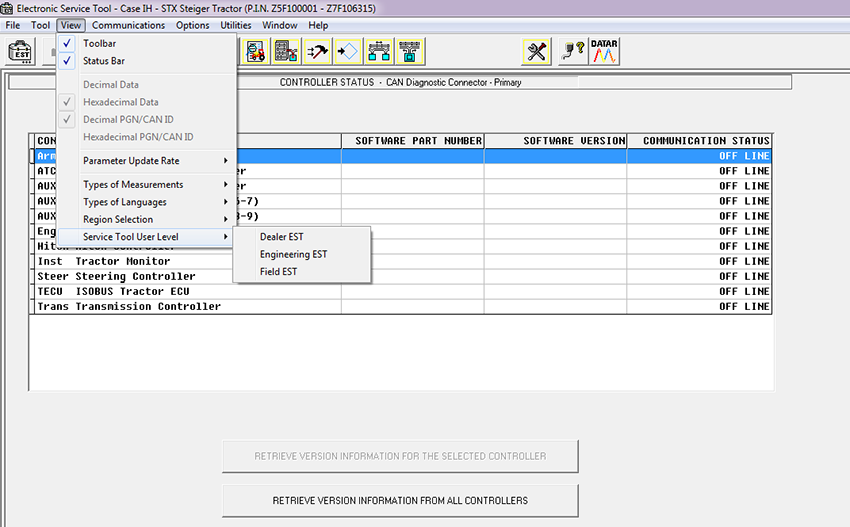

CNH EST 9.9 and CNH EST 9.8 is engineering level with diagnostic procedure. CNH EST 8.6 software is dealer level. Engineering level has more functions than dealer level.
Supported Languages:
English, French, German, Spanish, Portuguese, Italian, Russian, Dutch, Polish, Danish

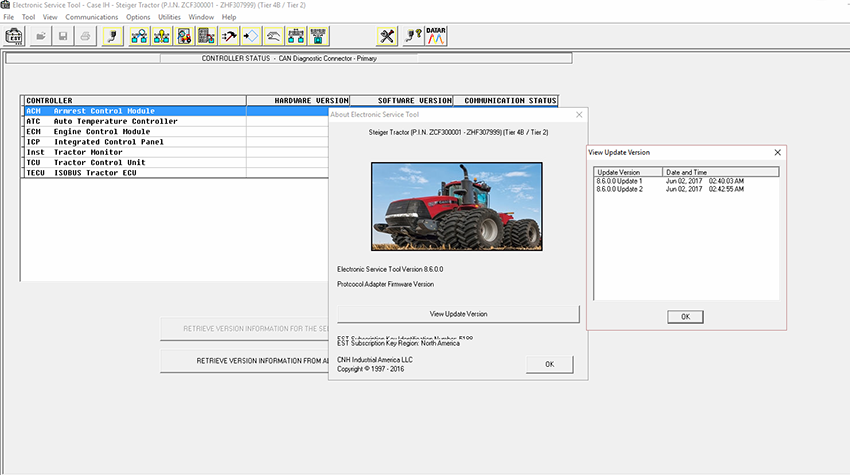

Functions:
Check the Status of Parameters
Retrieve Faults
Run Diagnostic Tests
Make ECU and Parameter Programming
Monitor Active and Logged Diagnostics
View and Change ECU Configuration
View Diagnostic Procedures and Schematics
Troubleshoot Problems
Run Scope Diagnostics
CNH Engine Download Tool operates from EST program to perform the following engine download operations:
1. Provide Engine Control Unit (ECU) programming update capability;
2. Provide blank ECU initialization and programming capability;
3. Provide ECU programming reassignment for blank and other ECUs;
4. Provide ECU download crash recovery.
Notice:
This DPA5 can perform diagnostic, programming and ECU reload by K-Line protocol with E.A.S.Y software for Iveco engines.
E.A.S.Y. - Additional engine diagnostic and download tool for connection directly to ECU to perform diagnostic, programming and ECU reload by K-Line protocol.
CNH DPA5 Interfaces OEM 380002884. This interface is working 2 CAN and K-line for diagnostic CASE and New Holland with IVECO Engine with E.A.S.Y. under EST.

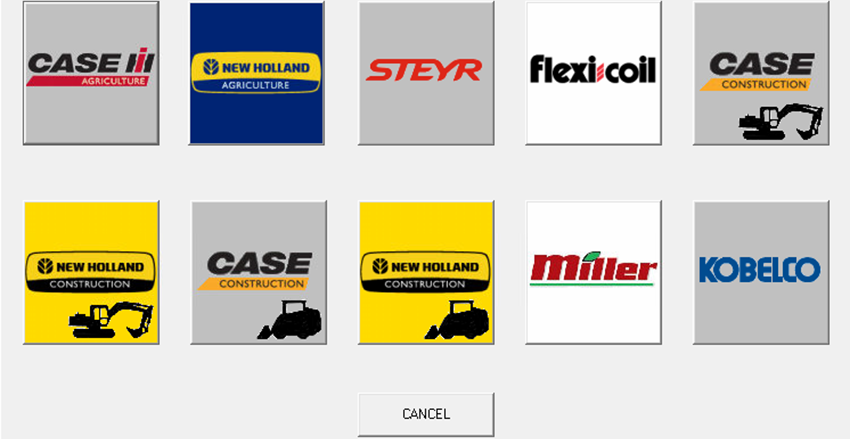

Supported Devices:
New Holland (Agriculture and Construction)
New Holland FK (Fiat-Kobelco)
New Holland O&K (Orenstein & Koppel)
CASE (Agriculture and Construction)
STEYR
KOBELCO
Iveco (Astra) (articulated dump trucks only)
Flexi-Coil
Sumitomo (S.H.I.)
Link-Belt
Computer Requirements:
Processor: Intel Core i5 Processor or higher;
RAM: minimum 8GB
Operating System: Windows 10 64bit / Windows 11 64bit (except Home Edition)
HDD: minimum 250GB
Ports: 9-pin RS232 serial port (preferred) or USB to RS-232 converter (FTDI Chipset)
Two USB ports
10/100 Ethernet
WiFi 802.11b / g
Bluetooth
Mobile Wireless (recommended)

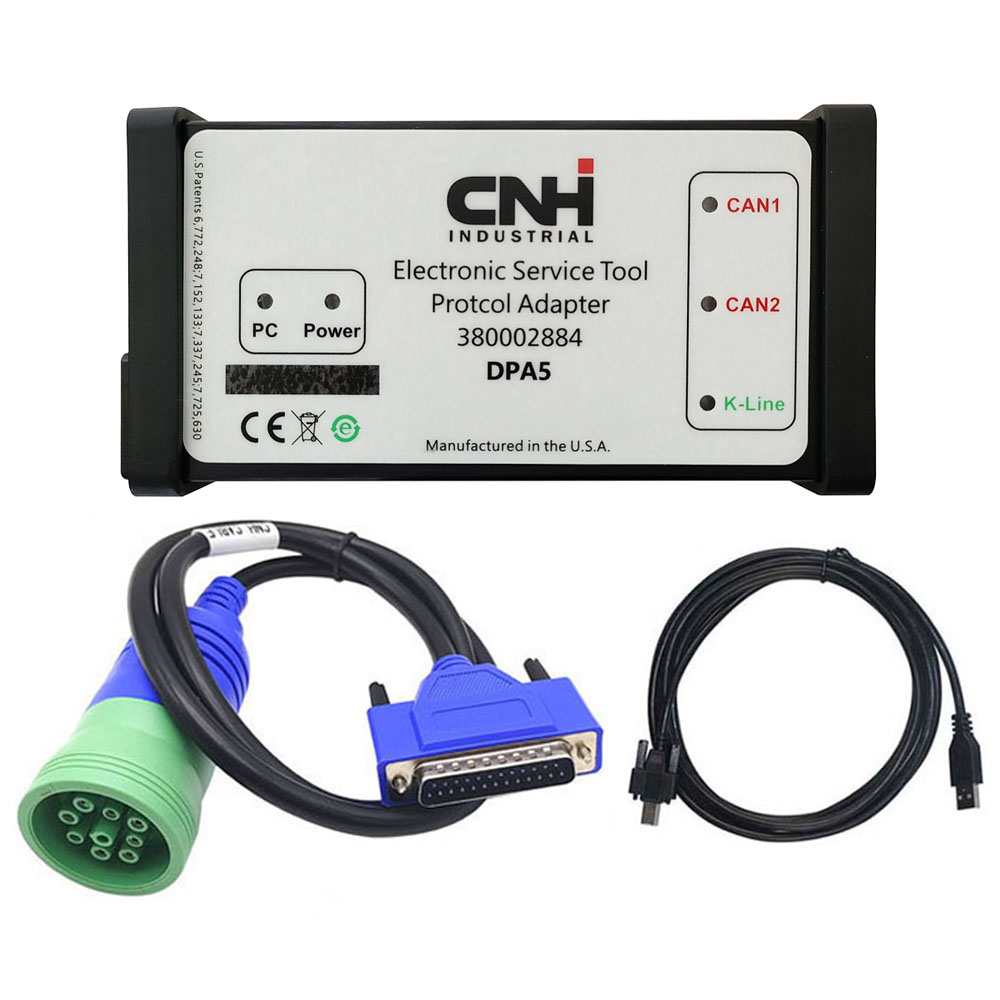

Packing List:

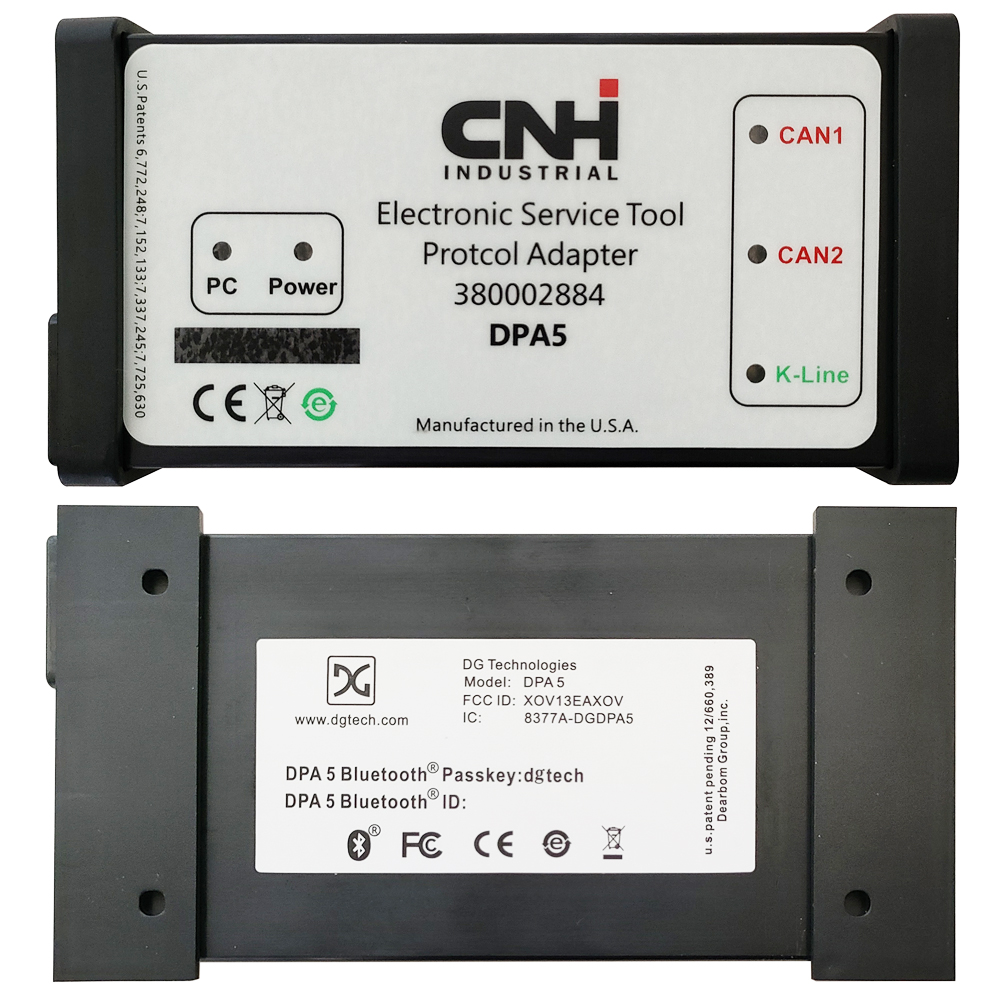

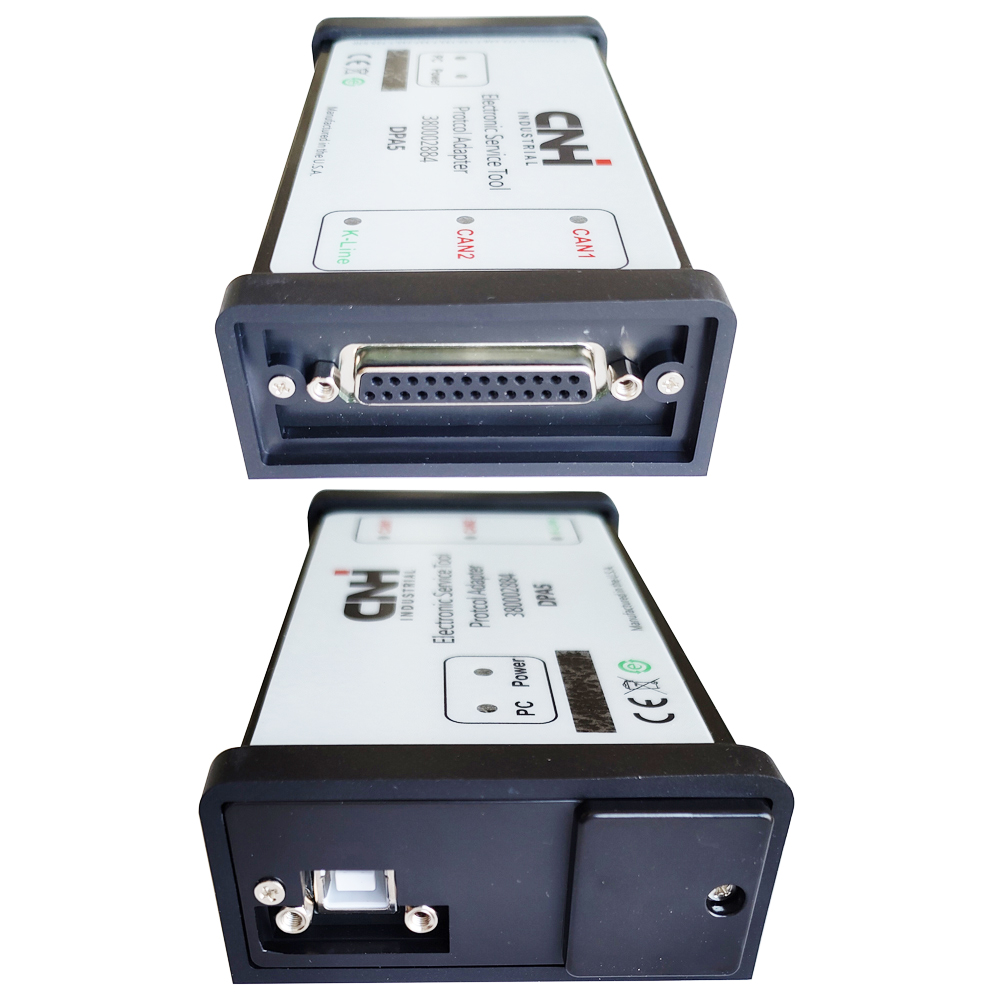

Dearborn Protocol Adapter 5 (DAP5) Interface

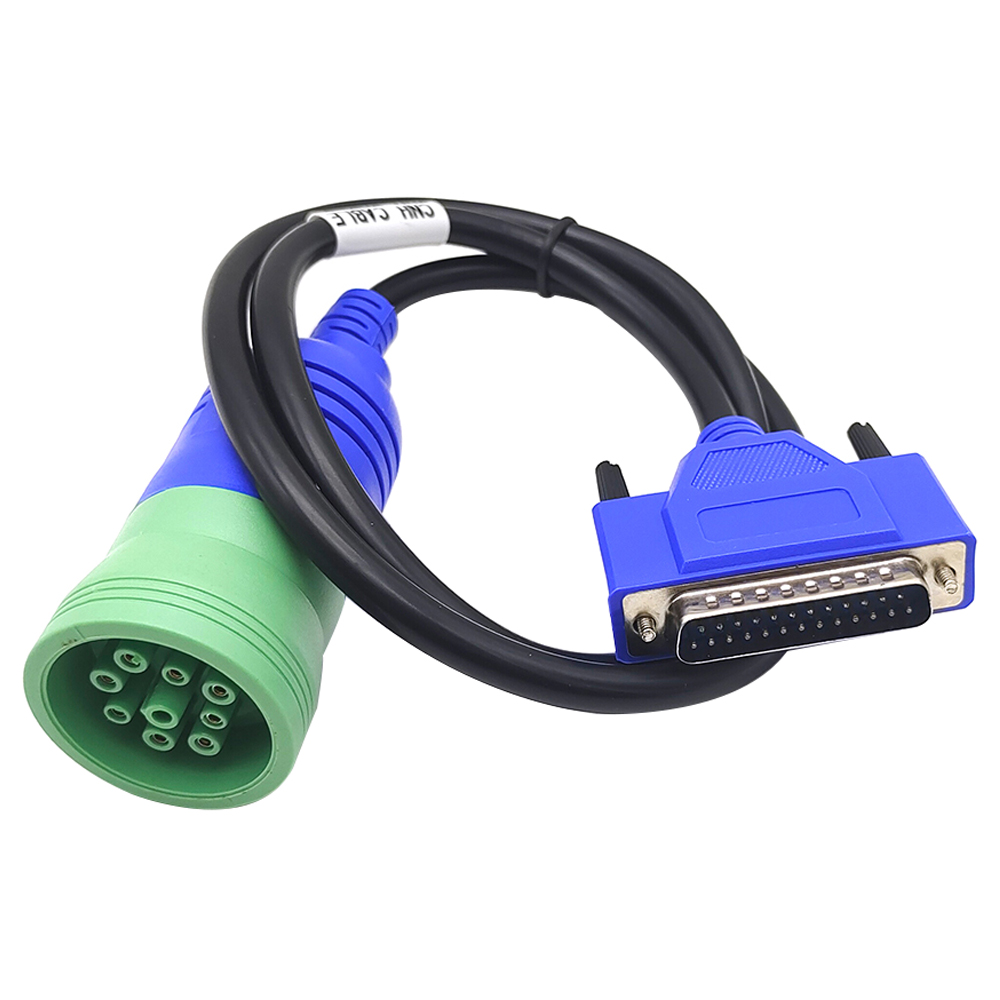

9-Pin Deutsch CNH Cable
USB Cable
CNH EST Software (we will offer one time free activation via Team Viewer)
Plastic Toolbox
Packing Box
|
