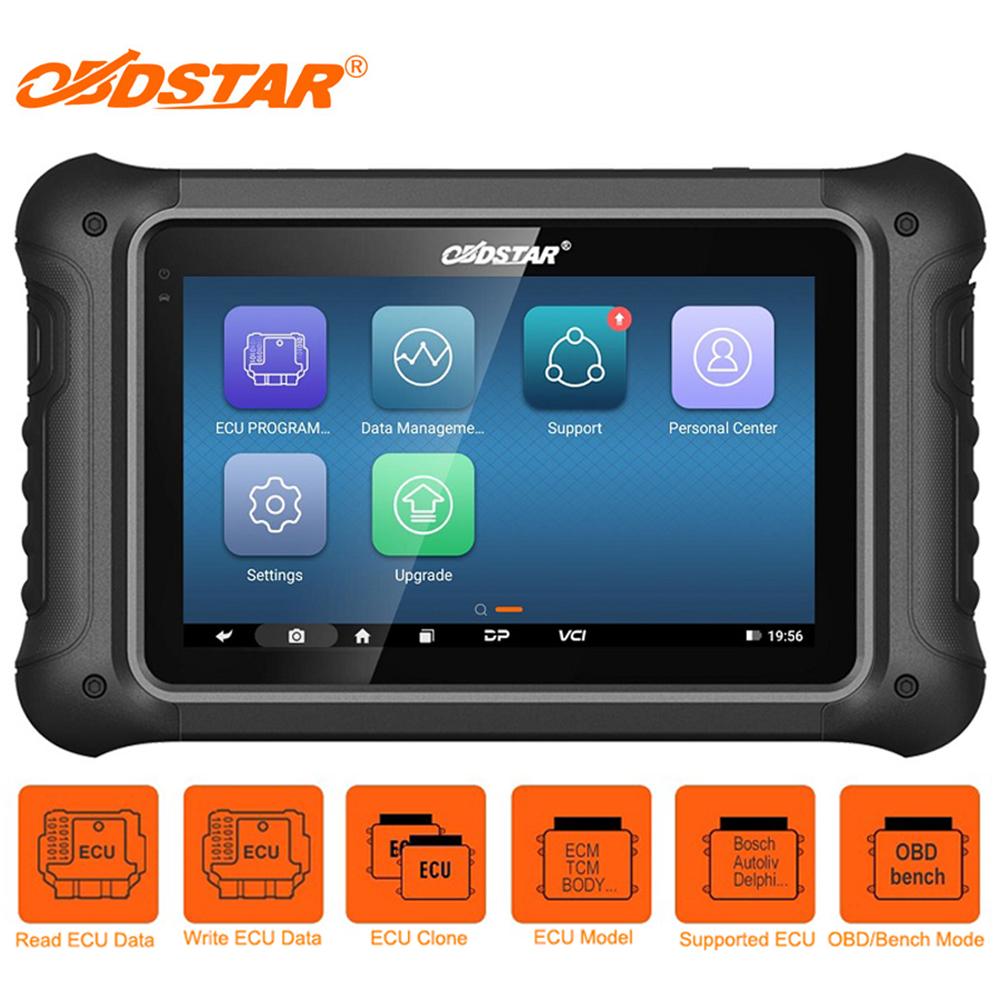

Name: OBDSTAR DC706 ECU TCU Clone Tool for Car and Motorcycle
Description:
OBDSTAR DC706 ECU TCU Clone Tool is designed for vehicle ECM, TCM and Body/other system for ECU flasher. It can Read ECU Info., R/W EEPROM/DFlash/PFlash/MAP, reset ECU(Virgin), Calibrate Mileage, Read IMMO Pincode, ECU Recovery... It is all by OBD or Bench mode and makes ECU cloning easy.
Software Update: 1 year free update online
Distributor Code: 0086A002
Highlights:

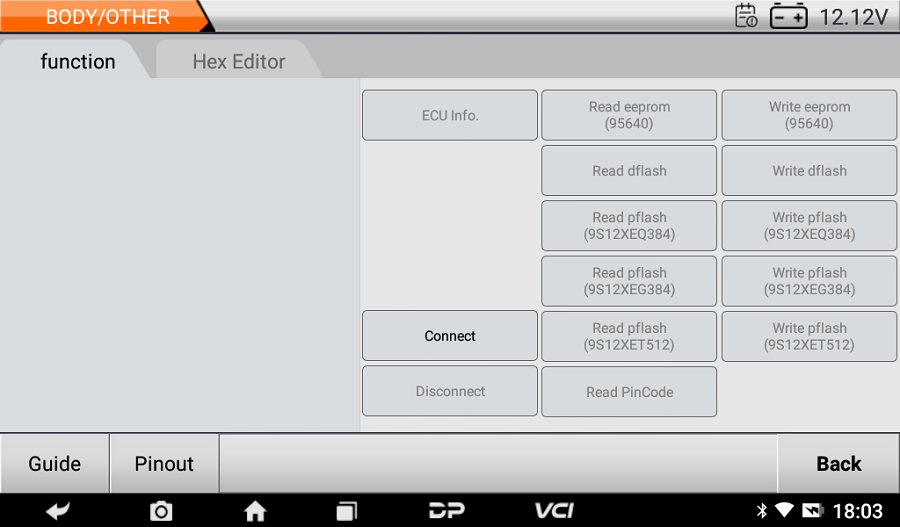

1. R/W EEPROM/DFlash/PFlash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
2. Support 200+ ECM types(Partial functions require P003 adapter.).
3. Support dozens of TCM types.
4. Support 100+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...).
5. Support VW DQXXX (TCM) calibrate mileage.
6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone.
7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter).
8. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1)).
9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type.
10. Support automatic identification.
11. Strong help data files.

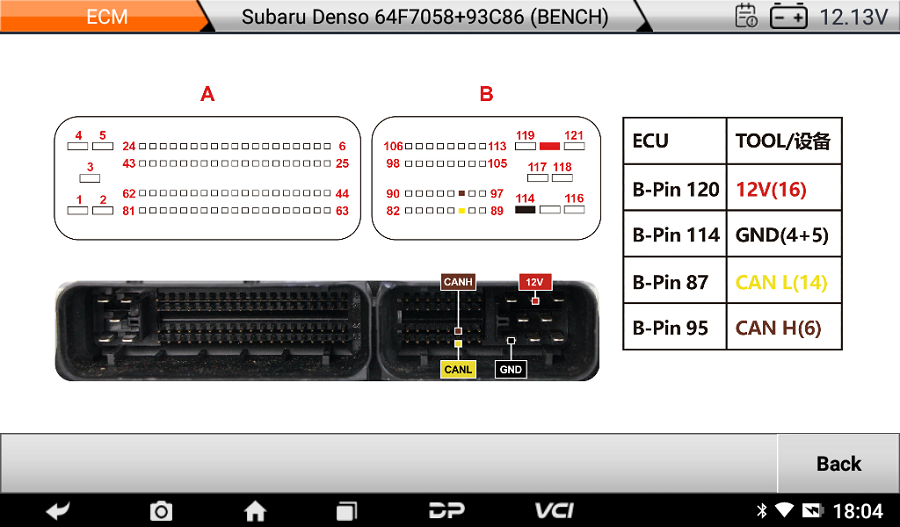

12. All by OBD or Bench mode.

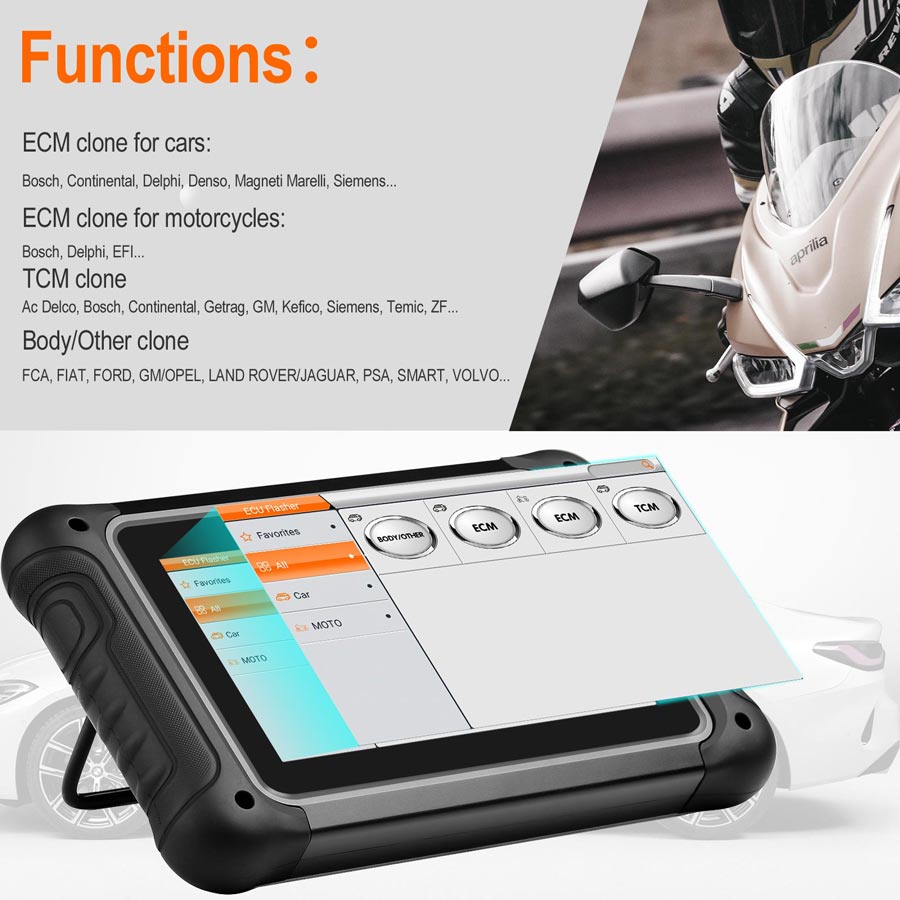

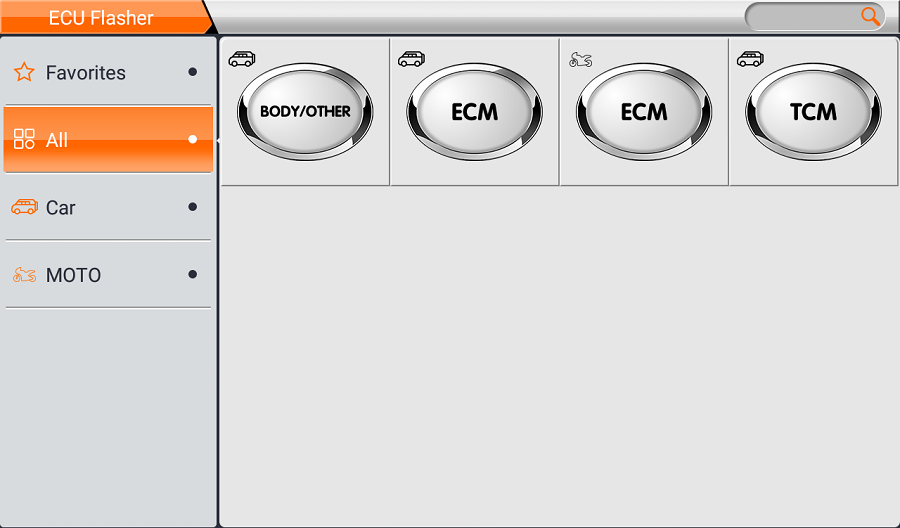

Functions:
1. ECU Clone (all by OBD or Bench)

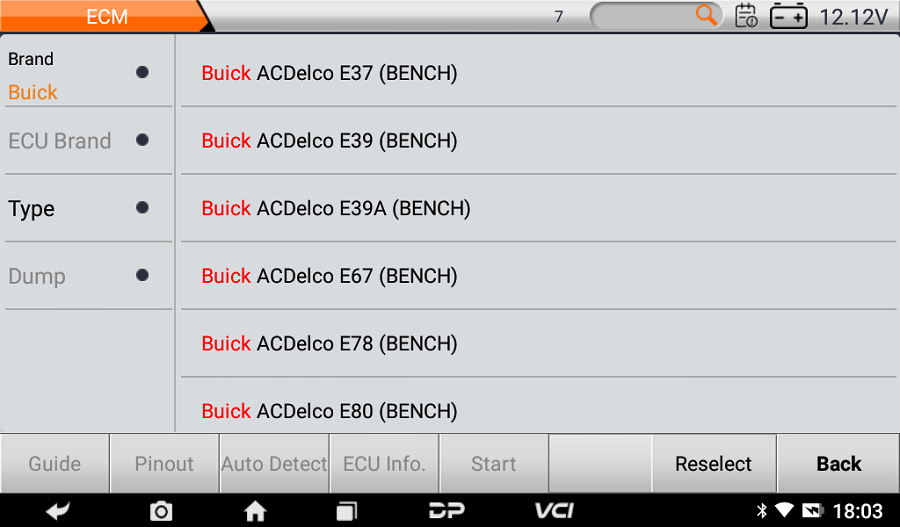

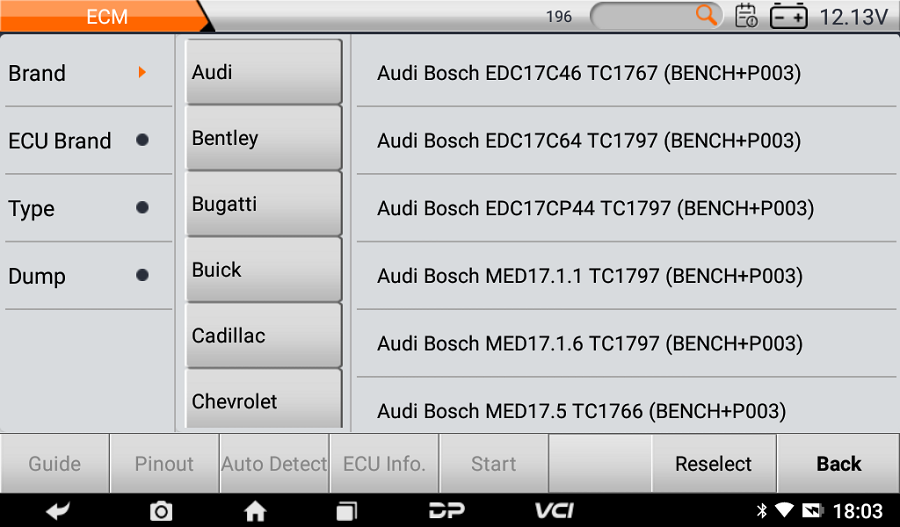

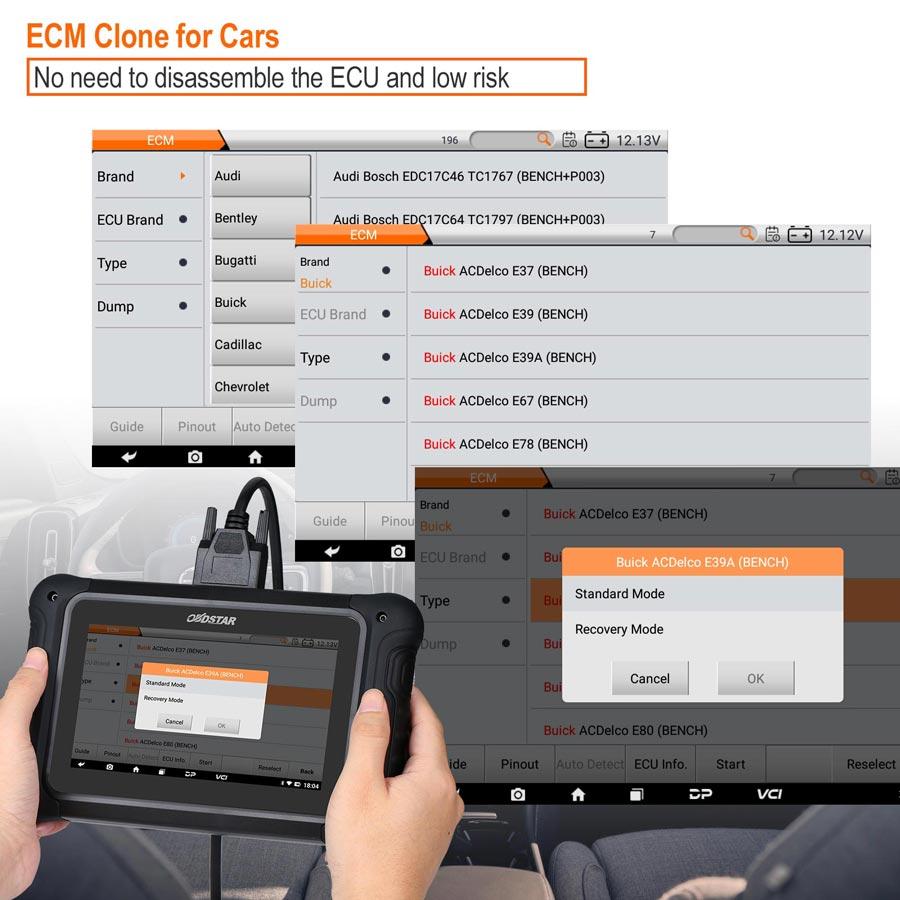

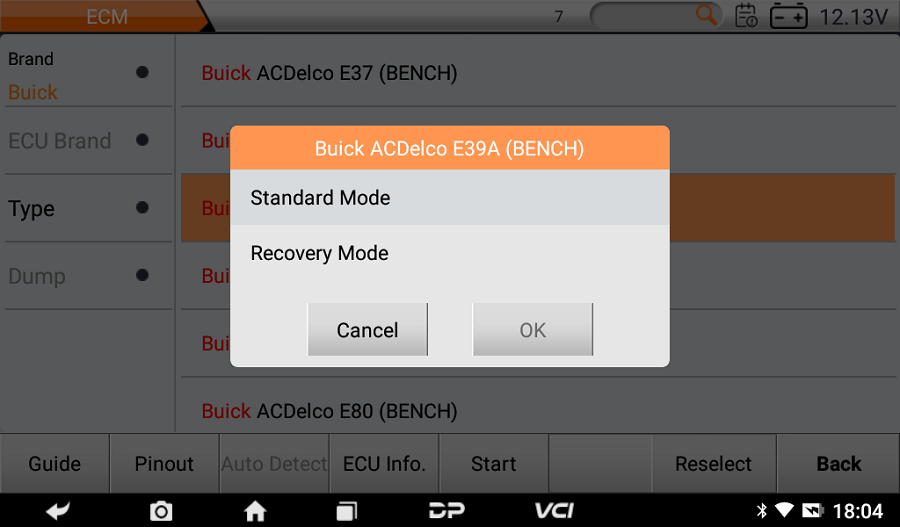

2. ECM Clone for Cars (Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)

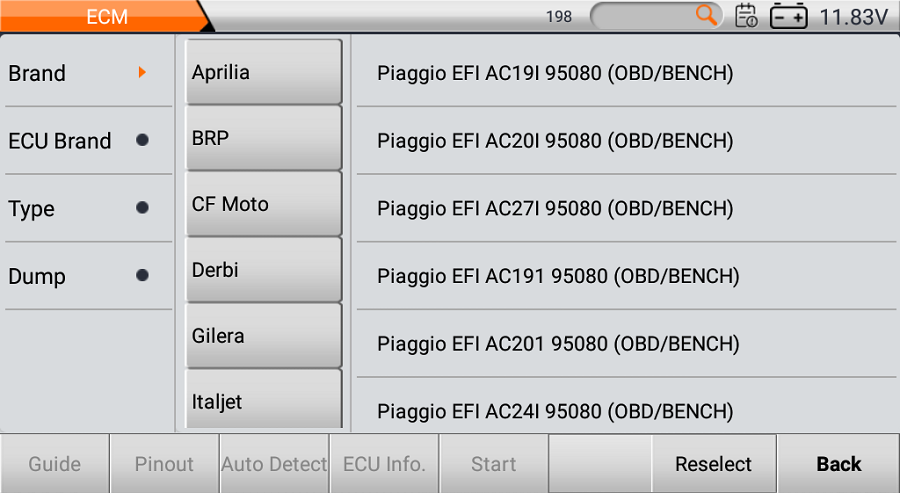

3. ECM clone for Motorcycles (Bosch, Delphi, EFI...)

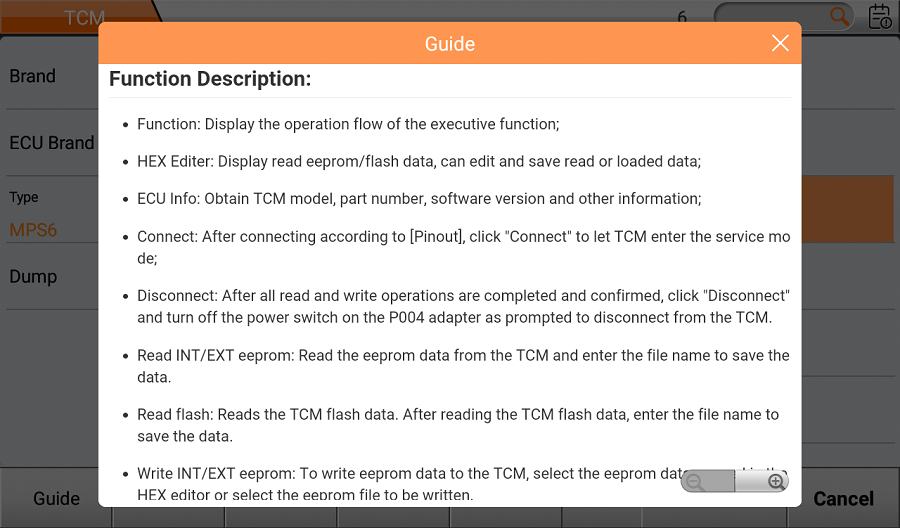

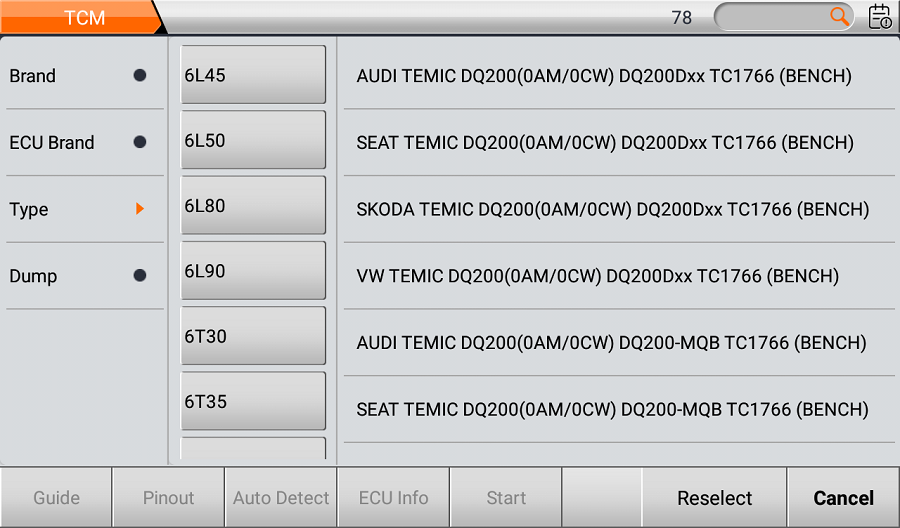

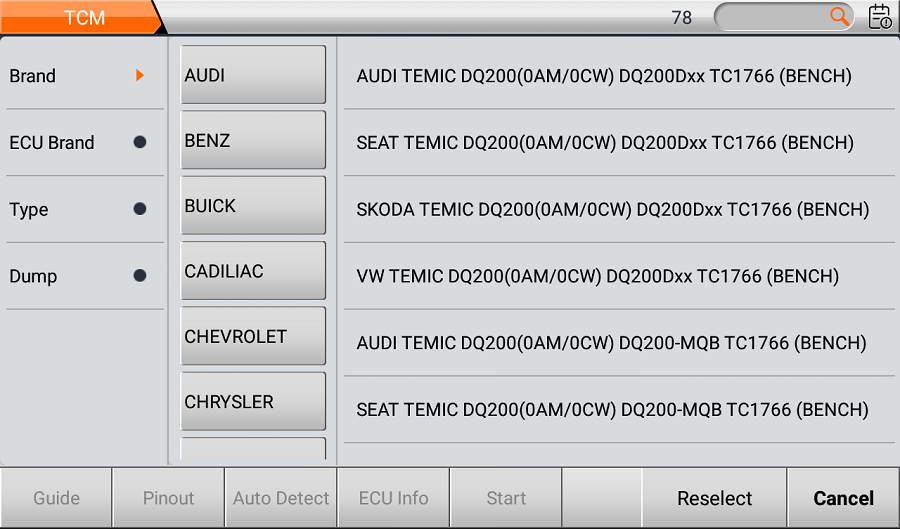

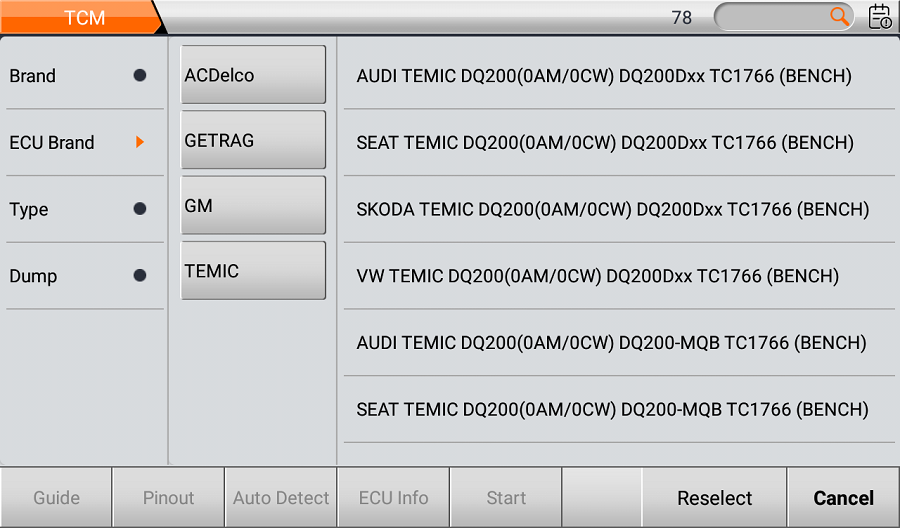

4. TCM Clone (AcDelco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)

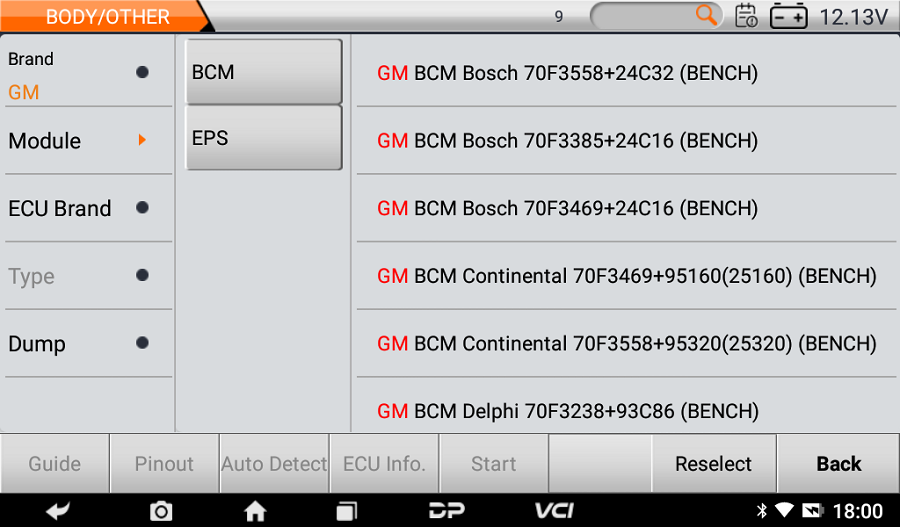

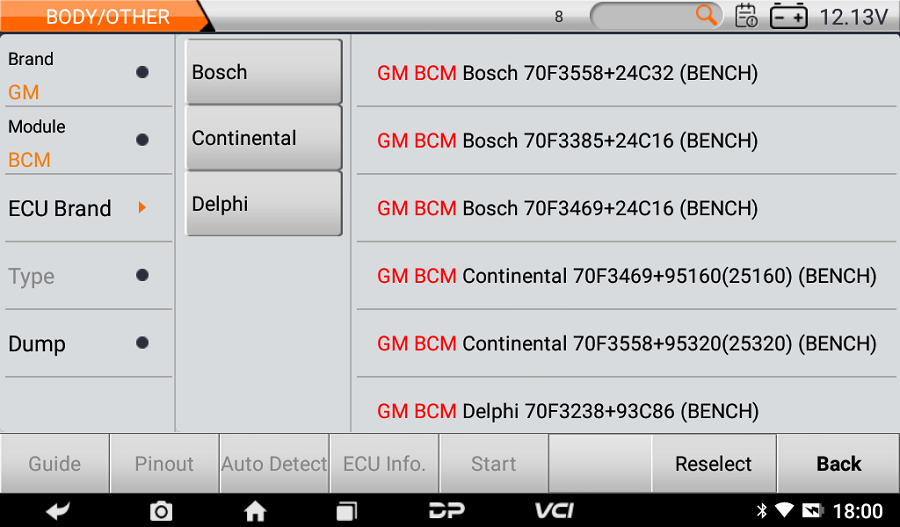

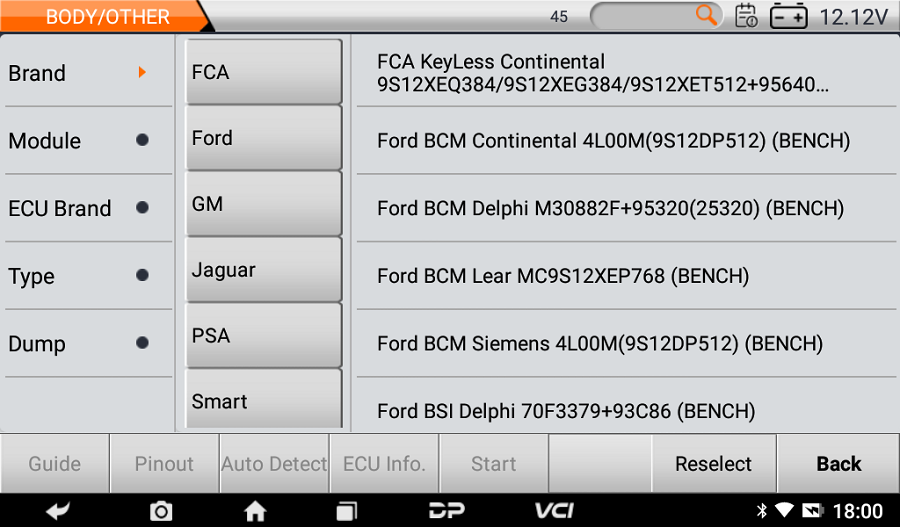

5. Body/Other Clone (FCA, Fiat, Ford, GM/Opel, Land Rover/Jaguar, PSA, Smart, Volvo...)
Supported ECU Manufacturers:
ALPS
Autoliv
Bosch
Continental
Delphi
Denso
Johnson Controls
Lear
Magneti Marelli
Siemens
Temic
Valeo
Supported Brands:
Cars:
ASTON MARTIN
BMW
FAW
FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
FORD/LINCOLN
GM/OPEL
HYUNDAI/KIA
LAND ROVER/JAGUAR
LUXGEN
MASERATI
MAZDA
MITSUBISHI
NISSAN
OPEL
PSA
SMART
SUBARU
SUZUKI
VOLVO
VW/AUDI/SEAT/SKODA
Motorcycles:
APRILIA
BRP
CFMOTO
DERBI
GILERA
GUZZI
PEUGEOT
PIAGGIO
QJBENELLI
VESPA

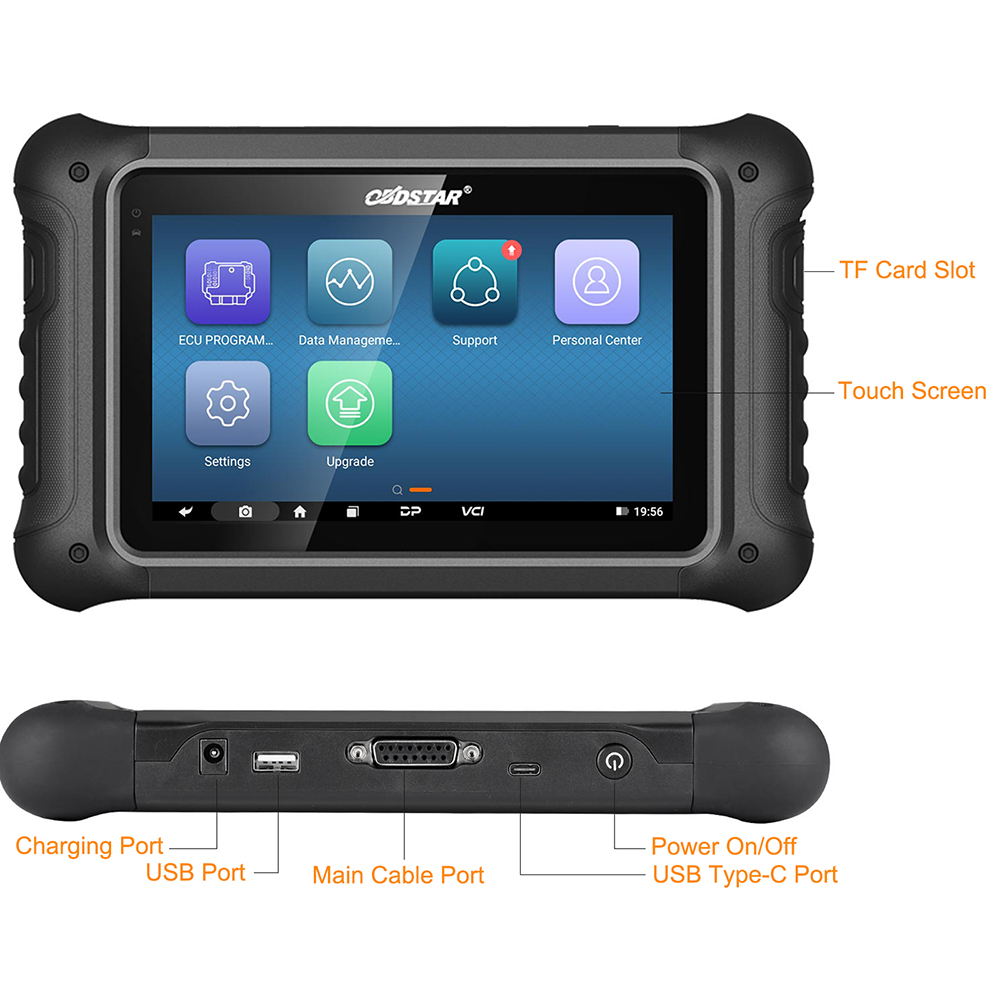

Specifications:
Operation System: Android 5.1.1
CPU: RK3128 quad-core ARM cortex A7
Display: 7.0 inch capacitive touch screen with 1024*600 resolution
Battery: 3700mA rechargeable polymer lithium battery
Storage Capacity: 16GB
Storage Extension: 32G MicroSD card supported
WiFi: Supported
Working Temperature: -20 to 55 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Weight: 1.3Kg
Dimension: 243*148*36mm

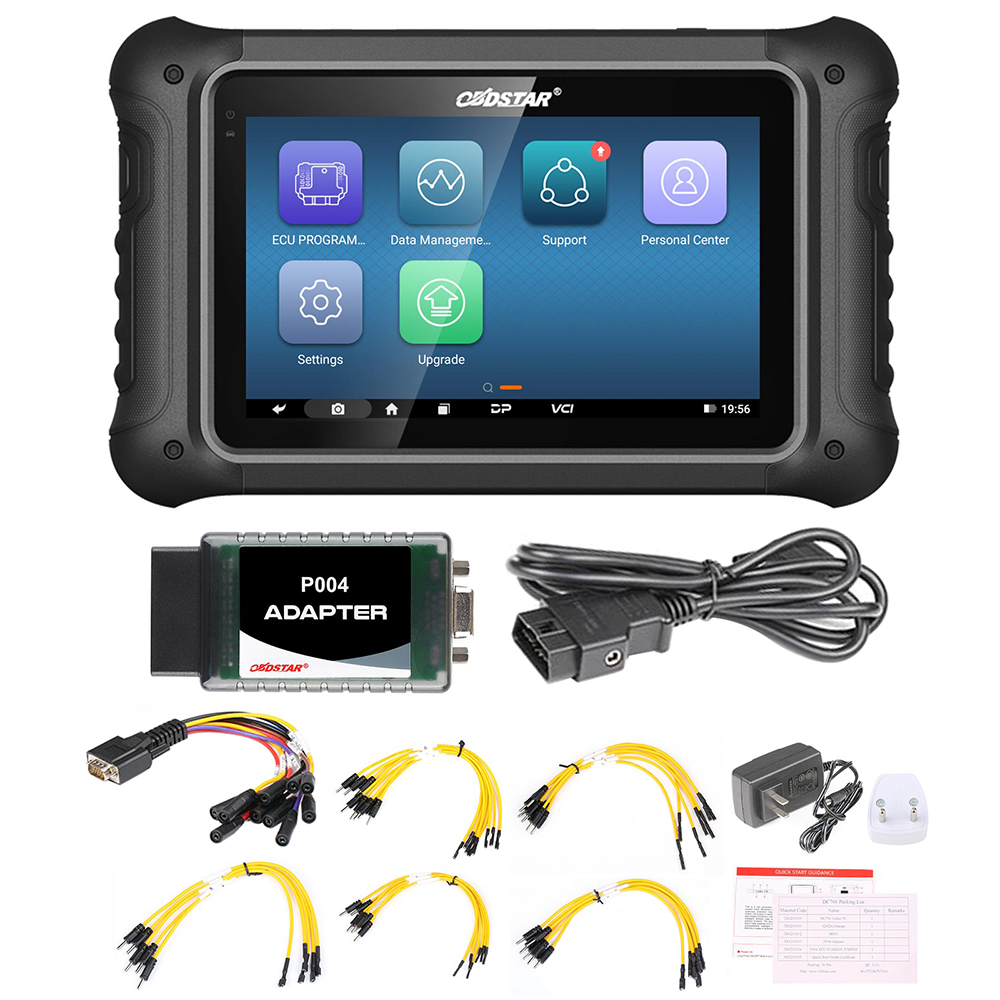

Packing List:

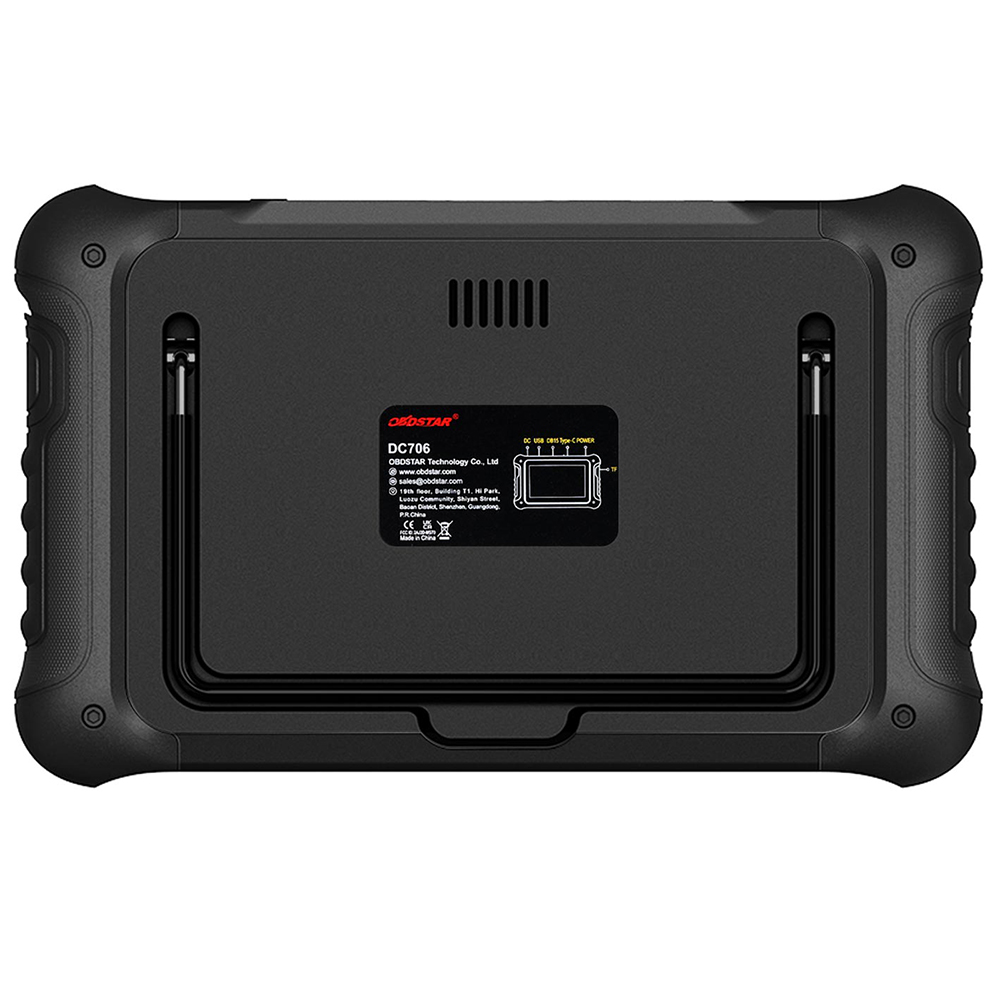

OBDSTAR DC706 ECU Tool
P004 Adapter
P004 ECU Clone Jumper
Main Cable
Jumper Cable Kit
12V2A Power Charger
Quick Start Guide
Packing List
|
