Description:



Based on Super MB PRO M6, Super MB PRO M6+ has greatly improved product functions and compatibility, and is 100% compatible with the original Mercedes-Benz software!



Features:



1. 100% compatible with the original Mercedes-Benz software.



2. Inner cooler fan to prevent over-heating caused by continuous use.



3. USB 3.0 communication interface between Super MB M6+ and the computer, which improves the compatibility of the product with computers and tablets. (Compatible with both old and new computers and tablets, no need to choose old-style computers and tablets with LAN ports.)



4. Super M6+ supports remote C-side operation. The client does not need to install special diagnostic testing software. Just connect the M6+ to a local computer that can access the Internet, and we can remotely provide customers with paid diagnosis and detection services of vehicle failure. Customers can also set up a local remote diagnostic test in the local area network. The above ways greatly improve the product flexibility.



5. Super MB Pro M6+ supports BMW E-SYS, Aicoder, wired and wireless programming and coding of F and G series, and supports BMW modification, hidden functions activation.



6. MB M6+ supports BMW APP software, provides mobile phone English version of Bimmercode (coding hidden functions activation) Bimmerlink (diagnostics codes clearing) and other mobile phone software, supports MHD .Bimmergeeks .. XHP Flashtool. ODIS-e.XDelete.THOR-the M Flasher.PRO- Tool and other mobile APPs.



7. Super MB Pro M6 Plus supports vehicles with DoIP communication protocol, such as the new Volkswagen, Audi, Skoda, Bentley, Lamborghini, etc. A special transition button is provided.



Connection Instructions:



1. Connection between MB diagnostic software and hardware

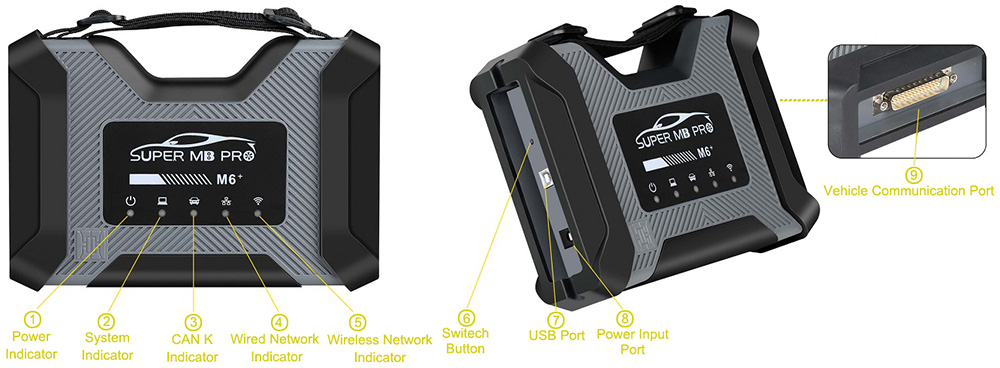

1). Connect M6+ Multiplexer to the car diagnostic interface via diagnostic cable. ① Red Power Indicator Light on Multiplexer will be on, ② System Indicator Light is flashing during startup. After startup, ② System Indicator Light will be on and beeps once indicate the startup process is finished.



2). Wired Connection: Connect the USB port ⑦ of the M6+ Multiplxer and USB port of the computer or tablet via a USB cable, and a new network connection will appear on the network management interface of the computer or tablet (WIN10 driver-free), and the IP address of the network connection property will be changed to 169.254.255.*, Subnet mask: 255.255.0.0, Preferred DNS: 169.254.255.255, click “Advanced” button and add multiple IP addresses as 172.29.127.*, 255.255.0.0. After the computer or tablet is connected to the network, ④ Wired Network Indicator Light will be on.



3). Wireless Connection: You cannot find the wireless network if connected via USB cable. Unplug the USB cable from the M6+ Multiplexer, you will find a M6+ DOIP-**** network on the computer or tablet, just connect it. ⑤ Green Wireless Network Indicate Light will be on,  ④ Wired Network Indicator Light is off, no setting is required, the password is 123456789.



4). After opening the software lock on the computer side, the original diagnostic software can be used normally.



5). For remote C-end operation, please consult us.



2. BWM software and hardware connection



1). Connect M6+ Multiplexer to the car diagnostic interface via diagnostic cable. ① Red Power Indicator Light on Multiplexer will be on, ② System Indicator Light is flashing during startup. After startup, ② System Indicator Light will be on and beeps once indicate the startup process is finished.



2). Wired Connection: Connect the USB port ⑦ of the M6+ Multiplxer and USB port of the computer or tablet via a USB cable, and a new network connection will appear on the network management interface of the computer or tablet (WIN10 driver-free), and change the network connection attribute IP address to 172.29.127.* and Subnet mask: 255.255.255.0. Click “Advanced” button and add a multi-IP address as 169.254.0.*  and Subnet mask: 255.255.255.0. After the computer or tablet is connected to the network, ④ Wired Network Indicator Light will be on. Press and hold the ⑥ Switch Button for 3 seconds and then release it. You can see that the ④ Green Wired Network Indicator Light is on and then flashing, indicating that the diagnosis can be performed normally. It will return to the initial state after it is powered on again.



3). Wireless Connection: You cannot find the wireless network if connected via USB cable. Unplug the USB cable from the M6+ Multiplexer, you will find a M6+ DOIP-**** network on the computer or tablet, just connect it. ⑤ Green Wireless Network Indicate Light will be on,  ④ Wired Network Indicator Light is off, no setting is required, the password is 123456789.

Press and hold the ⑥ Switch Button for 3 seconds and release it, you can see ⑤ Green Wireless Network Indicator light is on and turns to flashing, indicating that the diagnosis can be performed normally. It will return to the initial state after it is powered on again.



4). The computer-based BWM software adopts wired or wireless connection, and the mobile phone BWM APP software adopts wireless connection.



5). For remote C-end operation, please consult us.



3. For DoIP function and hardware connection of other diagnostic software, please refer to BWM software and hardware connection instructions.

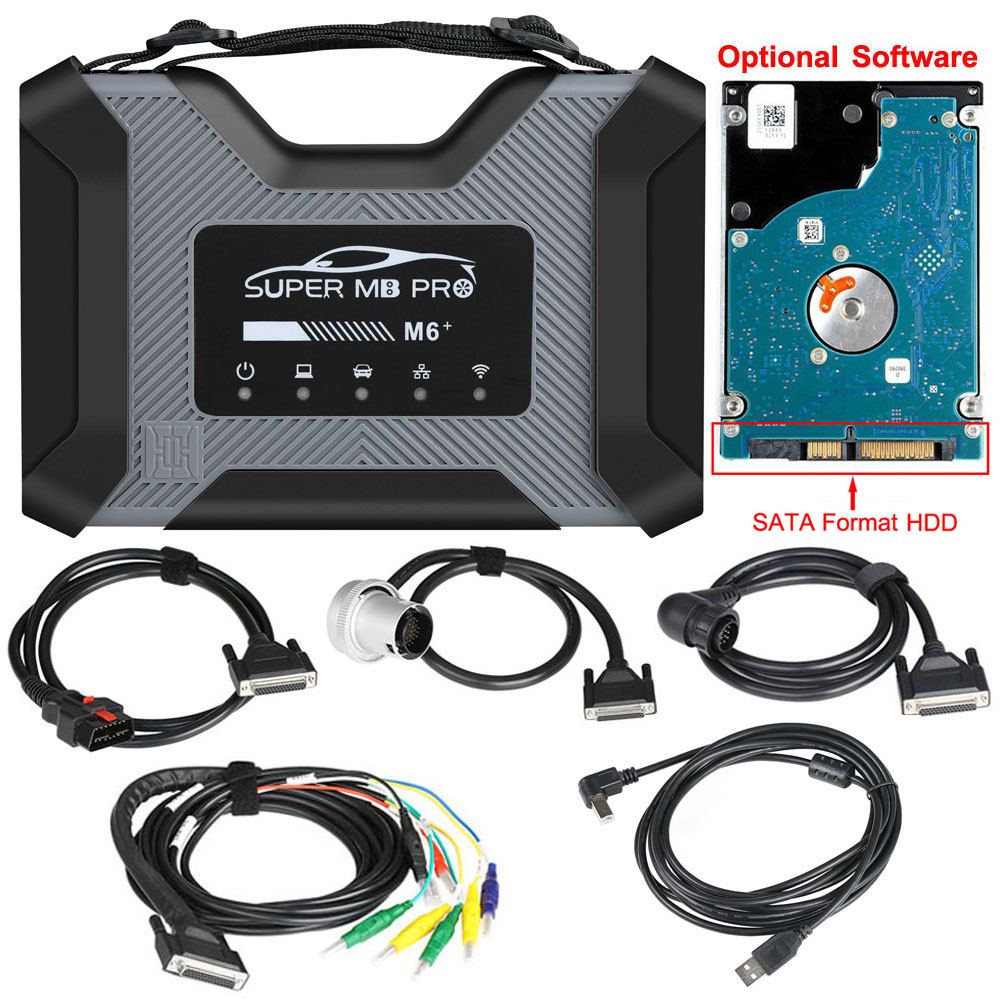

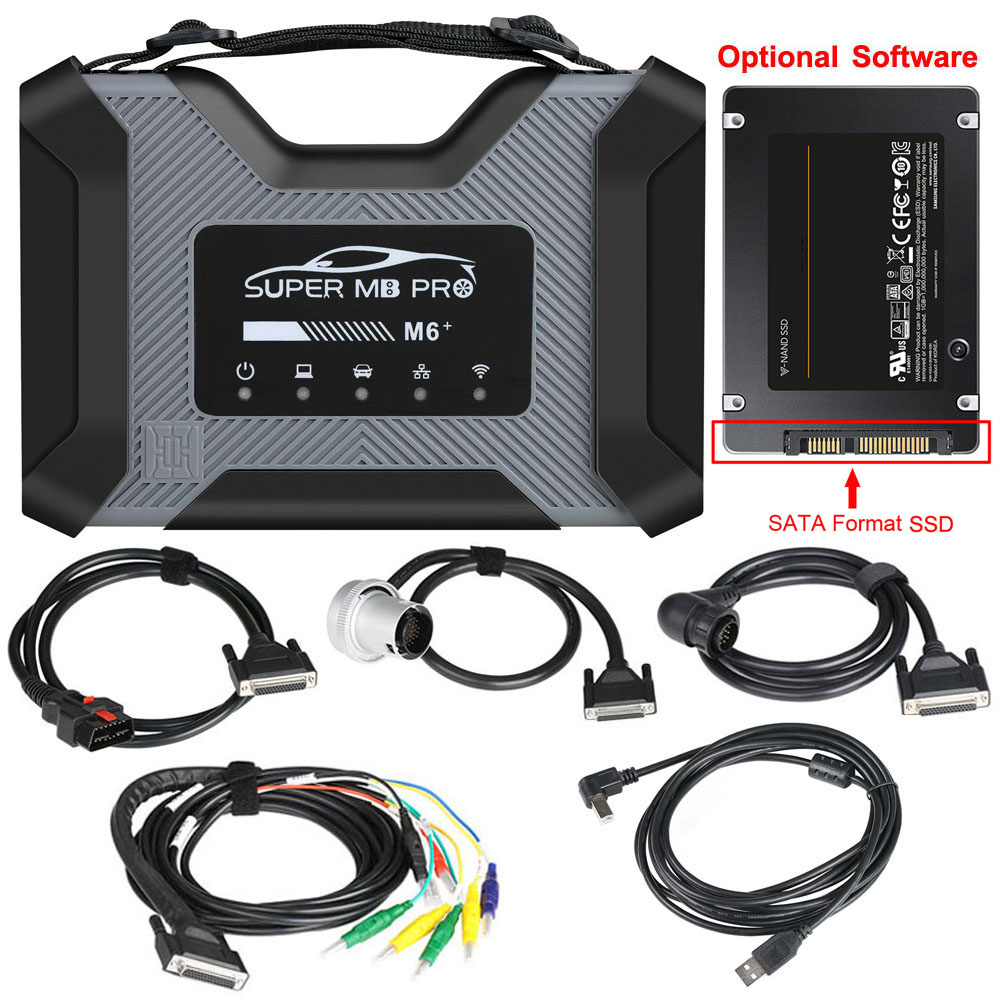

Packing List:



SUPER MB PRO M6+ Multiplexer

OBD2 16-Pin Cable

USB Cable

38-Pin Cable

14-Pin Cable

8-Pin Cable

Software HDD/SSD(optional)
Laptop with Software (optional)

Plastic Toolbox
Packing Box​
