Name: OBDSTAR D800 Marine Intelligent Diagnostic Scanner
Description:

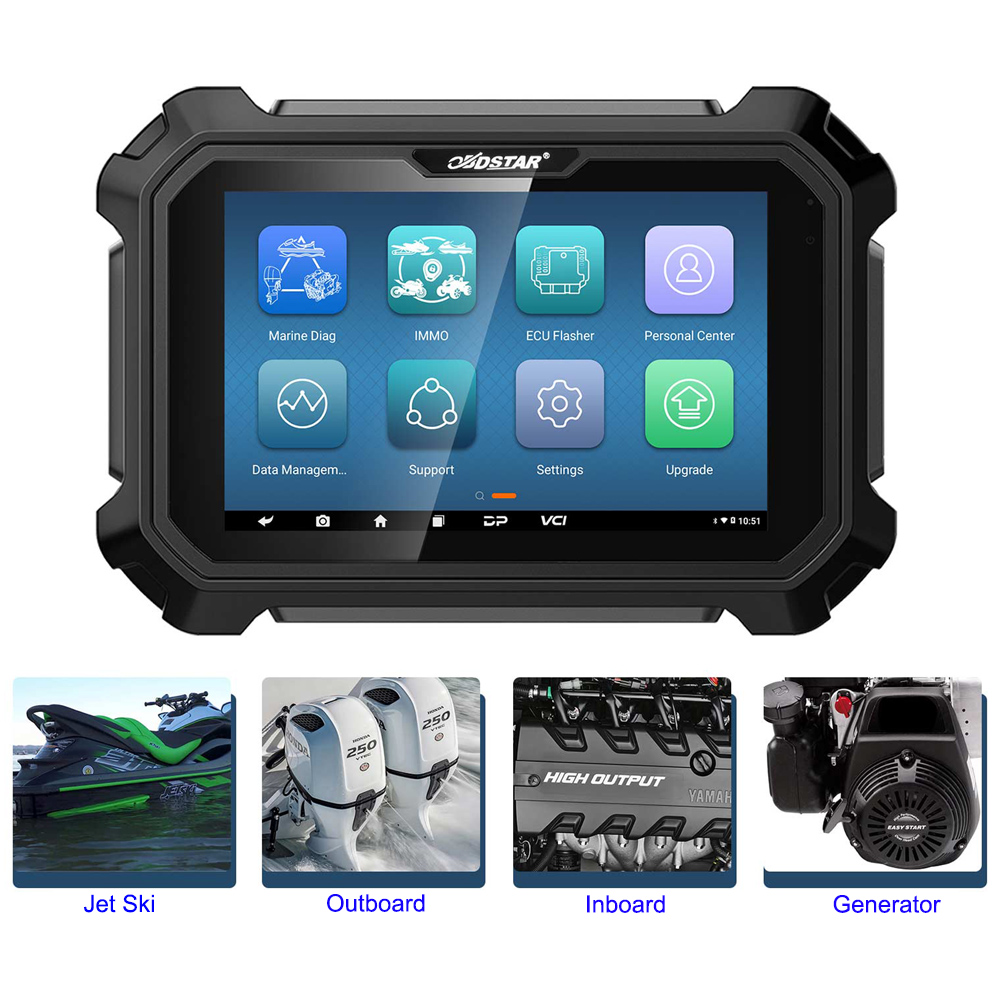

OBDSTAR D800 is new generation intelligent diagnostic device for marine (Jet Ski / Outboard / Inboard / Generator).

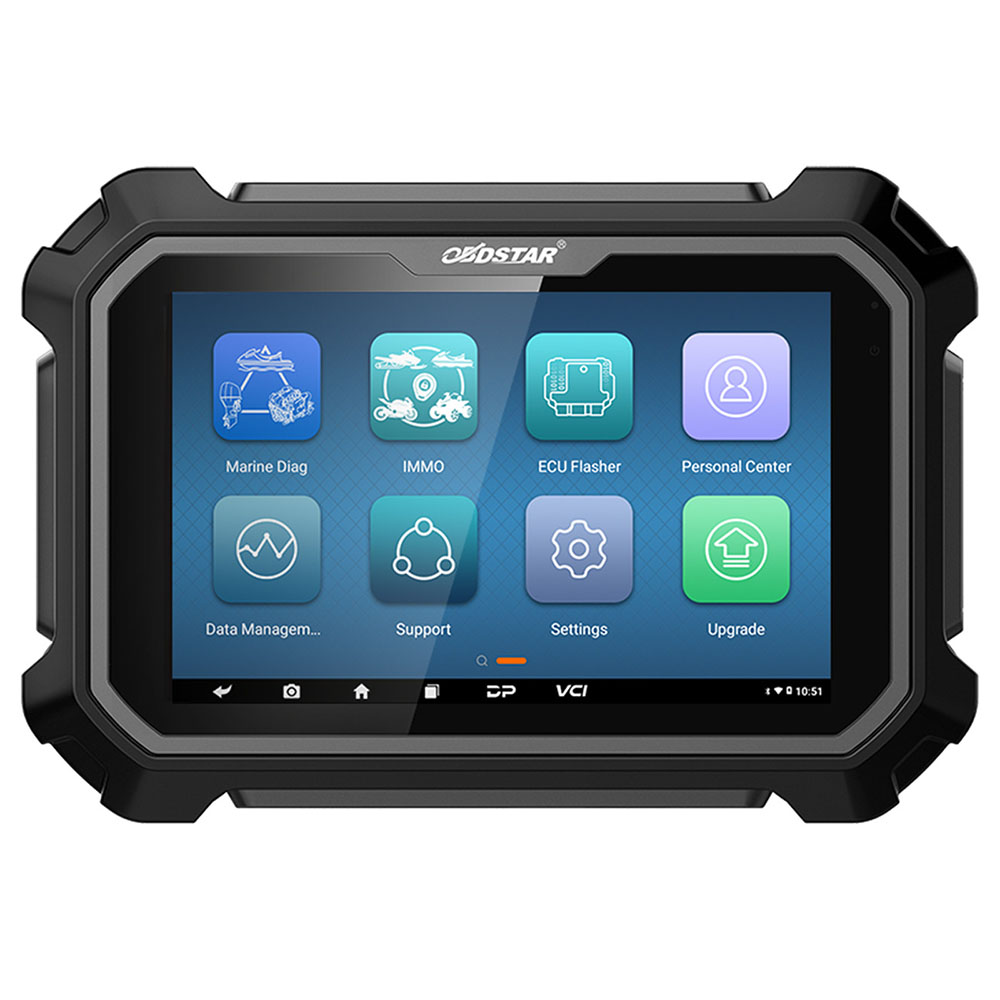

Based on Samsung Exynos processor and 8-inch touchscreen display, it works extremely fast and smooth.
OBDSTAR D800 Marine Scanner adopts the latest 3.0 APK platform and has shortcut functions such as Auto-Identification, Intelligent Retrieval, One-Click Feedback. With its fast upgrade performance and built-in help materials, OBDSTAR D800 is a good helper for marine maintenance engineers!
Supported Language: English only
Software Update: 1 year free update online
Functions:

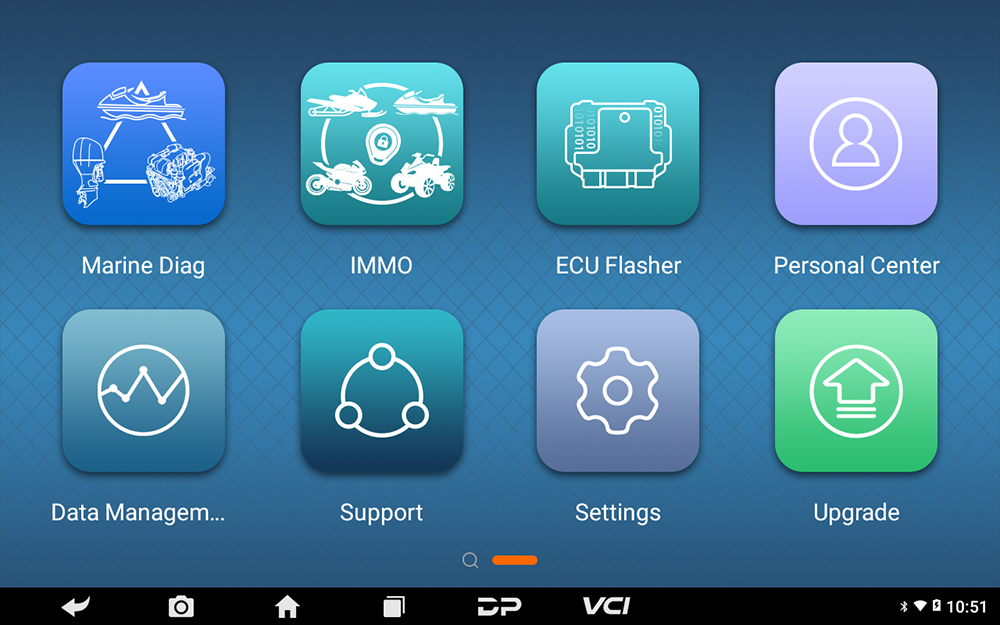

1. New Android 5.1.1 operation system;

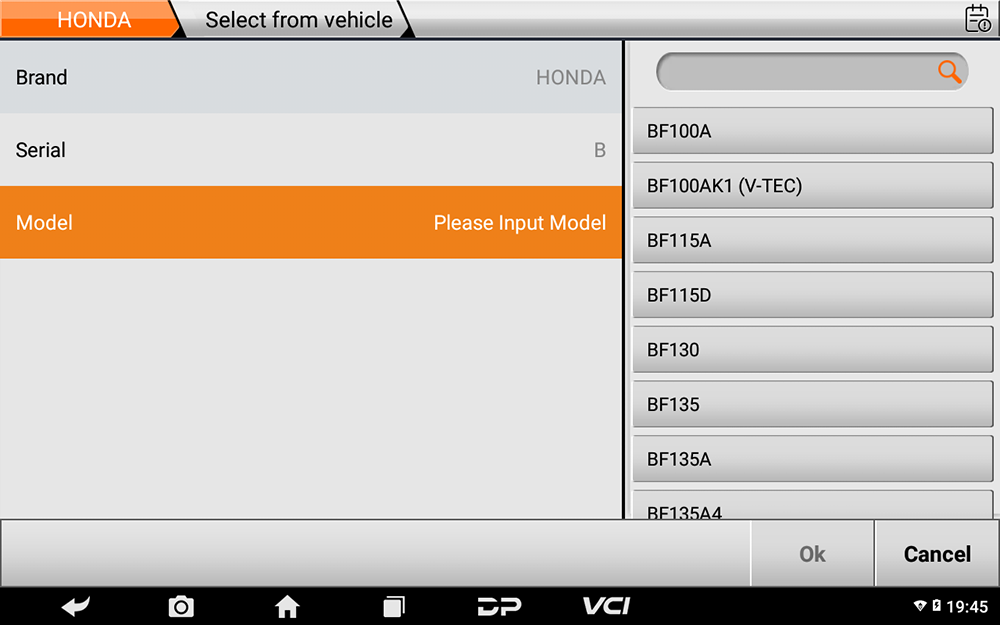

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

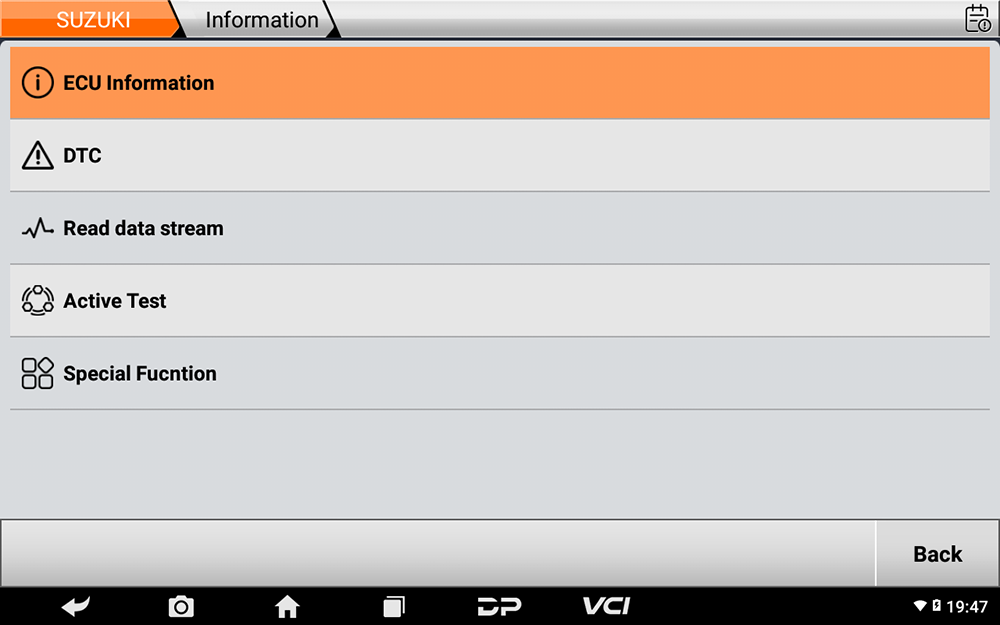

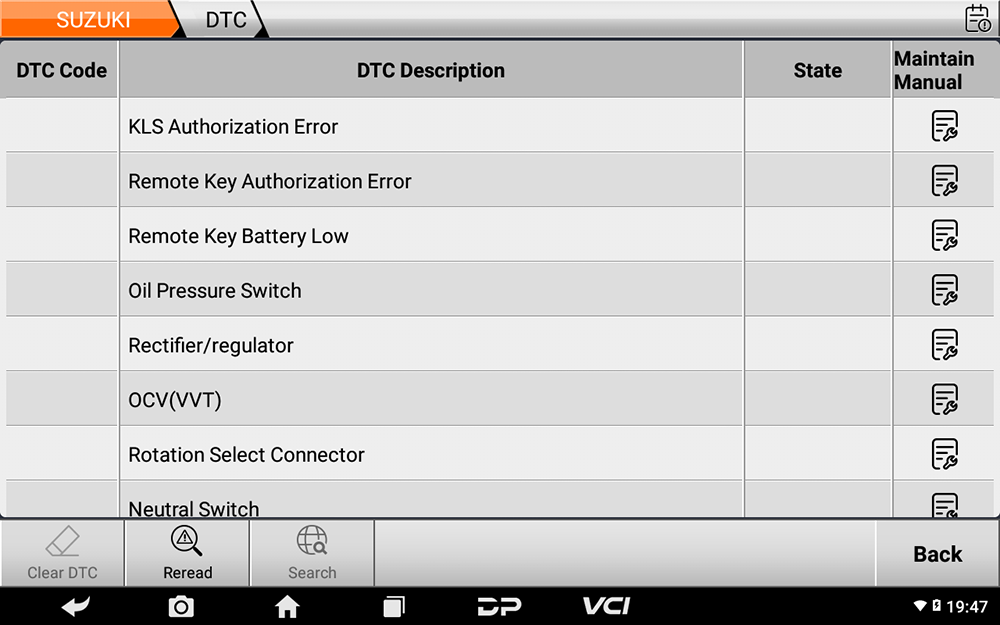

3. Provide complete diagnostic functions including ECU Information, Code Reading, Code Clearing, Data Stream, Freeze Frames, Action Test, Setting, Coding...
4. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
5. Wi-Fi connection to the Internet, one-click software upgrade;
6. One-click remote function for OBDSTAR technical staff remote assistance.
Advanced Functions:

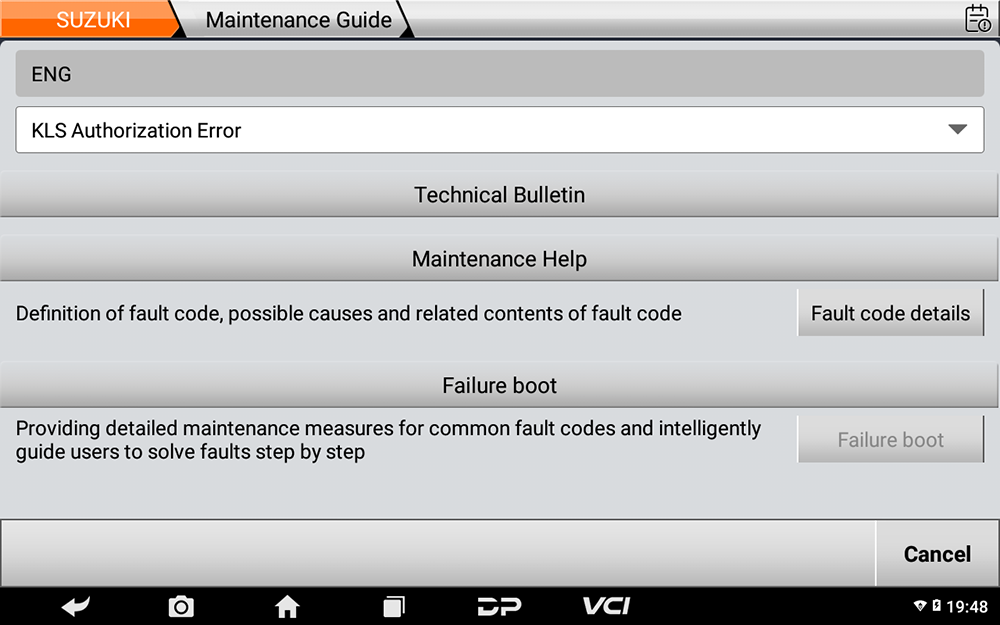

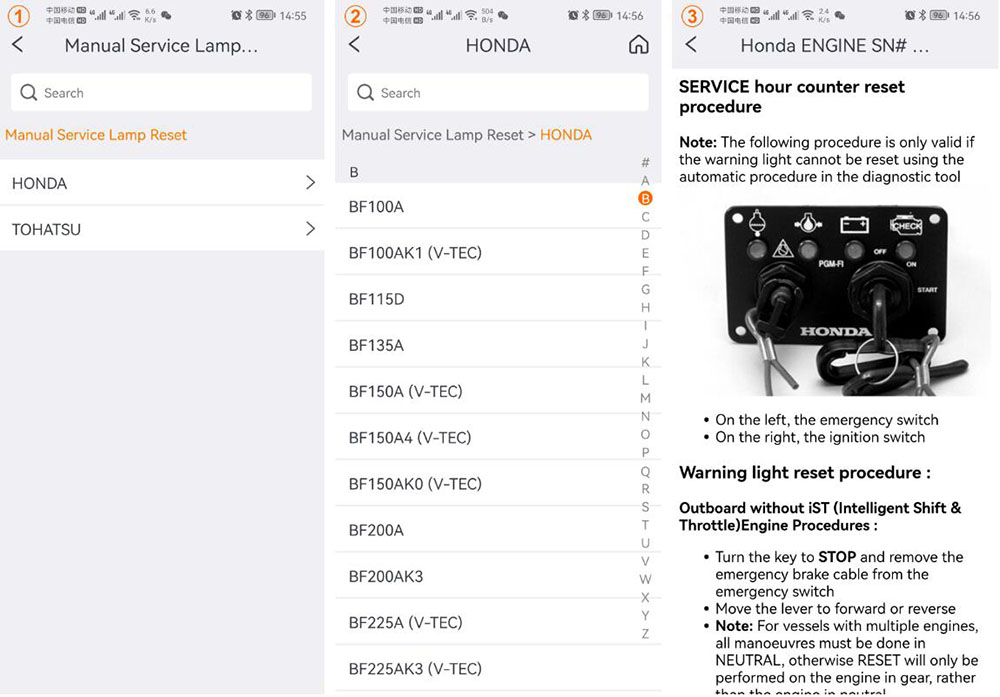

1. The OBDSTAR mobile APP integrates functions such as Diag Socket Location, Flash Code Query, Technical Bulletin, Manual Service Function(Service Lamp Reset), Basic Parameters, etc., working with D800 to make marine diagnosis more accurately and efficiently (Some functions are only available for D800 users to check for free.);

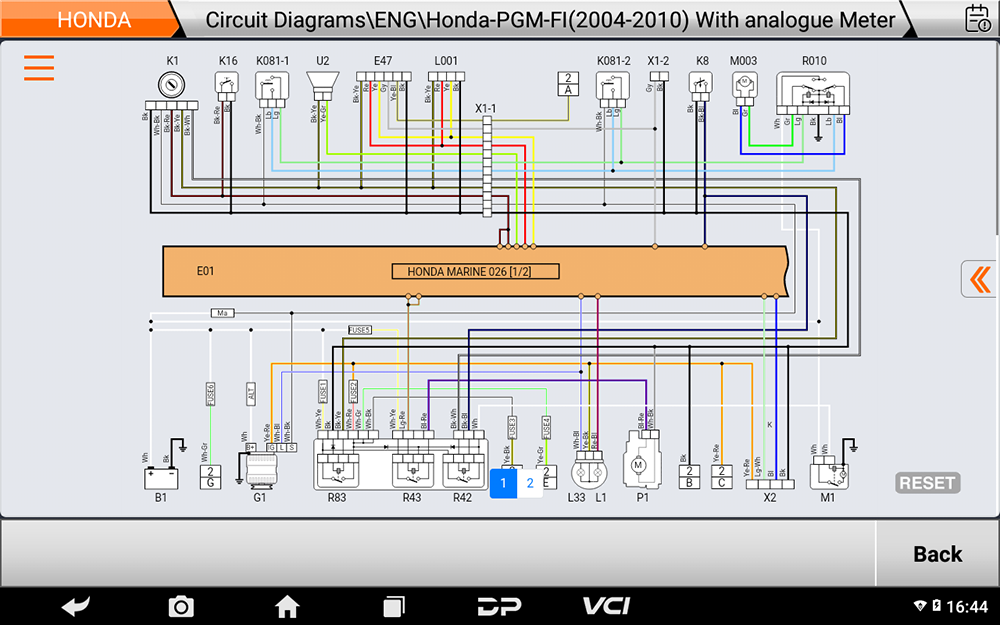

2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;

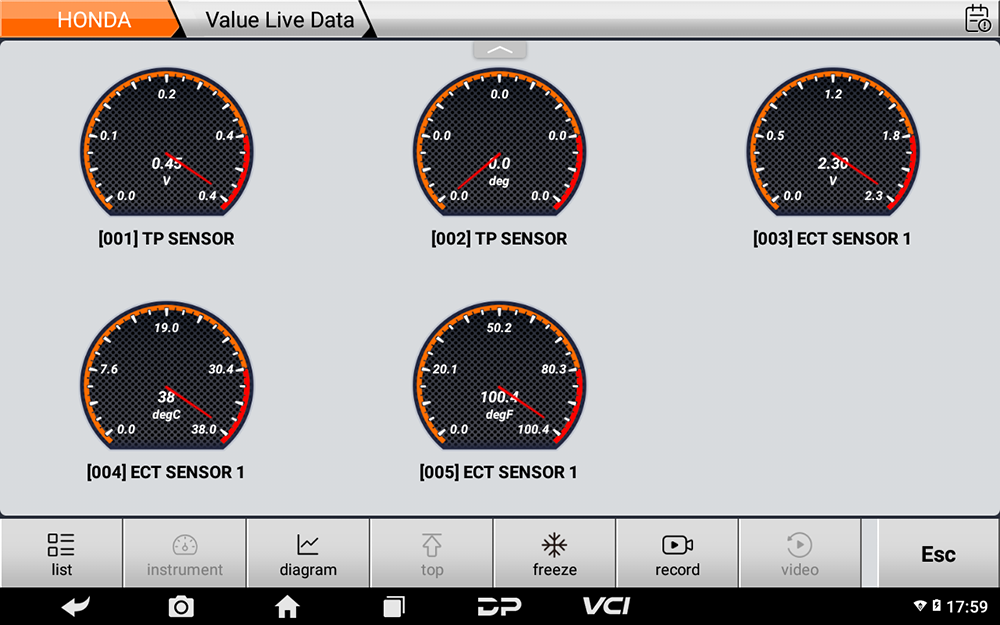

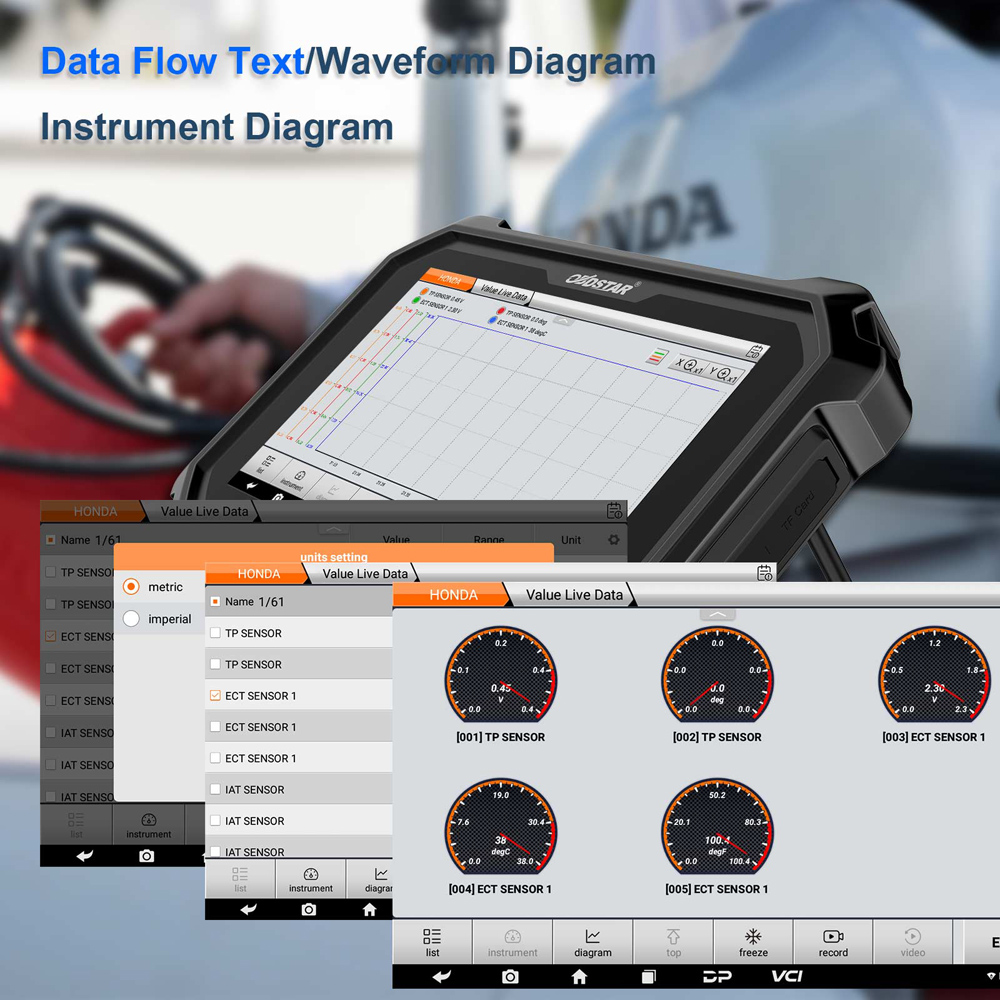

3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults;

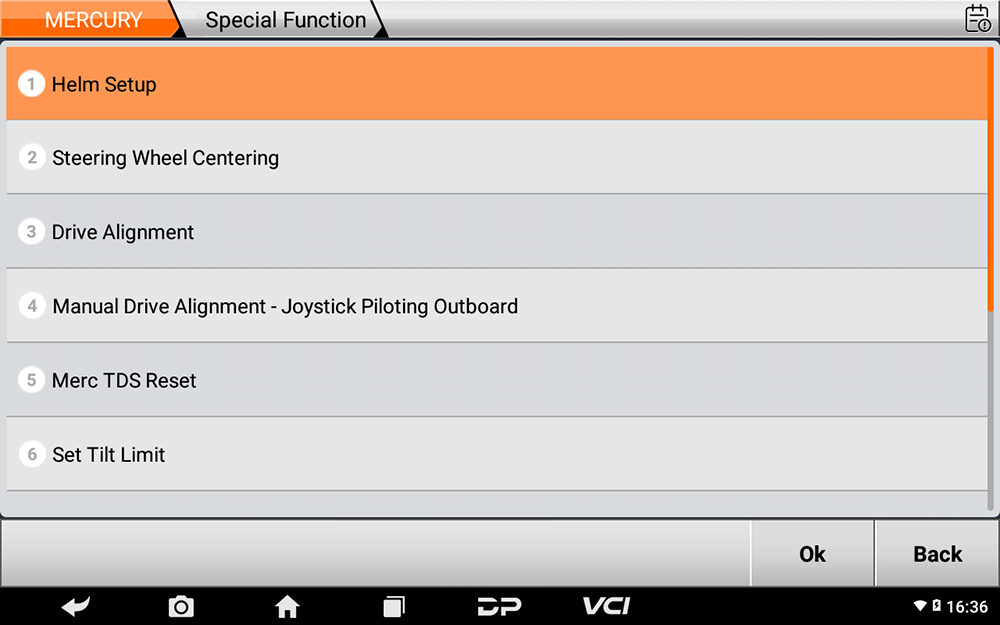

4. Auto Scan, Active Trim Configuration, Active Trim GPS Configuration, Auxiliary Joystick Configuration, BCM Simulator, Compass Configuration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Configuration, Steering Wheel Centering, System Calibration, Torque Adjustment, Trackpad Configuration, Vessel Personality and other functions.

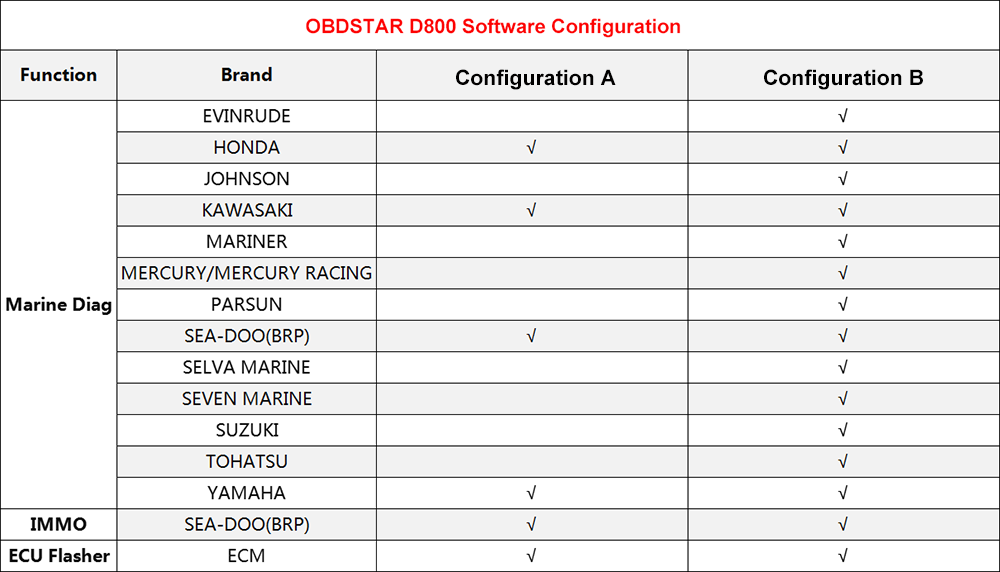

Supported Brands:

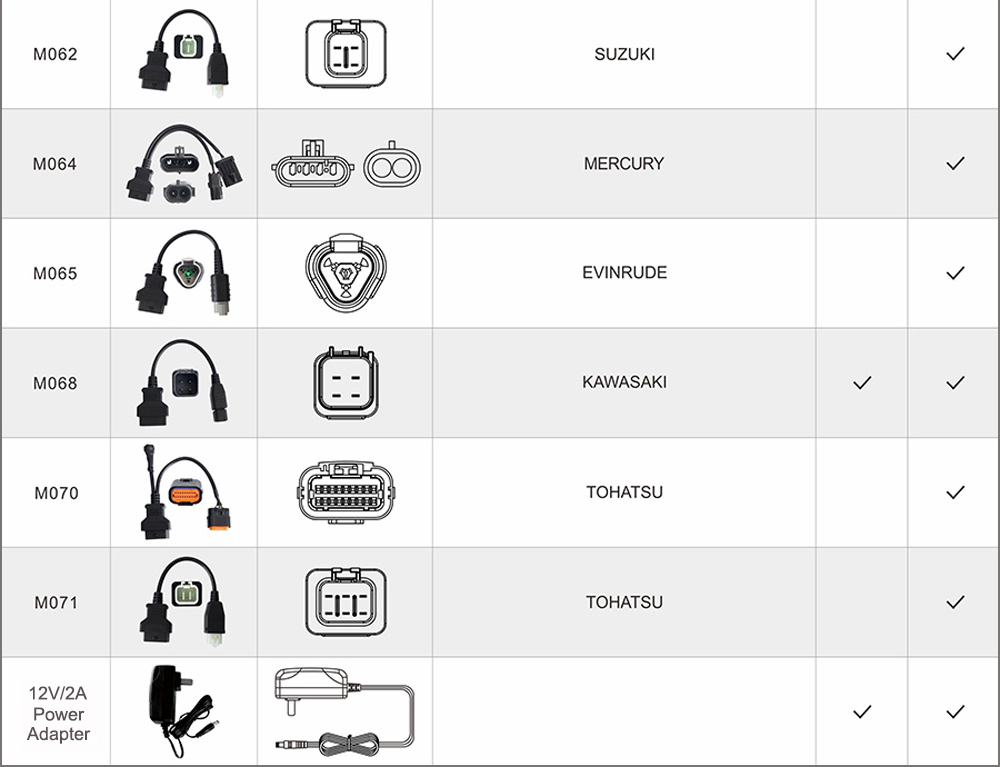

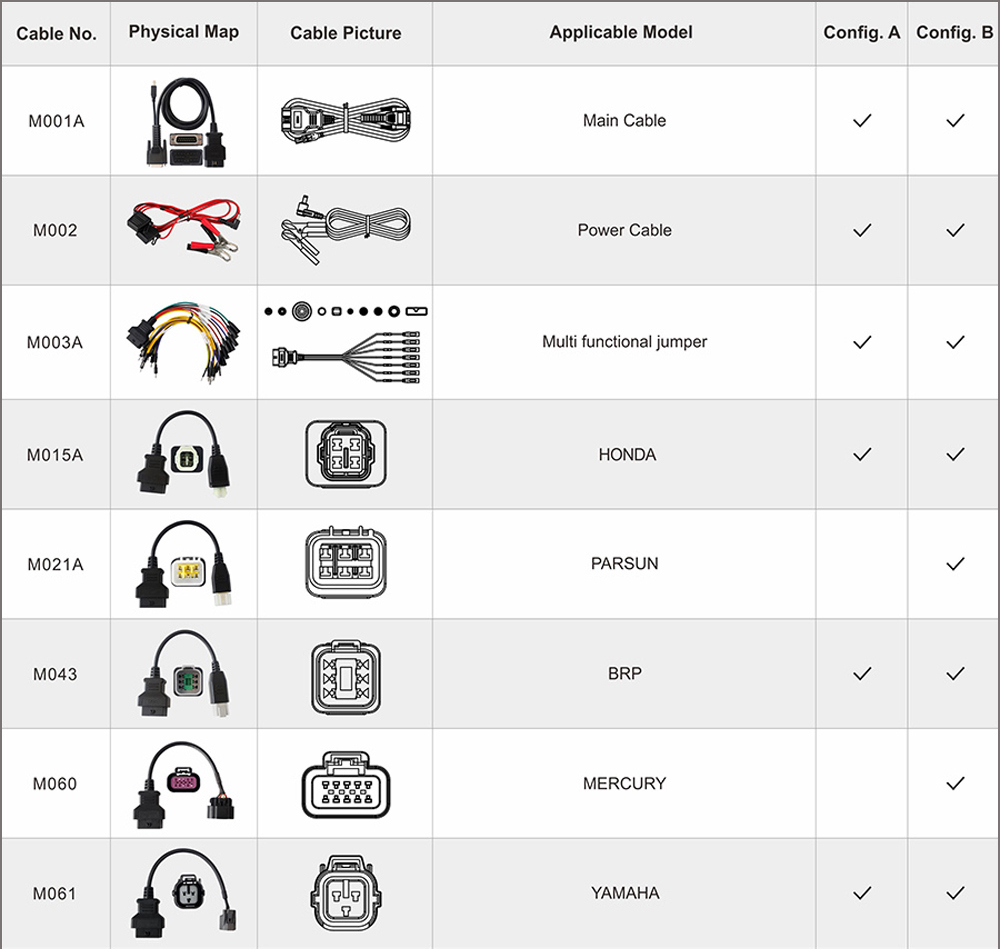

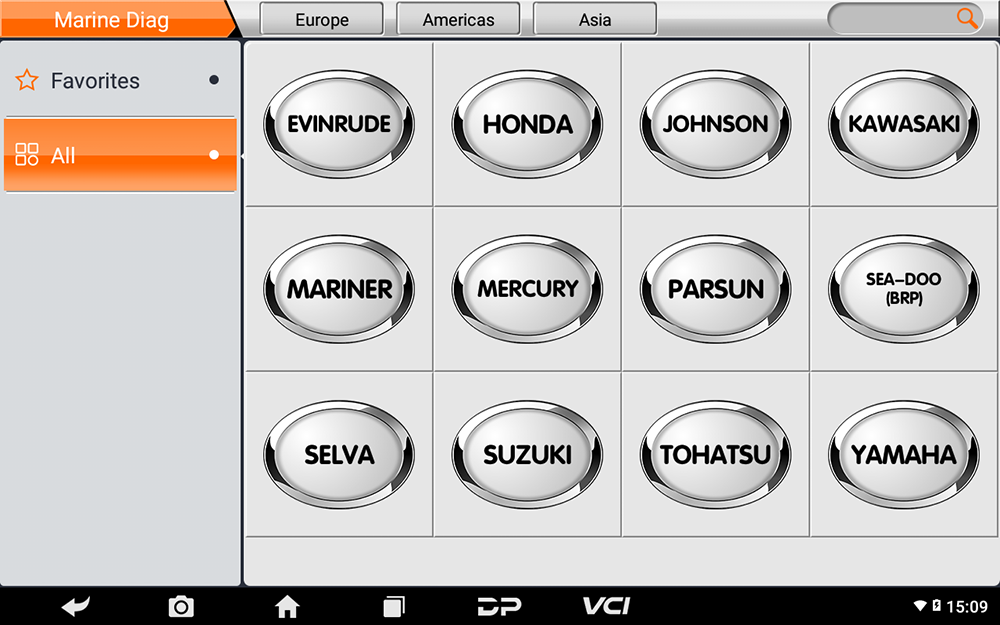

EVINRUDE, HONDA, JOHNSON, KAWASAKI, MARINER, MERCURY/MERCURY RACING, PARSUN, SEA-DOO(BRP), SELVA MARINE, SEVEN MARINE, SUZUKI, TOHATSU, YAMAHA
Optional Brands:
CATERPILLAR, CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, FNM MARINE, FORD MARINE, FPT(Fiat Powertrain Technologies), HYUNDAI SEASALL, ILMOR, INDMAR, JOHN DEERE MARINE, KODIAK MARINE, KOHLER POWER SYSTEMS, LOMBARDINI MARINE, MAN MARINE, MARINE POWER, MTU, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SISU, STEYR MOTORS, TOYOTA MARINE, VM MOTORI, VOLKSWAGEN MARINE, VOLVO PENTA, YANMAR
Specifications:
Operation System: Android 5.1.1
CPU: Exynos4418 qual-core ARM Cortex A9
Display: 8.0 inch capacitive touchscreen with 1280*800 resolution
Storage Capacity: 32GB
Extension Memory Card: 32G MicroSD (TF) card supported
WiFi: supported
Camera: 5 megapixel rear view camera
Battery: 3700mAh rechargeable polymer lithium battery
Working Temperature: -10 to 55 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Main Unit Weight: 1Kg
|
