Name: Real Perkins EST Interface 2022A / 2015A
Description:
Perkins Communication Adapter 3 Kit 27610401 contains 27610402 Communication Adapter 3 + Diagnostic Cables + EST software. It communicates with Perkins 2300/2800 electronic engines (FG Wilson 300 750 KVA range) and FG Wilson Powerwizard control panels. This communication is established via a J1939 data link. All in all, Perkins EST kit provides the user with an effective tool in diagnosing engine problems and the ability of configuring system parameters.
Firmware Version: Adapter 3
Software Version: EST 2015A / EST 2022A
Communication Mode: USB connection
Supported Operate System: Windows 7 / 10
Compatible Devices: Trucks, Excavators, Air Compressors, Ships, Drilling Rigs
Supported Languages: English, French, German, Spanish, Portuguese, Italian, Russian, Danish, Japanese, Chinese
Notice:
1. It is REAL Perkins Interface CA3. Not other kind which uses same hardware as CAT Adapter 3 and can not read much data of Perkins engine.
2. We offer only one-time free activation. Need to pay extra if you need more activation.
Functions:
Override Powerwizard level three passwords
Configure and/or change system parameters
Display, graph and record logs of parameter status
Display the status of a group of parameters (temperatures, pressures, etc)
View and clear active and logged diagnostic codes
View and clear active and logged event codes
Display, view or change the current Configuration File or Base level Flash File
Upload, download and save configuration files
View a list of irregularities logged by the ECM (engine control module)
Perform diagnostic tests
Perform calibrations
Print reports and diagnostic results
Why should an FG Wilson Dealer invest in the Electronic Service Tool?
It provides the technician with an essential tool by facilitating the troubleshooting of electronic engines. As a matter of opinion, troubleshooting an electronic engine without EST is like troubleshooting an electrical panel without a multimeter Alex Cabrices FGW Latin America & Caribbean Service Advisor . Essential in replacing an ECM on a Perkins 2300/2800 series engine. A blank ECM can only be configured using EST. Essential in replacing or retrofitting an FG Wilson Powerwizard control panel module - the new standard in FG Wilson control systems. A blank module can only be configured using EST (installing the base flash file into a blank Powerwizard module). Enables the dealer to upload, download and save customer configuration files. Allows bypassing Powerwizard level three passwords. Enables dealers to update the software versions of customers Powerwizard control panels, as required. New software releases can enhance the control panels functionality. Enables dealers to install additional Powerwizard language files, as required.

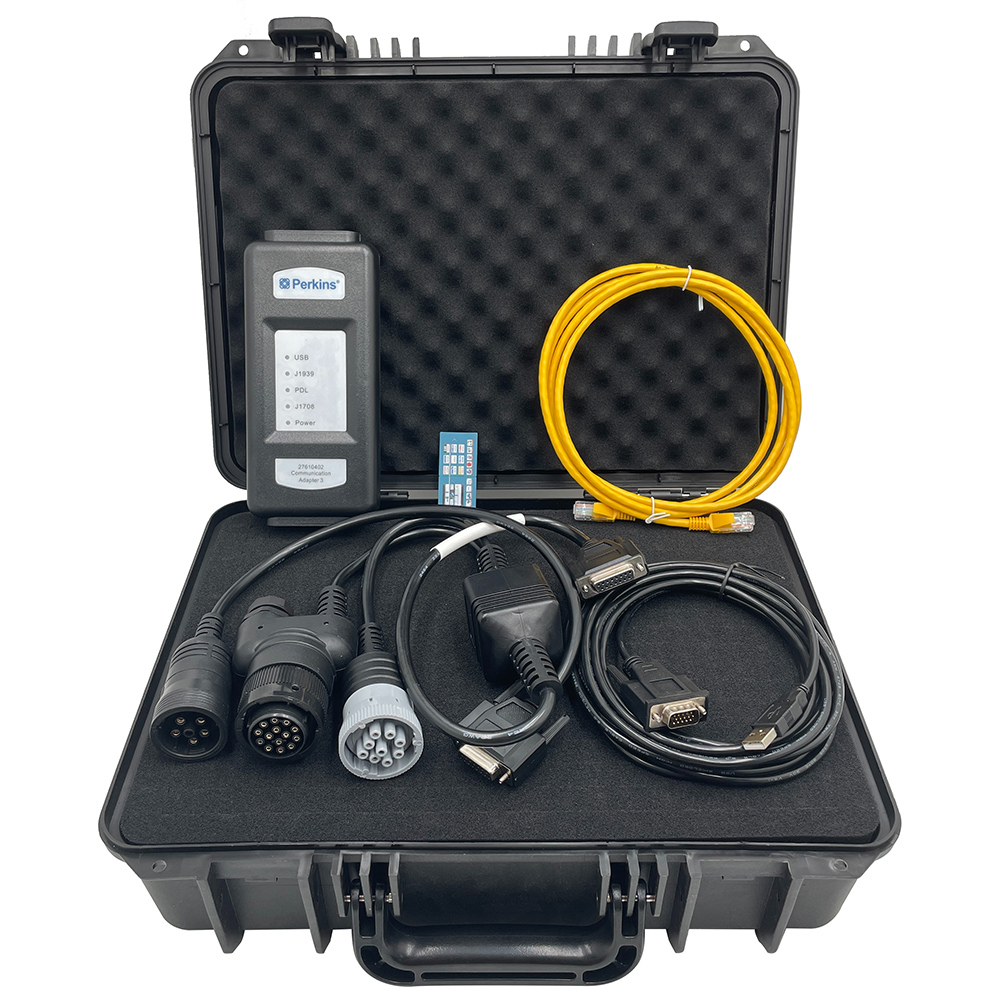

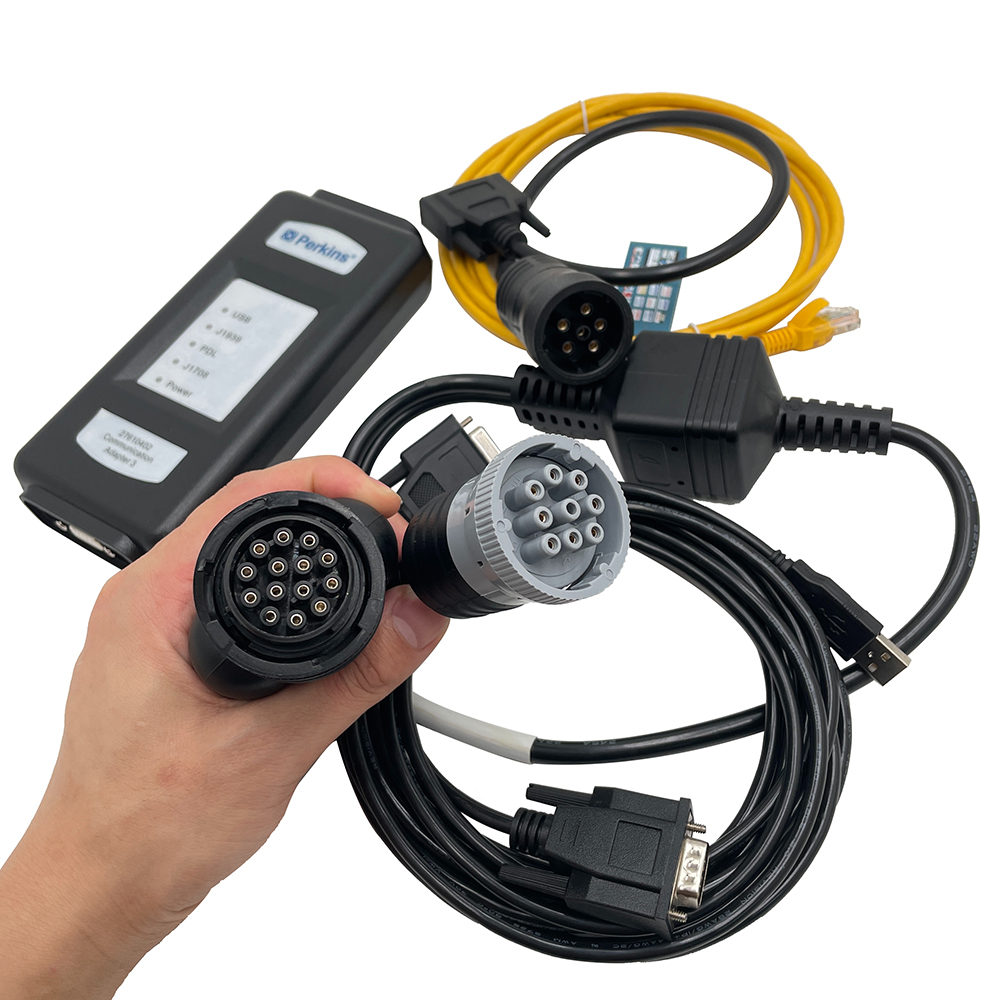

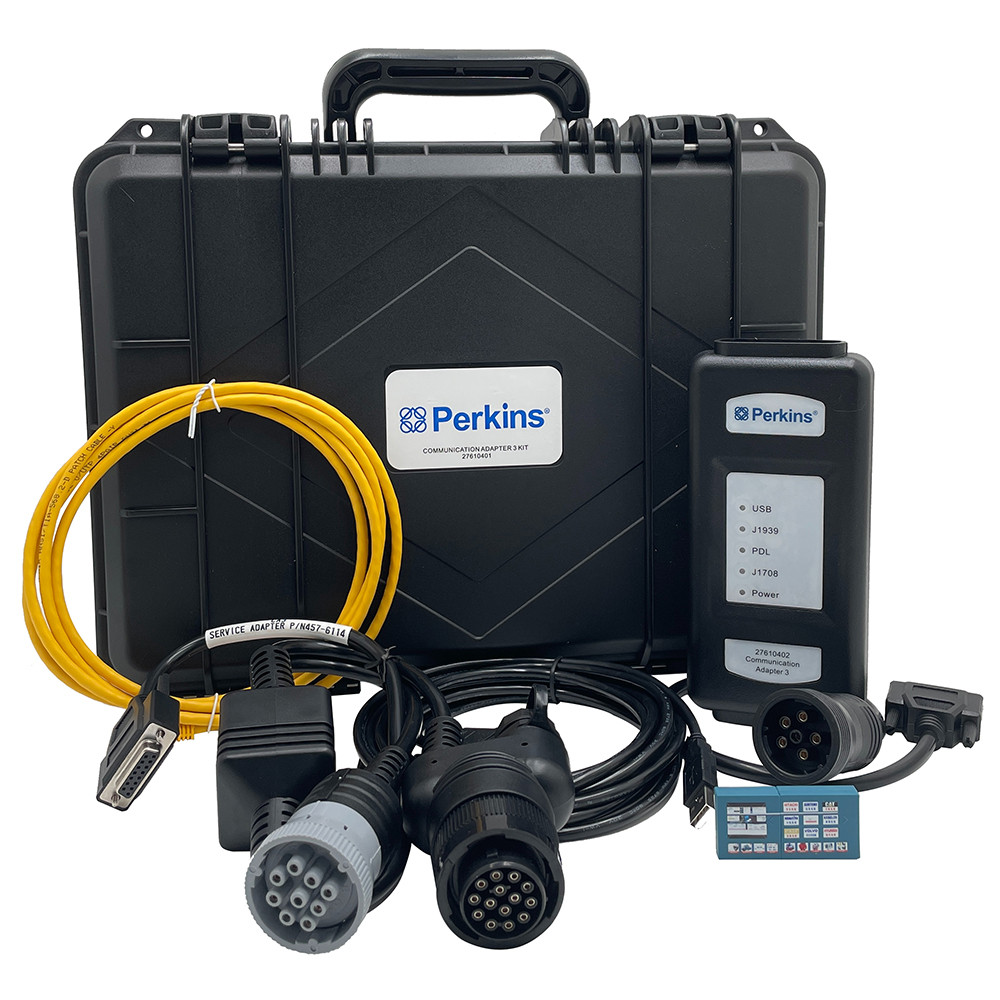

Packing List:
Real Perkins EST Interface CA3

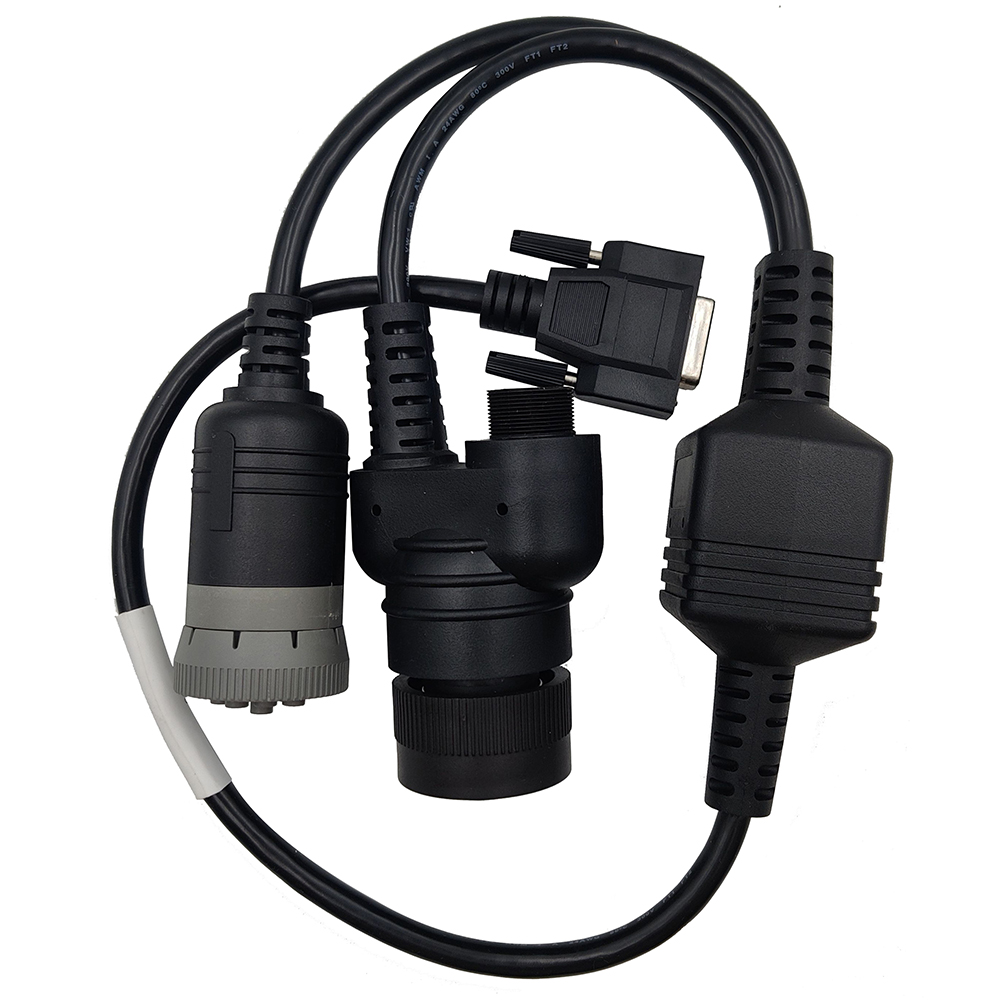

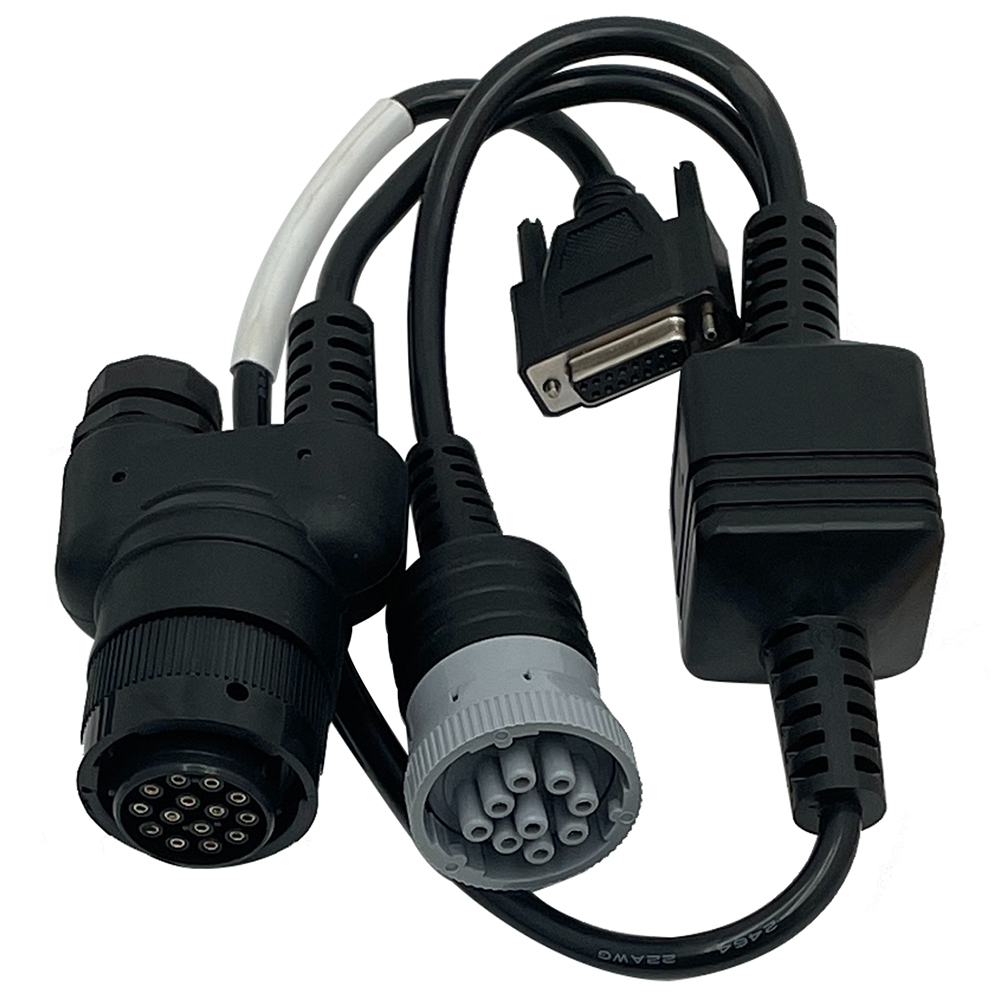

14-Pin + 9-Pin Cable
6-Pin Cable(for old trucks)
USB Cable
LAN Cable
Software CD

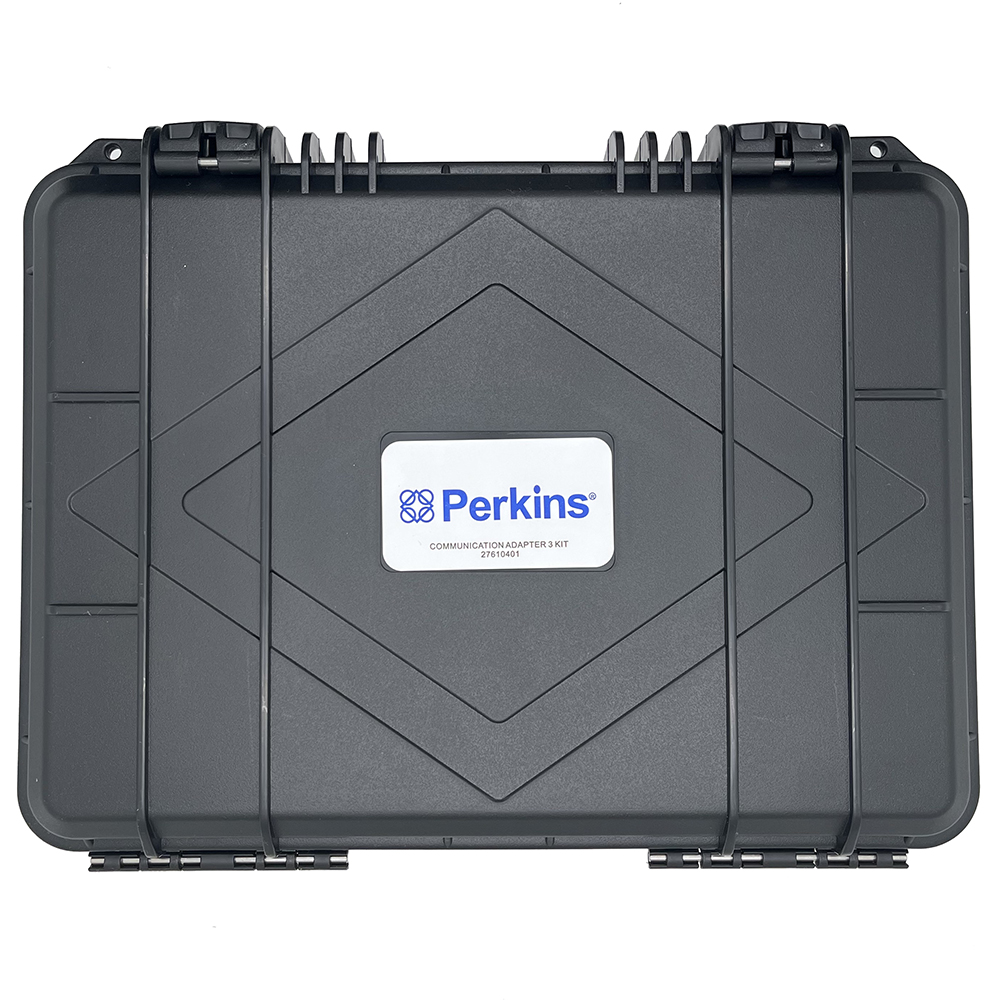

Plastic Toolbox
Packing Box
|
