Name: XGecu T48 Programmer for SPI/Nor/NAND Flash/EMMC
Description:
XGecu T48 Programmer Supports 34000+ ICs for SPI/Nor/NAND Flash/EMMC BGA/TSOP/SOP/PLCC.

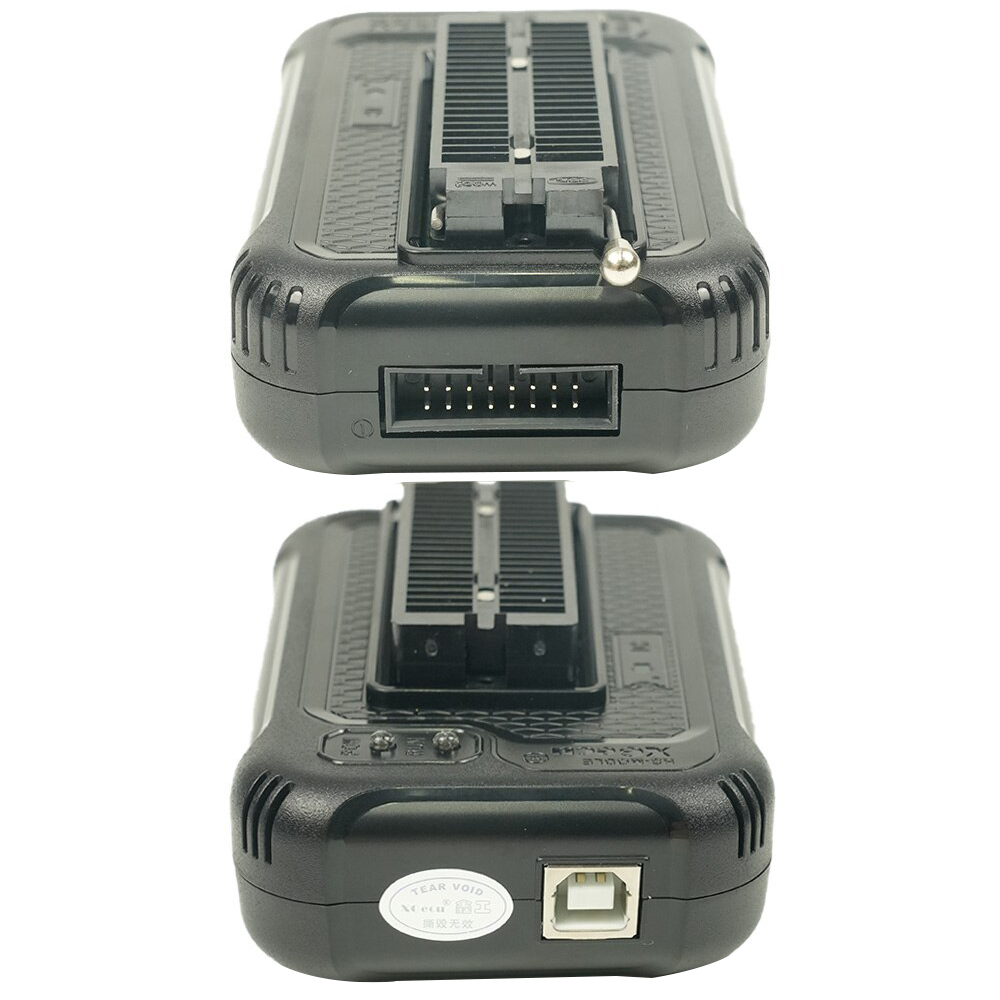

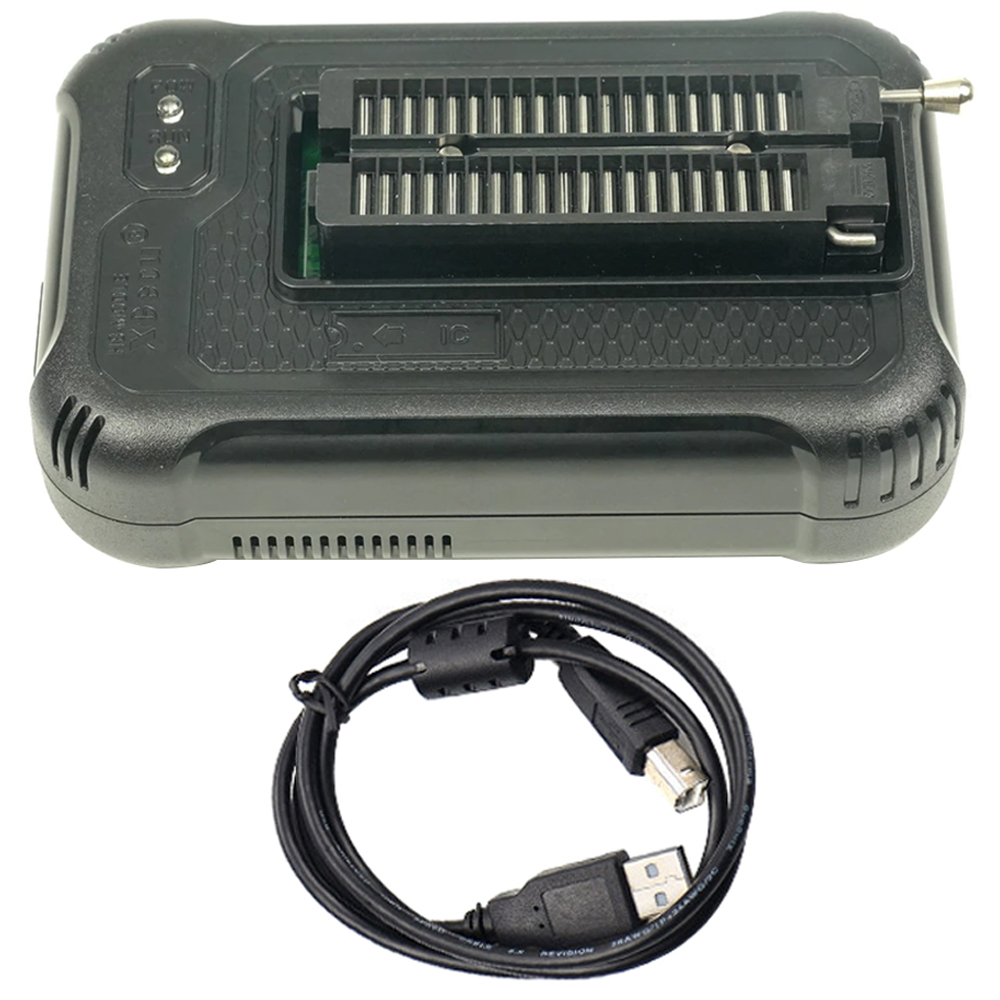

With 40-pin industrial high-quality ZIF Socket (Pluggable/Replaceable), newest model XGecu T48 (TL866-3G) Programmer is the improvement of MiniPro TL866II Plus Programmer. Based on 32-bit MCU with 120MHz and 4-layer PCB design, this professional T48 Programmer support high-capacity NAND EMMC up to 256GB and programming speed is much higher. Supports high-voltage chips, VPP maximum up to 25V, that is what TL866II cannot achieve. Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small (size is almost the same as TL866II), code-runs much faster. Overall, XGecu T48 offers significantly improved performance and excellent value for money.
XGecu T49 is suitable for developers and maintenance personnel, can do small batch production for high capacity chips, support simultaneously working with 4 programmers on one computer.
Supported Languages: English, German, Spanish, Portuguese, Russian, Italian, Turkish, Polish, Czech, Chinese
Supported OS: Windows XP / 7 / 8 / 10 / 11

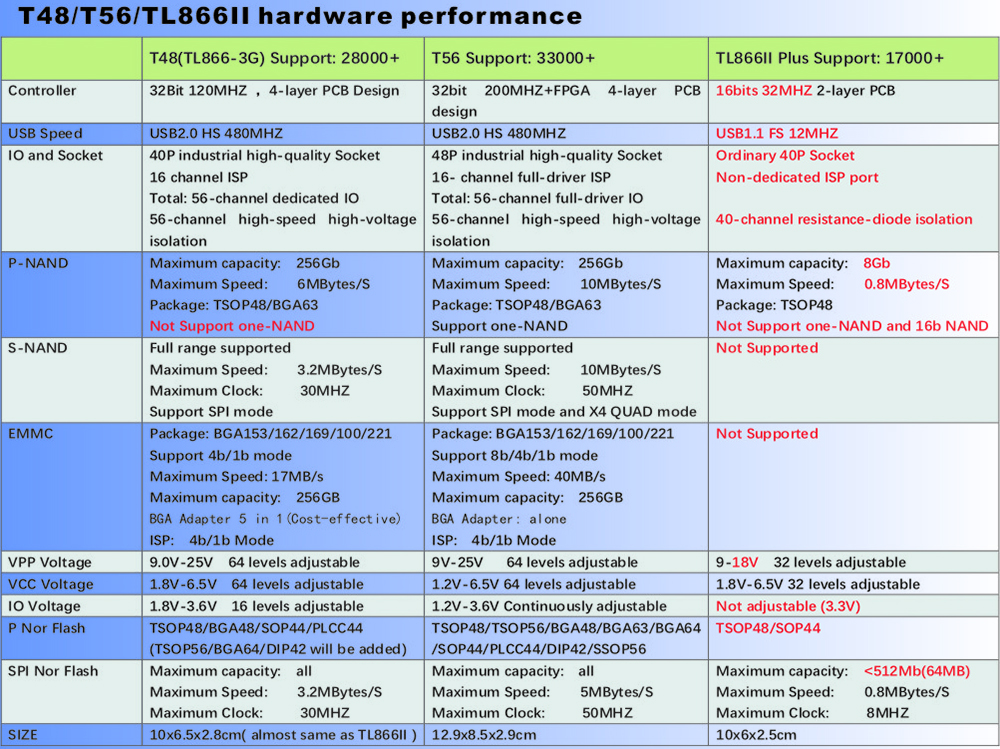

Hardware Parameters:
32-bit MCU with 120MHz, 4-layer PCB design, USB2.0 HS 480MHz
Size: 10*6.5*2.8cm
16 channel ISP
Total 56-channel dedicated IO
56-channel high-speed high-voltage isolation
VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable.
Power Consumption: 5V/<500MA.
Static Power Consumption: 60mA without external power supply interface
Self-Test Function: self-test each pin of VPP/VCC/GND/IO
Technique Support:
T48 Support Device List:
T48 (TL866-3G) English Manual
T48 Latest Software:
|
