Description:

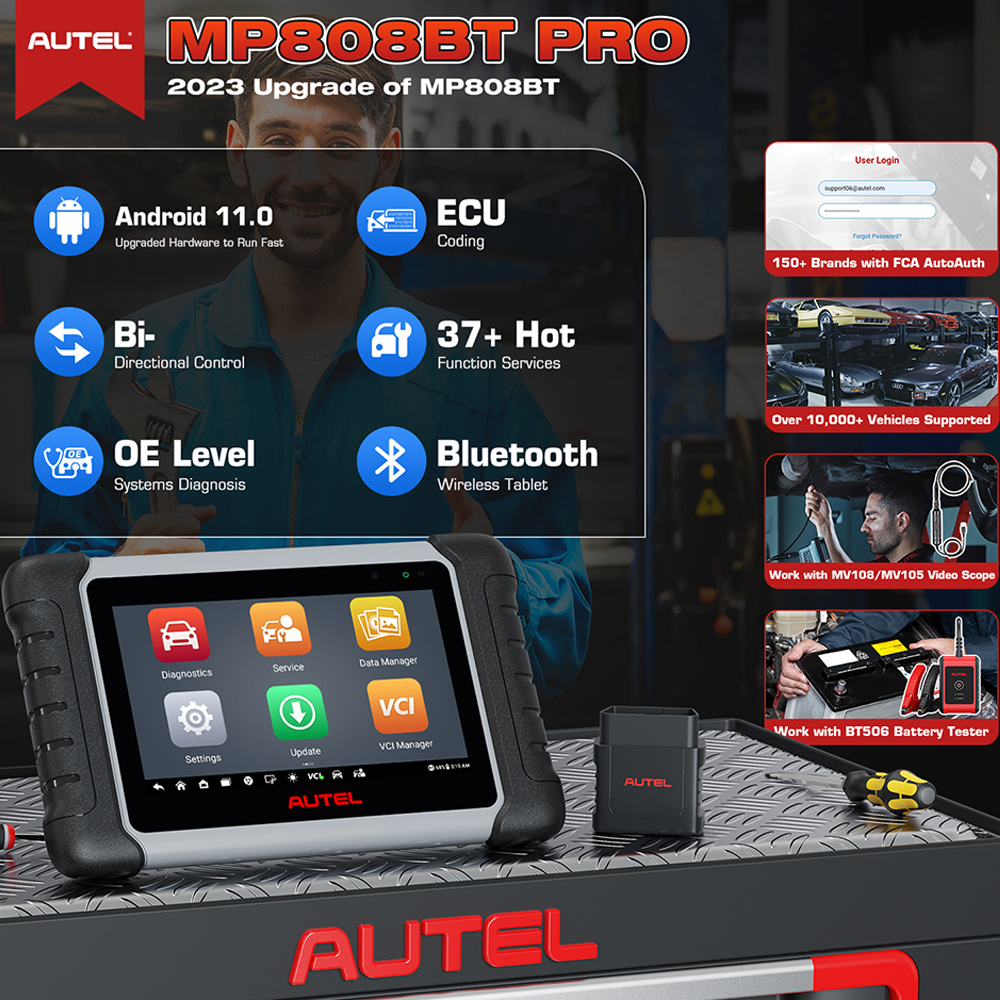

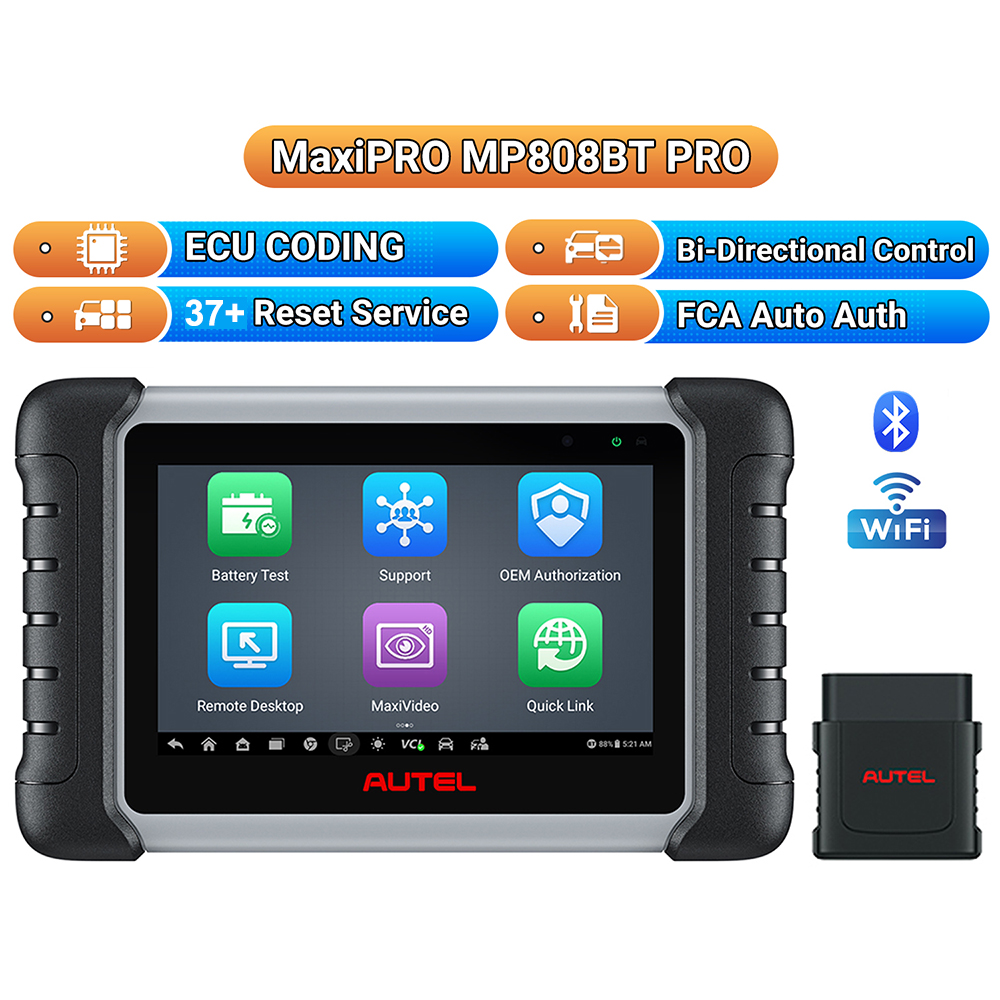

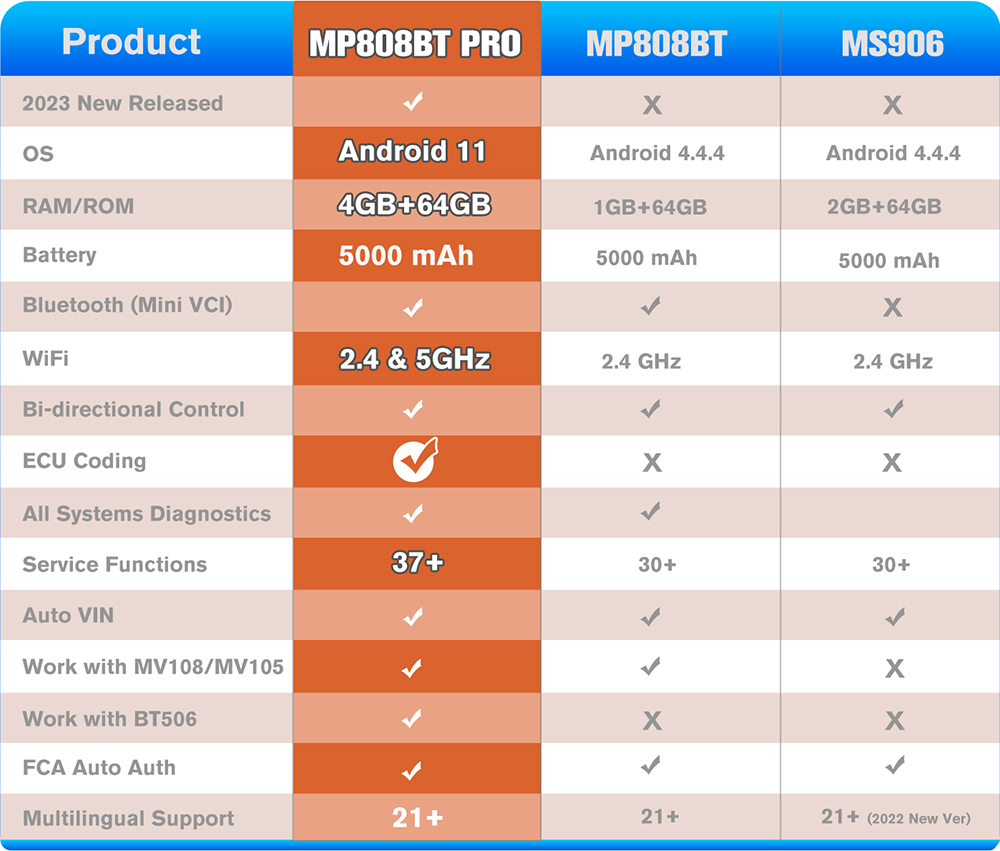

Autel MaxiPro MP808BT Pro is upgrade version of Autel MaxiPro MP808 / MP808TS, Autel MaxiDAS DS808 / DS708, Autel MaxiCOM MK808 / MK808TS.

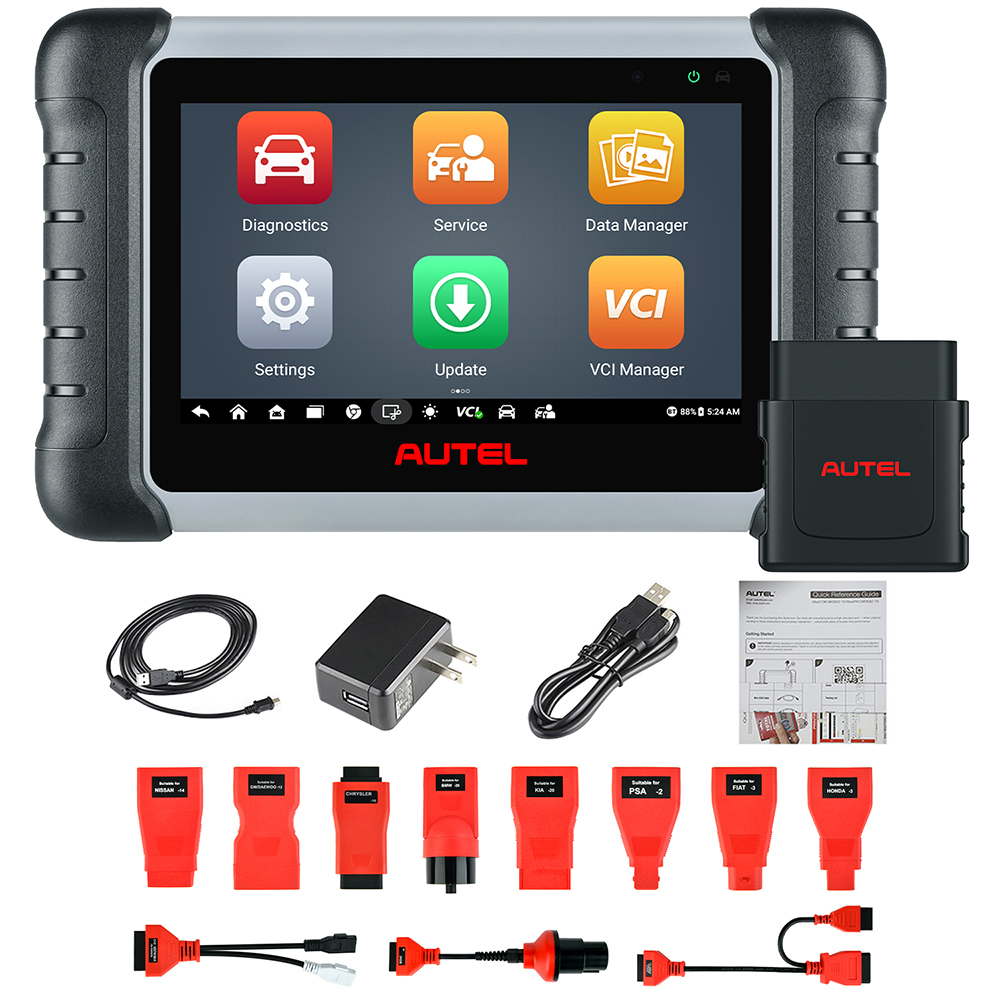

Based on the Android 11.0 OS and Rockchip RK3566 CPU, MaxiPRO MP808BT Pro is featured with an extensive coverage of OE-level diagnostics. The high hardware configuration offers maximum convenience and efficiency for your diagnosis and analysis. The intuitive user interface makes using the device smoothly on a 7-inch touchscreen LCD with 1024*600 resolution.



Software Update: 1 year free update online



Supported Languages:



English, French, German, Spanish, Portuguese, Russian, Italian, Turkish, Arabic, Dutch, Persian, Hebrew, Polish, Swedish, Japanese, Korean, Thai, Vietnamese, Indonesian, Chinese



New Upgraded Functions:



1. ECU Coding & Refresh Hidden

Offline Programming:Land Rover / Jaguar

Online Coding: Peugeot, Citroen, DS_EU, Dongfeng Peugeot, Dongfeng Citroen, Diesel, GM Wuling, Baojun, New Baojun

Refresh Hidden: Audi, FAW Audi, VW, VW_Brazil, Shanghai Volkswagen, FAW-Volkswagen, Skoda, Shanghai Skoda, Jetta



Note: All supported car models are not universal.



2. VAG Guided Functions

VAG Guided Functions: Audi, FAW Audi, VW, VW_Brazil, Shanghai Volkswagen, FAW-Volkswagen, Skoda, Shanghai Skoda, Jetta, Seat, MAN_LD



Note: All supported car models are not universal.



3. Supports Autel MaxiVideo MV108 Inspection Camera / Autel MaxiBAS BT506 Battery & Electrical System Analysis Tool

Autel MV108 turns Autel MP808BT PRO tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.



Autel BT506 enables technicians to view the health status of vehicle battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with MaxiBAS BT506 to perform testing and display test results.



Note: MV108/BT506 need to buy separately.



Features:



1. Low costs OE-level all systems diagnostic scanner same as Autel MaxSys MS906.

2. ECU Coding / Refresh Hidden functions for Audi, VW, Skoda, Jetta.

3. 37+ hot maintenance functions solve 99% vehicle issues.

4. Bi-Directional Control (Active Test) to troubleshoot repairing crisis.

5. Battery Test: Work with Autel MaxiBAS BT506 Battery Tester perform complete battery test(including Battery Reset, Battery Register).

6. FCA AutoAuth: FCA AutoAuth to connect server, cross FCA Gateway Protocol for stable communicate with Chrysler, JEEP, Dodge, Fiat etc.

7. Autel Cloud Report Diagnostics: It will clean up running memory for faster diagnosis.

8. Key Fob Coding for low anti-theft level vehicles.

9. Read and Erase Codes on all available vehicle systems.

10. View Freeze Data and View and Graph Live Data.

11. AutoVIN technology for rapid vehicle identification.

12. Cloud-based report management for easy viewing and sharing.

13. Shop Management application designed to maintain customer information and vehicle history data.

14. Wireless Bluetooth Connection / WiFi Connection.



Functions:



1. Full System Diagnostics

Autel MP808BT Pro performs complete capabilities for all systems, not only includes 4 systems diagnoses but all the other systems including Body, Chassis, Powertrain, Communication and more. You can get all the functions to fix your repair work more quickly with MP808.



1). Read hard codes on various systems. You are able to know the meaning of the trouble codes and figure out what's wrong with your systems.



2). Erase different DTCs easily after the problem has been carried out. Do remind that the check engine light will be turned off when you cleared the codes.



3). Retrieve live data to make sure all the systems run normally. The parameter item can be displayed in different forms, such as text, waveform graph, digital and more.



4). Active test is to test output elements. You can figure out whether a specific subsystem or component in your car functions well or not by using this tool to make the tester outputs function instead of checking in ignition status



2. ECU Coding for Unlock Hidden Functions



Autel MaxiPRO MP808BT Pro has added advanced ECU Coding functions. Tap Update icon to update the device system and vehicle software to newest to get the ECU Coding functions. More functions related to ECU are now available in MP808BT Pro, for instance:



1). Unlock Hidden Functions: Works on Audi, VW, Skoda etc.

2). Offline Coding: Works on Chrysler, Bentley, Bugatti, Lamborghini, LT3, Seat, Man_LD, Peugeot, Citroen, Opel, Vauxhall, Porsche, Mitsubishi and etc.

3). Online Coding: Works on Peugeot, Citroen, DS_EU etc.

4). VAG Guided Functions:Wworks on Audi, VW, Skoda etc.



Note:



ECU Coding only works on very few cars, do send the 17 digit VIN to check compatibility before you order.



Limited ECU Coding Refresh Hidden Functions:



1). ECU Coding is ONLY for limited car brands on Peugeot, Citroen, DS, Citroen,etc.

You can use ECU coding to enhance vehicle fuel efficiency, recode replacement modules in ECU, access online OEM server to modify parameter to achieve the purpose of customizing modify car Settings (not choose code but input you want value.)



2). Refresh Hidden Function / Stimulate High-end Features / Disable Annoying Functions / Improve Vehicle Performance: for Audi, VW, Skoda, Jetta. Some reference samples as follows:

Deactivating the Start/Stop Function

Changing the Brightness of Dashboard

Coding Seatbelt Warning Sounds

Closing the Windows after locking the car door with the key, etc.



3). Offline Adaptation for Benz, Audi, VW, Skoda, Jaguar, Chrysler, Citroen, Seat, Peugeot, Opel.



Note:



1). Refresh Hidden Functions is ONLY for limited car brands on Audi, VW, Skoda, Jetta.

2). Refresh Hidden Functions≠ECU Coding.

3). ECU Coding is ONLY for limited car brands on Peugeot, Citroen, DS, Citroen,etc.



3. FCA Auto Auth

Autel MP808BT Pro can access SGW Secure Gateway on 2018 and newer Chrysler, Jeep, Dodge, Fiat vehicles. Easily access the FCA ECU module to perform complete diagnostic and services.



How To access SGW?



3 steps as follows: Account-Activation-Access!



1. Authorized OEM Access Account Registration;

2. Confirm Compatible Diagnostic Platform;



3. Immediate Authorized Secure Gateway Access.



Note: FCA Auto Auth can be used only in USA, Canada, and Mexico.



4. VAG Guide Functions

With step-by-step guides, you can follow instructions to complete the vehicle repair quickly and efficiently, speed up repairing, win more business for professional technicians.



5. Bi-Directional Control (Active Test)

Autel MP808BTPRO supports 4 methods for vehicle identification: Auto VIN Scan / Manual VIN Input / Automatic Selection / Manual Selection, through which you are able to access all the diagnosable ECUs on the vehicle and run diagnostics on the selected system. With the Bi-Directional Control, it is easy and quick for you to identify the problems as the diagnostic tool is able to transmit control commands to operate the vehicle systems and tell you the running conditions.



6. Special Functions:

 Supports a wide range of special functions, including Oil Reset, EPB, SAS, BMS, DPF, TPMS, and many more.



1). Oil Reset Service:

It allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.



2). EPB:

The service is important in the maintenance of electronic braking system safety and efficiency.



3). BMS:

The service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.



4). DPF:

The service specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.



5). SAS:

The service helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.



6). TPMS:

The service makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.



7). ABS Bleeding:

ABS Brake Bleeding to get a firm brake pad after air exhaustion.



7. Battery Test Function

Battery Test function is a battery and electrical system analysis function that uses adaptive conductance, an advanced battery analysis method to produce a more accurate examination of the battery's cold cranking ability and reserve capacity, which is vital to determining a battery's true health. It enables technicians to view the health status of the vehicle's battery and electrical system. Together with the BT506, this application can complete battery & starting and charging system tests and display the test results.



Battery Test function includes In Vehicle Test and Out of Vehicle Test.



1). In-vehicle Test is used for testing batteries that are installed in a vehicle. An in-vehicle test includes battery test, starter test, and generator test. These tests help determine the health status of the battery, the starter, and the generator, respectively.



2). Out-vehicle Test is used to test the condition of batteries that are not connected to a vehicle. This function aims to check the health status of the battery only.



Note: You need Autel MaxiBAS BT506 to perform the battery test function(not included)



8. MaxiFix

Autel MaxiFix application launches the on-line troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiCheck users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes. While the MaxiFix database keeps growing with daily troubleshooting resources and the advisory reports from the MaxiCheck users from all over the world. Information in the MaxiFix database is organized into a series of diagnostic tips that are designed to quickly lead you to the root cause of a particular problem on the test vehicle.



9. Shop Manager

The Shop Manager application manages the workshop information, customer information records, and test vehicle history records.



10. Data Manager

The Data Manager application is used to store, print, and review the saved files. Most operations are controlled through the toolbar. Selecting the Data Manager application opens the file system menu. Different file types are sorted separately under different options, there are five types of information files to be viewed or played back.



11. One Click Online Update

Update application allows you to download the latest released software. The updates can improve Autel MaxiPRO applications capabilities, typically by adding new tests, new models, or enhanced applications. The tablet automatically searches for available updates for the MaxiPRO software when it is connected to the internet. Any updates that are found can be downloaded and installed on the device. This section describes installing an update to the MaxiPRO System. If the Notifications Center is enabled in the settings application, a notification message will display when an update is available.



12. Remote Desk Support

This application launches the Support platform which synchronizes Autel's on-line service base station with the Display Tablet. In order to synchronize the device to your on-line account, you need to register the product through the Internet when you use it for the first time. The Support application is connected to Autel's service channel and on-line communities which provides the quickest way for problem solutions, allowing you to submit complaints or sent help requests to obtain direct services and supports.
