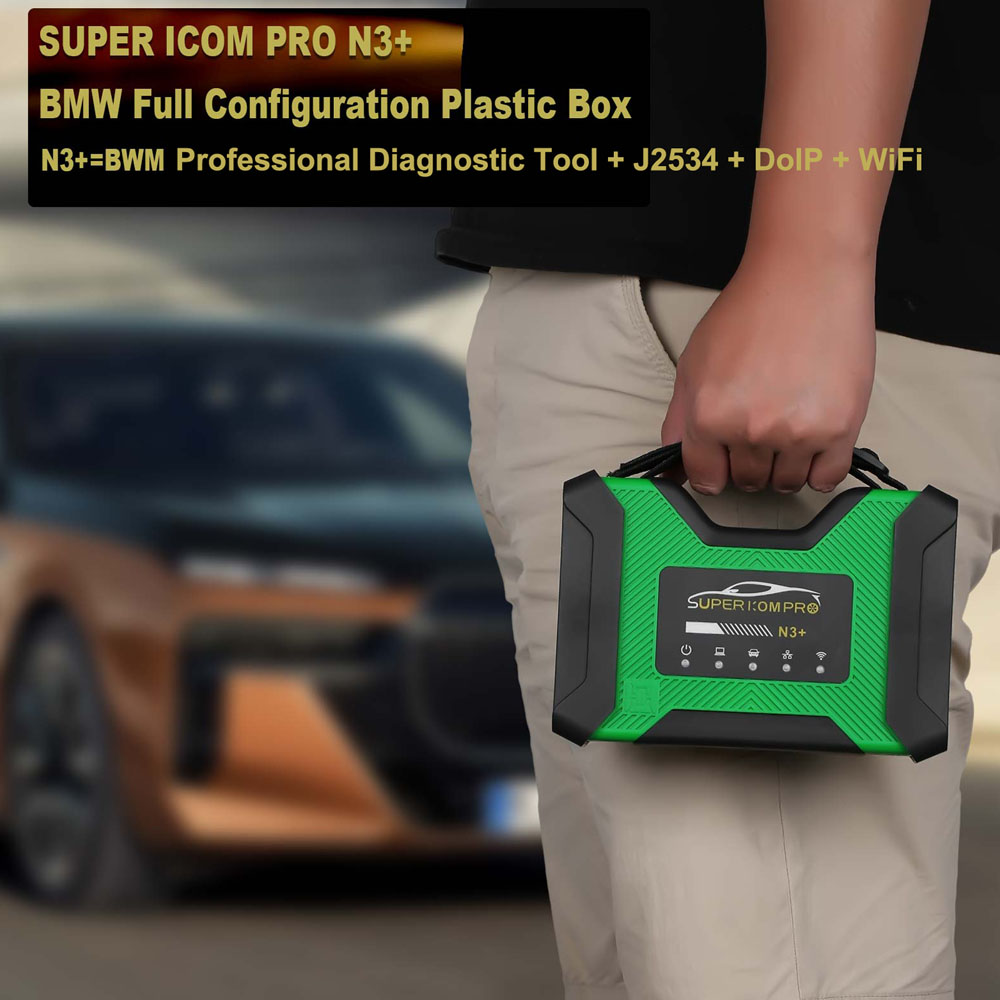

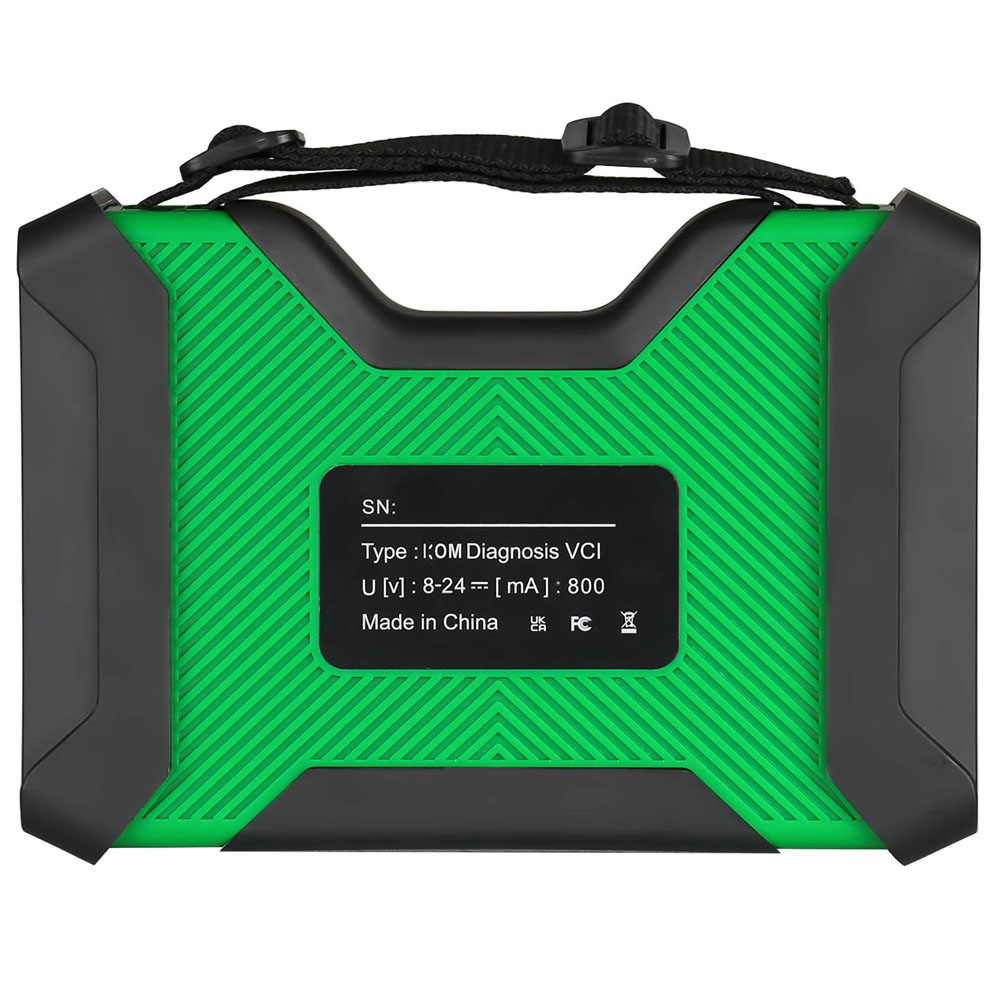

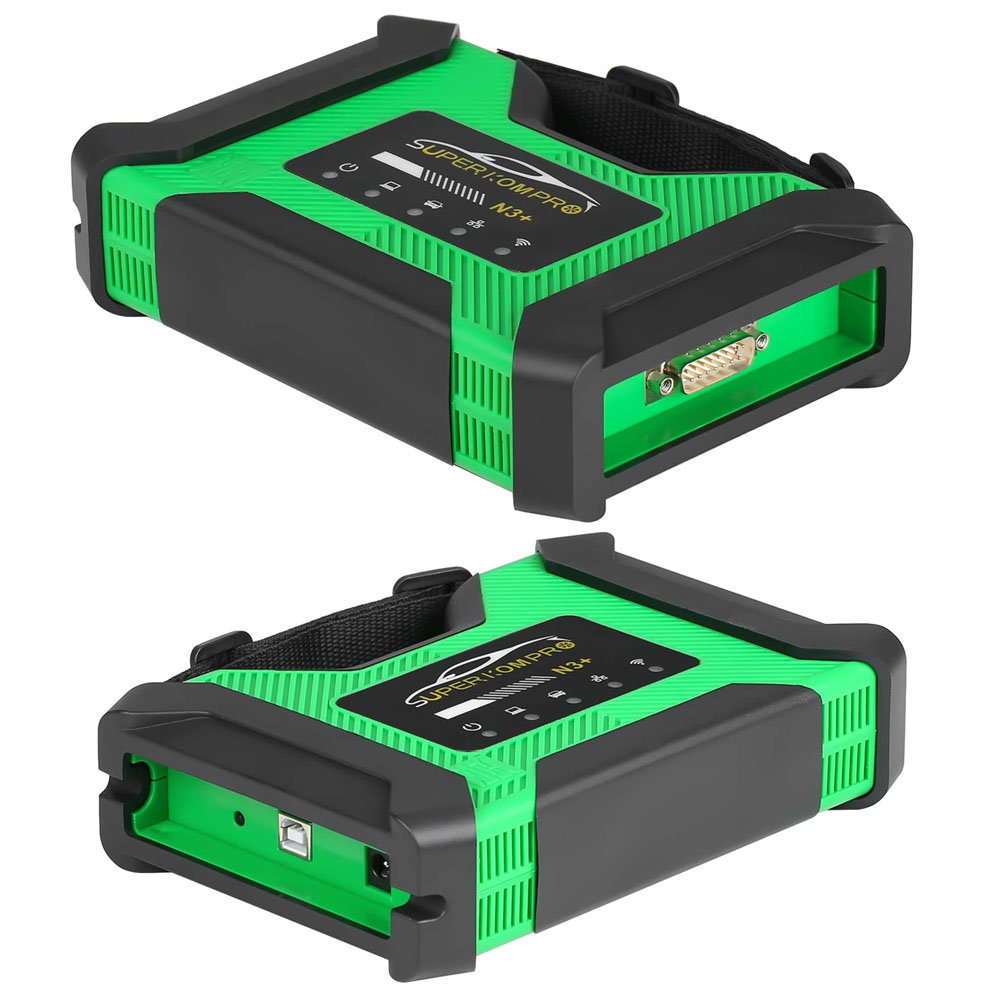

Name: Super BMW ICOM PRO N3+ with WiFi
Description:
Super ICOM PRO N3+ for BMW is developed on the basis of BMW special diagnostic device A1, A2, A3 and N3. On the basis of inheriting the advantages of these products, BMW ICOM PRO N3 Plus optimizes and upgrades them. It is 100% compatible with the original BWM diagnostic software, J2534 and DoIP.
Features:
1. Synchronized Upgrade with the Original Factory
The firmware of the N3+ product has been refreshed to version 147 when it leaves the factory. The firmware upgrade is synchronized with the original factory and the steps are the same. If there is an update to the firmware in the future, customers can download it from the official website of original factory and then upgrade.
2. Wired + Wireless Mode
Communication interface between ICOM PRO N3+ and the computer adopts wired + wireless modes.
1). Wired Mode: USB Cable adopts standard USB3.0 interface. Compared with the old RJ45 LAN port, USB connection has better compatibility and stronger applicability.
2). Wireless Mode: The latest low-power consumption design is used for wireless mode, which reduces the heat of the product in use and greatly improves the speed and stability of wireless communication. After first time wireless connection, it can be automatically connected after booting.
3. Dual Heat Radiating Design
BMW ICOM N3+ adopts a dual heat dissipation design of a fan and a heat sink, it greatly improves the durability and stability of the product communication in high-temperature environments.
4. Optimized Main Cable
Because the communication protocol of N3+ includes K-line, CAN-line and LAN (Local Area Network) DoIP communication, in order to ensure the stability of communication, we have optimized and improved the main cable for testing, which is not an ordinary OBD cable.
5. Switch Button
On the basis of N3, N3+ adds a one-key switch button, which can be freely switched between the BMW diagnosis and J2534 software by pressing and holding it for 3 seconds.
Functions:
1. BWM Professional Diagnostic Tool (NEXT A3)
N3+ adopts the same technology as BMW professional diagnostic tester, and its comprehensive performance is much higher than similar products. All BMW diagnostic software can run 100% without any problems, and all test results are 100% consistent with the original factory. Supported cars include BMW cars, motorcycles, Rolls Royce...
2. J2534 Device
N3+ supports J2534 protocol. It is compatible with the 6-pin and 14-pin CAN communication and the 7-pin K-line communication of the OBD port. It can use with Volkswagen, Mercedes-Benz, Toyota, Honda, Land Rover and other professional diagnostic software.
3. DoIP Device
N3+ supports DoIP network communication protocol and supports new car models with DoIP protocols.

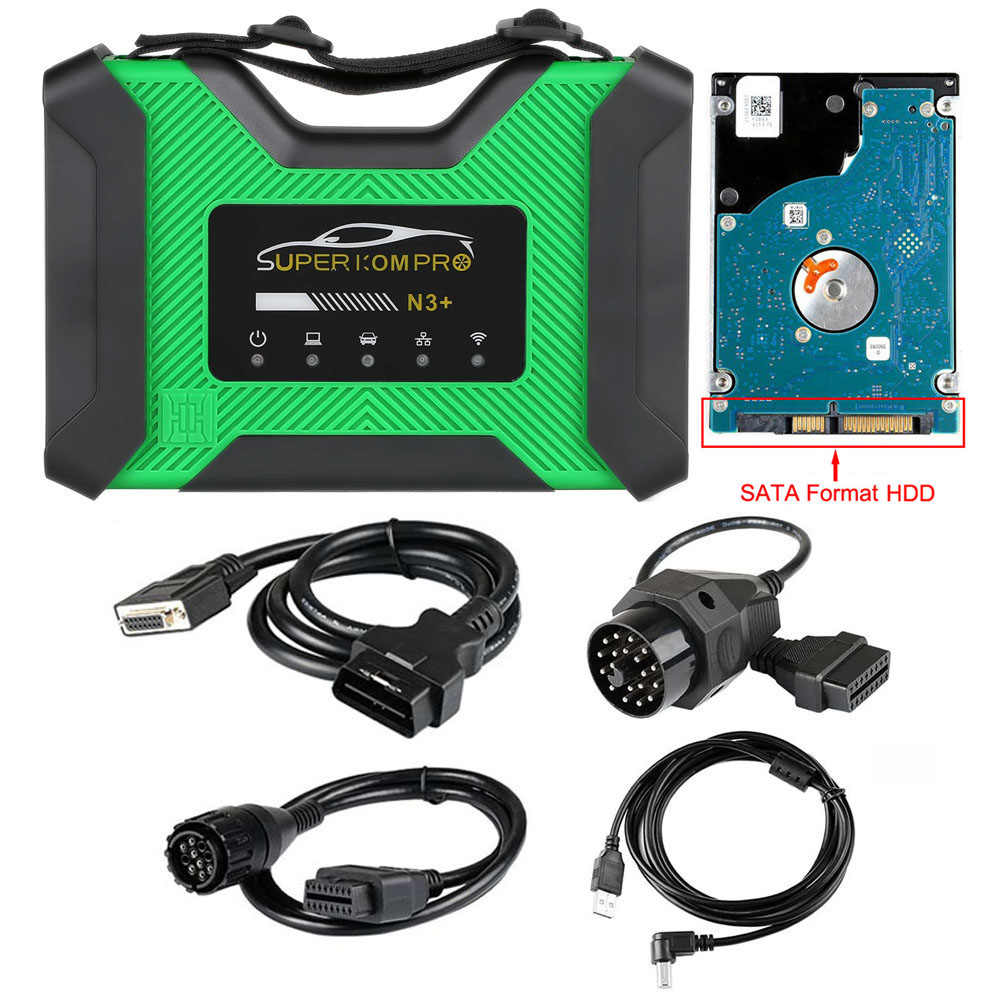

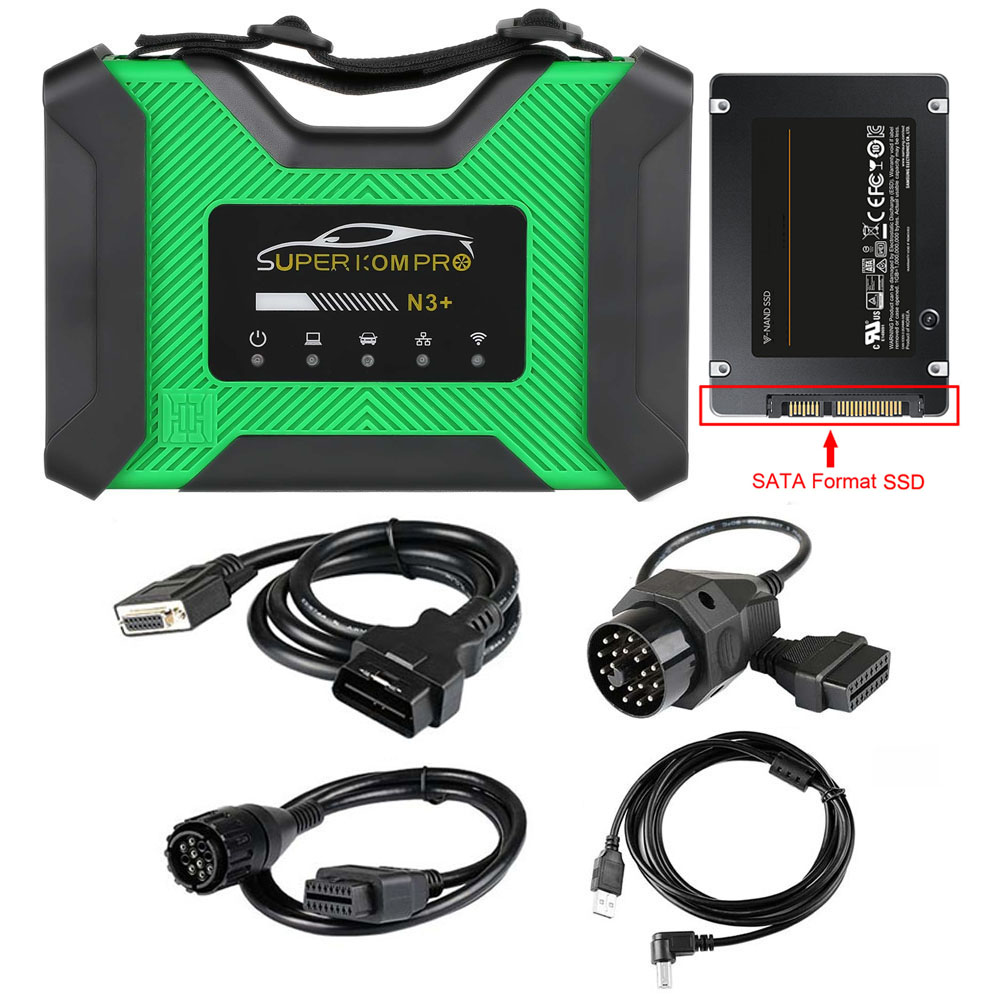

Packing List:
Super BMW ICOM PRO N3+ with WiFi
OBD2 Cable
20-Pin Cable for Old Cars
10-Pin Cable for Motorcycle
USB Cable(2 meter)
Software HDD / SSD (optional)
Plastic Toolbox
Packing Box
|
