Description:



VXDIAG VCX SE Subaru with 2022.1 SSM3 SSM4.



SSM3 supports vehicle 2005 - 2020 car models, SSM4 supports vehicles 2016+ car models.



Software Version: 2022.1



Supported OS: Windows 7 / Windows 10 64bits Professional Edition



Supported Languages:



English, French, German, Spanish, Italian, Russian, Polish, Japanese, Chinese



(Language Switch Way: Run SSM3 software, click Tool - Option – Language, select language, and save.)



Highlights:



1. Offer FREE DONet.

2. Supports to add license for other brands.

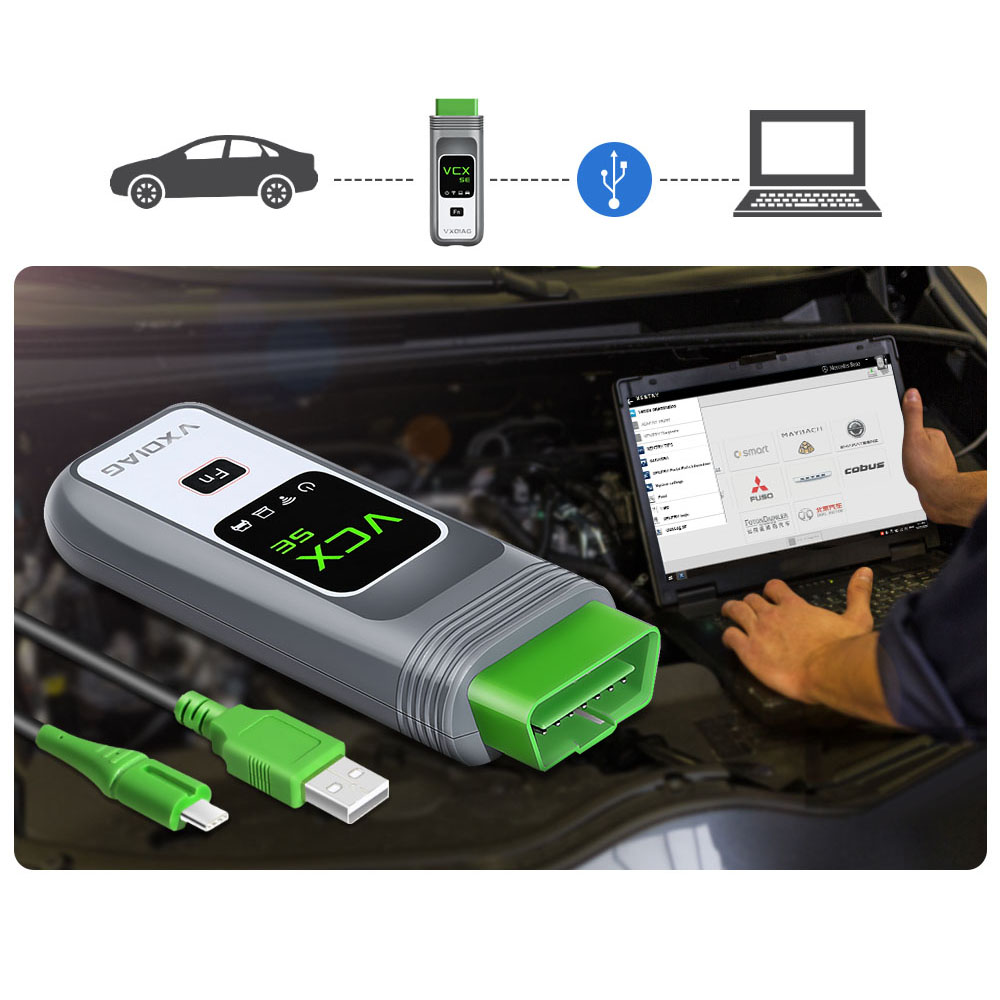

3. Support USB Type-C and WiFi connection.

4. Support original functions with online account.

5. Can choose 2 more car license for free (Choose any 2 of of JLR SDD, Ford/Mazda GM, VW, Volvo, Toyota, Honda.)



Functions:



1. All System Diagnosis.

It displays on a single screen the fault detect status of all control system control modules for which SSMΙΙΙ diagnosis is supported, and memorized diagnostic codes.



2. Each System Check.

It is possible to select a particular system from among the control systems for which SSMΙΙΙ diagnosis is supported, and perform fault diagnosis. This item can be used to view input/output data of the system control modules that perform fault diagnosis, memorized diagnostic codes, and other data on the PC display. This menu item is also used after repair work is complete to delete diagnostic codes, to configure control module settings, etc.



3. Saved Data Display.

It can be used to save various data sampled during fault diagnosis operations, and to load data for viewing after work is complete.



4. Immobilizer

It performs immobilizer registration.



5. Reprogram.

It performs reprogramming of the control module.



6. Read CF Application Measurement Data.

It performs reading stand alone measurement data saved in a CF card to hard disk of your PC.



7. Convert/Save Measurement Data on Driving Recorder.

Loads data sampled on the driving recorder to the PC from the CF card, and converts and saves that data.



8. Oscilloscope.

After attaching the optional pulse/analog cartridge to SDI, connect the pulse/analog box to the SDI and using pulse/analog probe to perform analog sampling. But we do not provide pulse/analog cartridge.



9. Program Subaru Smart Key (Requires Online Account)

VCX SE Subaru is able to access all systems for diagnosing, repairing, programming, instance: read and clear code, read dynamic data stream, action test, activate components, replace and program module, retrofit and modify the car's configuration, replace and upgrade ECU, do personalized settings, etc.



10. Remote Diagnosis:

Free DONet License - Insert the device to your car and you do the diagnostic in your home or let the engineer to help you do the diagnostic in another place remotely.

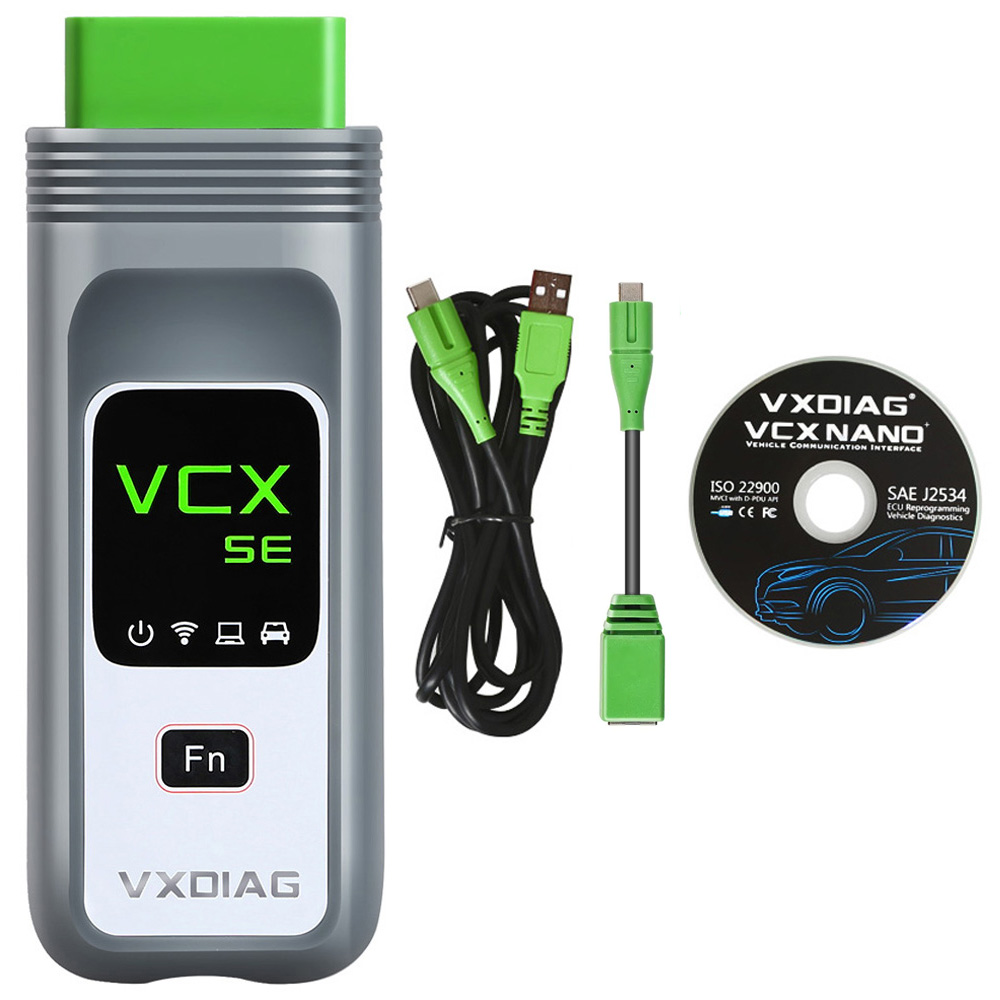

Packing List:



VXDIAG VCX SE Subaru

USB Cable

Software

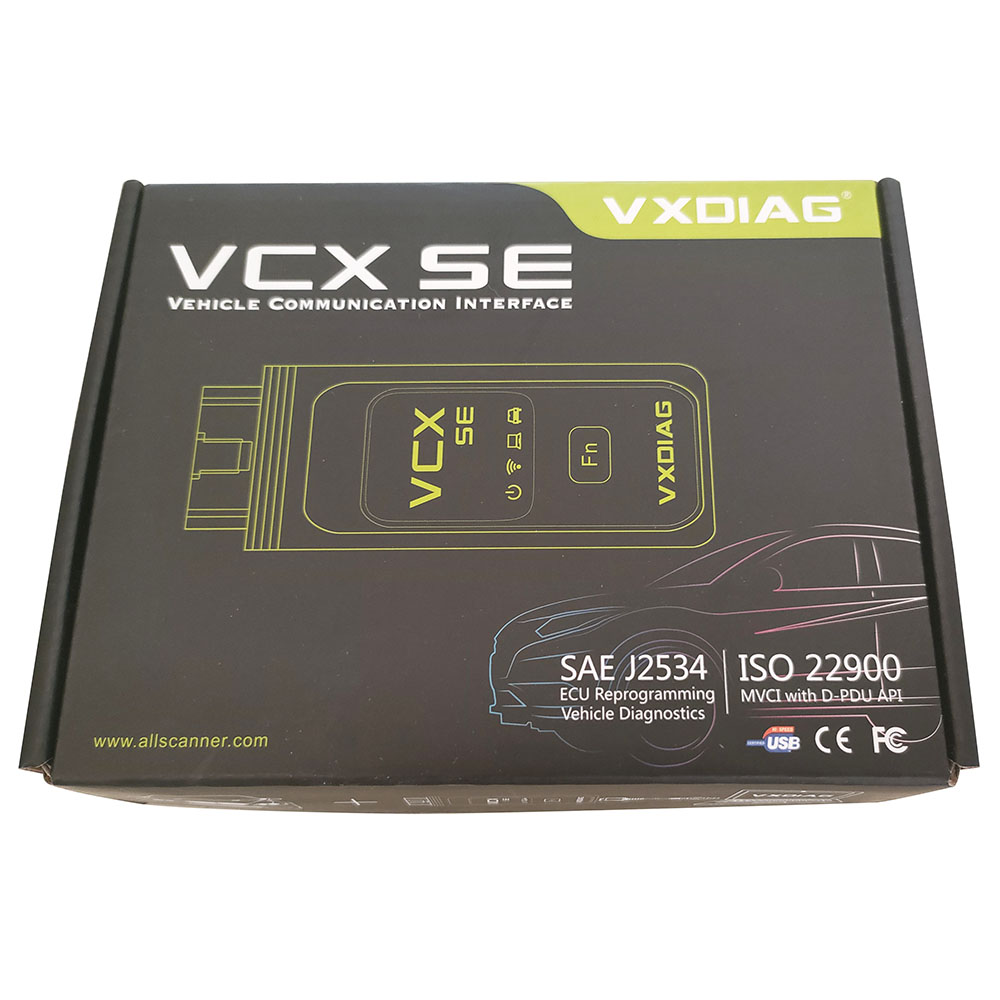

Packing Box
