Description:

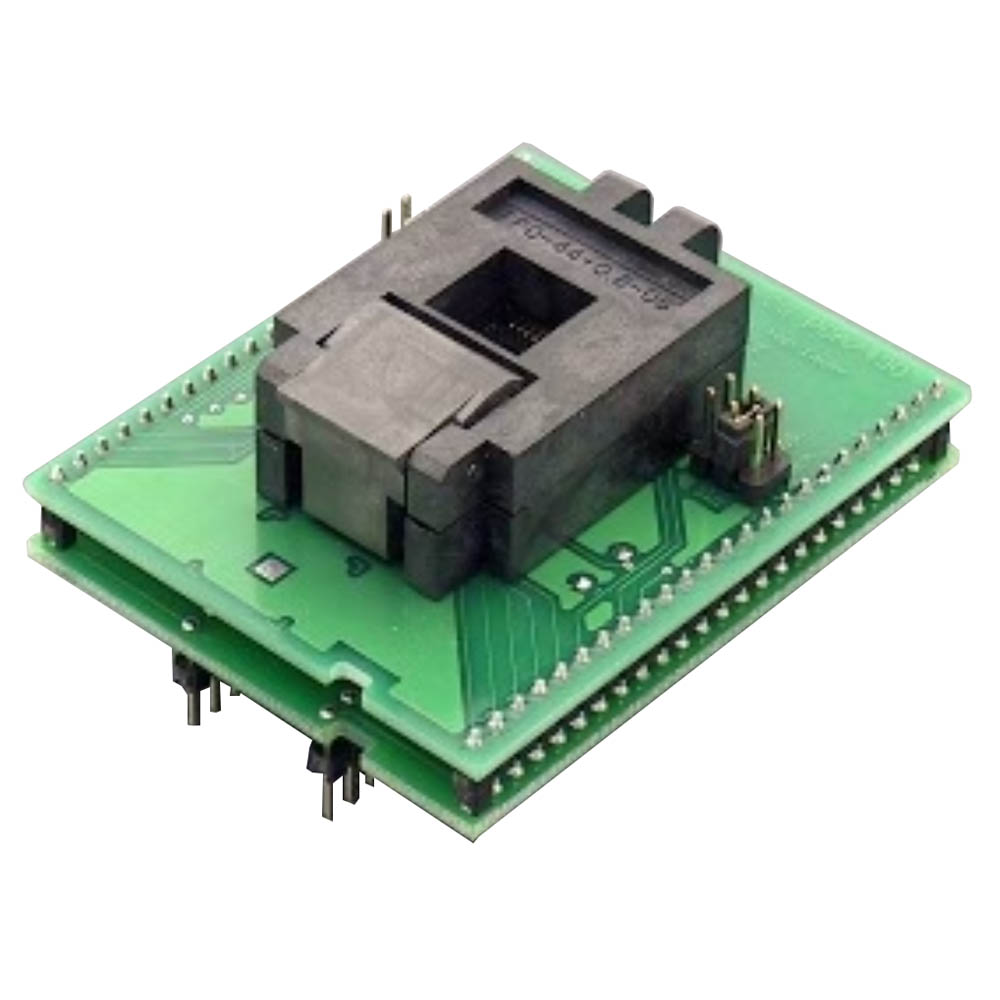

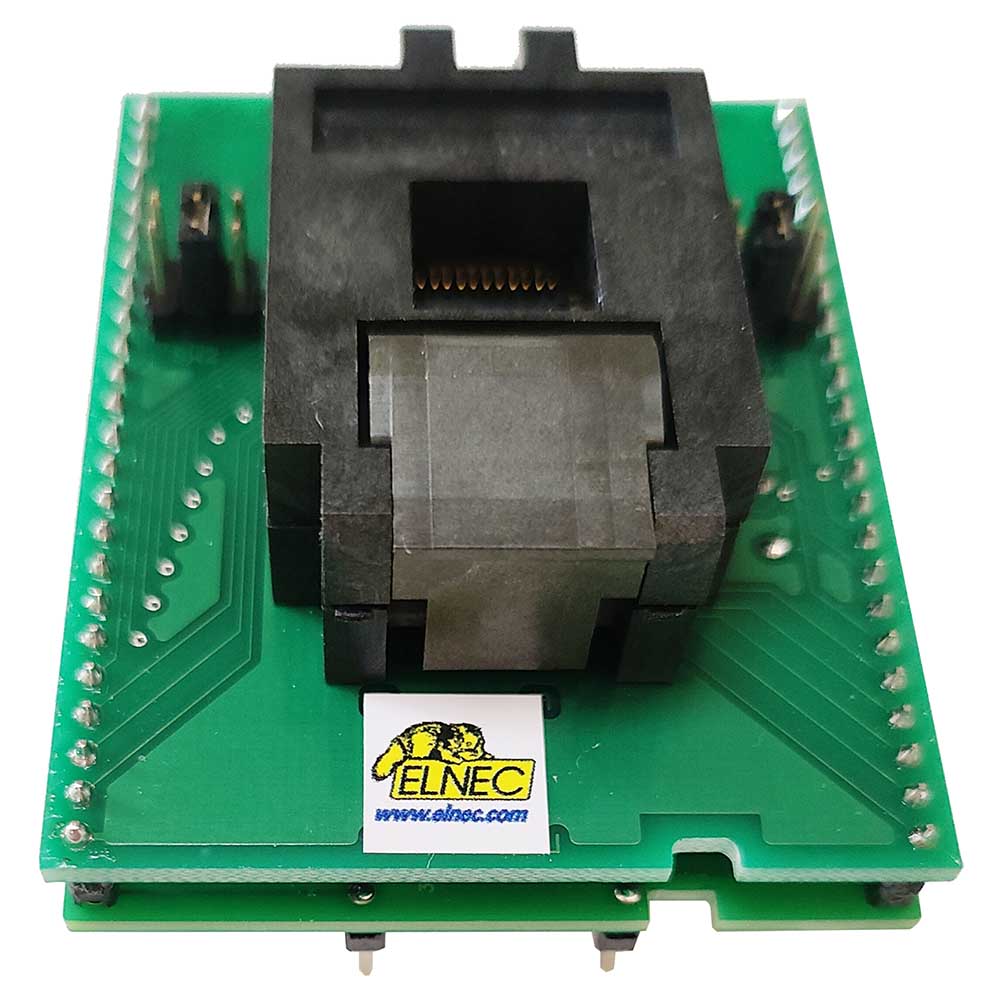

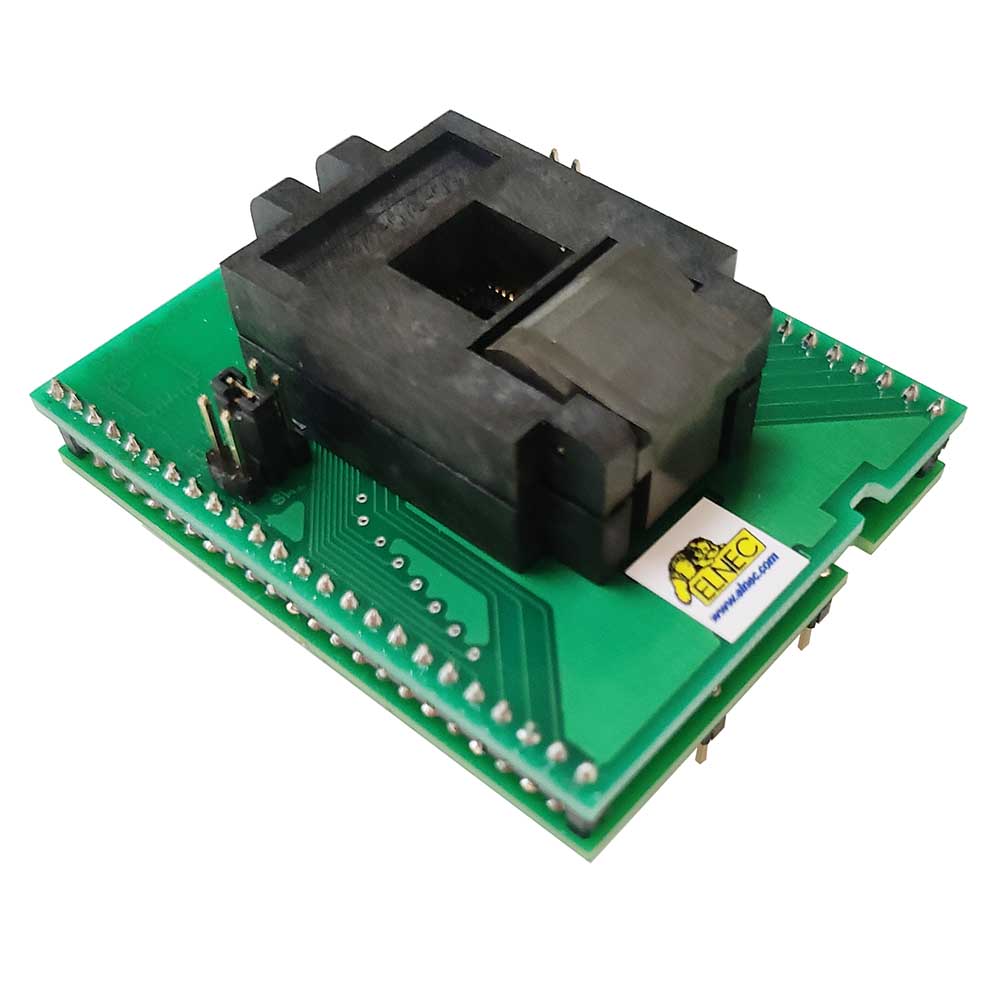

Elnec DIL48/QFP44 Adapter is a special adapter assigned for Mitsubishi/Renesas devices in QFP44 package(for example: M37630E4FP [QFP44]).



Operating (Mechanical) Warranty of ZIF socket: 10,000 actuations.



Serial Number from 2900-00005 are supported from PG4UW software version 3.76.



Operation Steps:



1.Insert adapter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this adapter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.

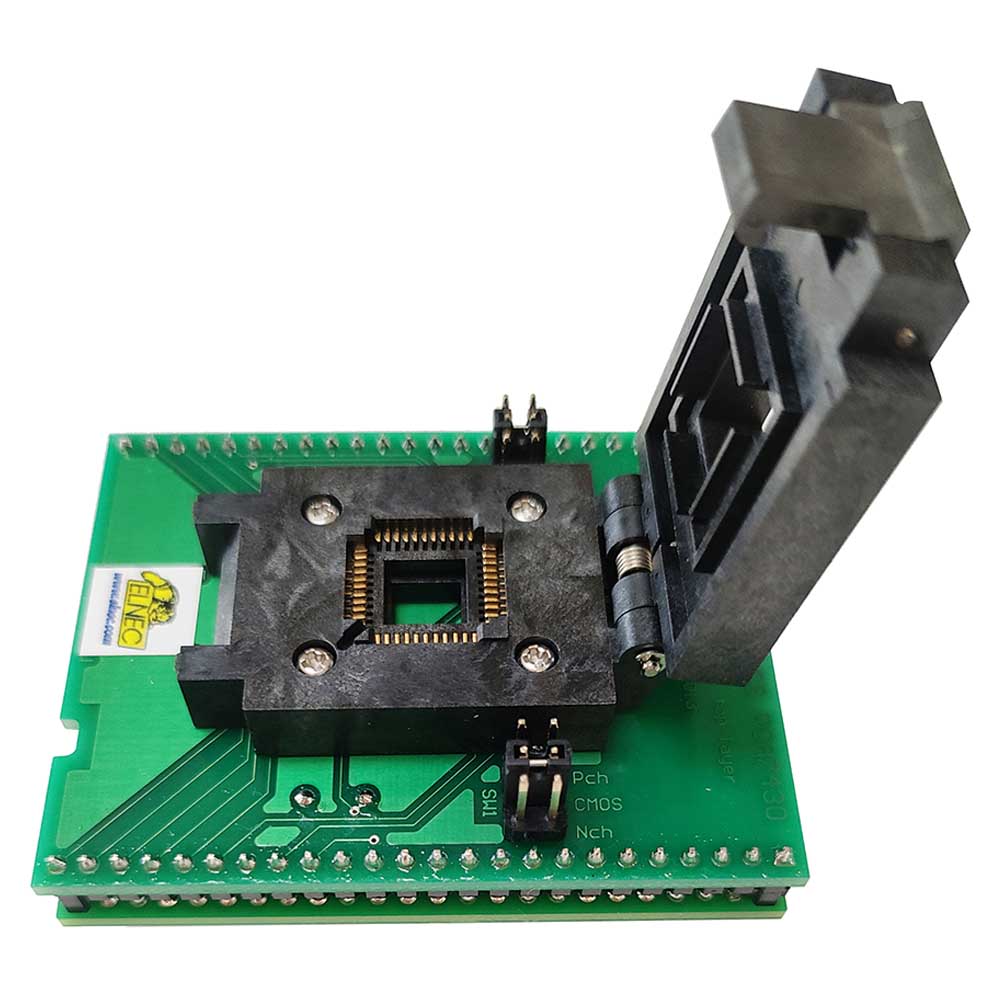

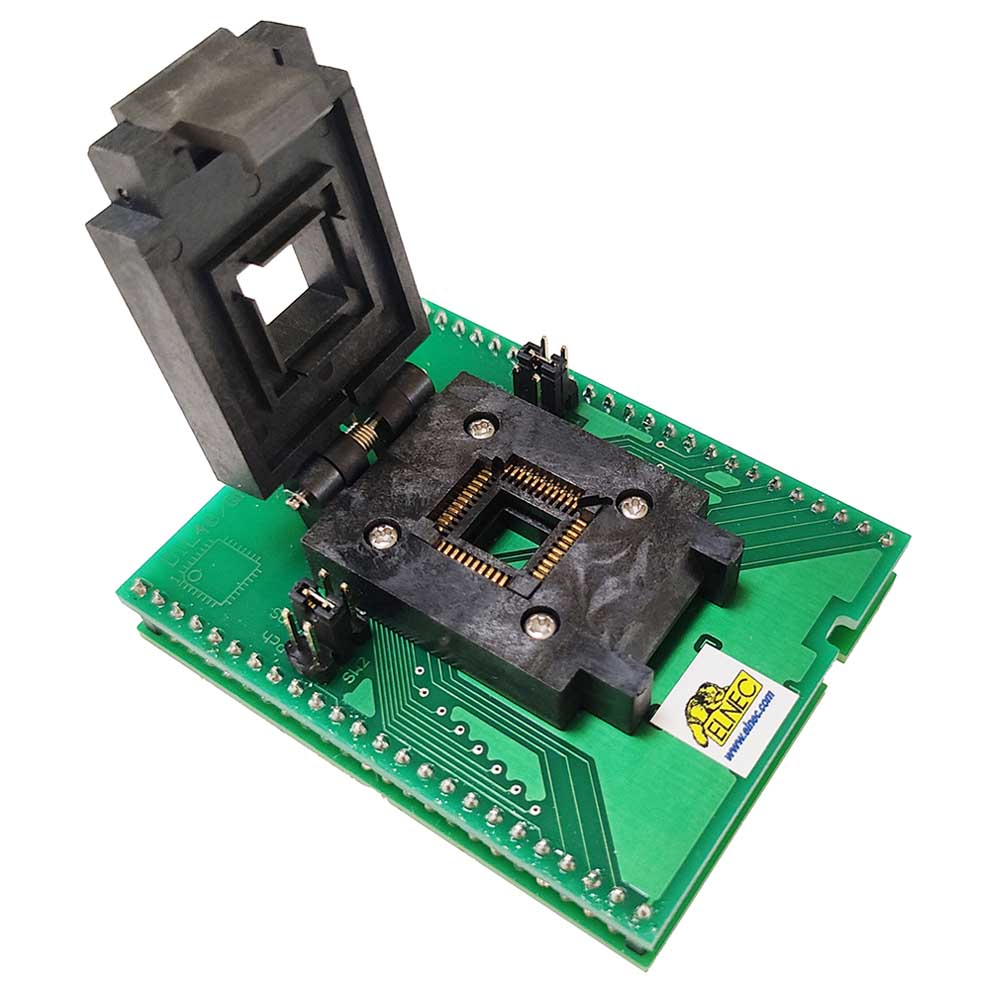

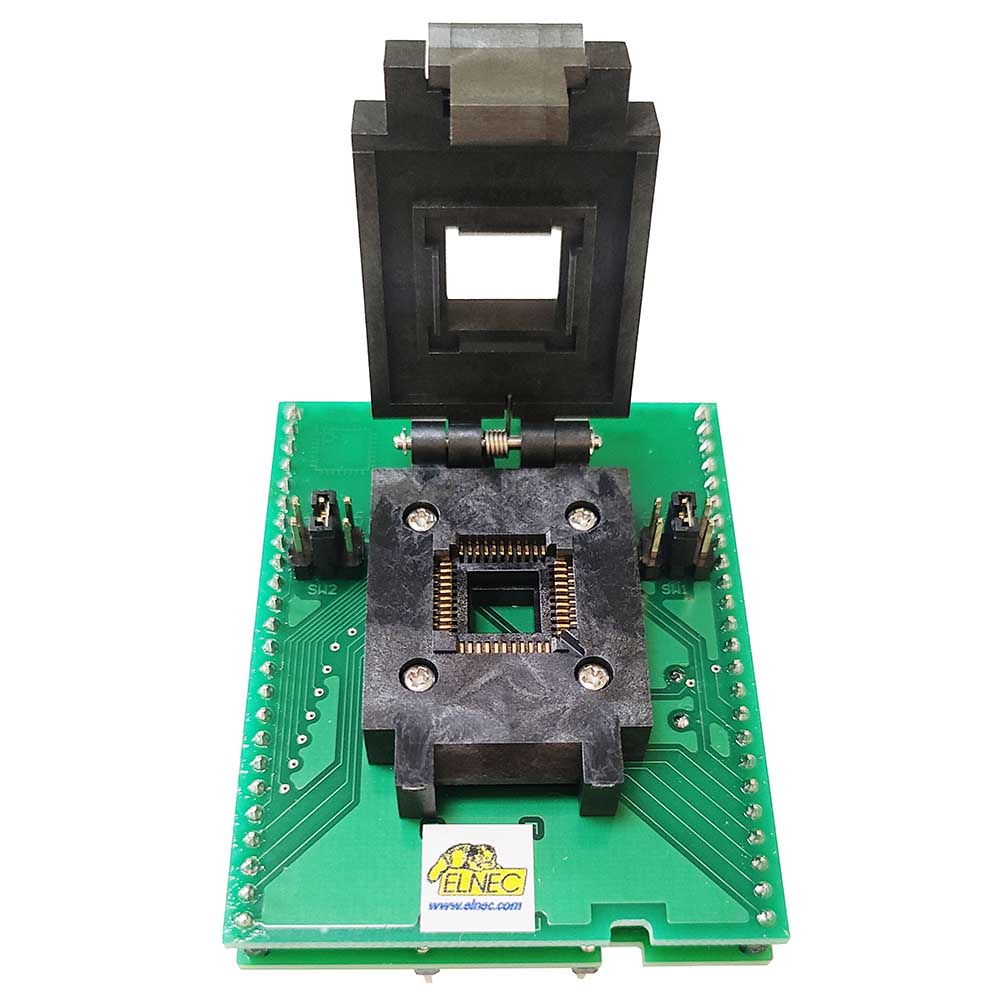

2.Open the adapter ClamShell ZIF socket. Insert the device into it(place device on contacts). The right position of the programmed device in adapter ZIF socket is show at picture near (mainly left above) the adapter ZIF socket. On this picture reference corner (e.g. position of pin 1) of device is indicated by dot, by number 1, by bevelled corner or by any combination of them.



3.Visually check interconnection between device and adapter ClamShell ZIF socket. If everything looks OK, close it and now, device is ready for programming.



4.Be careful, because the incorrect insertion of adapter to the device programmer ZIF socket or device to the adapter ClamShell ZIF socket can damage the programmed device.



5.To take out the device, open adapter ClamShell ZIF socket and remove device from it.



6.When you finish work with adapter, remove it from the device programmer ZIF socket.



7.Do not directly touch the pins of the adapter and adapter ZIF socket, because dirt may cause errors during programming of device.



8.For handling with the device we recommended to use a vacuum pick up tool.



9.Operation Conditions: operating temperature 5°C - 40°C @ humidity 20%..80% non condensing.



Supported Programmers:



Elnec BeeProg4

Elnec BeeProg4C

Elnec BeeHive208S

Elnec BeeHive204

Elnec BeeProg2

Elnec BeeProg2C



Specifications:



Ord. No.: 70-2900

Socket: ZIF QFP44, ClamShell type

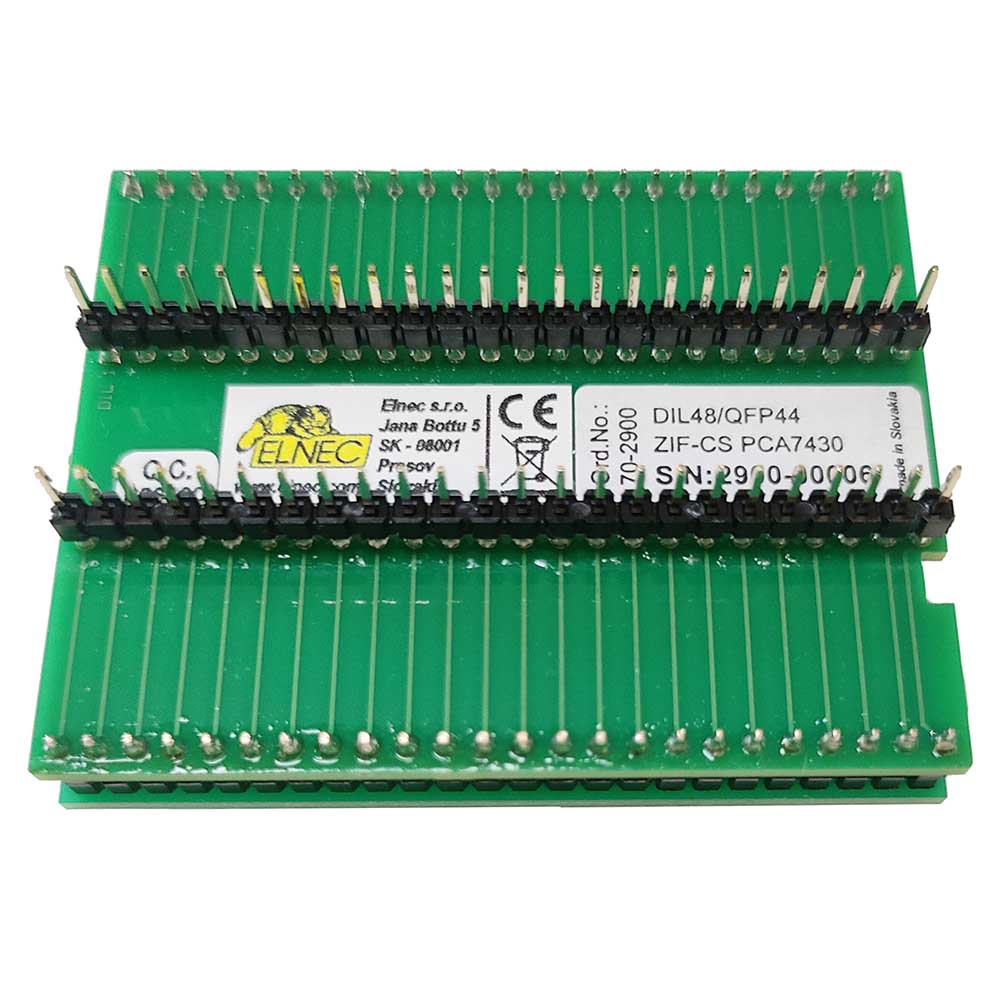

Bottom: 2*24 pins, square, 0.6*0.6mm, rows spacing 600mil

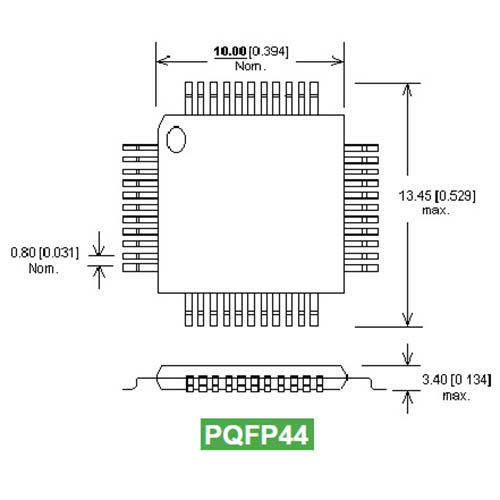

Supported Package: PQFP44

Class: specialized

Subclass: Mitsubishi/Renesas MCU
