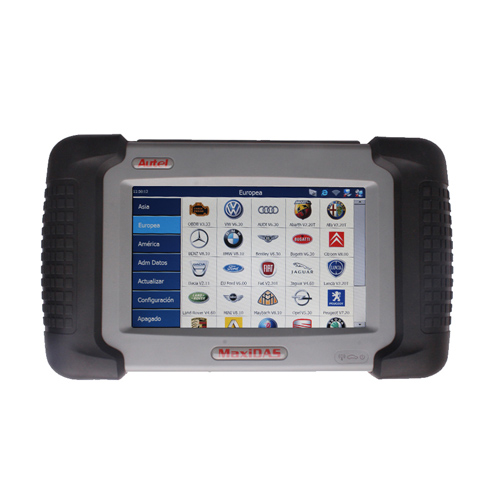

Name: Autel MaxiDAS DS708
Description:
Delicately developed by the most distinguished experts of this industry, the Autel MaxiDAS DS708 is a state-of-art diagnostic system that delivers more accurate, more stable, more comprehensive, easier and faster diagnosis.
The new generation platform stands out in a variety of tools by providing incredibly high performance with intuitive operation. Right for the first time, workshops and technicians could find an OE-level diagnostic solution designed for the aftermarket.
The DS708 is the key to gain customer confidence and boost your bottom-line.
Features & Functions:
Autel MaxiDAS DS708 Extensive vehicle coverage for more than 30 domestic, Asian and European vehicle makes;
Deep vehicle system coverage for ALL electronic systems;
Complete function capability including live data, ECU programming and so many others;
MaxiDAS can Unparalleled OBD-II functionalities¨Csupports ALL 5 OBDII protocols and ALL 9 test modes;
Automatic Wi-Fi updates available in new software releases;
Innovative dual-processor technology for quicker diagnostics and boot-up;
The genuine Windows CE operating system allows for more stable performances, better compatibility and expandability;
WI-FI internet capability allows for wireless access throughout the workshop;
Internet explorer brings internet resource of your choice at your fingertips
Advanced USB communication for faster operation and more accurate diagnostics;
Automatic Wi-Fi updates available in new software releases;Extremely easy-to-us with touch-screen operation and intuitive operation;

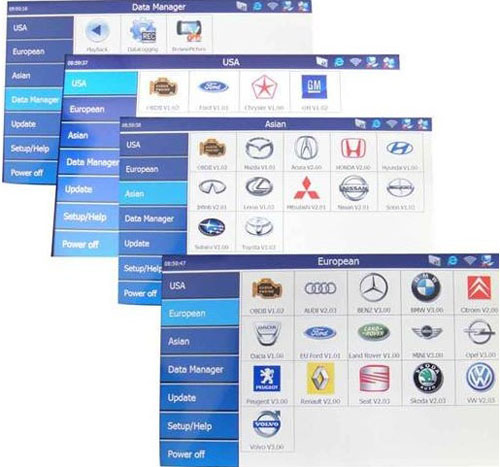

Extensive vehicle coverage for more than 30 domestic, Asian and European vehicle makes;
7 inch 800*480 pixel TFT color display provides better view of test results, graphs, web pages etc.;
Unique shop tough ergonomic design features multi-layered rubber protection and strong housing;
Intelligent memory of vehicles for easy and quick diagnosis of tested vehicles;
Captures, saves and prints screenshots for convenient troubleshooting;
Displays live data in text, graph and analog for easy data review and analysis;
MaxiDAS DS708R cane cords and playbacks live data to pinpoint troubles of sensors and components;
Innovative graph merging for easy and quick detection of intermittent problems;
Automatic WIFI Data Logging for quick and accurate technical support and troubleshooting;
MaxiDAS can Built-in overvoltage protection keeps the instrument and vehicle from unwanted damages;
MaxiDAS DS708 can Creative remote diagnosis for convenient demonstrationand training;
MaxiDAS can Powered by Autel® Uni-SCANTM Technology, no need for extra adapters or keys ;
MaxiDAS DS708 can Prints out recorded data any time and anywhere with Wi-Fi printing capability.
Main Unit Specifications:
Operating System: Windows CE
CPU: ARM9+ARM7 dual processor
Memory: Max. 4 Gigabyte SD card
Communication Interface: OBD, USB£¬Ethernet
Input Voltage: 8.0-32.0V power provided via vehicle battery
Power Consumption: 8W
Operating Current: 500mA
Display: Backlit, 7" TFT (800*480 dpi) color display with touchscreen
Operating Temperature: 0 to 60 degree centigrade
Storage Temperature: -10 to 70 degee centigrade
Operation: Touchscreen and one rubber key (ON/OFF)
Printer Interface: Wi-Fi, USB, Ethernet
Housing: Strong plastic housing with protective rubber boot
Dimension: 282*163*60mm
Weight: approx. 2Kg
Protocols: ISO 9141-2, K/L lines, flashing code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898,ISO15765-4, High Speed, Middle Speed, Low Speed and Single Wire CAN

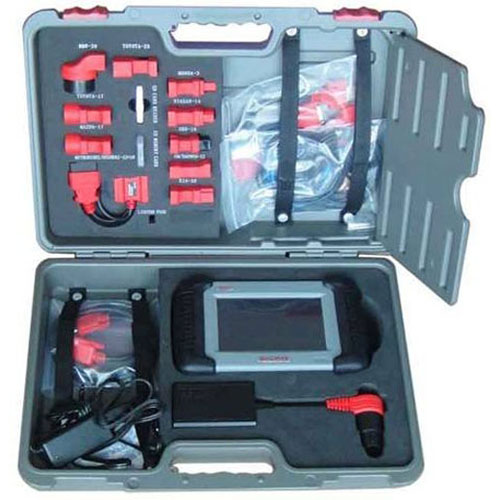

Packing List:
Main Unit
Autel MaxiDAS DS708
Stylus pen
4GB SD memory card

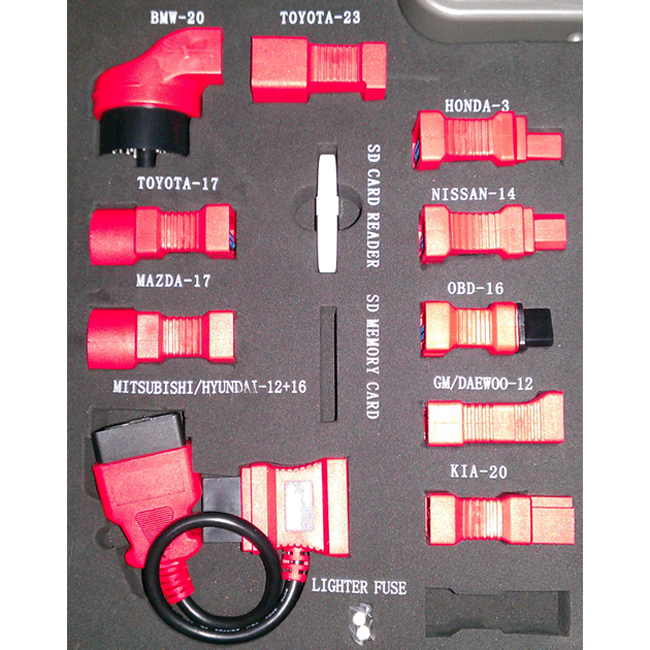

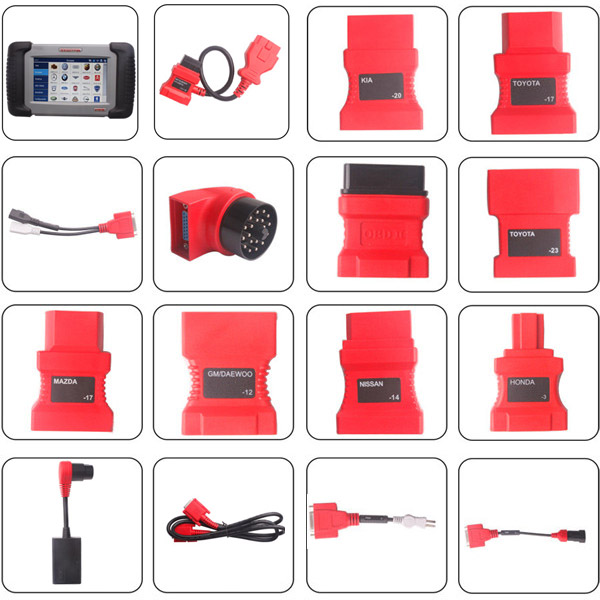

Adapters
OBD-II 16-pin
Honda 3-pin
Audi 2*2
Benz 38-pin
BMW 20-pin
Chrysler 16-pin
Fiat 3-pin
GM/Daweoo 12-pin
Honda 3-pin
Mitsubishi/Hyundai -12+16-pin
Kia 20-pin
Mazda 17-pin
Nissan 14-pin
PSA 3-pin
Toyota 17-pin
Toyota 23-pin
Cables
Main Cable
Cigarette Lighter
Power Supply Clip Cable

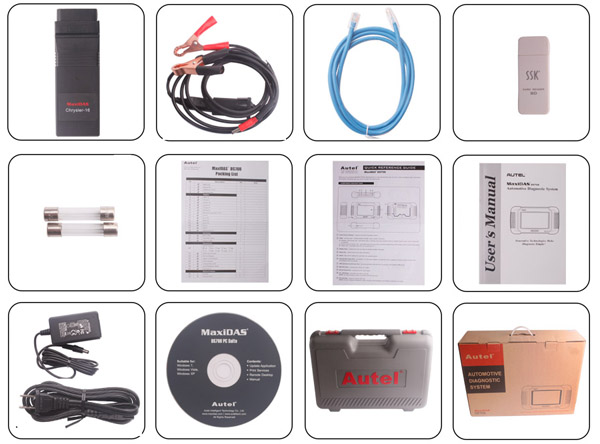

Accessories
AC Adapter
RS232 Serial Cable
Lighter Fuse 6*30mm (2 pcs)
SD Card Reader
CD
User Manual
Quick Guide
Package List
Carrying case
|
