  OBDSOS PRODUCTS Car Universal Diagnostic Tool Autel MaxiDAS

Product ID SP297
Product Name Autel MaxiDAS DS808
Product Price USD700
Actual Weight (Kg) 2.7
Volumetric Weight (Kg) 3
Package Size (cm) 37*31*12
Related Download
Order Quantity:
In Stock



Frequently Buy Together +   Related Products
Description

Name: Autel MaxiDAS DS808

Description:

Based on the Android operating system, Autel MaxiDAS DS808 is featured with an extensive coverage of OE-level diagnostics. Installed with a fast quad-core processor, Autel DS808 offers maximum convenience and efficiency for your diagnosis and analysis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024*600 pixel resolution.

Autel MaxiDAS DS808 and Autel MaxiDAS DS808 Kit Difference:

Autel MaxiDAS DS808 + Connector Kit = Autel MaxiDAS DS808 Kit

Supported Languages:

English, Spanish, Portuguese, Italian, Russian, Dutch, Swedish, Korean, Japanese

Notice: Default language is English. Other language is available at extra costs USD120.

Software Update: free update online for one year

Features:

1. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes.
2. Support New Function Injector Coding & Key Coding.
3. Exceptional OE-Level system coverage for all electronic systems.
4. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
5. Smart AutoVIN technology for identifying vehicles easily.
6. Automatic system and software updates with real-time push message notifications via WiFi.
7. Instant remote control tech support anytime, anywhere.
8. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes.
9. Interactive Data Logging sessions enable direct contact with Autel Technical.
10. Support for first-hand troubleshooting of diagnostic bugs and errors.
11. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.
12. Convenient data management system for managing internal program applications and reviewing data.

Functions:

Retrieve ECU Information
Read & Erase DTCs
View Live Data
Perform Active Tests

Supported Cars:

Europe:
Audi, Benz, BMW, Dacia, EU Ford, Land Rover, MINI, Opel, Peugeot, Renault, Seat, Skoda, VW, Volvo, Smart, Jaguar, Benz Sprinter, SAAB, Fiat, Abarth, Lacia, Alfa Romeo, Vauxhall, Maybach, Bentley, Bugatti, Porsche

USA:
GM, Chrysler, Ford

Asia:
Suzuki, Kia, Daewoo, Isuzu, Toyota, Subaru, Scion, Nissan, Mitsubishi, Lexus, Infiniti, Hyundai, Holden, Honda, Accura, Mazda

Supported Protocols:

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(High Speed, Middle Speed, Low Speed and Single Wire CAN, Fault-Tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Software Update:

1.  Make sure the Autel DS808 is connected to a power source with stable access to the Internet.

2.  Click the Update application button from the MaxiDAS Job Menu; or click the update notification message when received one; or click the Update icon on Vehicle Menu in Diagnostics application. Then Update application screen displays.

3.  Check all available updates: If you decide to update all the items, click the Update All button. If you only want to update one or some of the item(s), click the Update button on the right column of the specific item(s).

4.  Click the Pause button to suspend the updating process. When you click Continue to renew the update, the updating process will resume from the break point.

5.  When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.

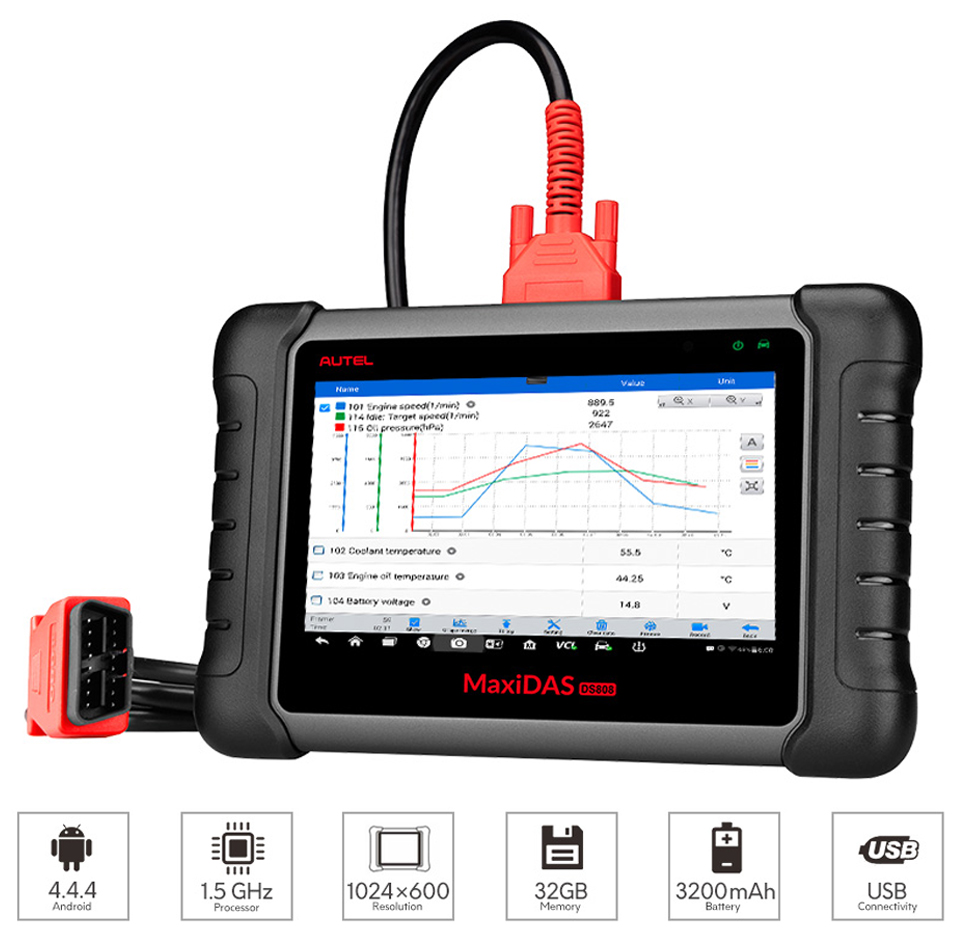

Specifications:

Operating System: Android 4.4.4
Processor: Cortex-A9 processor (1.5 GHz)
Memory: 32GB
Display: 7-inch LCD capacitive touch screen with 1024*600 resolution

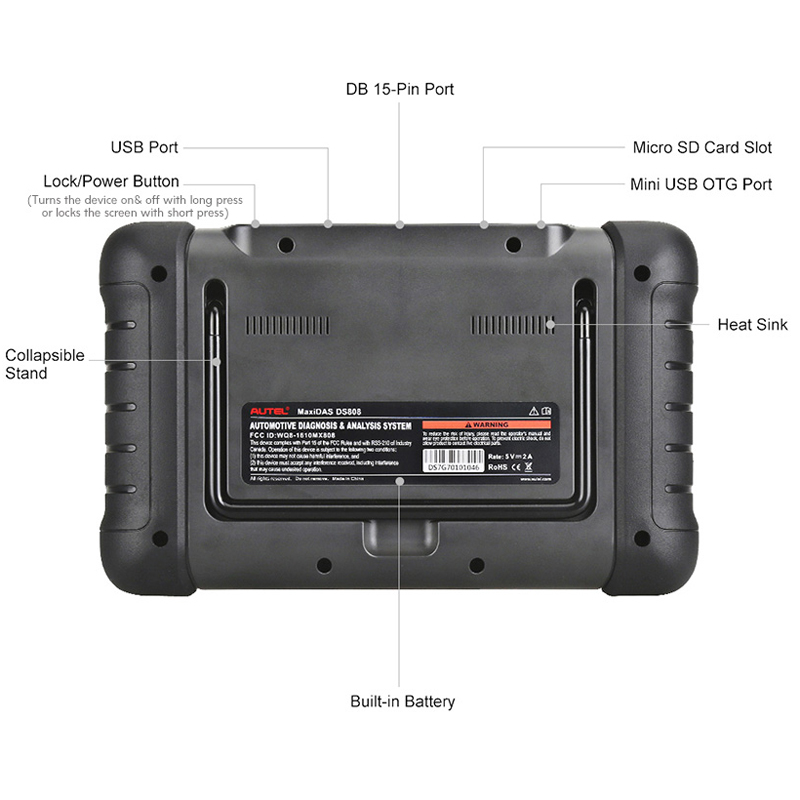

Connectivity: Mini USB 2.0; USB 2.0; WiFi; Micro SD card (supports up to 32GB)
Sensors: Ambient light sensor for brightness auto adjust
Audio Input/Output: Input: N/A; Output: buzzer
Power and Battery; 3.7V/3200mAh lithium-polymer battery; Charges via 5V DC power supply
Tested Battery Life: Around 4.5 hours of continuous use
Battery Charging Input: 5V/1.5A
Power Consumption: 500mA (LCD on with default brightness, WiFi on) @3.7V
Operating Temperature: -10 to 60 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Operating Humidity: 5% - 95% non-condensing
Dimensions (W*H*D): 237.8*148.6*35.5mm
Net Weight: 788g

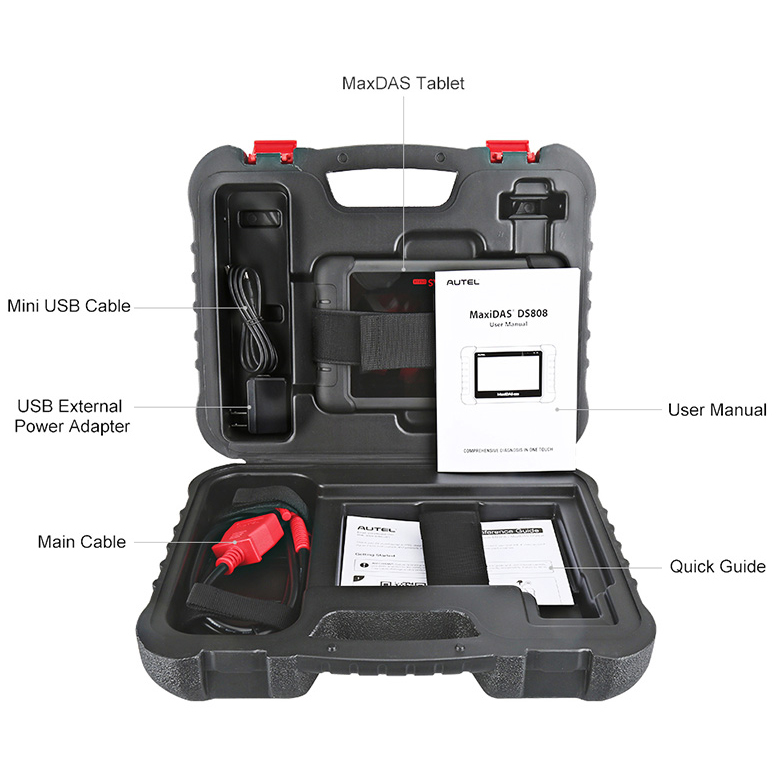

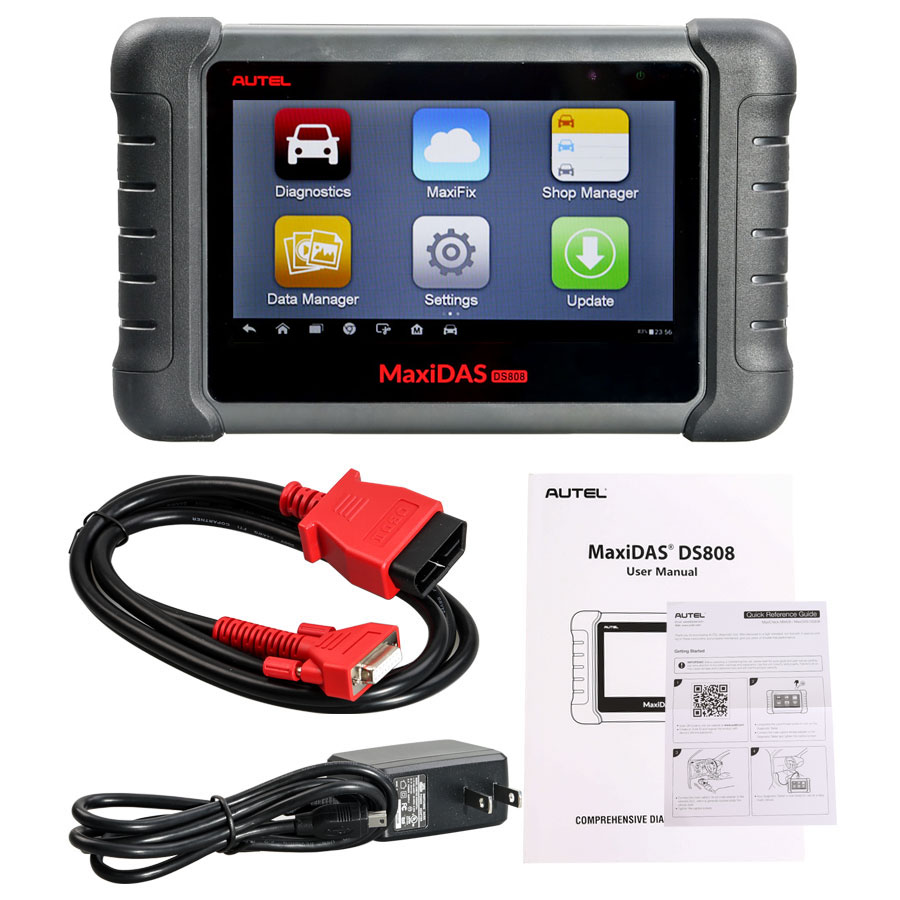

Packing List:

Autel MaxiDAS DS808
Main Cable
Mini USB Cable
USB External Power Adapter EU
USB External Power Adapter USA
User Manual
Quick Reference Guide
Plastic Toolbox
Carrying Case
