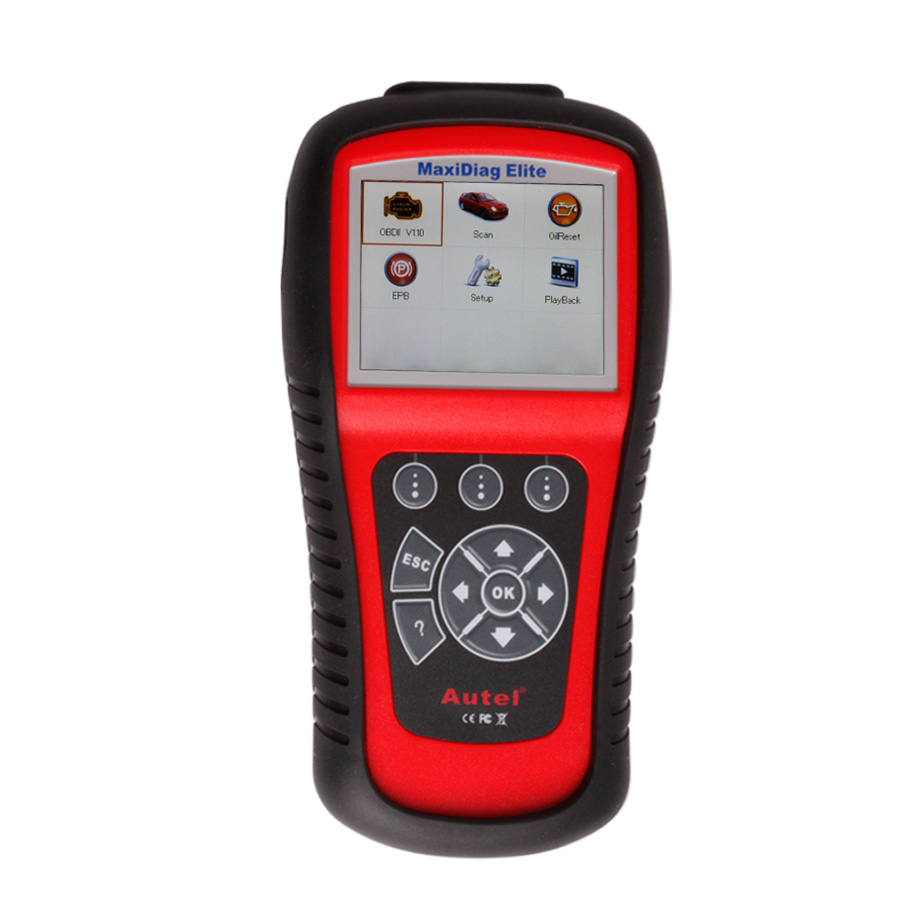

Name: Autel MaxiDiag Elite MD802 for 4 System with Data Stream for US/Europe/Asia Cars

Description:

Autel MaxiDiag Elite MD802 for 4 System + DS model can reads and clears trouble codes on either the basic 4 systems (Engine, Transmission, ABS, Airbag) or all the systems, reads and clears trouble codes on Engine, Transmission , Airbag and ABS failures.

Quick Erase feature allows all codes to be cleared with the push of one button, Live data graphing for the ECU, One button Auto-Scan reads codes in all modules and displays them on the screen.

Features:

1. Ability to quickly Read and Clear codes in ALL modules for European, Asian, and Domestic vehicles 1996-present
2. One button Auto-Scan reads codes in ALL modules and displays them on the screen
3. Quick Erase feature allows all codes to be cleared with the push of a button
4. Live data graphing for the ECU
5. One tool to do it all. Reads and clears trouble codes on engine, transmission , airbag, and ABS failures
6. Global OBD-II coverage (US, Asian, & European)
7. Turns off engine, transmission, ABS and airbag warning lights for most USA Domestic, Asian and European cars
8. One year warranty

Functions:

1. Supports all 10 test modes of the latest J1979 OBD-II test specification including Read Codes, Erase codes, Live Data, Freeze Frame, I/M Readiness, O2 Monitor Test, On-Board Monitor Test, Component Test, and Vehicle Information
2. Enhanced OBD II-Mode 6
3. OBD-II code tips guide technicians to the root cause of trouble codes faster
4. Data graphing
5. View freeze frame data
6. USB cable included for product updates
7. One year of FREE software updates and upgrades included
8. Prints data via PC-link

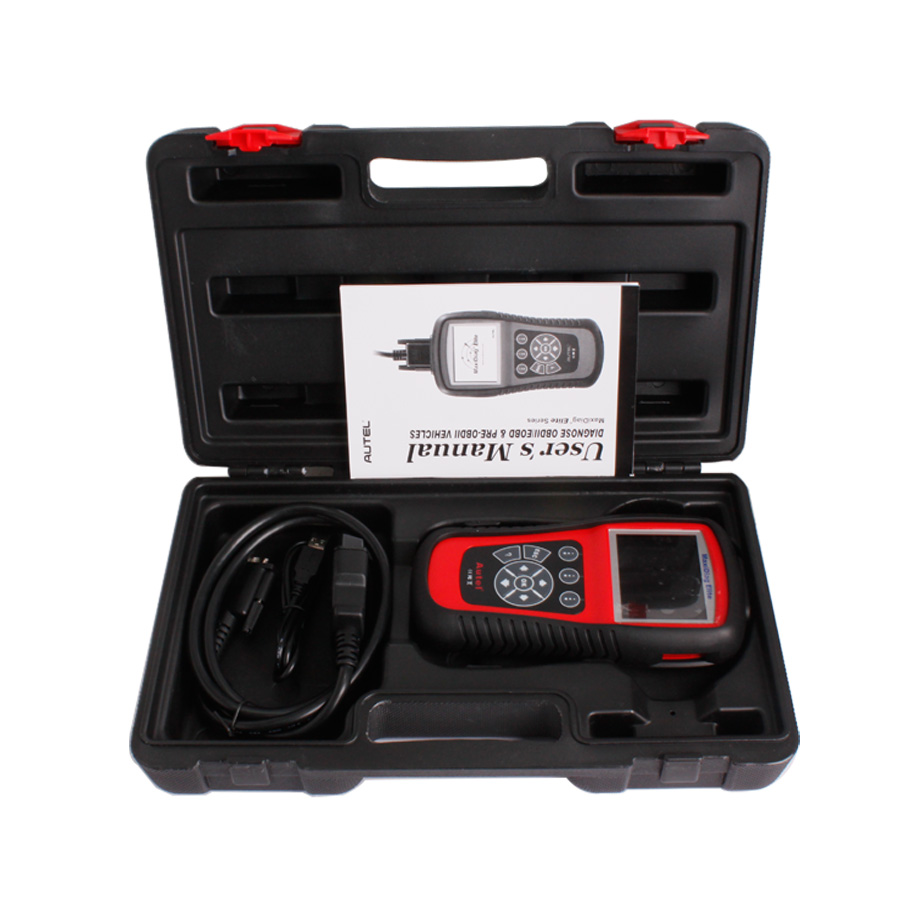

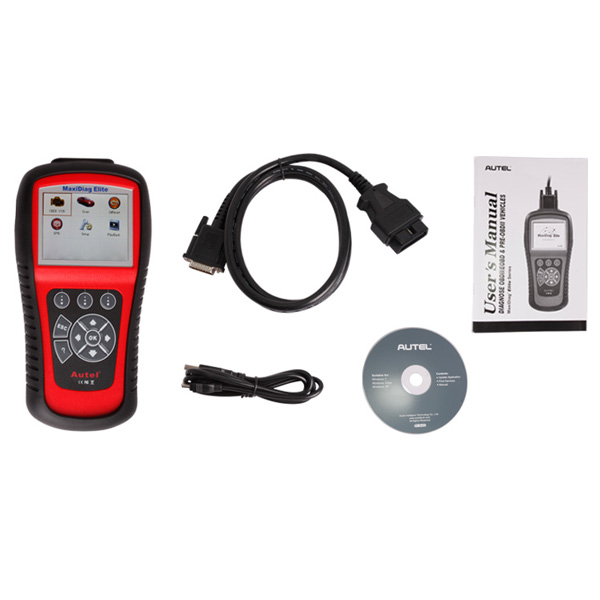

Set Includes:

Autel MaxiDiag MD802 for 4 System
OBD2 cable
USB cable
SD card
User manual
Software CD
Cayrring case

Optional Accessories:

20-pin Connector for 1996-2001 BMW vehicles
38-pin Connector for 1996-2000 Mercedes-Benz vehicles
14-pin Connector for 1996-1999 Nissan and Infiniti vehicles
16-pin CCD Adapter for 1996-2003 Dodge, Chrysler, and Jeep vehicles

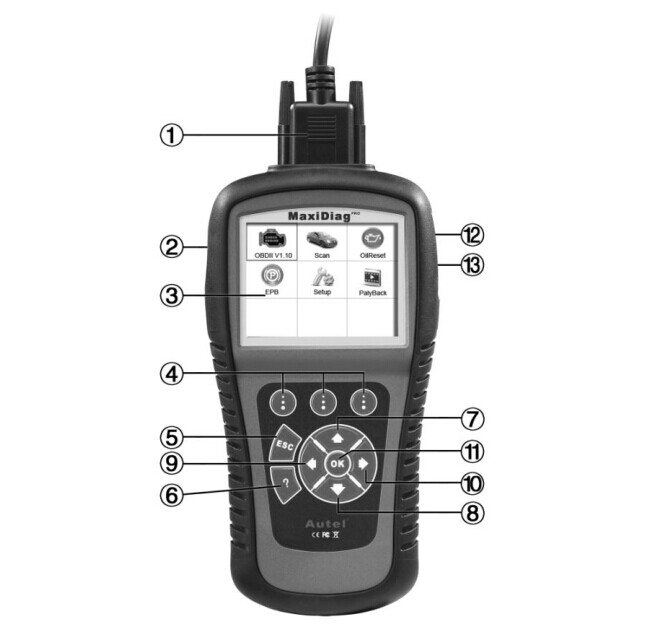

1) Connector -- Connects the scan tool to the car Data Link Connector (DLC).
2) SD Card Slot – Holds the System SD card.
3) LCD DISPLAY -- Indicates test results. TFT color display (320*240 dpi).
4) Function Button – Corresponds with 'buttons' on screen for executing commands.
5) ESC BUTTON -- Cancels a selection (or action) from a menu or returns to the previous screen.
6) HELP BUTTON -- Provides help information and Code Breaker function.
7) UP SCROLL BUTTON -- Moves up through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves up through the current screen to the previous screens for additional data. When looking up DTC, it is used to change value of selected character.
8) DOWN SCROLL BUTTON -- Moves down through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves down through the current screen to next screens for additional data. When looking up DTC,it is used to change value of selected character.
9) LEFT SCROLL BUTTON -- When look up DTC definitions, moves to previous character and views additional information on previous screens if DTC definition covers more than one screen; views previous screen or previous frames of recorded data. It is also used to view previous trouble code when viewing DTCs.
10) RIGHT SCROLL BUTTON -- When look up DTC definitions, moves to next character and view additional information on next screens if DTC definition covers more than one screen; views next screen or next frames of recorded data.It is also used to view next trouble code when viewing DTCs.
11) OK BUTTON -- Confirms a selection (or action) from a menu.
12) External DC Power Port – Connects the 12 volt power adapter to power the tool when disconnected from the vehicle.
13) USB CONNECTOR -- Connects the scan tool to the PC for printing.
