  OBDSOS PRODUCTS Car Battery Tester

Product ID AD56-C
Product Name Launch Battery System Tester BST 760
Product Price USD485
Actual Weight (Kg)
Volumetric Weight (Kg) 2.5
Package Size (cm) 41.8*30*10.8
Related Download
  BST-760 Manual.pdf
Order Quantity:
No Stock



Description

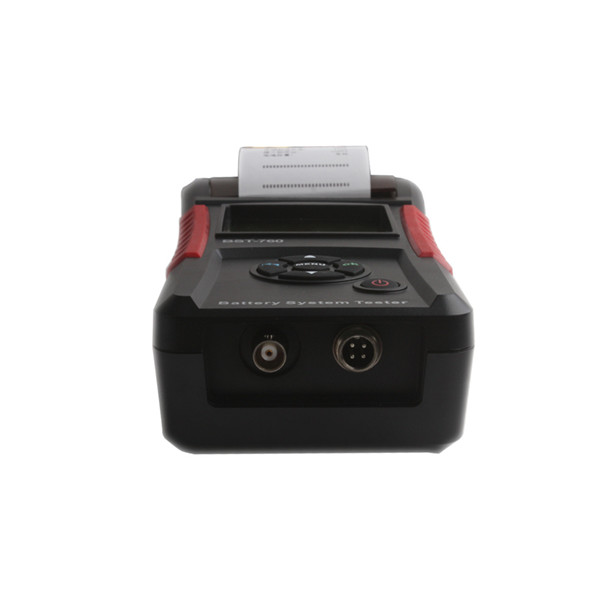

Name: Launch Battery System Tester BST-760

Description:

Launch Battery System Tester BST760 is simple, secure, fast. And it has an accurate display test results (the test takes about 3 seconds).

Features:

Product Principle: The world's most advanced conductance test technology
Scope: Suitable for 6V & 12V battery system and 12V & 24V starting and charging system detects. Apply to the European and American countries

Main Parameters:

1. Anti-acid ABS plastic shell, soft rubber TPU corrosion-resistant package, two-color molding.
2. 128*64 dot matrix large backlit display screen (3 inches) with adjustable brightness.
3. The configuration of the 0-900A AC and DC current clamp.
4. Built-in thermal printer, the test results can be printed out at any time.
5. Can store 100 groups of test results data, ready at any time to view and print any of a group of test data.
6. Test standards, including the most commonly used battery standard, such as CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
7. Operating Temperature: -20-60 degree centigrade

Advantage:

Eight lines with backlight LCD display and humane language prompted interface.
Does not emit light, no heat, no discharge, no spark, no operating danger.
Configuration 0-900A AC and DC current clamp
Built-in thermal printer
Can store 100 groups of test results
Automatic temperature compensation function
With ripple voltage test function
Powerful auxiliary functions
Multi- language menu display
Replaceable test lines
Dedicated Kelvin test clip

Functionality:

Applicable to a variety of models, all kinds of batteries, and a variety of system mode.

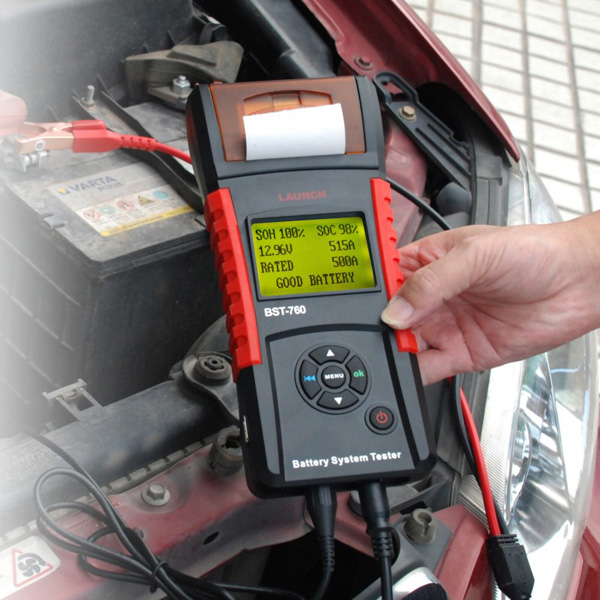

Directly detected in the car, do not need to remove the battery.
Directly test the battery of the loss of electricity, bad cell battery.
Testable starting / charging current.

Powerful Auxiliary Functions:

View / Print
Ammeter Function
Thermometer
QC mode
License plate number input function
Time and time format Adjustment
User information input
Display backlight brightness adjustment function
Print sharpness adjustment
Standby power function

Test Standard and Range:

CCA 100-2000 (SAE & BCI to develop the standard most commonly used : the cold-start battery rating )
BCI 100-2000 (International battery Committee standards )
CA 100-2000 (0 degree centigrade when the effective starting current rating)
MCA 100-2000 (ships standard effective starting current rating, 0 degree centigrade )
JIS 26A17 - 245H52 (Japanese Industrial Standard)
Standard DIN 100-1400 (German Automobile Industry Committee)
The IEC 100-1400 (International Electrotechnical Commission Standard)
EN 100-2000 (European Automobile Manufacturers Association Standards )
SAE 100-2000 (U.S. Engineers Standard)
GB 100-1400 (Chinese National Standard )

Function:

760 has 2 battery: one is used on the host, it can be tested without battery but have not backup power supply function, the other battery is used on current clamp.
The backup power supply function is the 15th auxiliary function. Some luxury vehicle ECU Power can not be cut. If the power failure, it will be locked. So when change storage-battery for luxury vehicle, Launch BST760 can supply power to ECU.

Software Supported Languages: English, Spanish, German, French, Italian

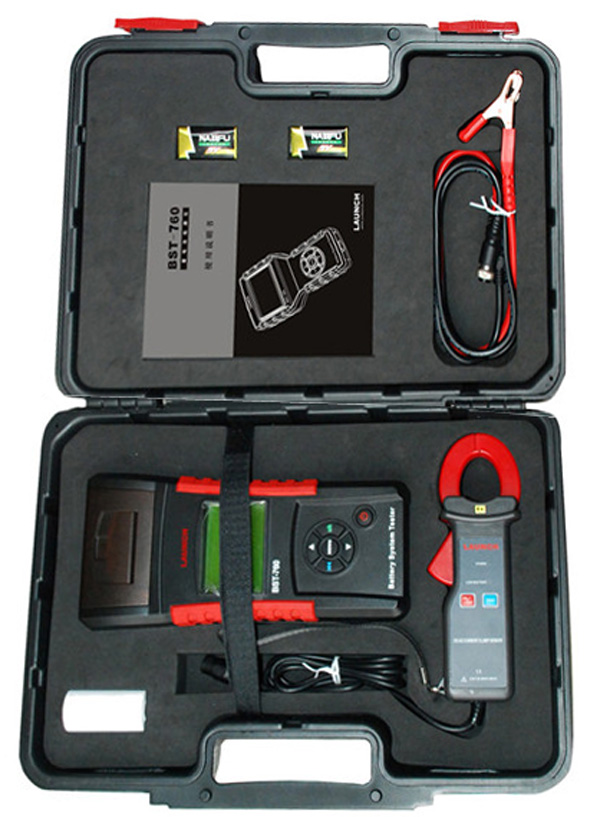

Set Includes:

Launch BST-760 Battery Tester
Tester cable
Detachable clamp
Printer paper
User manual
Carrying case
