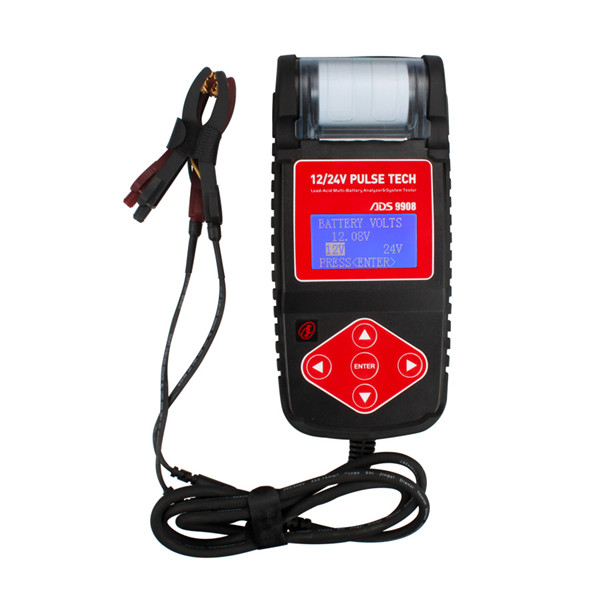

Name: ADS9908 Auto Battery Analyzer
Description:
ADS9908 Automotive Battery Analyzer supports 12V and 24V. It can test battery, starter, charging, alt load and monitoring status of the start system. It supports 100-1700CCA, 100-1000DIN, 100-1000IEC, 100-1700EN and JIS standards. And it comes with a built-in printer.
Features:
Quickly test the battery main specifications: Internal Resistance, CCA, Voltage, Electric quantity, Life-span.
Various standards build-in.
Adopt conductance method to test: convenient and safe.
Clock inside.
Built-in printer for printing out testing results anytime.
Functions:
Battery test.
System test: Starter test, Charging test and Alt. load.
Monitor the status of the start system of the vehicle.
Test the change of the voltage when start the vehicle.
Supported standards: 100-1700CCA, 100-1000DIN, 100-1000IEC, 100-1700EN, JIS.
Suitable for 12V/24V automotive batteries &12V battery charging system.
Software Supported Languages:
English, Turkish, Korean, Dutch, Chinese Simplified, Chinese Traditional
Specifications:
Power Supply: powered by the battery being tested.
Voltage Range: 9-30V(DC)
Working Temperature: -18~50 degree centigrade
Dimension: 400*90*265mm

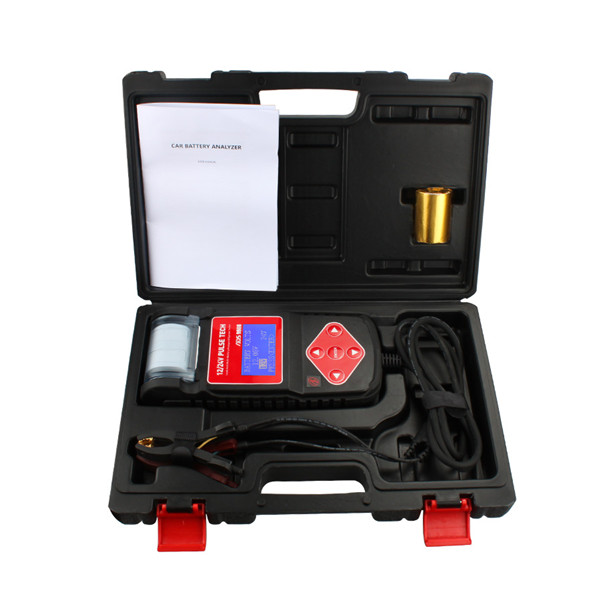

Set Includes:
ADS 9908 Auto Battery Analyzer
Printer paper
User manual
Carrying case
|
