Name: Volvo VCADS 88890180 (88890020 + Yellow Protection) Volvo Diagnostic Interface
Description:
Volvo 88890180 Interface is developed for Volvo/Renault vehicles and engines and enables PC to vehicle communication via a USB cable or via wireless LAN using the 802.11 b/g standard.

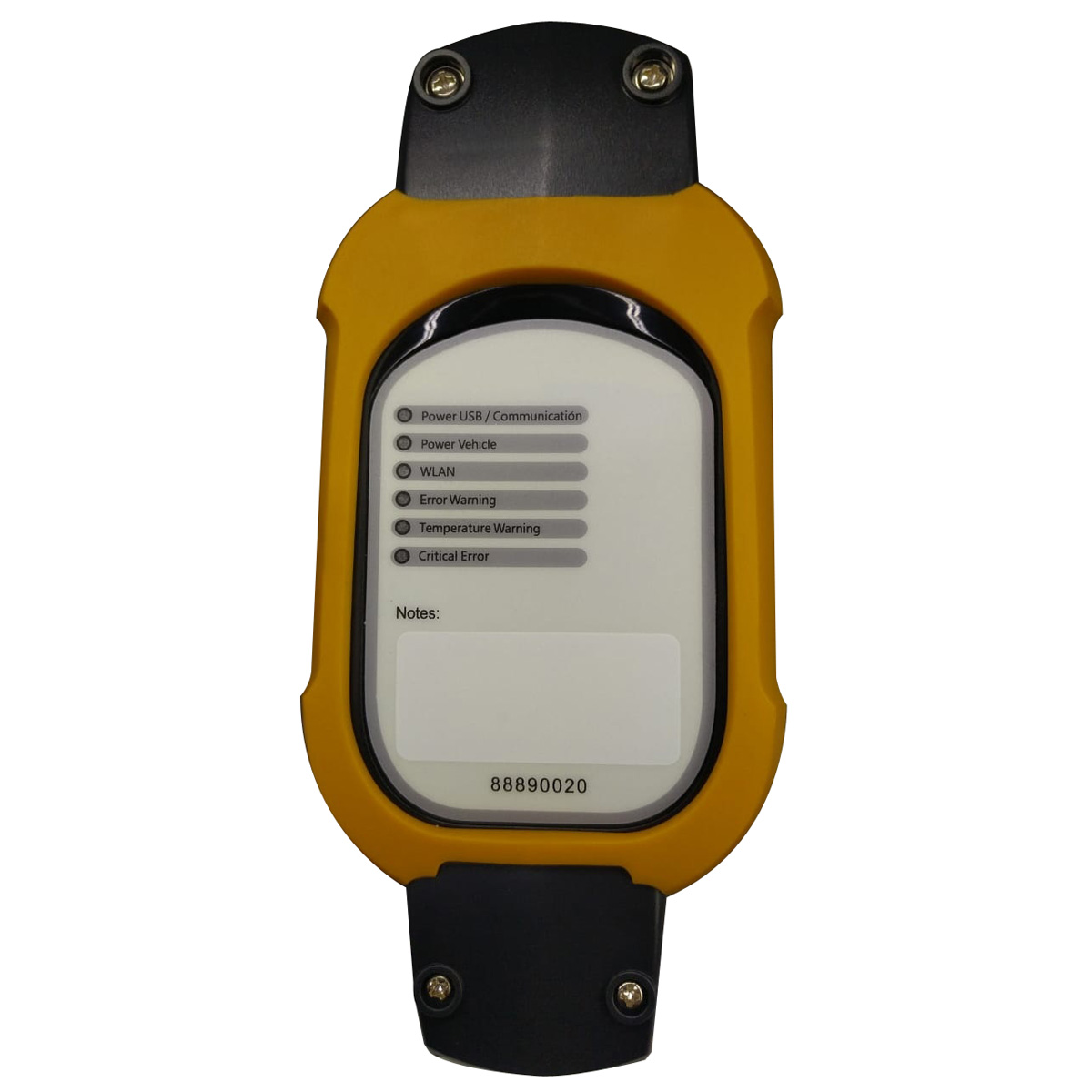

Volvo 88890180 Interface has different color LEDs which show the status of the communication unit and indicate warnings, etc.
Supported Languages:
English, Czech, Danish, German, Spanish, French, Italian, Hungarian, Polish, Portuguese, Romanian, Serbian, Slovenian, Turkish, Russian
How to connect Volvo Interface 88890180 to vehicle?

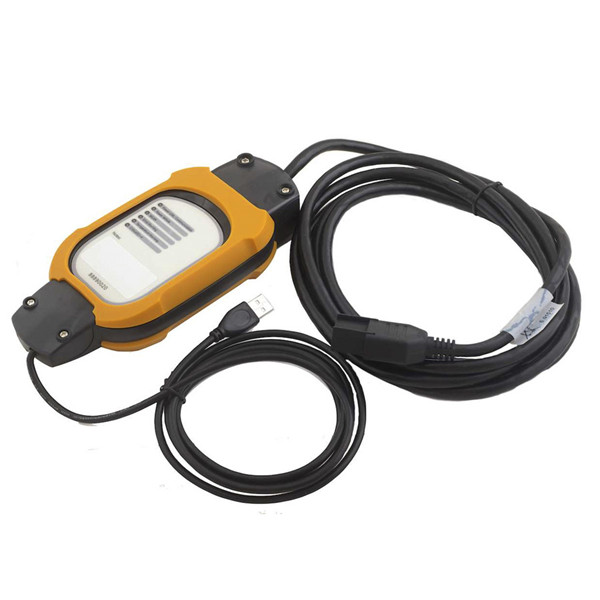

Via USB-cable
1. Connect the communication unit to the vehicle.
2. Connect the USB-cable between the communication unit and the PC.
3. Select communication unit 88890180 and USB-cable setting in window Alternative.
Directly to the communication unit
Note: Your PC must have Wireless LAN 802.11b/g adapter and support 128-bit WEP encryption. The WEP-key is generated automatically and is not seen during the configuration.
1. Connect Volvo 88890180 (VCADS) interface to the vehicle.
2. Select communication unit 88890180 and Direct to communication unit in window Alternative.
Via an access point
Note: Contact the local IT-support or network technician before installation.
1. Connect Volvo 88890180 (VCADS) interface to the vehicle.
2. Select communication unit 88890180 and via an access point in window Alternative.
Specification:
Operating Temperature: -40 to +85 degree centigrade
Storage Temperature: -40 to +125 degree centigrade
Supported Models:
Volvo Truck:
AC, FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6,FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12
VOLVO BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY
Volvo Construction Equipment (CE):
Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F
Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D
Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B, EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611
Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 ,G970, G976, G990
Compact Excavator: ECR88
Renault Truck with DXi engines:
CESAR, KERAX, KERAXMIL, MAGNUM, MIDLUM, PREMIUM, SH 23, SH 510

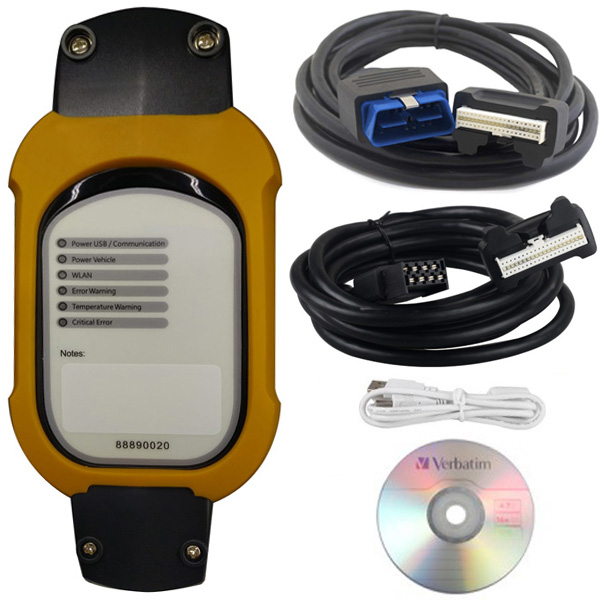

Packing List:

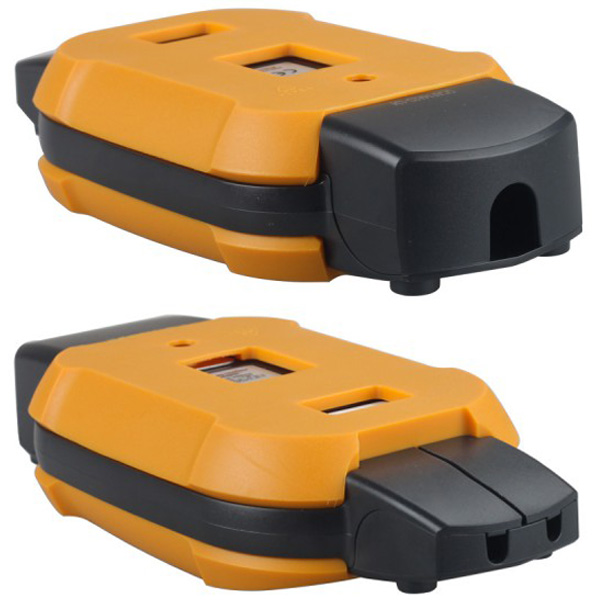

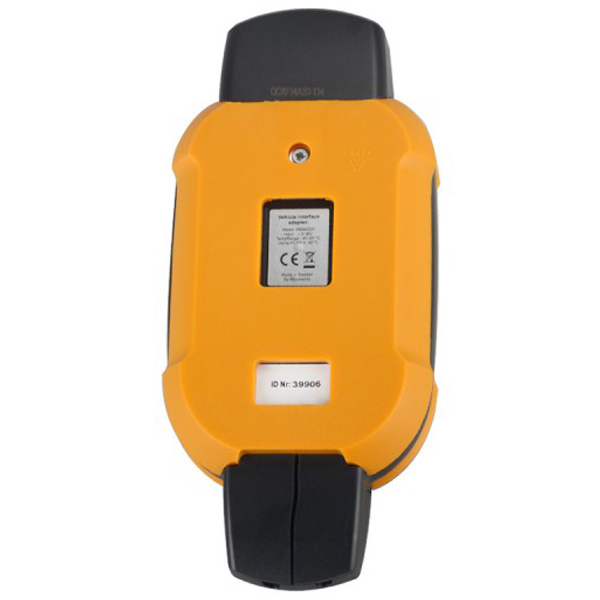

Volvo 88890180 (VCADS) Diagnostic Interface

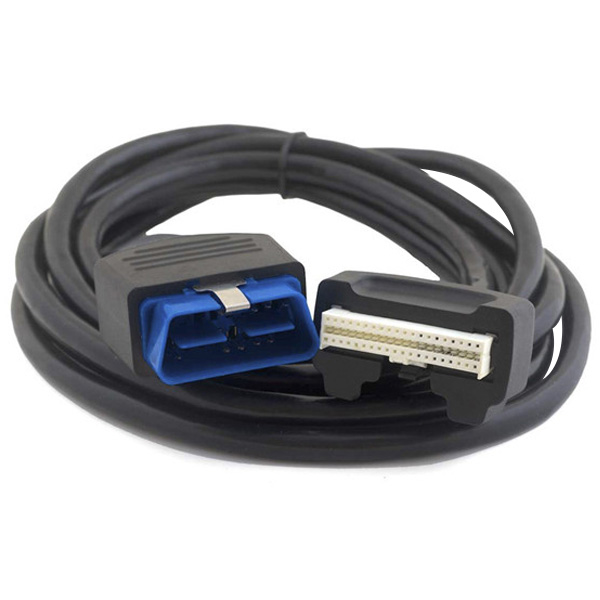

OBD2 cable

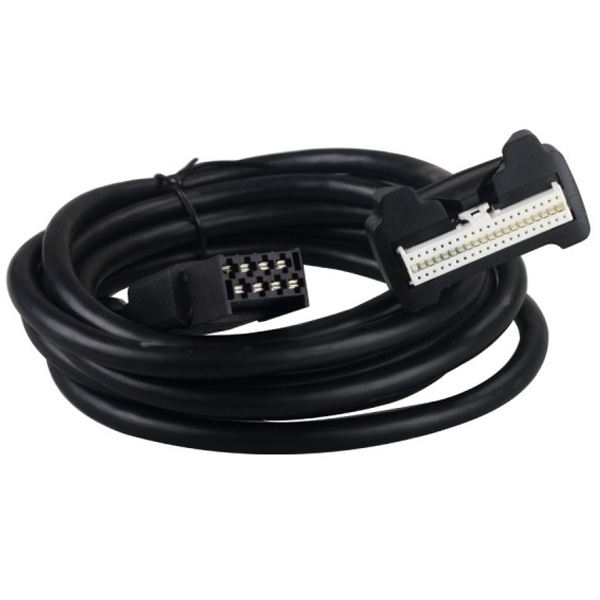

Diagnostic cable
USB cable
Software CD
|
