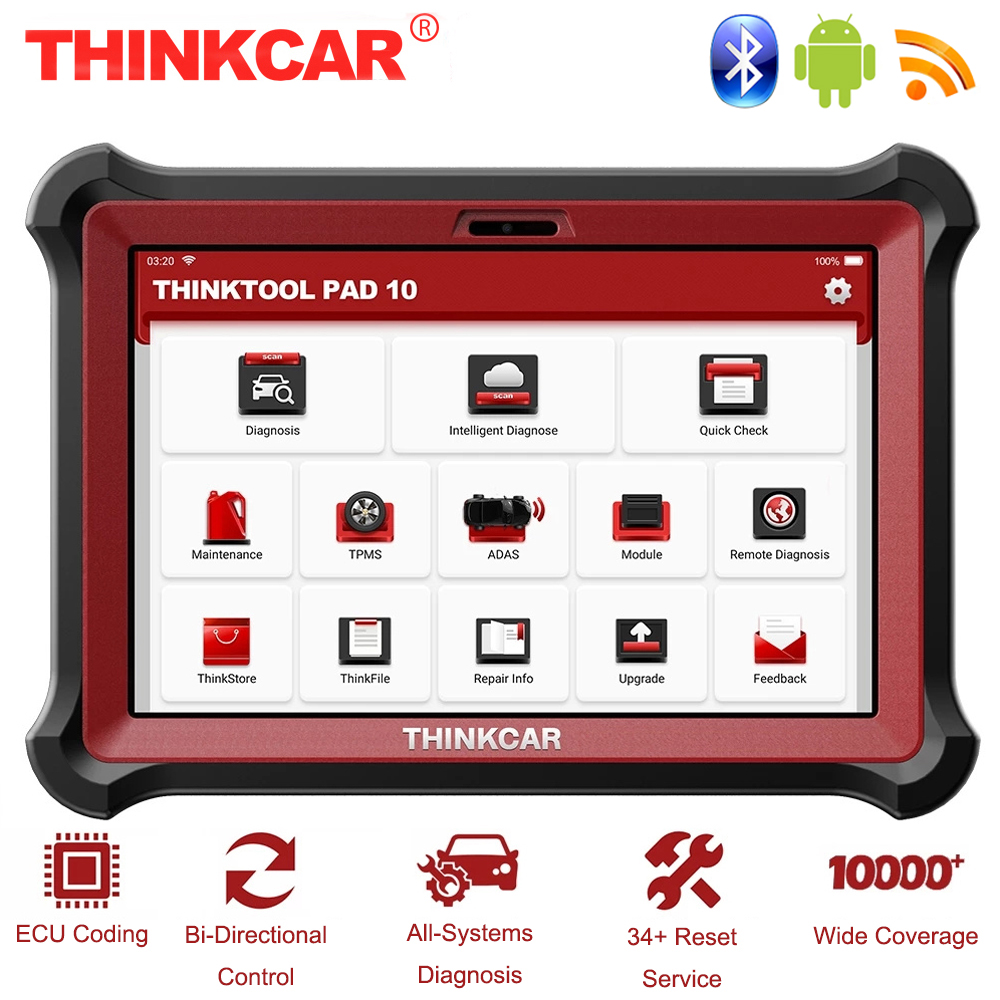

Description:



ThinkCar ThinkTool Pad 10 = ADAS Calibration + Topology Mapping + TPMS Programming + Active Test + ECU Coding + 34 Reset Service + All System Diagnosis



Software Update: 2 years free update online

Features:



1. ALL-System ALL-Function Diagnostics

2. Full Bi-directional Control ((Active Test))

3. ECU Coding & Online Coding & Key Programming

4. Support OBD-I & OBD-II Vehicels

5. Remote Diagnosis

6. 34+ OE-Level Relearn Reset Service

7. ADAS Calibration(optional)

8. Health Report Generate & Share & Print

9. Guided Function (Step-by-Step Guide)

10. Stable WiFi Connection

11. Anti-Theft IMMO Service

12. Refresh Hidden Features

13. Cover 10,000+ Models

14. Full Set Car Connector and Cable Kit

and more...



Highlights:



1. Topology Mapping displays a system distribution diagram of the vehicle control modules.

2. Advanced ECU Coding / Active Tests / Bi-Directional Control / ADAS Calibration / TPMS Programming

3. Support CAN FD Protocol (Need to buy ThinkCar CAN FD Adapter.)

4. 34+ Hot Reset Services

5. Support Online Coding BMW / VW / Audi

6. Support Offline Coding for Mercedes-Benz

7. Support Guided Function for Volkswagen / Audi

8. Support ThinkCar ADAS (Advanced Driver Assistance System) Calibration Tool

9. Support intelligent Topology Map display, quickly lock system error codes.

10. Diagnostic Report Generate and Share

11. Support 120+ Car Brands and 10,000+ Models

12. AutoVIN & DTCs Lookup

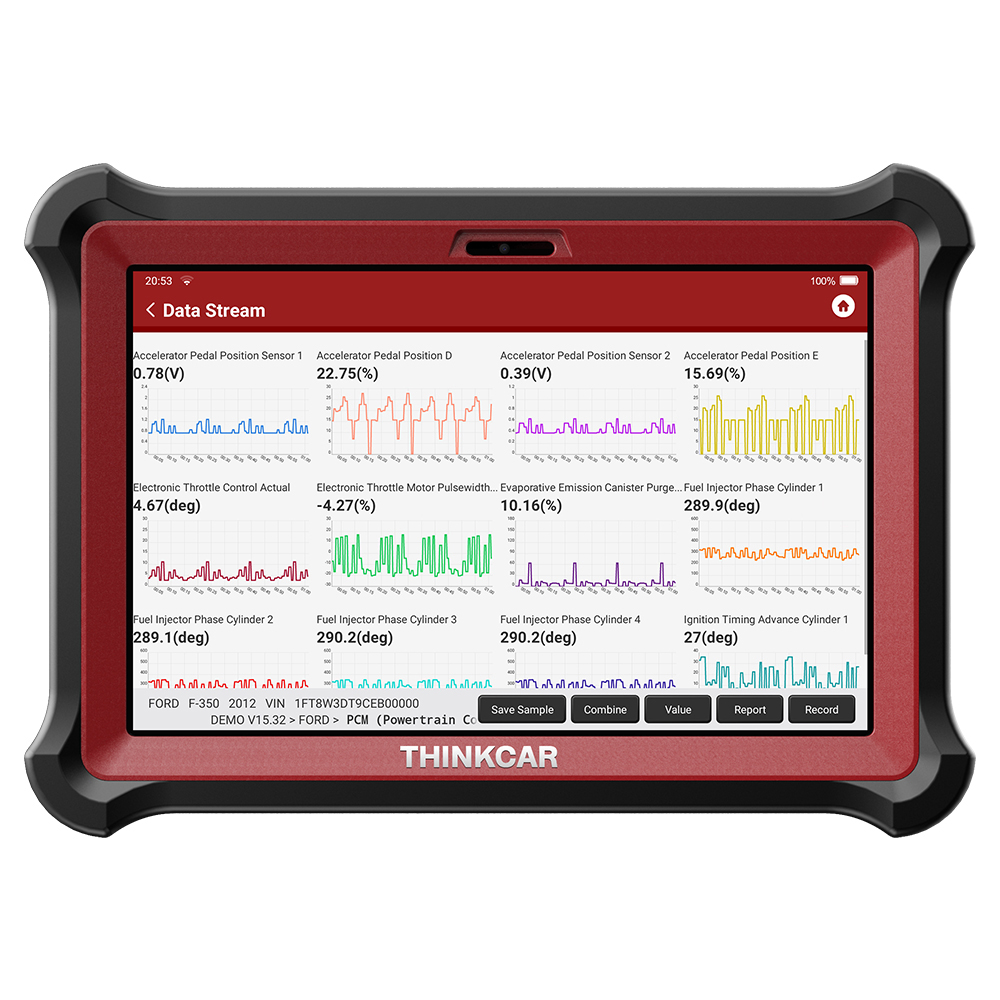

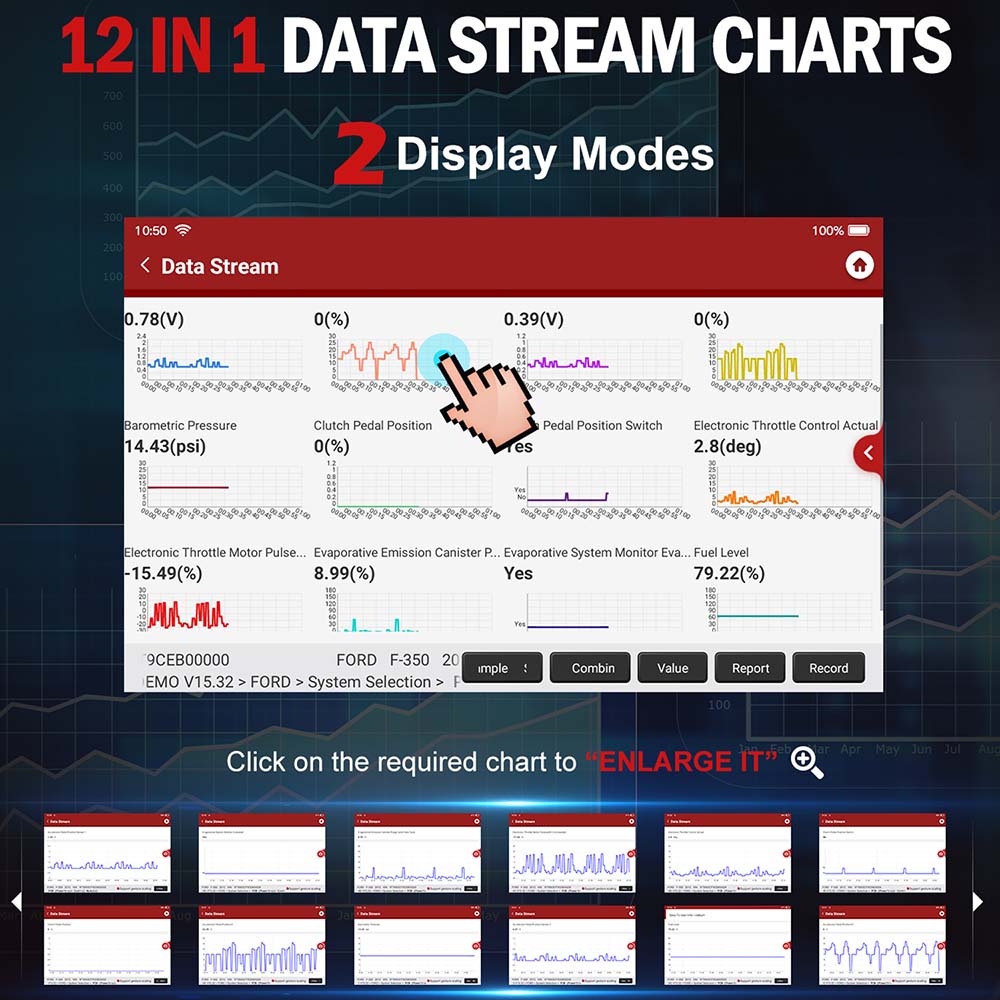

13. Data Stream Recording & Screen Recording Function

14. One click WiFi free update for 2 year

15. Lifetime free remote technical diagnosis



Functions:

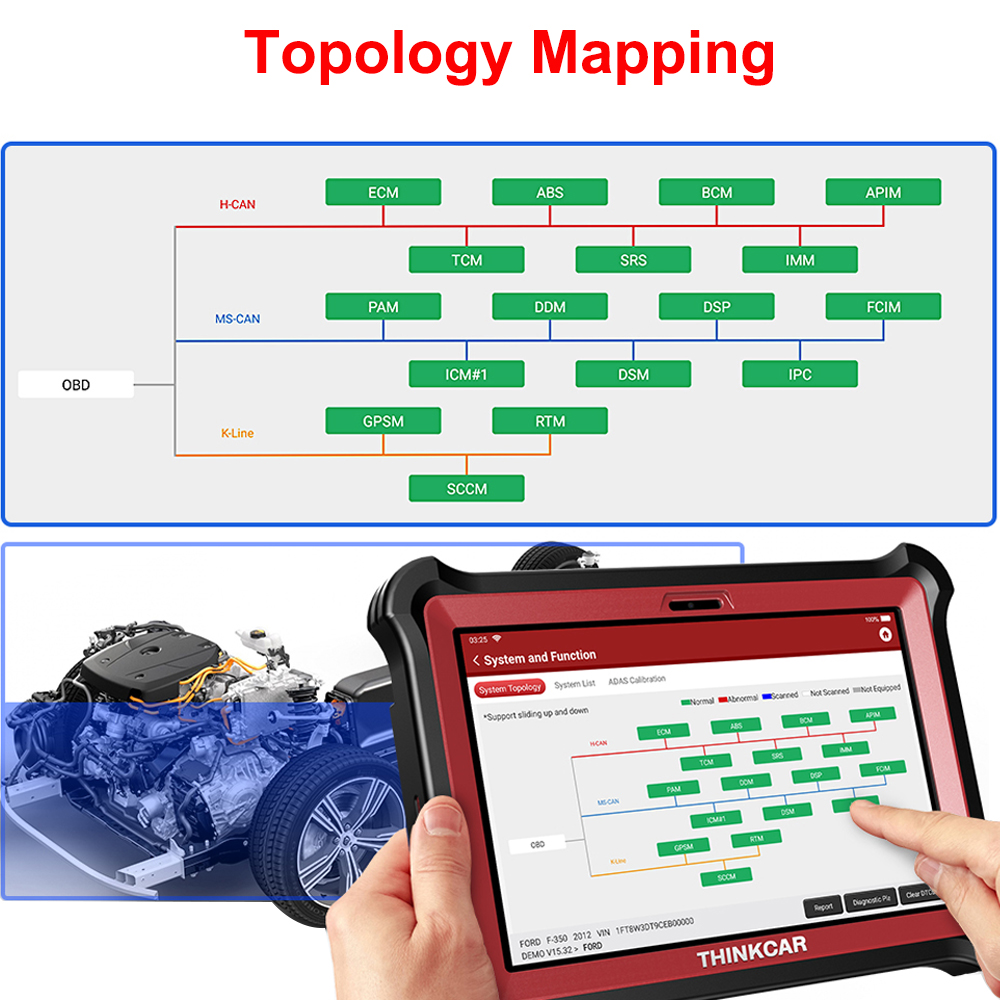

1. Topology Mapping Function

Color-coded Topology displays all system status in one page!!! View structure of communication between modules with topological diagram function, it can displays the entire system through the Topology Map to glance all the modules with faults, which is easy to locate faults and causes.



Up to 5 ways of DTC display: Topology, List, separately click into the control unit, Intelligent Diagnostics details, Vehicle Diagnosis Report, among which Topology is the newest and innovative configuration.



Display the entire system through the Topology Map to glance all the modules with faults, which is easy to locate faults and causes. Color-coded topology displays all system status in one page and structure of communication between modules. Communication between modules and status can be spotted in a glance and you can locate faults more intuitively to solve problems quickly!



NOTE: Topology is not universal to all the vehicles, please check VIN for compatibility.

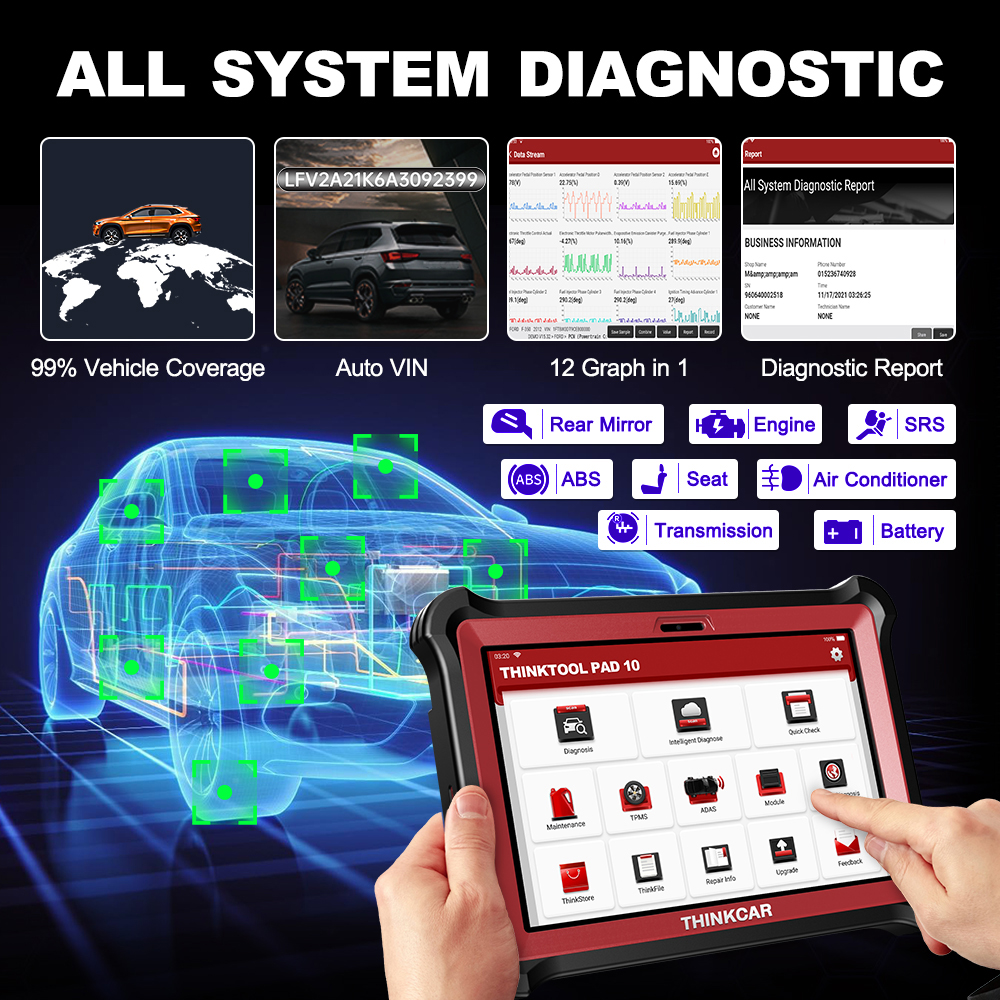

2. All Systems Diagnosis

ThinkTool Pad 10 Scanner can work on 120+ US, European and Asian vehicle makes to scan all available modules like ECM(Engine), TCM(Transmission), ABS, SRS(Airbag), Brake System, BCM(Body Control Module), EPS(Eletronic Power Steering), HVAC(Heat, Ventilation and Air Conditioning), Radio, TPM and more to perform OE level diagnostics to read and Clear Codes, View Live Data Stream, Perform Active Tests, And Retrieve ECU Information.



Full system diagnosis of intelligent topograph (identification of normal and fault equipment)



Read DTCs and Data Streams, Perform Active Test, ECU Coding.



For Instance: Engines/Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/Self Leveling Suspension Systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics...

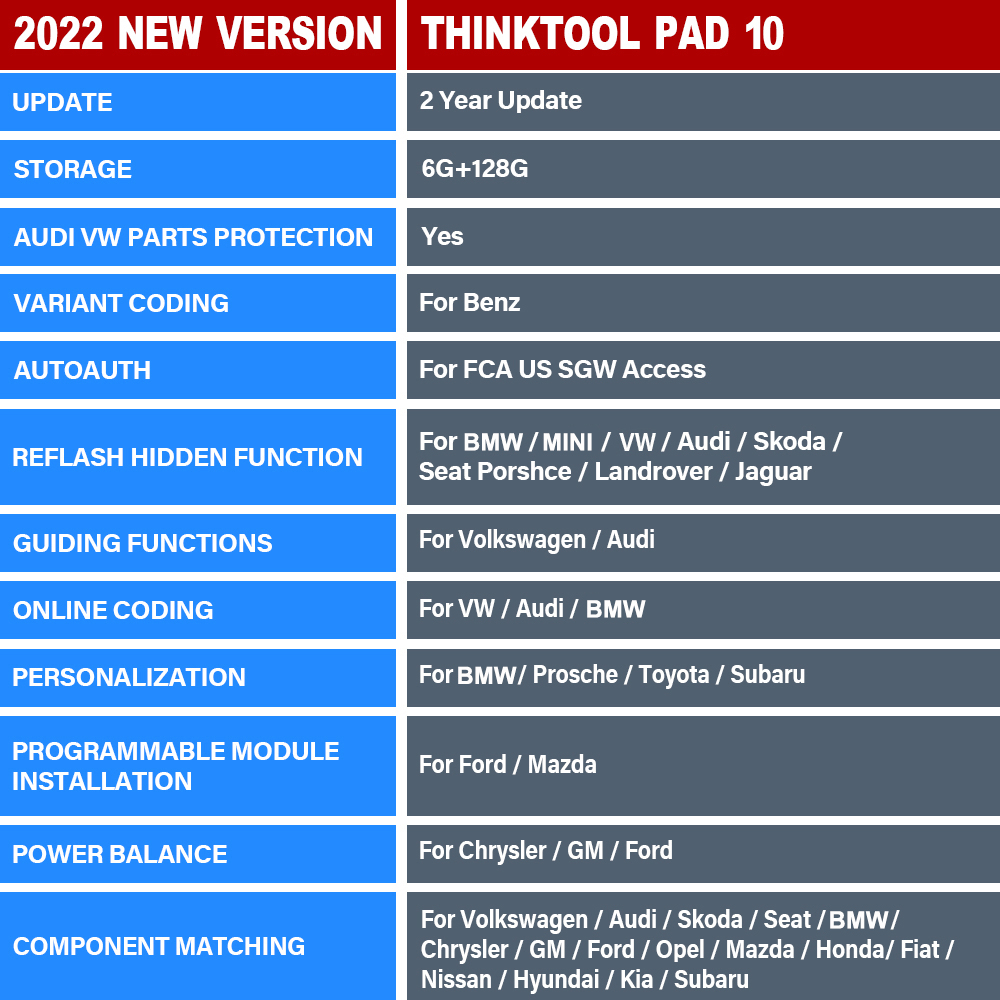

3. Guided Functions



1). Component Matching: Compatible with Volkswagen / Audi / Skoda / Seat / BMW / GM / Chrysler / Ford/Opel / Mazda / Honda / Fiat / Nissan / Hyundai / Kia / Subaru.



2). Online Account Login Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.



3). Online Calibration: Compatible with Volkswagen / Audi / Skoda / Seat etc.



4). Online Parameterization: Compatible with Volkswagen / Audi / Skoda / Seat etc.



5). Power Balance: Compatible with Chrysler / GM / Ford etc.



6). Programmable Module Installation: Compatible with Ford / Mazda etc.



7). Personalization: Compatible with BMW / Porsche / Toyota / Subaru.



8). Reflash Hidden Function: Compatible with BMW / MINI / VW / Audi / Skoda / Seat / Porsche / Land Rover / Jaguar etc.



4. Online ECU Coding

The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc.

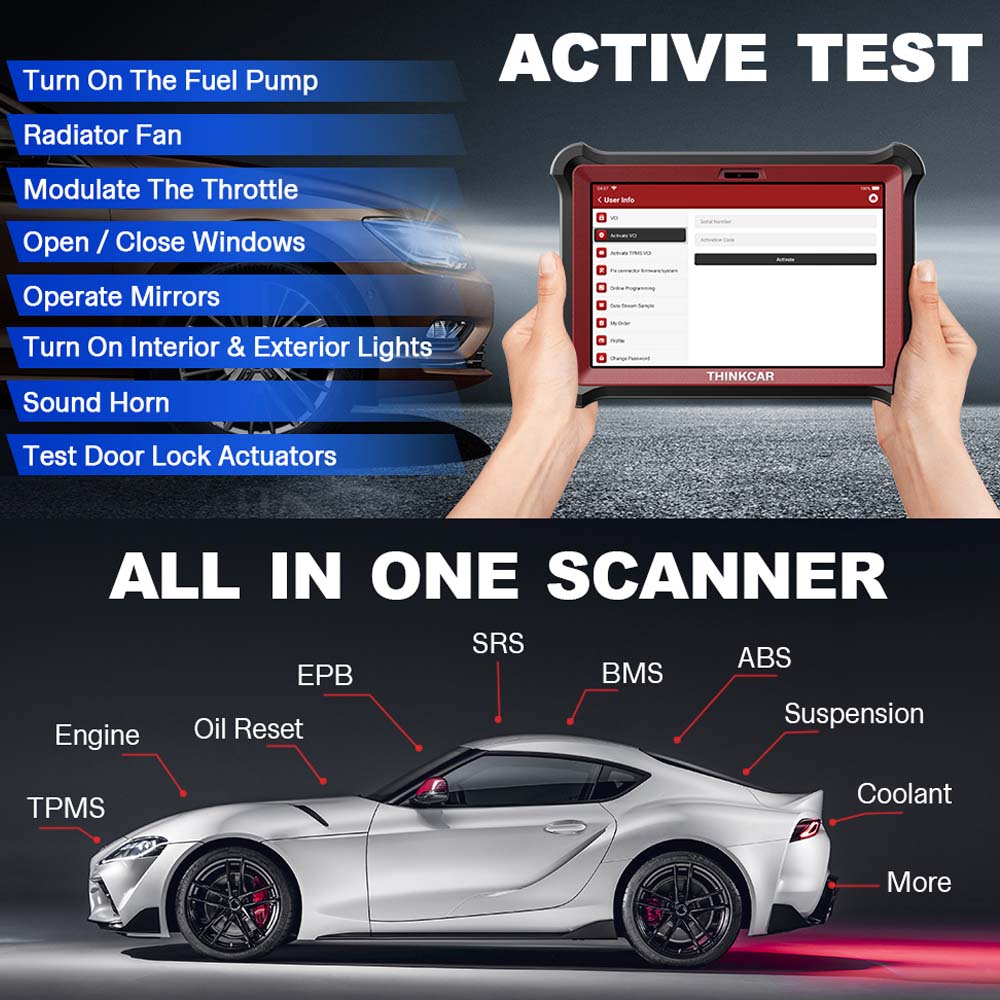

5. Active Test

Active Test capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators.



6. ADAS Calibration Service

Real-time scanning of lane line and the information of the vehicle ahead.When the vehicle deviates from the original lane or is too close to the vehicle in front,the system can quickly detect and judge,and sound an alarm to remind the driver,so as to avoid deviating from the lane or braking in time.A traffic accident occurred.

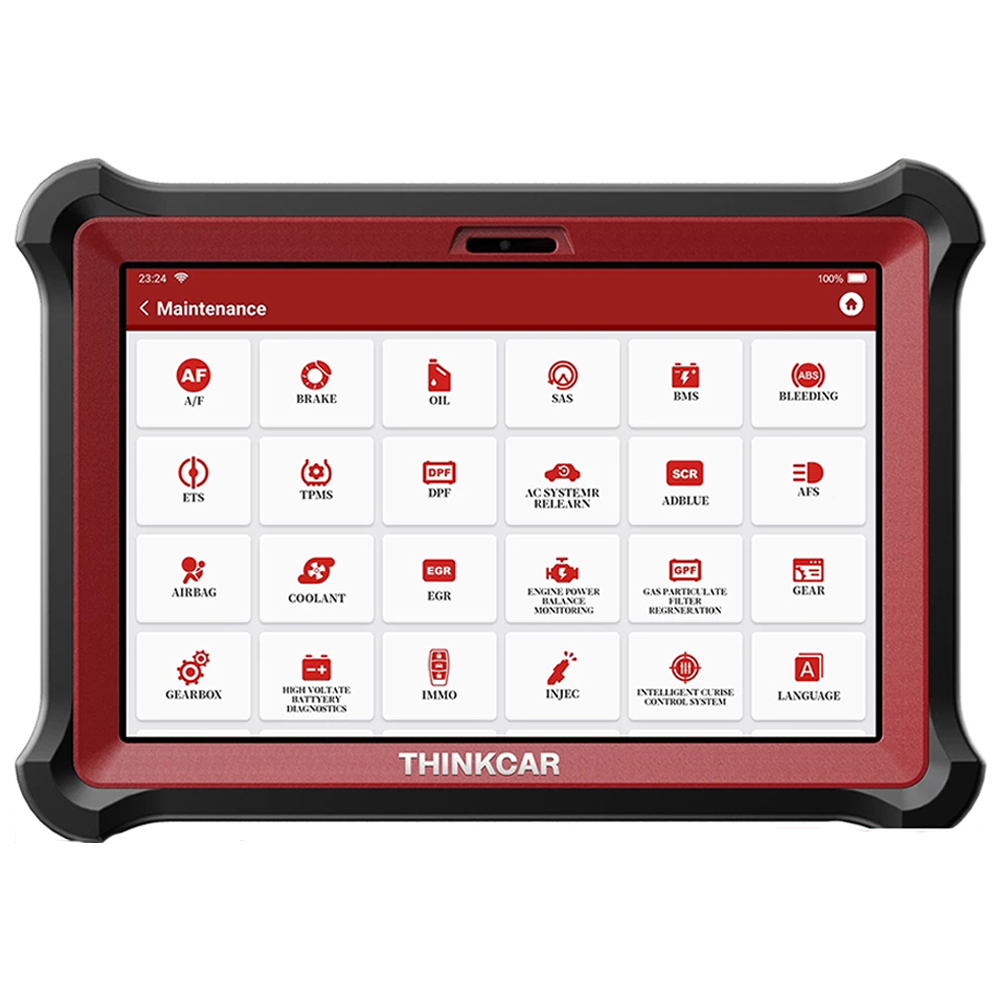

7. 34+ Special Functions

1). Oil Reset

The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the cluster or driving time to zero after the maintenance,so the maintenance light will go out and the system will start a new maintenance cycle.



2). DPF Regeneration

DPF Regeneration is used to clear PM(Particulate Matter)from the DPF filter through continuous combustion oxidation mode(such us high temperature heating conbustion,fuel additive or catalyst reduce PM ignition conbustion)to stabilize the filter perfornance.



DPF Regeneration may be performed in the following cases:

a). The exhaust back pressure sensor is replaced.

b). The PM trap is removed or replaced

c). The fuel additive nozzle is removed or replaced

d). The cataytic oxidizer is removed or replaced.

e). The DPF regeneration MIL is on and maintenance is performed.

f). The DPF regeneration control module is replaced.



3). AFS(headlamp) Reset

The feature is used to initialize the adaptive headlamp system.According to the ambient light intensity,the adaptive headlamp system may decide whether to automatically turn on the headlamps,and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.



4). EGR Adaption

This function is used to learn the EGR(Exhaust Gas Recirculation)valve after it is cleaned or replaced.



5). Brake-Pad Reset

If the brake pad wears the brake pad sense line,the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad.After replacing the brake pad,you must reset the brake pad.Otherwise,the car alarms.



Brake-Pad Reset must be performed in the following cases:

a). The brake pad and brake pad wear sensor are replaced.

b). The brake pad indicator lamp is on.

c). The brake pad sensor circuit is short, which is recovered.

d). The servo motor is replaced.



6). IMMO Service

To prevent the car being used by unauthorized keys,the anti-theft key matching function must be performed so that the immoblizer control system on the car identifies and authorizes remote control keys to normally use the car.When the ingnition switch key,ignition switch,combined instrument panel,ECU,BCM,or remote control battery is replaced,anti-theft key matching must be performed.



7). Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory,and recover the automatic ascending and descending function of power window.



8).Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.



9). Steering Angle Reset

To reset the steering angle,first find the relative zero point position for the car to drive in straight line.Taking this position as reference,the ECU can calculate the accurate angle for left and right steering.After replacing the steering angle position sensor ,replacing steering mechanical parts(such as steering gearbox,steering column,end tie rod,steering knuckle),performing four-wheel alignment,or recovering car body,you must reset the steering angle.



10). Injector Coding

Writing injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.After the ECU or injector is replaced,injector code of each cylinder must be confirmed or re-coded so that cylinder can better identify injectors to accurately control fuel injection.



11). Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.



12). Transport Mode

In order to reduce power consumption,the following functions may be disabled,including limiting the vehicle speed,not waking up the door opening network,and disabling the remote control key,etc.At this time,the transport mode needs to be deactivated to restore the vehicle to normal.



13). Battery Matching

This function enables you to perform a resetting operation on the monitoring unit of vehicle battery,in which the original low battery fault information will be cleared and battery matching will be done.



Battery Matching must be performed in the following cases:

a). Main battery is replaced.Battery matching must be performed to clear original low battery information and prevent the related control module from detecting false information.If the related control module detects false information,it will invalidate some electric auxiliary functios,such as automatic start&stop function,sunroof without one-key trigger function,power window without automatic function.



b). Battery monitoring sensor.Battery matching is performed to re-match the control module and motoring sensor to detect battery power usage more accurately,which can avoid an error message displaying on the instrument panel.



14). Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.When the vehicle collides and the airbag deploys,the corresponding fault code of the collision data appears,the airbag indicator lights up,and the fault code can't be cleared.Since the data inside the airbag computer is disposable,it is required that all new accessories must be replaced, but after performing this function,the data of the airbag computer can be recovered and the fault code can be cleared,the airbag light will go out,and the airbag computer can continue to use.



15). Tyre Reset

This function is used to set the size parameters of the modified or replaced tire.



16). Cluster Reset

a). Cluster reset is to copy, write,or rewrite the value of kilometers in the chip of cluster by using a car diagnostic computer and data cable,so that the cluster shows the actual cluster.



b). Usually when the cluster is not correct due to the damaged vehicle speed sensor or cluster failure,it is necessary to do cluster reset after maintenance.



17). ABS Bleeding

When the ABS contain air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.If the ABS computer, ABS pump,brake master cylinder,brake cylinder,brake line,or brake fluid is replaced,the ABS bleeding function must be performed.



18). Gear Learning

The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computer to more accurately diagnose engine misfires. If gear learning is not performed for a car equipped with Delphi engine, the MlL turns on after the engine is started. The diagnostic device detects the DTC P1336 "gear not learned". In this case, you must use the diagnostic device to perform gear learning for the car.After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC "gear not learned" is present, gear learning must be performed.



19). Language Change

This function is used to change the system language of the vehicle central control panel.



20). Adblue Reset

After the diesel exhaust treatment fluid (car urea) is replaced or filled up,urea reset operation is required.



21). Elec. Throtle Adaption

Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.By doing these, the movement of the throttle (or idle motor)can be more accurately controlled, thus adjust the intake volume.



22). Suspension Matching

This function can adjust the height of the body.When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect,you need to perform this function to adjust the body height sensor for level calibration.



23). A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.



24). Nox Sensor Reset

Nox Sensor is a sensor used to detect the content of nitrogen oxides (NOx)in engine exhaust.If the NOx fault is re-initialized and the NOx catalytic converter is replaced,it is necessary to reset the catalytic converter learned value stored in the engine ECU.



25). TPMS Reset

After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL. Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.



26). A/T Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality.



27). Sunroof Initialization

This function can set the sunroof lock off,closed when it rains,sliding/tilting sunroof memory function,temperature threshold outside the car etc.



28). Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware)



29). Motor angular position sensor calibration

When the motor works in a high temperature environment or in a humid, dusty and other environment for a long time, the angular position sensor is prone to failure, and the signal of the angular position sensor is wrong after the failure, resulting in the motor not working normally, the system reliability is reduced, and the normal driving of the vehicle is affected. . At this time, it is necessary to calibrate the angular position sensor of the motor.



30). Engine Power Balance

High-quality engine balance that helps the engine spin more freely at high revs, improves redline, and increases power.



31). High-Voltage Battery Health Inspection



32). Smart Cruise Control Calibration

Intelligent cruise control has the function of improving driving safety and comfort. When the intelligent cruise module is replaced, use this function to learn and match, and the system can function normally.



33). Automatic Air Conditioning Initialization



34). GPF Regeneration (Particle Trap Regeneration)

The function of GPF is to reduce particulate matter, and it is arranged on the exhaust system of the car to collect the particulate matter in the organic exhaust gas of the car, reasonably reduce the emission of particulate matter, and according to the ECU operation, carry out air oxidation and ignition of the particles in the trap, and then do to regeneration.

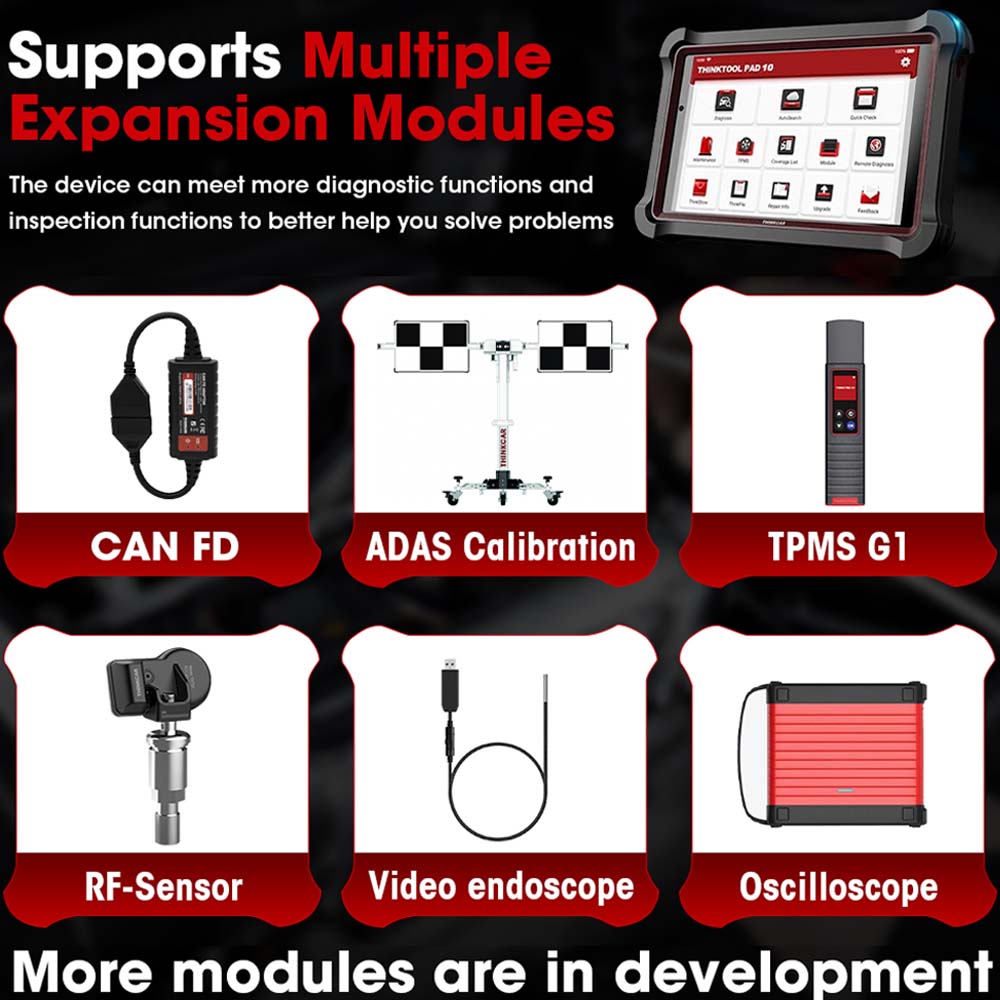

8. Support Multiple ThinkCar Expansion Modules

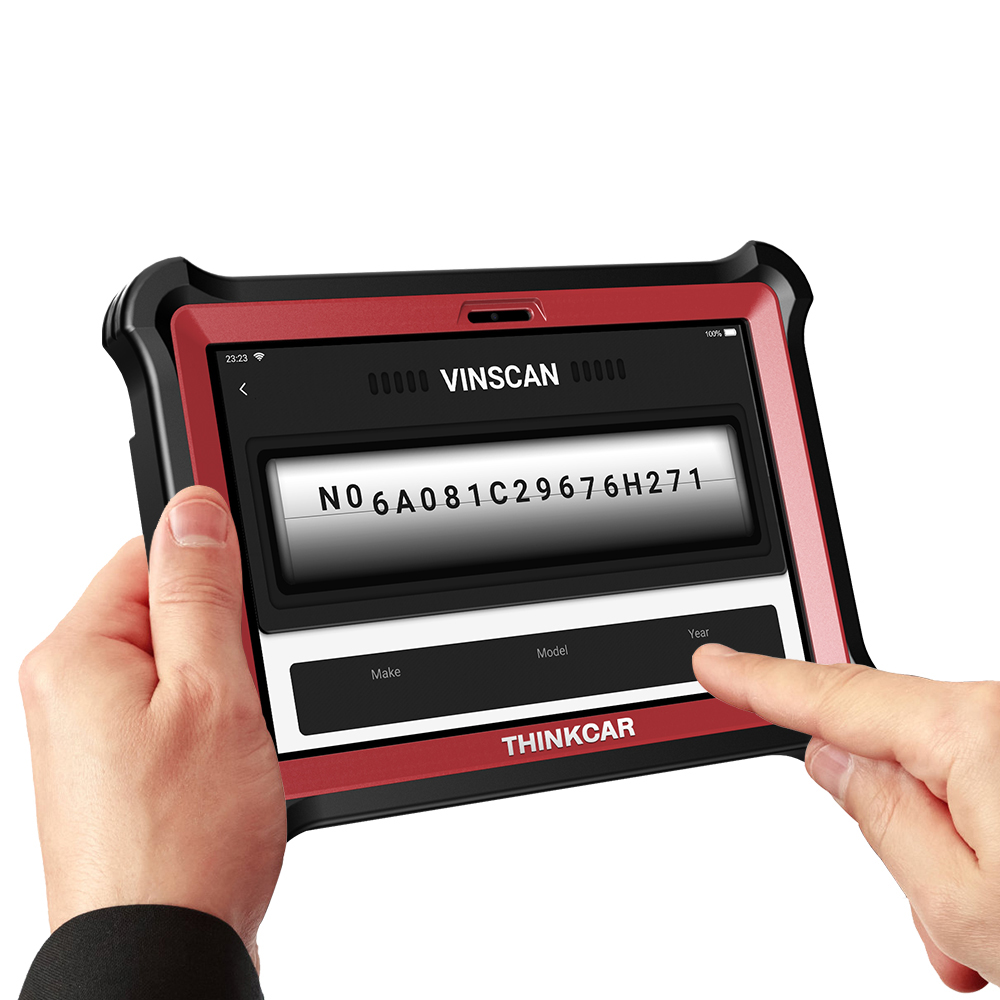

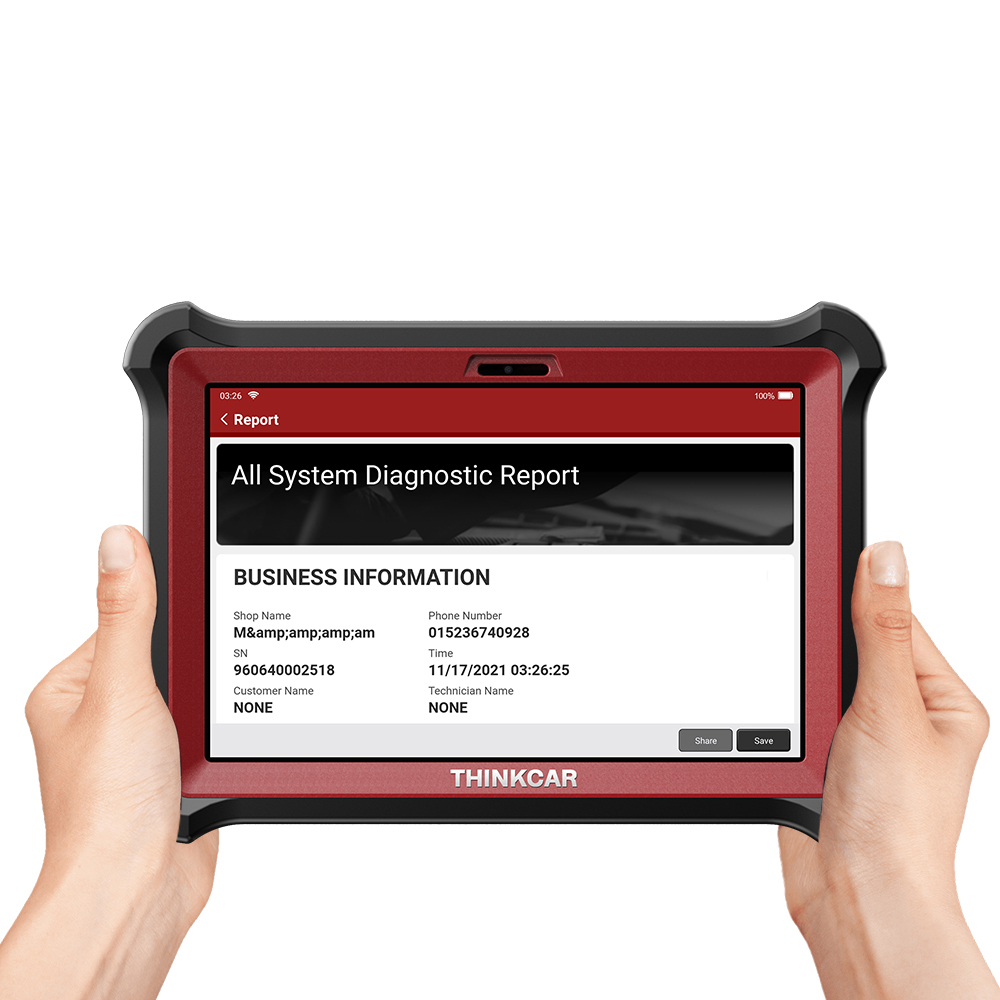

9. Auto-VIN & Diagnose Report

ThinkCar Pad 10 uses Auto VIN technology, to provide quick and accurate car identification in one touch, without the manual input of vehicle make, model, and year data. After that, this scan tool will lead to diagnostics where you can choose the systems to scan.



As well as providing a diagnostic report, it is convenient for you to compare the condition of the car at different times.



10. Remote Diagnosis

If you encounter a diagnostic problem that can not be solved by yourself, you can ask assistance for professional Mechanic.



11. Vehicle Health Report Share and Print

Auto generate vehicle health report,and it can be shared via Email, then print it on computer.



12. Data Review

lt allows you playback the stored data and diagnostic process, help customer to compare current and past data.



13. Diagnostic Feedback

lf you the scanner can not scan any car system or functions are not supported, you can submit diagnostic feedback, then send serial number to us, we will deal with the case soon.



Supported Cars:



America

BUICK, CADILLAC, CHEVROLET, CGRYSLER, DODGE, FIAT(BRAZIL), FORD, FORD(AUSTRALIA), GM, GM(BRAZIL), JEEP, LINCOLN



Europe

ABARTH, ALFA ROMEO, ASTON MARTIN, AUDI, BENTLEY, BMW, BUGATTI, CITROEN, DACIA, DR, FORD(EUROPE), FERRARI, FIAT, GAZ, OPEL(SOUTH AFRICA), IVECO, IZH, JAGUAR, LAMBORGHINI, LANCIA, LAND ROVER, MASERATI, MAYBACH, MERCEDES-BENZ, MINI, OPEL, PAZ, PEUGEOT, PORSCHE, RENAULT, ROLLS ROYCE, ROVER, SAAB, SEAT, SEAZ, SKODA, SMART, SPRINTER, UAZ, VAUXHALL, VAZ, VOLVO, VW, ZAZ



Asia

ACURA, DAEWOO, DAIHATSU, HOLDEN(AUSTRILIA), HONDA, HYUNDAI, IKCO, INFINITI, ISUZU, KIA, LEXUS, LUXGEN, MAHINDRA, MAHINDRA(INDIA), MARUTI, MARUTI(INDIA), MAZDA, MITSUBISHI, MVM, NISSAN, GTR(NISSAN), PERODUA, PERODUA(MALAYSIA), PROTON, PROTON(MALAYSIA), SAMSUNG, RENAULT SAMSUNG, SAIPA, SSANGYONG, SUBARU, SUZUKI, TATA, TATA(INDIA), ISUZU(THAILAND), TOYOTA, UNITED PAKISTAN



China

SENOUA(BAIC), WEIWANG(BAIC), BJEV, BAIC, BRILLIANCE, BYD, CHANGAN, CHANGHE, BUICK(CHINA), CHERY, CHANCHE SUZUKI, DFCITROEN, ECUAID, FAW(TIANJIN), FOTON, GEELY, JINLONG, GONOW, GWM, HAFEI, HAIMA, JAC, JAC REFINE, SHIERAY, JMC, JOYLONG, LIFAN, MG(SAIC), QOROS, MAXUS, SGM, SOUEAST, SPARK, SGMW, DFSK, XINKAI, POLARSUN, ZX AUTO, ZOTYE

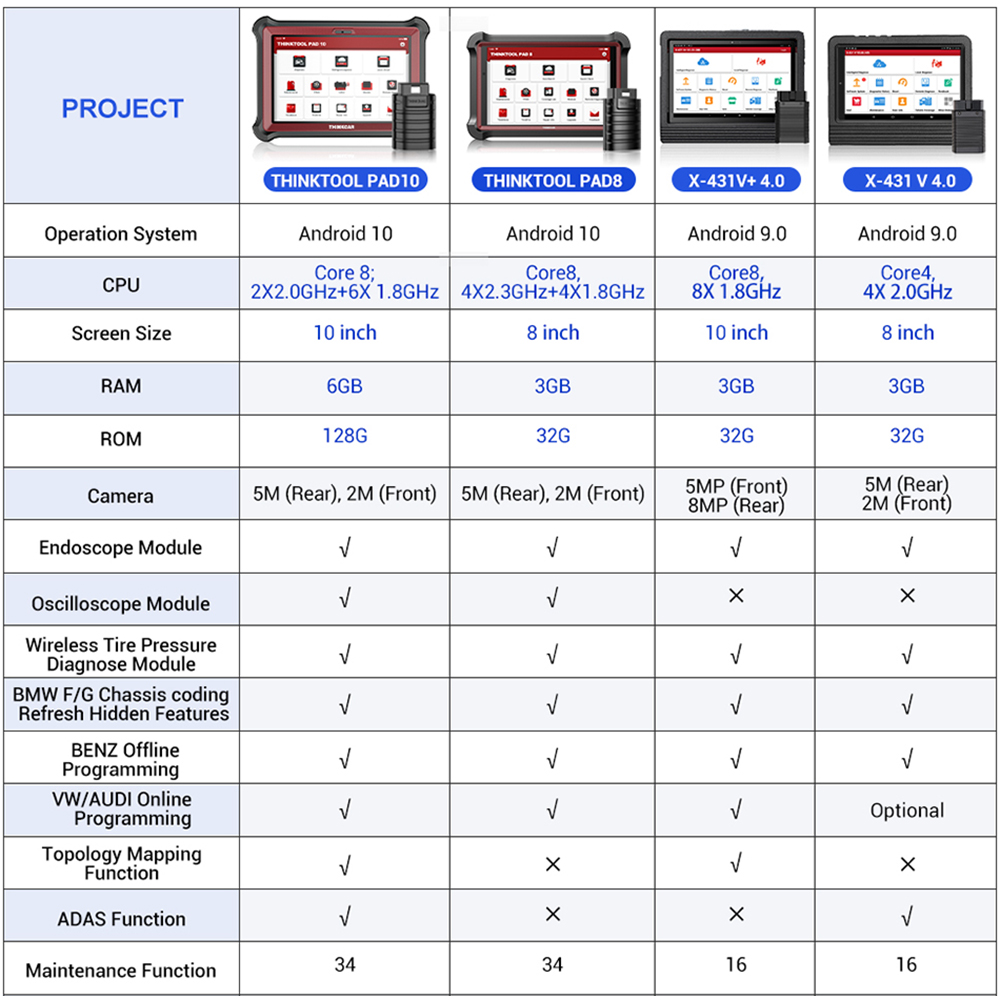

Specifications:



OS: Andriod 10.0

Display: 10-inch HD IPS touchscreen

RAM: 6GB

Storage: 128GB

WiFi: WLAN 802.11 b/g/n

Bluetooth: Blutooth 5.1

Camera: 5MP rear + 2MP front

Battery: 5100mAh/3.8V

Working Temperature: 0 to 50 degree centigrade

Storage Temperature: -20 to 60 degree centigrade

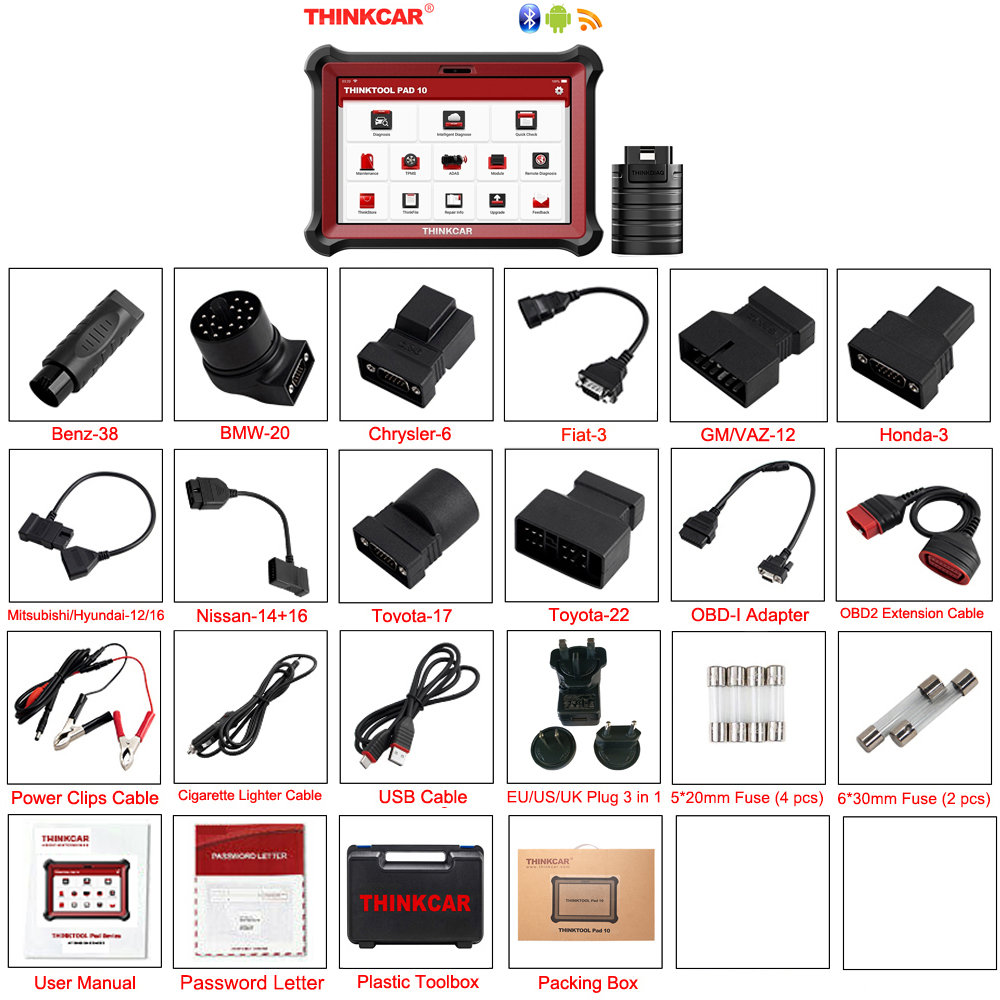

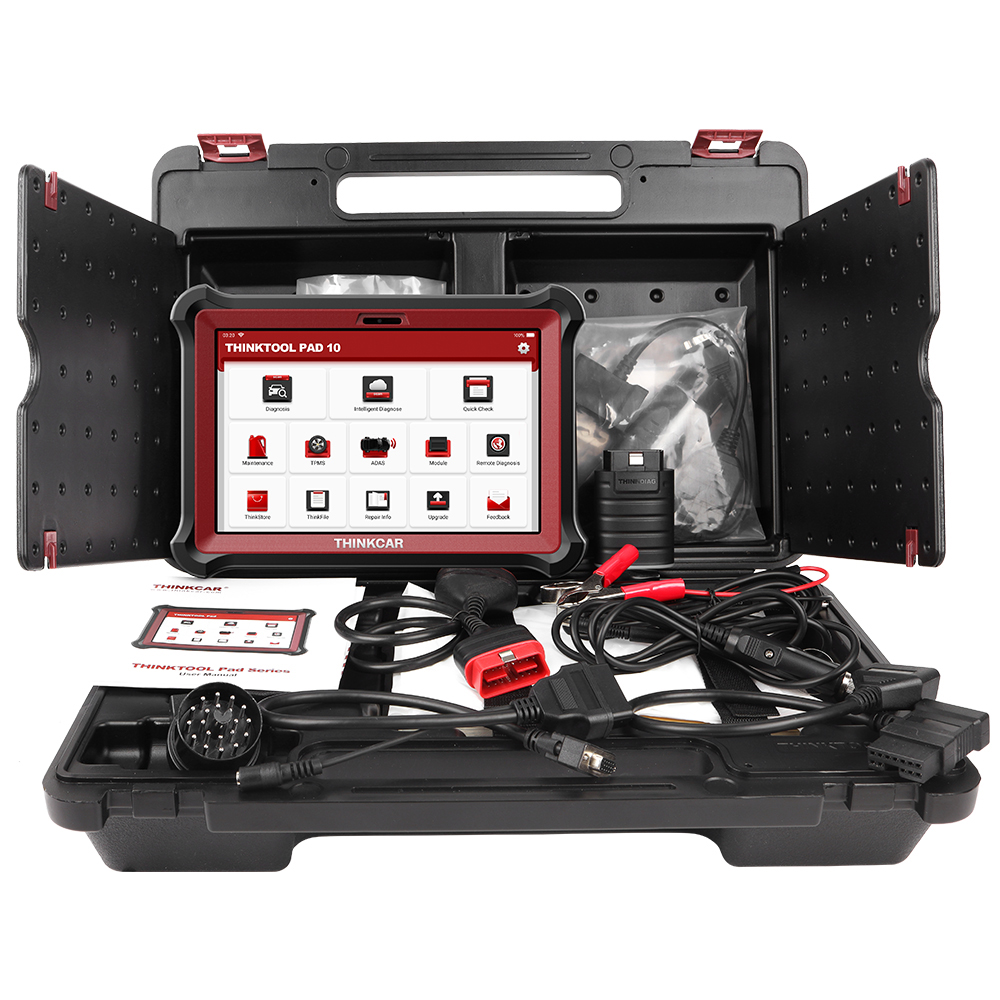

Packing List:



ThinkCar Thinktool Pad 10

ThinkDiag Bluetooth VCI

Benz-38 Connector

BMW-20 Connector

Chrysler-6 Connector

Fiat-3 Connector

GM/VAZ-12 Connector

Honda-3 Connector

Mitsubishi/Hyundai-12+16 Connector

Nissan-14+16 Connector

Toyota-17 Connector

Toyota-22 Connector

OBD-I Adapter

OBD2 Extension Cable

Power Clipper Cable

Cigarette Lighter Cable

USB Cable

3-in-1 Charger Plug (EU / US / UK)

Fuse 250V/5A 5*20mm (4 pcs)

Fuse 250V/5A 6*30mm (2 pcs)

User Manual

Password Envelope

Packing List

Plastic Toolbox

Packing Box
