Name: MCT 200 Universal Motorcycle Scanner Supports Multi-languages
Description:

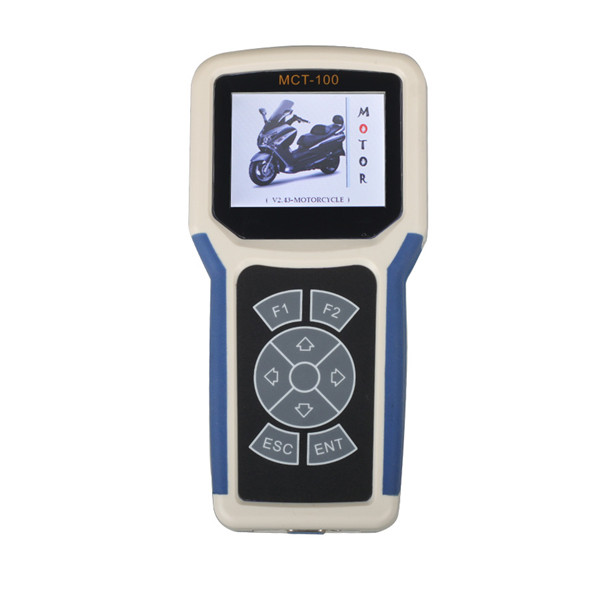

MCT-200 is a handheld device with easy operation supports Multi-brand Motorcycles. It contains all kinds connect cable for different Motorcycle model.
Supported Protocols: CAN, K-Line
Supported Languages: English, Vietnamese, Indonesian, Chinese
Support Motorcycles:
HONDA
SYM
KYMCO
YAMAHA
PGO
SUZUKI
AEON
HARTFORD
KAWASAKI
VA
BENELLI
KTM.
Functions:
1. Retrieve ECU information
2. Display live data stream
3. Read fault codes
4. Clear fault codes
5. Component test
6. Special function, such as: oil reset, ISC reset, CO adjustment etc
7. Support view waveforms and the numerical curve changes in data steam.
How To Update?.
1) Connect the USB cable with PC, select "USB storage" option, the PC will detect the device as new flash disk.
2) Copy the update tool files to the disk, follow the tips to finish updating procedure. (If your TF card can not be reset, please follow the tips to disconnect and connect power, then finish the updating procedure)
Device can be used as a USB flash disk:
When connect USB cable with PC and select "USB storage" option, the device can be used a USB flash disk which can save files based on your needs.
Disable the flash disk on PC when finish using. The scanner will go back to main menu automatically.
Replace TF Card and Battery:
If the TF card is damaged or the battery is low, open the device back cover to replace. Make sure the scanner is power off before replacing.
Note:
MCT-200 Motorcycle scanner TF card is FAT32 format. Please pay attention when formatting SD card. Otherwise the scanner will not work properly.

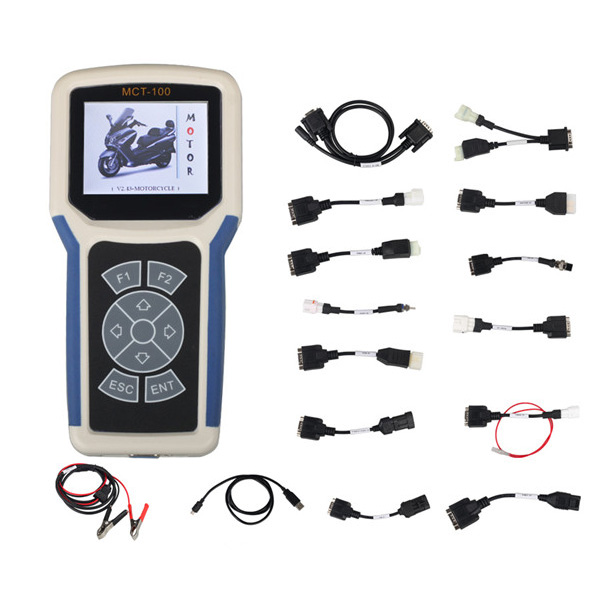

Set Includes:
MCT-200 main unit
Main test cable
SYM cable
KYMCO cable
SUZUKI-4PIN diagnostic cable
SUZUKI-6PIN diagnostic cable
PGO diagnostic cable

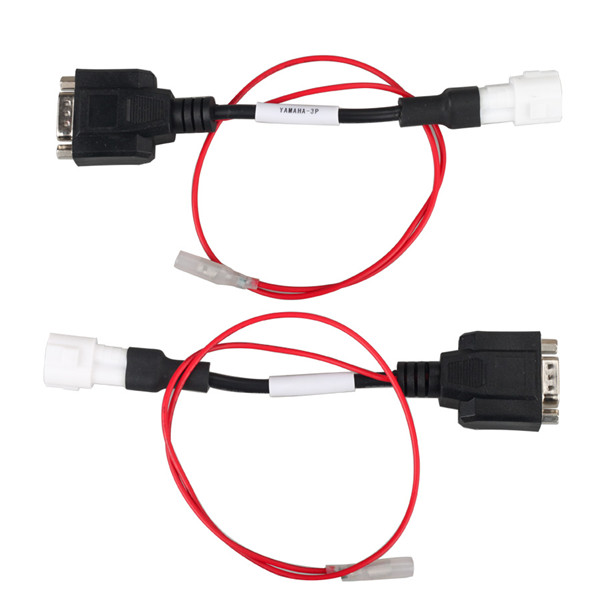

YAMAHA diagnostic cable
HARTFORD diagnostic cable
AEON-1diagnostic cable
HONDA diagnostic cable
PIAGGIO/VESPA diagnostic cable
KAWASAKI-4PIN cable
KAWASAKI-4P/6PIN cable
Battery clamp
USB cable
8G TF card
|
