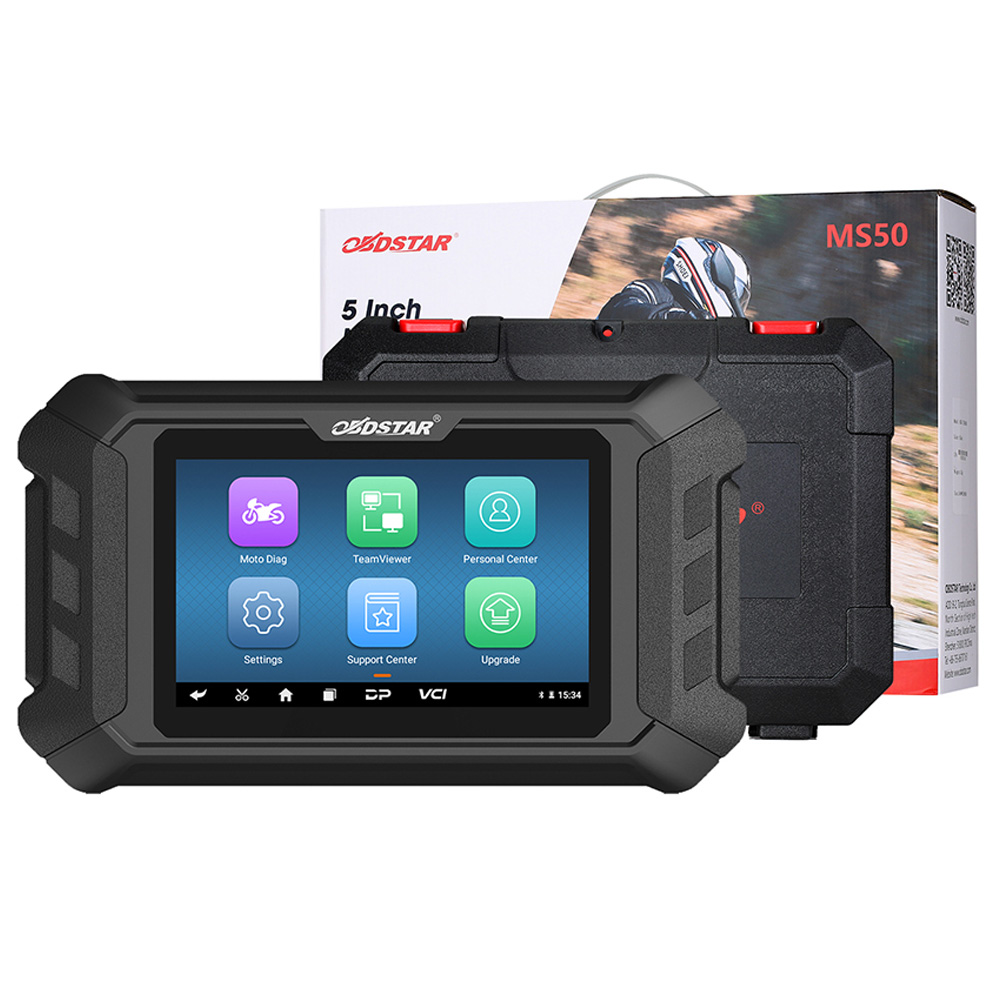

Name: OBDSTAR MS50 Motorcycle Scanner
Description:
OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers.
Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, it brings customer professional diagnosis experience.
Supported Language: English
Software Update: 1 year free update online
Features:
1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

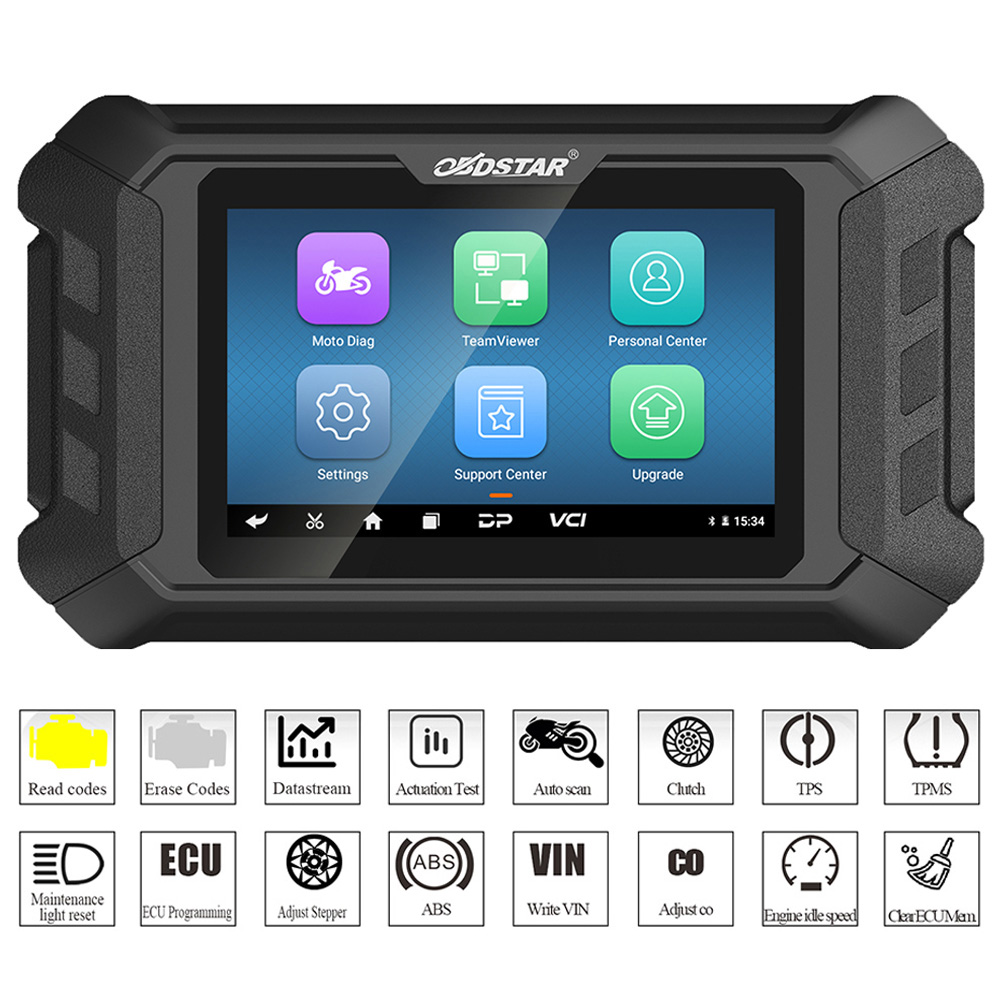

3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet for one-click software upgrade;
7. One-click remote function for OBDSTAR technician remote assistance;
8. Support most of the Asia and Europe models;
Advanced Functions:
1. The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic Scanning, Automatic VIN Recognition, Control Module Programming and Coding, ECU Setting, Instrument Coding, Tire Pressure Monitoring System, Maintenance Light Reset, CO Adjustment, Idle Speed Adjustment, A/F Value Reset, ABS Control Unit Setting , EOL Mode, Transmission Memory Reset, Clear Computer Memory, etc.

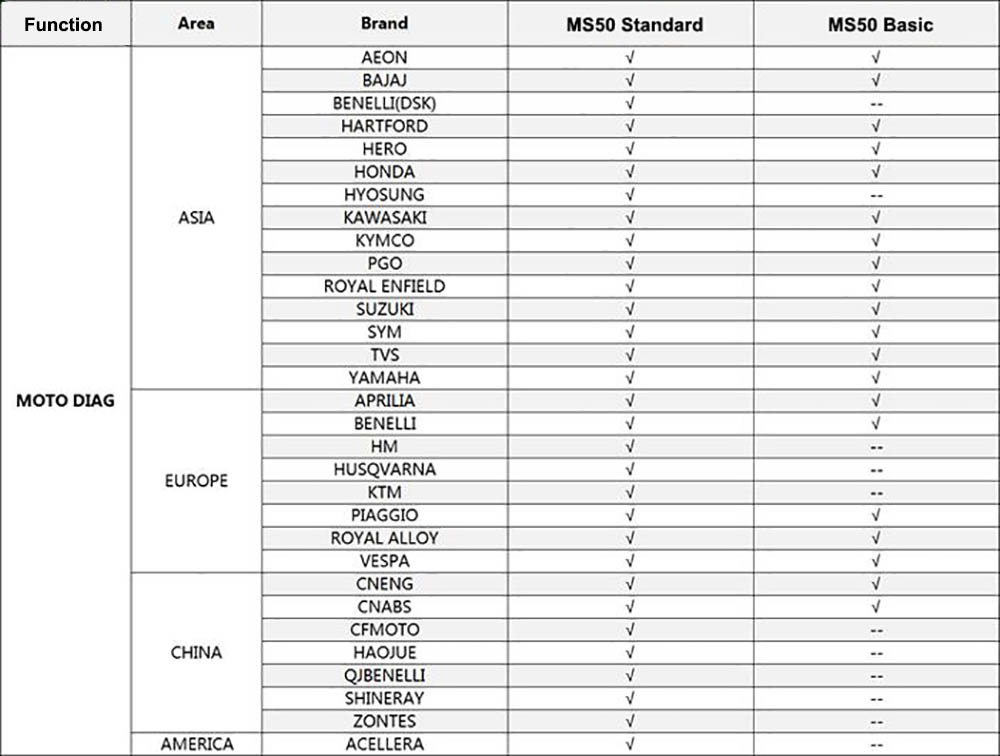

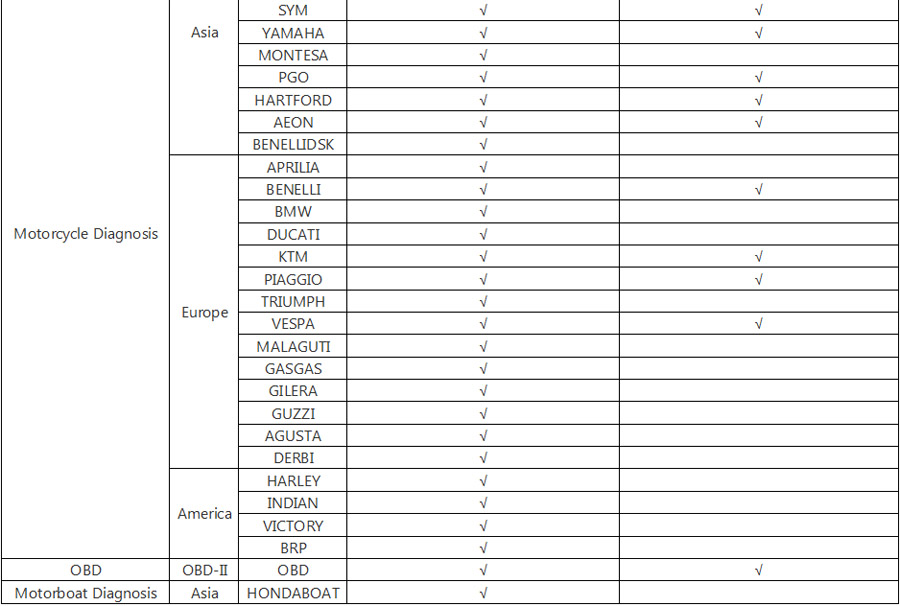

Supported Motorcycle / Snowmobile / ATV / UTV:
Asia: Honda, Kawasaki, Kymco, Suzuki, SYM, Yamaha, PGO, Hardford, AEON
Europe: Benelli, KTM, Piaggio, Vespa
Functions:
1) Main Page / Brand Supported
2) Help Data/Technical Bulletin/Fault Guidance
3) Supported System List/ Manual Service Function
4) Manual maintenance reset
5) Diag Socket / Diag Connector Location
6) Data Flow Text / Waveform Diagram/Instrument Diagram
7) Special Function-Benelli
8) Special Function-KTM
9) Special Function-Piaggio
10) Special Function-Vespa
Notice:
1. More functions under developing!
2. Different configurations include different software. Please contact us for more details.

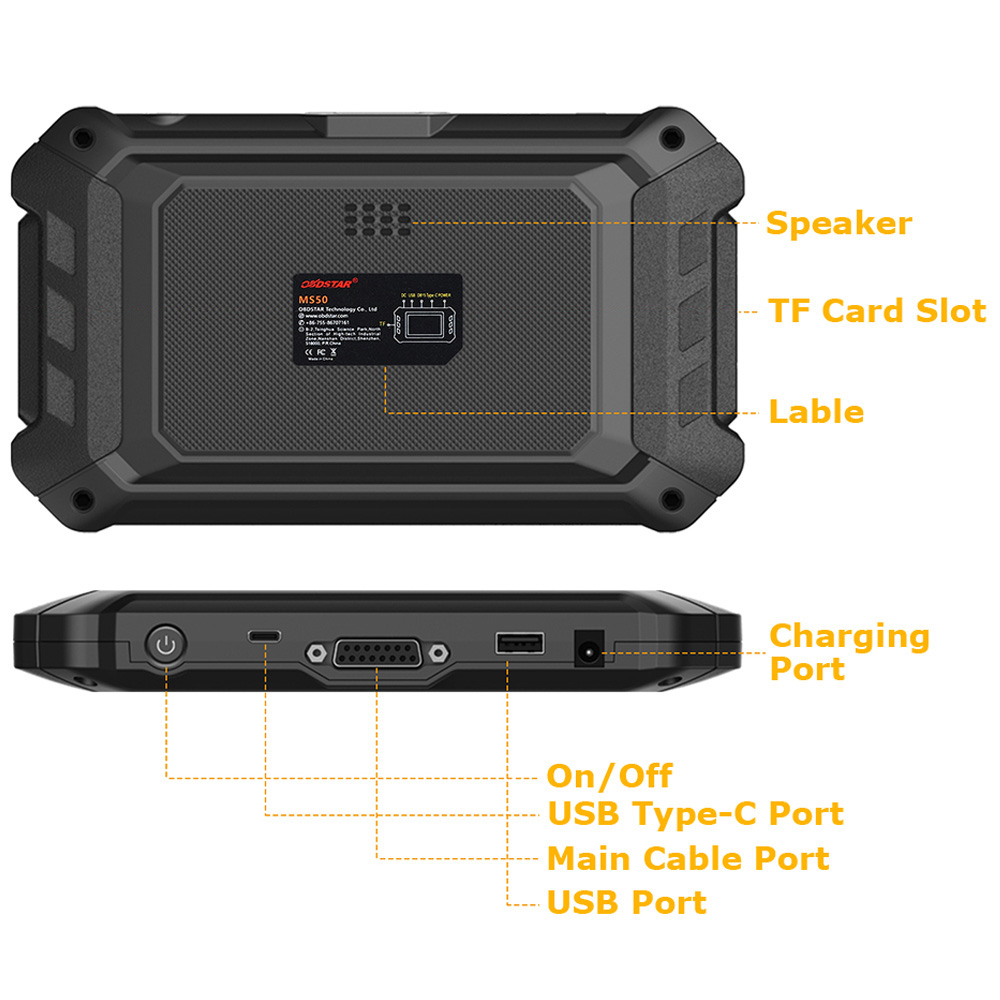

Specifications:
Operation System: Android 5.1.1
CPU: Exynos4418 Dual Core ARM Cortex A9
Battery: 2500mA rechargeable polymer lithium battery
Extension Memory Card: 32G micro SD (TF) card supported
Storage Capacity: 16GB
Display: 5.0 inch capacitive touch screen with 800*600 resolution
WiFi: supported
Camera: 5 mega pixel rear view camera
Working Temperature: -20 to 55 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Main Unit Weight: 700g

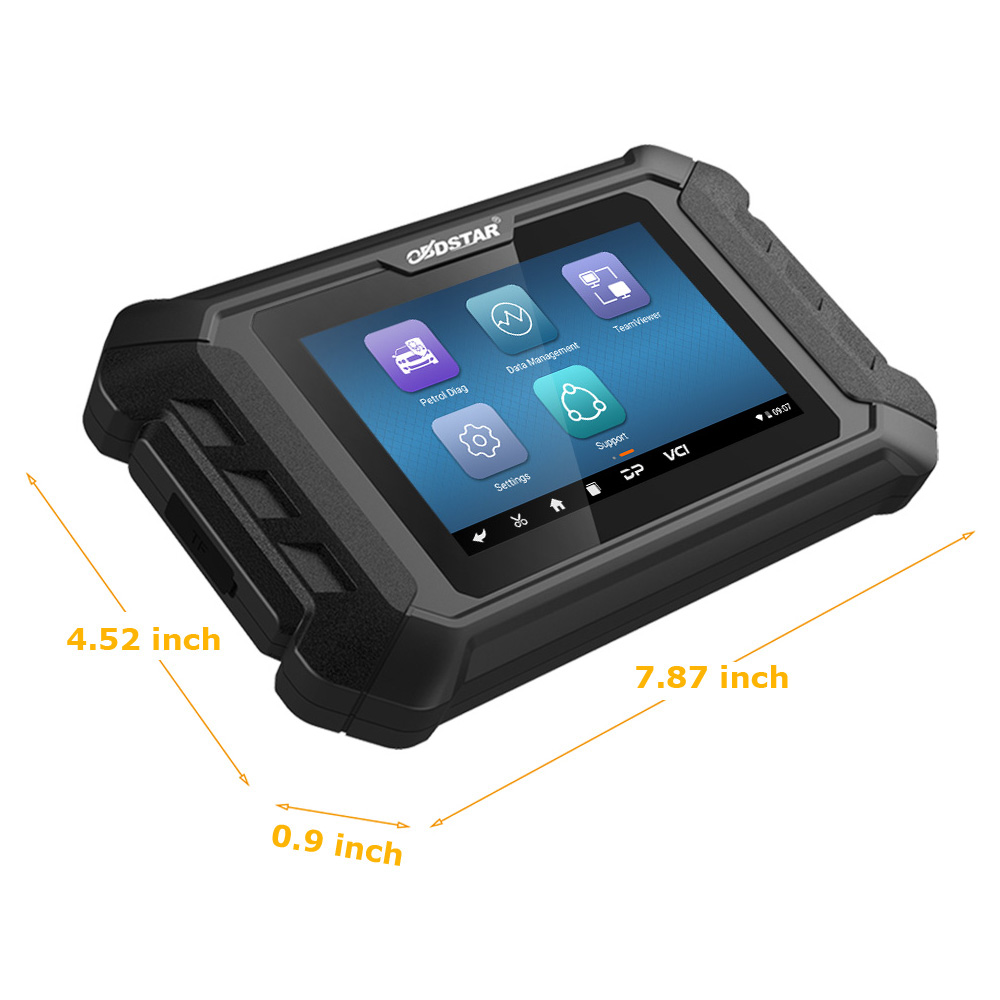

Dimension: 140*89*18mm

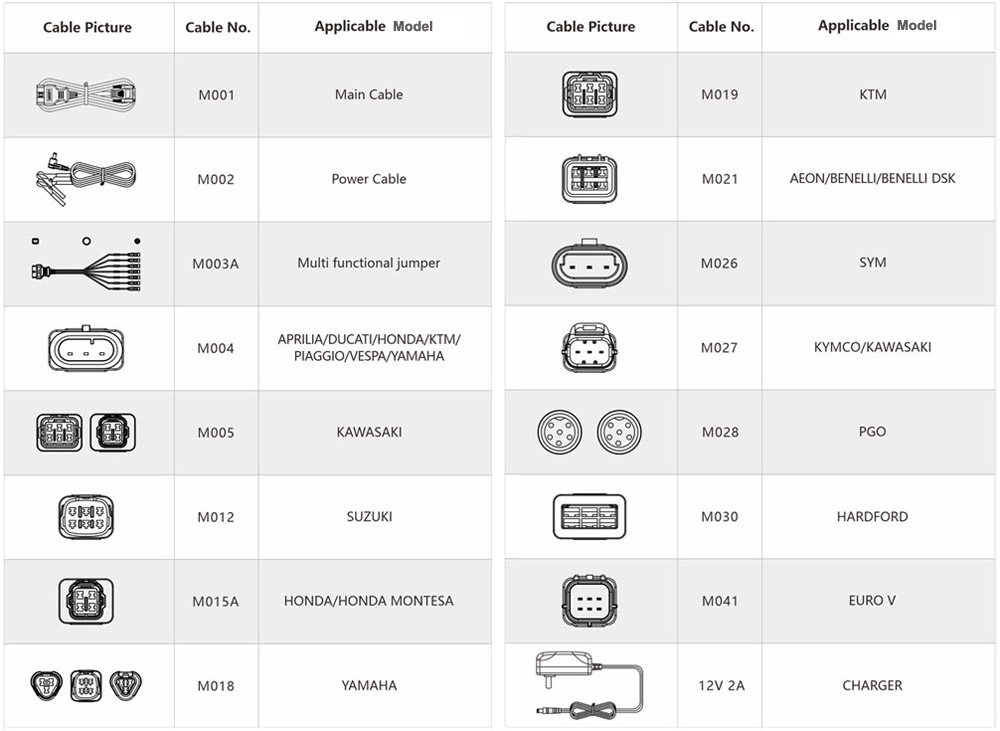

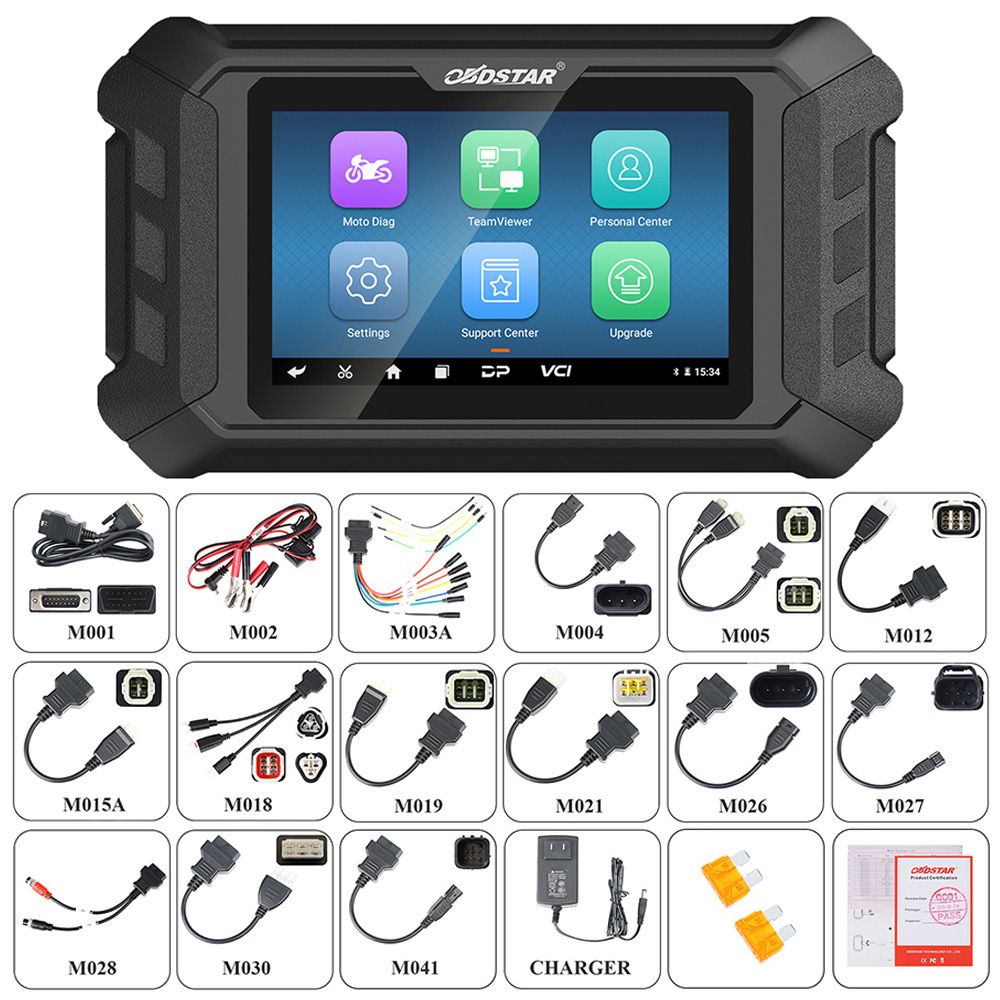

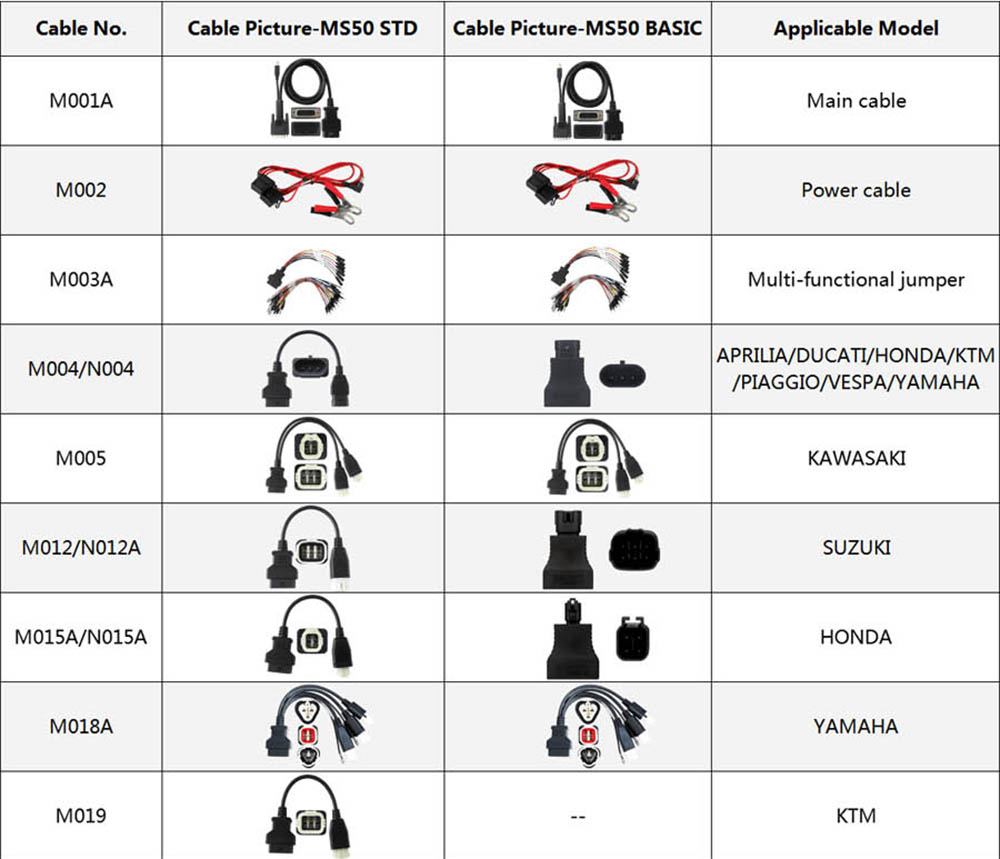

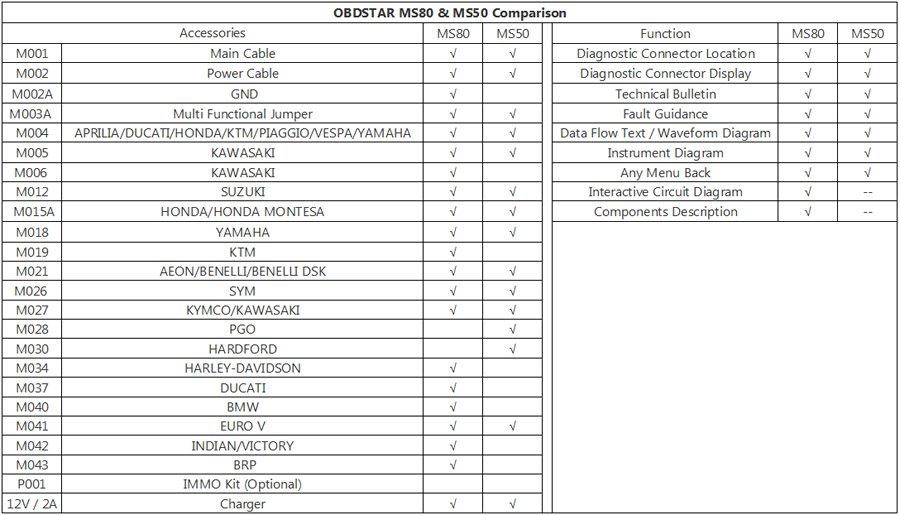

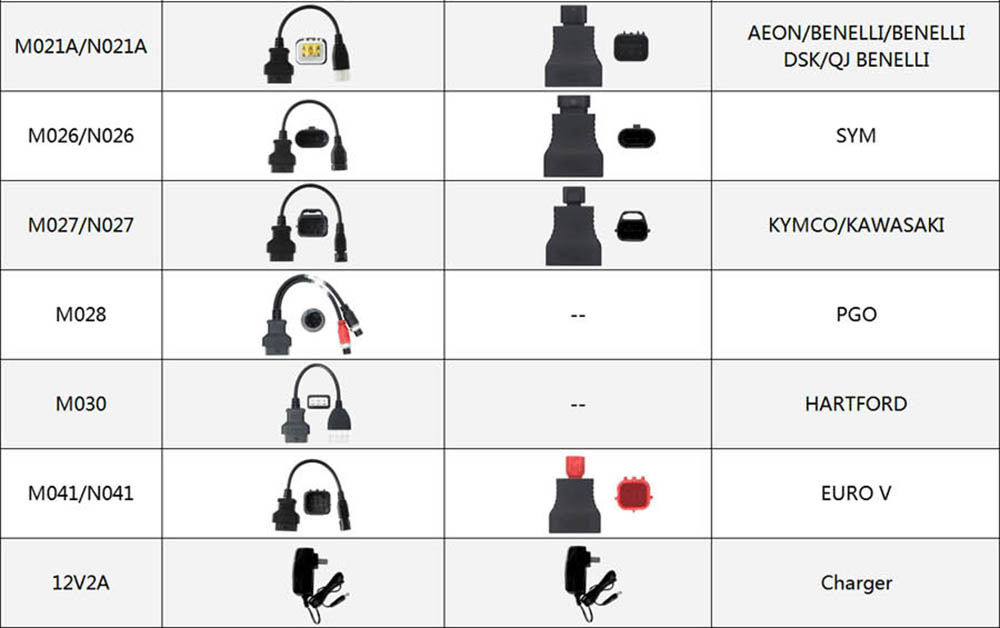

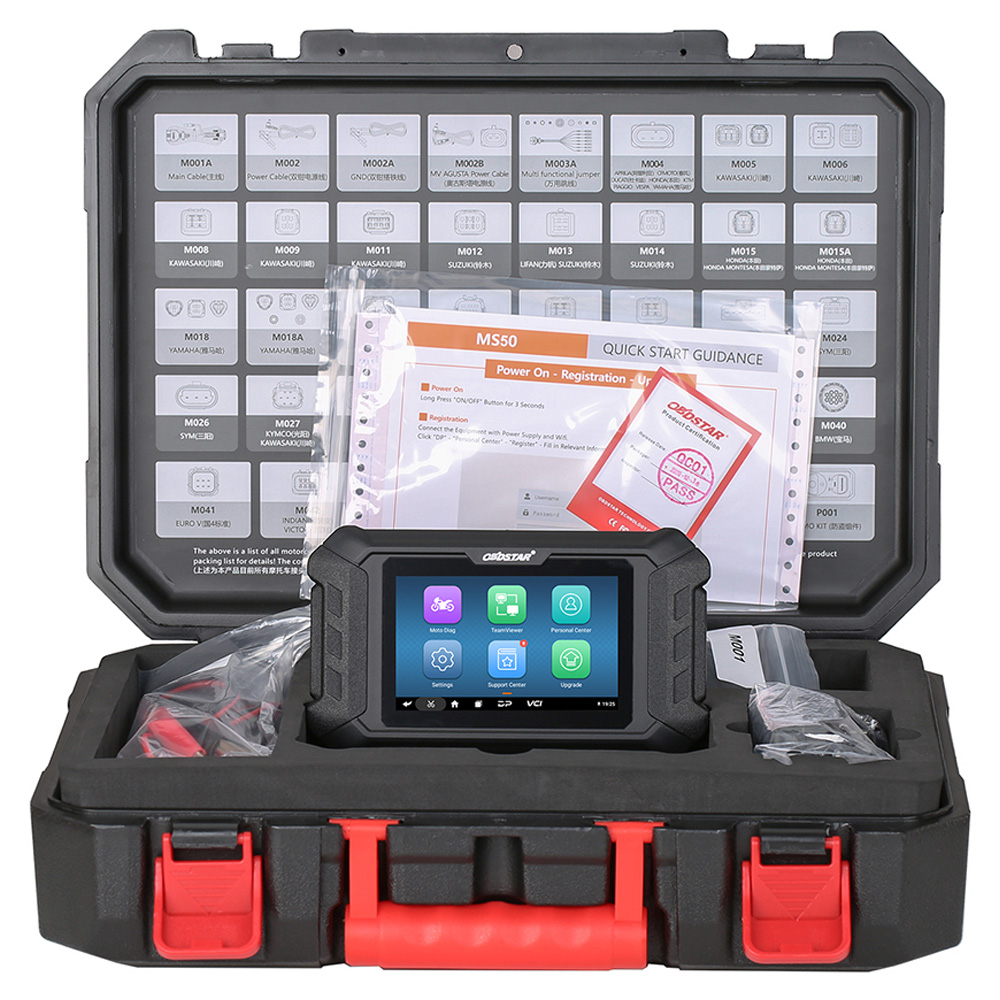

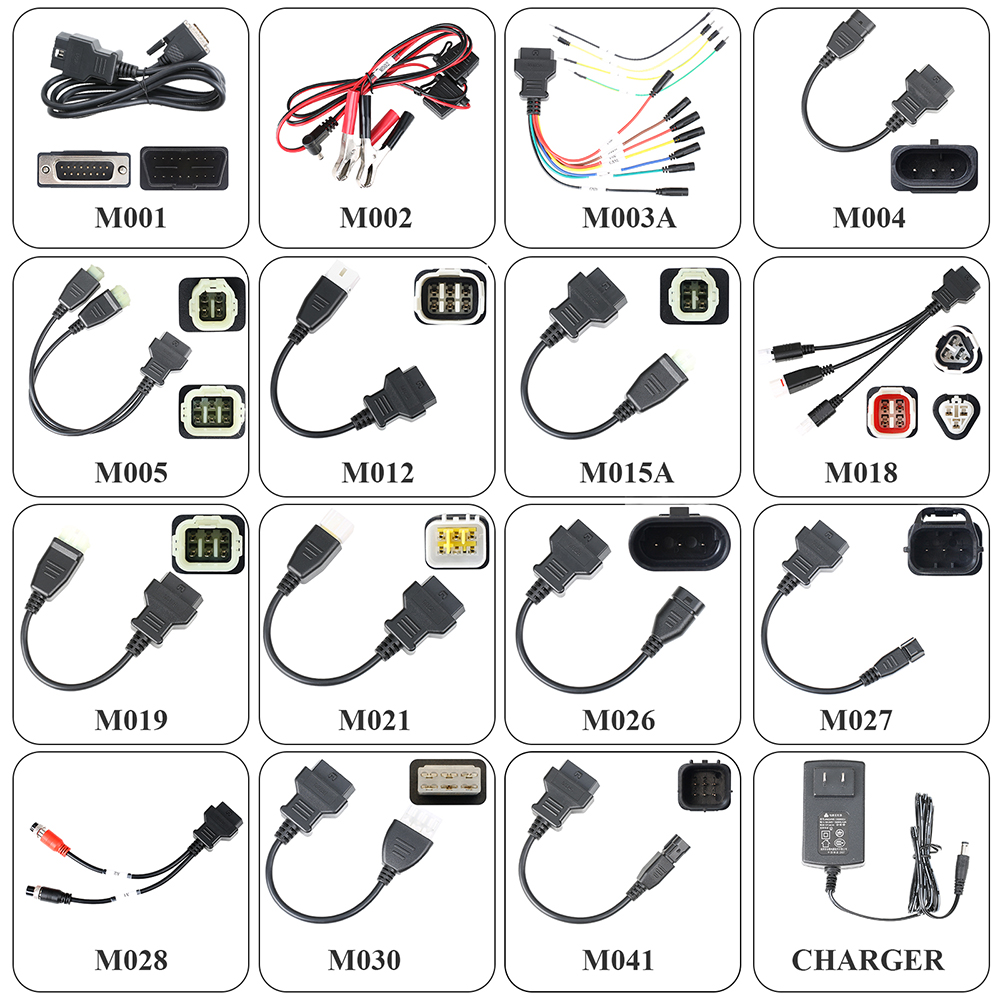

Packing List:
OBDSTAR MS50 Intelligent Motorcycle Scanner
M001 Main Cable
M002 Power Cable
M003A Multi Functional Jumper
M004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
M005 KAWASAKI
M012 SUZUKI
M015A HONDA/HONDAMONTESA
M018 YAMAHA
M019 KTM
M021 AEON/BENELLI/BENELLI DSK
M026 SYM
M027 KYMCO/KAWASAKI
M028 PGO
M030 HARTFORD
M041 EURO V
12V / 2A Power Charger
|
