Name: JDiag BT-100 Battery Tester

Description:

JDiag BT100 Battery Tester is a new product from JDiag company. It can test car battery voltage, AC and DC voltage, resistance, resistance, leakage, short circuit, components activation etc.

It is the best electrical tester for reducing diagnostic time in all 6 to 30 volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle battery, you can:

1. Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another.
2. Test for continuity with its built-in auxiliary ground lead.
3. By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
4. Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected, its internal circuit breaker will trip if it becomes overloaded.
5. Follow and locate short circuits without wasting fuses. The tool's long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.

Features:

1. Tiny deviation and more precise testing data
2. It can protect the circuit when power supply is reversed
3. Support wide input voltage range from 9V to 70V
4. Multi-languages, minority languages also can be customized
5. Large battery clip, can carry more load
6. 10-meter diagnostic cable, environmental protection material, not pungent
7. Supports 12V cars and 24V trucks
8. Overload protection, reset automatically after overload, no need operation
9. Nylon waterproof and oil proof portable pouch
10. Completely independent of personalized exquisite appearance
11. Low power consumption, high performance
12. Supports personalized customization and OEM orders.

Specifications:

1. Display: TFT color display (160*128 dpi)
2. Operating Temperature: 0 to 60 degree centigrade
3. Storage Temperature: -40 to 70 degree centigrade
4. External Power: 12.0 or 24.0V power provided via vehicle battery
5. Dimension: 165*40*27mm

Parameters:

DC Voltage Range: 0 - 65V +1 digit
Resistance Range: 0 - 200K
Frequency response of tone pass through 0Hz to 10KHz.

Circuit Breaker:

Rating Current: 1 - 10 Amp
Testing Standard
100% current: no trip
150% current: trip in one hour
200% current: trip in 3-30 seconds.
300% current: trip in 0.5-4.0 seconds.

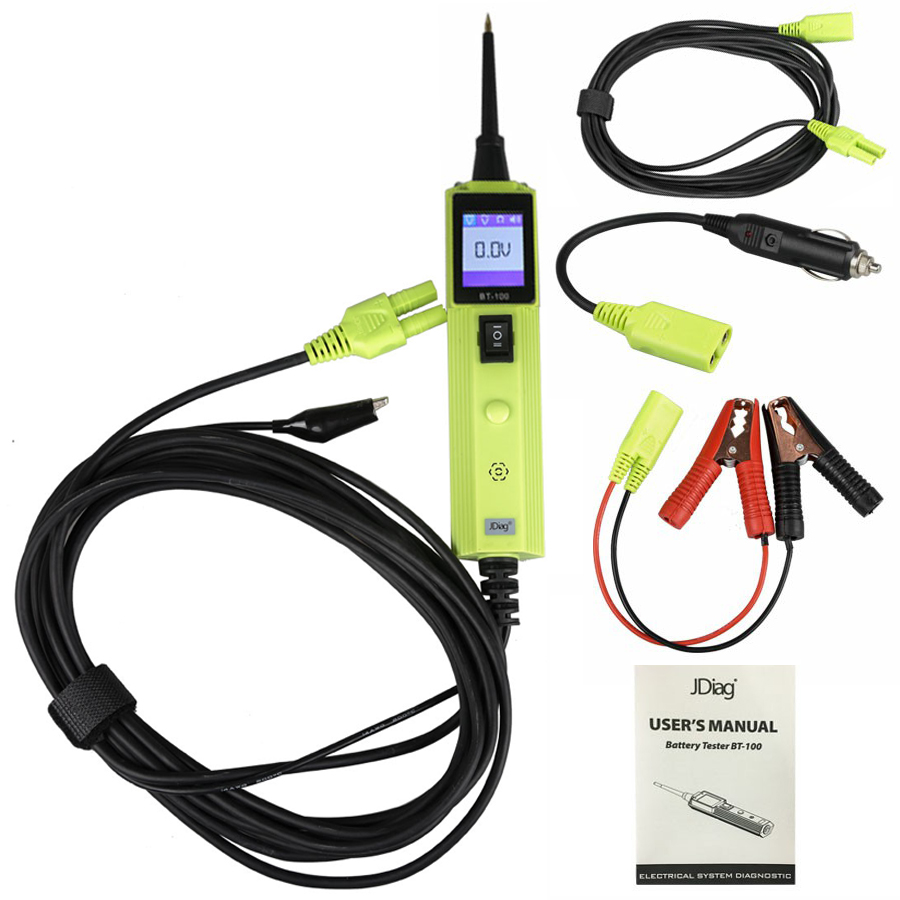

Packing List:

JDiag BT 100 PowerScan
Probe Tip

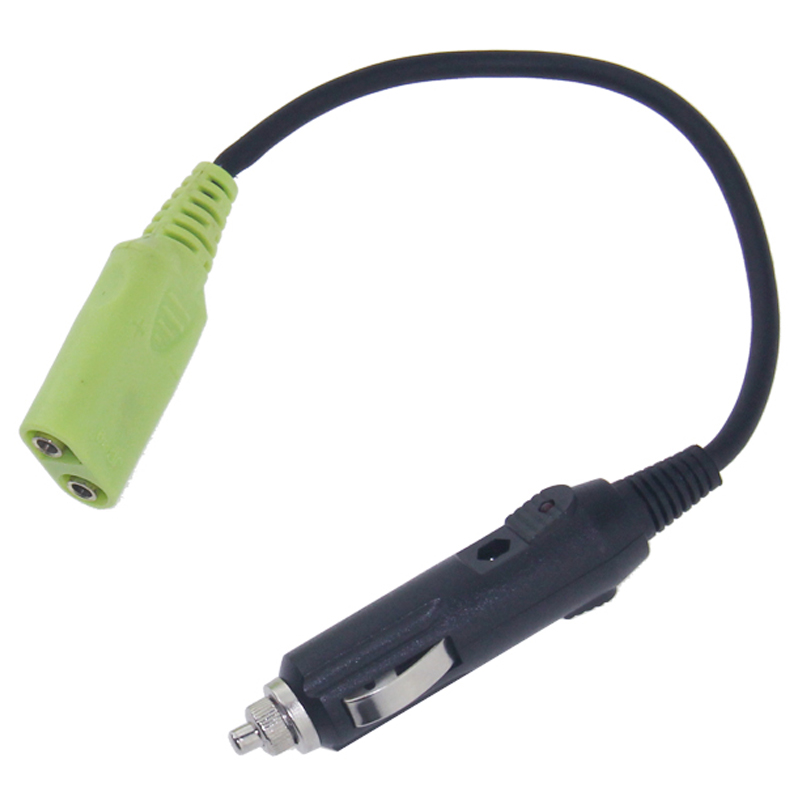

Cigarette Lighter Cable

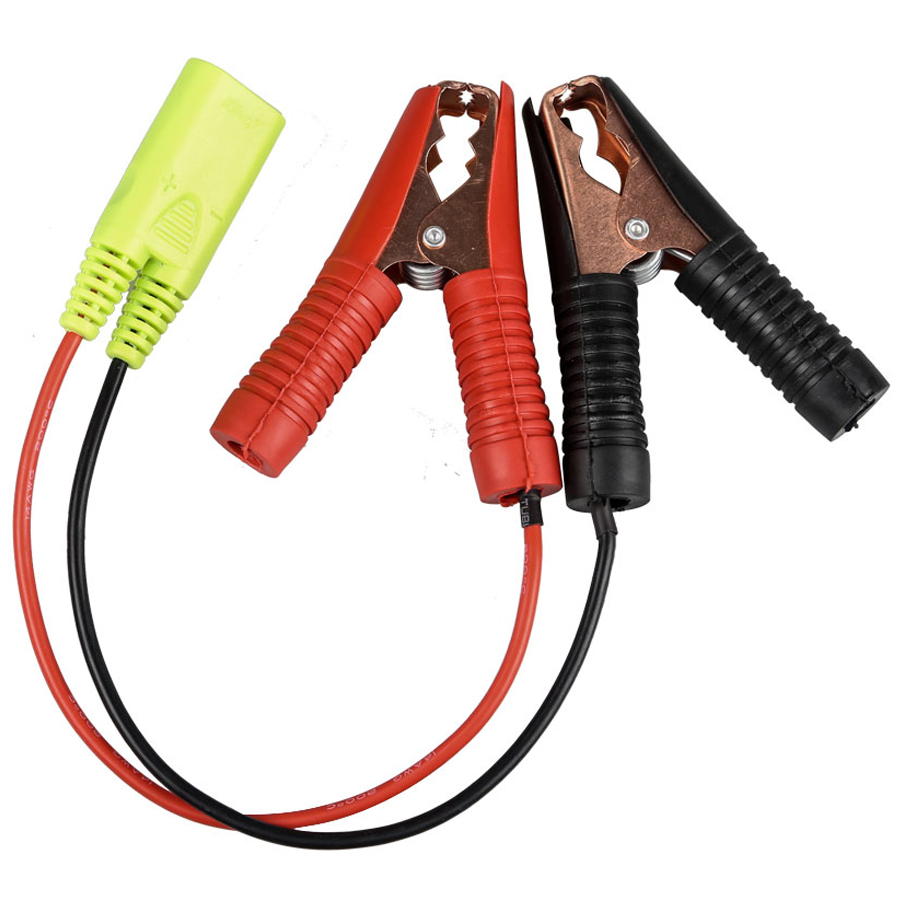

Battery Clips Cable

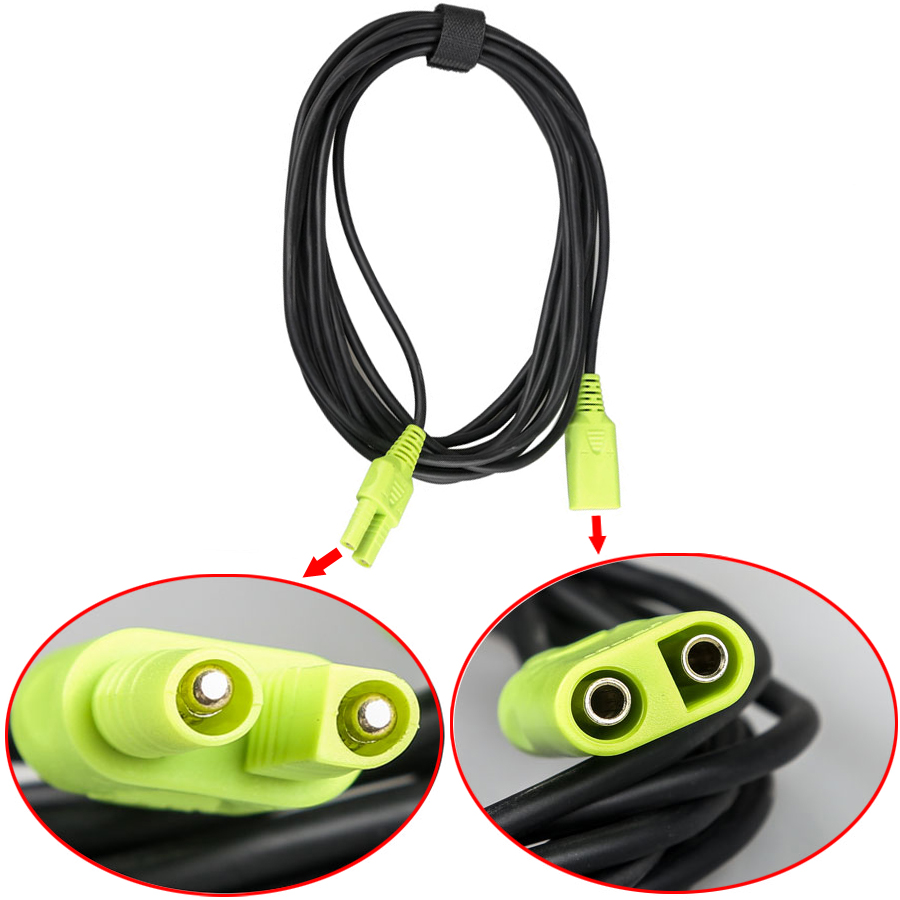

10 Meter Extension Cable
User Manual

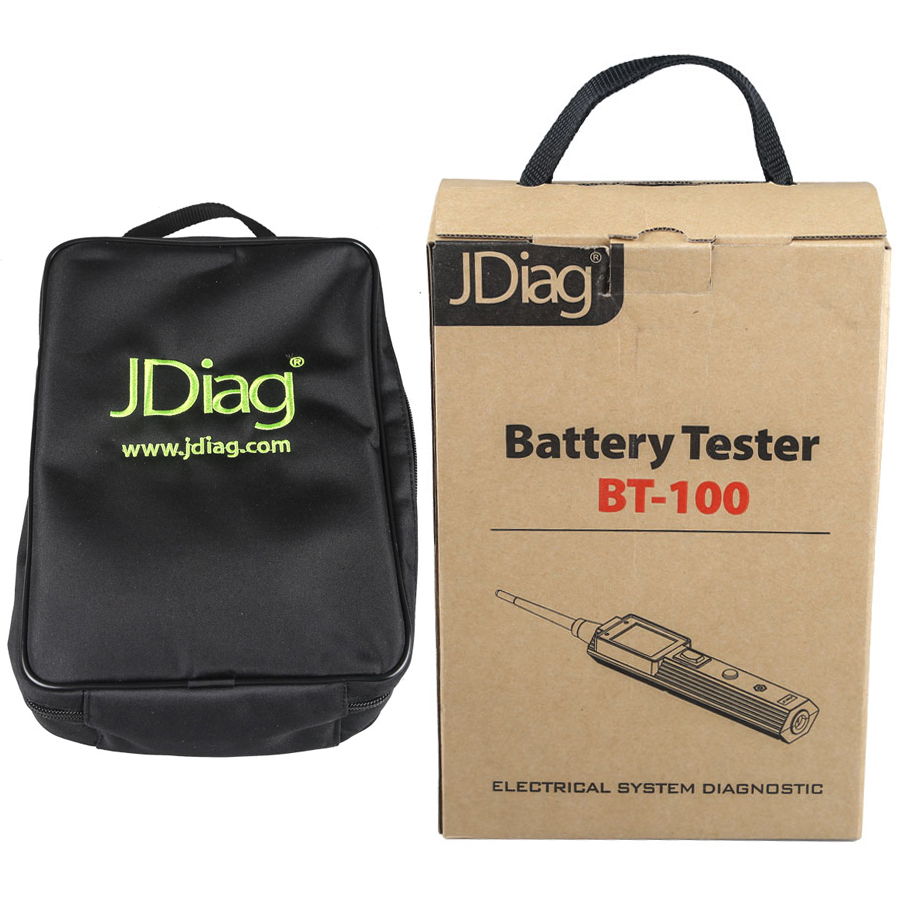

Nylon Pouch
Packing Box
