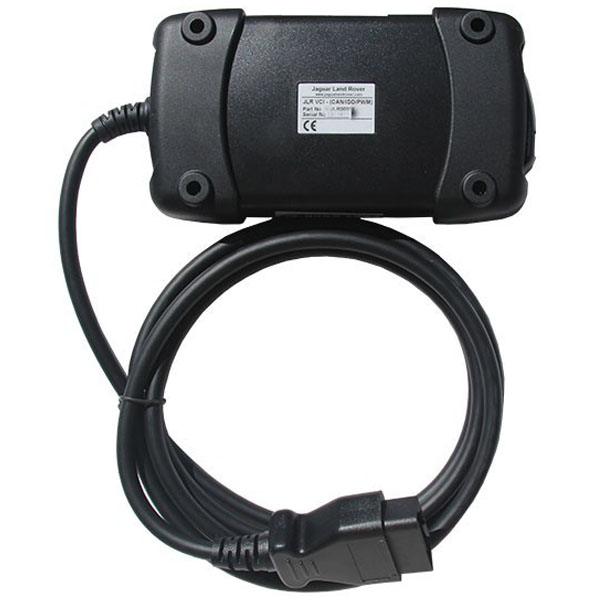

Name: JLR VCI for Jaguar and Land Rover


Jaguar / Land Rover has approved the JLR VCI as the only supported interface since SDD v142, and will offer it directly to Jaguar and Land Rover dealerships as the factory diagnostics tool.
JLR has chosen Diagnostic Associates to provide them with an enhanced DAVINA that has extra hardware and software capabilities.  This will be known as the JLR VCI.

Moving forwards SDD will get extra features to support the vehicle architecture only the JLR VCI will support these extra functions.

The JLR VCI connects the vehicles OBD-II connector to a computers USB port. Using integrated circuitry, the JLR VCI supports a wide variety of functions including: Reading and Clearing Diagnostic Trouble Codes; Running Active and Utility Tests; Data Monitoring; Reprogramming. The combination of all these capabilities into a cost effective and portable interface makes the JLR VCI an ideal tool for Jaguar and Land Rover technician.

Software Version: V159


Jaguar Land Rover approved device
Replacement for JLR SDD VCI
Covers CAN, MultiCAN, ISO9141 and SCP Vehicle Networks
Suitable for Legacy, current and future vehicles
Easy to update for J2534 new functionality updates

What does JLR VCI do?

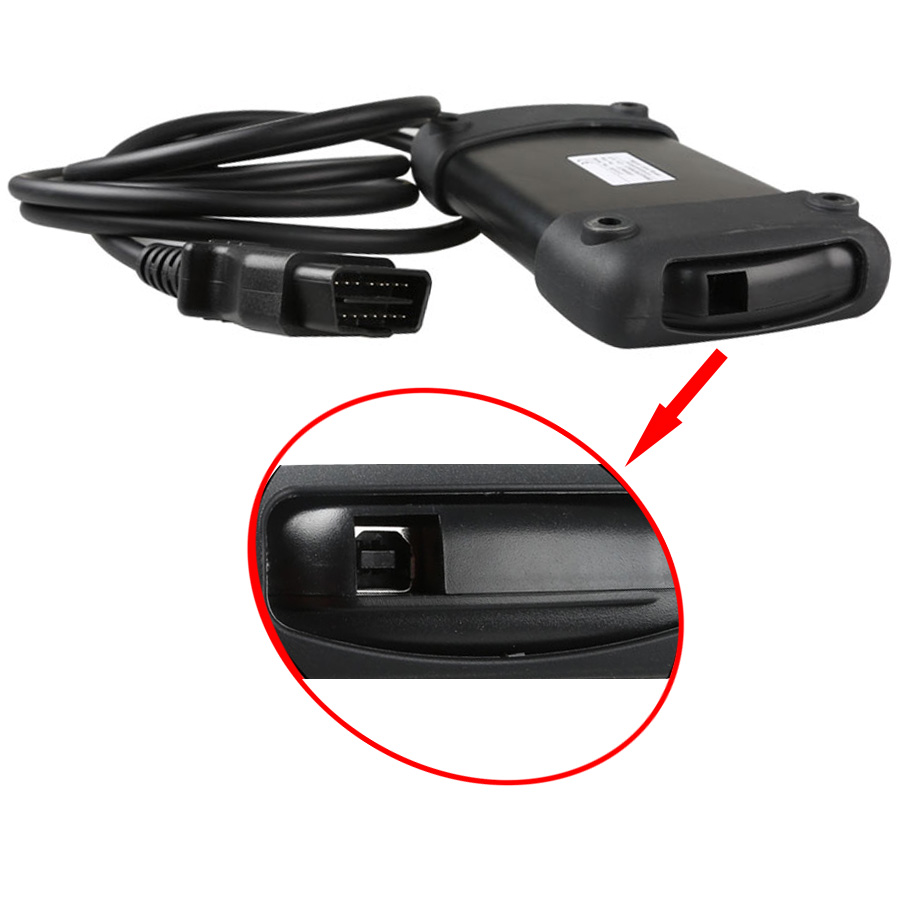

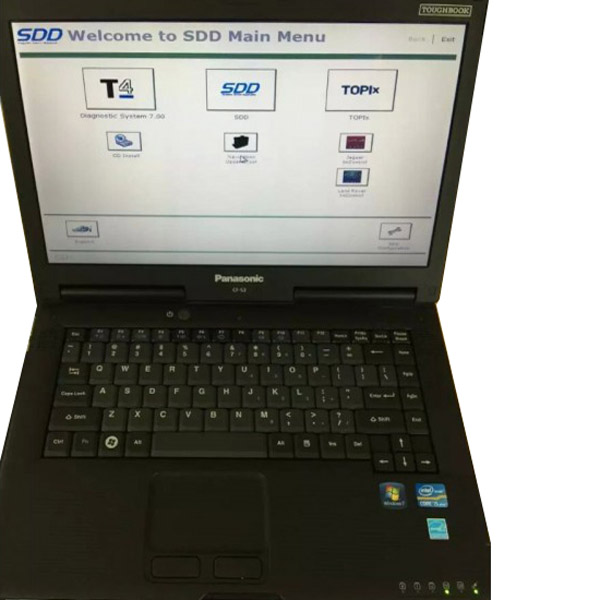

The JLR VCI connects directly to the vehicle via OBD-II diagnostic connector and connects to laptop with SDD software via a USB cable.

Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD Diagnostic Tool. All communication is possible on with this device.

How does the device operate in J2534 mode?

The JLR VCI is simple and easy to use.
Drivers are available to install with JLR SDD DVD V142.
Connect the J2534 device to the vehicle OBD-II connector (the device powers from the vehicle battery).

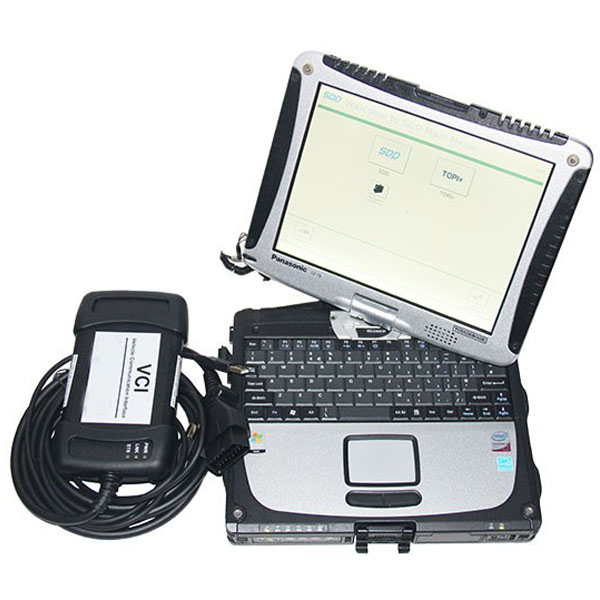

Connect JLR VCI to SDD Laptop via the 2 meter USB cable.
The (PWR) LED will be in stable red color to indicate that JLR VCI is powered.
During communication with the vehicle the Status (STS) LED will flash in green color.

How does it get updated for future Software Updates?

Periodically JLR will release updates to its products drivers and software.
These updates are necessary to either release further device functionality or to resolve field issues.
The updating of the drivers and software is handled by the diagnostic test application which will install the updates on request.
If problems are experienced during device use, always make sure that the latest device software and drivers have been installed.

Supported Models:

Land Rover: L316, L319, L320, L322, L359, L538
Jaguar: X100, X150, X202, X250, X350, X351, X400


The JLR VCI is suitable for all JLR vehicle models with the following exceptions:

1. Flash programming of Engine Control Modules (ECMs) on XJS and pre-2003 XJ and XK models (AJ16, AJ26, AJ27 engines).
2. Simultaneous logging of ECM and TCM datalogger signals on 2006 Range Rover

Supported Languages:

English, French, German, Spanish, Portuguese, Portuguese(Brazil), Dutch, Russian, Italian, Japanese, Korean, Chinese Simplified

Packing List:

JLR VCI interface with OBD2 cable
USB cable
SDD software CD
Carrying case
