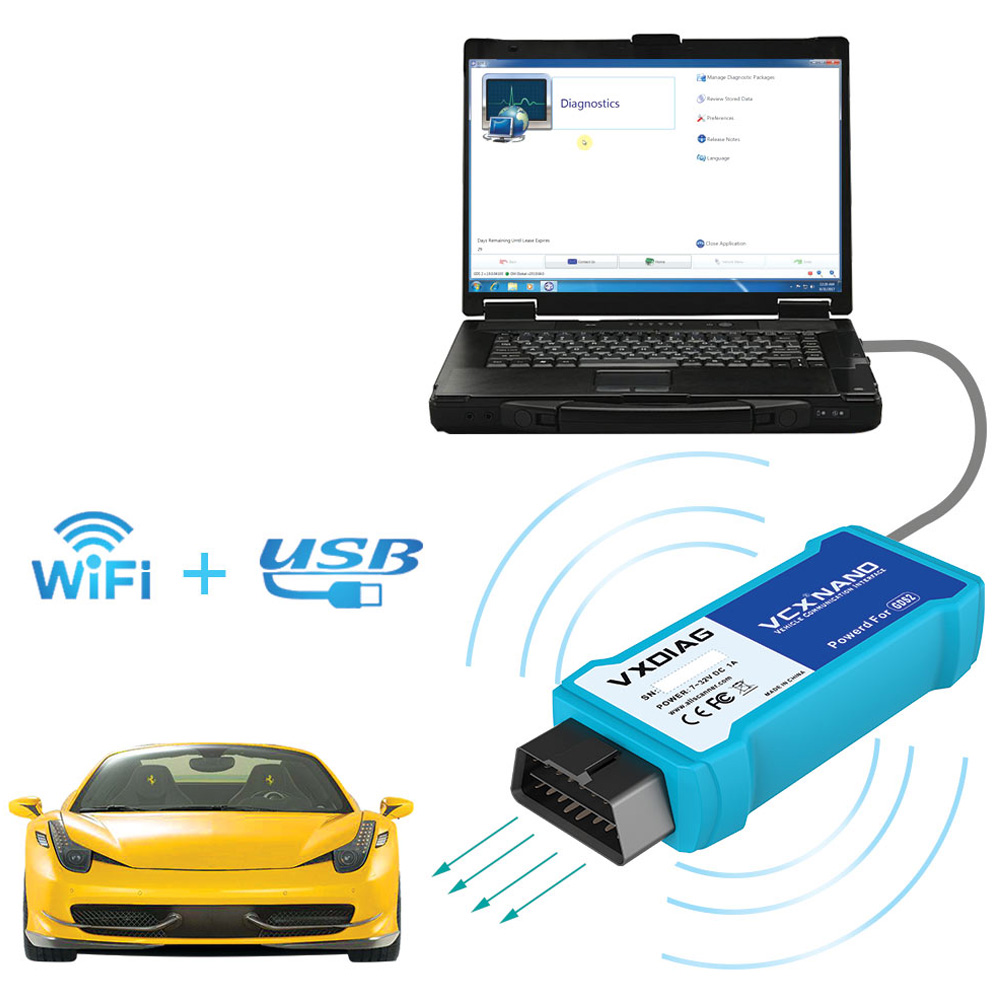

Name: VXDIAG VCX NANO for GM Opel with WiFi supports GDS2 and Tech2Win



Description:



VXDIAG VCX NANO for GM / Opel Multiple GDS2 and Tech2Win Diagnostic Tool with WiFi can perfectly replace GM MDI.



Compatible with applications that diagnose engines, transmissions, ABS, instrument panels and more.



Features:



1.Support GM Tech2Win and GDS2, perfectly replace GM MDI.

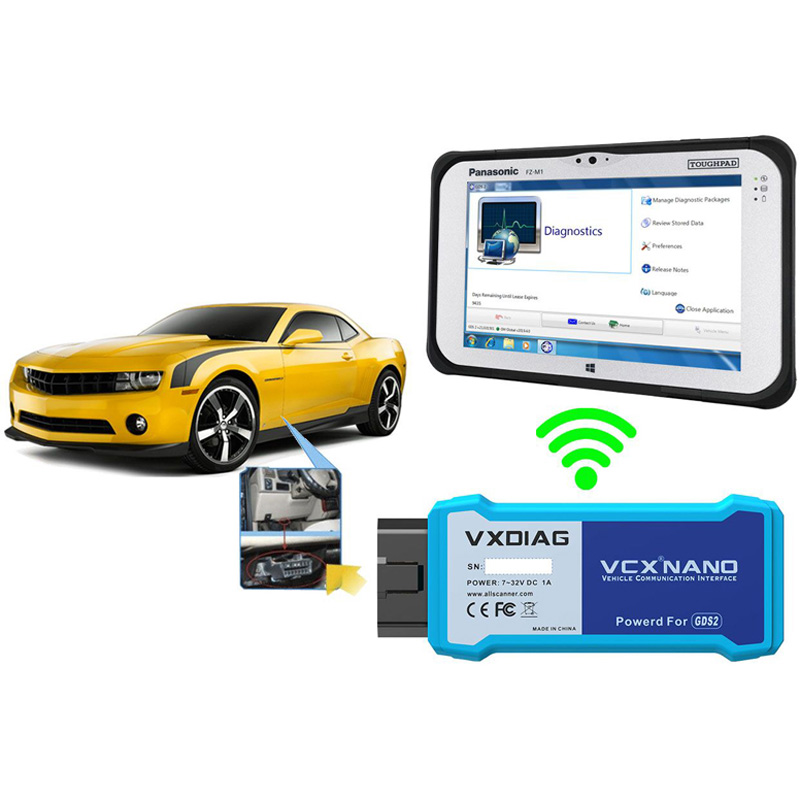

2. Support WiFi connection.

3. Compatible with applications that diagnose engines, transmissions, ABS, instrument panels and more.

4. Mixed fleet capabilities with broad protocol support

5. Quick access to vehicle data for maintenance or management reports

6. Quickly attaches to vehicle's diagnostic connector

7. Can be used with desktop PC or laptop

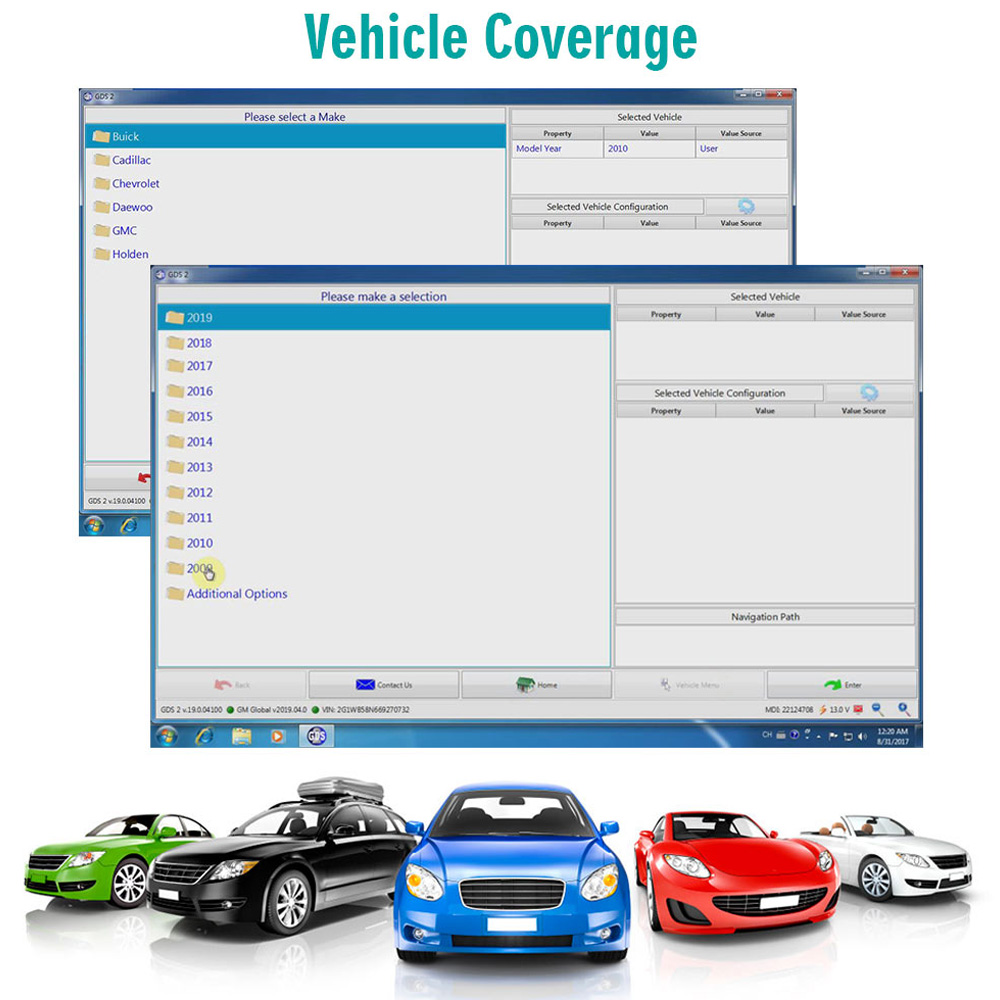

8. Supports GM vehicle from year 2000 to 2020



Notice:



1. VXDiag VCX NANO for GM/OPEL software includes two parts: Tech2Win and GDS2.



GDS2: V21.0.01501 / 2020.7

Tech2Win: 16.02.24



GDS2 can only work on Windows 7 64 bit and Windows 8 64 bit.

Home version Windows is not supported!

Tech2Win can work on both Windows XP /7 / 8 / 10 32bit and 64 bit.



2. Software update by link while firmware updated online.

3. Only GDS2 software support Opel and SAAB. Tech2Win does not Opel or SAAB.

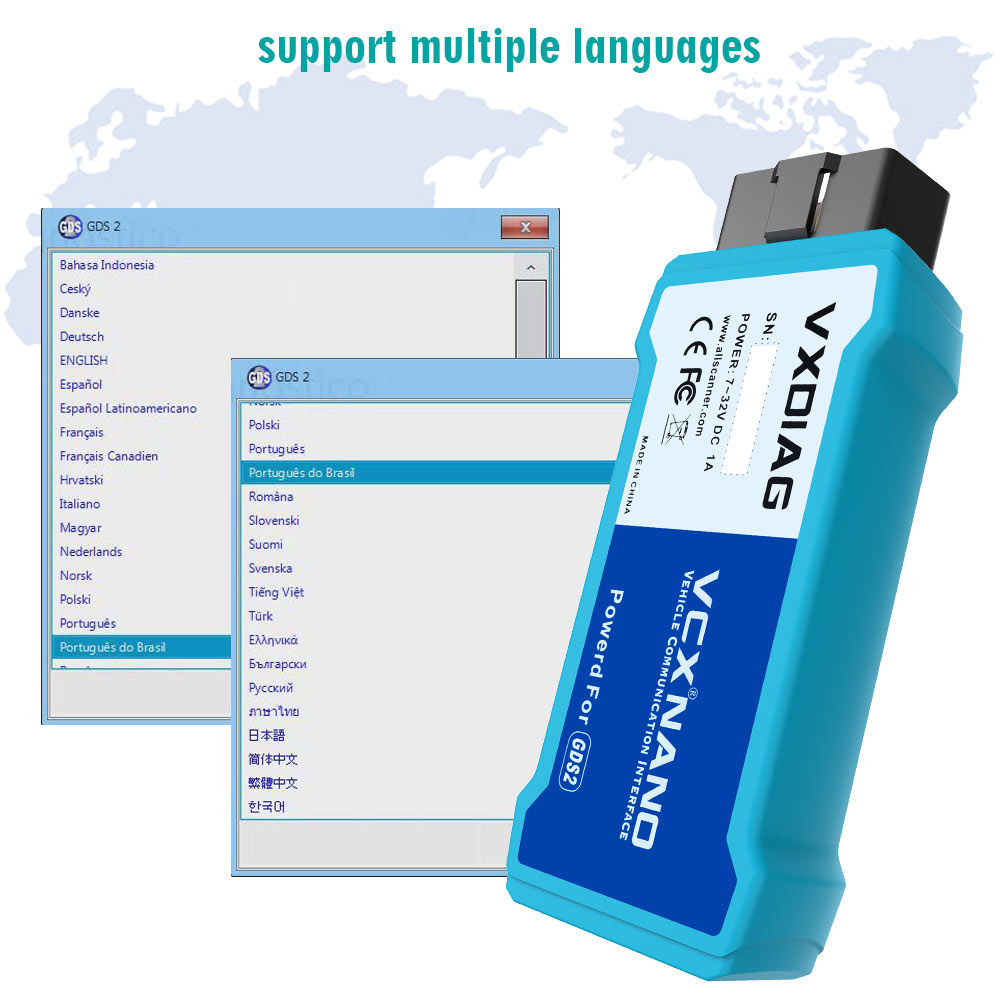

Supported Languages:



GM Tech2Win: English.

GM GDS2: multi-languages



Advantages:



1. Fully compatible with SAE-J2534-1 & SAE-J2534-2

2. USB vehicle-to-PC connectivity

3. All current and most legacy vehicle protocols: CAN, UART, KW2000, Class2, GM LAN, etc.

4. CE and FCC compliance for hardware

5. Firmware Updatable



Compatible Software:



1. Support PC-based diagnostics with rollout of the Global Diagnostic System GDS & GDS2.

2. Support GM TIS2Web online Service Programming System (SPS) with your own GM account.

3. Support Tech2Win application to offer a larger screen with all of the Tech-2 functionality.

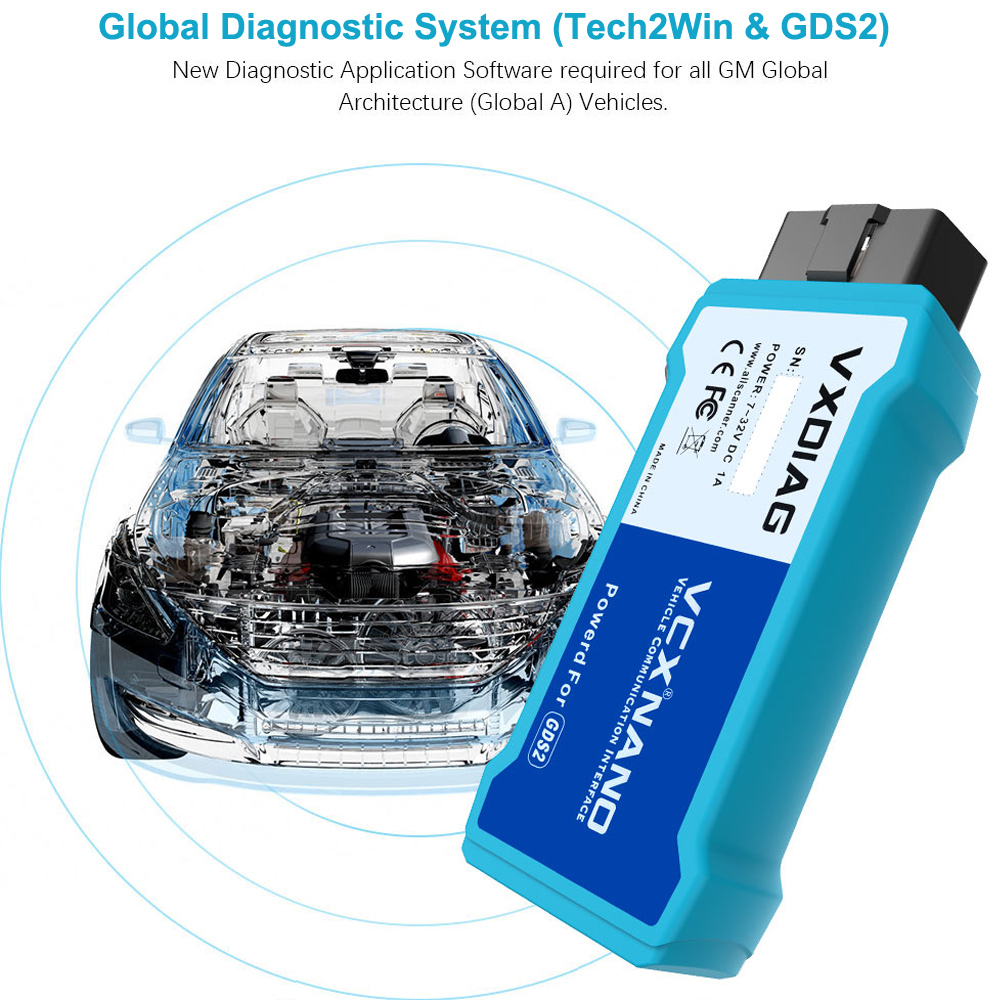

Global Diagnostic System (GDS & GDS2):



1. New Diagnostic Application Software required for all GM Global Architecture (Global A) Vehicles.

2. GDS & GDS2 is software which runs on a specific PC. Updates received via TIS2Web.

3. VCX Nano GM Kit support both of GDS & GDS2. GDS 2 works similar to the original GDS. Easier and faster.



GDS 2 Provides the Following Capabilities in Multiple Languages:

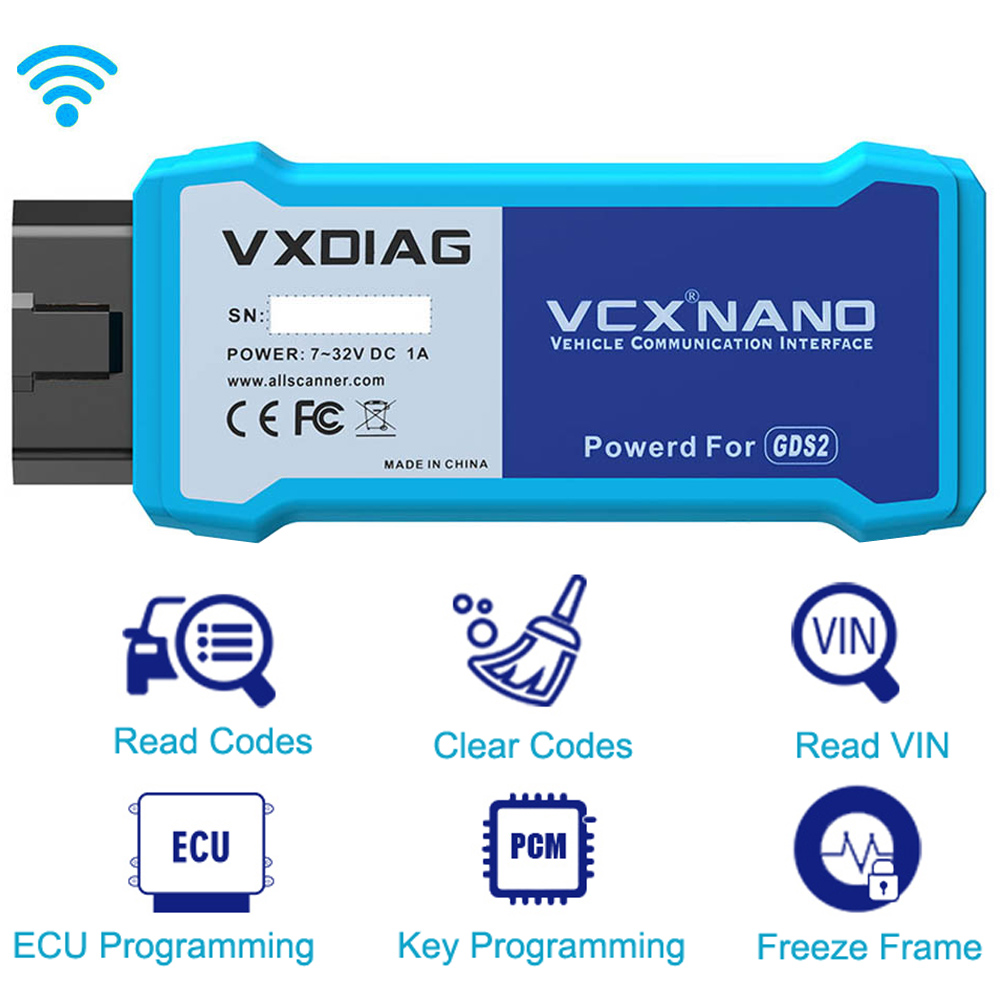

1. Read codes, code status, Freeze Frame data and Clear Codes.

2. Read VIN, ECU part numbers and software numbers.

3. Record, store and replay stored data.

4. Control and monitor Output Control functions.

5. Configure and reset functions.

6. Record or display history of the previous vehicle diagnostic sessions.



Service Programming System (SPS): (For this function, you need to have a GM Online Account) :



1. PassThru programming on GM past model and Global A vehicles.

2. Increase reprogramming speed 20-70% and get ready to service new models.

3. For pass-thru programming of electronic control units on all vehicles built since 1996 and future model releases. The VCX Nano Prime GM Kit is between 20% and 70% faster than Tech2. For example, on a new Tahoe hybrid with 7 ECUS, it would normally take 2 full hours to reprogram. But, with VCX Nano the process is completed in just 45 minutes. That’s a 64% difference and means you could service 10 vehicles rather than 4 in an 8 hours day! The potential to increase revenues is dramatic.



Tech2Win Function:



Tech2Win is an application version of the GM Tech 2 and CANdi (Control Area Network diagnostic interface) module. Tech2Win can be used during a vehicle road test, offering a larger screen with all of the Tech 2 tool functionality.



The Tech2Win application offers all of the features and functions of the Tech 2 for Opel, SAAB etc.

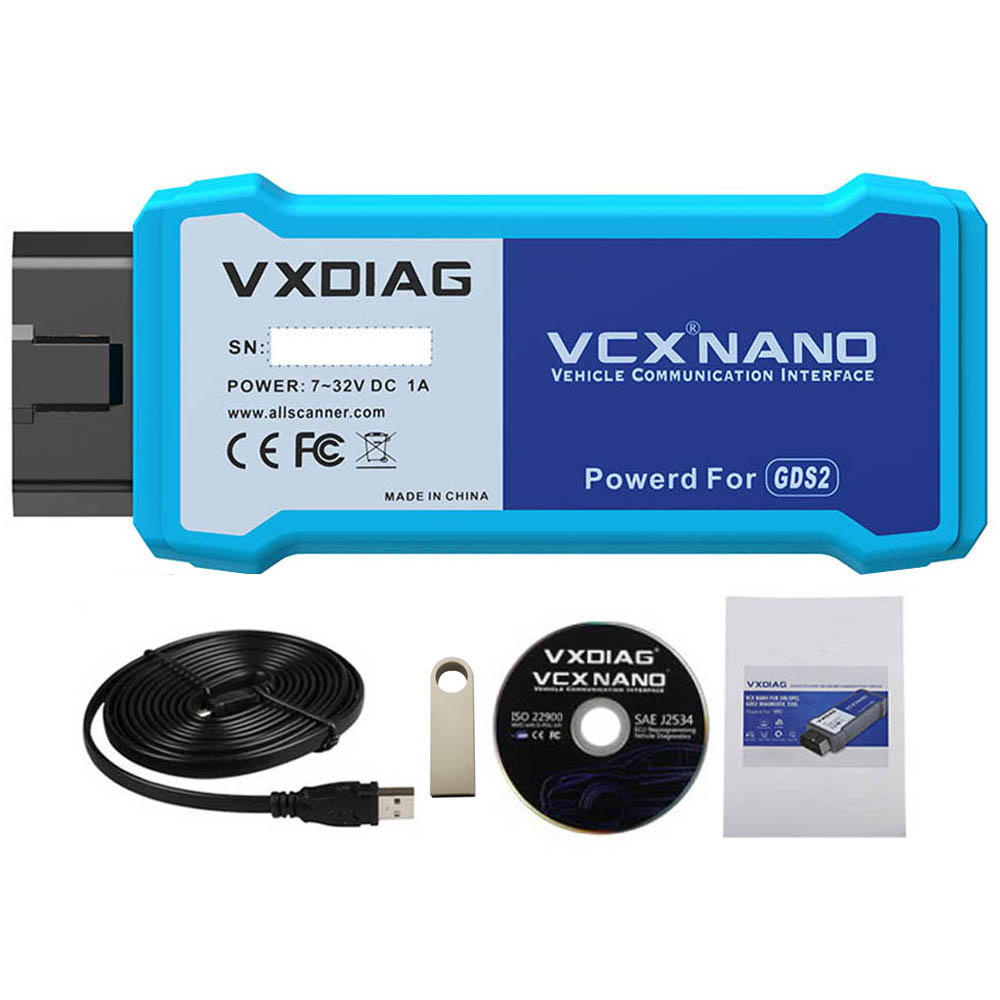

Packing List:



VXDIAG VCX NANO for GM Opel with WiFi

USB Cable
USB Disk with Software

Driver CD

User Manual

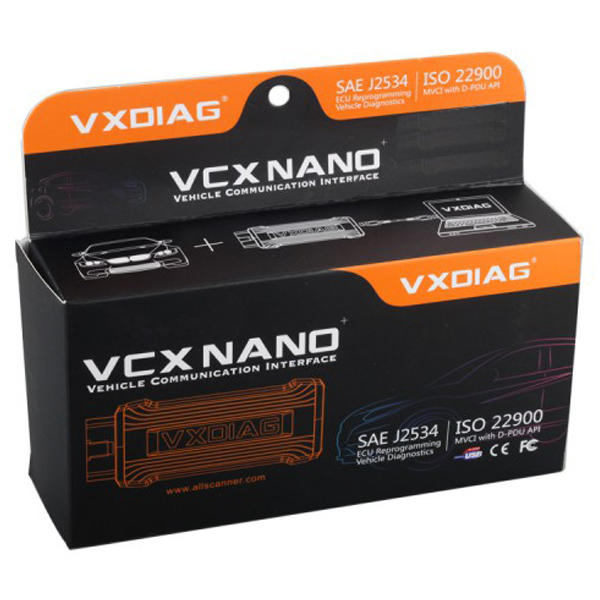

Packing Box
