Name: Launch DIY Code Reader CReader 6001 with O2 Sensor Test
Description:
Launch CReader CR6001 is a small-size color CReader with complete functions. It provides full OBD-II/EOBD diagnostic functions and meets protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4. It features a 2.8-inch color display, graphical data streams, USB interface internet update, as well as records and replays data.
Features:
1. OBD full functions
Read dynamic data streams
Read readiness status
Turns off Malfunction Indicator Light (MIL)
Query freeze frame data
Read current DTCs
Clear DTCs
O2 sensor test
On-board monitor test
Read pending DTCs
On-board system or component control
Read vehicle information
Read permanent DTCs
2. Color and Graphical Display of Data Streams
3. Query DTCs
4. Free Update via Internet
5. Data record and replay
6. Print Data via PC

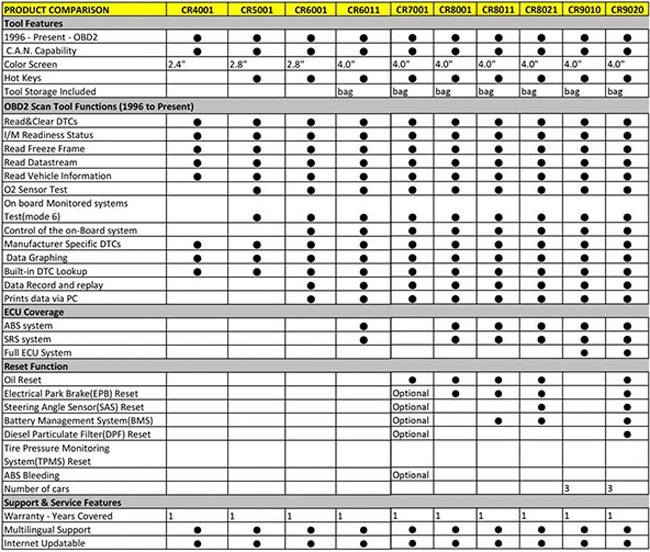

Main Difference Between the CR6001 and CR5001: CR6001 supports data record and replay function.
Specifications:
Screen: 2.8 inch TFT 320*240 dpi
Voltage Range: 9-18V
Operating Temperature: 0 to 50 degree centigrade
Environment Temperature: -20 to 70 degree centigrade
Dimension: 142*85*30mm
Weight: <320g
|
