Description:



Launch Creader CRP129X 2.0 is based on the classic and multifunctional diagnostic tool Launch Creader CRP129X, is designed for technicians to troubleshoot four systems with its state-of-art hardware/software plus multiple useful features such as 8 Reset Services.

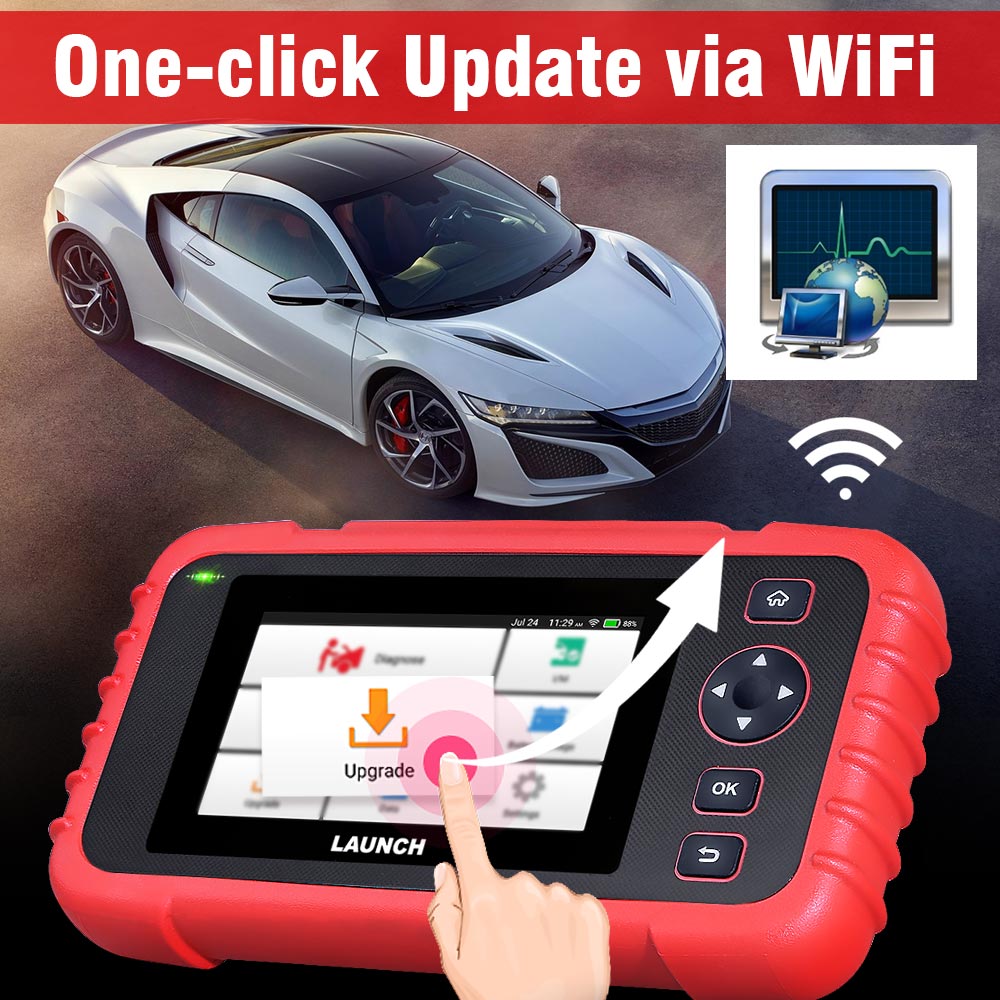

Software Update: free update online for lifetime



Supported Languages: English, French, German, Spanish, Portuguese, Italian, Russian, Japanese, Korean, China Traditional

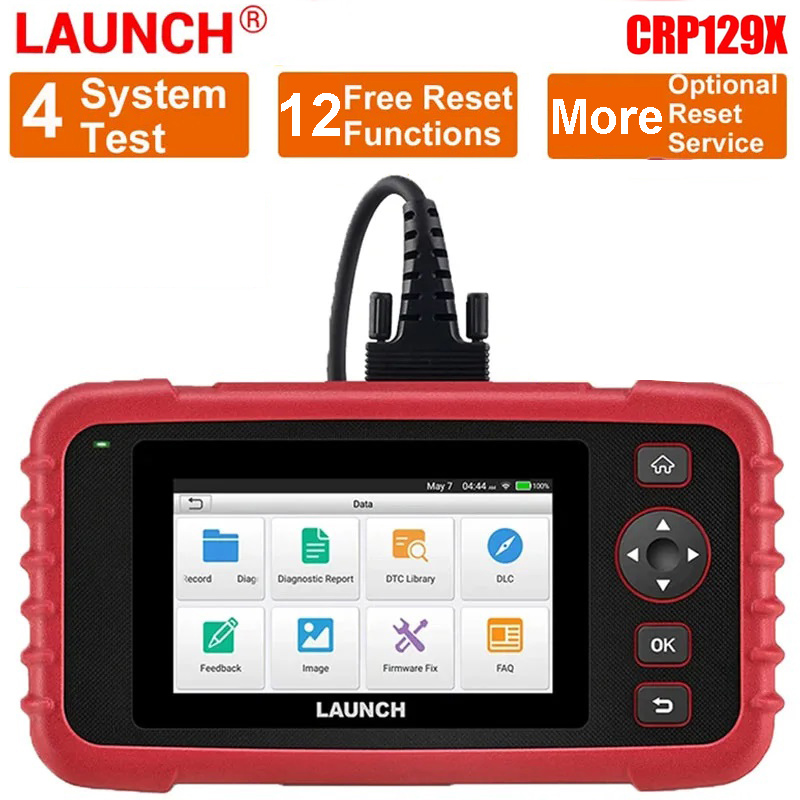

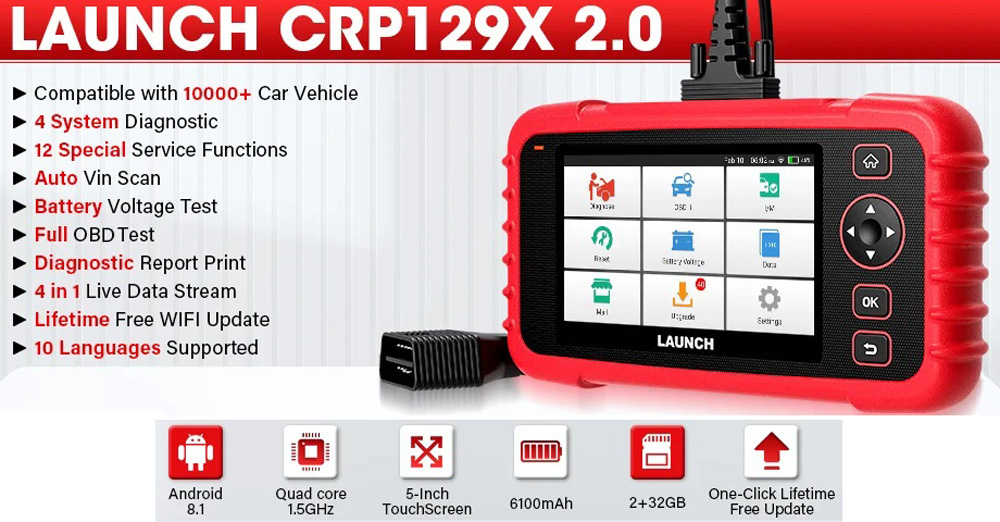

Features:



1. Four System Diagnosis.

2. 12 Free Reset Service: Oil Reset + EPB + SAS + TPMS Reset + Bleed Reset + DPF Reset + Injector Reset + BMS Reset + AFS Reset + ETS Reset + AdBlue Reset + Airfuel Reset

3. More optional Reset Service available for buying on Mall.

4. Battery Voltage Testing and Graphing.

5. AutoVIN Scan

6. SupportS 57+ car brands , 10000+ vehicles models. Works on most 1996 and newer OBD-II compliant vehicles. Cover OBD2/EOBD/JOBD vehicle.



Functions:

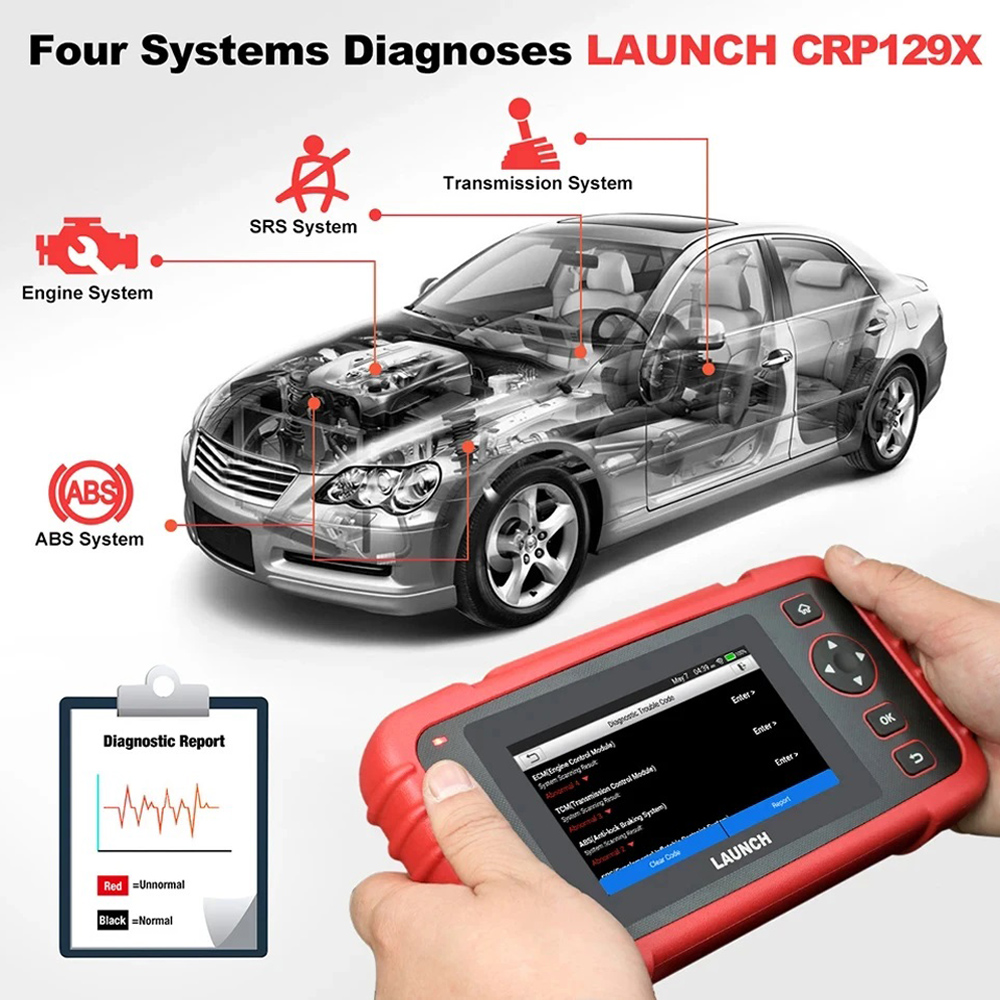

1. Four System Diagnosis

1). Engine System Diagnostic

Launch CRP129X OBD2 scanner Read and clear check engine light code on most 1996 & update models. Real time data allows you to view vehicle sensor, switch and relay inputs in real time while the engine is running. The instantaneous change of real-time data information can quickly identify the problem of components, which is helpful to analyze the problem.



2). Anti-lock Braking System

Launch Diagnostic Tool CRP129X is available for accessing and performing diagnostics on Anti-lock Brake Systems respectively Whether it is the brake pad deviation, the brake pad does not return to position, or other reasons of failure. Launch crp129X can easily locate, read the error code, and turn off the car fault light after maintenance.



3). Airbag System Diagnostic

X431 CRP129X OBD2 Scanner supports supplementary restraint system (SRS) diagnosis for most domestic and imported vehicles. By reading the codes and google DTC definition helps to solve the issue. It helps remind you even if maintenance, solve security risks.



4). Auto Transmission System

Launch Scanner CRP129X diagnostic scanner is an automatic transmission service tool that supports reading/erasing codes, viewing live data and turning off the warning light in the transmission system. The Launch CRP129X OBD2 Scanner provides the user a detailed view into this critical components operation and function, allowing fast, accurate and complete diagnosis of existing, or potential issues.

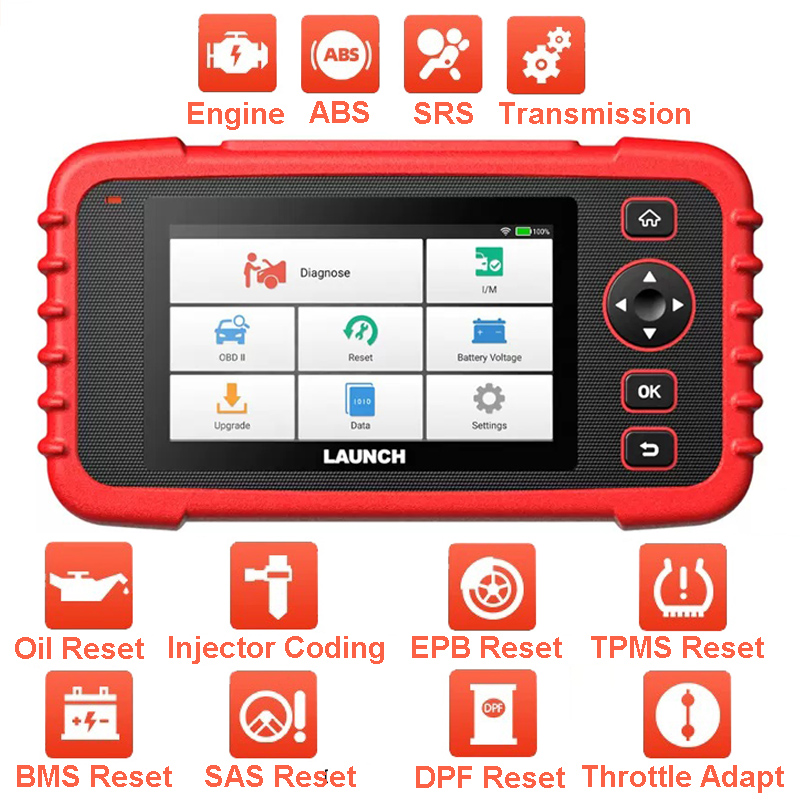

2. 12 Free Reset Service

1). Oil Reset

It is also enabled with an oil service and lamp reset mechanism, a function which ensures that the vehicle engine is maintained in its rightful healthy self.



2). EPB Service

Reset the brake pad after the repairs in electronic parking brake system are done. By using this system, the braking process is therefore made much simpler and easier.



3). SAS Reset

It helps clear the faulty steering angle sensor memories and plays an important role in the steering angle sensor calibration.



4). TPMS Service

Looks up the tire sensor IDs from the vehicle’s ECU, and performs TPMS programming and reset procedures after tire sensors are replaced.



5). Throttle Adaptation

Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.



6). DPF Regeneration

Clear particulate matter from the DPF filter to stabilize the filter performances



7). Injector Coding

Write the new injector numbers into the ECU for accurate communication and injection control.



8). Battery Register & Battery Maintenance

Perform a reset on the vehicle battery for clearing the fault information and re-match the battery.



9). AFS Reset

10). ETS Reset

11). AdBlue Reset

12). Airfuel Reset



3. 14 more Optional Reset Service Available to Buy on the Device

1). Reset Gear

2). Reset IMMO

3). Sun Roof

4). Gearbox Learn

5). EGR Adaption

6). A/C relearn

7). Intelligent Cruise Control

8). Engine Power Balance Monitoring

9). Motor Angle Calibration,

10). High Voltage Battery Diagnostics

11). GPF Regeneration

12). Air Level Calibration



4. All Modes of OBD-II Functions for Repair Work

Launch CRP129X supports all 10 modes for OBD-II cars which are great for daily repair work:



1 - Request Current Powertrain Diagnostic Data

2 - Request Powertrain Freeze Frame Data

3 - Request Emission-Related Diagnostic Trouble Codes

4 - Clear/Reset Emission-Related Diagnostic Information

5 - Request Oxygen Sensor Monitoring Test Results

6 - Request On-Board Monitoring Test Results for Specific Monitored Systems

7 - Request Emission-Related Diagnostic Trouble Codes Detected During Current or Last Completed Driving Cycle

8 - Request Control of On-Board System Test or Component

9 - Request Vehicle Information

10 - Request Emission-Related Diagnostic Trouble Codes with Permanent Status

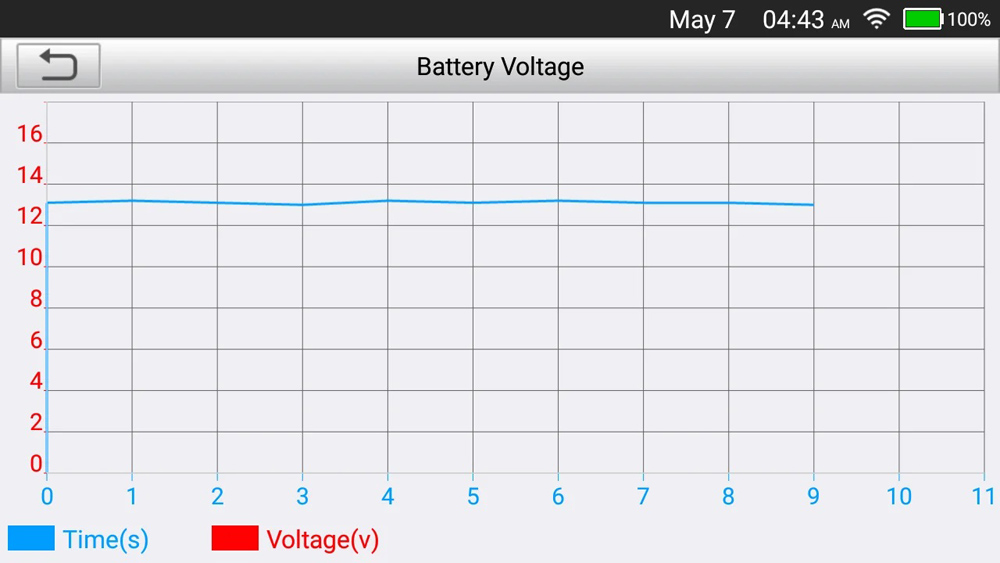

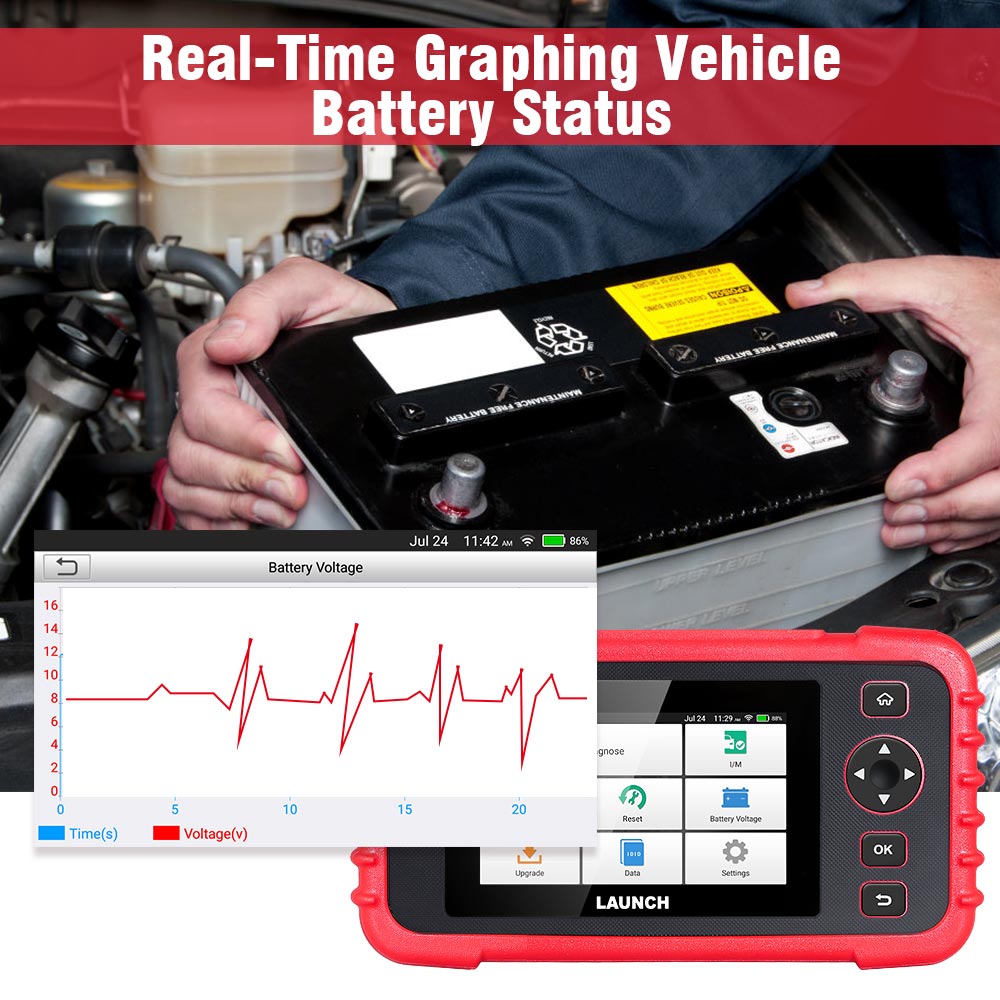

5. Battery Voltage Testing and Graphing

This function can show real-time graphing battery voltage of the car.

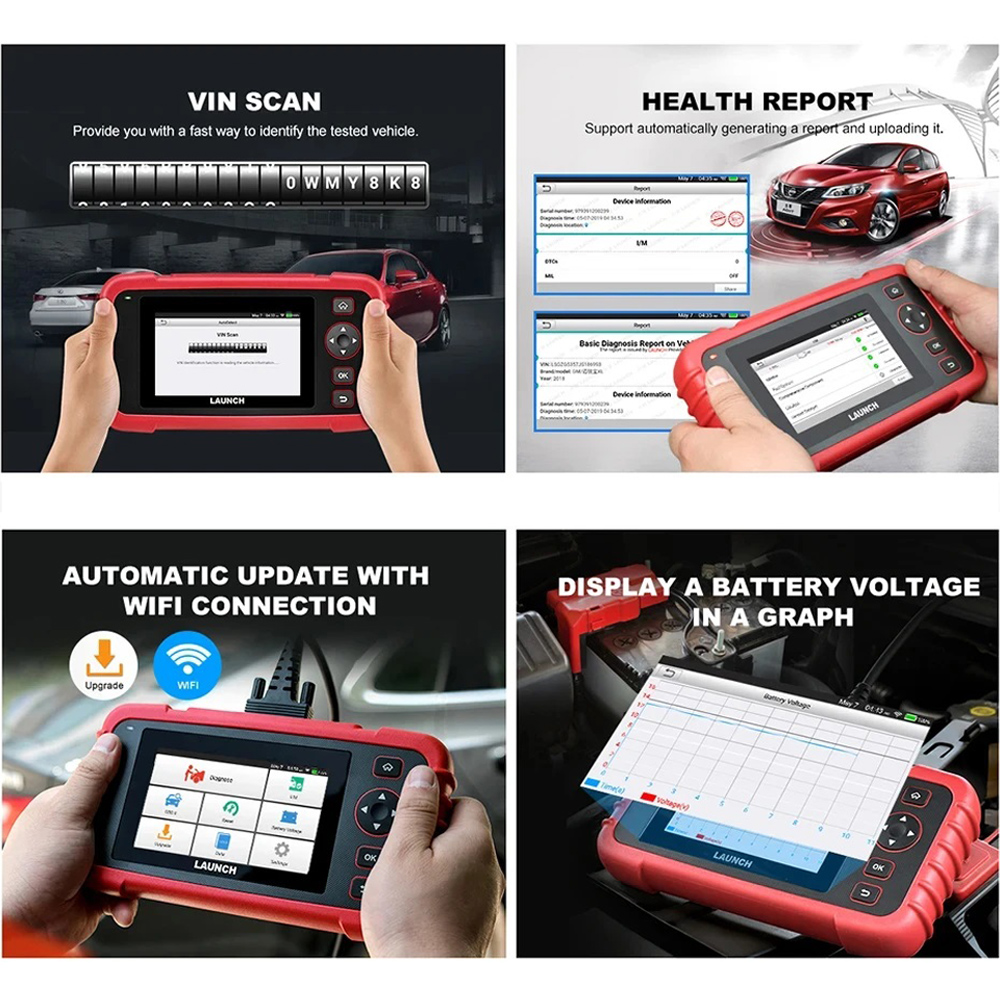

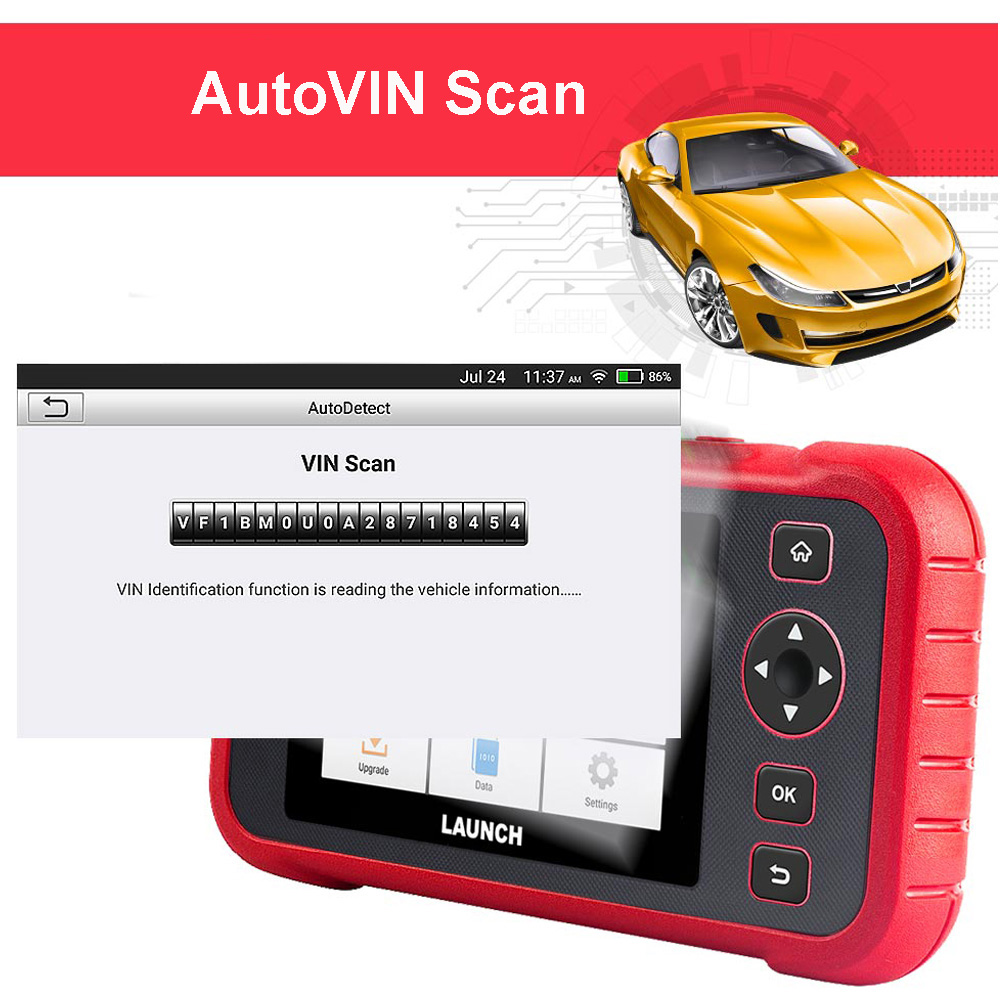

6. AutoVIN Technology for Efficient Analysis

Launch Creader CRP129X 2.0 equips with the AutoVIN technology which means that it will automatically read and store your vehicle’s VIN number, in one touch. It immediately identifies your car, and you don't have to enter the year, make, engine, etc. of your car.



1). Firstly, you can automatically identify the vehicle and perform a quick scan, to easily read and retrieve diagnostic trouble codes related.



2). Secondly, you can quickly match the right software that will enhance the diagnostic capabilities and resolve compatibility issues. AutoVIN retrieval plays an important role when choosing the correct firmware when performing an update.



3). Besides, being able to retrieve VIN will help you to easily track the previous records of a vehicle. The records will show the performance of the vehicle and other important aspects such as mileage. As a result, you will be able to make a more informed choice when purchasing a used car.

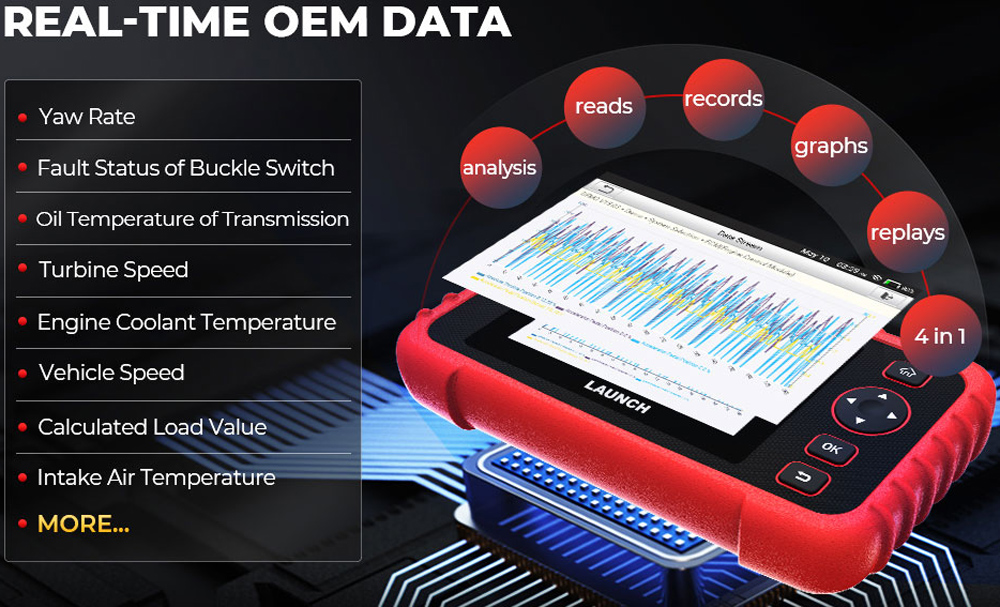

7. Real-Time Live Data Analysis, Record, Playback, and Sharing - Troubleshoot Complex Issues with Ease

1). When it comes to troubleshooting complex issues in your car, real-time live data analysis is essential. The ability to view, graph, record, and playback real-time values and system status information allows for more in-depth analysis and a faster solution. With the ability to customize the live data by only selecting the PIDs you wish to explore, either as a list or in graph mode, you can further customize your inspection and arrive at a solution faster.



2). Launch CRP129X 2.0 scan tool provides real-time live data analysis for a wide range of vehicle models. With the ability to view real-time values such as volts, rpm, temperature, speed, and system status information such as open loop, closed loop, and fuel system status, you can quickly identify issues and troubleshoot them with ease.



3). Live Data Stream Graphing feature provides detailed data stream information, including the changes in Accelerator Pedal Position Sensor, Throttle Valve Position, Fuel Tank Pressure, Long & Short Fuel Trim, and more. The graphical data allows you to analyze the data changes of each module more clearly and easily, making it easier to spot problems.



4). Live Data Stream Record allows you to record the live data stream and view the data of a certain point in a targeted manner. This feature is particularly useful when you want to view the data more clearly.



5). Live Data Stream Playback lets you view and analyze the data you have recorded at any time. You can choose to combine, report, or record the data to make it easier to analyze and troubleshoot complex issues.



6). Live Data Stream Sharing enables you to share any data status and content you want to display anytime, anywhere. You can send it to your friend or mechanic to help you solve complex problems.



7). 4 in 1 Live Data Graph

The car code scanner reads and displays live data stream in one graph for the 4 systems (Engine, ABS, SRS, and Transmission), allowing you to add 4 parameters in the meantime to show the live data, which is intended to help you quickly find potential problems of the vehicle.



8. Automatic Inspection Report Uploaded for Convenience

There might arise certain problems which would be beyond your level of understanding while diagnosing a vehicle. Launch X431 CRP129X allows you to save the Inspection Report and transfer the report to the Cloud Server, or even print the data via the PC.



Inspection Report includes two parts:



1). Vehicle Information

Year, Make, Model, VIN, Engine Size, Odometer, Vehicle Software Version, Diagnostic Application Version, Diagnostic Path



2). Inspection Result

Hence, if you would like to make your mechanic understand about the current problem at hand, then you are able to explain it in details. Rather than taking the additional hassle and confusing things, you would easily be able to hand the diagnostics report to anyone concerned. They would take a look at the whole thing and would then understand about what would need to be done.

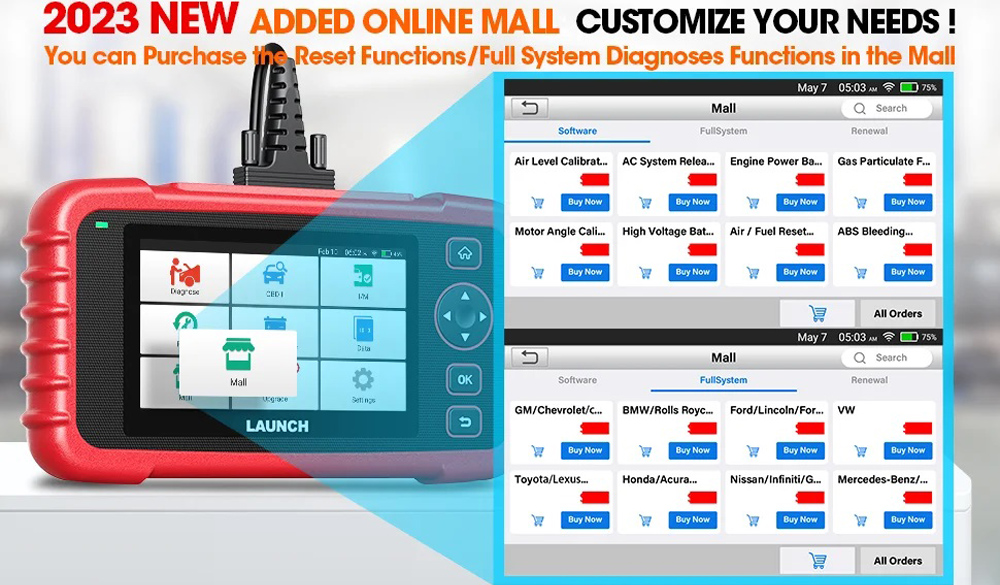

6. Newly Added "Mall" Function:

In view of the feedback from many customers that sometimes they need other special functions, such as ABS Bleeding , but they do not want to buy additional equipment. So our LAUNCH engineers updated the CRP APP and added the Mall menu. Users can purchase the desired reset functions / all systems all functions diagnostics (like bi-directional control, relearn, matching, coding functions) for certain car in the Mall menu as their needs. After the purchase is successful, you can view and use them in the "Reset" menu.



Notice:



1). The extra bought reset function is valid for one year. Please downloading to your scanner can keep using it for unlimited time, but can not be renewed after one year.



2). These special functions is optional as your demand, Please think twice before you buy it and please confirm the compatibility before purchase!



Supported Cars(Over 57+ Car Brands / 10000+ Models):



Asia:

Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Nissan GT-R, Samsung, Subaru, Suzuki, Toyota, Tlisuzu



Europe:

Abarth, Alfa Romeo, Audi, BMW, Bugatti, Dacia, Eu Ford, Fiat, Jaguar, Lancia, Mercedes, Mini, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Sprinter, Landrover, Citroen, Volvo, VW, Vauxhall



South America:

GMSA



USA:

Buick, Cadillac, Chevrolet, Dodge, Ford, GM, Chrysler, Jeep, Lincoln



Australia:

Au Ford, Holden

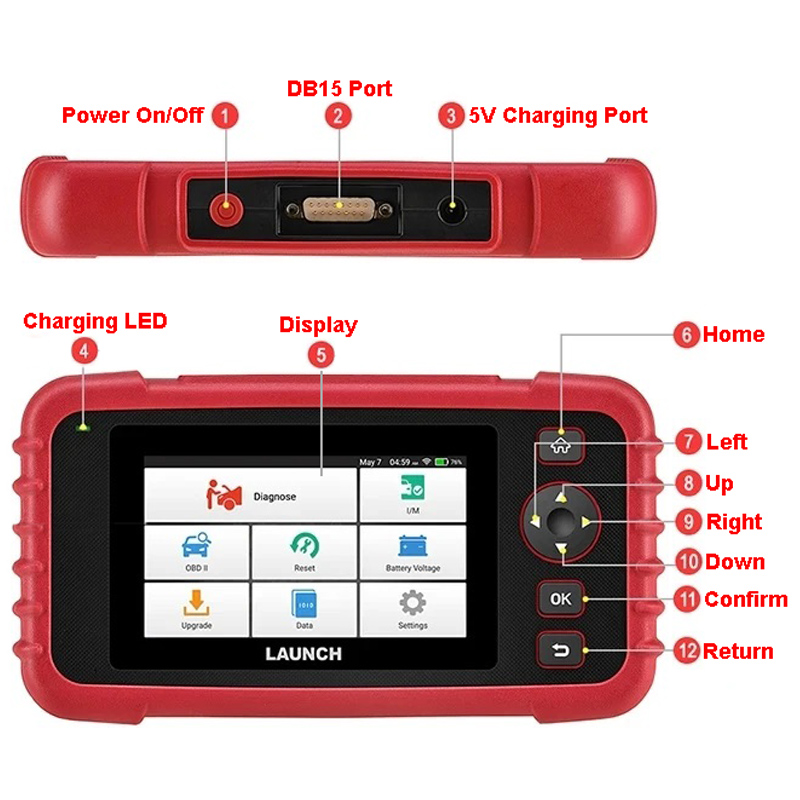

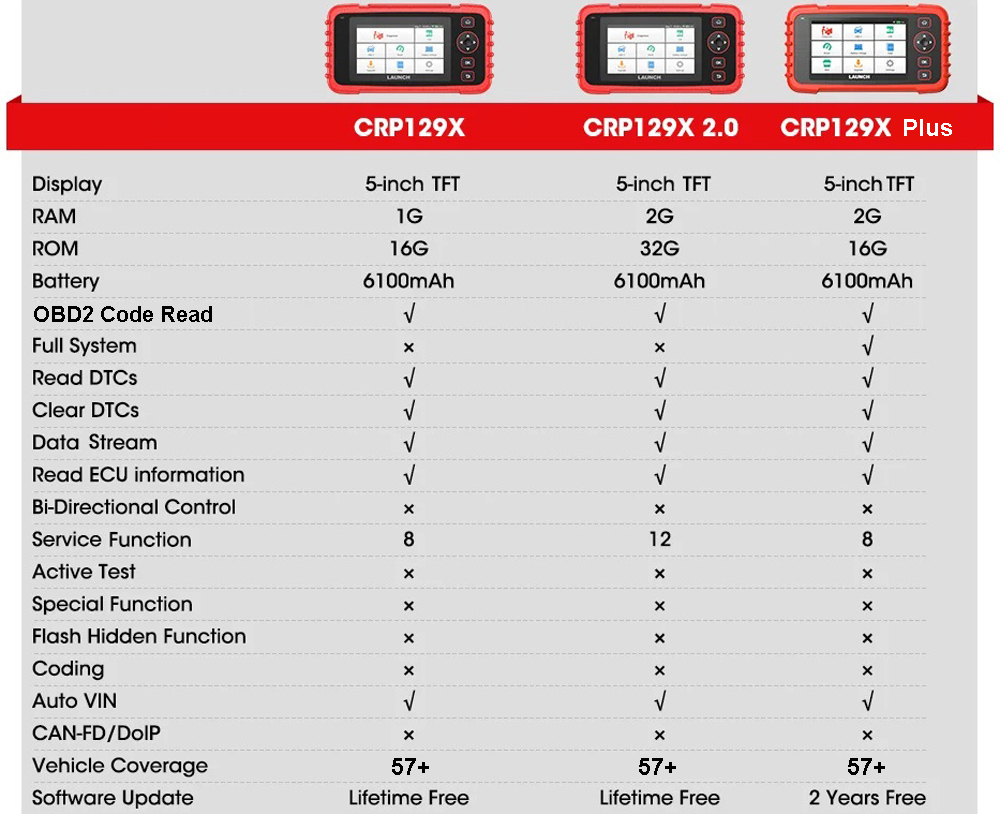

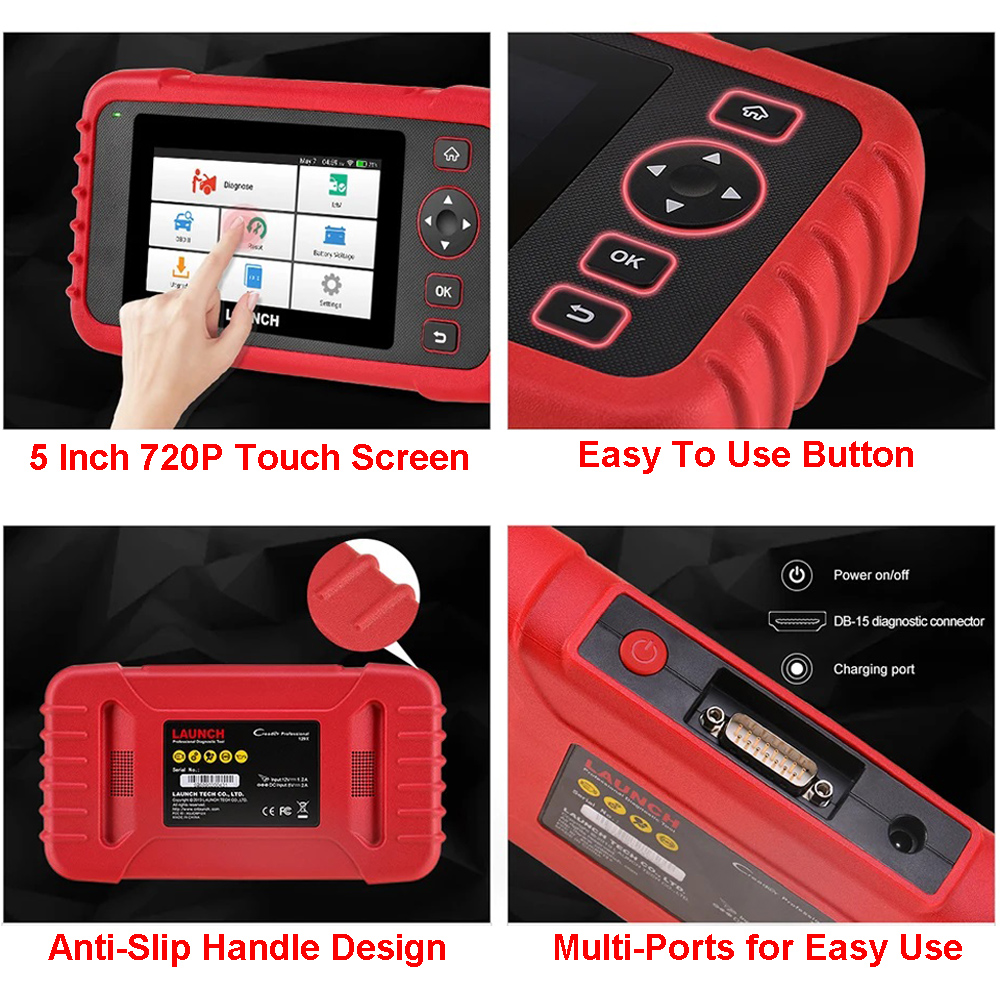

Specifications:



Operation System: Android 8.1

Display: 5 inch 720P touch screen

RAM: 2GB

ROM: 16GB

Battery: 6100mAh rechargeable Li-battery charging via DC 5V cable or diagnostic cable from vehicle DLC

OBD-II Input Voltage Range: 9V to18V

Dimension: 228*125*34.5mm

Working Temperature: -10 to 50 degree centigrade

Storage Temperature: -20 to 70 degree centigrade

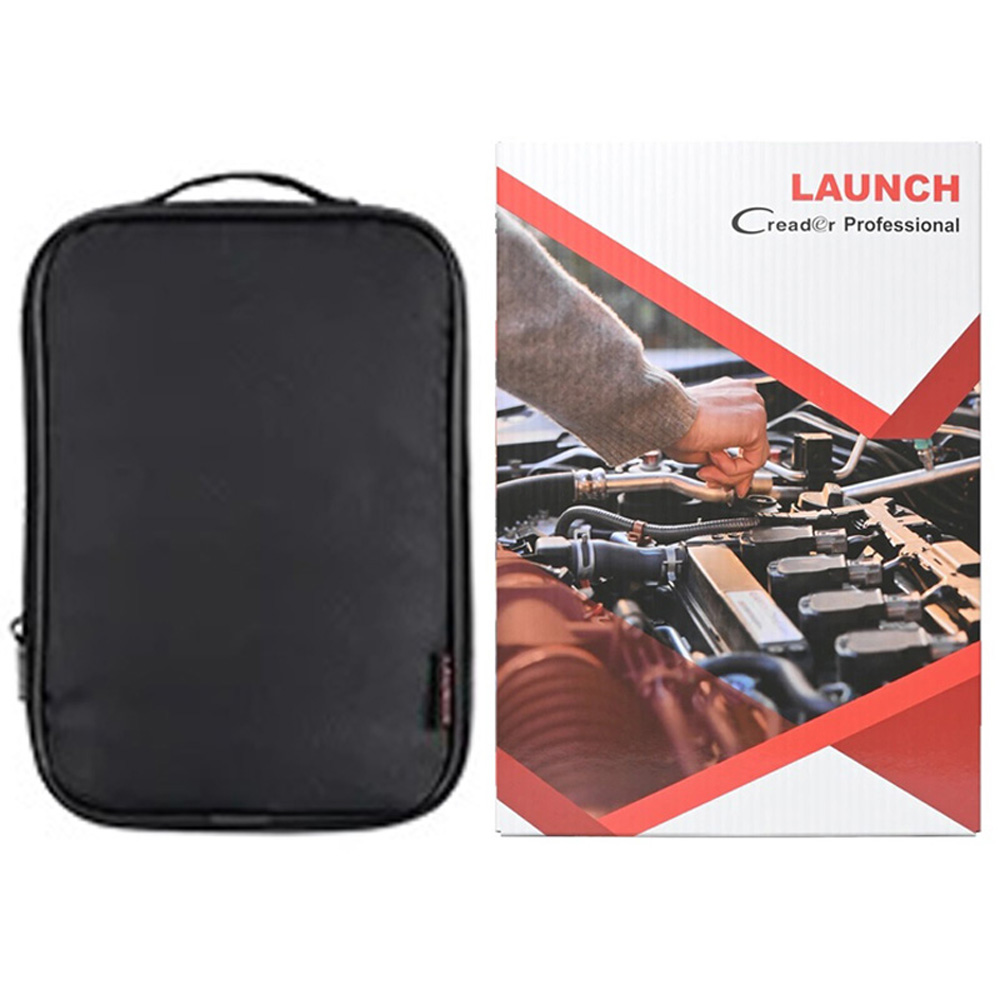

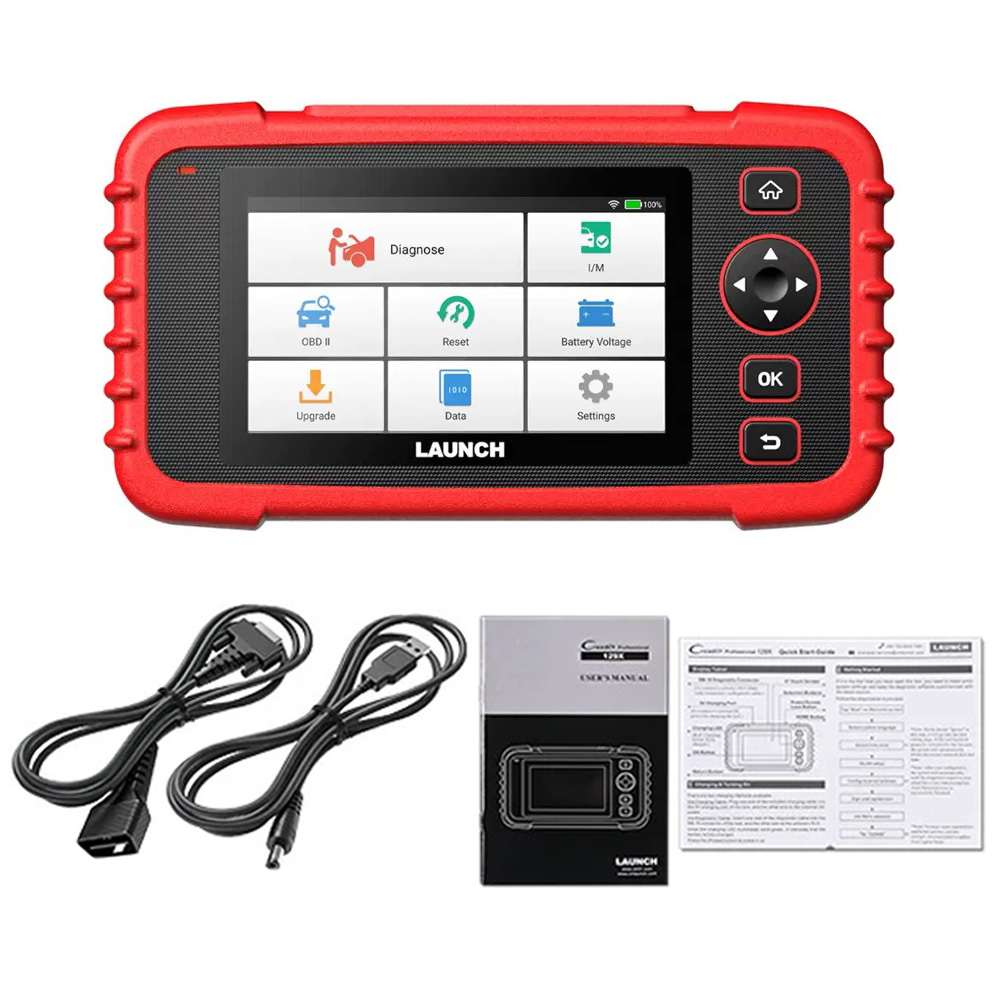

Packing List:



Launch Creader Professional 129X 2.0

OBD-II Diagnostic Cable

DC 5V Charging USB Cable

User Manual

Quick Start Guide

Carrying Pouch

Packing Box
