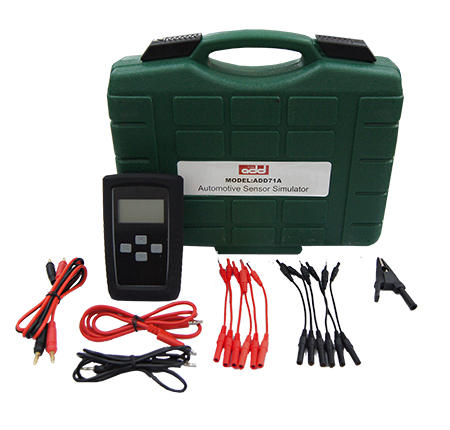

Name: Sensor Simulator ADD71A

Description:

Sensor Simulator ADD71A is a specially designed for automotive repair technicians with superior performance automotive fault diagnostic tool. It is mainly used for automotive electronic control system to simulate a variety of sensors. Accurately determine the quality of the sensor to reduce the blind replacement parts, to ensure maintenance of skills before purchasing accessory. You can accurately judge the quality of the accessory.

Features:

1. Digital display analog output signal: Frequency 0 - 4000Hz, Voltage 0-1V / 0-5V, Resistor 100-20K.

2. Analog temperature sensor, throttle position sensors, switches, air flow meter, lambda / oxygen sensor.

3. Simulated vehicle speed sensor (VSS), crankshaft position sensor (CAM), camshaft position sensor.

4. Do not remove any sensor analog sensor actual operating conditions: ABS speed, crankshaft position, camshaft position, coolant temperature, oxygen sensor, intake air temperature inlet pressure, inlet flow.

5. Through the analog sensor signal, the decoder can (scan tool) to observe changes in the relevant parameters reflect and check the operation of the ECU can determine the fault location is in the ECU car itself or the line between the ECU and the sensor

Technical Specifications:

1. Display: 12864 LCD

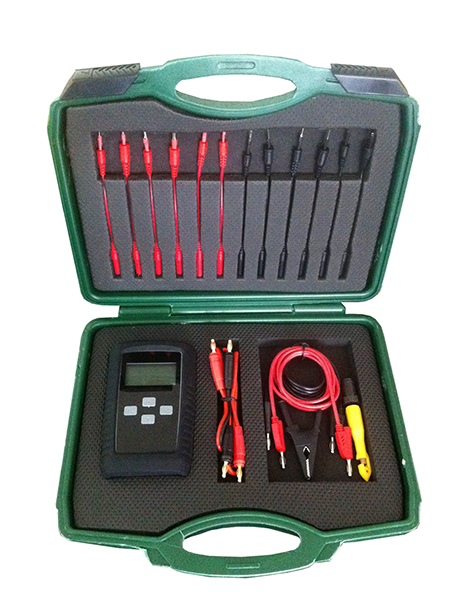

2. Test Leads: 2 punctured wire clip and 4 feet cable
3. Power Source: 2 R03 AA batteries
4. Battery Life: approximate 25 hours, with low battery indicator and auto power
5. Dimensions (including holster):  134*85*30mm
6. Weight: approximate 406g

Electrical Specifications:

1. Output Range:  0 to 5V
2. Input Voltage: 5.0V±0.1V
3. Operating Temperature： -10 to 40 degree centigrade
4. Storage Temperature： -20 to 60 degree centigrade
