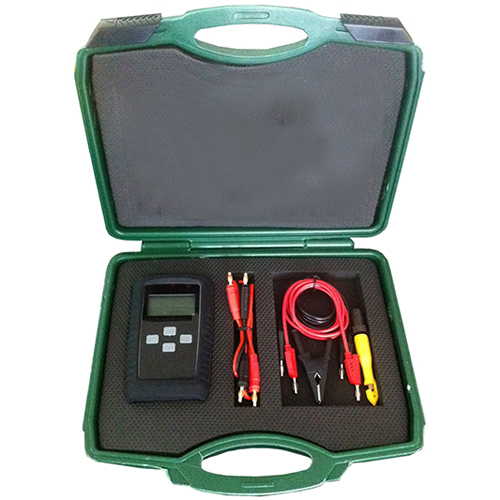

Name: Oxygen Sensor Tester and Simulator ADD290
Description:
Oxygen Sensor Tester and Simulator ADD290 is designed to test and simulate any Oxygen Sensor signal to quickly determine whether the Oxygen sensor is defective and needs replacement. It can be used to perform as both a stand-alone tool or as a complement to any scanner during the diagnostic process.
It is compatible with all types of Oxygen Sensors: Zirconium; Titanium 1 volt; Titanium 5 volt; Wide Band "dual-cell"; and heated or unheated (1, 2, 3or4 wires).
ADD290 is simple to set-up and use, and provides the means for fast and accurate testing, showing the sensor's output signal in real time on the LCD screen, which allows to diagnose "Lazy" sensors which may not trigger DTCs but cause drivability problems.
It also display cross counts on an alphanumeric, can simulates normal, rich and lean conditions. Sensors can be tested ON or OFF vehicle, and it does not require time-consuming set-up or in-depth knowledge.
Technical Specifications:
1. Display: 12864 LCD 2. Cross Count: 0.3 to 20 CPS 3. Test Leads: 2 punctured wire clip and 4 feet cable 4. Power Source: 2 R03 AA batteries 5. Battery Life: approximate 25 hours, with low battery indicator and auto power 6. Dimensions (including holster): 158*100*37mm 7. Weight: approximate 406g
Electrical Specifications:
1. Input Range: 0 to 5V 2. Input Protection: +/- 48V DC maximum, current limited 3. Auto Detection: detects reversed polarity, ground, heater and open connection 4. Voltage: 5.0V±0.1V 5. Operating Temperature: -10 to 40 degree centigrade 6. Storage Temperature: -20 to 60 degree centigrade
Applications:
1. Test zirconium sensors 2. Test titanium 1 Volt sensors 3. Test titanium 5 Volt sensors 4. Test 1 to 4 wires sensors (heated and unheated) 5. Simulate rich and lean sensor output 6. Simulate normal sensor output
|
