Name: Cummins INSITE 8.2 Software Pro Version
Description:
Cummins INSITE 8.2 software supplies engine information quickly, getting the inside details you need. No matter what kind of equipment you run, INSITE is the one support product to have in your virtual tool box to fit every Cummins electronic engine.
Difference between Cummins insit 8.2 Software Pro version and Lite Version:
Pro version including all function of Lite version, and also including Automotive Calibrations Data Cummins INCAL and Reflash ECU data, read & write ECU.
Cummins INSITE 8.2 Software is compatible with following hardware:
1. Cummins INLINE 6 Data Link Adapter
2. Cummins INLINE 5 Data Link Adapter
3. DPA5 Dearborn Protocol Adapter 5 Heavy Duty Truck Scanner
4. NEXIQ USB Link
5. XTruck USB Link
6. AUGOCOM H8 Truck Diagnostic Tool
Supported Languages:
English US, French, German, Spanish, Portuguese, Russian, Italian, Turkish, Danish, Dutch, Finnish, Japanese, Korean, Norwegian, Swedish, Chinese Simplified
Supported OS: Windows 7 32 bit
Cummins INSITE 8.2 can provide your business with:
• Trip and vehicle information

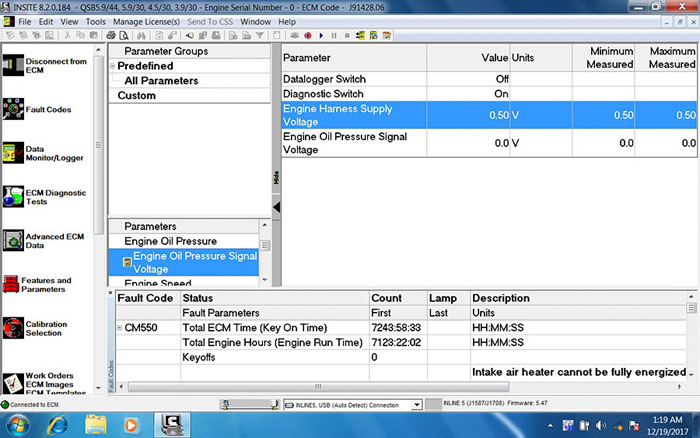

• Parameter and feature adjustment
• Accurate problem diagnosis
• Complete wiring diagram sand sensor location maps
• Step-by-step trouble-shooting information
• Fault tree information
• Fault code and symptom-based diagnostics

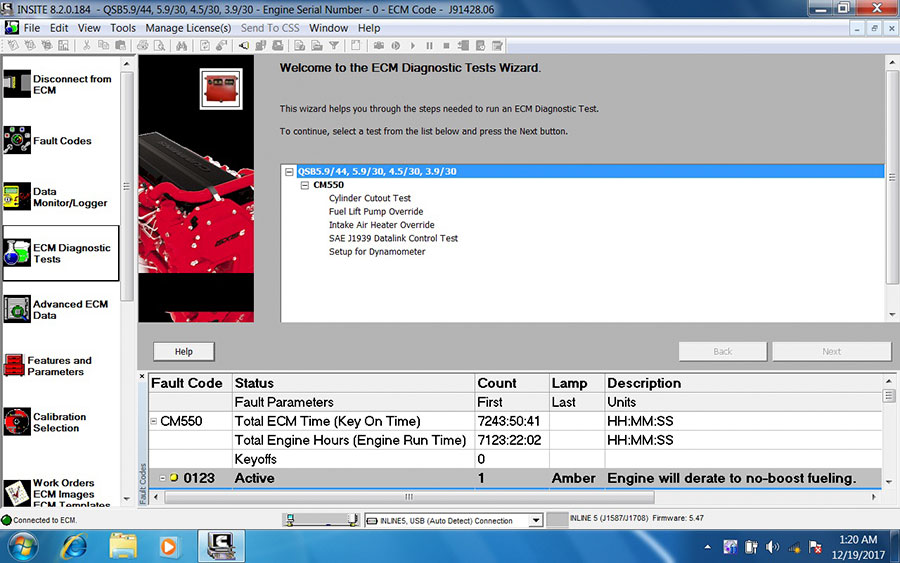

• Engine diagnostic tests
• Tools to create templates for a group of vehicles
• Fleet management/driver reward programs(Need purchase seperately)
• Audit trail information
• Enhanced ECM security(Need Purchase seperately)
• Automotive Calibrations Data Cummins INCAL(Pro function included )
• Reflash ECU data, read & write ECU(Pro function included )
Functions:
Support SAE J1708/J1587 and J1939/CAN data links
Support USB full speed port at up to 2M baud rate
Support RS-232 PC/PDA serial port at up to 115.2k baud rate
It's fully compliant with TMC's RP1210 standard
Small enough to fit in pocket
Aluminum housing provides ruggedness
Derives 8 V to 50 V DC power from vehicle
Includes advanced processor for maximum speed and performance
Internal Flash memory allows firmware upgradeability
Includes 5 LEDs to indicate power and USB, RS-232, J1708/J1587, and J1939/CAN communications
Rated for -40 to 85 degree centigrade operating temperature
Notice:
Cummins INSITE 8.2 is offered in four functional levels: Basic, Lite, RSGR and Pro, ranging from a read only access level to full-function access and capability for the service professional.
This is Cummins INSITE 8.2 Pro Version support 500 times. Software needs activation, we offer one time free activation. One activation including 500 times.
|
