  OBDSOS PRODUCTS Motorcycle Diagnostic Tool

Product ID SP237
Product Name MCT-500 Motorcycle Diagnostic Scanner
Product Price USD280
Actual Weight (Kg)
Volumetric Weight (Kg) 2
Package Size (cm)
Related Download
Order Quantity:
In Stock



Description

Name: MCT-500 Motorcycle Diagnostic Scanner

Description:

MCT-500 Motorcycle Diagnostic Scanner Tool is updated generation of MCT-200 Motorcycle Scanner. MCT-500 is mainly for Asian Motorcycles and it is hot sale in Asian countries.

Supported Languages:  English, Chinese, Vietnamese, Indonesian

Software Version: V2.5

Features:

1. Hand-held operation, convenient and flexible
2. Support for SD cards to store data and upgrades, more convenient and easy
3. Reserved CAN BUS interface
4. 3.2 inch color screen with clear menu

Functions:

1. Read the information system
2. Read the data stream
3. Read fault codes
4. Clear fault codes
5. Freeze data
6. CO idle speed adjustment

Support Motorcycles:

Aeon
Dayun
Hartford
Honda
Kawasaki
KTM
Kymco
PGO
Piaggio
Suzuki
SYM
Vespa
Yamaha

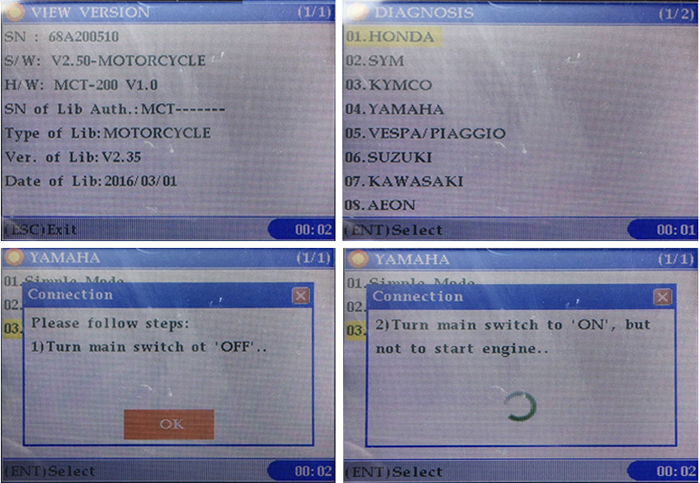

Supported Functions:

(1) ECU Information
(2) Dynamic Data(In the dynamic data, you can check waveform, about the change of  numerical curve.)
(3) Read Fault Code
(4) Clear Fault Code
(5) Component Test
(6) Special Function( Accelerator Reset, ISC Reset, CO Volume Adjust…)

Specifications:

Power: DC10-15V
Operating Current: 250mA
Screen: 160*105 LCD
Keyboard: membrane keyboard
Storage Temperature: -10 to 85 degree centigrade
Operating Temperature: 0 to 70 degree centigrade
Humidity: <90%

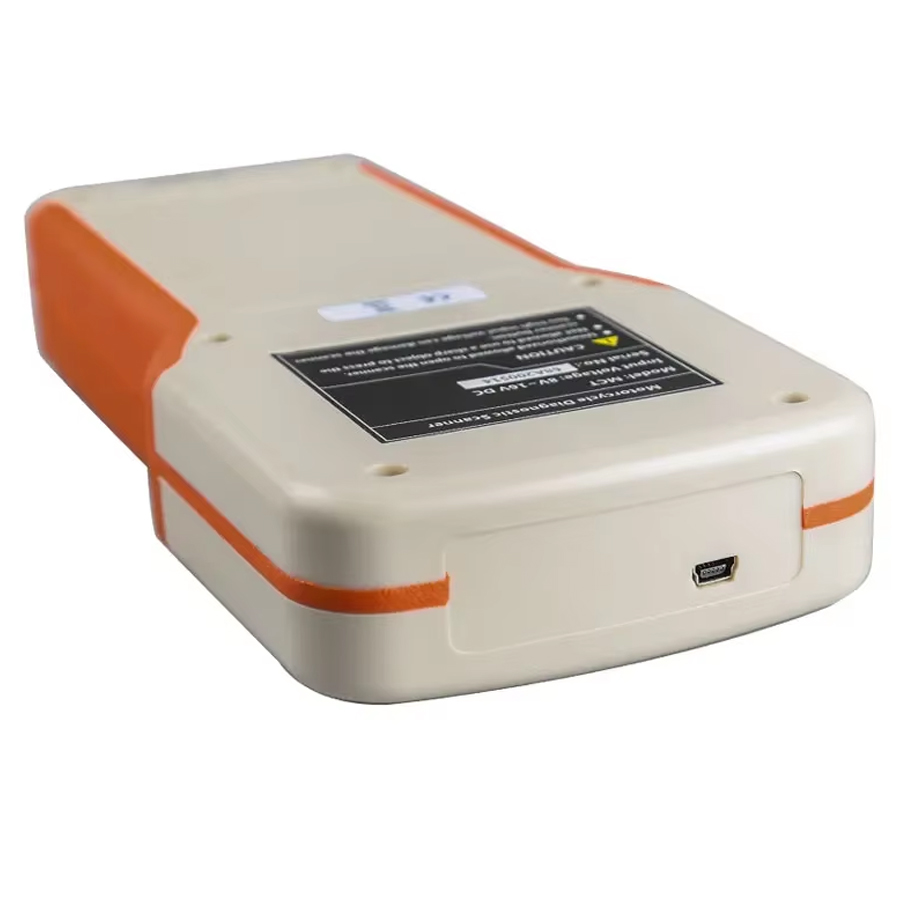

Upgrade Ports: USB

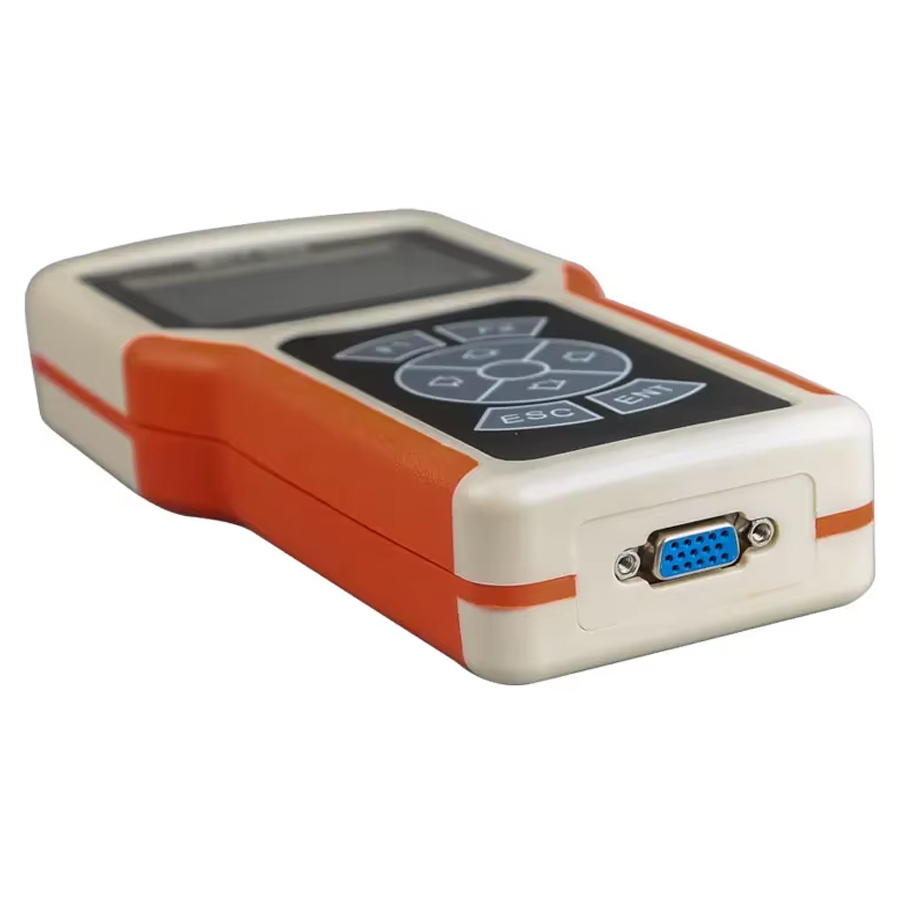

Communication Ports: COM

Operation Instructions:

1. Update procedure:

1) Connect to PC via USB cable, select "USB storage" option, the PC will detect the device as new flash disk.
2) Copy the update tool files to disk, follow the tips to finish updating procedure. (If your TF card can not be reset, please follow the tips to disconnect and connect power again to finish updating procedure)

2. Device can be used as a USB flash disk
When connect USB cable with PC and select "USB storage" option, the device can be used a USB flash disk which can save files based on your needs.

Disable the flash disk on PC when finish using. The scanner will go back to main menu automatically.

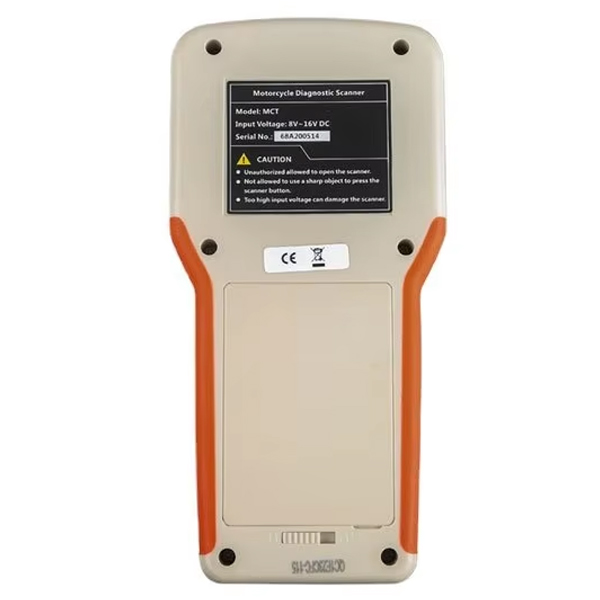

3. Replace TF card and battery:
If the TF card is damaged or the battery is low, open the device back cover to replace. Make sure the scanner is power off before replacing.

Notice:

1. TF card must be FAT32 format. Otherwise the scanner will not work properly

2. Battery is not included in package. Please buy 3V battery yourself.

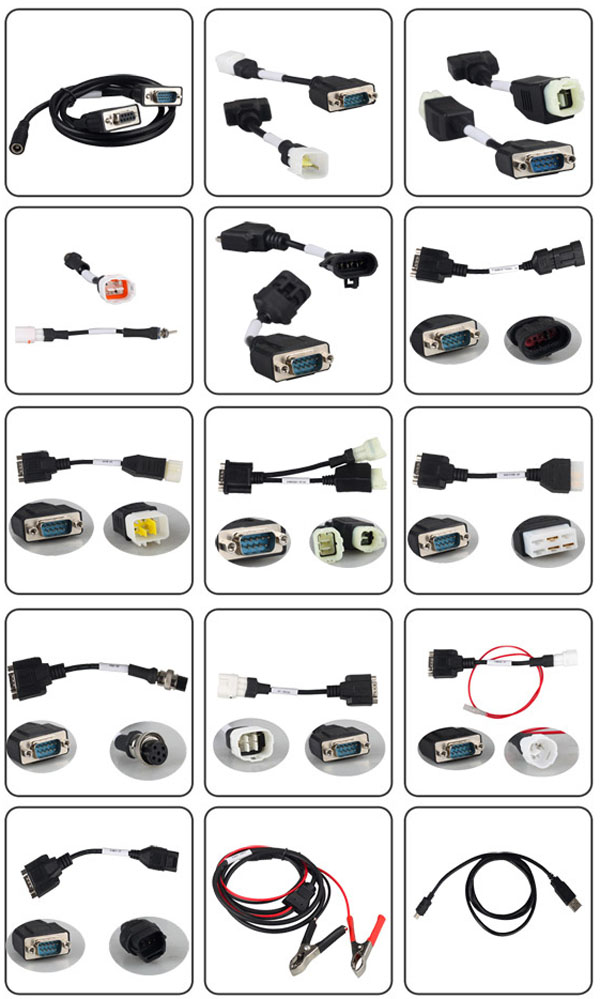

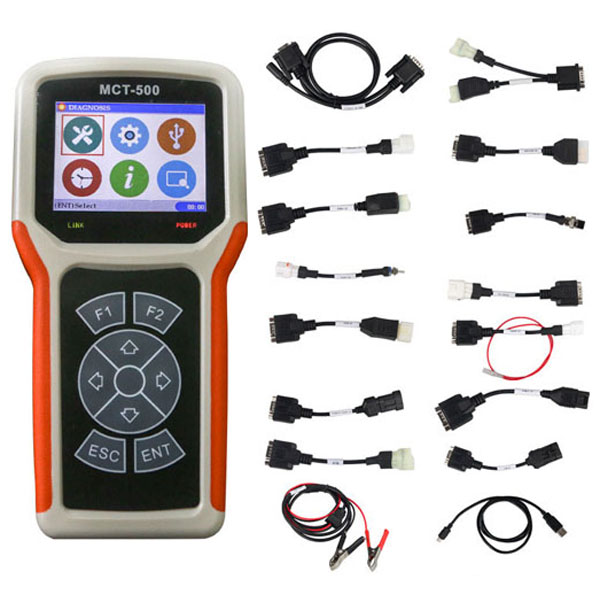

Packing List:

MCT-500 Motorcycle Scanner
Main Test Cable
AEON-1 Cable
HARTFORD Cable
HONDA Cable
KAWASAKI-4-Pin Cable
KAWASAKI-4/6-Pin cable
KYMCO Cable
PGO Cable
PIAGGIO/VESPA Cable
SYM Cable
SUZUKI 4-Pin Diagnostic Cable
SUZUKI 6-Pin Diagnostic Cable
YAMAHA Cable
USB Cable
Battery Clamp
TF Card
Carrying Case
