  OBDSOS PRODUCTS Truck / Engine Diagnostic Tool

Product ID SH99
Product Name Autel MaxiSys MS908CV Heavy Duty Truck Scanner
Product Price USD2200
Actual Weight (Kg)
Volumetric Weight (Kg) 10
Package Size (cm)
Related Download
  Autel MaxiSys MS908CV Manual.pdf
Order Quantity:
In Stock



Related Products
Description

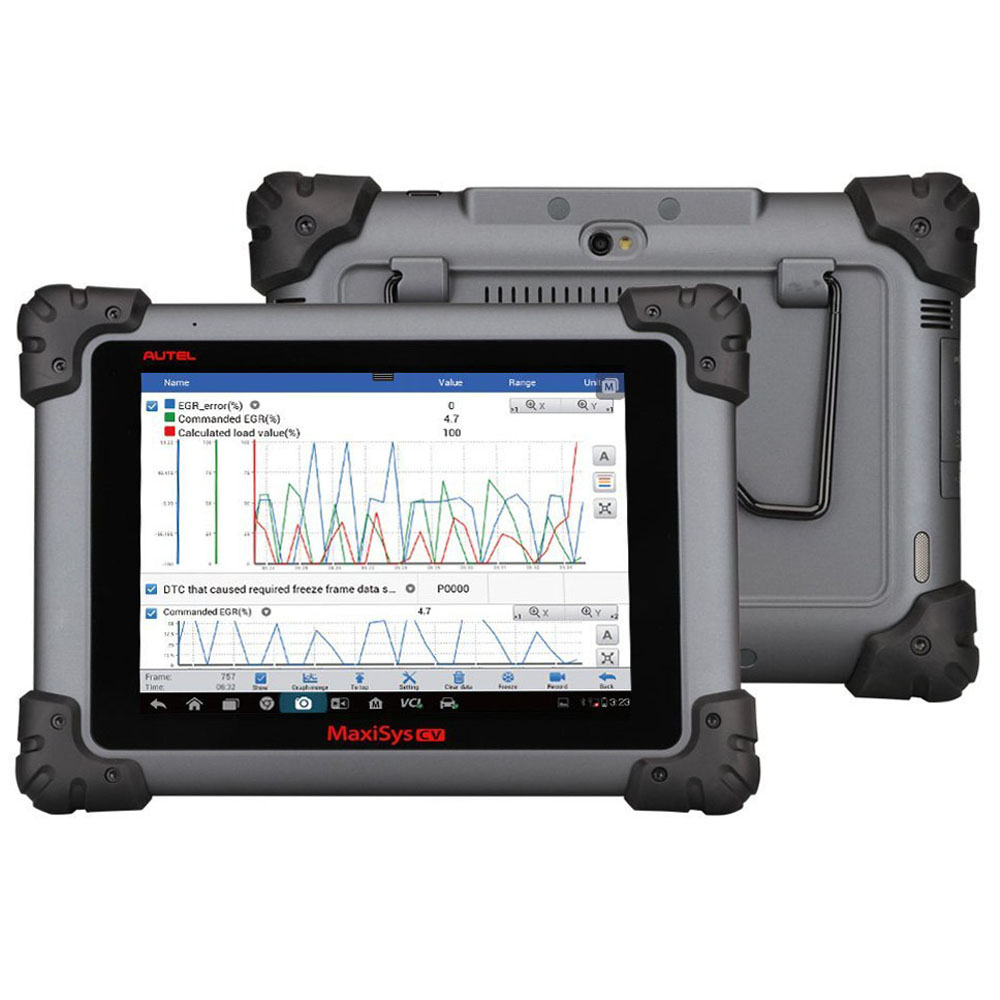

Name: Autel MaxiSys MS908CV Heavy Duty Truck Scanner

Description:

Built on the Autel MaxiSys Android-based platform, Autel MaxiSys CV performs enhanced system diagnostics on more than 60 light, medium, and heavy duty commercial vehicle brands. Read and clear codes, view and graph live data, perform tool-guided maintenance services, complete an array of special functions and diagnose manufacturer-specific systems including Allison transmissions, Bendix ABS Brake systems, Detroit Diesel Engines and Eaton and Wabash ABS trailer brakes.

The complete Autel MaxiSys MS908 CV kit includes a compact sized Autel MaxiFlash Elite which performs J2534 and J2534-2 pass-thru programming and provides Bluetooth VCI communication between the vehicle and Autel MaxiSys 908 CV tablet.

Software Update: one year free update online

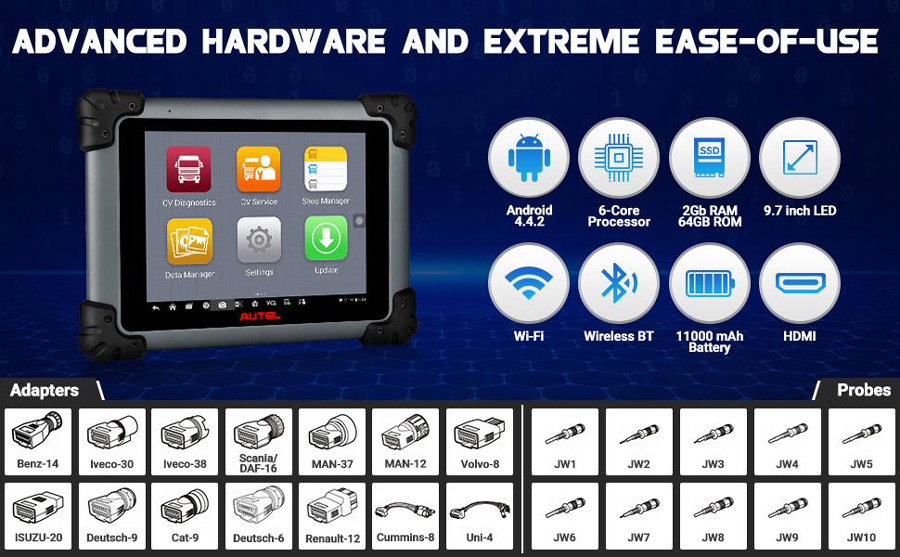

Hardware:

1. Extraordinarily powerful Cortex-A9 quad-core processor
2. 9.7 inch 1024*768 LED-backlit glossy Multi Touch capacitive display with IPS technology
3. Internal reliable and fast 32GB Solid State Drive for better performance
4. Built-in 5-megapixel rear camera with autofocus and flashlight
5. Dual-band (2.4GHz & 5.0GHz) 802.11n Wi-Fi to access your favorite web resources

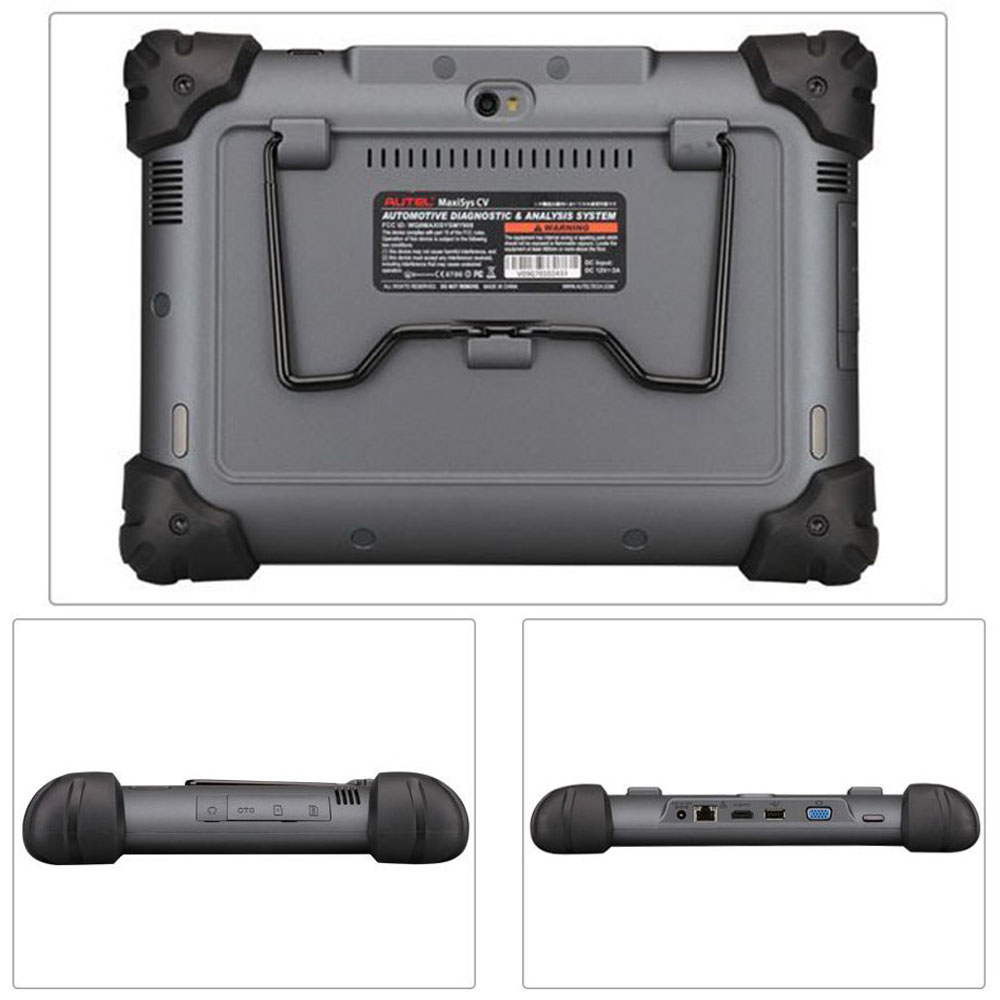

6. Unique shop tough ergonomic design features strong rubber protection and housing;
7. Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
8. USB, audio and auxiliary ports make it easy to connect accessories
9. The VCI connects to the main unit wirelessly with up to 230 meters working range

Software:

1. Open source Android Operating System for fast boot-up and multitasking
2. Easy and intuitive navigation makes finding what you need simple and fast
3. Extensive vehicle coverage for more than 80 US, Asian and European commercial vehicle makes and machines
4. Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding

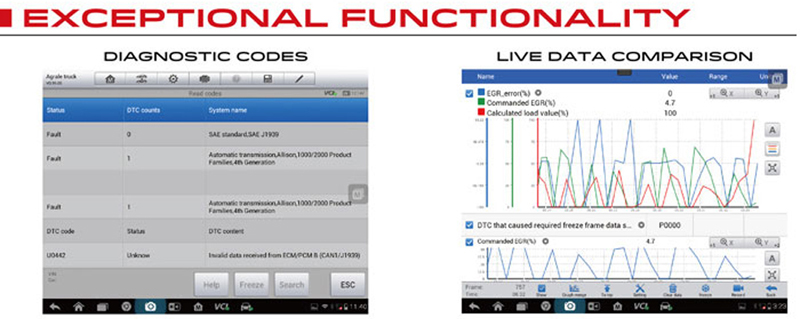

5. Displays live data in text, graph, analog and digital gauge for easy data review and analysis
6. Configures display options, sets triggers, records and playbacks results with one touch
7. Records and playbacks live data to pinpoint troubles of sensors and components
8. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
9. Remote technical support for convenient demonstration, training and increased customer satisfaction
10. Prints out recorded data anytime and anywhere with Wi-Fi technology
11. Automatic Wi-Fi updates available in new software releases

Functions:

1. OE-Level Full System Diagnosis:

Autel Maxisys MS908CV diagnostic scan tool can access and diagnose ALL available vehicle modules wirelessly. With an ultra long working range of about 210 Feet(70 m), you can perform vehicle OE-Level All Modules diagnosis and services remotely without worrying about the cable might not be long enough or the limited space and hot air in your car.It can read and clear codes, display live data in text, graph, analog and digital gauge for easy data review and analysis, read ECU information, perform Active Tests.

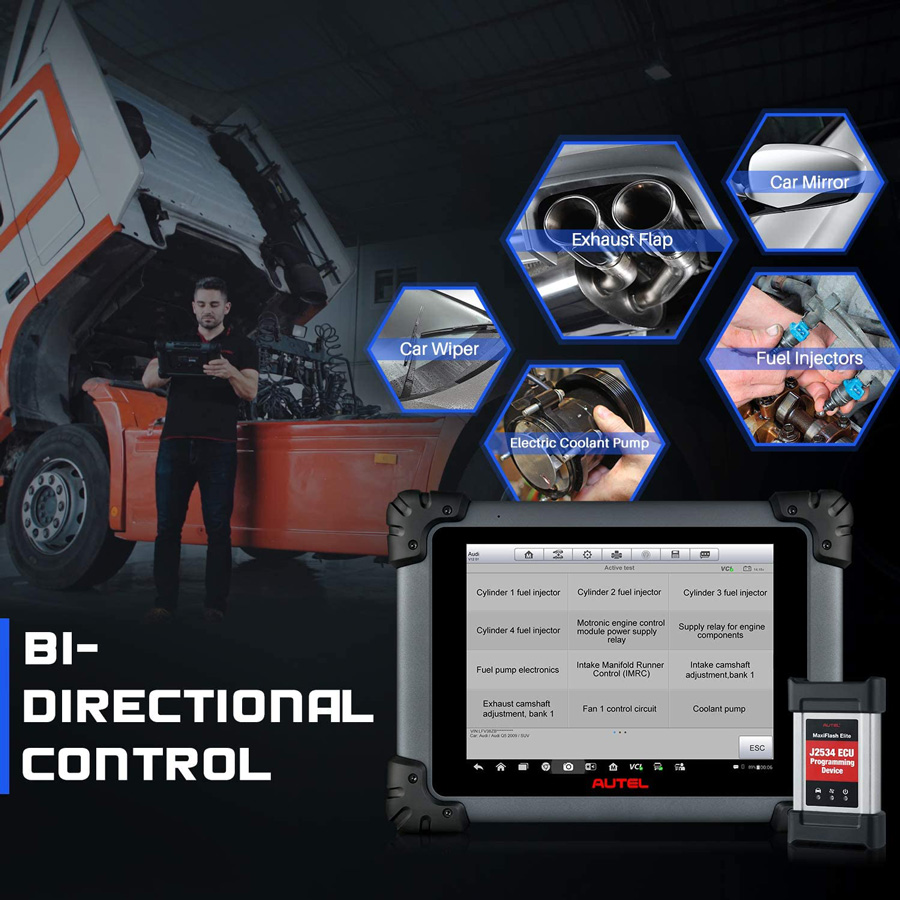

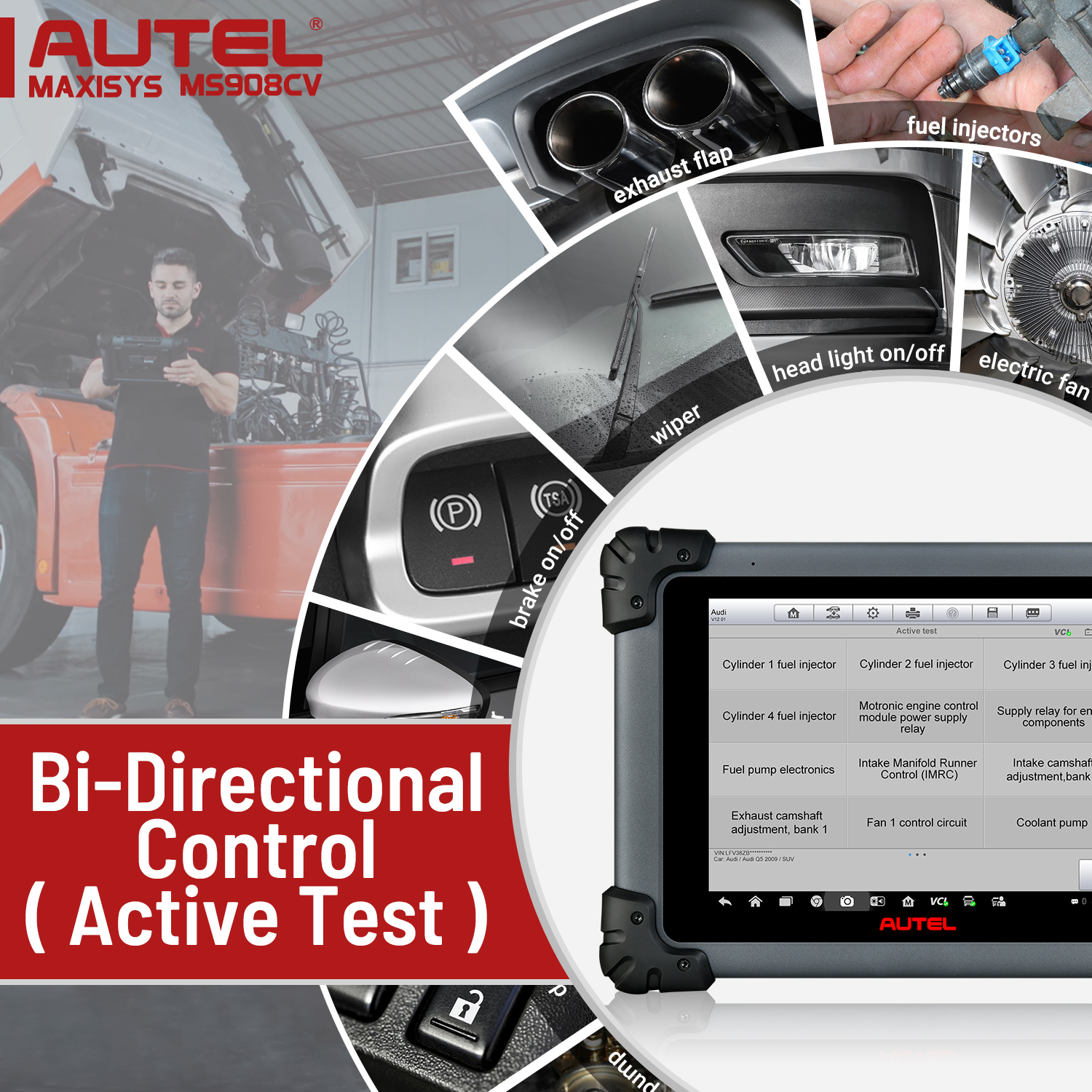

2. Advanced Bi-Directional Control:

Autel MS908CV comes with bi-directional control that can control various vehicle parts and components like fuel pumps, wipers, headlamps, windows, doors, sunroof and etc to test its functionality.

Note: Active Tests function are not universal for all vehicles.

3. Special Service Functions and Adaption Functions

Autel MS908CV heavy duty diagnostic scanner comes with 25 comprehensive service & special functions like Oil Reset, SAS Calibration, EPB Reset, DPF Regeneration, Battery Registration, Throttle Reset, Auto bleed, Injector Coding, Key Fob Coding(add new keys, delete keys), Transmission Adaptation, VGT Turbo Calibration, Suspension Calibration, Power Balance and etc. 23 adaption functions including DOC/DPF Instant Replacement Reset, Fuel Pressure Adaptation Accurate Reset, After Treatment Maintenance, Calibration of Rack Sensor, Calibration of Injector Trim etc.

Note: All Service & Special functions are NOT universally compatible.

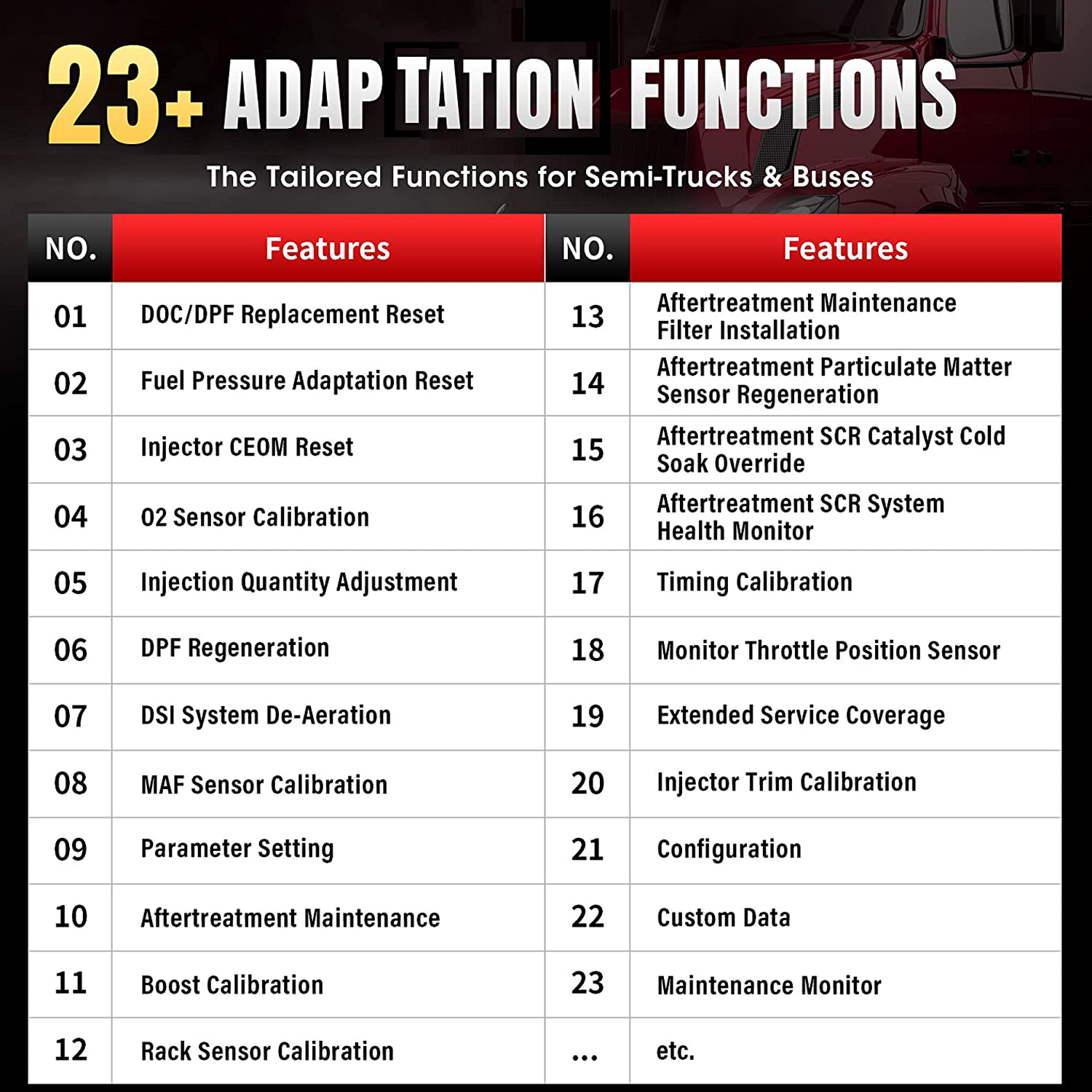

Special Functions:

DOC/DPF Replacement Reset
Fuel Pressure Adaptation Reset
Injector CEOM Reset
O2 Sensor Calibration
Injection Quantity Adjustment
DPF Regeneration
DSI System De-Aeration
MAF Sensor Calibration
Parameter Setting
Aftertreatment Maintenance
Aftertreatment Maintenance Filter Installation
Aftertreatment Particulate Matter Sensor Regeneration
Aftertreatment SCR Catalyst Cold Soak Override
Aftertreatment SCR System Health Monitor
Boost Calibration
Rack Sensor Calibration
Timing Calibration
Monitor Throttle Position Sensor
Extended Service Coverage
Injector Trim Calibration
Configuration
Custom Data
Maintenance Monitor

4. ECU Coding & J2534 ECU Programming:

With the increasing complexity of automotive electronic control systems, ECU programming & ECU coding have become a must-learn skill for almost every pro mechanic. So we have pre-emptively followed in the footsteps of the times and have update the MS908 up to a brand new level.

01). ECU Coding:

The ECU coding for the heavy machinery is always a nightmare, but the time has changed. Once having heavy-duty scanner MS908CV by you side, you can match the modules with components, flash the hidden functions, and customize the OE-settings as you wish. And also it has extensive compatibility, such as light-duty truck Ford F-Series, RAM Trucks Series, Scania (Including CCC, CTS, EACS, EHS, EQU, FSS and SRC), Mercedes-Benz, Iveco, etc.

02). J2534 ECU Programming:

Along with Autel MaxiSys MS908CV comes a newly updated J2534 ECU programming VCI. It helps you to pass-thru the gateway, access the online data, and flash the emission-related ECUs regardless of the communication protocol that is used by the ECU.

1.J2534 is fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards
2.Performs the standard PassThru J2534 functionality
3.Fast performance ensures quickly reprogramming even the newest controllers
4.Wireless with advanced networking functions
5.Built-in wireless and data storage
6.Rugged design capable of withstanding harsh environments
7.Internet updateable


5. Auto VIN:

Autel MS908cv heavy duty diagnostic scanner adopts the latest VIN-based Auto VIN Technology that enables auto technicians or home mechanics to identify vehicle information, like brand, year, make, model etc, at a single touch. With the Auto VIN and Auto Scan feature combined, Autel MS908cv can perform comprehensive diagnostics accurately and efficiently.

Note:

Auto VIN feature does NOT work on all cars. You can always navigate your vehicle through the menu manually to perform diagnostics and services.

6. Bonus Functions:

01). Key Programming: OBD2 Scanner MaxiSys CV can access relatively low-level anti-theft systems to obtain codes and program keys or remotes.

2). Access ECU Info: Heavy Duty Truck Scanner 908CV, can automatically read the VIN number and then present you with information about the vehicle, such as the vehicle manufacturing date, vehicle manufacturer, vehicle engine code, etc.

3). Waveform Live Data Streaming: To help you gain a deeper understanding of the vehicle's real-time operating conditions, MS908CV for commercial cars integrates the operating conditions of each system into a single waveform graph. As the data changes, the graph will show you the changes in the values of each system.

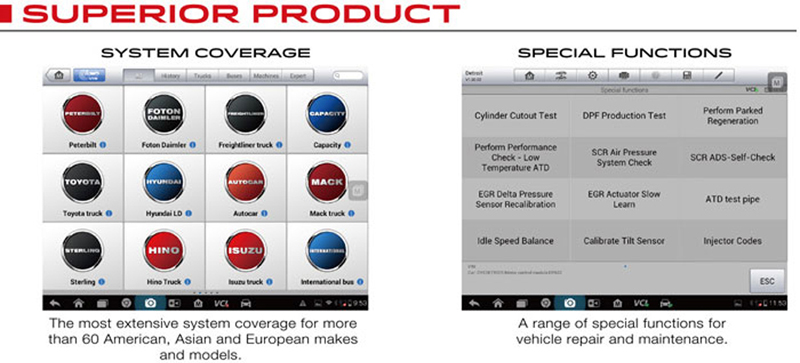

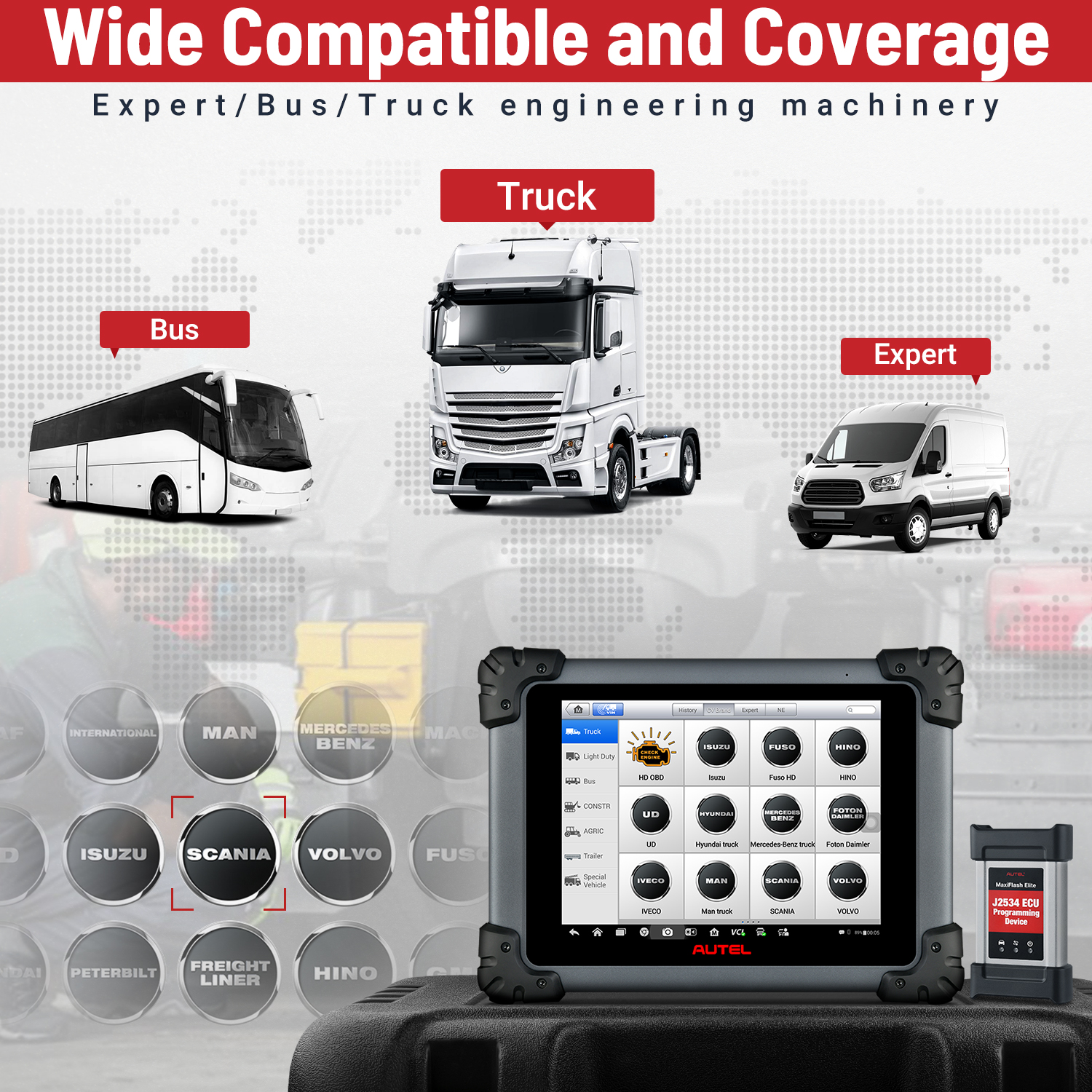

Coverage:

Autel MaxiSys MS908CV professional diagnostic tool comes with unparalleled vehicle coverage of more than 80 American, Asian and European vehicle makes. It can cover vehicles up to 2019, 2020 and some up to 2021.

Expert
Allison, Bendix, Caterpillar, Cummins, International, Detroit, PACCAR, Volvo, Freightliner, Wabco, ZF Meritor, Mercedes Benz, Bosch Auto, PowerStroke, Aisin, Iveco, Mack, Eaton, MTU, MWM

Buses
OBD, Volvo, Agrale, Hino, ISUZU, Mercedes Benz, Mitsubishi Fuso, Volkswagen, Toyota, Renault

Trucks
Volvo, Agrale, Autocar, Capcity, Dodge, Fiat, Ford, Foton, Freightliner, GMC, Great Wall, Hino, Hyundai, Isuzu, Kia, Mercedes Benz, Mitsubishi, Mitsubishi Fuso, Nissan, Sterling, International, Iveco, Volkswagen, Kenworth, Marck, Peterbilt, Workhorse, Western Star, Setra, UD, Renault...

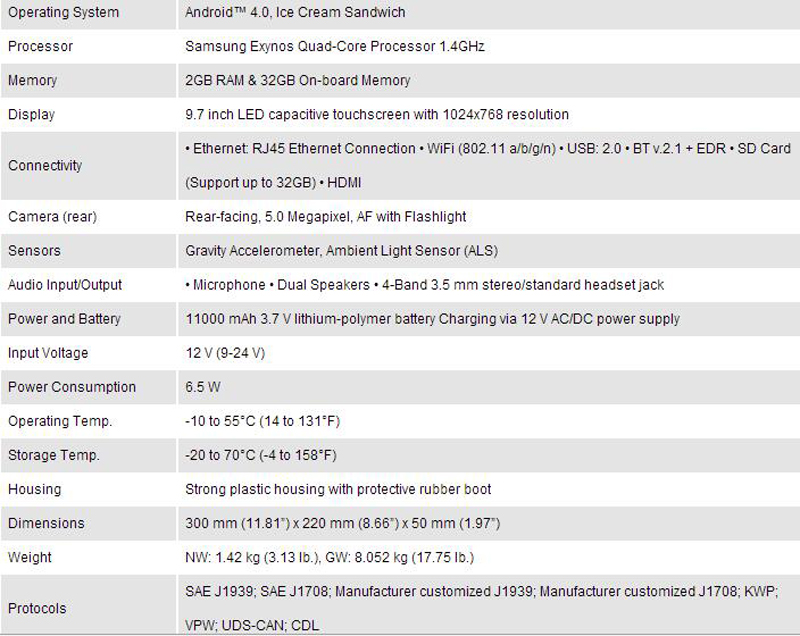

Connection:

Ethernet: RJ45 Ethernet Connection
WiFi (802.11 a/b/g/n)
USB 2.0
Bluetooth V.2.1 + EDR
SD Card (up to 32GB)
HDMI (connect to a large display)

Supported Protocols:

SAE J1939
SAE J1708
Manufacture-defined Protocol J1939
Manufacture-defined J1708
KWP
VPW
UDS-CAN
CDL

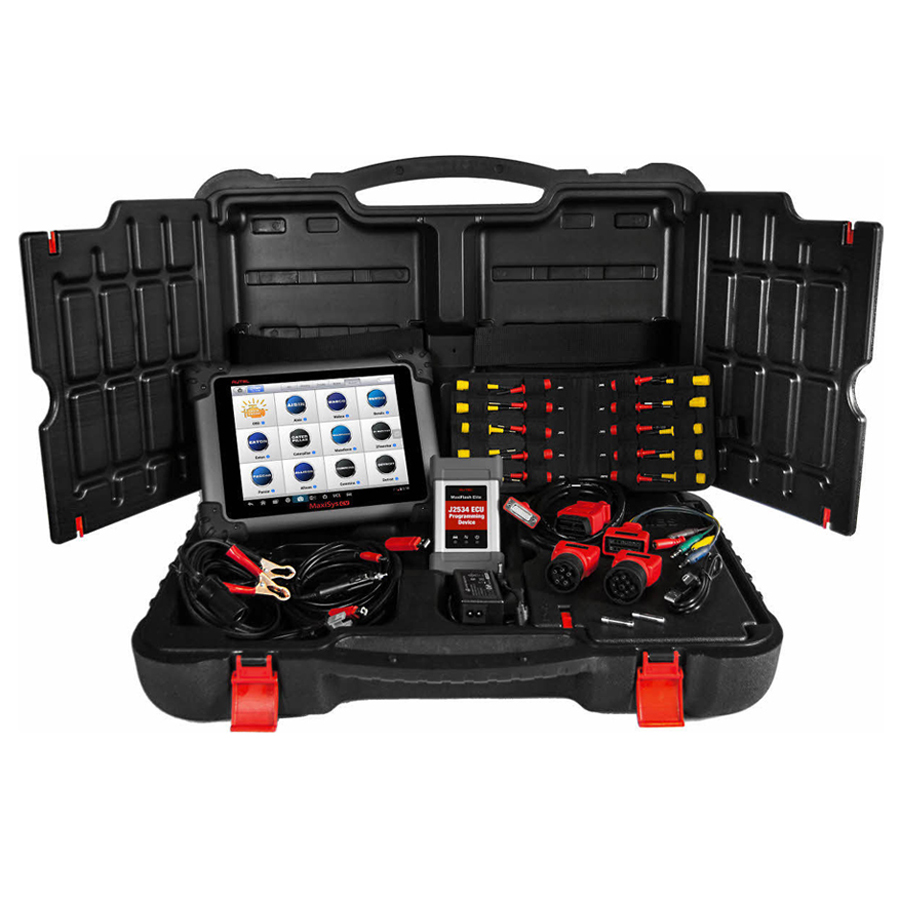

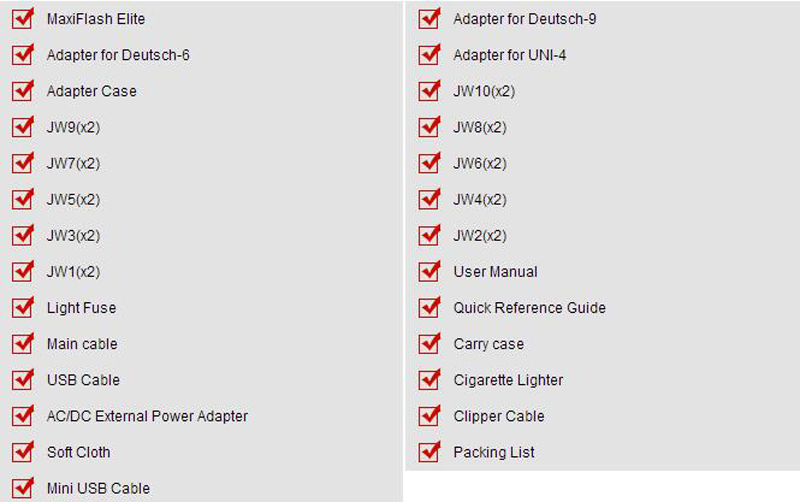

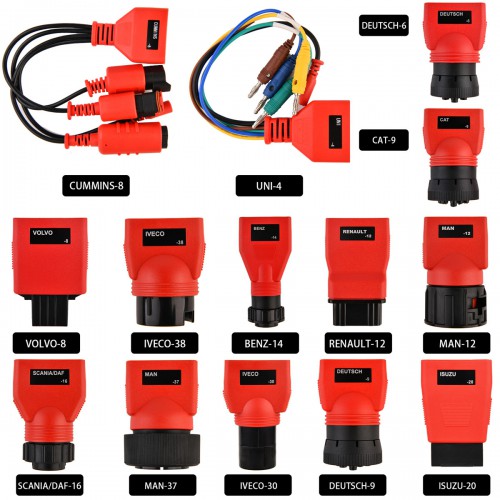

Packing List:

Autel MaxiSys MS908 CV Heavy Duty Truck Scanner
Autel MaxiFlash Elite J2534 ECU Programming Device

Benz-14 Adapter
CAT-9 Adapter
Cummins-8 Adapter
Deutsch-9 Adapter
Dongfeng-16 Adapter
Hitachi-4 Adapter
Hitachi-9 Adapter
Isuzu-20 Adapter
Iveco-30 Adapter
Iveco-38 Adapter
Komatsu-12 Adapter
MAN-37 Adapter
Scania/DAF-16 Adapter
Uni-4 Adapter
Volvo-8 Adapter
Volvo-14 Adapter
Weichai-3 Adapter

JW1 (2 pcs)
JW2 (2 pcs)
JW3 (2 pcs)
JW4 (2 pcs)
JW5 (2 pcs)
JW6 (2 pcs)
JW7 (2 pcs)
JW8 (2 pcs)
JW9 (2 pcs)
JW10 (2 pcs)

Main Cable
USB Cable
Mini USB Cable
Battery Clips Power Cable
Cigarette Lighter Cable
AC/DC Power Adapter
Light Fuse 6*30mm (2 pcs)
CD
Soft Cloth
User Manual
Quick Reference Guide
Packing List
Plastic Toolbox
Packing Box
