Name: KONNWEI KW820 OBD2 EOBD Universal Diagnostic Scanner
Description:
KONNWEI KW820 OBD-II / EOBD Code Reader supports all nine OBD-II test modes on all OBD2 EOBD compliant vehicles to enable technicians and home users to accurately diagnose even the toughest problems.
Sophisticated but easy-to-use, this hand-held scanning tool enables fast and easy access to engine based EOBD fault codes, The CAN enabled tool gives clear, concise DTC definitions on its large back-lit LCD screen retrieves generic P0, P2 and P3 and U0 codes for engine emissions and also picks up manufacturer specific P1, P3 and U1 codes, Turns off MIL light, Stores freeze frame data for later evaluation and will also display monitor and I / M readiness status.
Supported Languages: English, French, German, Spanish, Dutch
Software Update: update online free
Features & Functions:
1. Easily determines the cause of the Check Engine Light (MIL)
2. Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
3. Turns off Check Engine Light (MIL), clears codes and resets monitors

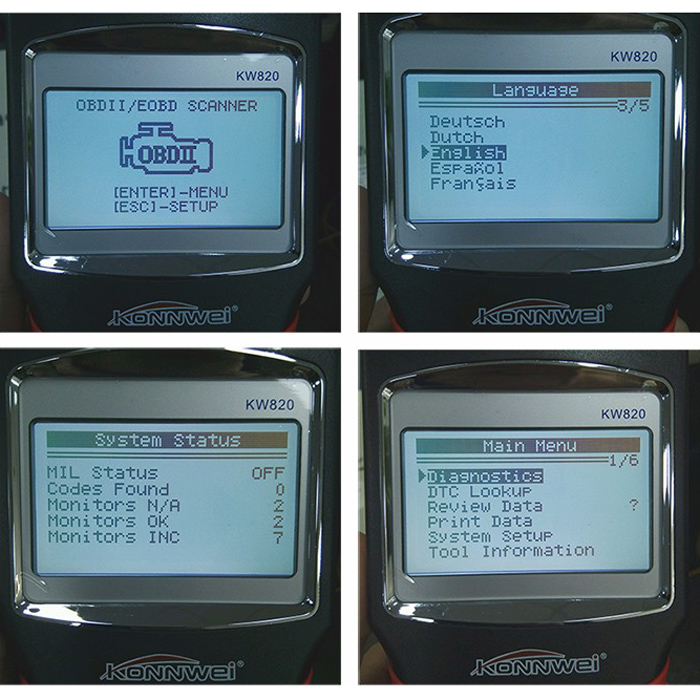

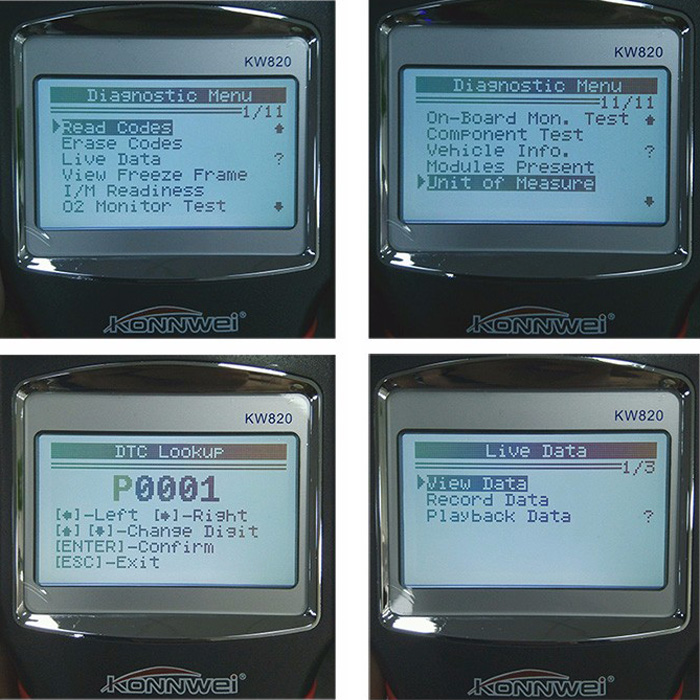

4. Displays DTC definitions on unit screen
5. Views freeze frame data
6. Displays monitor and I / M readiness status (emissions)
7. Identifies pending codes
8. Reads live PCM datastream
9. Displays live O2 sensor test data
10. Graphs data C (1996 and newer)
11. Reads, stores & playbacks live sensor data
12. Memory / battery backup for off-vehicle data review and analysis
13. Performs modules present test
14. Retrieves vehicle information (VIN, CIN and CVN)
15. Supports CAN (Controller Area Network) and all other current OBD-II protocols
16. Built-in OBD-II DTC lookup library
17. Large easy-to-read backlit LCD screen
18. Software upgradeable via internet
19. Prints data via PC
Supported Cars:
1. America(includes Brazil)(OBD2 compatible cars from 2000 to now):
Chrysler, Ford, GM, Jeep
2. Europe(OBD2 compatible cars from 2003 to now):
Alfa Romeo, SAAB, Acura, Opel, Audi ,Seat, Peugeot, Renault, Bentley, Skoda, Daewoo, Benz ,Daihatsu, Land Rover, BMW, Vauxhall, Citroen, Volvo, Fiat, VW, Ford, Jaguar
3. Asia and Australia:
Japan and Korea OBD2 compatible cars from 2006 years to now
Kia, Isuzu, Honda, Mitsubishi, Hyundai, Dacia, Lexus, Mazda, Nissan, Subaru, Suzuki, Toyota
Chinese OBD2 compatible cars from 2011 years to now
BYD, Chery, Geely, Great Wall, Karry
4. Russia:
Ssangyong Actyon , A200 XDI Diesel , from 2007 to 2017 years ; 2.4 Diesel , from 2009 to 2017 years.
Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.
Ssangyong Kyron , 2.0 Diesel , from 2007 to 2017 years.
Ssangyong Rexton , 2.7 XVT Diesel , 2007 years or 2011 to 2017 years,
Ssangyong Rodius , 2.7 Diesel , 2007 to 2017 years.
LADA Niva , 1.7 Gasoline , from 2011 to 2017 years.
LADA Priora , 1.5 Gasoline , from 2008 to 2017 years.
Note:
1. No Scanner can work for all cars! Most of the above car will fit . If the device does not fit for your car, please try to test on another car.
2. Does not support Russian cars before 2012, VAZ,UAZ,LADA; Does not work on trucks.

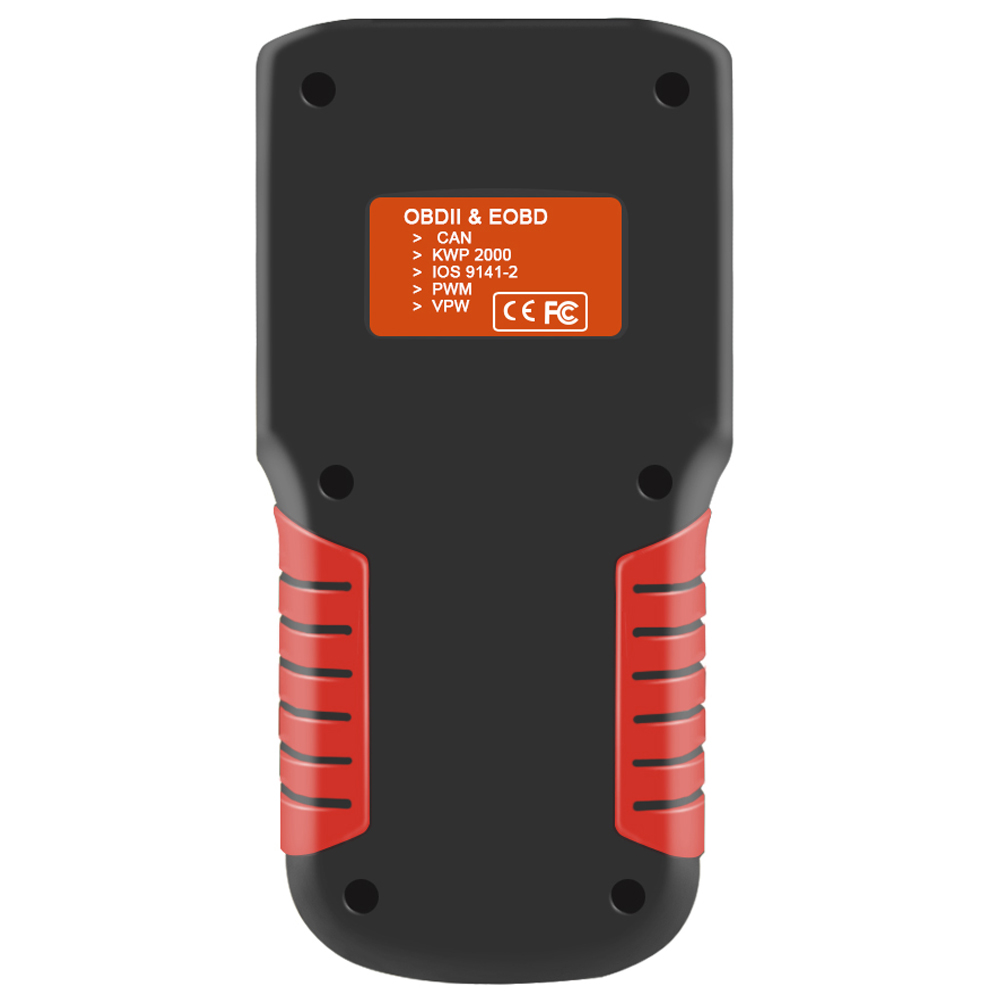

Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000(ISO 14230), CAN (Control Area Network ISO 11898)
Specifications:
Display: 2.8 inch screen with back light
Operating Temperature: 0 to 60 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Power: 8 to 18 V provided via vehicle
Dimensions: 19.5*10*3.5mm
Weight: 600g

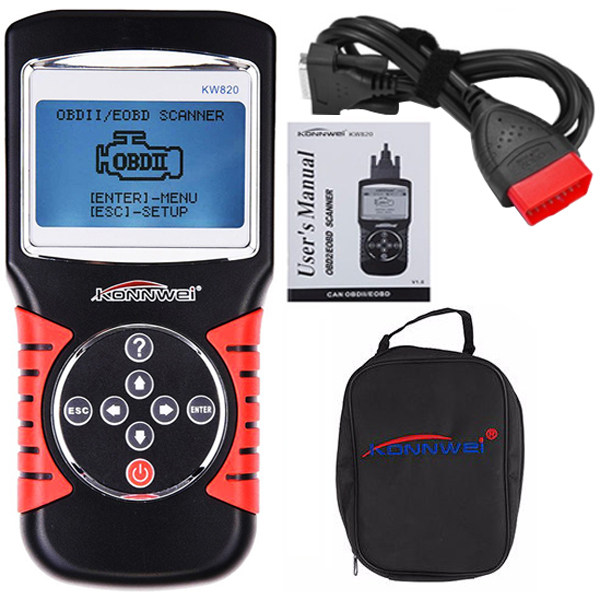

Packing List:
KONNWEI KW820 OBD2 Code Scanner
16pin OBD2 Cable
User Manual
Portable Pouch
Packing Box
|
