Name: KONNWEI KW850 OBD2 Scanner
Description:
KONNWEI KW850 OBD2 / EOBD / CAN Car Diagnostic Scanner supports all 10 OBD-II test modes on all OBD-II compliant vehicles for a complete diagnosis. Featuring the unique patented one-click I/M readiness key, TFT color display and built-in speaker, real time battery voltage monitoring, the KONNWEI KW850 is truly the ultimate in power and affordability, allowing users to do their jobs faster.

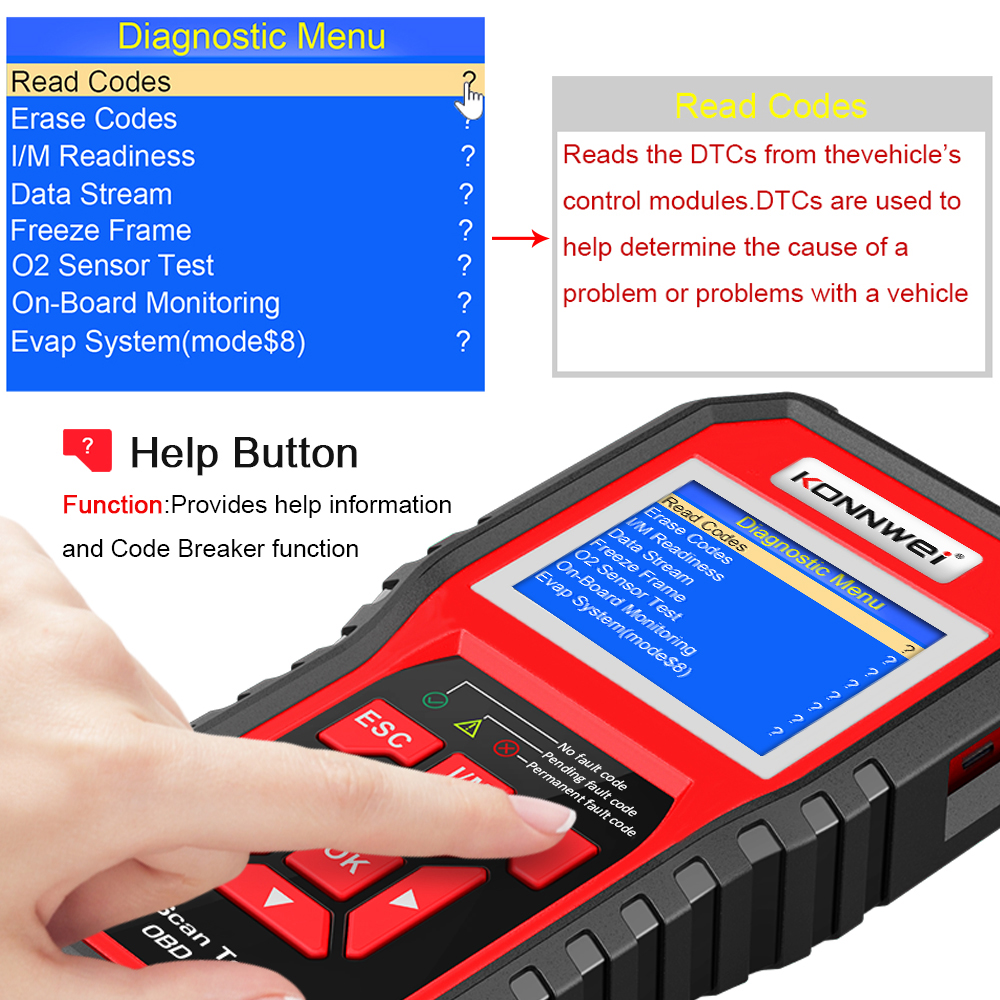

In addition, thousands of troubleshooter code tips (by press ? help button) help technicians and home DIY users to accurately diagnose even the toughest problems. With the newest friendly diagnostic interface, KW850 will be the most useful car diagnostic tool for every family and professional mechanic technician!
KW850 is the best engine code reader better than Autel AL519 and FOXWELL NT301 with unique design and widest compatibility!
Supported Languages: English, French, German, Spanish, Portuguese, Russian, Dutch, Italian
Supported Protocols: ISO 9141, KWP2000, SAE J1850, CAN, J1850 VPW, J1850 PWM
Features:

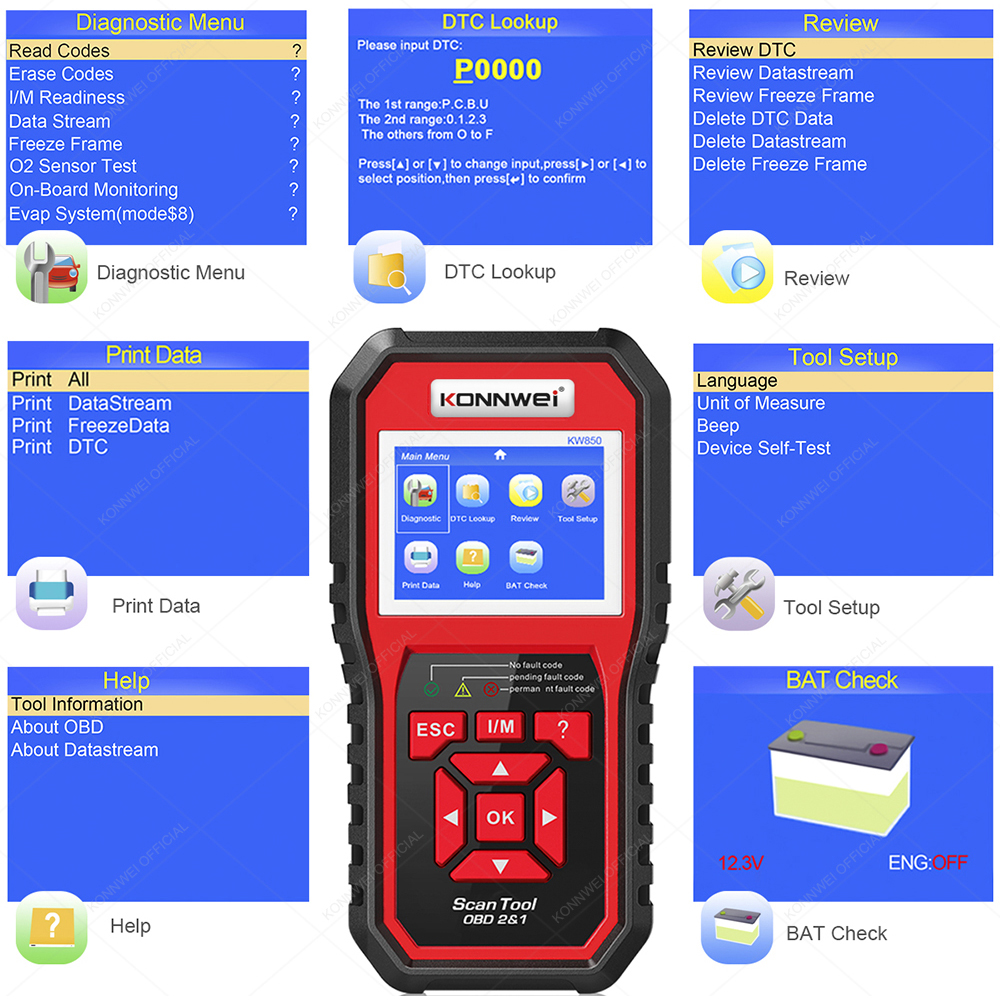

1. Multilingual Diagnostic Interface: KW850 Supports up to 8 different languages menu.

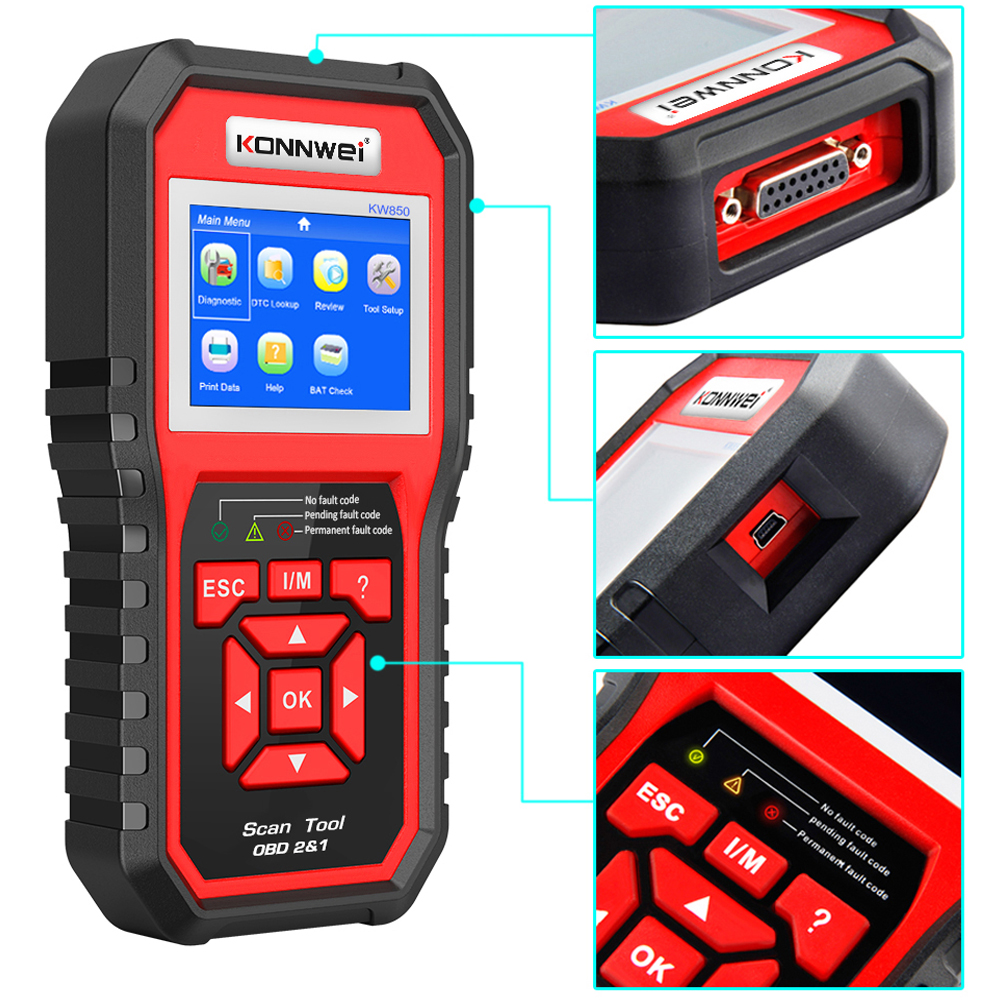

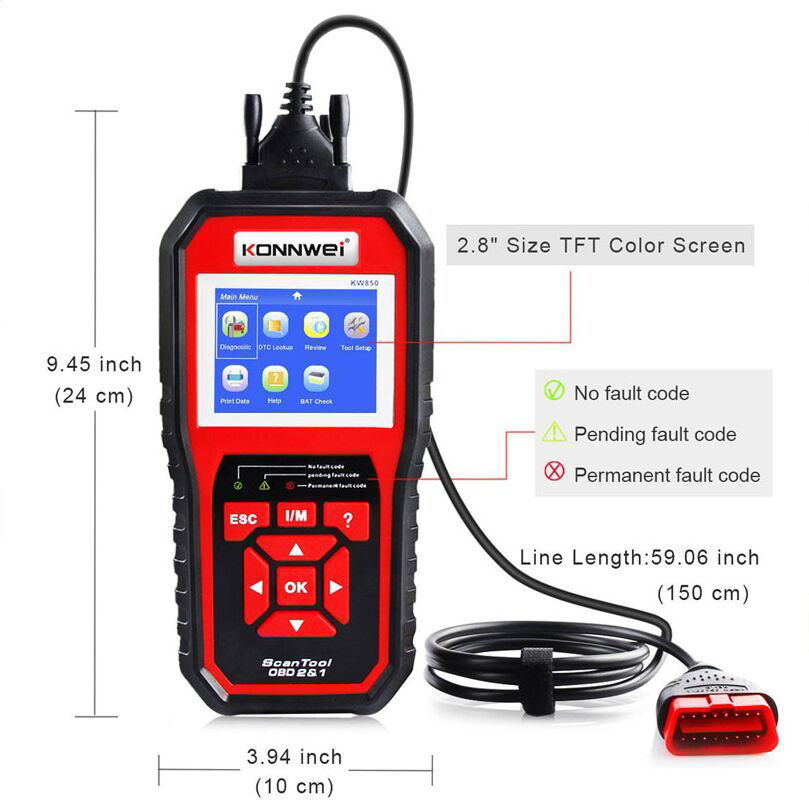

2. High Quality and High Resolution TFT Colorful Display: Helps you easily to find out the troubles of your car.

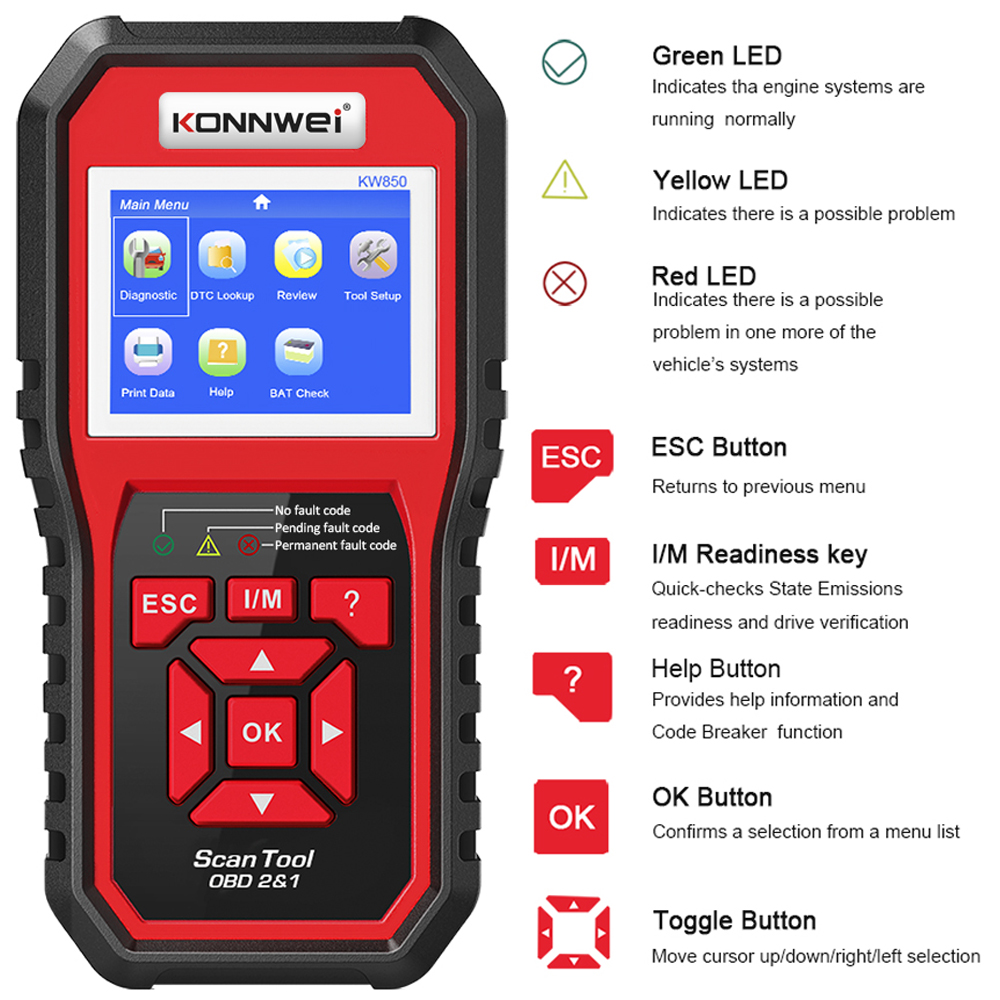

3. Bright Color Coded LEDs and Built-in Speaker: Provides both visual and audible tone for readiness verification.
4. Brand New Design Key Pad: Unique patented one-click I/M readiness button is the best partner for your car repairing.
5. Featured battery real-time monitoring during diagnostics, avoid un-expected happened.
6. Integrated Memory Card: Allows storage of Trouble Codes, Live Data and Freeze Frame, Playback and Review Data when out of vehicles.
7. Data Printable Via USB Cable: Allows modify and print-out storage data.
8. Internet Upgradeable Via USB Port: Supports to Windows XP / 7 / 8 / 10.

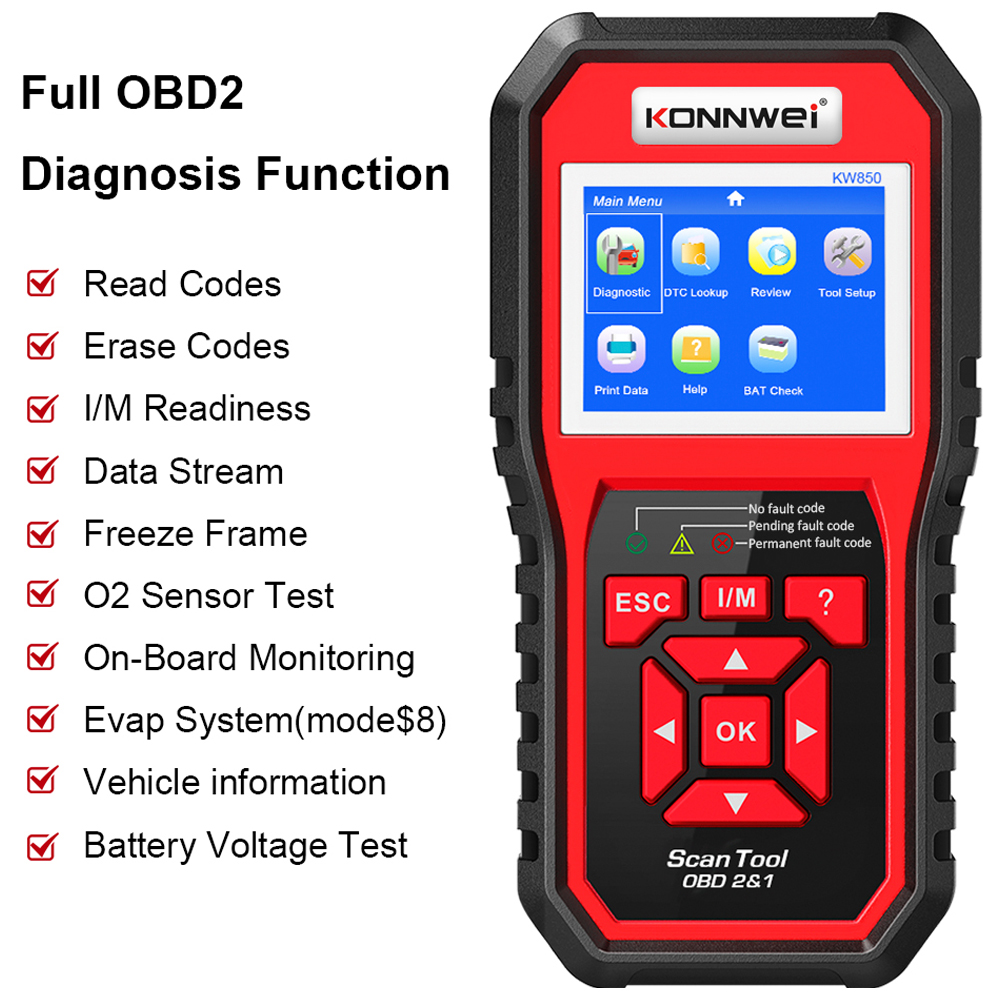

Functions:
1. Works on ALL 12V gasoline and diesel cars since 1996 and newer vehicles (OBD-II & CAN).

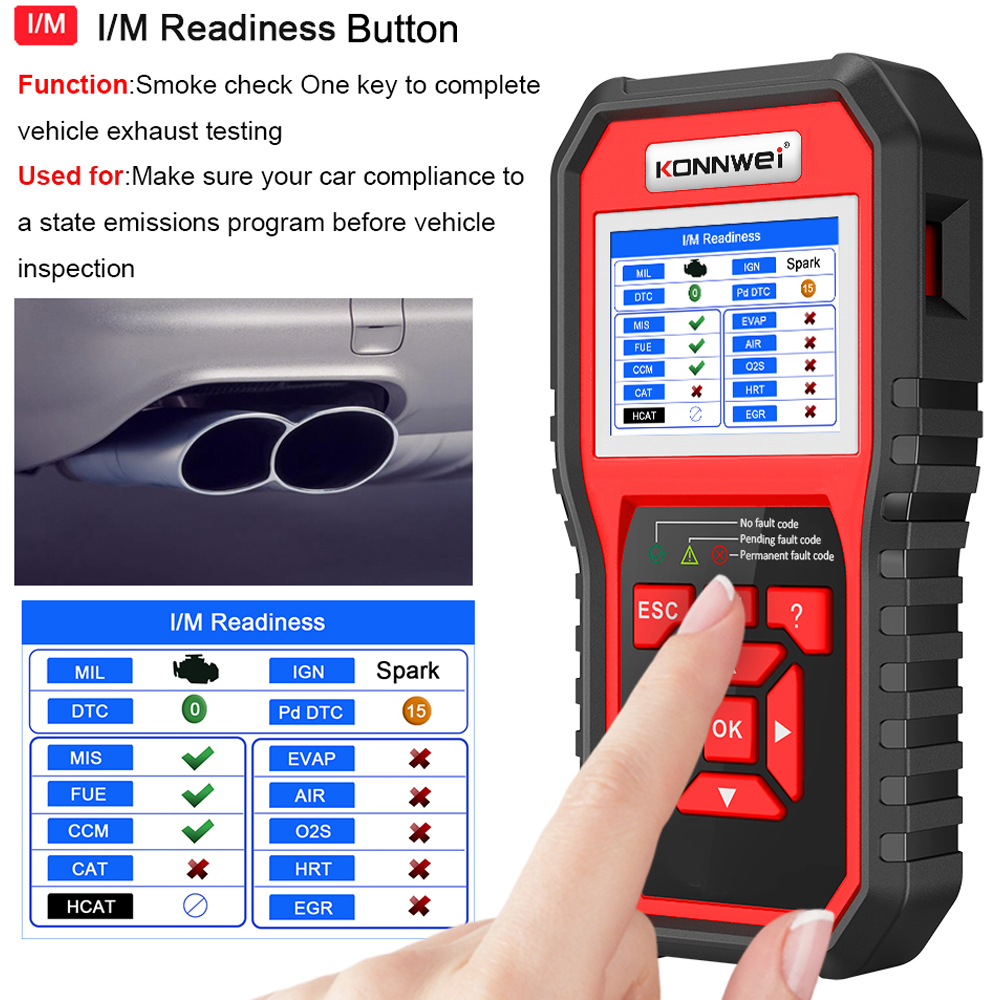

2. Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification.
3. Bright color coded LEDs indicators and built-in speaker provide both visual and audible tone for readiness verification

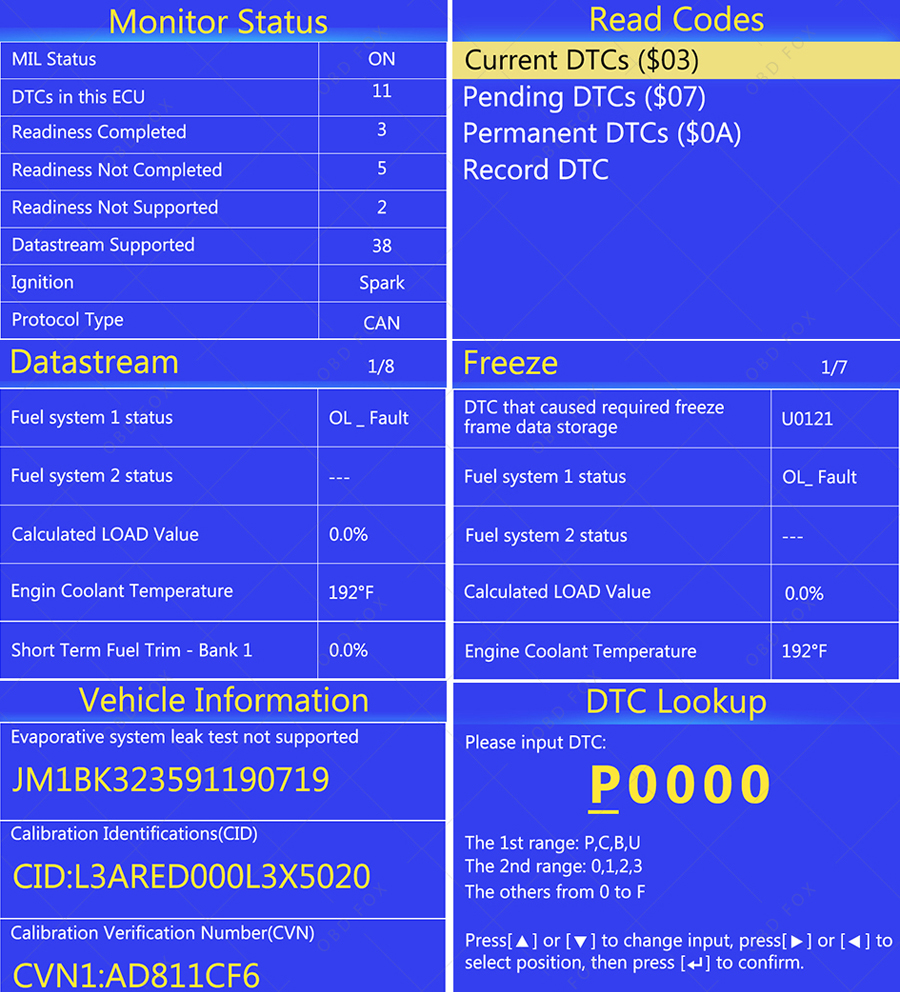

4. Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes
5. Easily determines the cause of the Check Engine Light(MIL)
6. Turns off Check Engine Light (MIL), clears codes and resets monitors
7. Enhanced OBD2 Mode 6 On Board Monitoring Test Results for Specific Monitored Systems.
8. Views freeze frame data
9. Displays monitor and I/M readiness status (emissions)
10. Reads live PCM datastream
11. Displays live O2 sensor test data
12. EVAP System test data
13. Live sensor data in text mode and graph mode (1996 and newer vehicles)
14. Reads, stores and playbacks live sensor data
15. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time
16. Battery Voltage real time monitoring.
17. Built-in DTC look-up library and display definition.
16. Retrieves vehicle information (VIN, CIN and CVN)
17. Internet updateable and upgradeable
18. Prints data via PC

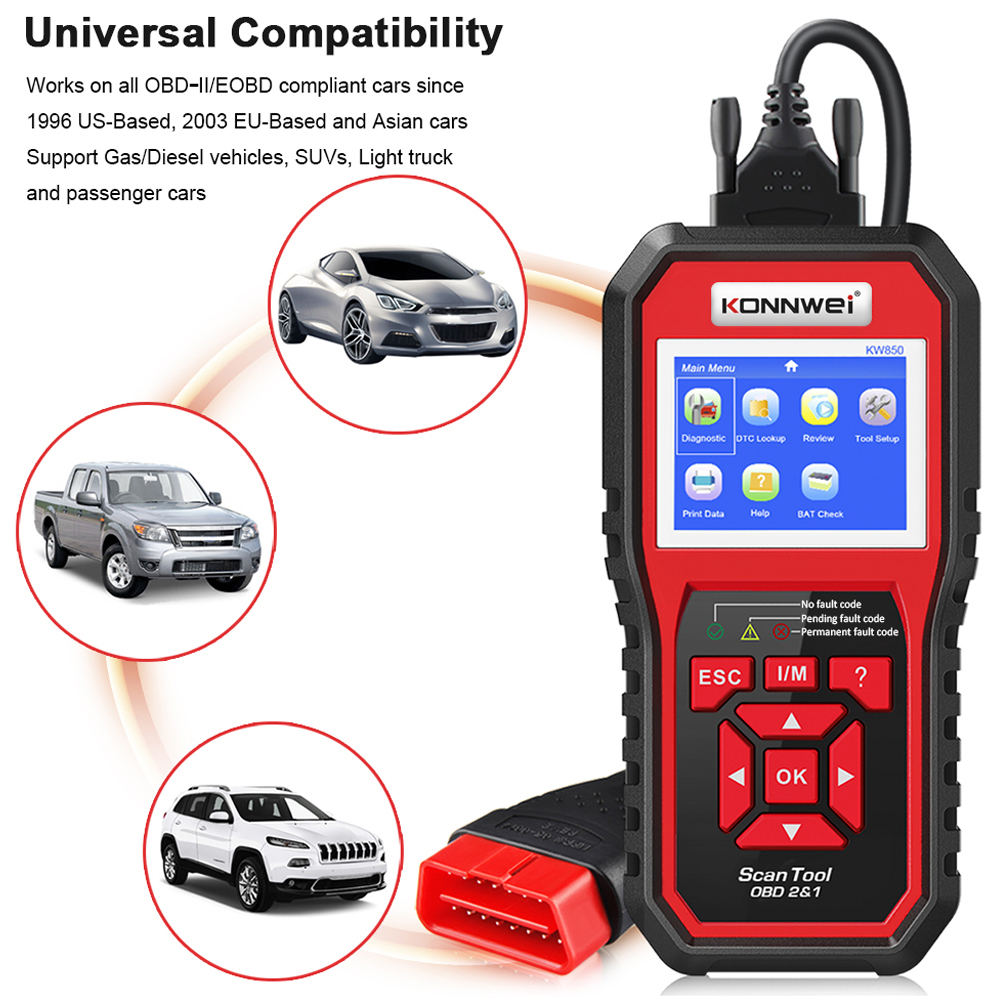

Supported Cars:
Konnwei KW850 supports both diesel and gasoline vehicles as long as the car are compliant with standard OBD-II protocols.
America: OBD2 car from 1996 to now
Chrysler, Ford, GM, Jeep
Europe: OBD2 car from 2001 to now
Alfa Romeo, SAAB, Acura, Opel, Audi, Seat, Peugeot, Renault, Bentley, Skoda, Daewoo, Benz, Daihatsu, Land Rover, BMW, Vauxhall, Citroen, Volvo, Fiat, VW, Ford, Jaguar
Asia: OBD2 car from 2008 to now
Kia, Isuzu, Honda, Mitsubishi, Hyundai, Dacia, Lexus, Mazda
Nissan, Subaru, Suzuki, Toyota
Notice:
Does not support Russian cars before 2012, VAZ, UAZ, LADA ; Does not work with Renault and Ssangyong trucks.

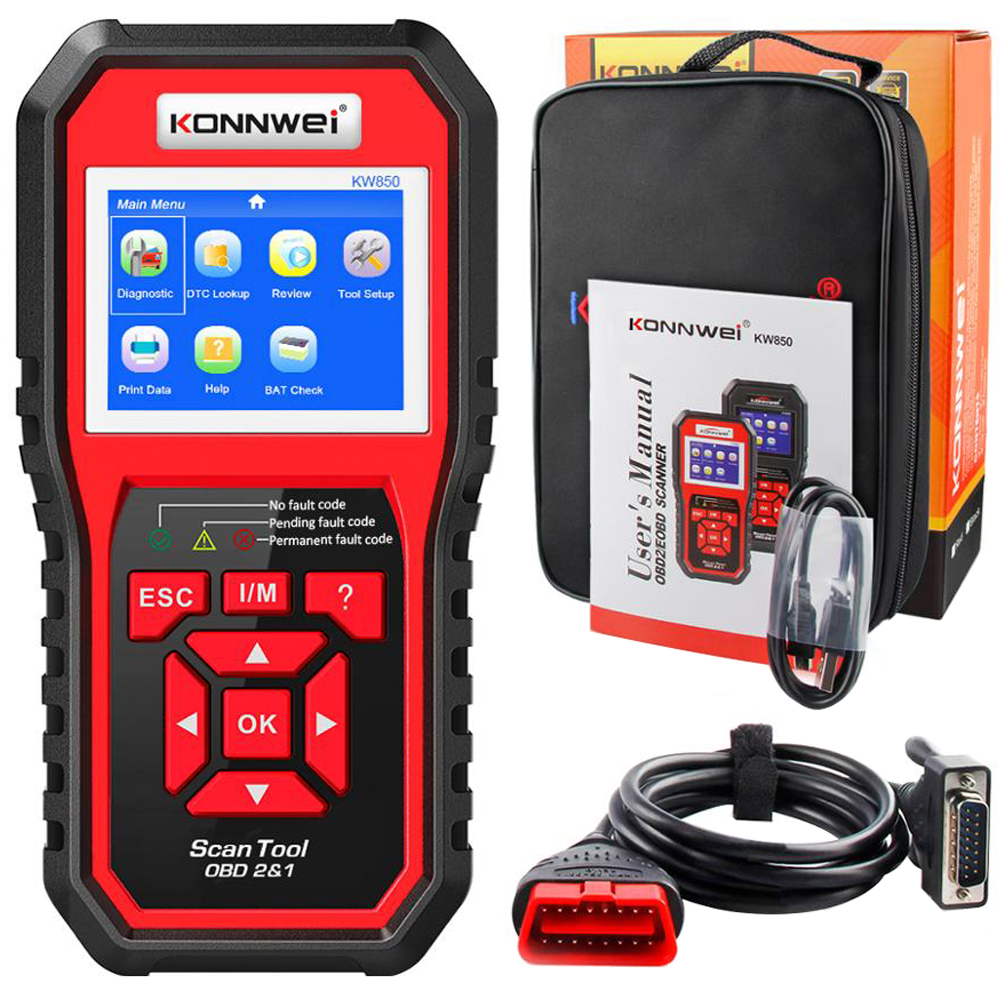

Packing List:
KONNWEI KW850 OBD2 Scanner
OBD2 Cable
USB Cable
Protective Nylon Pouch
Packing Box

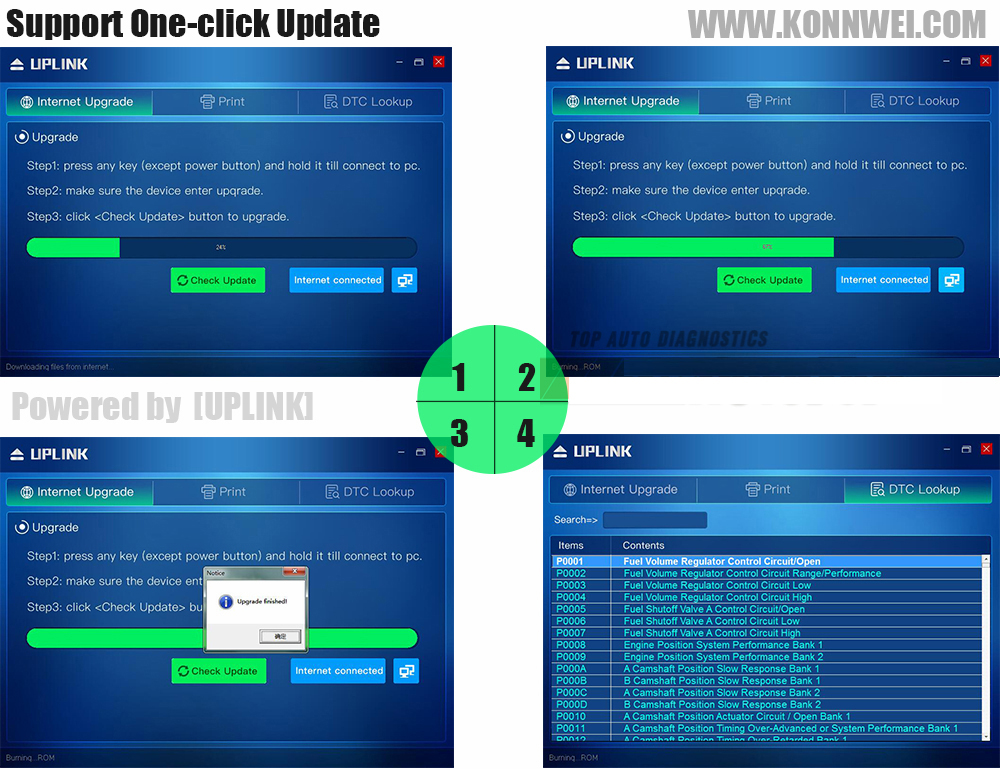

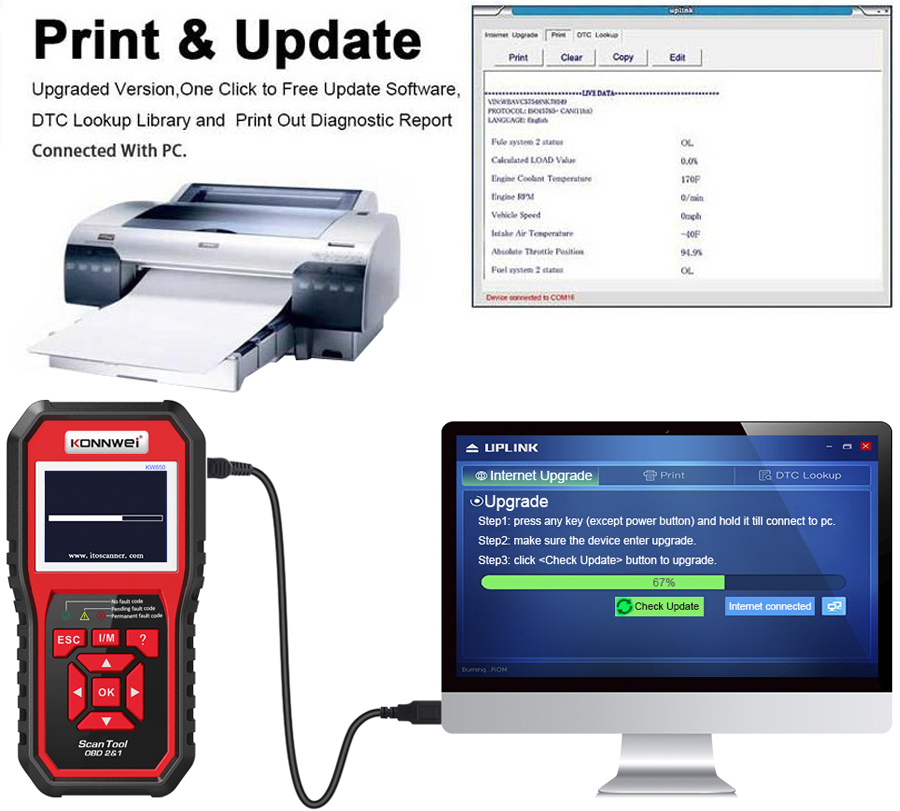

One-click Remote Update:
1. Please press and hold any button of KW850 scan tool, then connect the scanner to PC with USB cable included in the package, the screen will be turned to "UPDATE MODE"
Notice:
Please turn off anti-virus software when installing the update tool, otherwise it will not be able to install the driver properly. Update tool can be found from itoscanner.com (refer to user manual)
2. Download and Install the "uplink" program to your PC ( Windows XP / 7 only), you will find the below page, All you need is one-click, the program will search the update from our server, download and upgrade it by itself. No need any other operation, save the time and money.
3. Wait for the update process finished, the scanner KW850 will be ready to go! We will update to latest version before shipping out, normally there is no need to update for a long while.

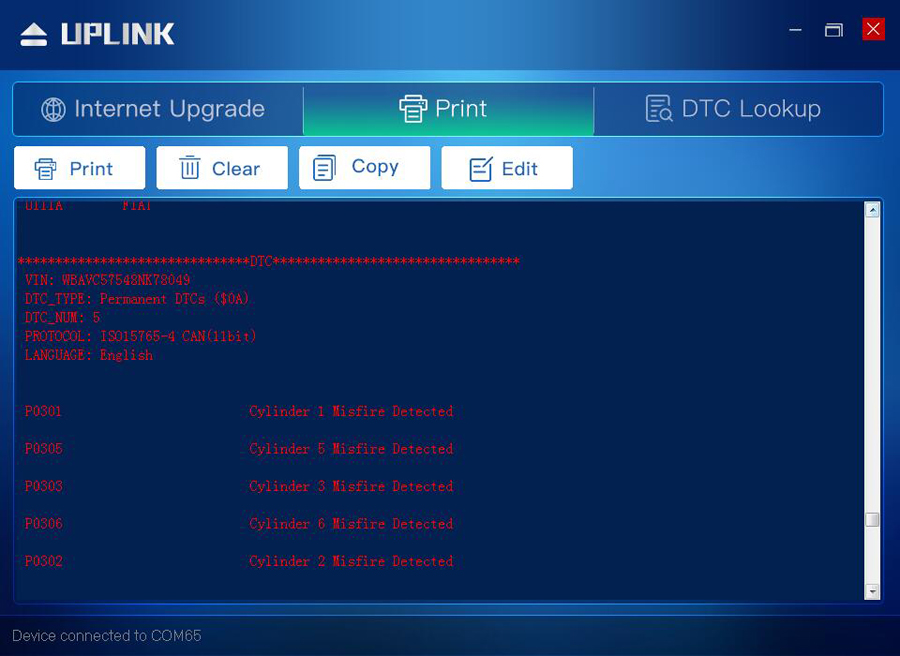

Data Printing Guides:
1. After install the "uplink" program on PC, connect the scanner to PC with USB cable. (No need to press any buttons)
2. Launch the program "uplink", select "Print" option.
3. Operation on scanner: go to main menu, select "Print Data" ; Select the data option that you want to print to PC,
|
