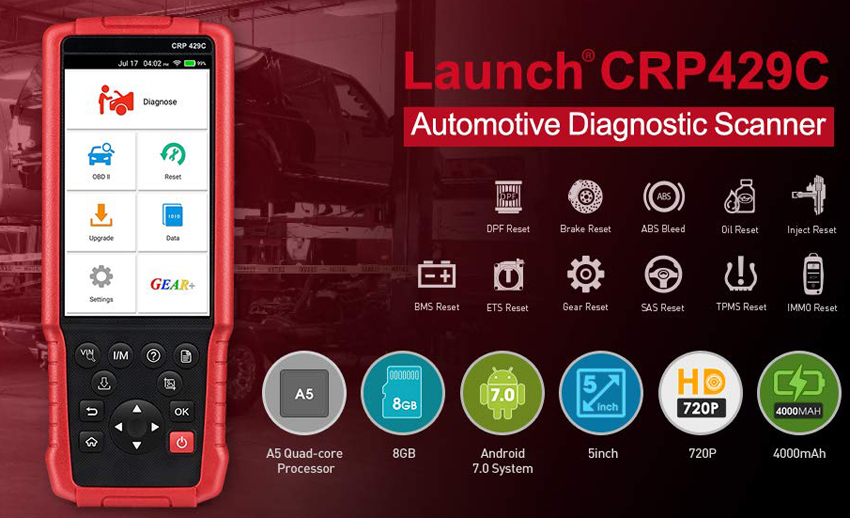

Launch CReader CRP 429C OBD2 Code Reader

Launch CRP 429C is an evolutionary smart solution for passenger car diagnosis. It inherits from LAUNCH advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result. CRP 429C supports all 10 models of OBD-I test for a complete diagnosis. CRP 429C also supports the system diagnosis of ABS/RS/EG/AT system, and supports 11 reset functions.

Supported Languages: English, French, Spanish, Russian, Japanese, German, Italian, Portuguese

Software Update: online update free for one year (USD65/year for further update)

11 Reset Function:

Injector Programming

Steering Angle Reset

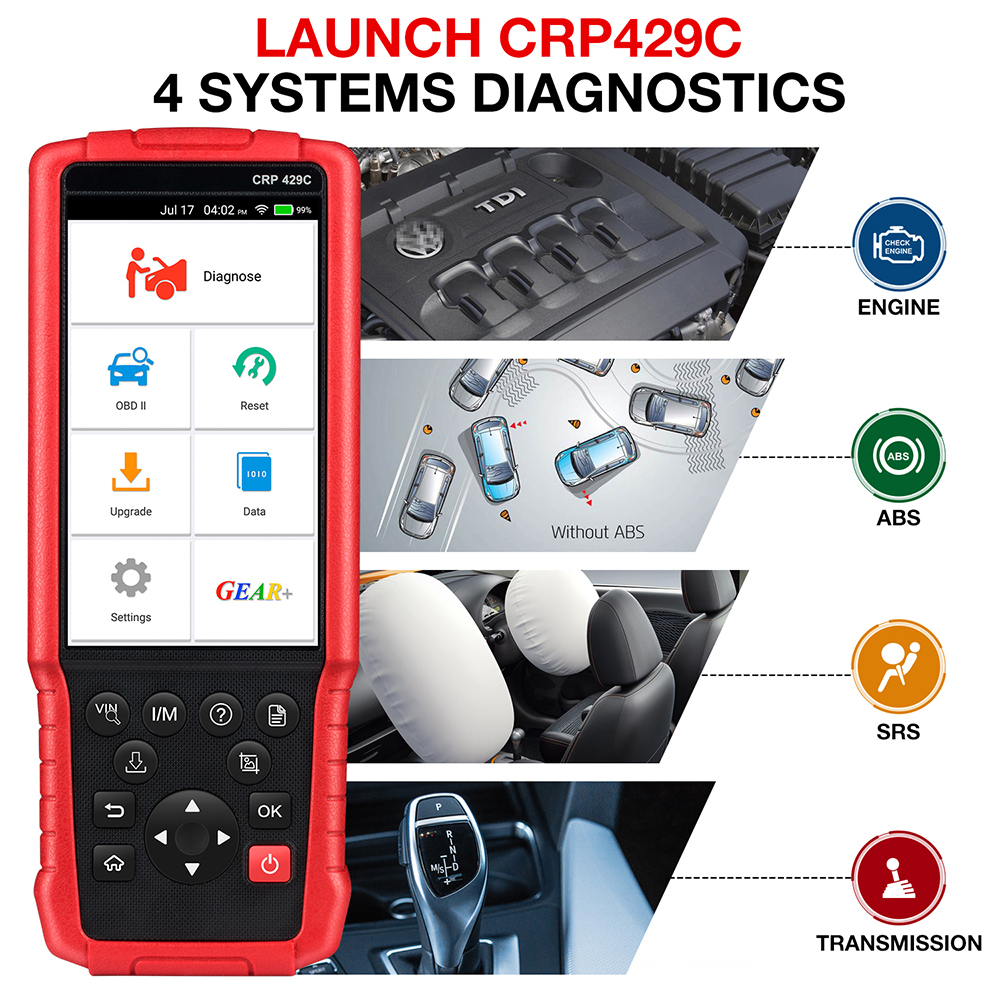

Engine / ABS / SRS/ Transmission System Diagnosis:

1. Check Engine System

X431 CRP 429C can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

2. Check ABS System

Read and clear DTCs data flow in the ABS system. Performs various tests to check the operating conditions of Anti-lock Braking System, and turn off the warning light.

3. Check SRS Airbag System

Safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.Read and clear fault code in SRS (Airbag) system and turn off warning light of airbag for making sure engine work properly and safely.

4. Check Transmission System

Read and clear codes and view live data in transmission systems, keeps the transmission systems output optimally adapted to the speed and load. Retrieve the error information from Automatic Transmission (AT) which is a type of motor vehicle transmission that can automatically change gear ratios as the vehicle moves, freeing the driver from having to shift gears manually.

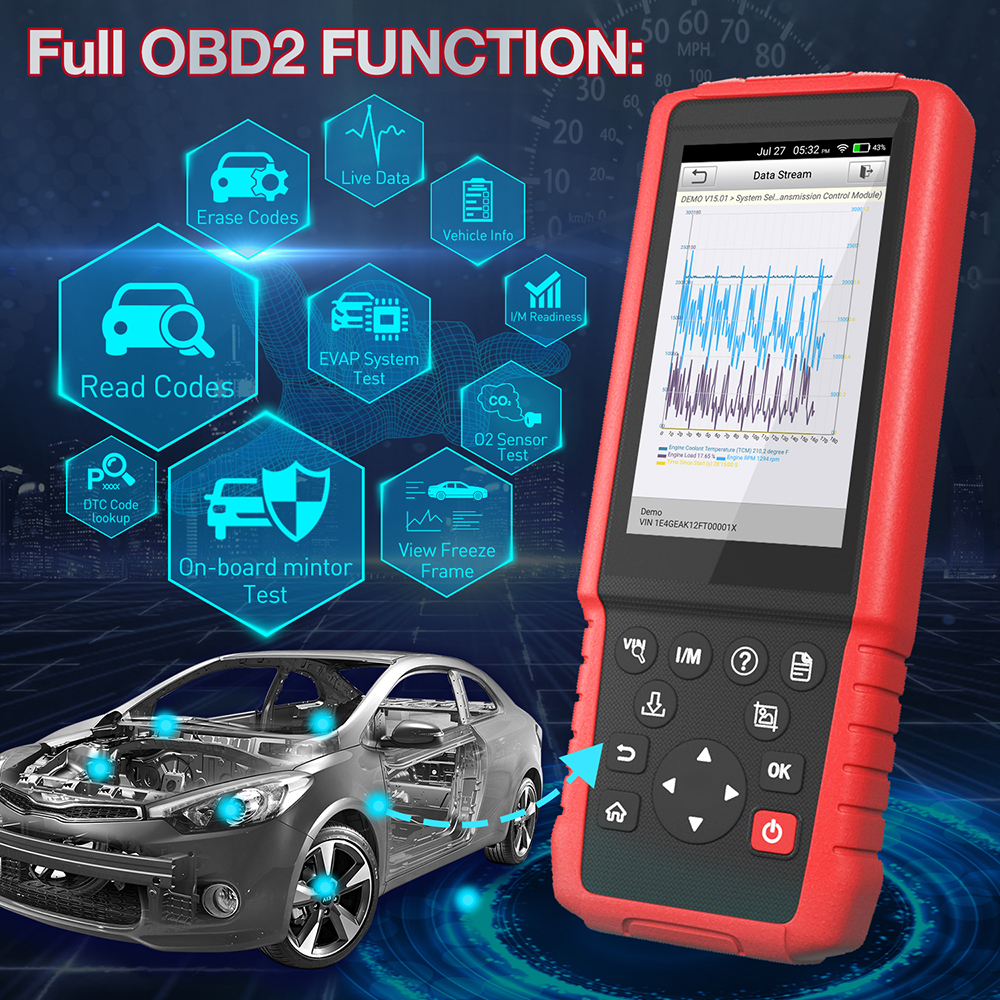

Full 10 Modes OBD-II / EOBD / JOBD Diagnostics Functions:

1. Reading Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs)

2. Erasing Codes & Reset

Turns off Check Engine Light (MIL), clears codes and resets monitors.

3. Data Stream

Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4. I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5. Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6. View Freeze Frame Data

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7. O2 Sensor Test

Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8. On-Board Monitor Test

Retrieves and displays test results for emission-related powertrain components and systems.

9. Read Vehicle Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10. Component Test

Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

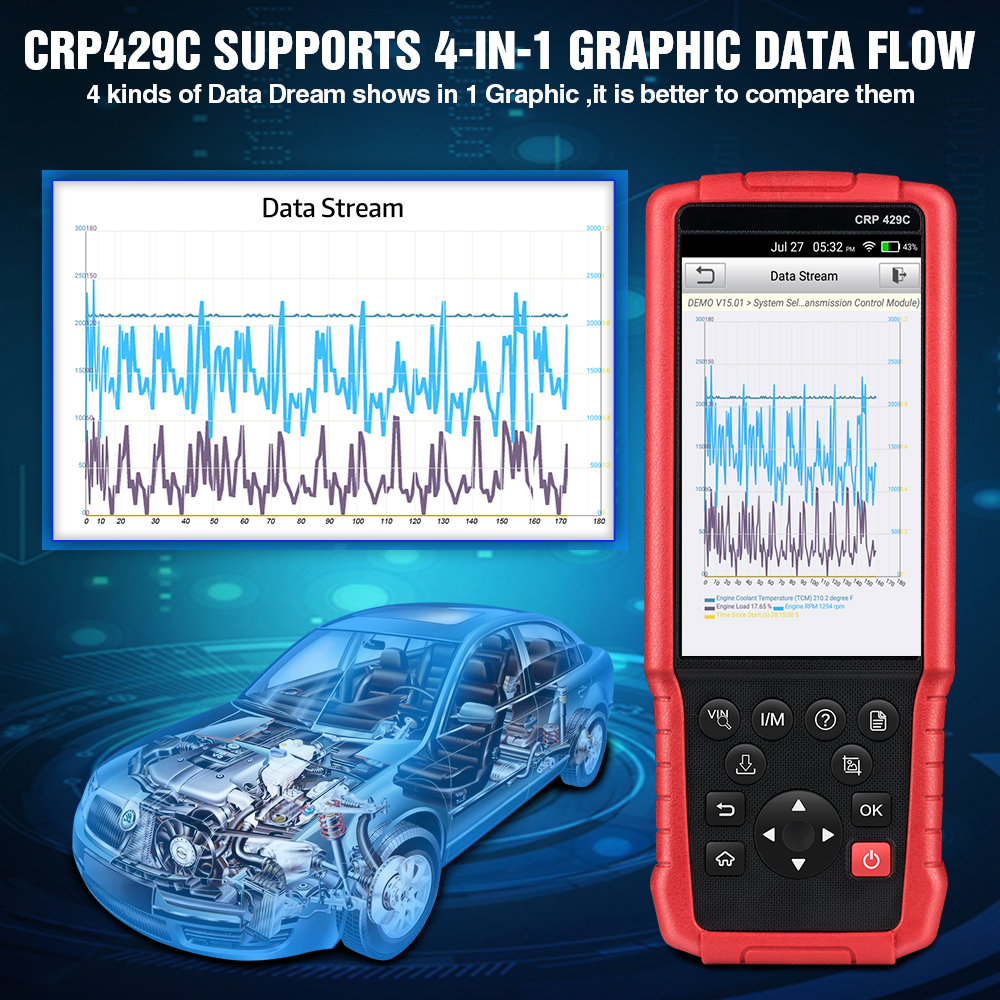

Live Data Stream Analyse in Graph:

The launch scanner CRP429c shows you live sensors data and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.

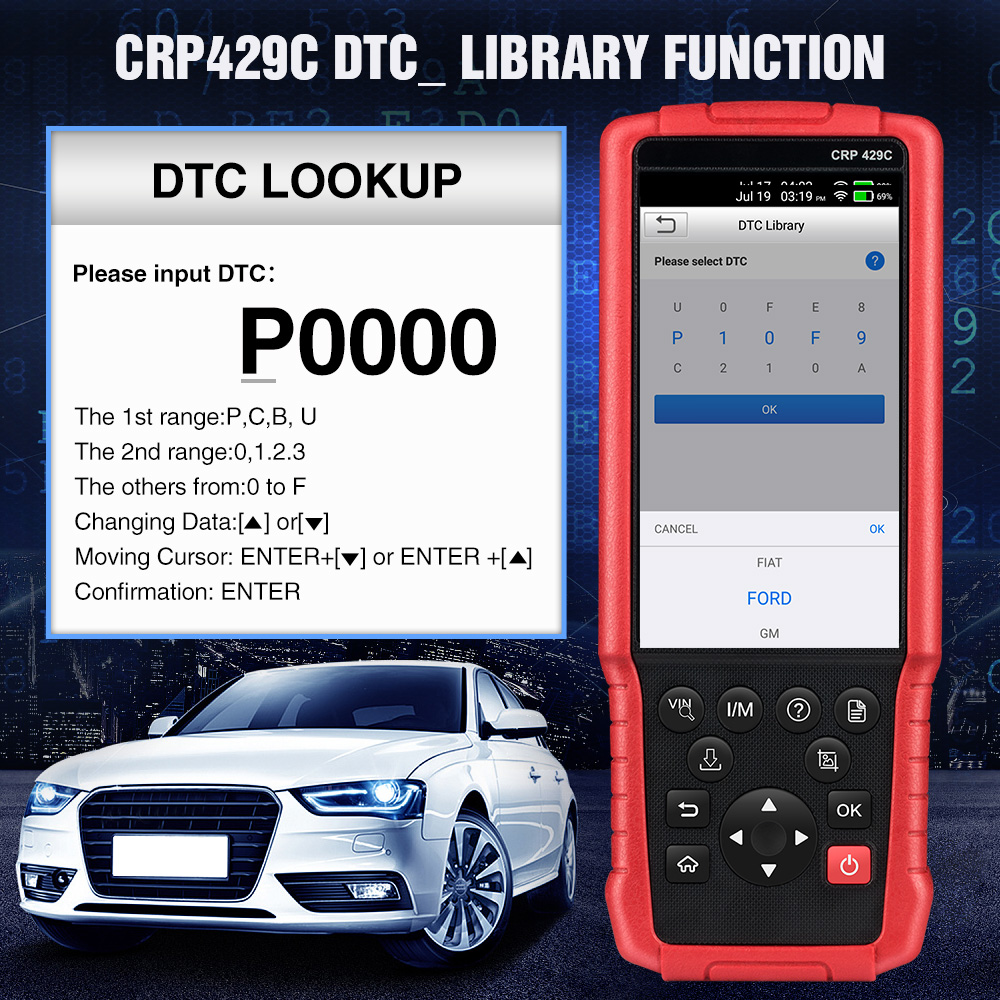

DTC Library:

Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.

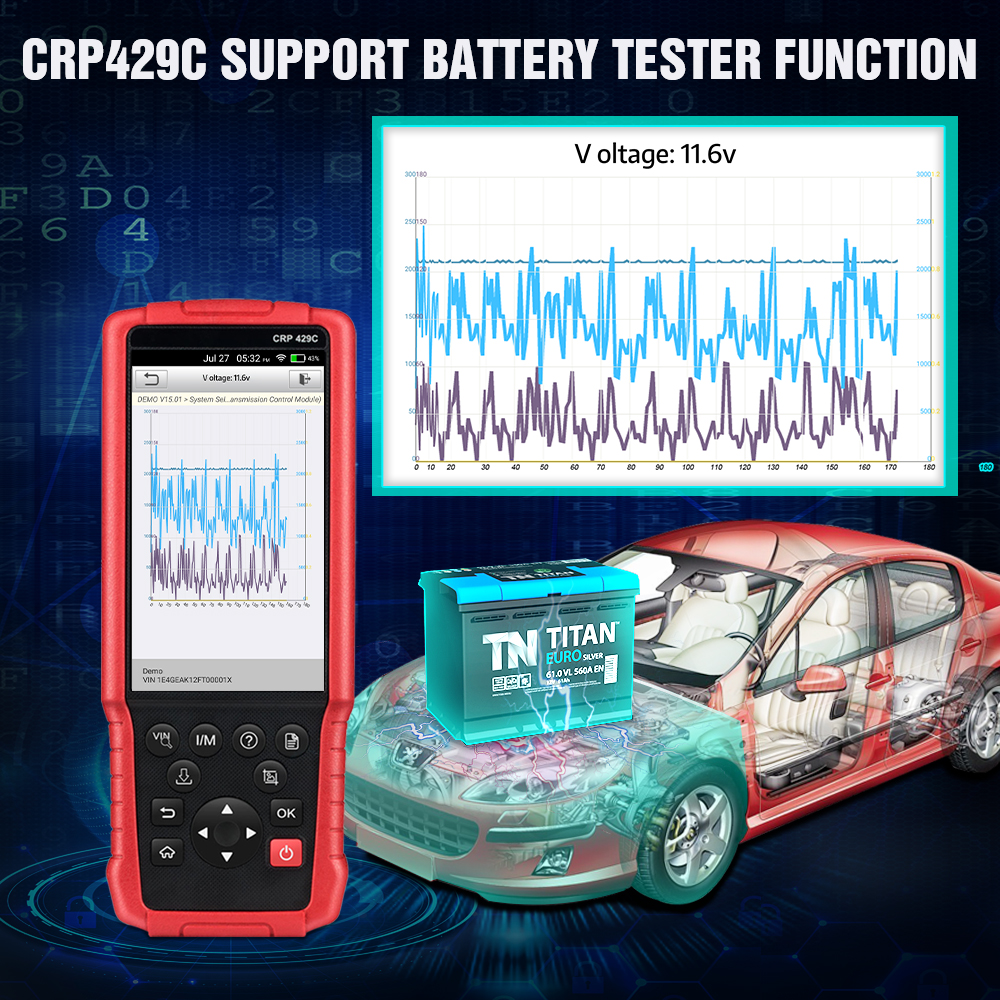

Battery Test:

Displays battery real-time voltage once properly connected to the vehicle

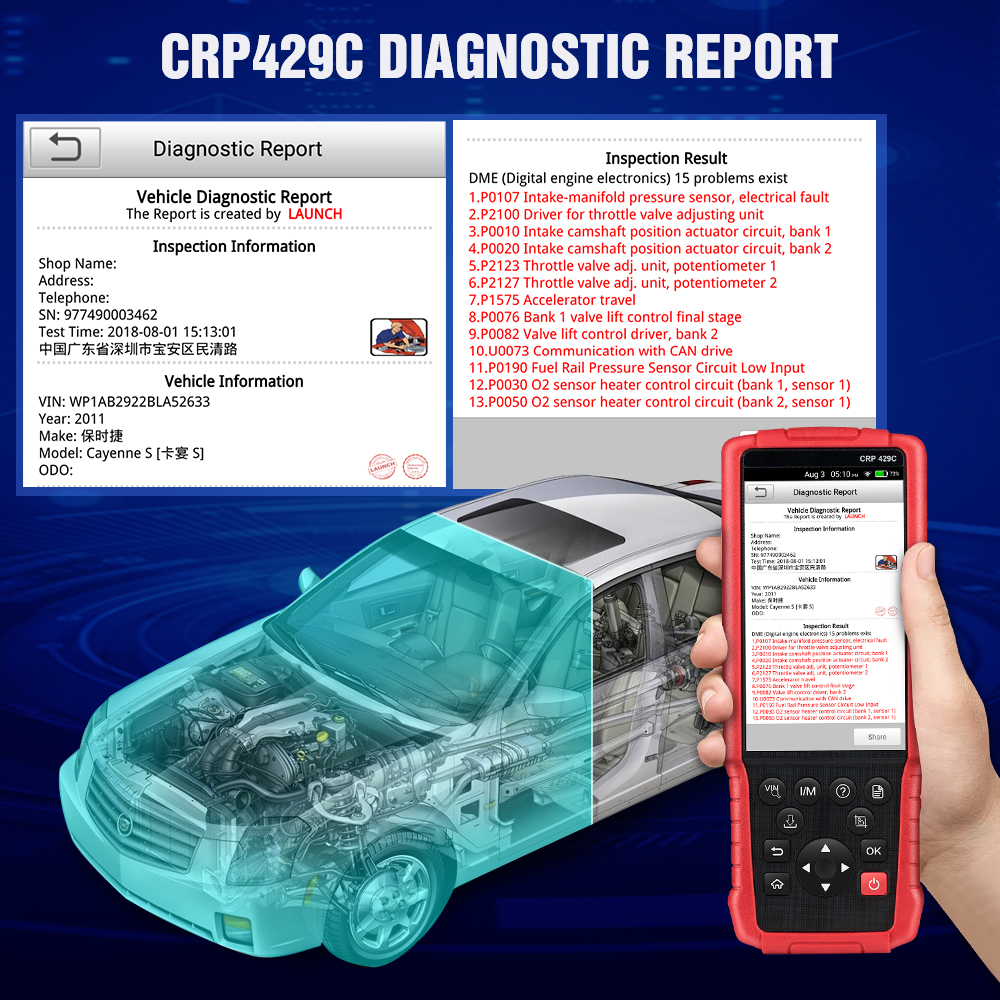

Diagnostic Reprot Share and Print:

Launch CRP429C OBD2 Scanner support auto generate and store vehicle diagnostic report which can let your mechanic know how to do vehicle inspection and maintenance. And the diagnostic report can be shared to email then print.

The diagnostic report can help you save time to analyse the problem, it is very great for repair shop , mechanics can print out the vehicle report for customer.

Features:

1. OBD2 Full Functions + 11 Special Functions: Launch CRP429C is one professional diagnostic tool with powerful function, support OBD2 full function such as read and clear DTCs for Engine/ABS/SRS/Transmission, graph live data of all system, EVAP system test.

Compared with general OBD2 scanner, Launch CRP429C add oil reset, SAS reset, electronic parking brake reset, battery maintenance, ABS bleeding, electronic throttle position reset, DPF regeneration, injector coding, TPMS reset, IMMO matching, gear learn.

2. Powerful Scan Tool: Launch CRP429C can do comprehensive diagnosis for Engine/ABS/SRS/Transmission system, and it built in over 3000 generic error code definitions, help you know car problem quickly.

3. OBD Diagnostic Tool: Launch CRP 429C does not only support OBD2 connector car , also support OBD1 connector car, it very practical. Please note, launch CRP429C only comes with OBD2 connector cable.

4. Easy To Use: Launch CRP429C is a 5 inch touch screen OBD2 scanner, equipped with Android system and A5 quad-core processor, 8GB ROM, high-speed diagnostic and feedback, it is like our mobile phone, very easy to use for every person.

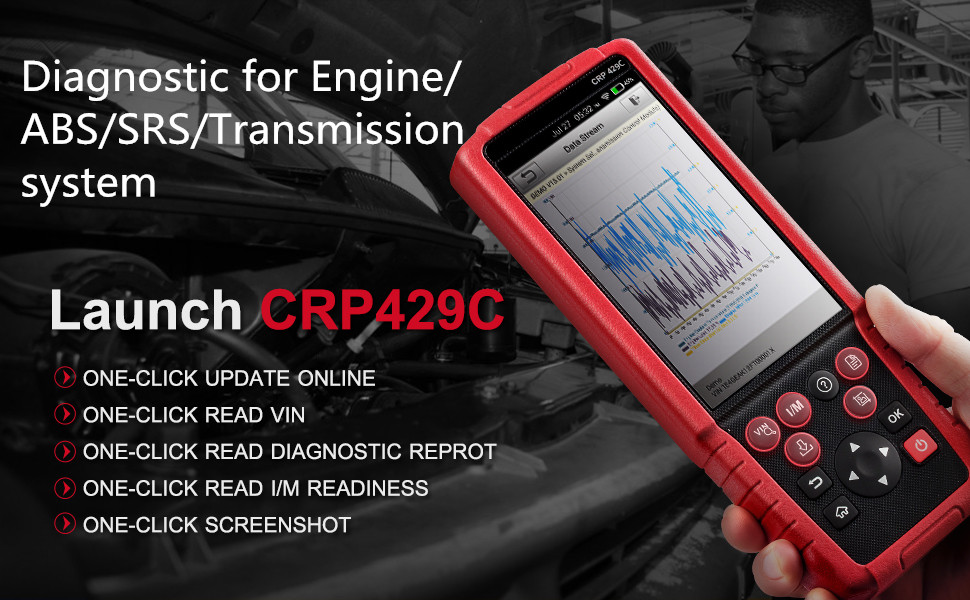

5. Convenient Button: Launch CRP429C have one-click online update button, one-click read I/M readiness button, one-click screenshot, one-click identify VIN, one-click read diagnostic report, and you can print the report by sharing it to computer. Launch CRP429C is advanced version of launch crp129 and Launch X431 CReader VIII.

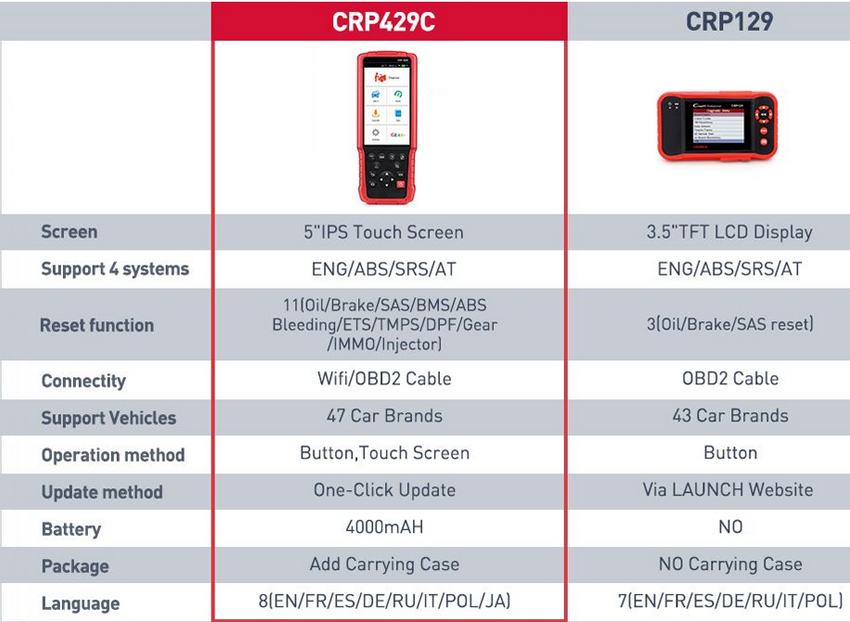

6 .Compare with CRP123, CRP129, CReader VII+, CReader VIII+, Launch CRP429C can not only work for OBD2 cars, it also can work for OBD1 cars.

7. Eliminated complex registration steps, CRP429c can be used without register.

1. Supports all 10 models of OBD-lI test

2. Support 4 major systems Engine, Transmission, ABS and Airbag system

3. Print: Support to print out diagnostic report via PC

4. Multiple car models (covering over 40 prevailing models from Asia, America and Europe).

5. Touch screen and button operation model, meets majority of users needs

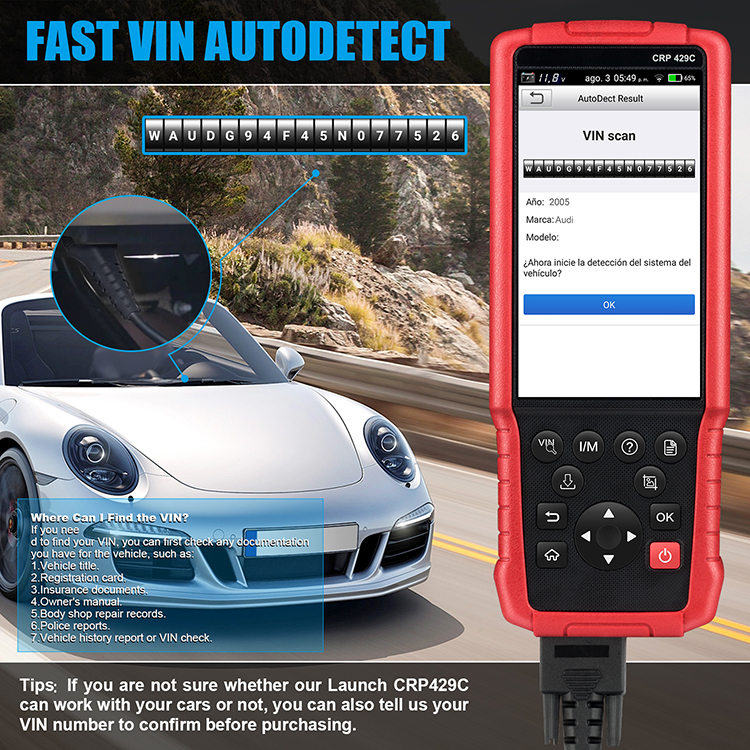

6. Smart Auto-Detect Diagnosis:

Once CRP 429C and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your email box (if bound). Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and troubleshooting

Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database. Displays battery real-time voltage once properly connected to the vehicle Features screenshot capture. Screen shots and reports sharing are supported. Touch & Keypad input are supported. Quick Dial buttons enables you to easily access the corresponding functions.

Demo, Acura, Alfa Romeo, Audi, BMW, Bugatti, Chrysler, Citroen, Dacia, Daewoo, Euro Ford, Fiat, Ford, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Seat, Skoda, Smart, Sprinter, Subaru, Suzuki, TL Isuzu, SAAB, Samsung, Toyota, Vauxhall, Volvo. VW，GM, GM SA, Honda, Hyundai, Infiniti, Isuzu, Jaguar, Kia, Lancia, Land Rover, Lexus, Lincoln, Mazda, Mercedes, MINI

Technical Parameters:

Operating System: Android 7.0

Processor: Cortex-A5 processor (1.5GHz)

Display: 5 inch IPS touch screen

Connectivity: Mini USB 2.0; Wi-Fi

Power and Battery: 4000mAh lithium-polymer battery

Ambient: -20 to 70 degree centigrade (storage); -10 to 50 degree centigrade (working)

Size: 248.7*93.5*36(mm)

How to Update Launch CRP429C?

1. If some new software or APK can be updated, a numeric indicator will display on the "Upgrade" module on the Job menu. In this case, you may use this option to keep it synchronized with the latest version.

2. Tap "Upgrade" on the Job menu to enter the update center. By default, all diagnostic software is selected.

3. To deselect certain software, tap "Unselect", and then check the box next to vehicle model.

4. Tap "Update" to start downloading. It may take several minutes to finish it, please be patient to wait. To pause downloading, tap "Stop". To resume it, tap "Continue". If network connection failure occurs, tap "Retry" to try again.

5. Once download is finished, the software packages will be installed automatically.

FAQs:

Q: System halts when reading data stream. What is the reason?

A: It may be caused by a slackened connector. Please turn off the CRP429, firmly connect the connector, and switch it on again.

Q: Screen of main unit flashes at engine ignition start.

A: Caused by electromagnetic disturbing, and this is normal phenomenon.

Q: There is no response when communicating with on-board computer.

A: Please confirm the proper voltage of power supply and check if the throttle has been closed, the transmission is in the neutral position, and the water is in proper temperature.

Q: What to do if the system fails to start auto VIN detection?

A: Please check the following possible reasons:

1. Whether CRP429 is properly connected to the vehicle’s DLC.

2. Whether the “Automatic detection on Connect” switch is OFF. If yes, slide it to ON.

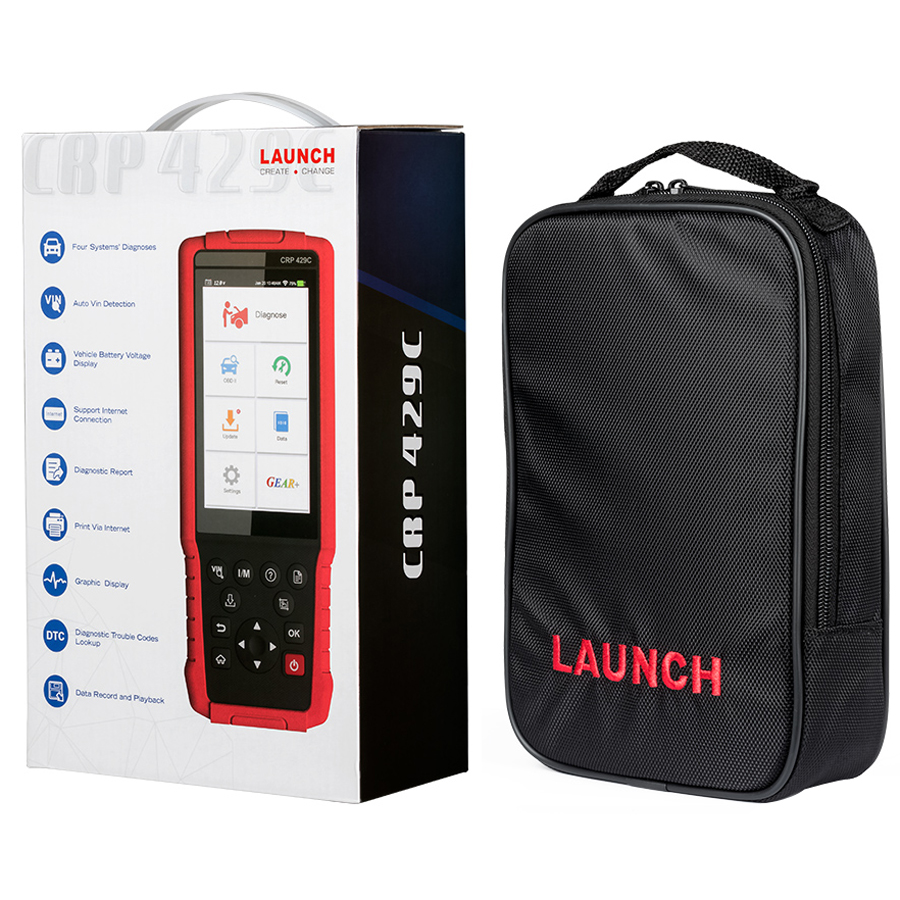

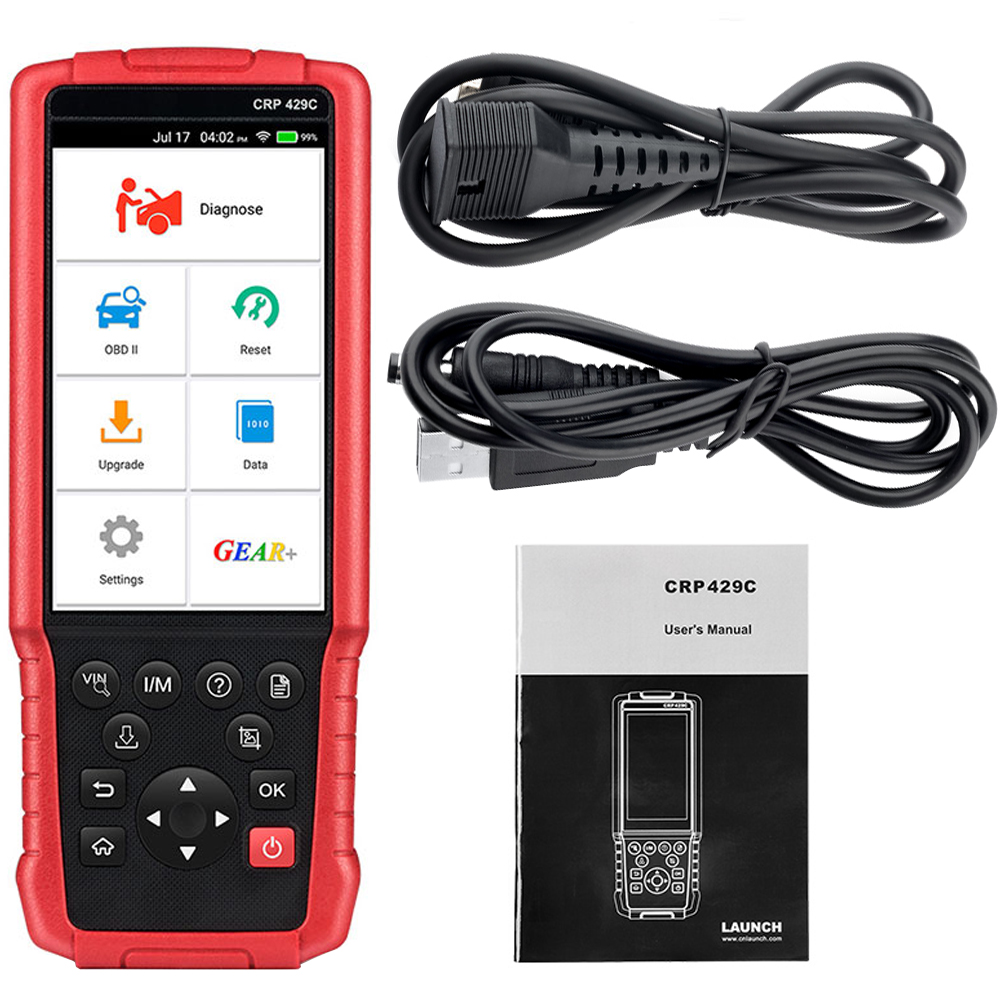

Launch CReader CRP429C OBD2 Code Scanner

OBD-II Diagnostic Cable

DC 5V Charging Cable

User Manual
Carrying Pouch
