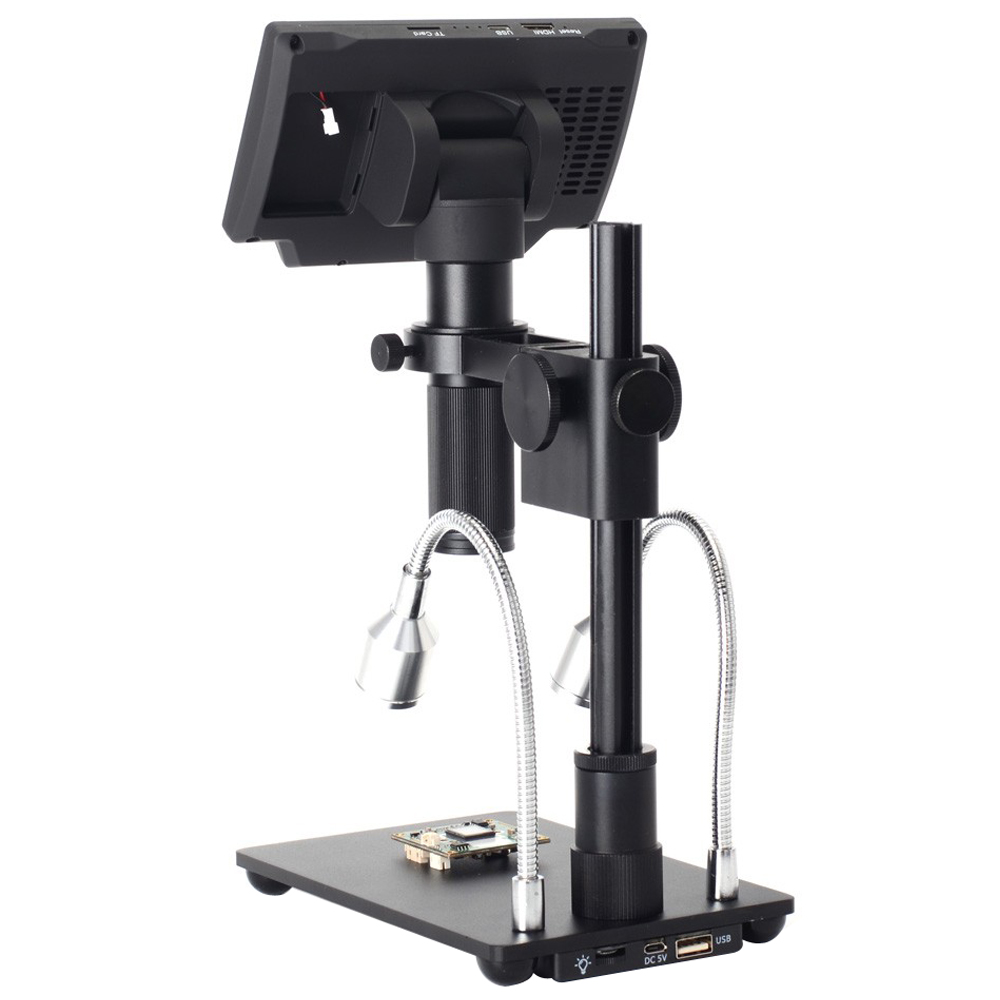

Name: 4K Digital Microscope
Description:
It is a multifunctional digital microscope, individually designed and developed. It realizes Full HD, high object distance, multifunction and multi-output at the same time. With help of the Hayear measuring software, it can easily meet many different requirements in many fields, such as industrial overhaul and teaching demonstration. And it s appearance design combines more ergonomic consideration, provides users with better experience. We sincerely hope that this product will release your eyes and improve the quality of your work.
Features:
HD definition 16 million pixels
Full HD 2160P
WiFi connection
Wireless remote control
Built-in crosshair set (adjustable)
The highest resolution is 4K (connected displayer)
HDMI interface
High-speed 60 frames without jams and afterimages
PC supports measurement function
Image sensor 1/2.3
Specifications:
Image Sensor: 1600 mega pixel SONY CMOS 1/2.3 high resolution sensor
Screen Size: 5.1 inch
Magnify Times: 230
Video Out: HDMI: 4K/2K/1080P; USB: 1080P
Video Format: MP4
Image Resolution: 16M 4680*3456; 14M 4320*3240; 12M 640*480
Image Format: JPEG
Frame Rate: 4K 24fps; 1080 60fps
Storage: TF card (maximum 64G)
Supported OS: Windows XP/7/8/10
Menu Languages: multi-languages
Battery: polymer battery (size 42*30*5mm; voltage 3.7V to 4.2V; current: 500mA to 2000mA)
Stand Size: 17*12*20cm
Package Size: 28*22*17
Measure Function:
It is an application for imaging a dynamic image processing with following characteristics:
1. Support a variety of cameras, can switch at any time to use.
2. Using GPU rendering for image previewing, support for live image display of high-resolution and high frame rates.
3. Support dynamic image measurement function.
4. The software interface is easy to operate.

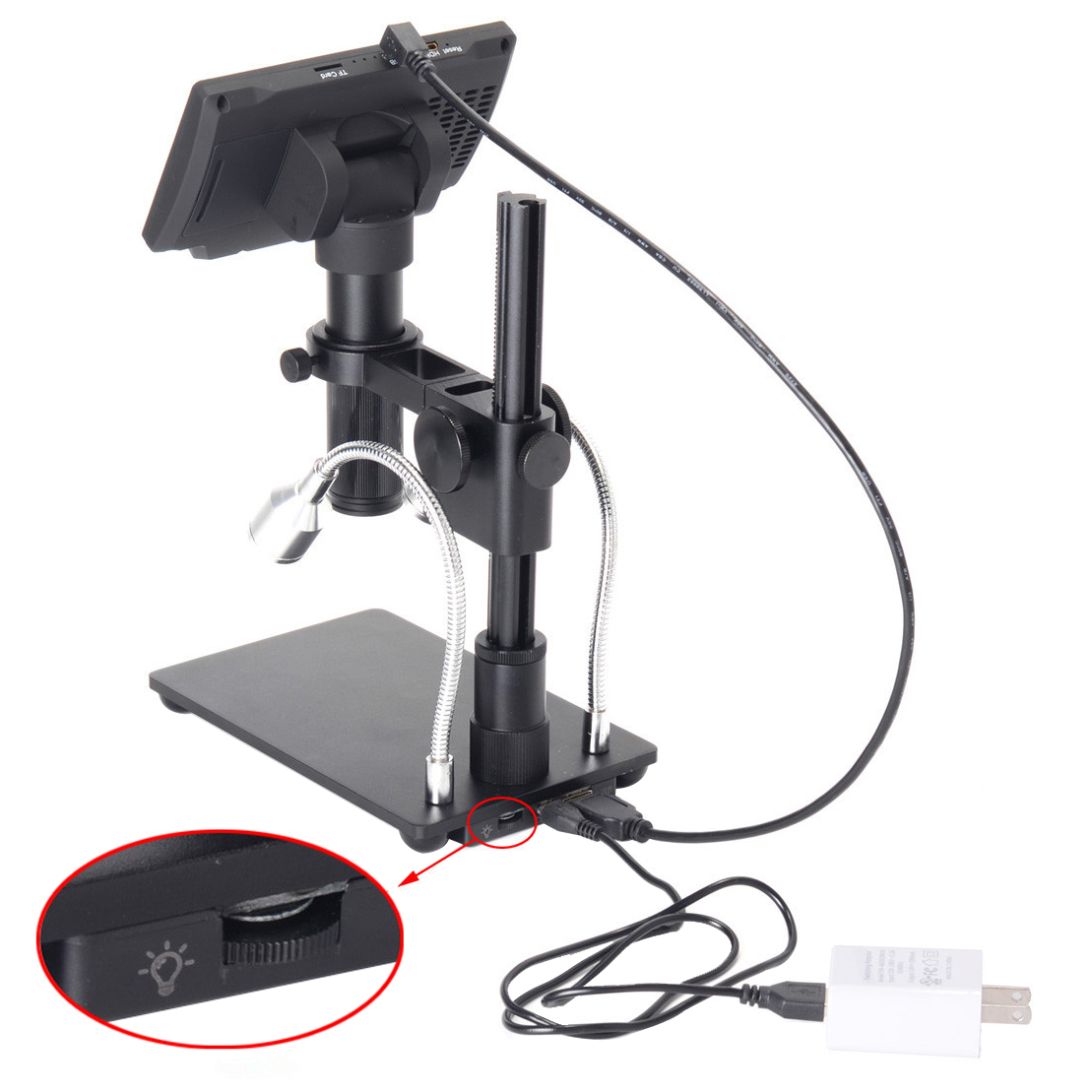

3 Kinds of Power Supply Methods:
1. Direct power supply: Get power via power supply plug (5V/2A);

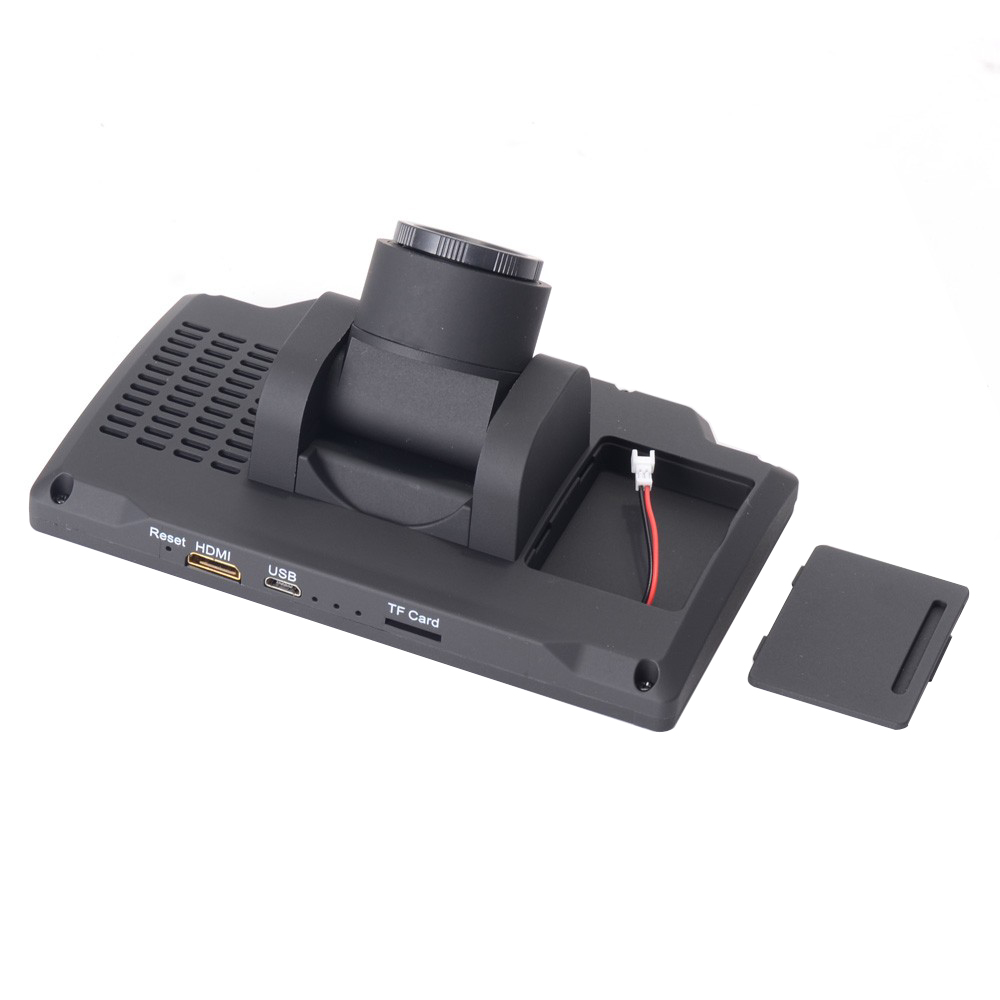

2. Polymer Battery: Product reserved battery installation slot, battery interface size is 3.5mm; For international shipping concern, standard package is not equipped with a battery and needs to be purchased by the customer. (the larger the battery, the longer the standby time of the camera);
3. Power Bank: The USB interface can use power bank to provide power to the camera.
Packing List:
4K Digital Microscope
Stand
HDMI Cable
USB Cable
Remote Controller
Power Adapter
User Manual
Packing Box
|
