Name: 55MP 4K 1080P Digital Camera / USB HDMI Electronic Microscope Camera
Description:

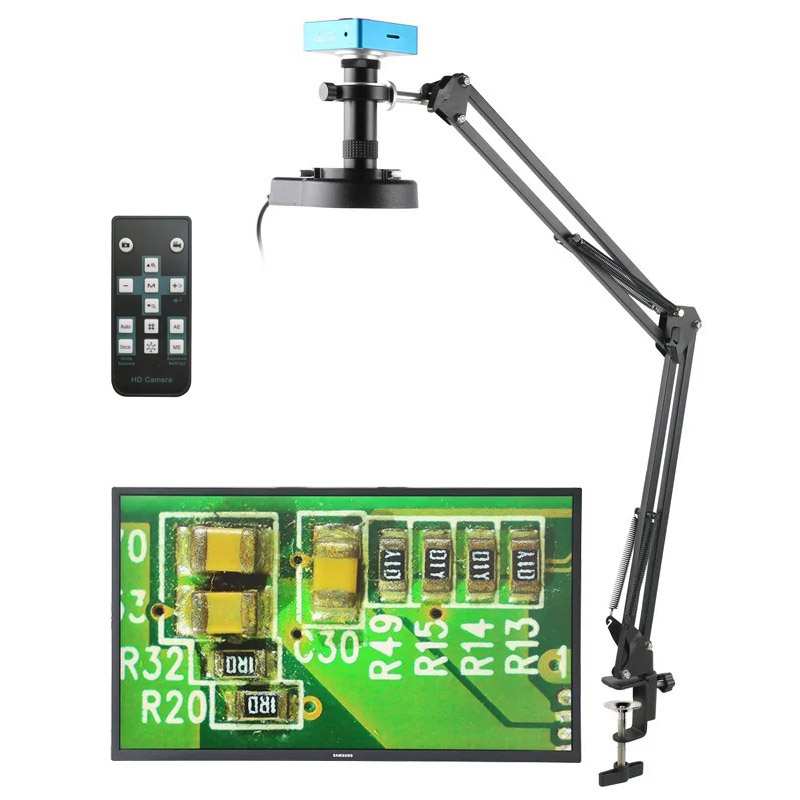

55MP 4K 1080P Digital Electronic HDMI USB Microscope Camera with 260X C-Mount Lens for electronic products repair and soldering.
Specification:

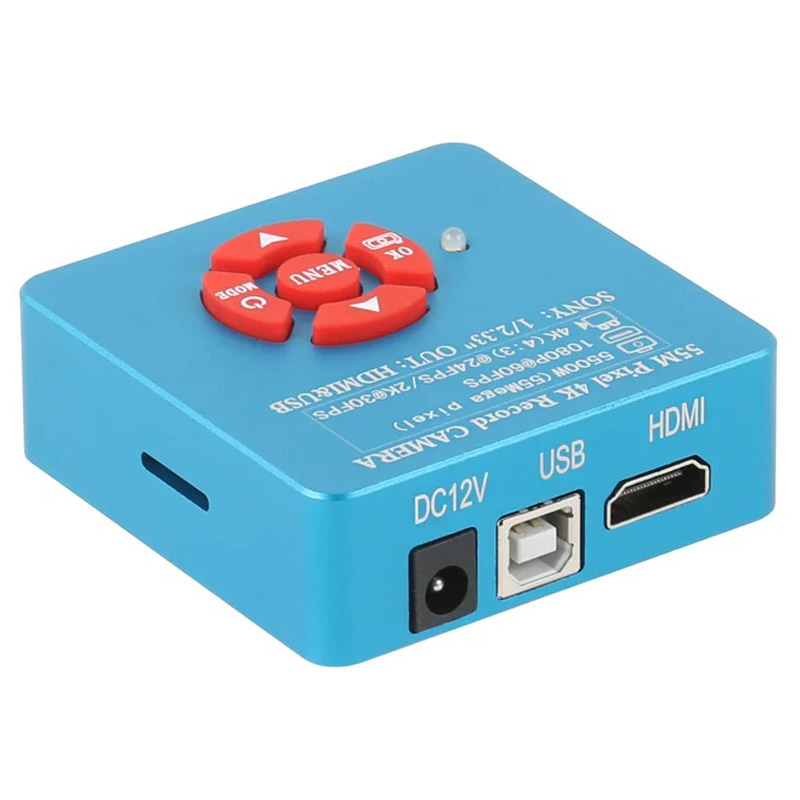

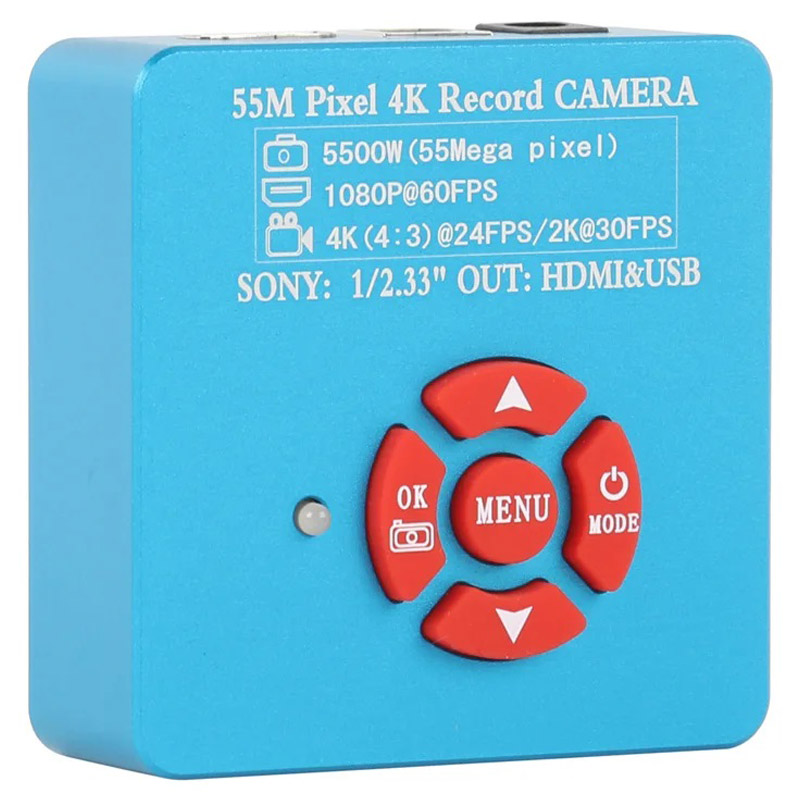

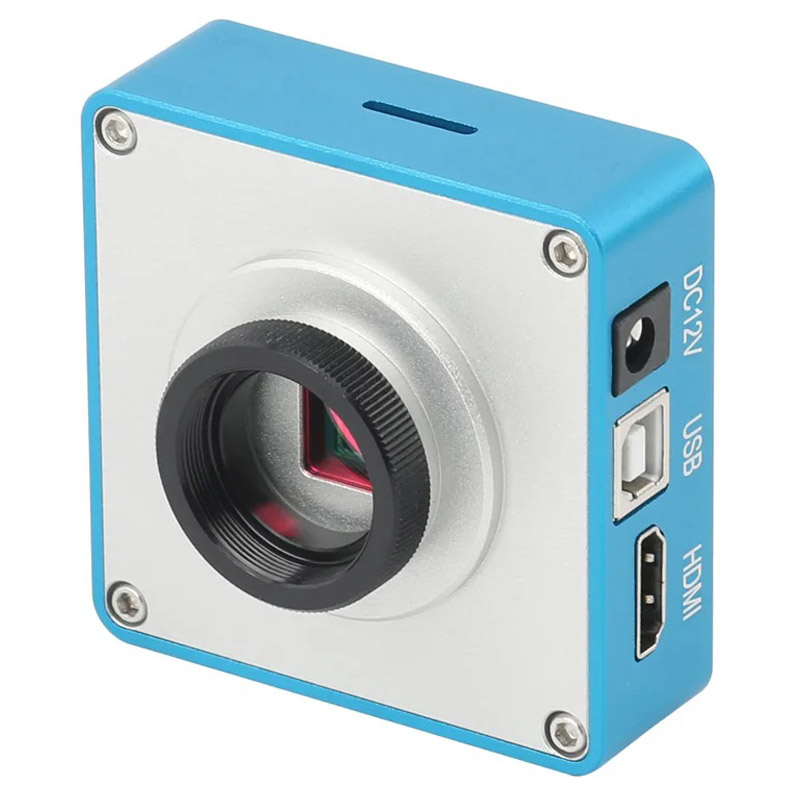

Camera:
Picture Pixel: 9885*5560 55M Pixel
Video Frame rate: 4K(4:3)@24fps / 2K@30fps /1080P@60fps
CMOS Sensor: SONY 1/2.33 inch
CMOS Pixel: 1.33um*1.33um
Color Setting: auto
White Balance: auto / one button calibration / manual
EV: auto / manual
Camera Mode HDMI Output: 1080P@60 FPS
Grid Line: 8 horizontal lines and 8 vertical lines
Cross Line: overlap or cancel
Lens Jack: standard C
Power: 5V-12V/1A
Camera Size: 68*68*33mm
Camera Weight: 200g
Working Temperature: 0 - 70℃

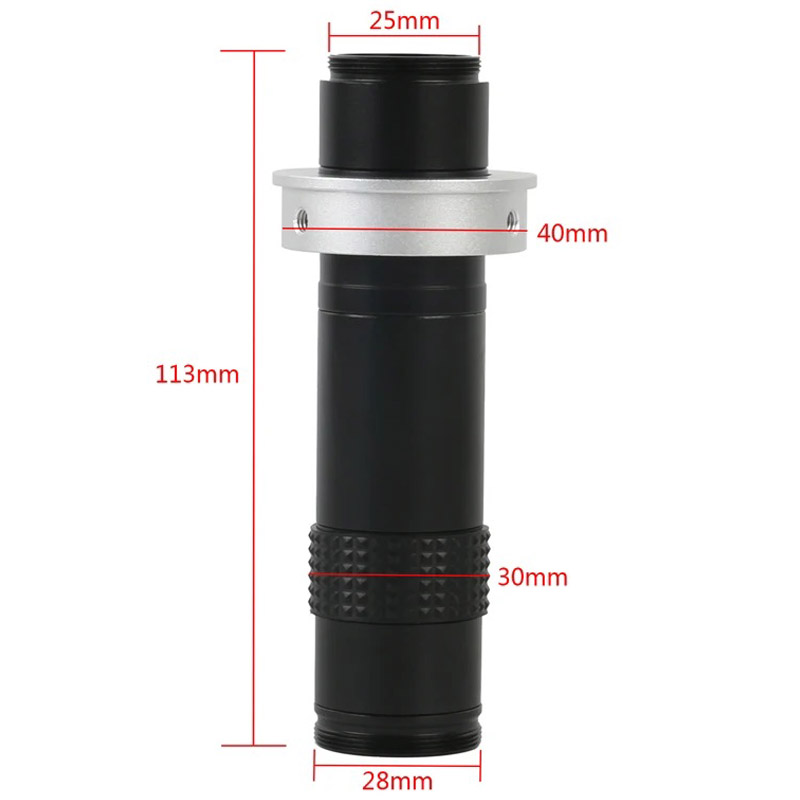

1X-260X C-Mount Lens:
Working Distance: 50mm-infinity
Zoom Ratios: 1:15
Magnification Power by 0.13- 2X
View Field of Max. Multiple: 4.2mm*2.4mm
View Field of Min. Multiple: 130mm*70mm
Size: 30mm(diameter)*113mm(length)
Weight: 195g

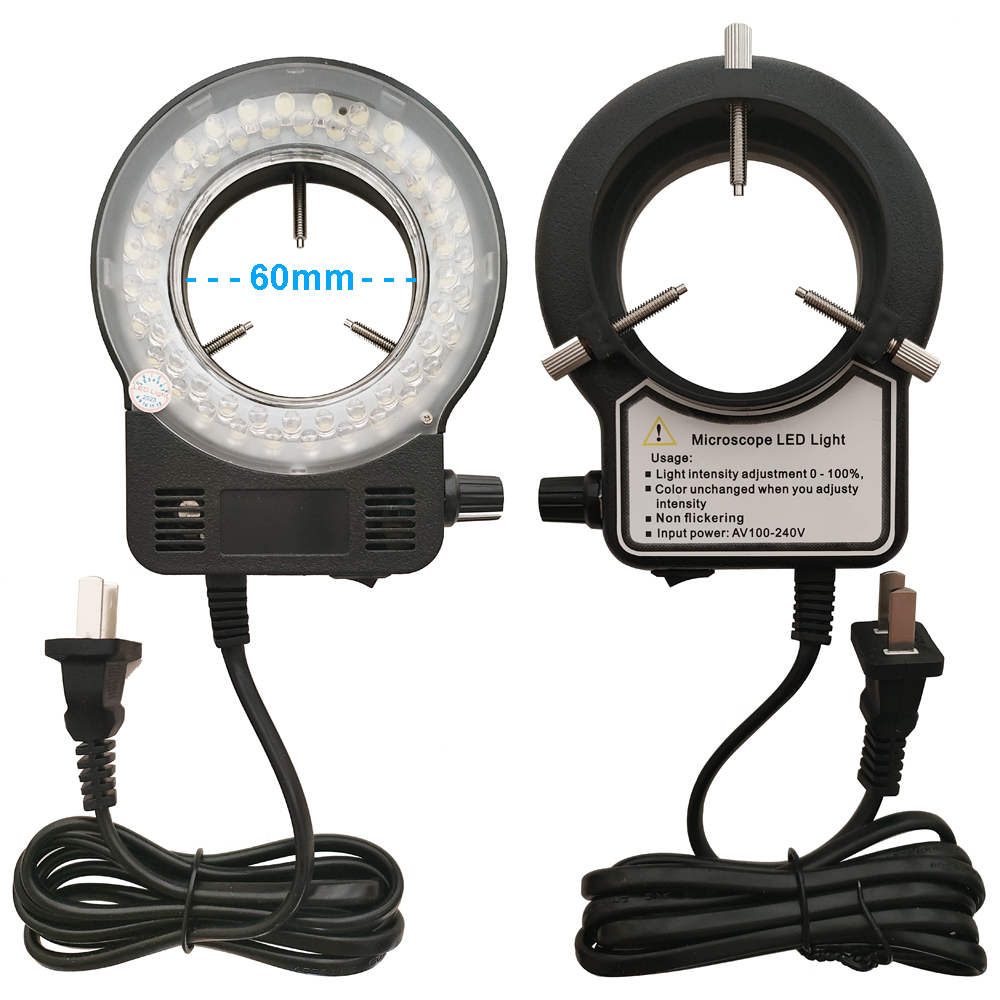

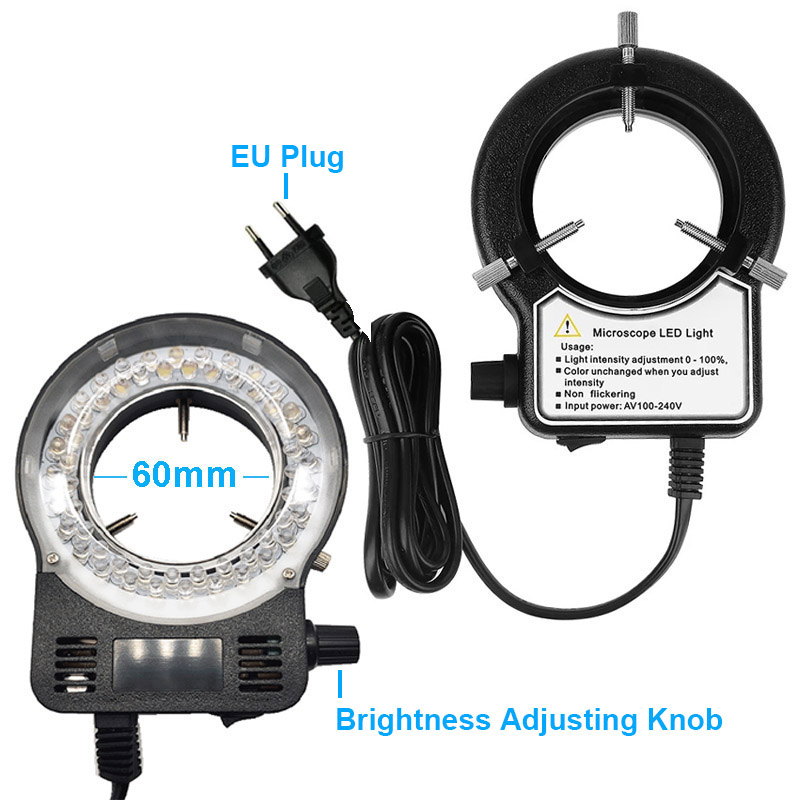

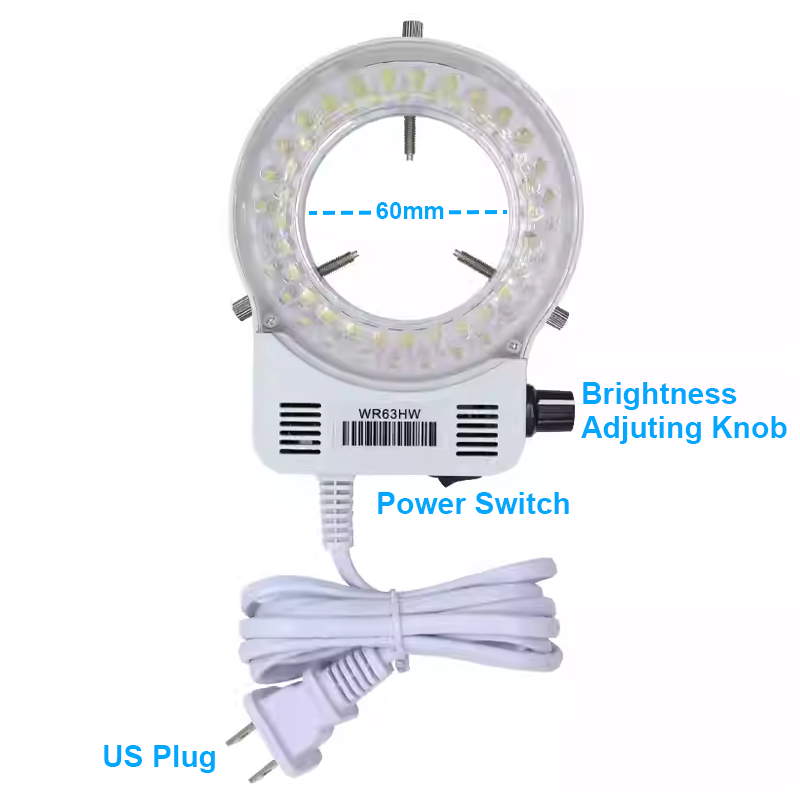

56 Bright White LED Bulbs:
100,000 hours of life
Intense and Focused Shadow-Free Illumination
0-100% Adjustable Brightness / High Brightness
Variable Intensity Control
Power Input: 90V-260V / 50-60Hz
Applicable Lens Diameter: 30mm - 63mm
Remote Control Instructions:
+: Zoom In
-: Zoom Out
UP: EV+
DOWN: EV-
OK: Confirm or Start Recording
Menu
Mode: Camera / Video / Playback
Bottom: Photo Taking
Left & Right: not in use

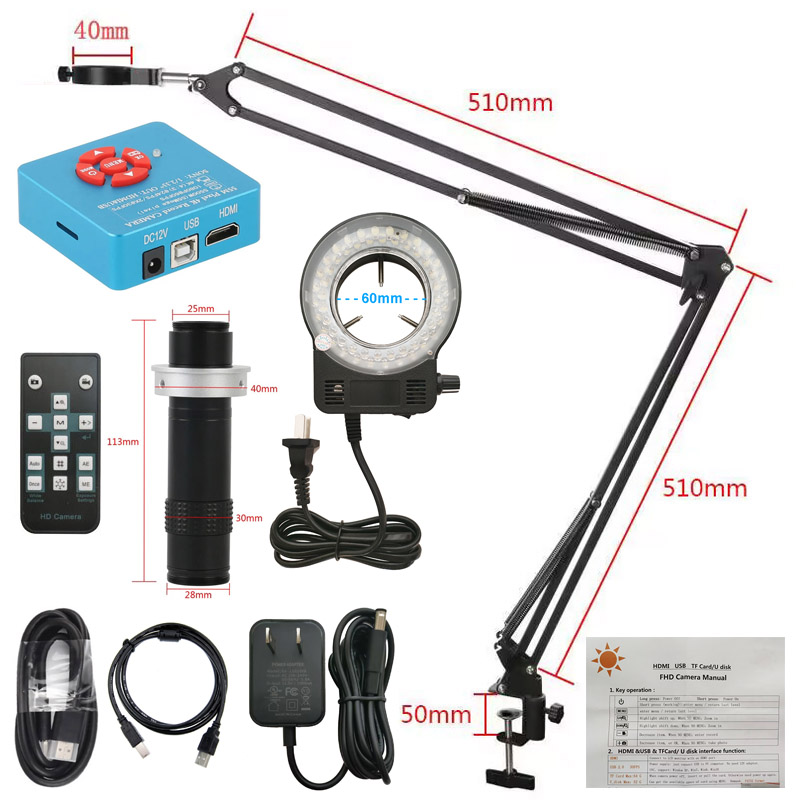

Packing List:
Microscope Camera
1X-260X C-Mount Objective Lens
HDMI Cable
USB Cable
56 LEDs Light Ring
Remote Control
Stand
Power Supply
User Manual
Packing Box
|
