  OBDSOS PRODUCTS Car Key Programmer

Product ID SK213-6
Product Name Lonsdor LKE Smart Key Emulator 5 in 1 for Lonsdor K518ISE Key Programmer
Product Price USD250
Actual Weight (Kg) 0.1
Volumetric Weight (Kg) 0.5
Package Size (cm) 12*8*3
Related Download
Order Quantity:
In Stock



Related Products
Description

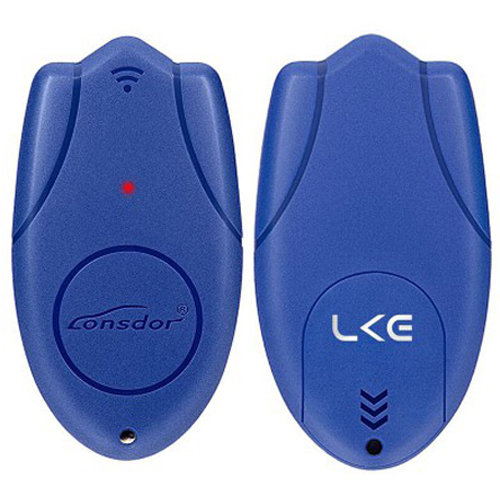

Name: Lonsdor LKE Smart Key Emulator 5 in 1 for Lonsdor K518ISE Key Programmer

Description:

LKE is a car smart key emulator newly released by Shenzhen Lonsdor Technology Co., Ltd. as an ancillary product for K518 device. It supports functions such as collect data(sent from automobile ignition coil) to detect the coil fault and decode car keys; simulate key chip(4D and 46 chip are supported currently, more chip types to be continued).

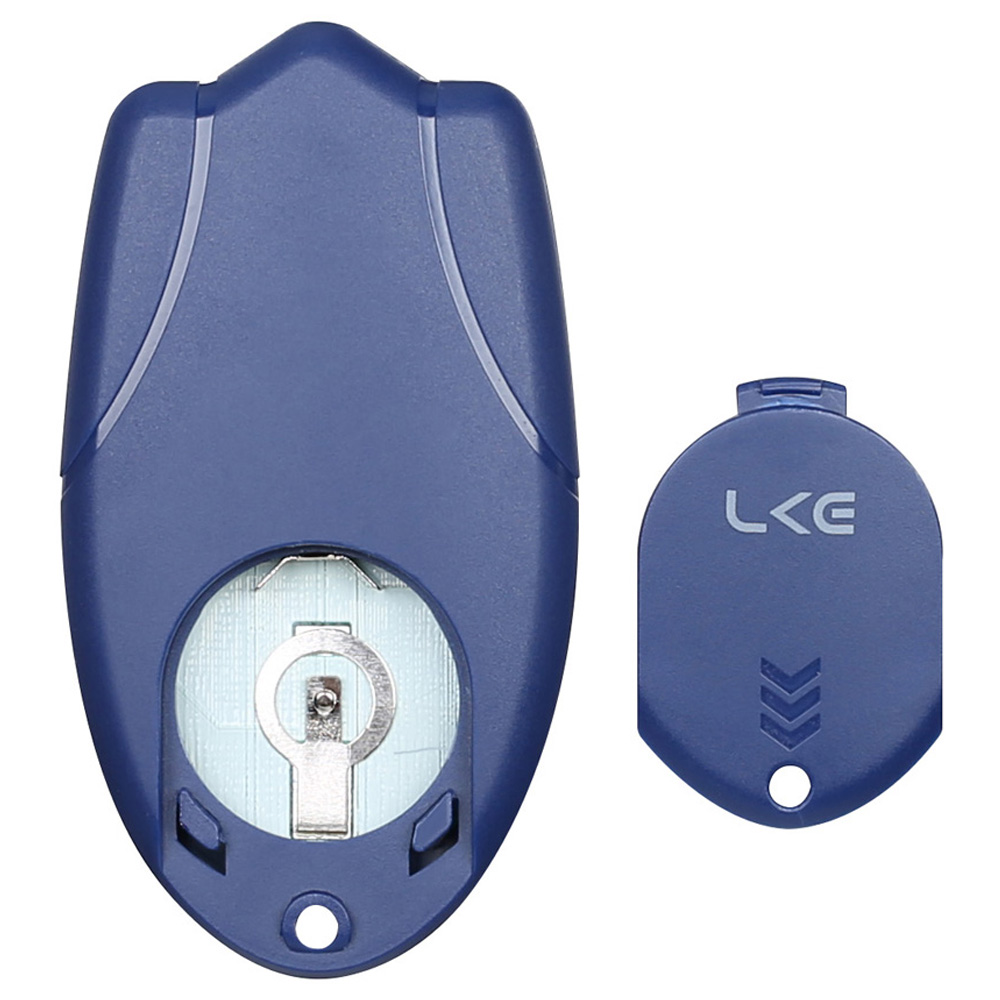

It is lightweight and convenient, and can match all the vehicle models with 4D or 46 chips by working with K518. Meanwhile, LKE adopts low-power design, and has CR2032 button battery installed externally, which is easy to replace batteries and can avoid damage to casing. It can be upgraded through K518.

Lonsdor LKE Smart Key Emulator = SKE-LT Smart Key Emulator (4 pcs) + SKE-LT-DSTAES 128 Bit Smart Key Emulator

Features of Toyota/Lexus smart key all lost (5 emulators-in-1):

Dismantle-free
No need networking
Localized computing

Generate Chip:

LKE can be used to work as an emergency key to program when no dedicated chip.

Copy Chip:

By collecting data to decode and copy chip, LKE currently supports some 46 and 4D chip copy.

Simulate and Convert Chip:

Use [Generate Chip] to make various chips, part of 4D/46 and SKE Toyota currently supported.

Decode Chip:

Decode 46 and 4D chips to obtain SK.

Identify ignition coil and key chip type (all key lost)

As K518 Helper:

Achieve programming key without PIN for Hyundai and Kia.
Achieve programming key without PIN for BYD.
Achieve programming key without PIN for Porsche Cayman(2005-2010) and boxster.

Functions:

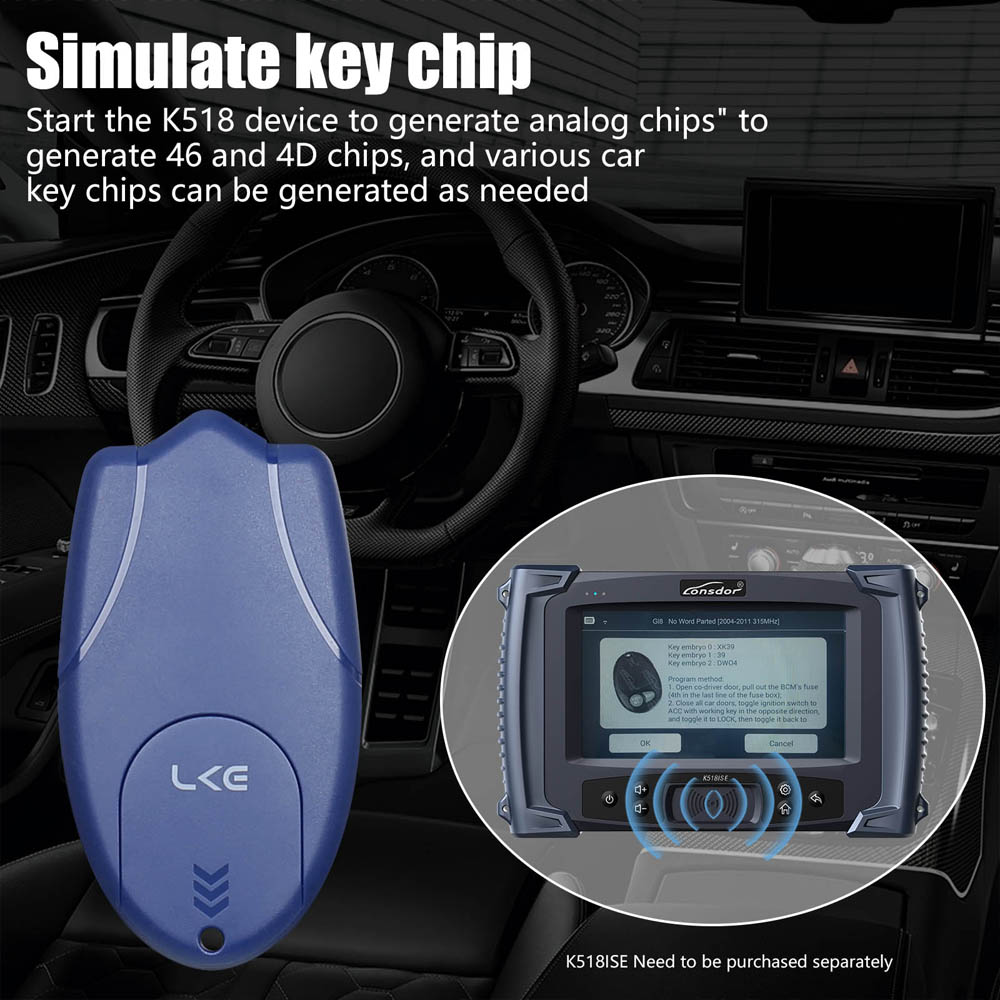

(1) Simulate Key Chip
Boot K518 device, place LKE into K518 card slot, go to "Special function" in the menu interface and choose "Analog chip->Generate analog chip" to generate 46 and 4D chip, then you can generate various car key chip according to demand, for example, 46 chip can be used to generate key chip for vehicle models like Great wall motor, Zotye auto, Geely and etc; 4D chip can be used to generate key chip for Toyota, Lexus, Subaru and etc.

(2) Collect Data
This function is currently used to collect data to decode chip, and can copy original car chip data after chip is decoded. Boot K518 device, place LKE into the card slot, go to "Special function" in the menu interface and choose "Decode chip", you can decode different types of chip.

(3) Detect Ignition Coil Fault and Chip Type
Boot K518 device, place LKE into the card slot, go to "Special function" in the menu interface and choose "Ignition coil->Detect ignition coil " to detect whether the coil is normal and identify chip type.

(4) Upgrade Functions
Boot K518 device, place LKE into the card slot, in the interface of "Special function", click function icon, the system  will notify whether to update, click OK to upgrade online directly.

Operation Instructions:

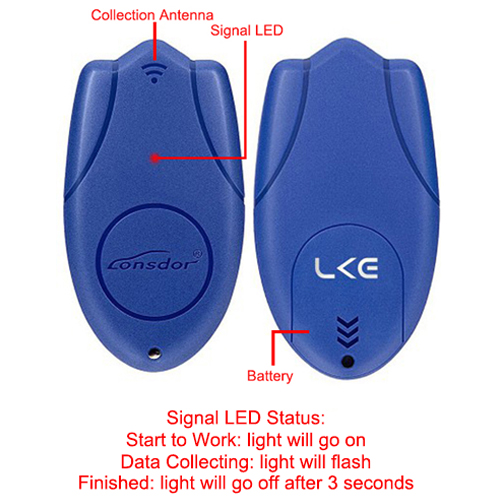

Boot K518 device, click "Special Function" icon and choose corresponding functions (such as Identify© chip, Analog chip, Decode chip, Ignition coil) and operate as per system prompts. When it starts to work, signal light will go on; when at work, the light will flash; when finish work, the light will go out after 3 seconds.

Specifications:

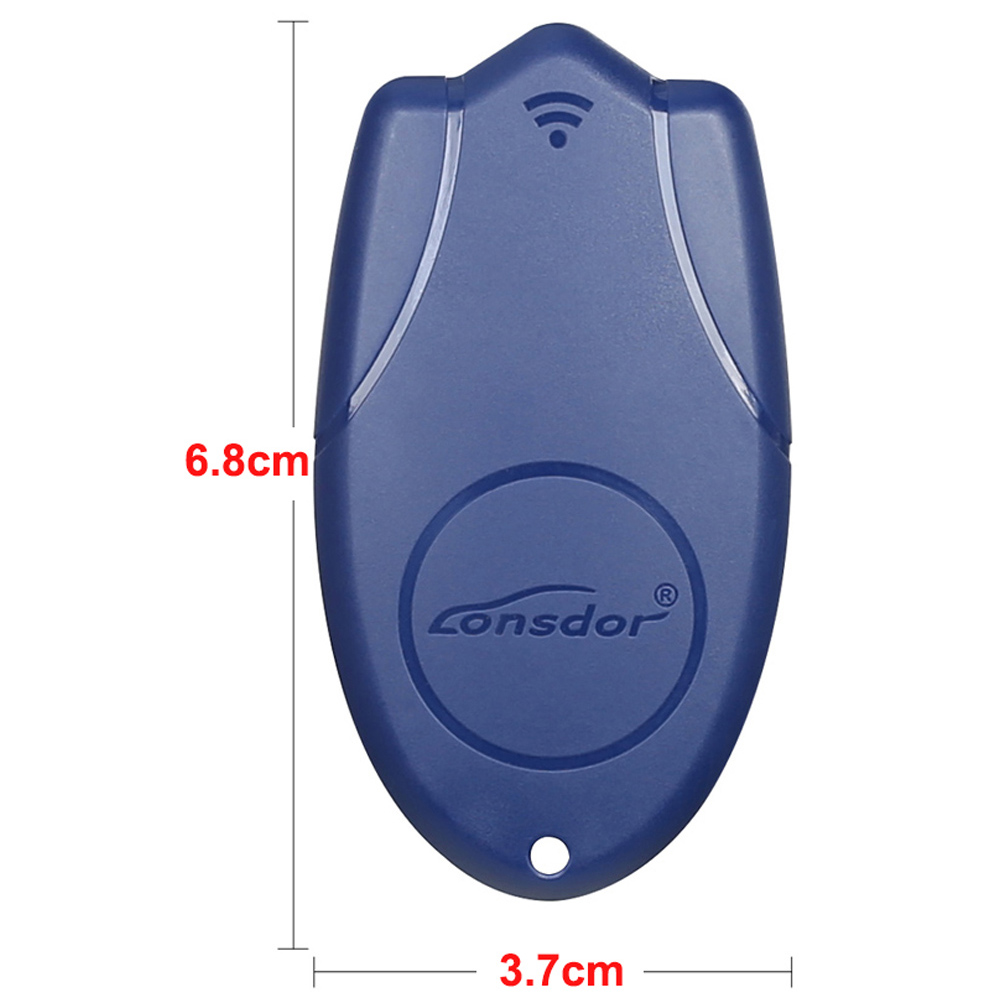

Device Size: 68mmX37mmX11mm
Battery: CR2032
Standby Current: 3.5ua
Working Current: ≤4ma
