Description:



STC SVCI DoIP for Jaguar Land Rover Diagnostic Tool with Pathfinder & JLR SDD V156 Software supports JLR from 2005 to 2019 with Online Programming Function.



SVCI DoIP Vehicle Communication Interface (VCI) is used by professional technicians as an aid in diagnosing and repairing vehicle electrical and electronic systems. SVCI DoIP is designed to connect the vehicle to a computer application which then functions though the  SVCI DoIP for data transfer and Electronic Control Unit (ECU) reprogramming. Using the VCI Manager PC application software, The SVCI DoIP is capable of communicating over a USB cable.

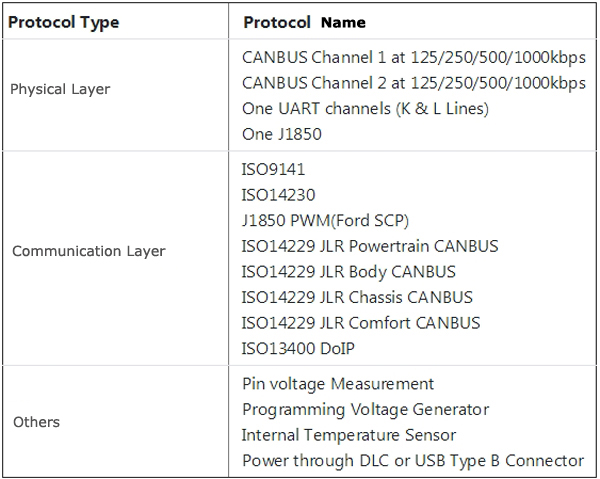

The SVCI DoIP is a standard-based tool – supporting the SAE J2534 interface, and the ISO22900-2 Diagnostic-Protocol Data Unit (D-PDU) API. Fully support JLR diagnostic software SDD2 and Pathfinder, including diagnostic, ECU update, CCF configuration and all the functions of JLR.



How to Use STC SVCI DoIP?

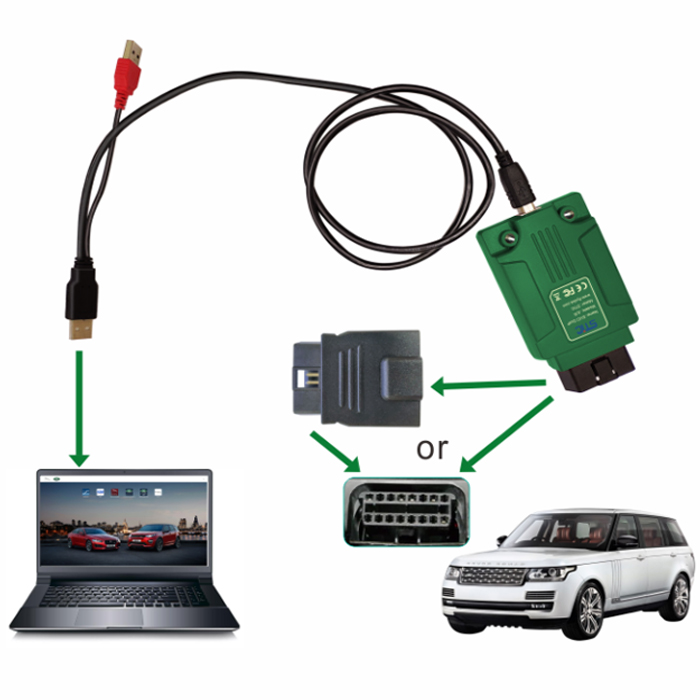

If you want to use SVCI DoIP device normally, you have to download and install three software, they are Pathfinder, SDD2 and SDD2 "QuickLoader" software. These three software can be installed in the same operating system together, and when you use SDD2 software, you have to open it from the SDD2 "QuickLoader" software. And when the software is installed, the device needs to be connected to computer and vehicle. The Pathfinder software is primarily intended for Jaguar Land Rover models manufactured in 2017 and later, The SDD2 software is mainly aimed at Jaguar Land Rover 2016 year models and before.



Pathfinder Installation Steps:



Step 1: Before installing the software, you need to make sure the disk C has a minimum 250GB free space.



Step 2: Access to software download center http://www.flyobd.com/shop/download-center/



Step 3: Selection “Pathfinder” item and download Pathfinder installer



Step 4: Double-click the file that you download and saved to start installation.



Step 5: The Pathfinder installer will automatically prompt you to download and update the software and files you need to install Pathfinder(The automatic download and installation will takes up to 24 hours according to network download speed).



SDD2 and SDD2 "QuickLoader" Installation Steps:



Step 1: Download software from http://diagnosticdelivery.jlrext.com/idscentral/



Step 2: Selection the “SDD_xxx_Full.exe” file, download and save it.



Step 3: Double-click the “SDD_xxx_Full.exe” file and install it.



Step 4: Select SDD2-"QuickLoader" item from http://www.flyobd.com/shop/download-center  download and install it.



Step 5: Double-click the “SDD2 "QuickLoader".exe” file and install it.



FAQ:



1. What is SVCI DoIP ?



SVCI DoIP is a special vehicle inspection tool for Jaguar Land Rover models.



2. What does SVCI DoIP do?



SVCI DoIP hardware is compatible with SDD2 and Pathfinder software, which can achieve all the functions of these two software, it includes diagnostic, program, immobilizer, change CCF configuration and special function etc. By the way, the original DoIP device can achieve the function, SVCI DoIP can also achieve.



3. Is there a version limit for SVCI DoIP to use SDD2 and Pathfinder software, and can they be used for free?



SVCI DoIP hardware is compatible with all versions of SDD2 and Pathfinder. The software is free to use, and SDD2 software can be run without registration.

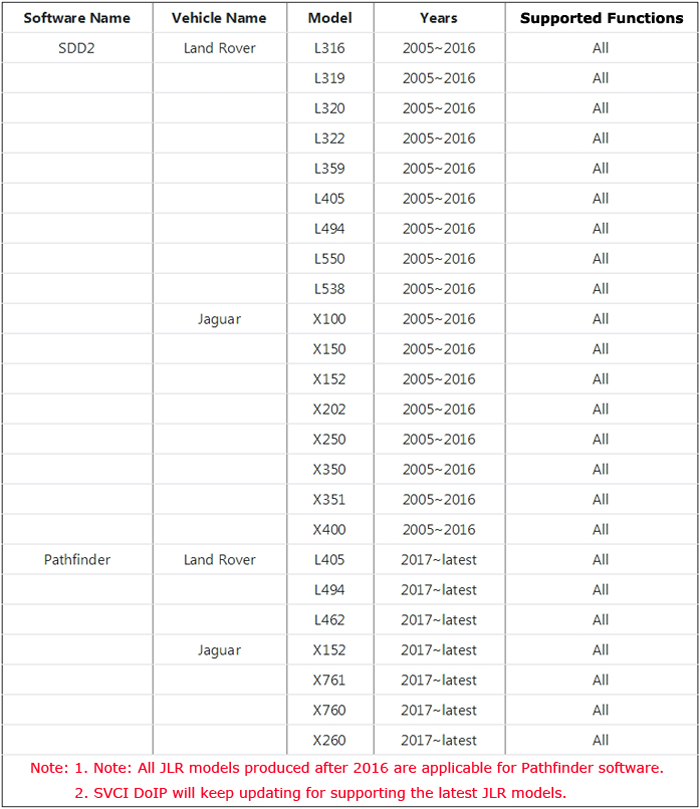

4. When will SDD2 be used and when will Pathfinder be used?



Use SDD2 software when you work on JLR vehicle from 2005-2016 year.

Use Pathfinder software when you work on Jaguar Land Rover models produced after 2017 year.

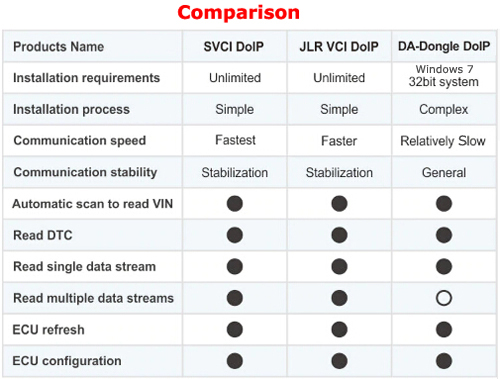

5. What are the advantages of SVCI DoIP?

SVCI DoIP hardware equipment is suitable for all Jaguar Land Rover models of the year, and it can achieve all Jaguar Land Rover functions. SVCI DoIP hardware itself is small and easy to take. In addition, there are several advantages:

1) High speed host communication. (3M bps)

2) Stable host communication. (with RTS/CTS flow control)

3) Automatically register software.

4) Online software update and keep software latest always.

5) Online firmware update.



Packing List:



SVCI DOIP JLR DoiP VCI

USB cable

OBD extension adapter

User manual

Software CD

Packing box
