Name: Launch X431 CRP123E OBD2 Engine ABS Airbag SRS Transmission Diagnostic Scanner
Description:
Launch Creader Professional CRP123E is an evolutionary smart solution for passenger car diagnosis. It inherits from LAUNCH advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.

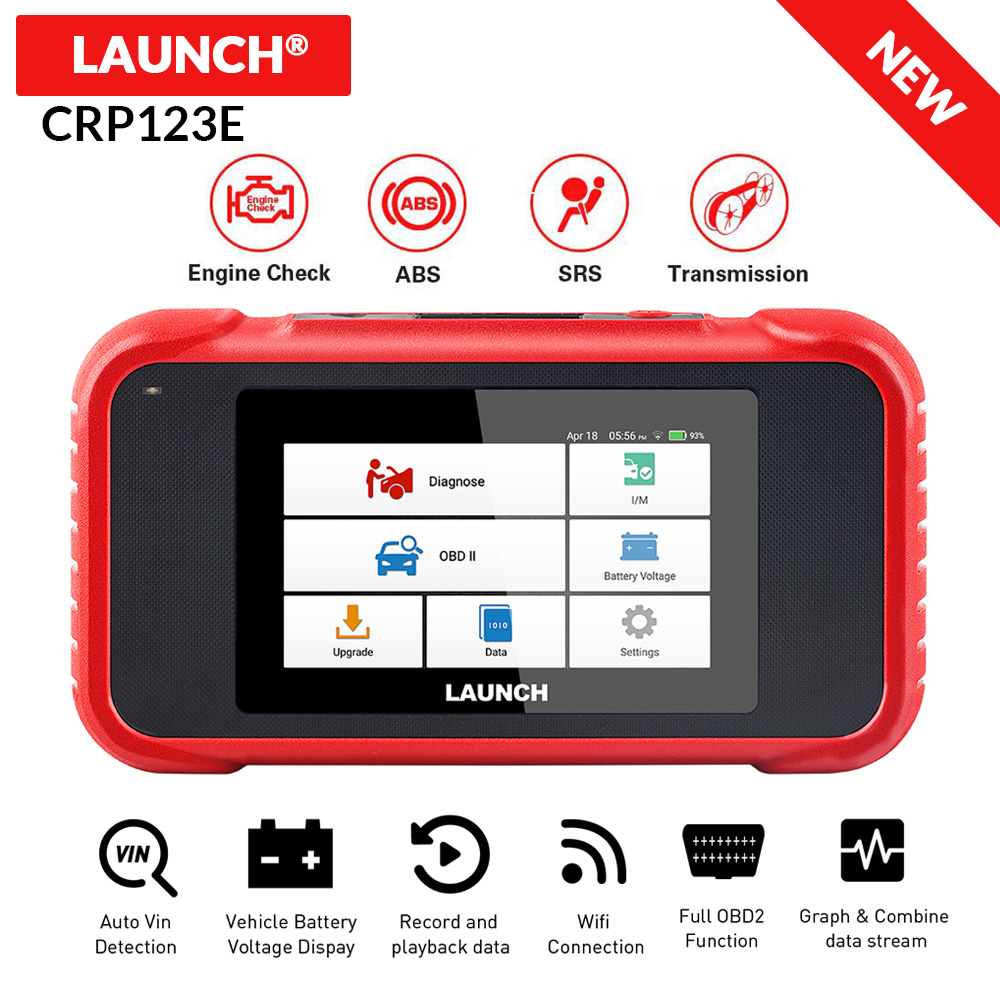

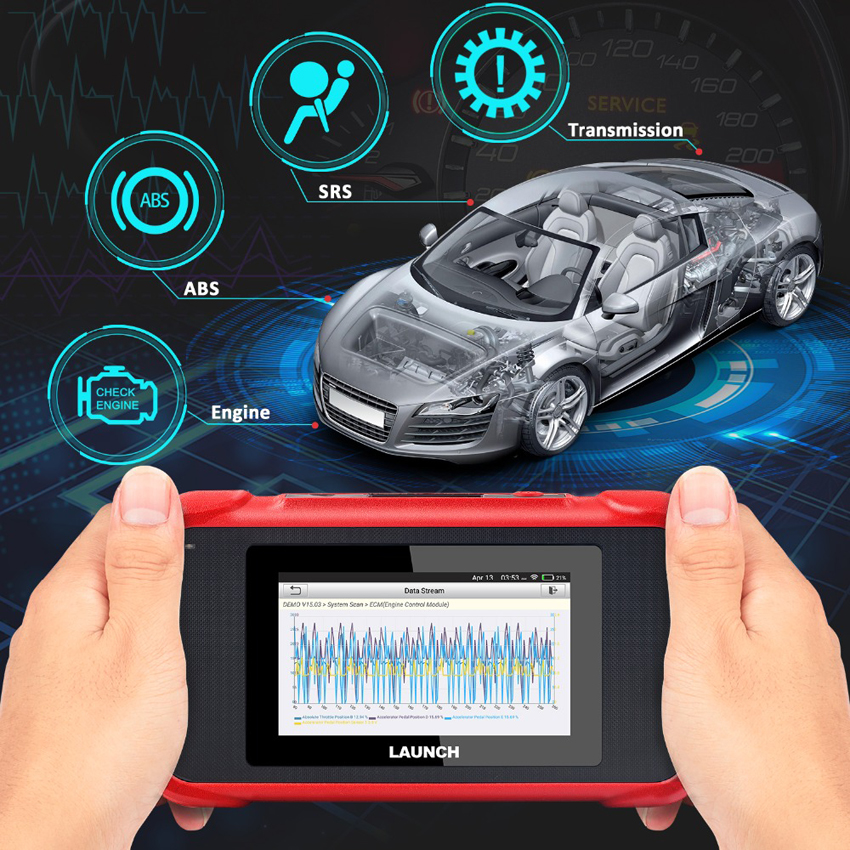

Launch CRP123E supports all 10 models of OBD-II test for a complete diagnosis. X431 CRP 123E also supports the system diagnosis of ABS, SRS, ENG and AT System.
Features:

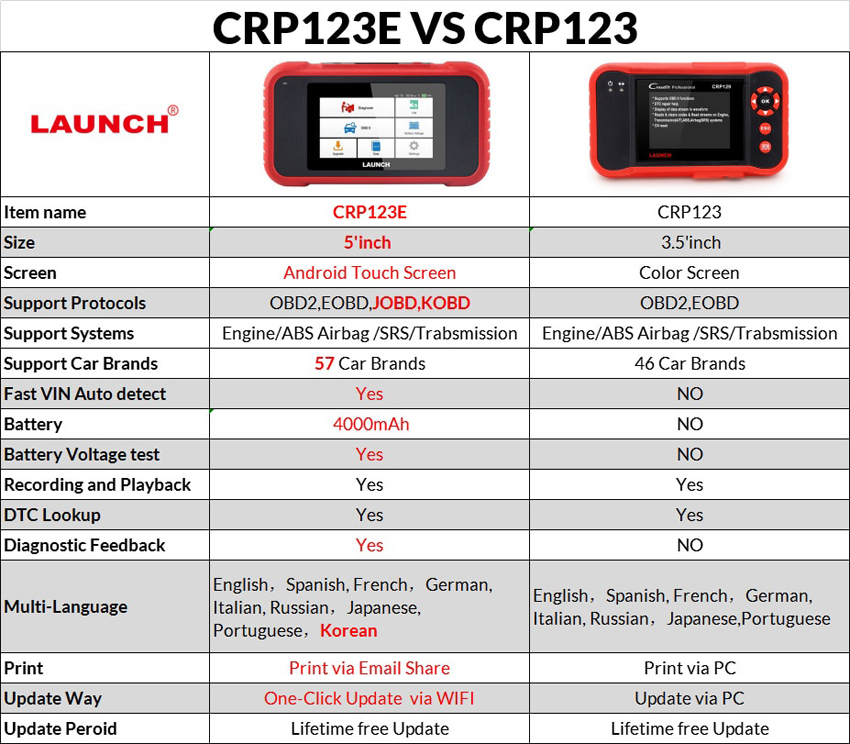

1. CRP123E is an upgraded version of Launch X431 CRP123 and Creader VII+ and supports more car models.
2. Fast VIN autodetect, support WiFi connection , one key update.
3. Automatically generate and upload diagnostic reports.
Supported Languages: English, French, German, Spanish, Portuguese, Italian, Russian, Japanese, Korean
Advantages:

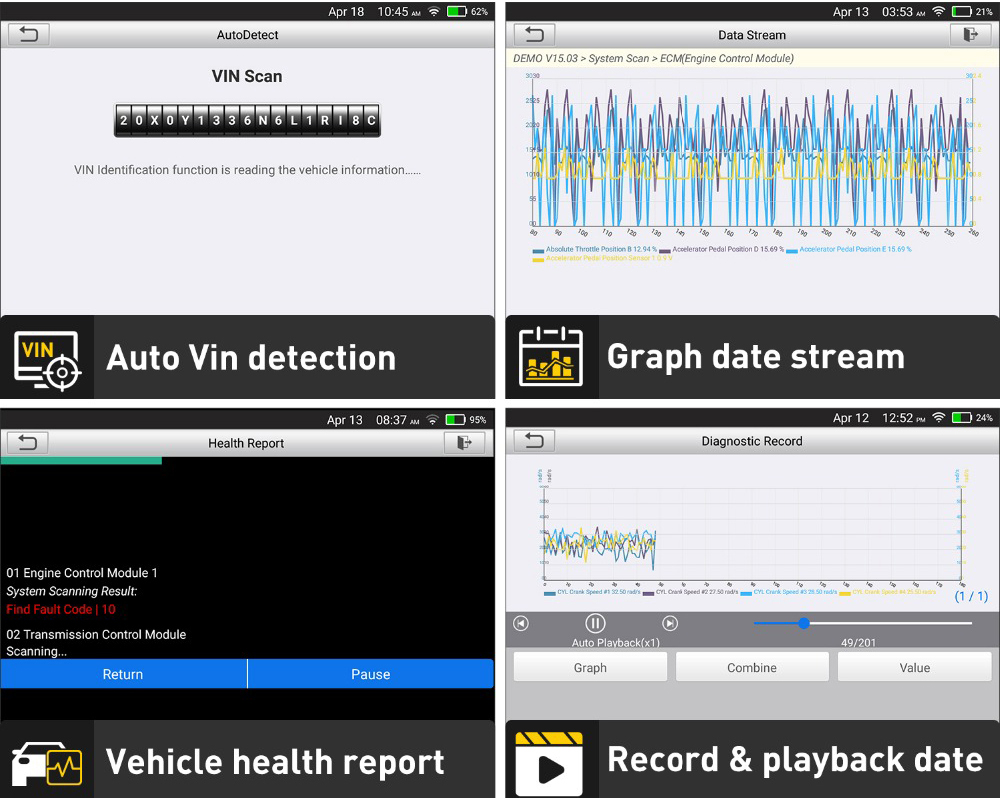

1. Smart(Auto-Detect) Diagnosis: Once the tool and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your email box (if bound).

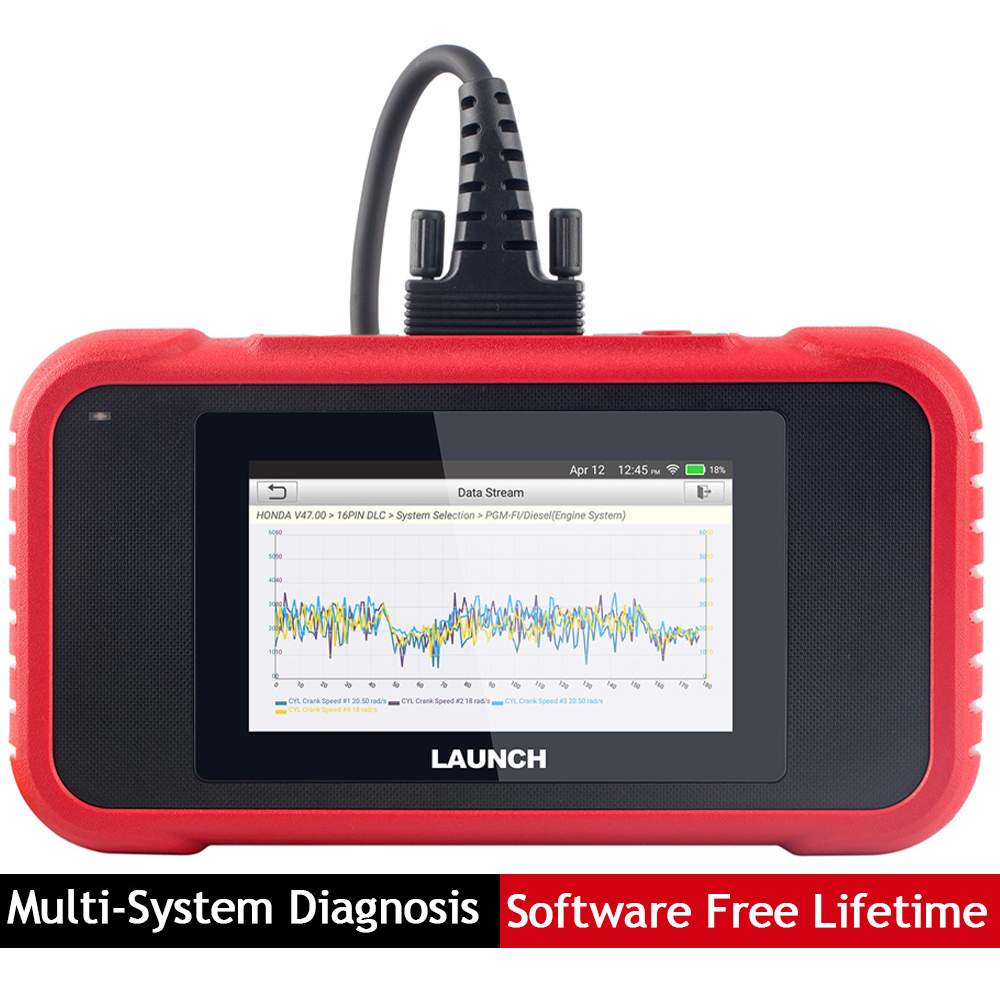

2. Manual Diagnosis: If Auto-Detect failure occurs, manual diagnosis is also available. Diagnosis functions include: Version Information, Read DTCs, Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graph and Merged).
3. OBD-II Diagnosis: 10 modes of OBD2 test are supported, including EVAP, O2 Sensor, I/M Readiness, MIL Status, VIN Info, and Onboard Monitors Testing etc.

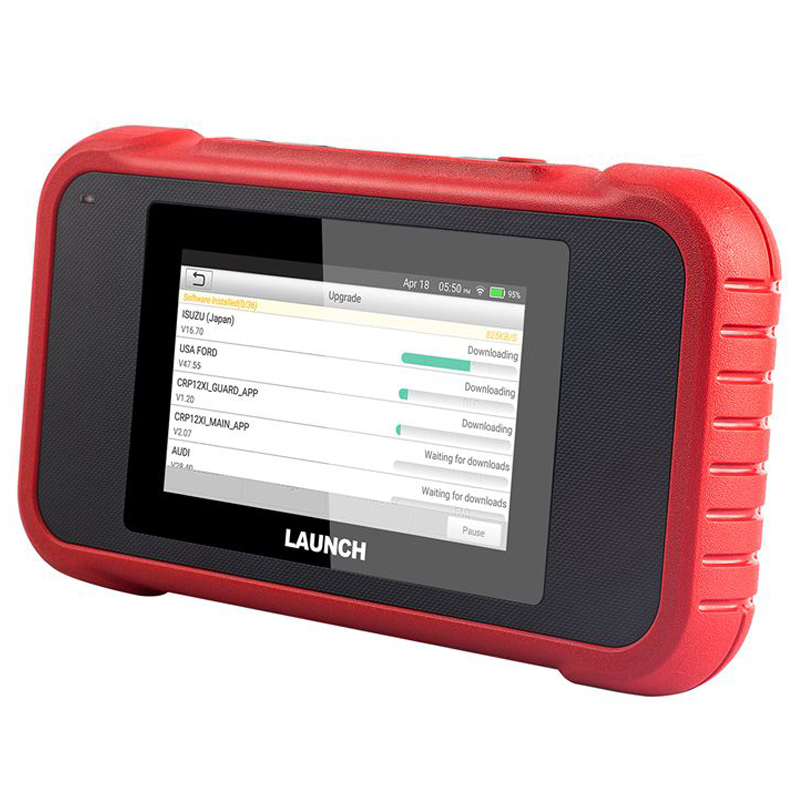

4. One-click Update: Let you update your diagnostic software and APK online.
5. Diagnostic History: This function provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation, without the necessity of starting from scratch.
6. Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and troubleshooting.
7. DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.
8. Displays battery real-time voltage once properly connected to the vehicle.

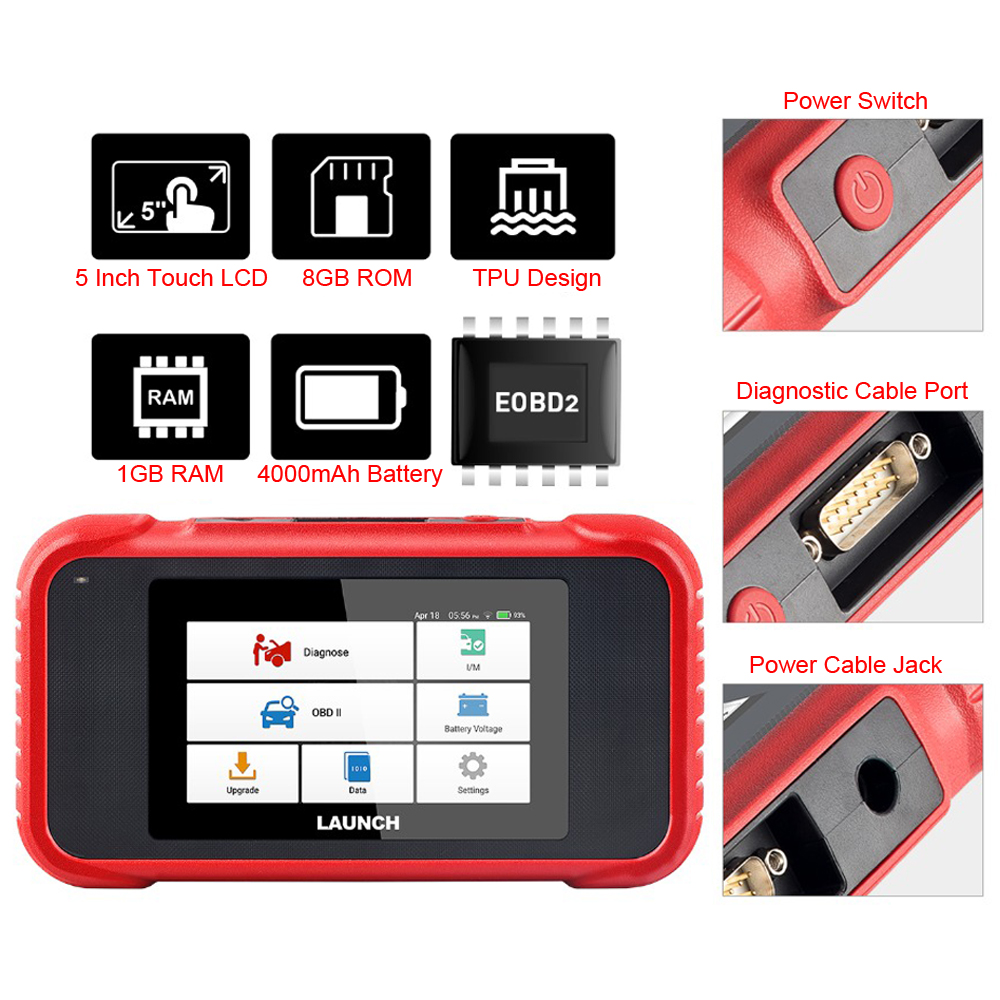

Specifications:
Screen: 5 inch touch screen
RAM: 1G
ROM: 8GB
Battery: 4000mAh rechargeable Li-battery
OBD-II Input Voltage Range: 9 to 18V
Charging: via DC 5V charging cable or diagnostic cable via car battery
Dimension: 228*125*34.5mm
Working Temperature: -10 to 50 degree centigrade
Storage Temperature: -20 to 70 degree centigrade

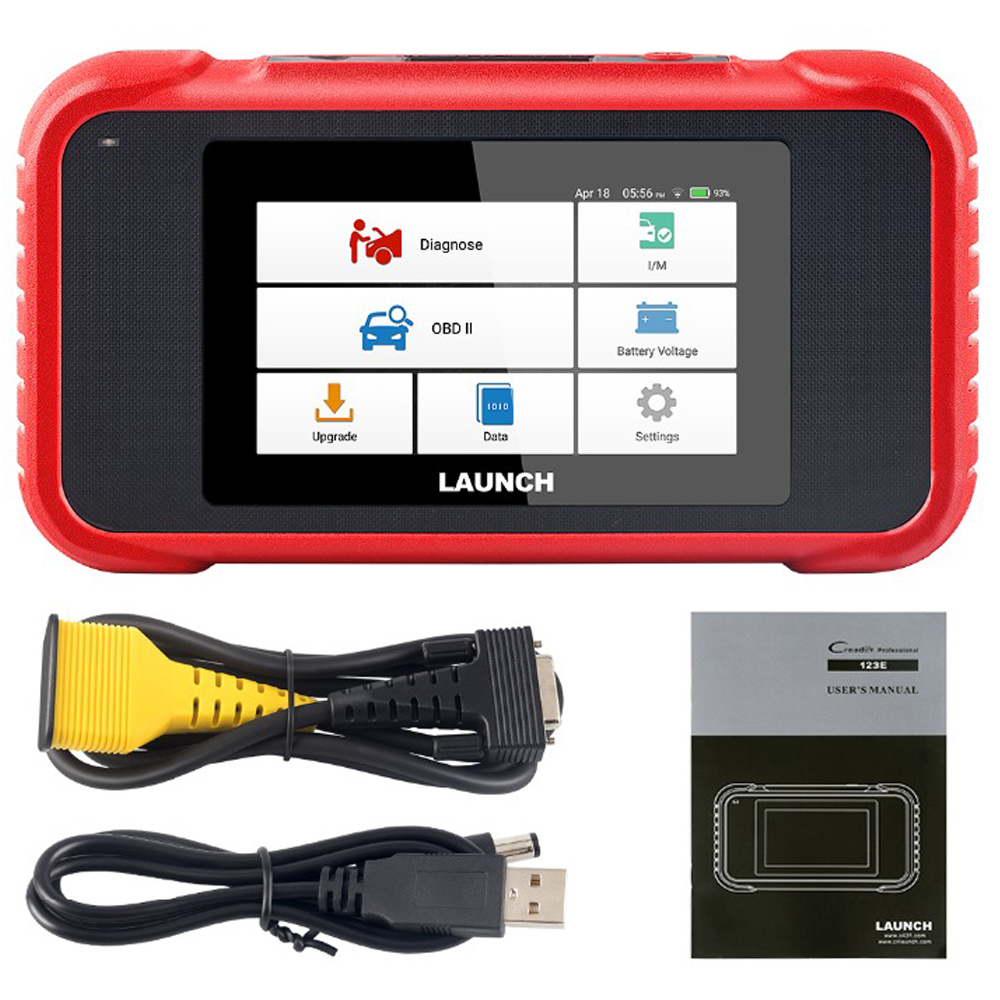

Packing List:
Launch Creader Professional 123E
OBD-II Diagnostic Cable
DC 5V Charging Cable
User Manual

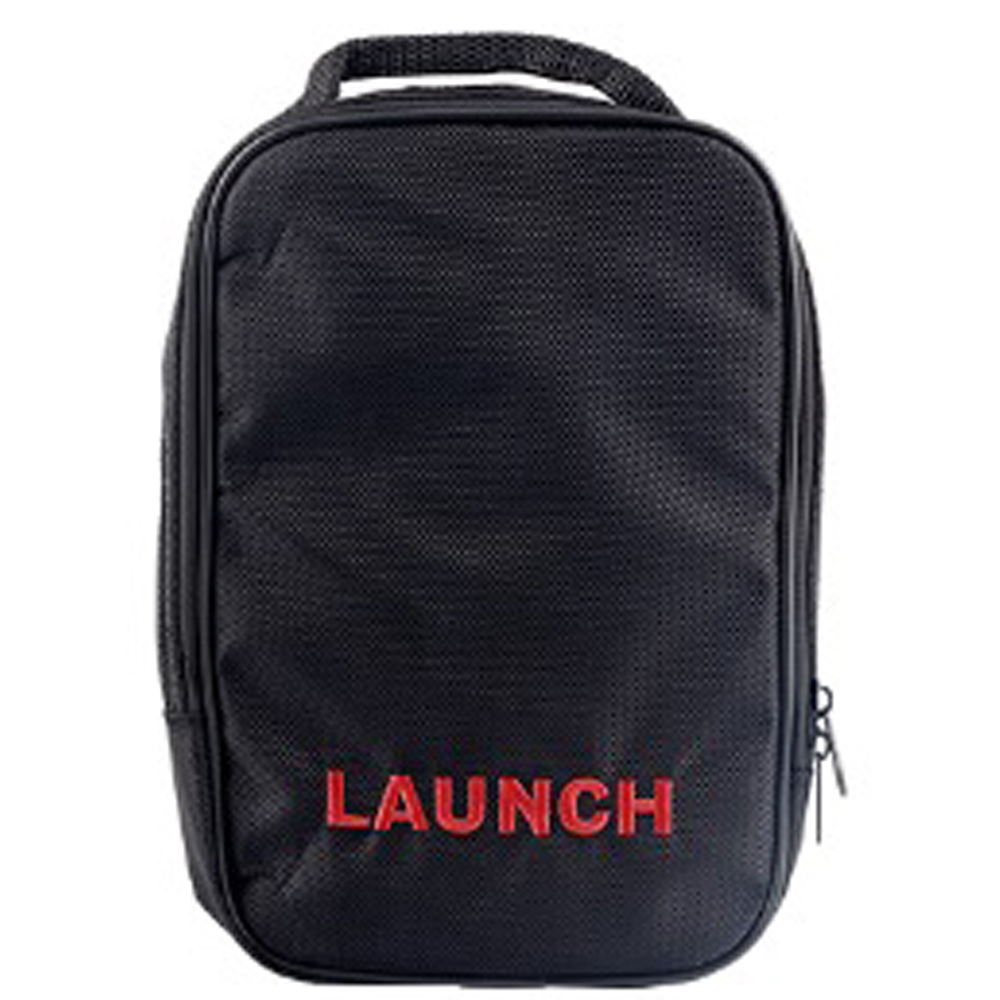

Carrying Pouch
Packing Box
FAQ:
1. System halts when reading data stream. What is the reason?
It may be caused by a slackened connector. Please turn this tool off, firmly
connect the connector, and switch it on again.
2. Screen of main unit flashes at engine ignition start.
Caused by electromagnetic disturbing, and this is normal phenomenon.
3. There is no response when communicating with onboard computer.
Please confirm the proper voltage of power supply and check if the throttle
has been closed, the transmission is in the neutral position, and the water is in
proper temperature.
4. What to do if the system fails to start auto VIN detection?
Please check the following possible reasons:
1). Whether the tool is properly connected to the vehicle DLC.
2). Whether the “Automatic detection on Connect” switch is OFF. If yes, slide it to ON.
5. Why there are so many fault codes?
Usually, it is caused by poor connection or fault circuit grounding.
6. How to upgrade the system software?
1). Switch the tool on and ensure a stable Internet connection.
2. Tap “Setting” on the Job menu, select “About” – “Version”, and tap “Detect the System Version” to enter the system upgrading page.
3). Follow the on-screen instructions step by step to finish the process. It may
take several minutes depending on the Internet speed, please be patient. After
upgrade is successfully finished, the tool will automatically restart and enters
|
