Description:



MC68HC705B16 Motorola 705 Programmer supports programming of Motorola 68HC05Bxx, 68HC05Xxx microcontrollers internal EEPROM - most used programmable device in car radios, automotive computers (dashboards, Airbag, immobilizers).

d

A parallel port interface (LPT1, LPT2) connects the programmer to any desktop PC running DOS or Windows systems.



The four jumpers located on the programmer board are intending for device type selection. Smart firmware controls all read/program operations so access to device can be establish even if device secured. Default settings permit to read and write Motorola MCU internal EEPROM without processor structure knowledge. The Device Menu displays all available functions to perform on the device (read, program, verify, program security, etc...). A full screen editor is provided to view or edit any address of the programming buffer in binary or ASCII formats.



Hardware Specifications:



On-board device programming.

Parallel (Communication Port) port interface works on (LPT1, LPT2)



Supported Chip List:



MC68HC705B16

MC68HC705B32

MC68HC705X16

MC68HC705X32

MC68HC05B68

MC68HC05B616

MC68HC05B632

MC68HC05X16

MC68HC05X32



Packing List:

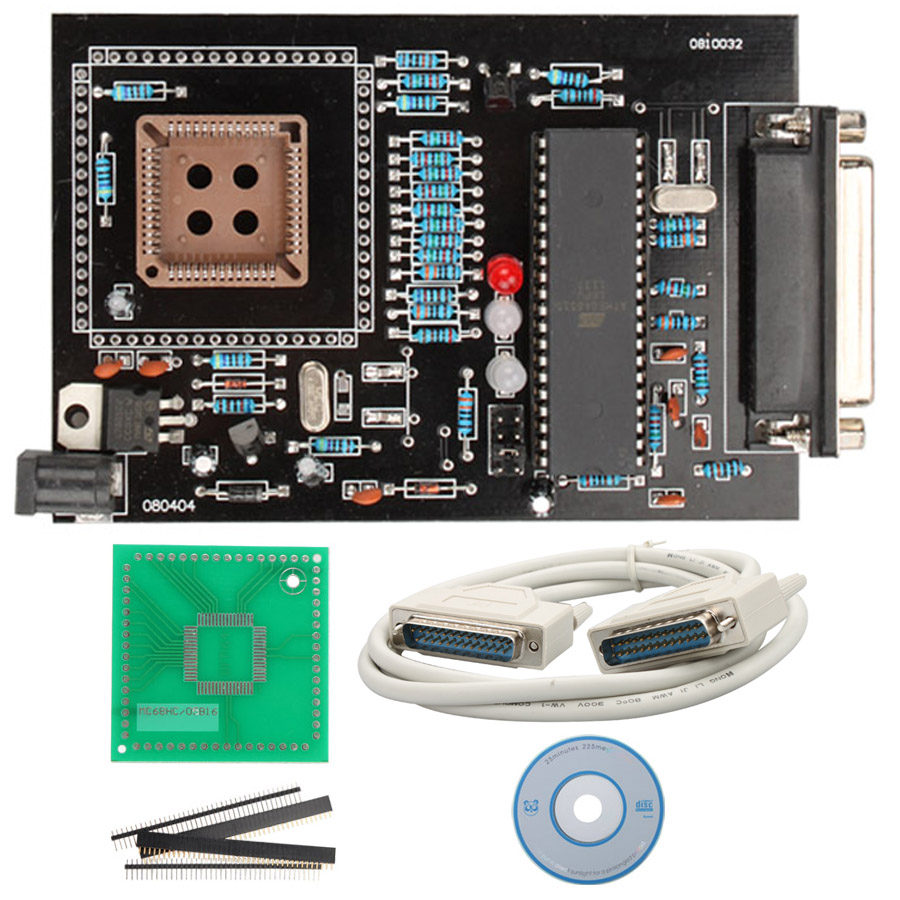

Motorola 705 Programmer

MC68HC705B16 QFP-64 adapter

Connection cable

Software CD
