Name: Motorola 908 Programmer (ETL HC08 Programmer)
Description:
A parallel port interface (LPT1, LPT2) connects the programmer to any desktop PC running Windows 98/NT/XP.
Windows based MC68HC908AZ60 Motorola 908 Programmer software makes programming simple.
Motorola 908 Programmer has 2 interfaces: In-circuit and On-Board. In-circuit programming interface designed to allow fast access to MCU EEPROM resources. In this mode programmer automatically detects target MCU bus speed. On-Board programming interface is intended for full access to EEPROM/FLASH resources even if security sequence unknown. In this mode programmer automatically find out security sequence and store it. The Device Menu displays all available functions to perform on the device (read, program, verify, etc...). The MC68HC908AZ60 Programmer can process 2 popular file formats - Motorola S-record and binary. A full screen editor is provided to view or edit any address of the programming buffer in binary or ASCII formats.
Supported Chip List:
MC68HC908AZ60 (2J74Y)
MC68HC908AZ60 (4J74Y)
MC68HC908AZ60A (3K85K)
MC68HC908AS60 (3J74Y)
MC68HC908AB32 (3K56G)
MC68HC08AZ60 (1J35D)
MC68HC08AZ32 (0J66D)
MC68HC08AZ32 (1H56A)
MC68HC08AS20 (0H94K)
MC68HC08AZ32A (1L52H)
MC68HC05H12 (0H57A) 4.19 MHz
MC68HC908AS60A (1L87J)
MC68HC05H12 (0H57A) 4.00 MHz
MC68HC08AB16A (0L72A)

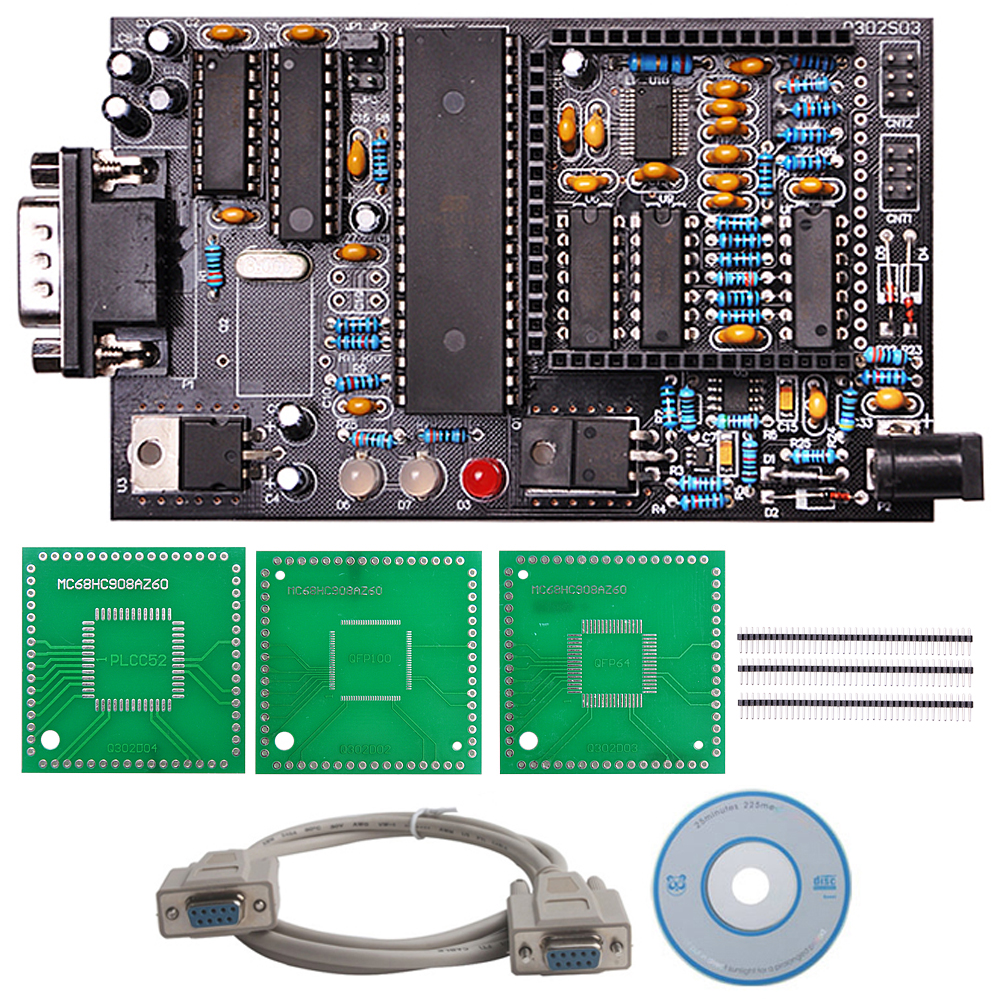

Packing List:
Motorola 908 Programmer
MC68HC908AZ60 QFP-100 adapter
MC68HC908AZ60 QFP-64 adapter
MC68HC908AZ60 PLCC-52 adapter
RS232 cable
Software CD
|
